Hydraulic Product Manufacturer: P120-G1 Monoblock Valve

制御方法:手動

スプール:1スプール

定格流量:120 L/分 (31.7 US gpm)

最大圧力:250 bar (3600 psi)

吸入口:G1

吐出口:G1

ポートサイズ:G1

ベンダー:BXHS

製品タイプ:モノブロック方向制御弁

製品シリーズ:P120シリーズ モノブロック方向制御弁

梱包サイズ:19*35*16

総重量:13.60 kg

在庫状況: 在庫あり

983 この製品を探している人もいます

Hydraulic Product Manufacturer: P120-G1 Monoblock Valve

Hydraulic Product Manufacturer: P120-G1 Monoblock Valve

Hydraulic Product Manufacturer: P120-G1 Monoblock Valve drawing image

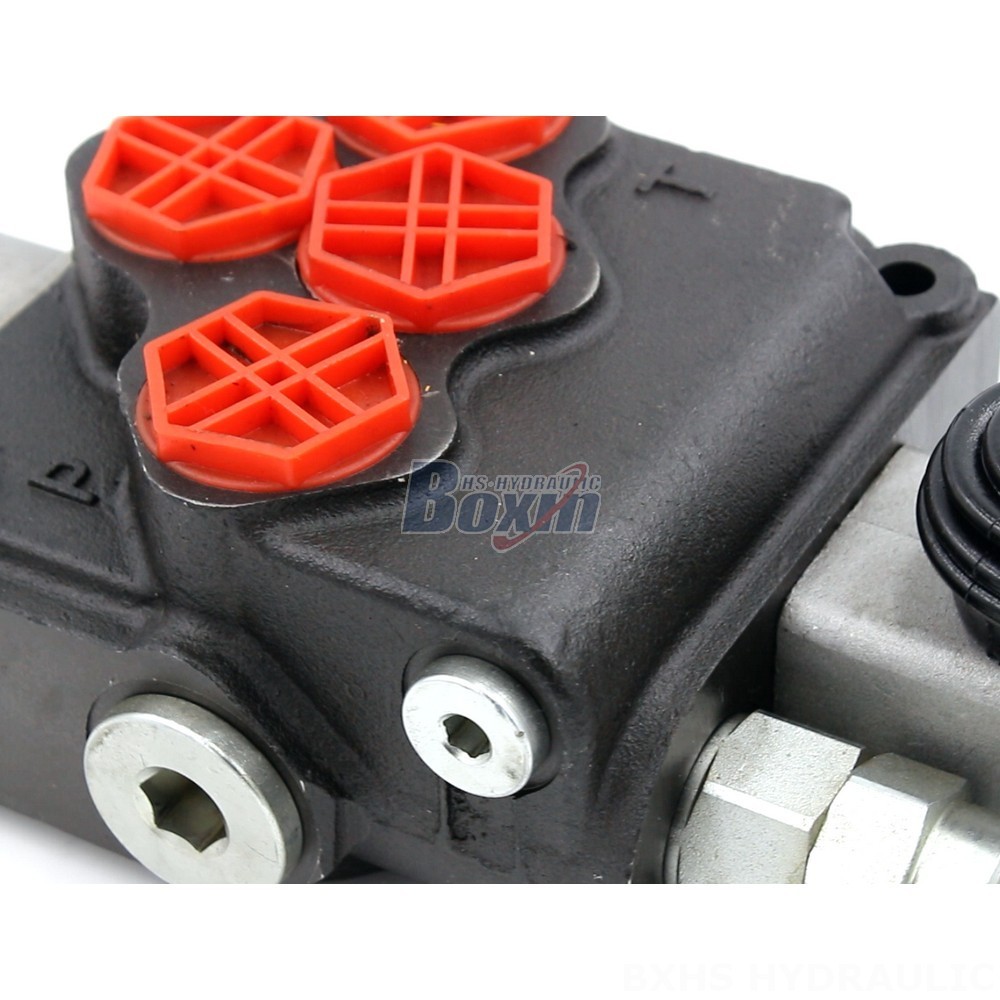

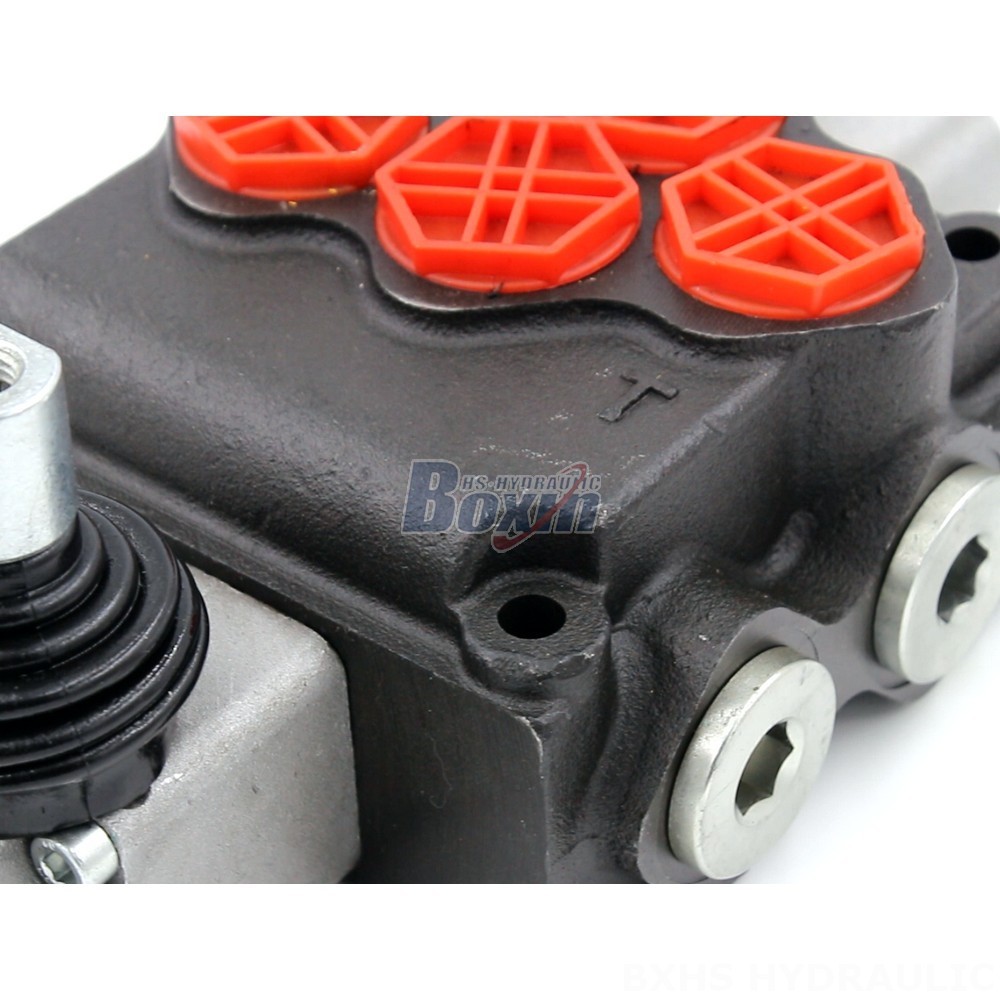

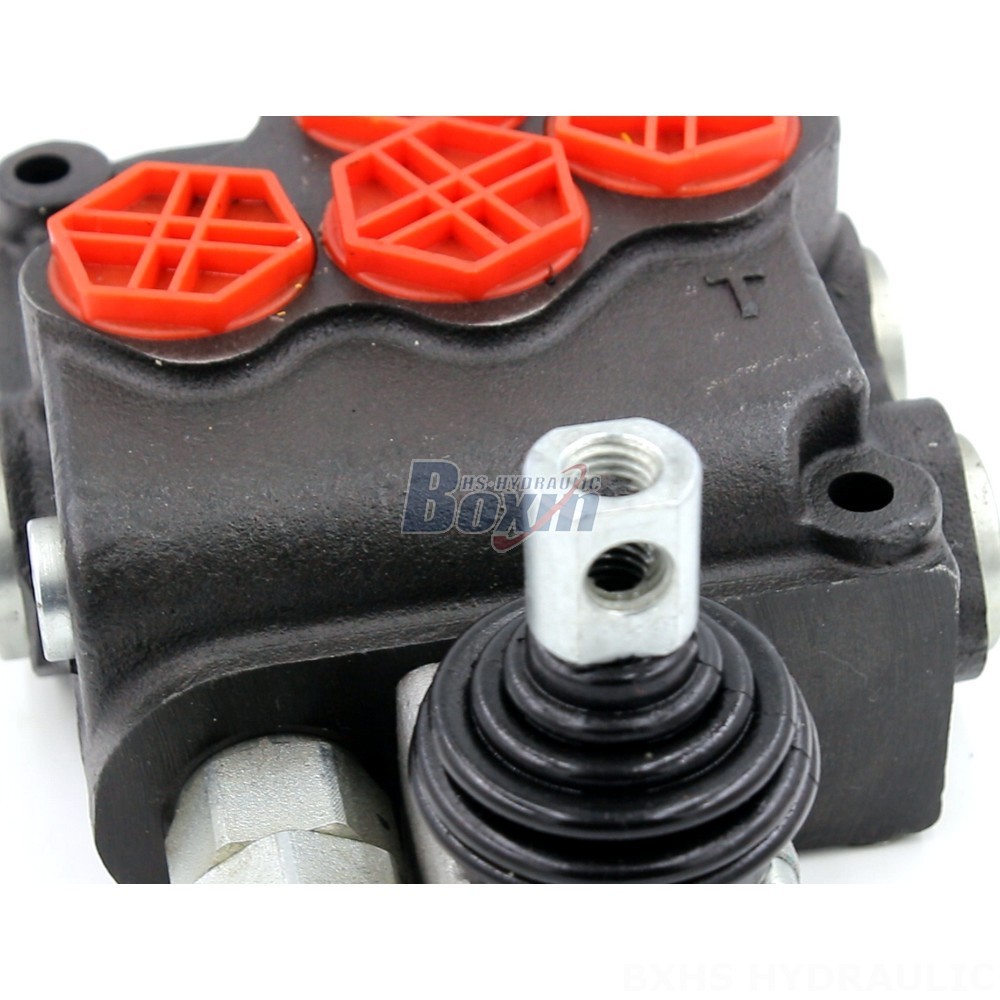

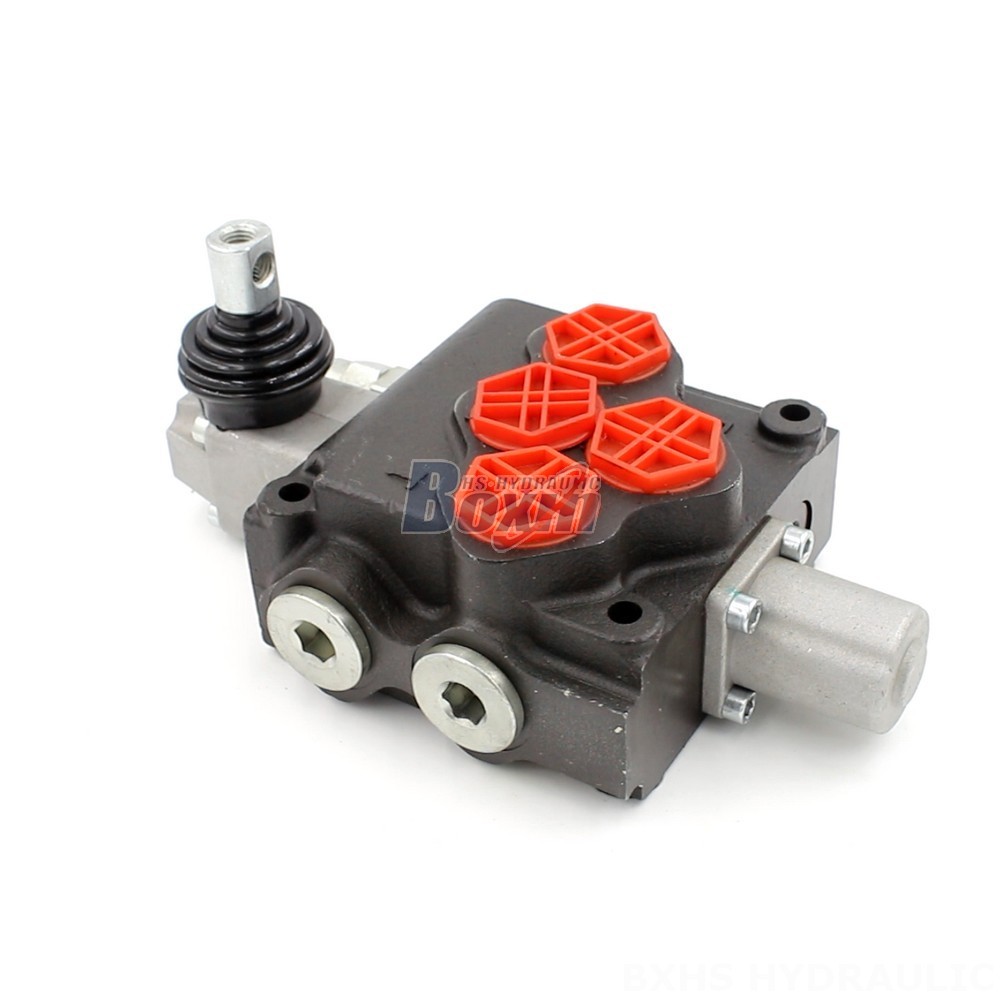

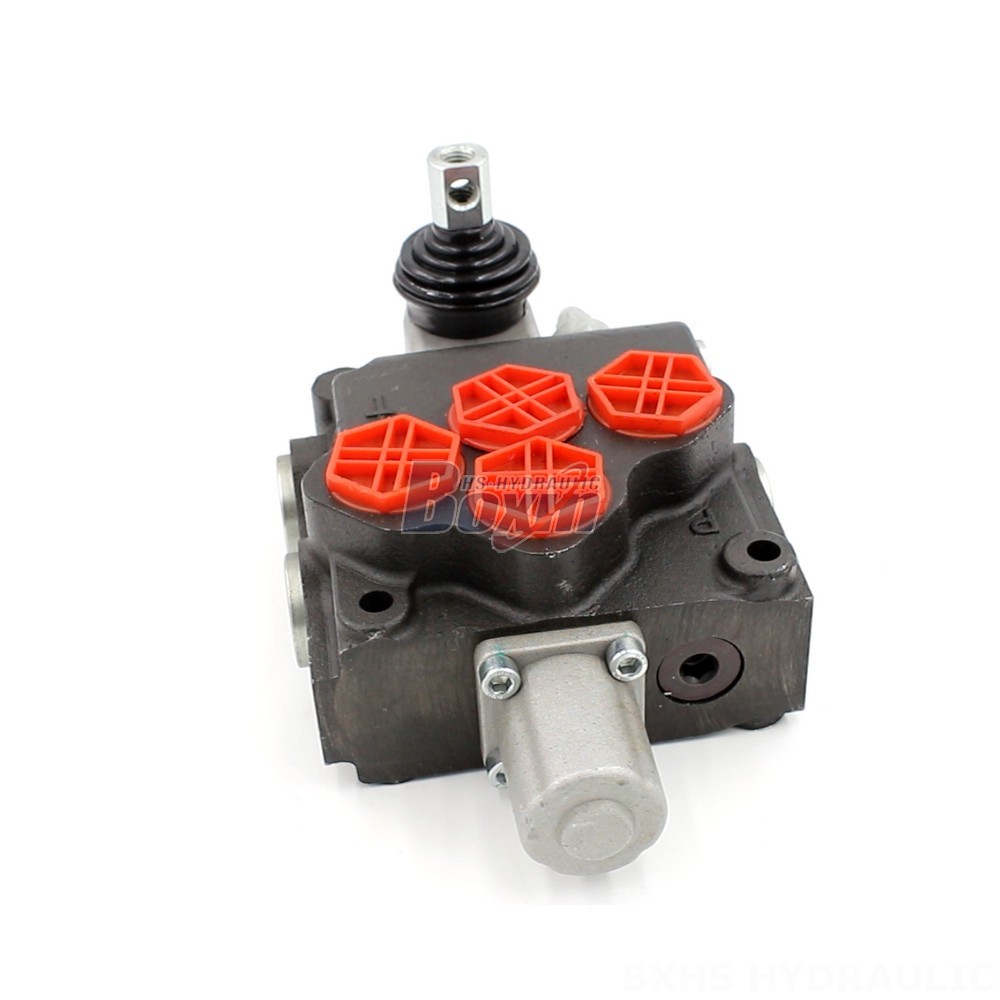

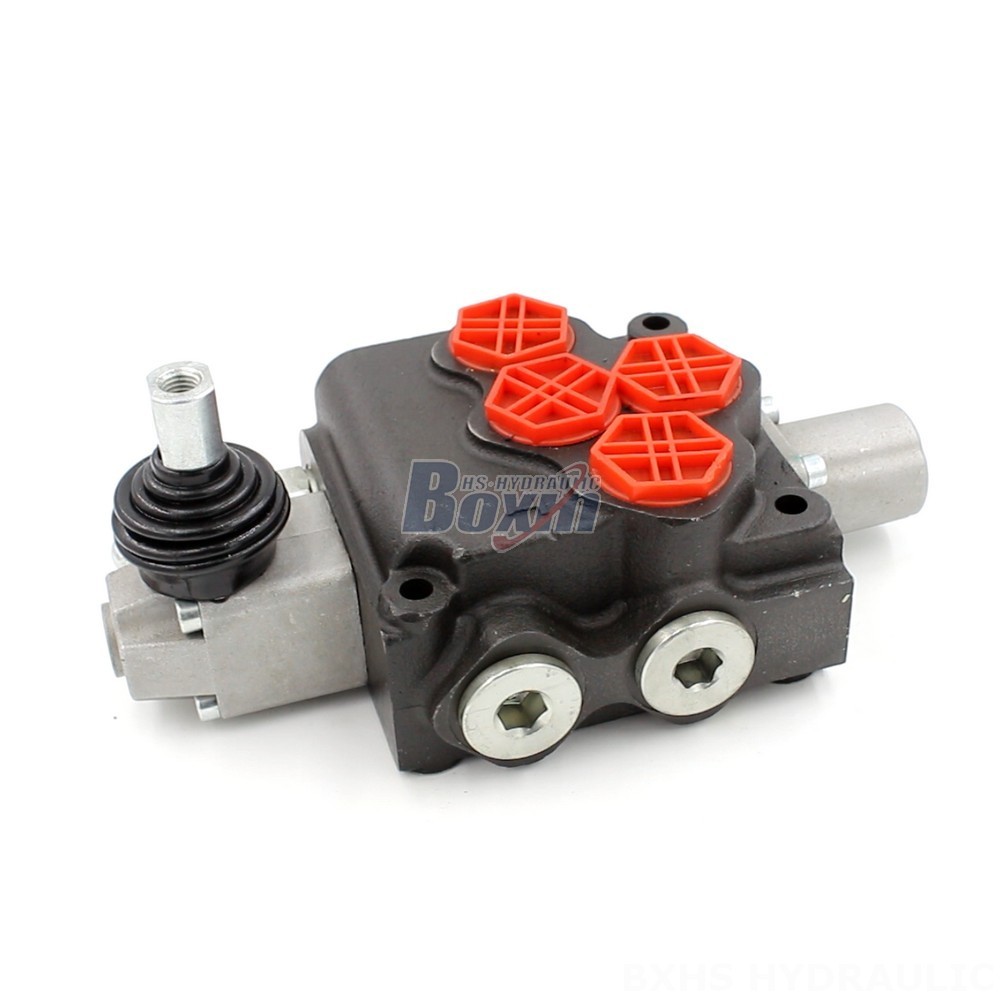

The P120-G1 Monoblock Valve is a high-performance, adjustable hydraulic flow divider valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. This manual control valve features a compact, robust design with a rated flow of 120 L/min (31.7 US gpm) and a maximum pressure of 250 bar (3600 psi).

P120シリーズ モノブロック方向制御弁 パラメーター
制御方法 手動, ケーブル, ジョイスティック, 手動・ジョイスティック
スプール 1スプール, 2スプール, 3スプール, 4スプール
定格流量 120 L/分 (31.7 US gpm)
最大圧力 250 bar (3600 psi)
吸入口 G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2
吐出口 G1, SAE 16, 1 NPT, M36×2
ポートサイズ G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2
セクション 1セクション, 2セクション, 3セクション, 4セクション
構造タイプ モノブロック弁
周囲温度範囲 -40°C to +80°C (-40°F to +176°F)
作動粘度範囲 15 - 75 mm²/s (15 cSt to 75 cSt)

The P120-G1 Monoblock Valve is a reliable and efficient solution for controlling hydraulic flow in demanding applications. Its robust monoblock construction ensures durability and long service life. This adjustable flow divider valve allows for precise control of hydraulic fluid flow, enabling optimized performance in various equipment such as telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. The valve operates at a flow rate of 120 L/min (31.7 US gpm) and a maximum pressure of 250 bar (3600 psi), making it suitable for high-demand applications. The manual control method provides simple and direct operation. The P120-G1 Monoblock Valve is a versatile and reliable solution for a wide range of applications in the construction, agriculture, and industrial vehicle sectors.
