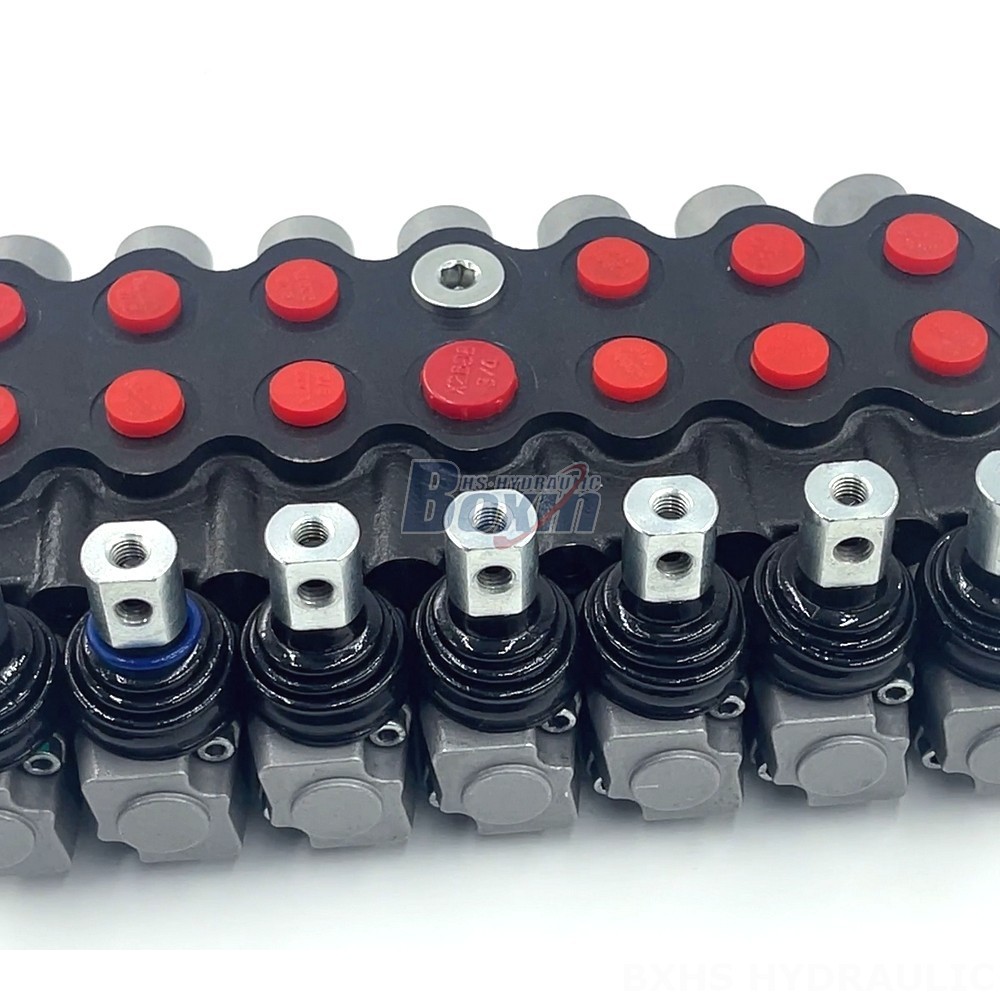

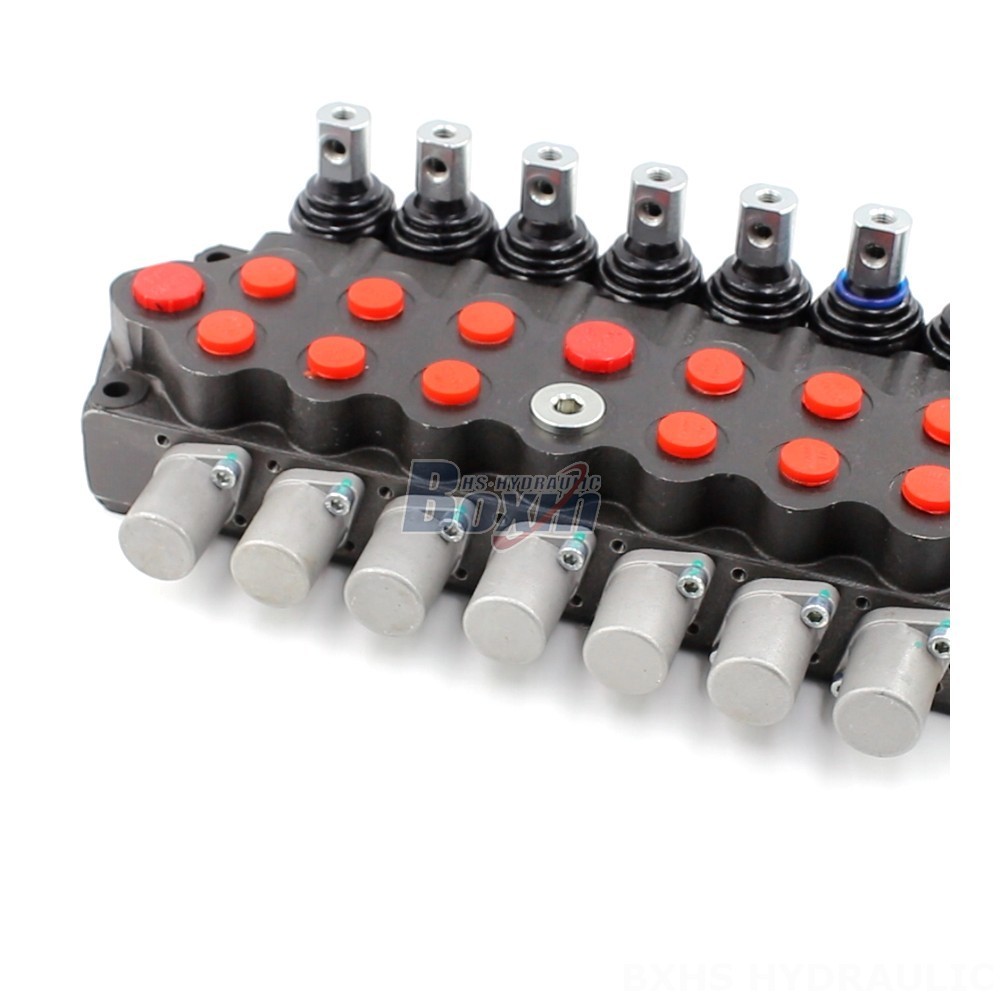

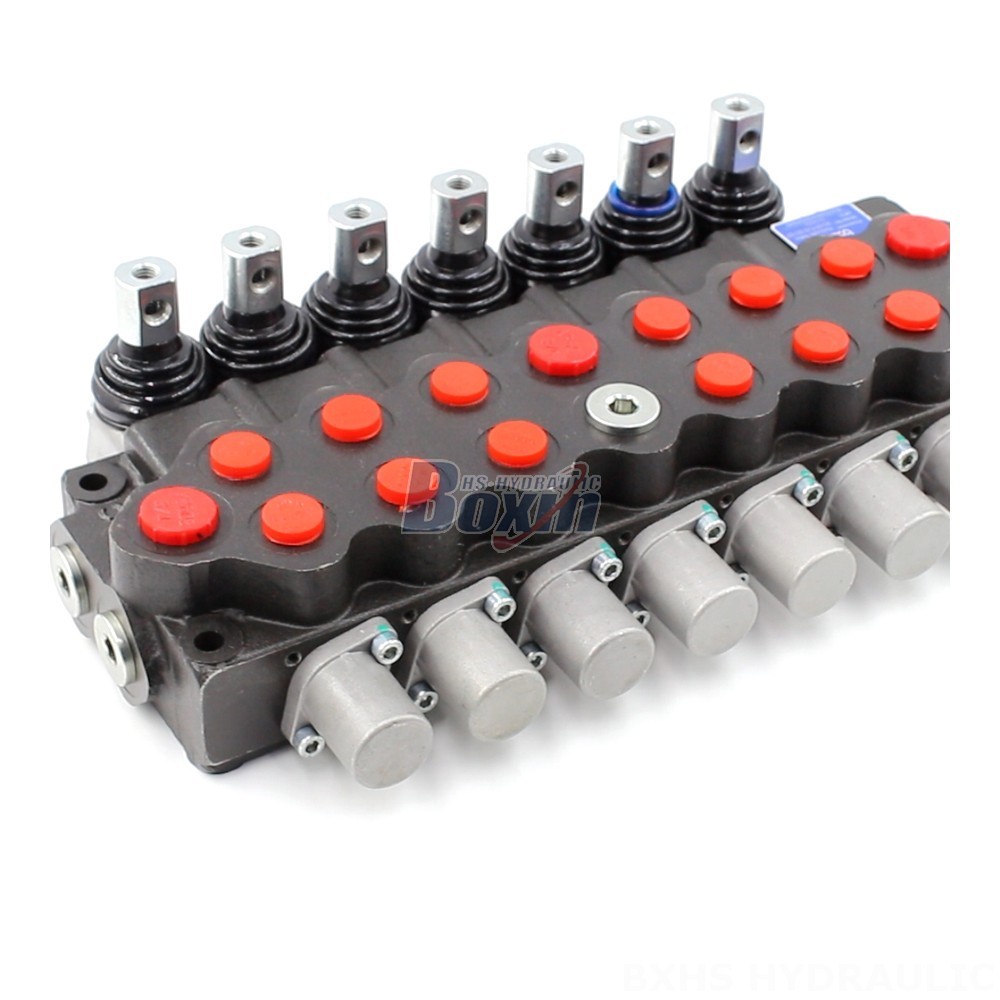

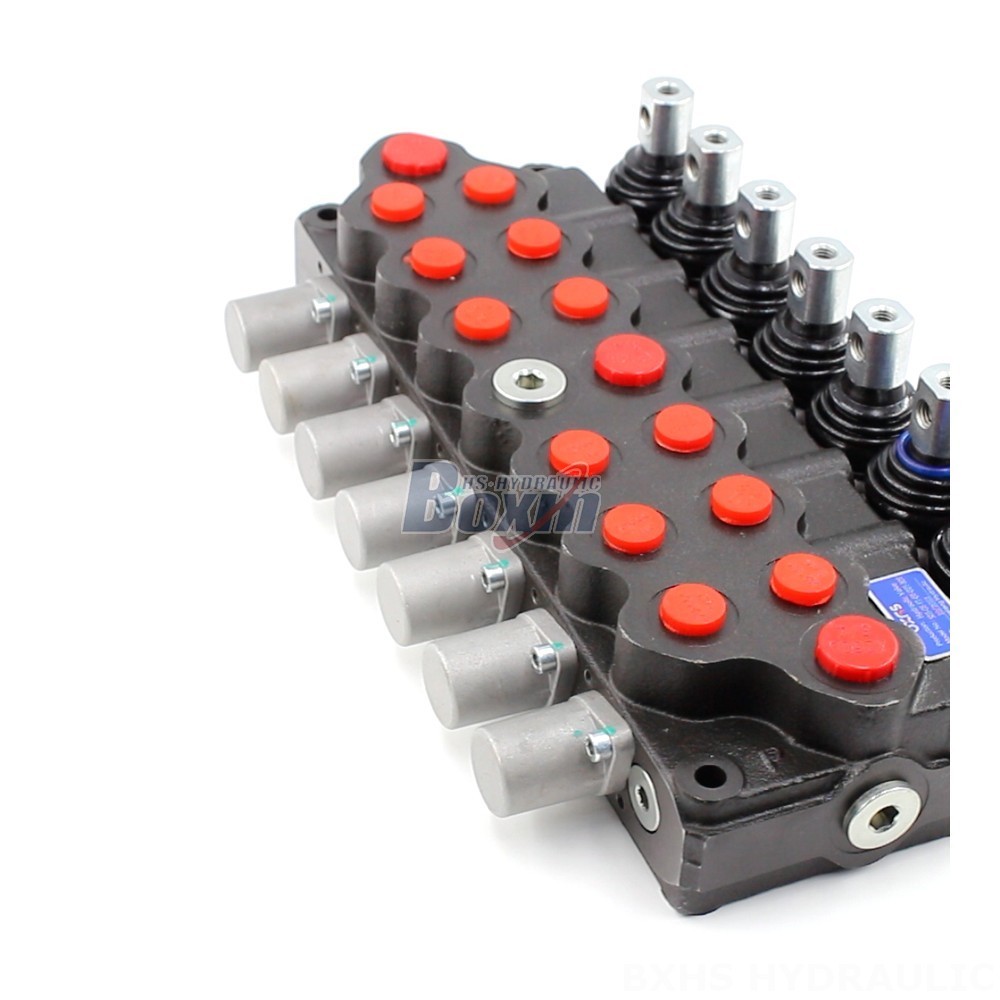

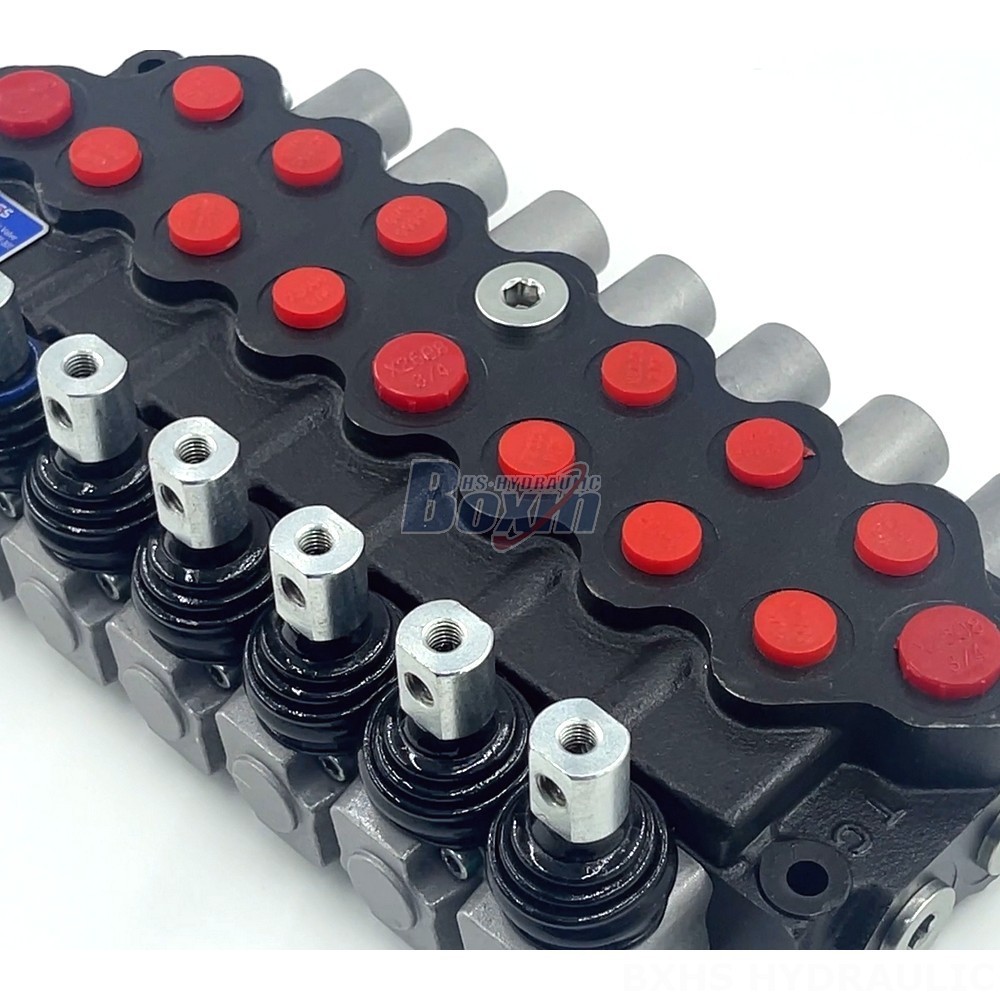

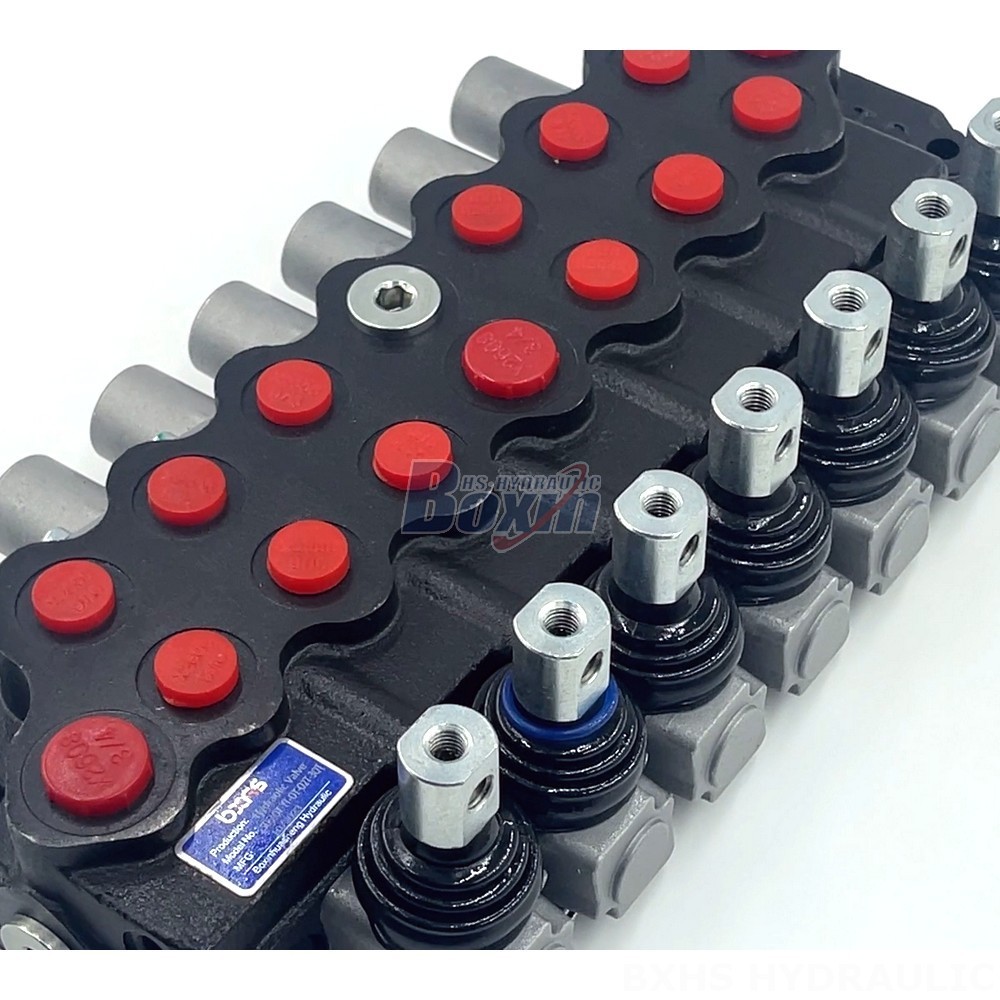

The SD5 Series Hydraulic Monoblock Valve is a high-performance, 7-section, manual control valve designed for excavators and other construction, agriculture, and industrial vehicles. It features a rated flow of 40 L/min and a max pressure of 305 bar, making it suitable for a wide range of applications. This valve is available for factory direct sales and offers customization options.
| SD5シリーズ モノブロック方向制御弁 パラメーター | |
|---|---|
| 制御方法 | 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック |
| スプール | 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール |
| 周囲温度範囲 | -40°C to +60°C (-40°F to +140°F) |
| 構造タイプ | モノブロック弁 |
| セクション | 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション |
| 作動粘度範囲 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 定格流量 | 毎分40リットル (10.5 US gpm) |
| 最大圧力 | 305 bar (4400 psi) |
| 吸入口 | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| 吐出口 | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| ポートサイズ | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
The SD5 Series Hydraulic Monoblock Valve is a reliable and efficient solution for controlling hydraulic systems in various equipment. It is designed with a 7-section configuration for precise control and versatile functionality. The valve's high flow rate and pressure rating ensure smooth and powerful operation for demanding applications. Its robust construction and wide operating temperature range guarantee long-lasting performance in challenging environments. This valve is ideal for telehandlers, forklifts, stackers, aerial platforms, mini-excavators, compact wheel loaders, harvesters, bale wrappers, seeding machines, and wood splitters. Our factory direct sales model provides competitive pricing and ensures high-quality products. We also offer customization options to meet your specific requirements.
