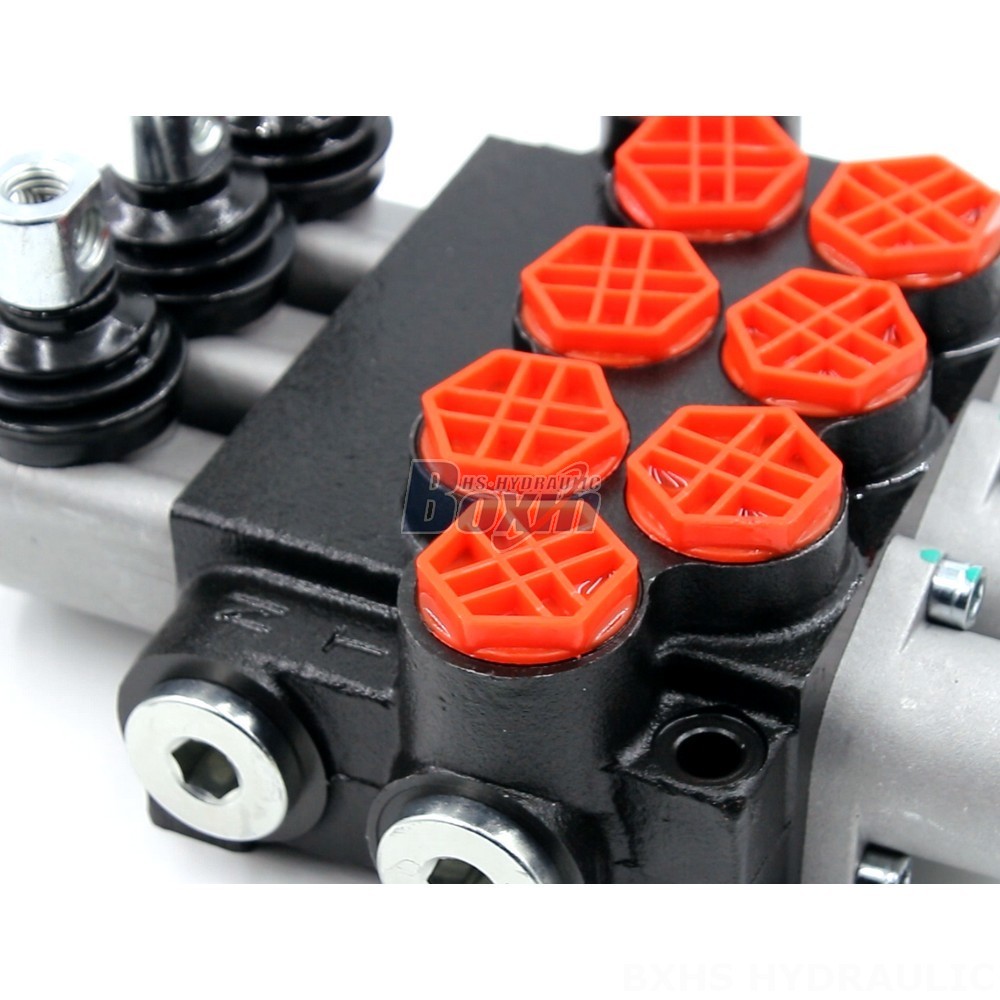

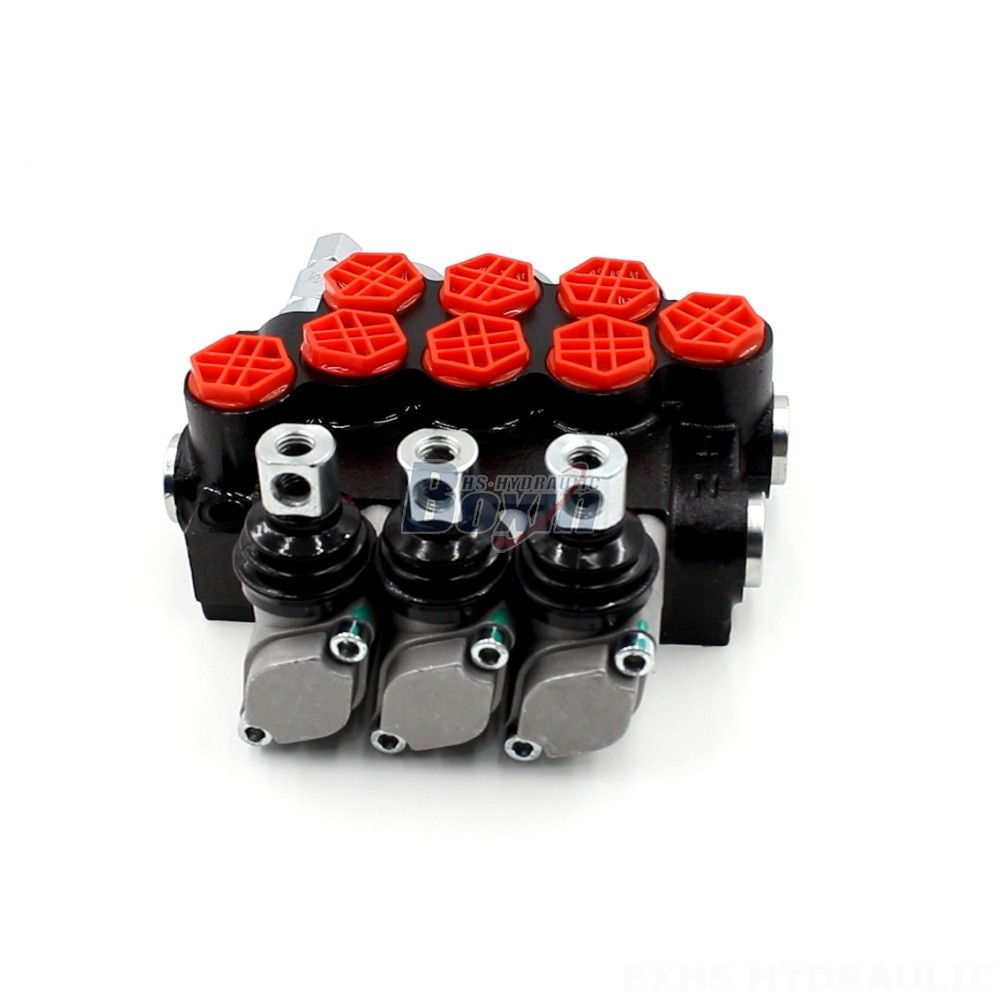

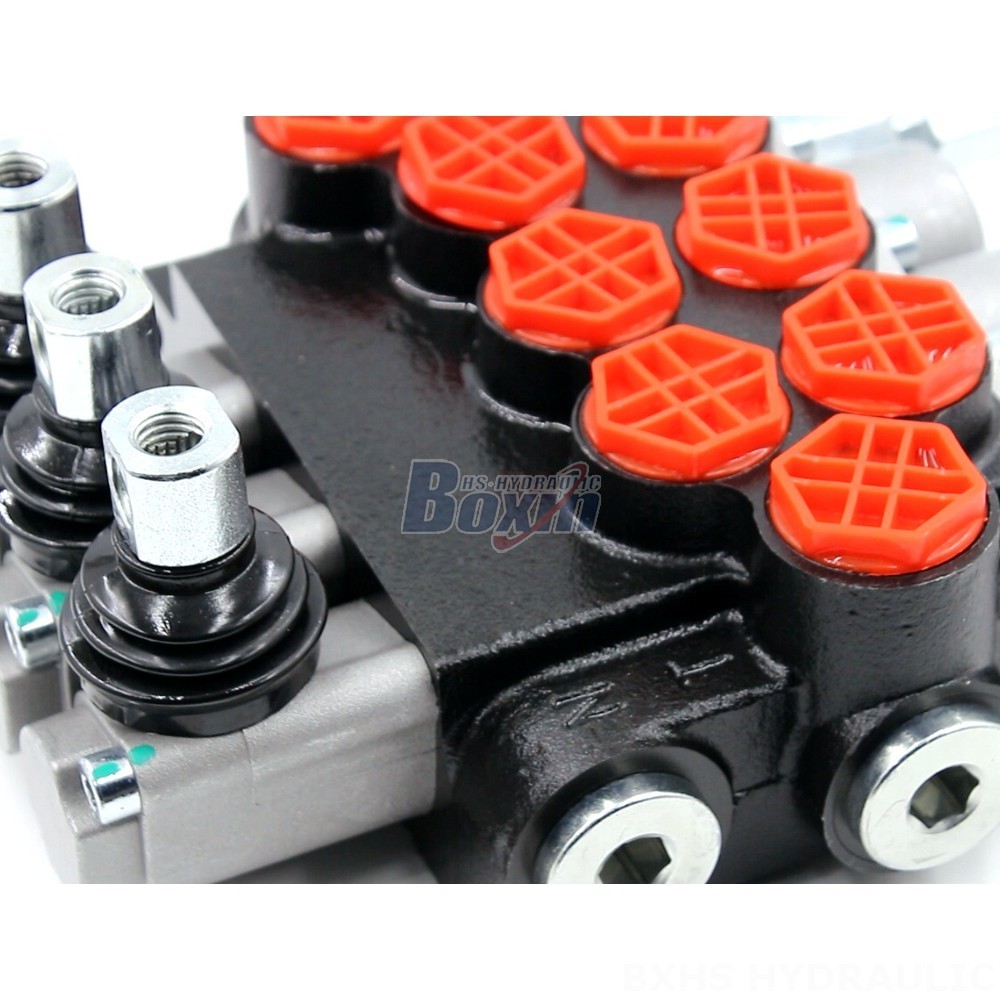

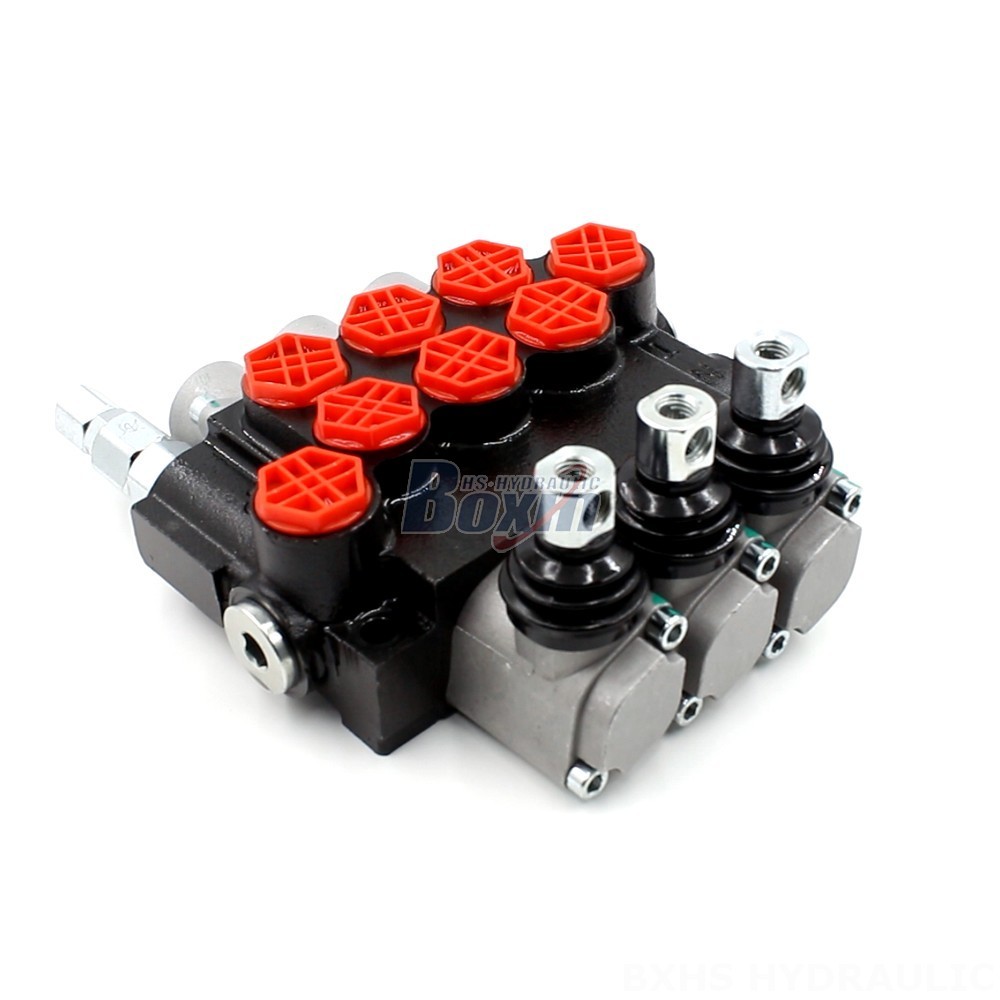

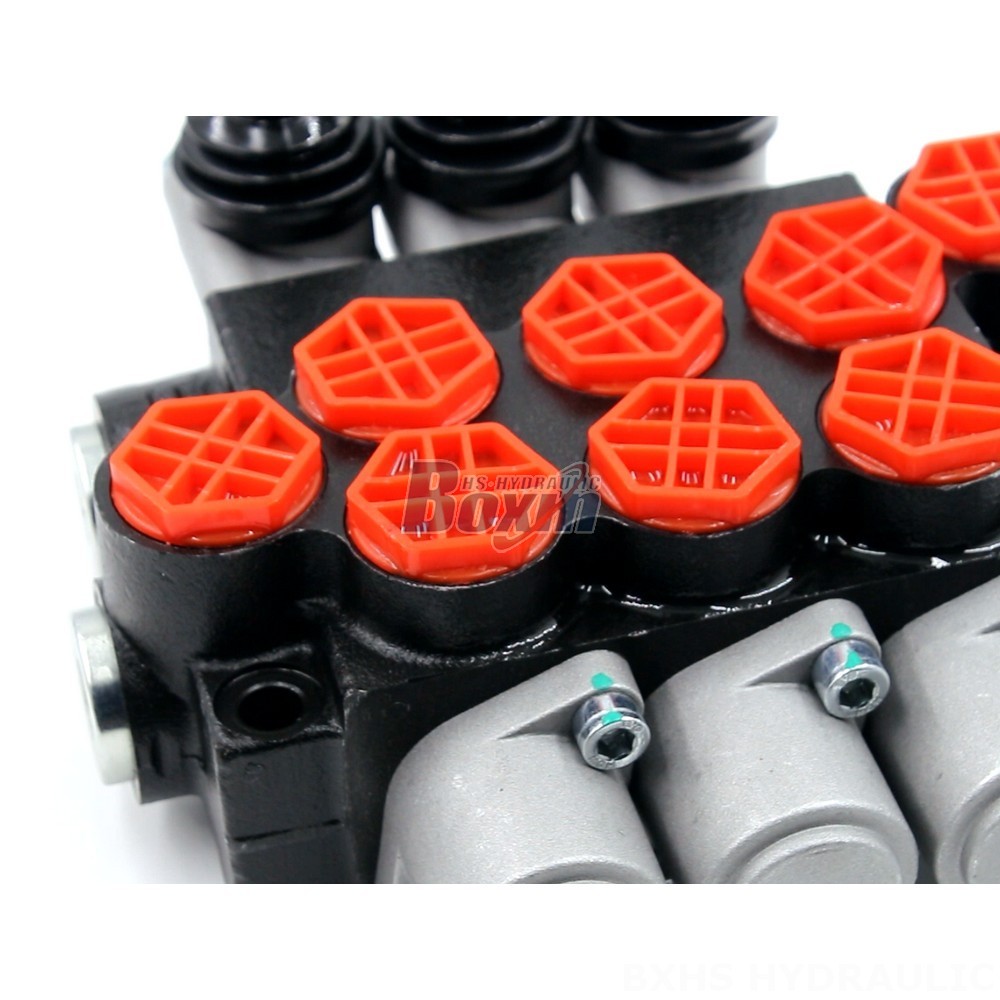

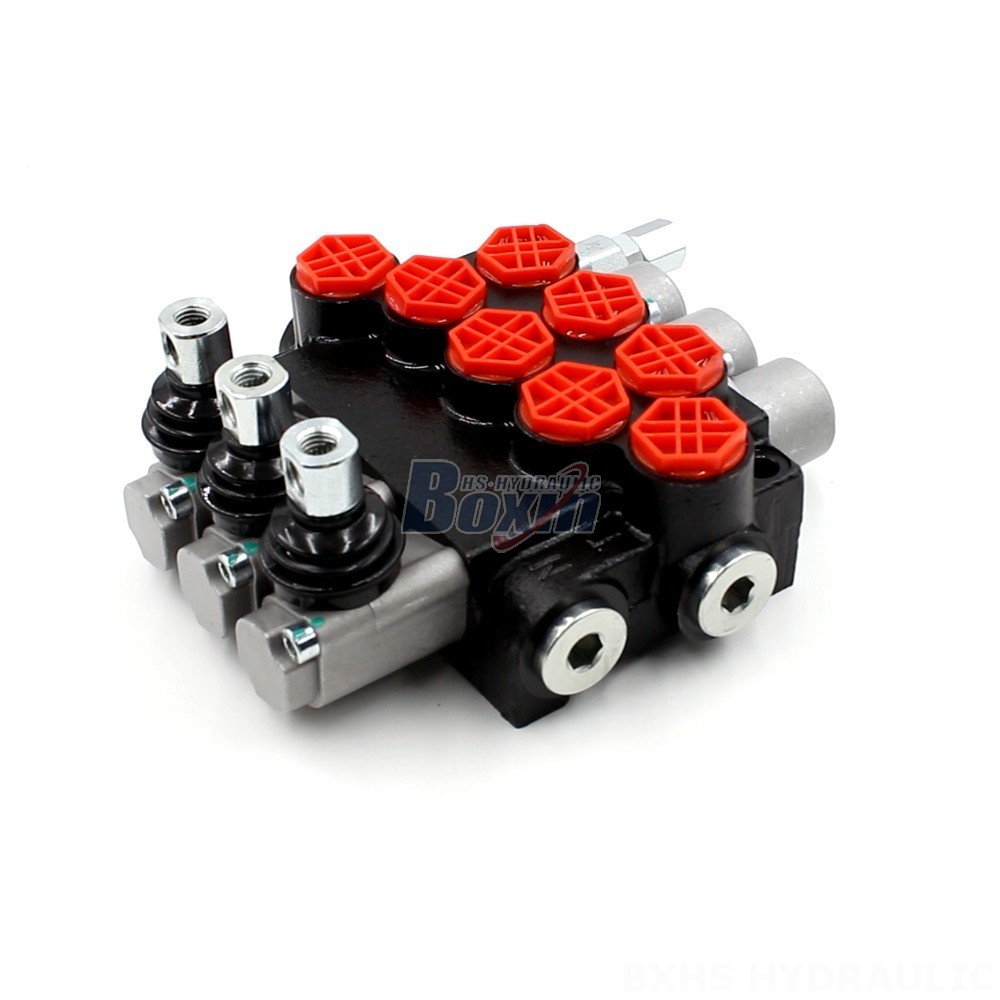

The P40-G12 Series Hydraulic Monoblock Directional Valve is a high-performance, versatile valve designed for various applications in material handling, construction, agriculture, and industrial vehicles. This manual control valve features a 3-section monoblock structure with a rated flow of 40 L/min and a maximum pressure of 250 bar. It's perfect for telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders.
| P40シリーズ モノブロック方向制御弁 パラメーター | |
|---|---|
| 制御方法 | 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, ソレノイド・ジョイスティック, 手動・ジョイスティック, ソレノイドおよびケーブル式 |
| スプール | 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール |
| 周囲温度範囲 | -40°C to +80°C (-40°F to +176°F) |
| 構造タイプ | モノブロック弁 |
| セクション | 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション |
| 作動粘度範囲 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 定格流量 | 毎分40リットル (10.5 US gpm) |
| 最大圧力 | 250 bar (3600 psi) |
| 吸入口 | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| 吐出口 | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| ポートサイズ | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40-G12 Series Hydraulic Monoblock Directional Valve is a robust and reliable solution for controlling hydraulic systems in various applications. It features a 3-section monoblock structure, offering superior strength and durability. The valve is equipped with a 3-spool design and has a rated flow of 40 L/min, making it suitable for various demanding applications. It can withstand pressures up to 250 bar, ensuring efficient operation in high-pressure environments. With an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C, this valve can handle diverse operating conditions. This valve is specifically designed for use in various applications including material handling, construction and earth moving, agriculture, and industrial vehicles. It is compatible with a range of machines like telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders.
