What is the primary application of the Hydraulic Directional Valve with Manual and Joystick Control | P40 Series?

The Hydraulic Directional Valve with Manual and Joystick Control | P40 Series is designed for mobile hydraulic systems, agricultural machinery (such as tractors and harvesters), construction equipment (such as loaders and excavators), and industrial machinery. It ensures precise flow and directional control.

Is Boxinhuasheng a factory-direct manufacturer?

Yes, Boxinhuasheng (Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd.) is a factory-direct manufacturer established in 2001. We operate a 68,000m虏 facility with 4 modern manufacturing plants and 260+ production machines, supplying certified products directly to global customers.

What quality certifications do Boxinhuasheng products have?

All Boxinhuasheng directional control valves, gear pumps, and hydraulic accessories are CE certified, IATF 16949 compliant, and verified on-site by SGS, meeting international engineering standards.

Can Boxinhuasheng provide OEM/ODM customization services?

Yes, Boxinhuasheng has a team of 35 senior hydraulic engineers providing custom OEM manufacturing, ODM development, private labeling, and customized hydraulic system solutions tailored to specific operating pressures and flows.

What is the warranty and shipping lead time?

We offer a 1-year warranty with free replacement for any quality defects. Standard express delivery is within 30 days, supported by our robust annual capacity of 1.5 million hydraulic units and export experience to 80+ countries.

Hydraulic Directional Valve with Manual and Joystick Control

Name: Hydraulic Directional Valve with Manual and Joystick Control | P40 Series
Brand: Boxinhuasheng
SKU: BXHS-52682
Availability: InStock

sales2@chinesehydraulic.com

イノベーションが開発を推進し、テクノロジーが未来を築きます

ホームモノブロック方向制御弁P40シリーズ製品詳細

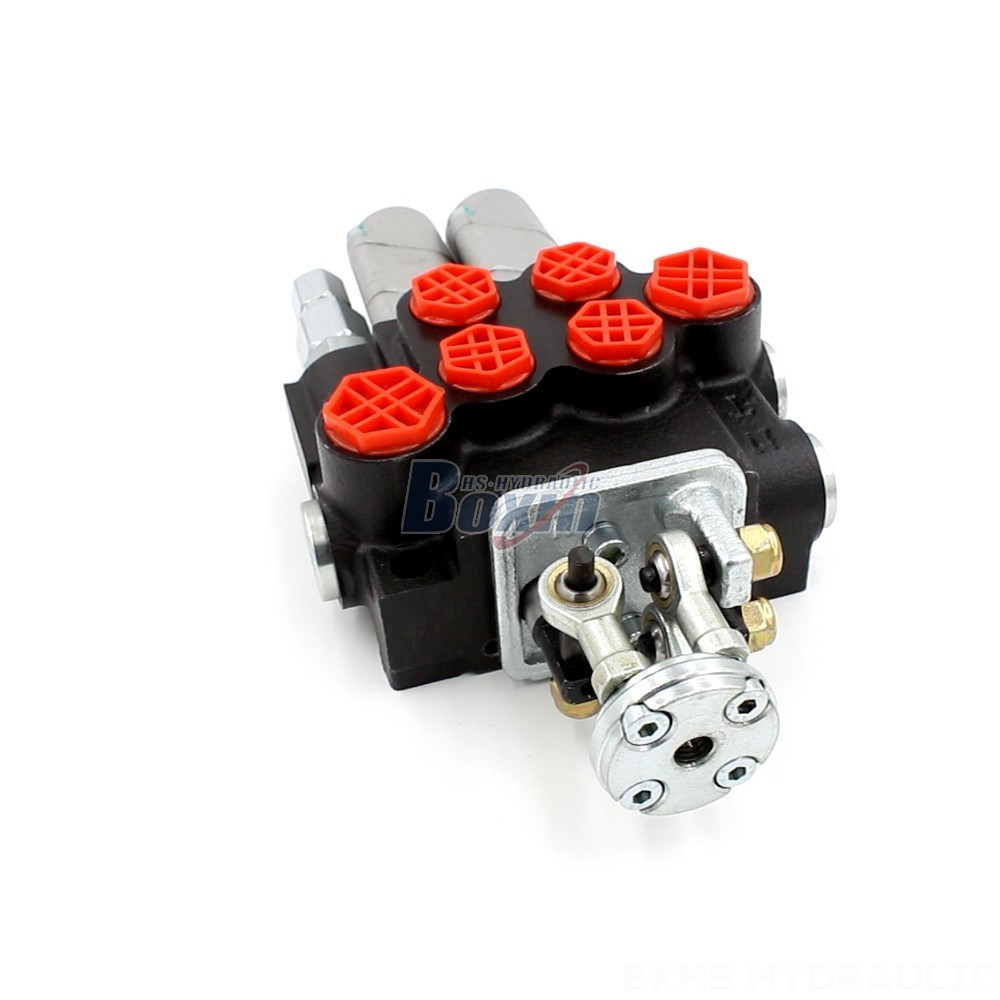

Hydraulic Directional Valve with Manual and Joystick Control | P40 Series cover photo

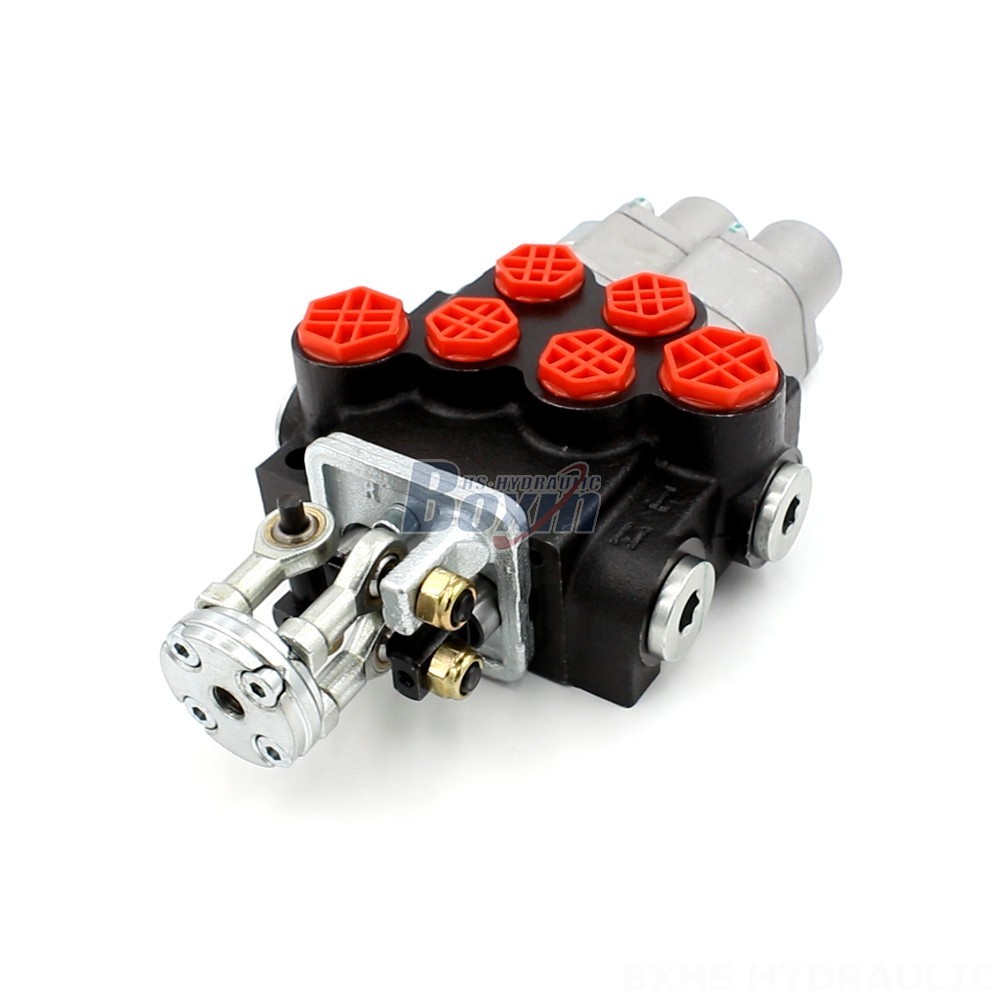

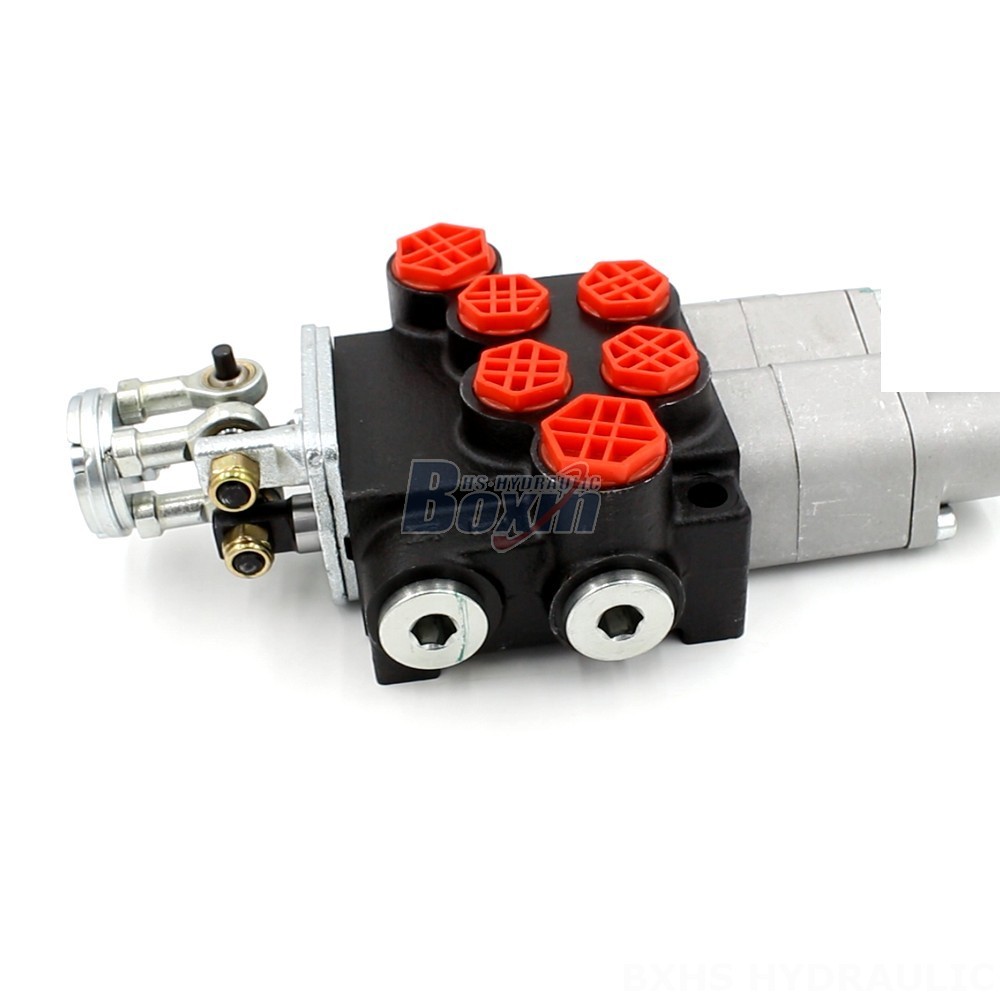

Hydraulic Directional Valve with Manual and Joystick Control | P40 Series main image

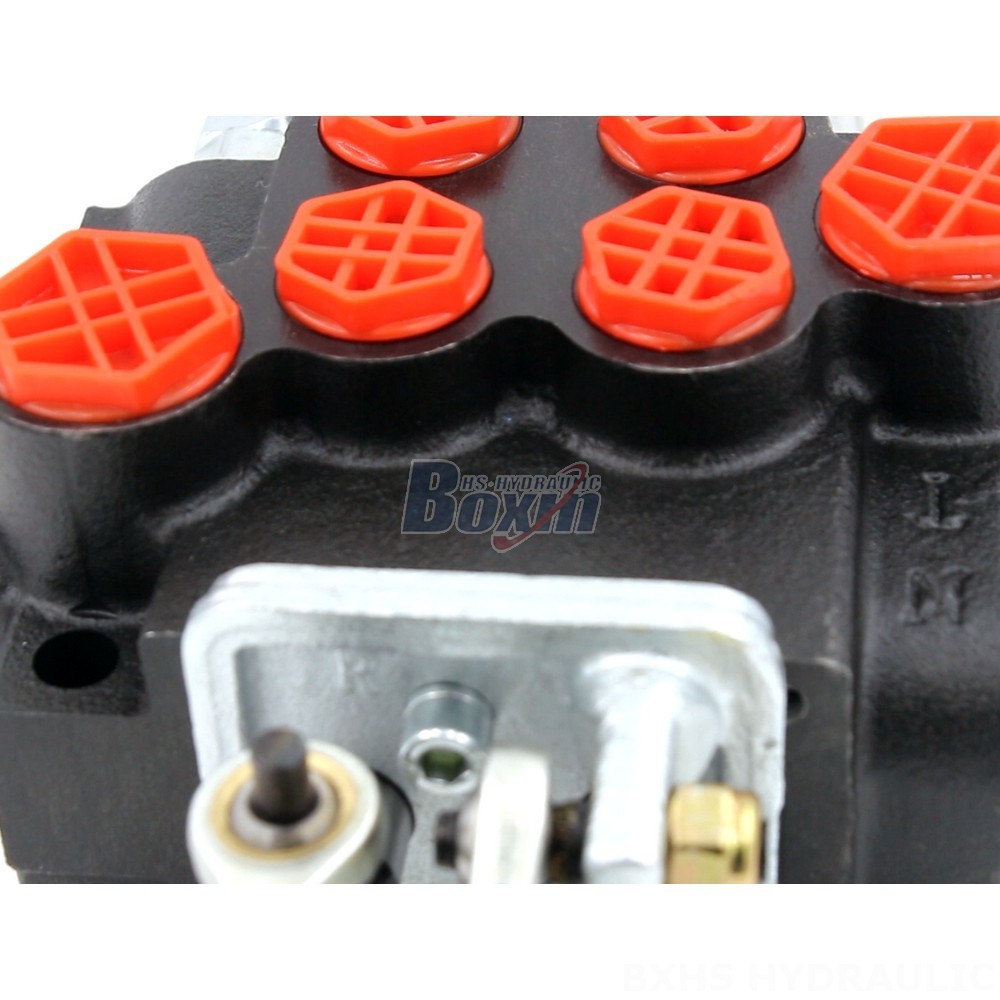

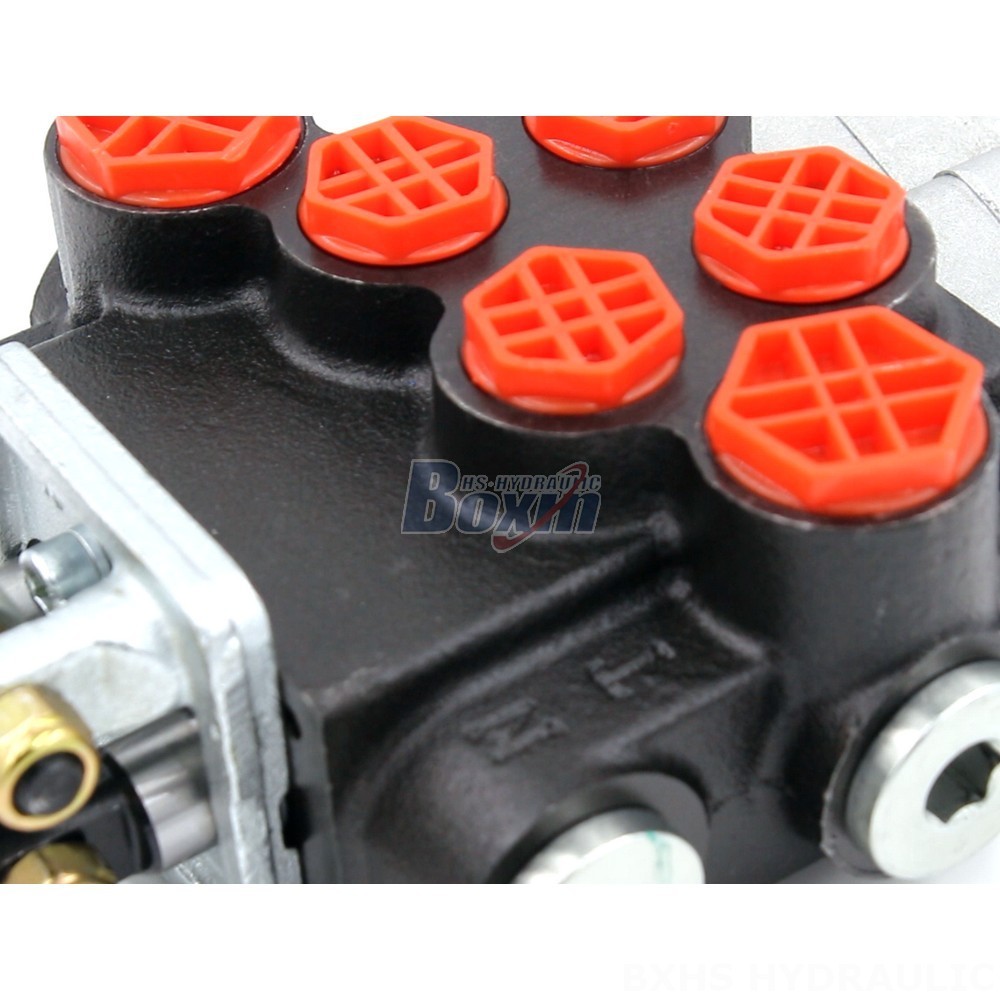

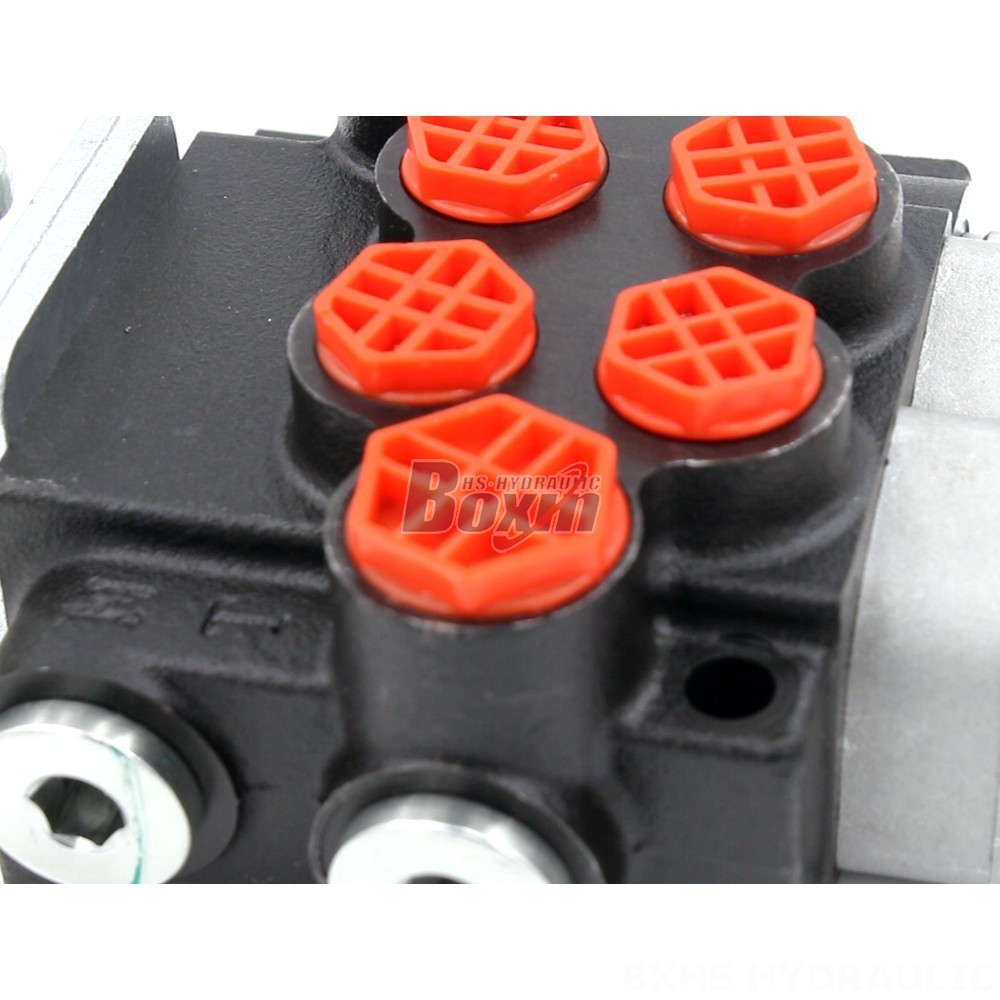

Hydraulic Directional Valve with Manual and Joystick Control | P40 Series detail image

Hydraulic Directional Valve with Manual and Joystick Control | P40 Series

制御方法:手動・ジョイスティック

スプール:2スプール

定格流量:毎分40リットル (10.5 US gpm)

最大圧力:250 bar (3600 psi)

吸入口:G1/2

吐出口:G1/2

ポートサイズ:G3/8

ベンダー:BXHS

製品タイプ:モノブロック方向制御弁

製品シリーズ:P40シリーズモノブロック方向制御弁

梱包サイズ:23*18*13

総重量:6.50 kg

在庫状況: 在庫あり

お問い合わせ

1064 この製品を探している人もいます

Hydraulic Directional Valve with Manual and Joystick Control | P40 Series

Hydraulic Directional Valve with Manual and Joystick Control | P40 Series drawing image

The P40 Series Hydraulic Directional Valve with Manual and Joystick Control is a high-performance valve designed for use in various industrial applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, it offers reliable and efficient flow control. Its monoblock valve design ensures durability and minimizes leakage, while the operating viscosity range of 15 - 75 mm²/s makes it suitable for a wide range of fluids. The P40 Series valve is ideal for applications in material handling, construction, agriculture, and industrial vehicles, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and harvesters.

P40シリーズモノブロック方向制御弁パラメーター
制御方法	手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, ソレノイド・ジョイスティック, 手動・ジョイスティック, ソレノイドおよびケーブル式
スプール	1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール
周囲温度範囲	-40°C to +80°C (-40°F to +176°F)
構造タイプ	モノブロック弁
セクション	1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション
作動粘度範囲	15 - 75 mm²/s (15 cSt to 75 cSt)
定格流量	毎分40リットル (10.5 US gpm)
最大圧力	250 bar (3600 psi)
吸入口	G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
吐出口	G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
ポートサイズ	G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

**P40 Series Hydraulic Directional Valve with Manual and Joystick Control**

**Key Features:**

- Control Method: Manual and Joystick
- Section: 2 Section
- Structure Type: Monoblock valve
- Rated Flow: 40 L/min (10.5 US gpm)
- Max Pressure: 250 bar (3600 psi)
- Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
- Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
- Spool: 2 Spool
- Series: P40 Series

**Application Areas:**

- MATERIAL HANDLING
- CONSTRUCTION AND EARTH MOVING
- AGRICULTURE
- INDUSTRIAL VEHICLES

**Applicable Models:**

- TELEHANDLER
- FORKLIFT
- ALL TERRAIN CRANE
- STACKER
- AERIAL PLATFORM
- MOTOR GRADER
- MIDI-EXCAVATOR
- MINI-EXCAVATOR
- SKID STEER LOADER
- HARVESTER
