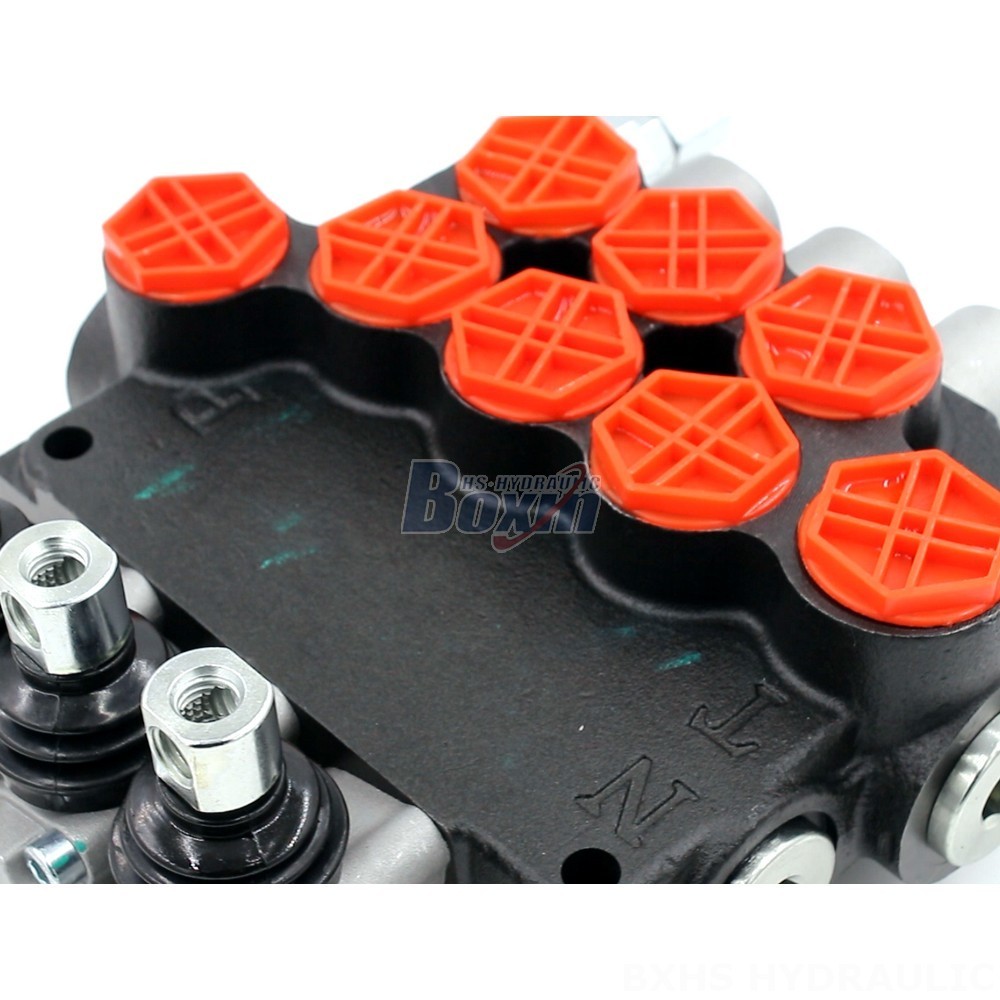

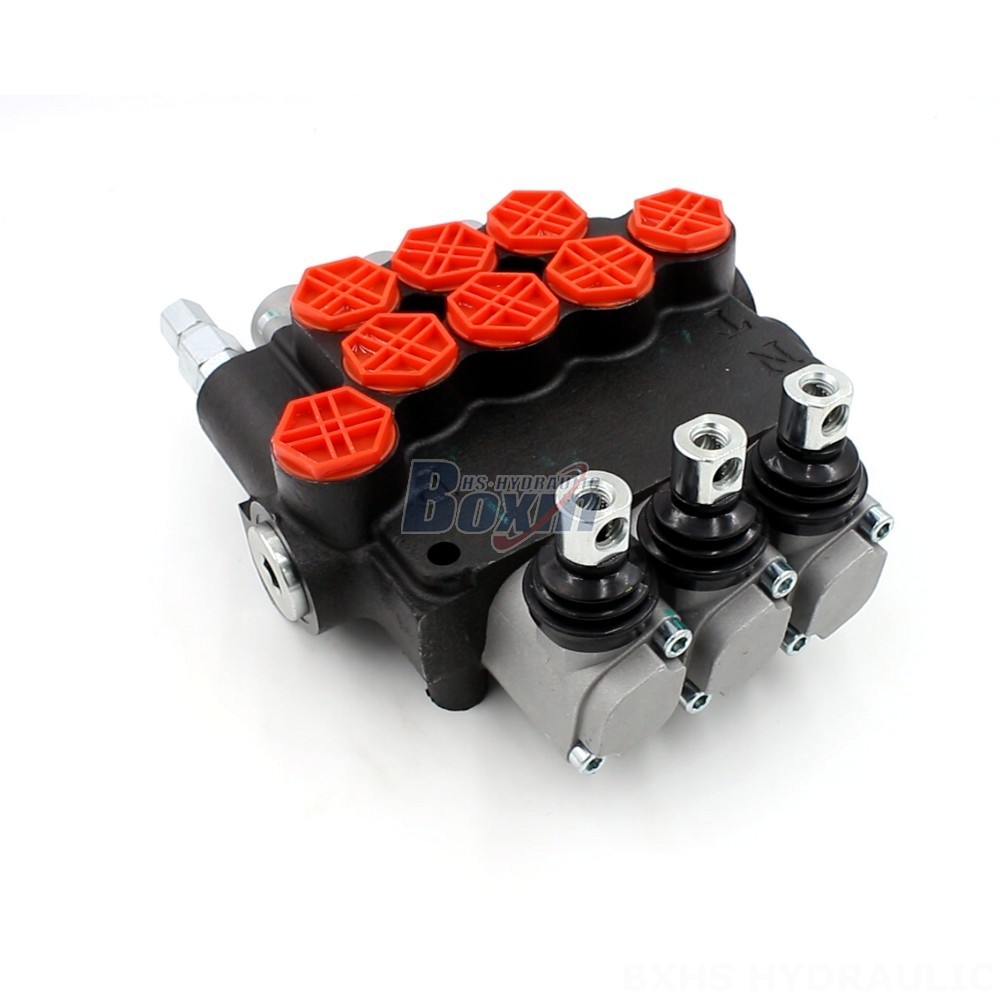

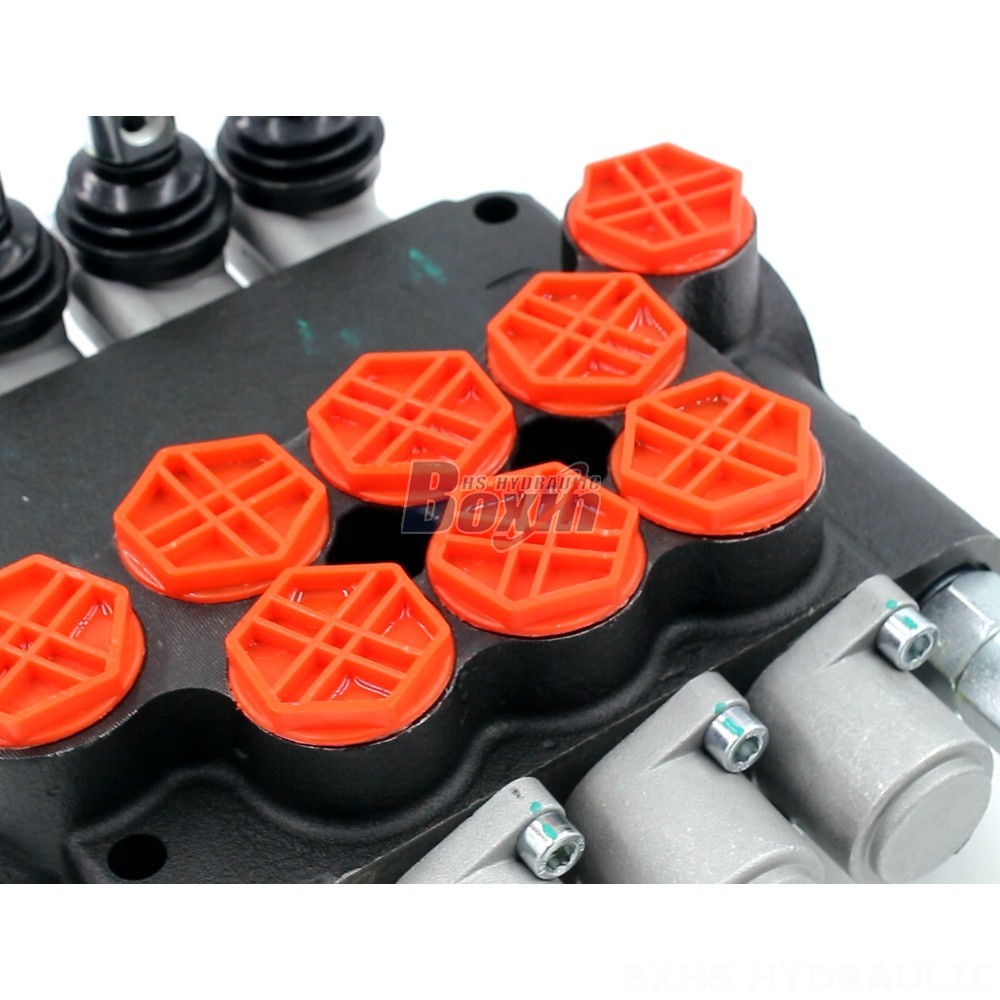

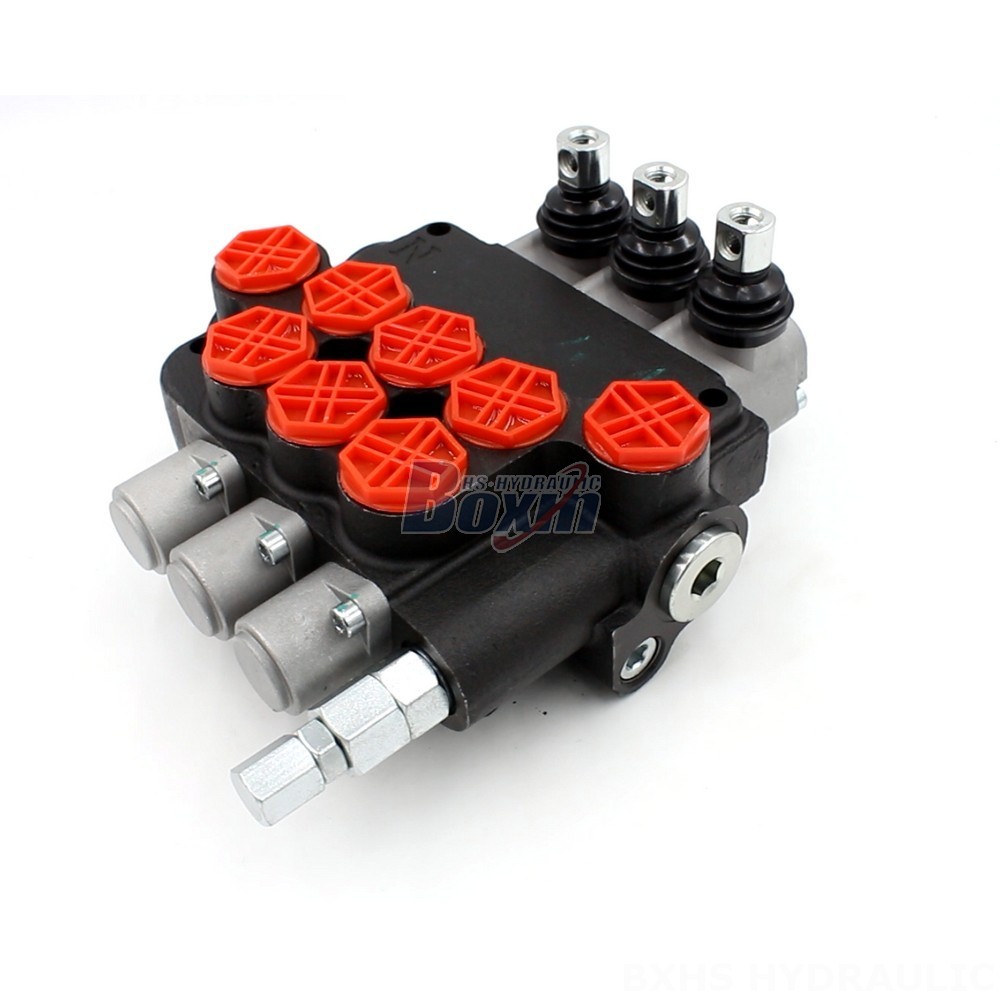

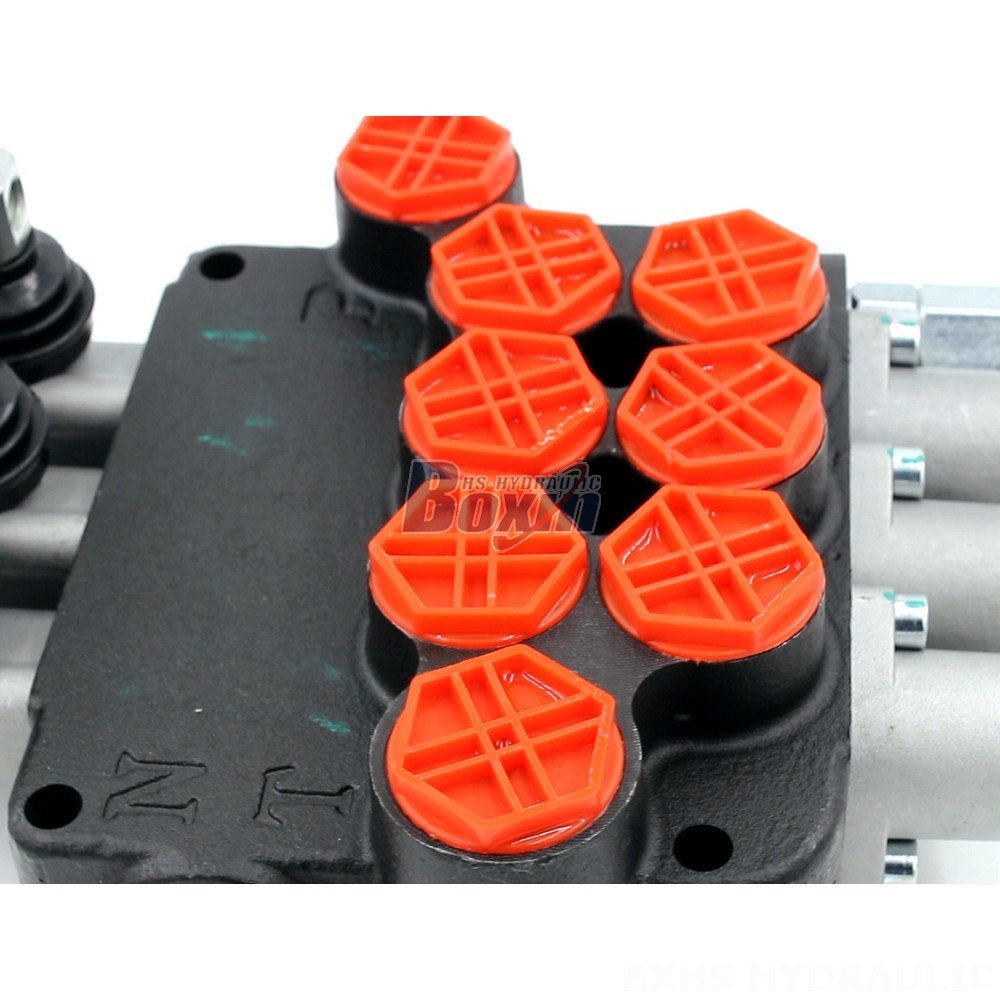

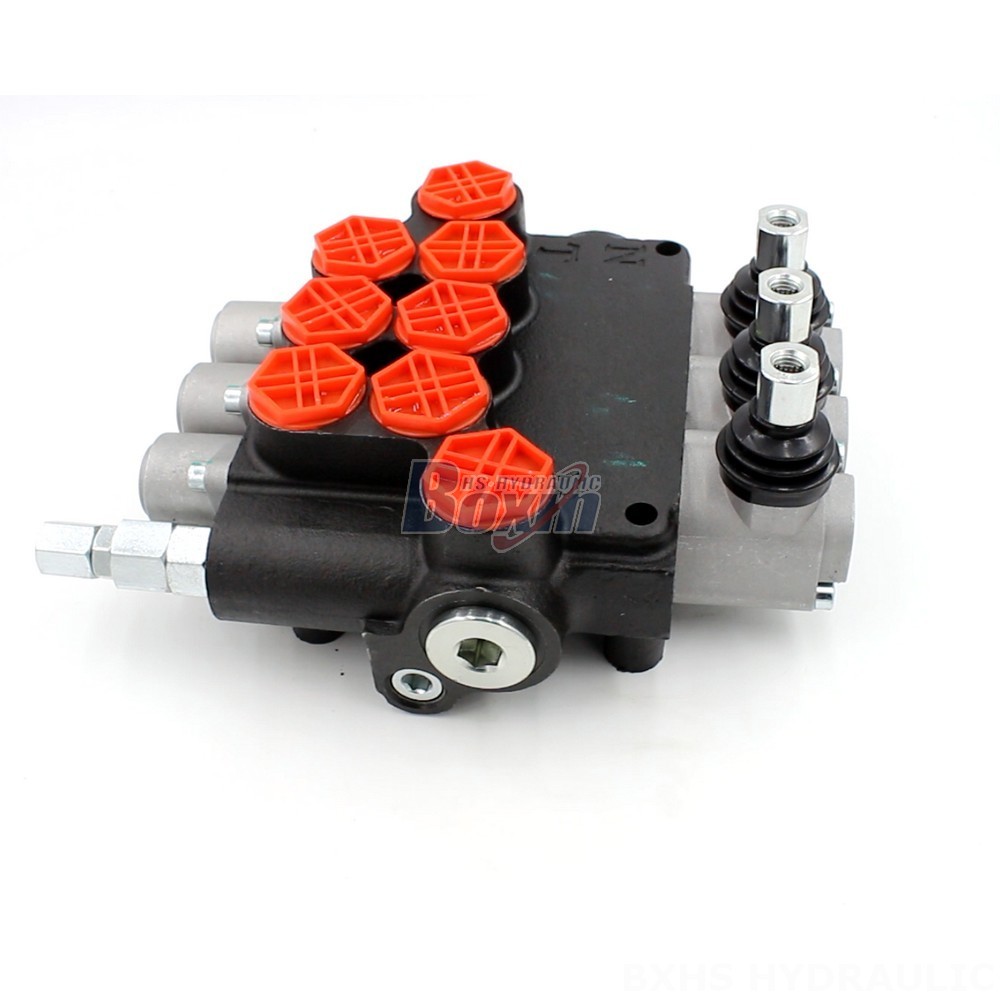

Hydraulic Directional Control Valve

制御方法:手動

スプール:3スプール

定格流量:毎分80リットル (21.2 US gpm)

最大圧力:250 bar (3600 psi)

吸入口:G3/4

吐出口:G3/4

ポートサイズ:G3/4

ベンダー:BXHS

製品タイプ:モノブロック方向制御弁

製品シリーズ:P80シリーズ モノブロック方向制御弁

梱包サイズ:26*23*11

総重量:10.70 kg

在庫状況: 在庫あり

1089 この製品を探している人もいます

Hydraulic Directional Control Valve

Hydraulic Directional Control Valve

Hydraulic Directional Control Valve drawing image

This high-performance P80 Series Electro Pneumatic Directional Control Valve is a 3-section monoblock valve designed for heavy-duty applications in material handling, construction, and agriculture. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it offers reliable control for a wide range of equipment.

P80シリーズ モノブロック方向制御弁 パラメーター
制御方法 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, 手動・ジョイスティック
スプール 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール
周囲温度範囲 -40°C to +80°C (-40°F to +176°F)
構造タイプ モノブロック弁
セクション 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション
作動粘度範囲 15 - 75 mm²/s (15 cSt to 75 cSt)
定格流量 毎分80リットル (21.2 US gpm)
最大圧力 315 bar (4600 psi)
吸入口 G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
吐出口 G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
ポートサイズ G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

The P80 Series Electro Pneumatic Directional Control Valve is a robust and efficient solution for demanding hydraulic applications. Its monoblock structure provides durability and reliability, while the manual control method allows for easy operation. This 3-section valve features a rated flow of 80 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of equipment, including telehandlers, forklifts, cranes, excavators, loaders, and dumpers. Its operating viscosity range of 15-75 mm²/s and ambient temperature range of -40°C to +80°C ensure optimal performance in diverse environments. The P80 Series valve is engineered for long-lasting performance and minimal maintenance requirements, providing a cost-effective and reliable hydraulic control solution.
