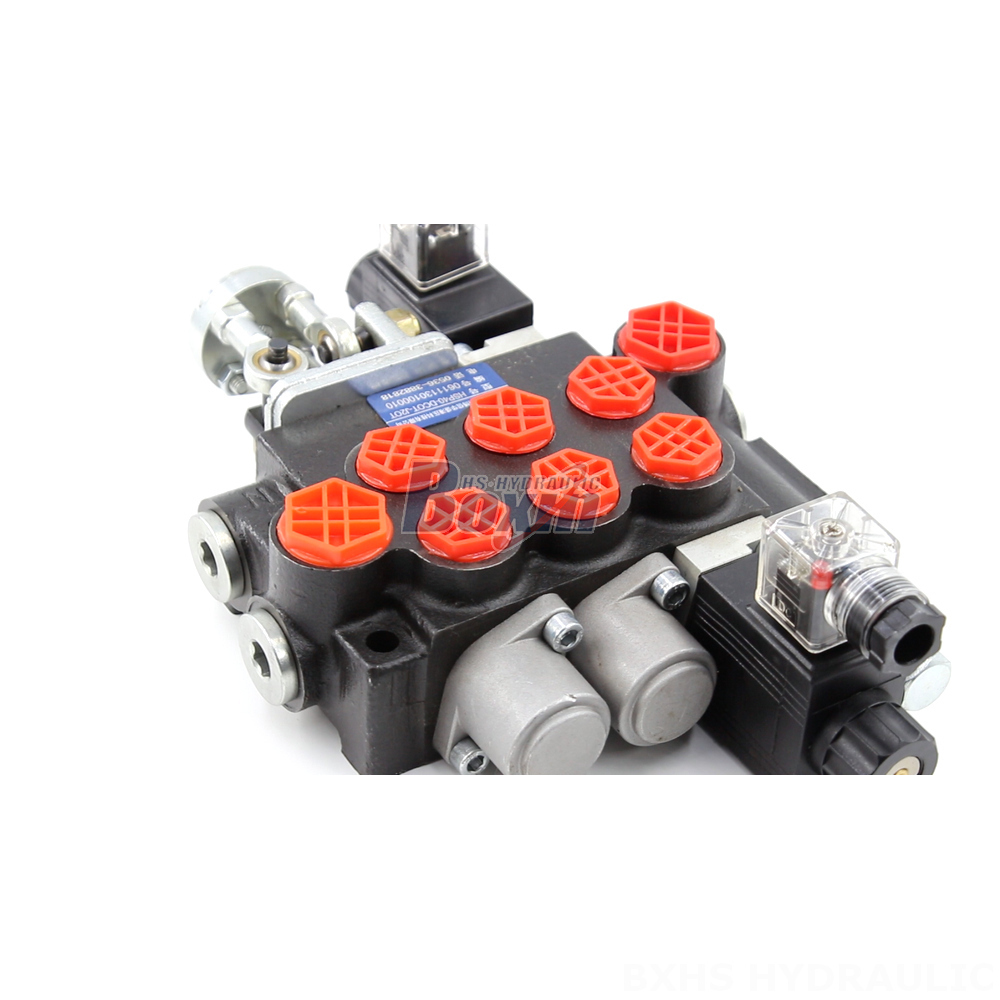

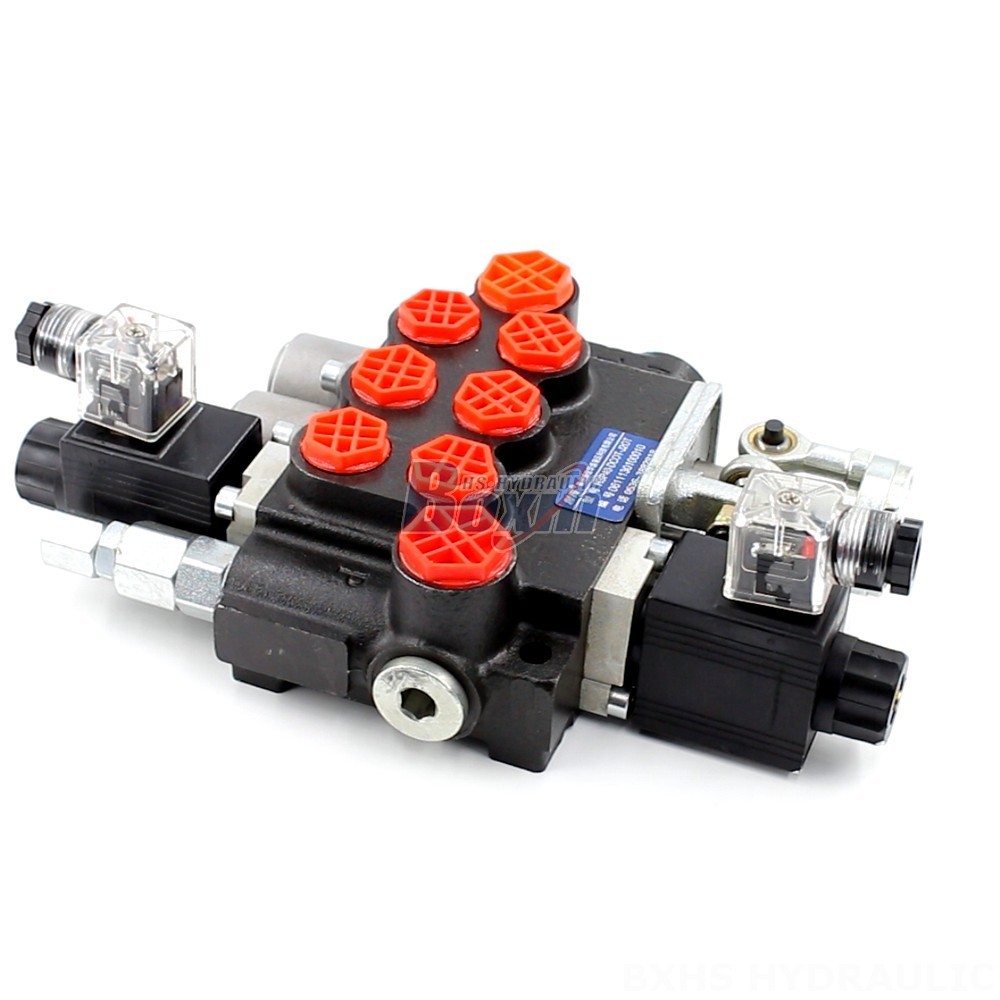

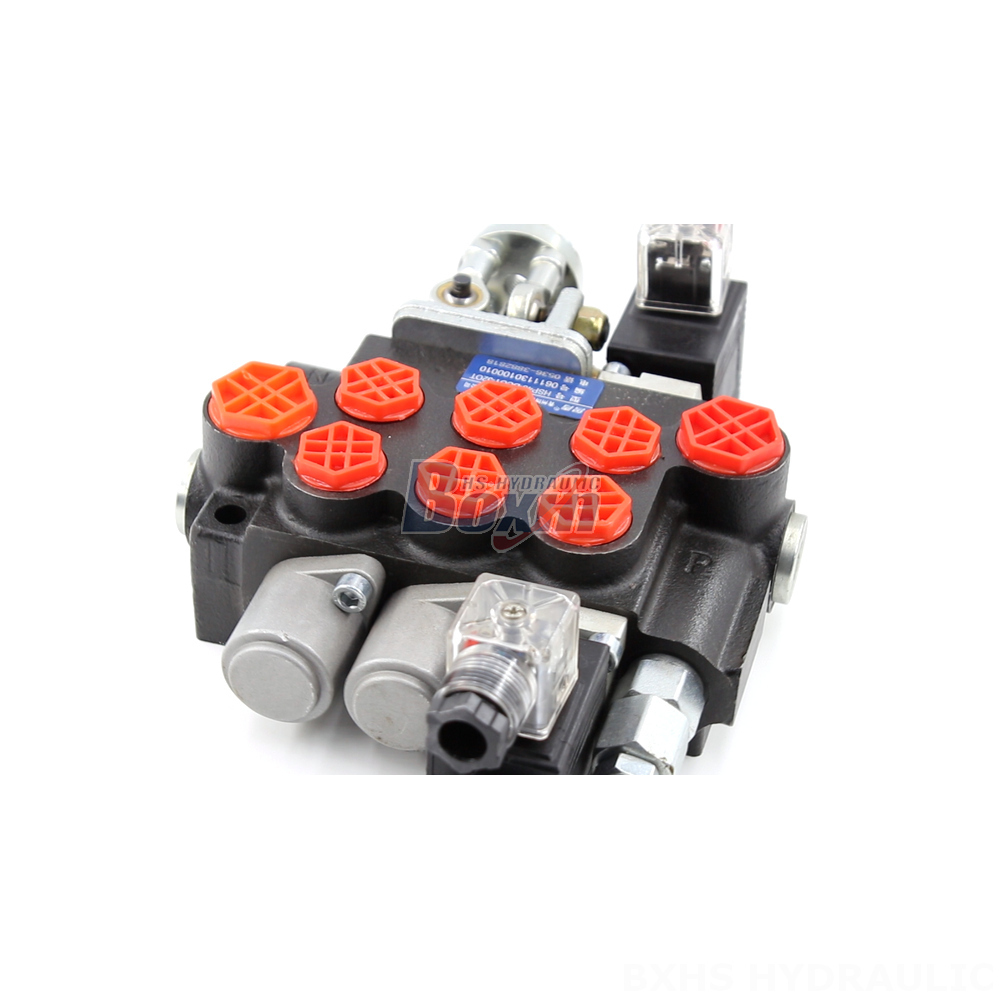

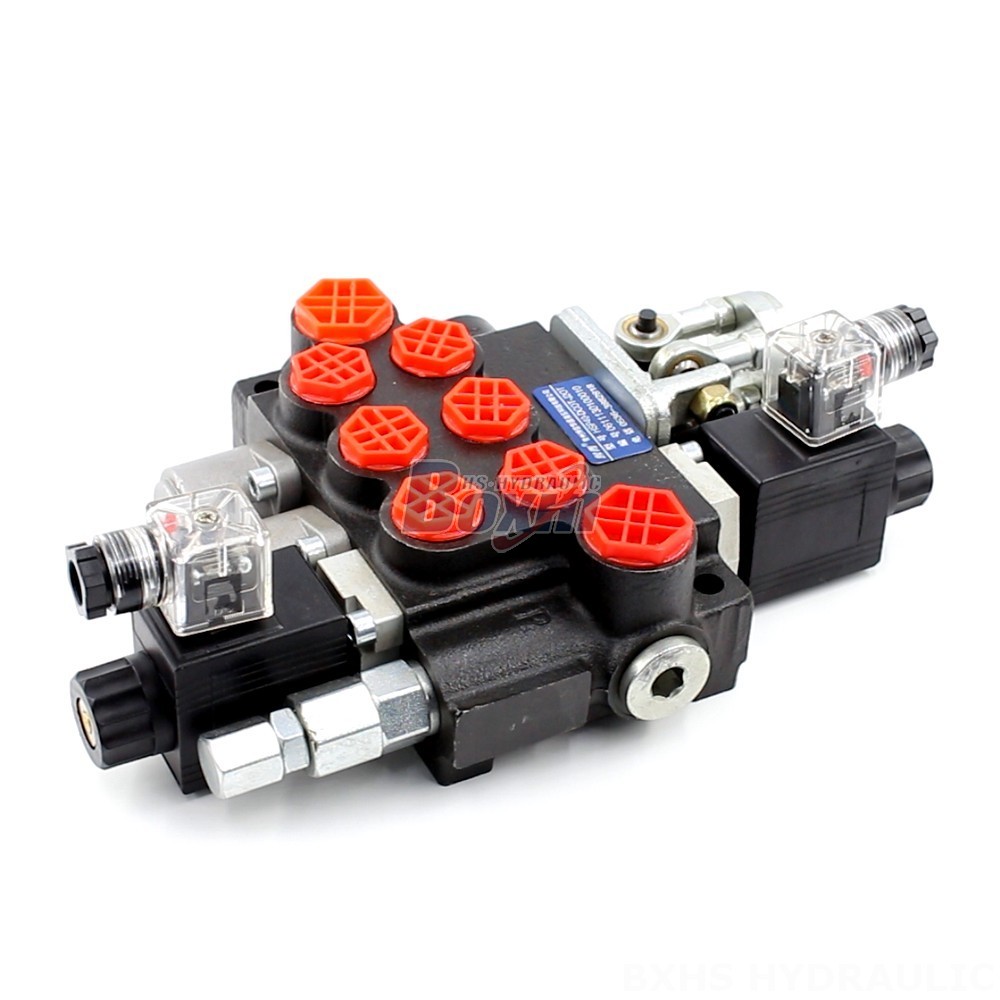

The P40 Series Hydraulic Directional Control Valve is a robust and reliable monoblock valve designed for heavy-duty applications in various industries, including material handling, construction, earthmoving, agriculture, and industrial vehicles. This 3-spool valve offers both solenoid and joystick control options, delivering precise and responsive hydraulic control for a wide range of equipment.
| P40シリーズ モノブロック方向制御弁 パラメーター | |
|---|---|
| 制御方法 | 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, ソレノイド・ジョイスティック, 手動・ジョイスティック, ソレノイドおよびケーブル式 |
| スプール | 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール |
| 周囲温度範囲 | -40°C to +80°C (-40°F to +176°F) |
| 構造タイプ | モノブロック弁 |
| セクション | 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション |
| 作動粘度範囲 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 定格流量 | 毎分40リットル (10.5 US gpm) |
| 最大圧力 | 250 bar (3600 psi) |
| 吸入口 | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| 吐出口 | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| ポートサイズ | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40 Series Hydraulic Directional Control Valve is a high-performance monoblock valve featuring a compact and robust design for reliable operation in demanding environments. It is equipped with 3 spools, offering versatile control options for hydraulic systems. The valve can be controlled via solenoid actuators or a joystick, providing flexibility and user-friendly operation. It is capable of handling high flow rates up to 40 L/min (10.5 US gpm) and withstands high pressures up to 250 bar (3600 psi). With a wide operating viscosity range and ambient temperature tolerance, this valve ensures optimal performance in various operating conditions. Its versatile design and robust construction make it suitable for a variety of applications in various industries, including material handling, construction, earthmoving, agriculture, and industrial vehicles. The valve is also designed for various equipment, such as telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers, tractors, and harvesters. We offer a range of services, including manufacturing, OEM, ODM, and customization options to meet specific customer requirements.
