Hydraulic Control Valve | P80F-G34-OT Series Manufacturer

制御方法:手動

スプール:5スプール

定格流量:毎分80リットル (21.2 US gpm)

最大圧力:250 bar (3600 psi)

吸入口:G3/4

吐出口:G3/4

ポートサイズ:G3/4

ベンダー:BXHS

製品タイプ:モノブロック方向制御弁

製品シリーズ:P80F シリーズ モノブロック方向制御弁

梱包サイズ:26*30*11

総重量:16.00 kg

在庫状況: 在庫あり

1232 この製品を探している人もいます

Hydraulic Control Valve | P80F-G34-OT Series Manufacturer

Hydraulic Control Valve | P80F-G34-OT Series Manufacturer

Hydraulic Control Valve | P80F-G34-OT Series Manufacturer drawing image

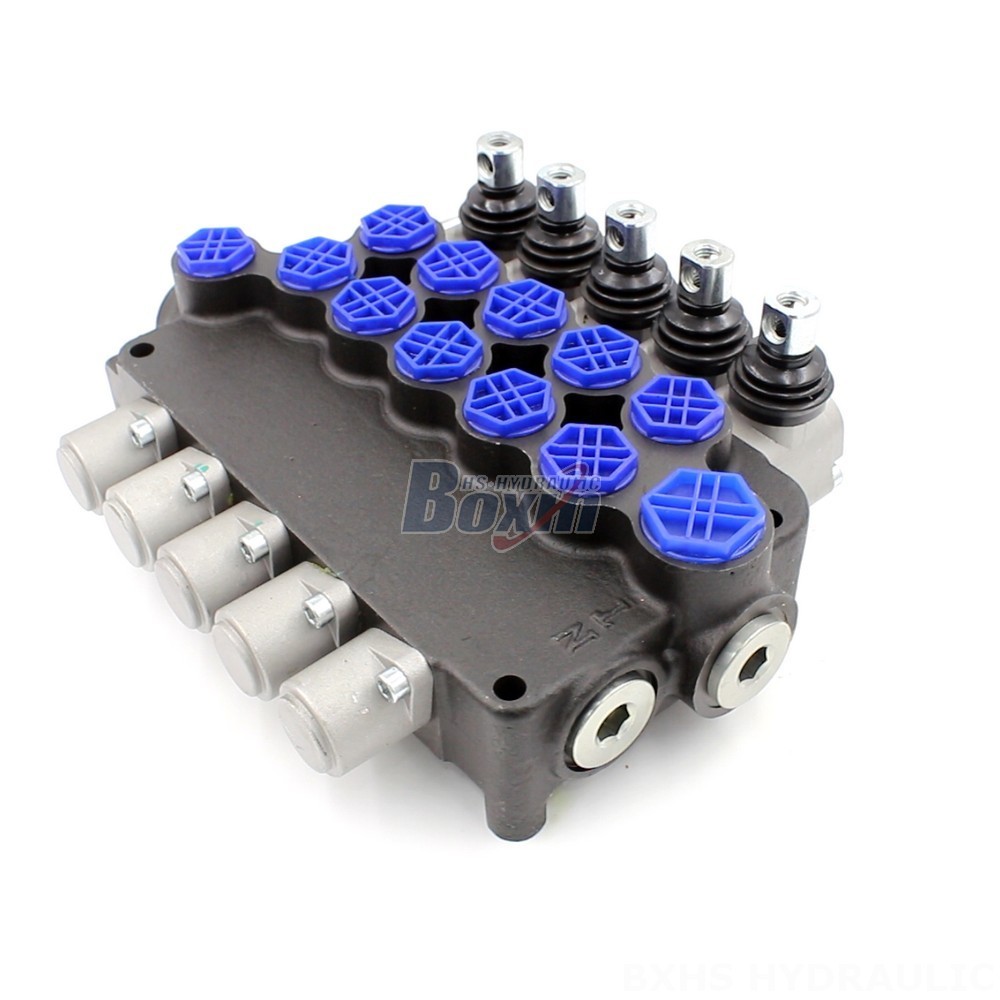

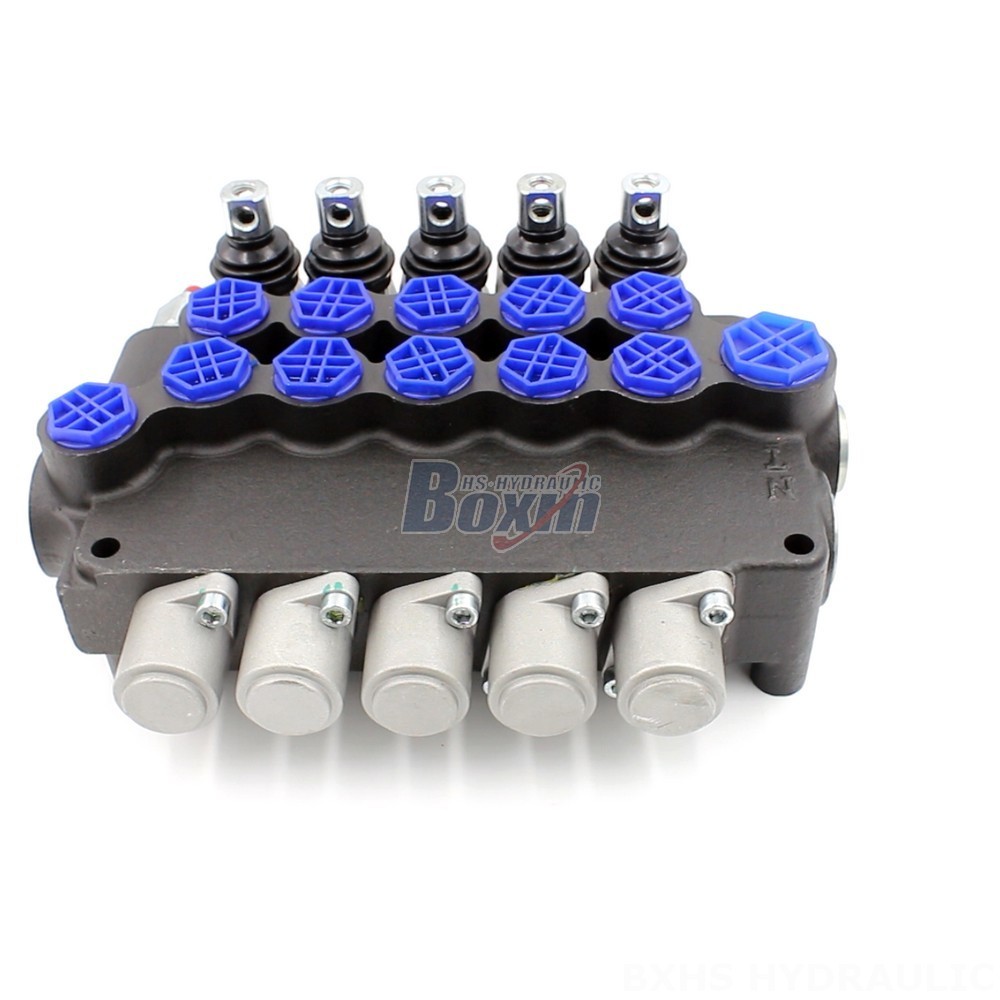

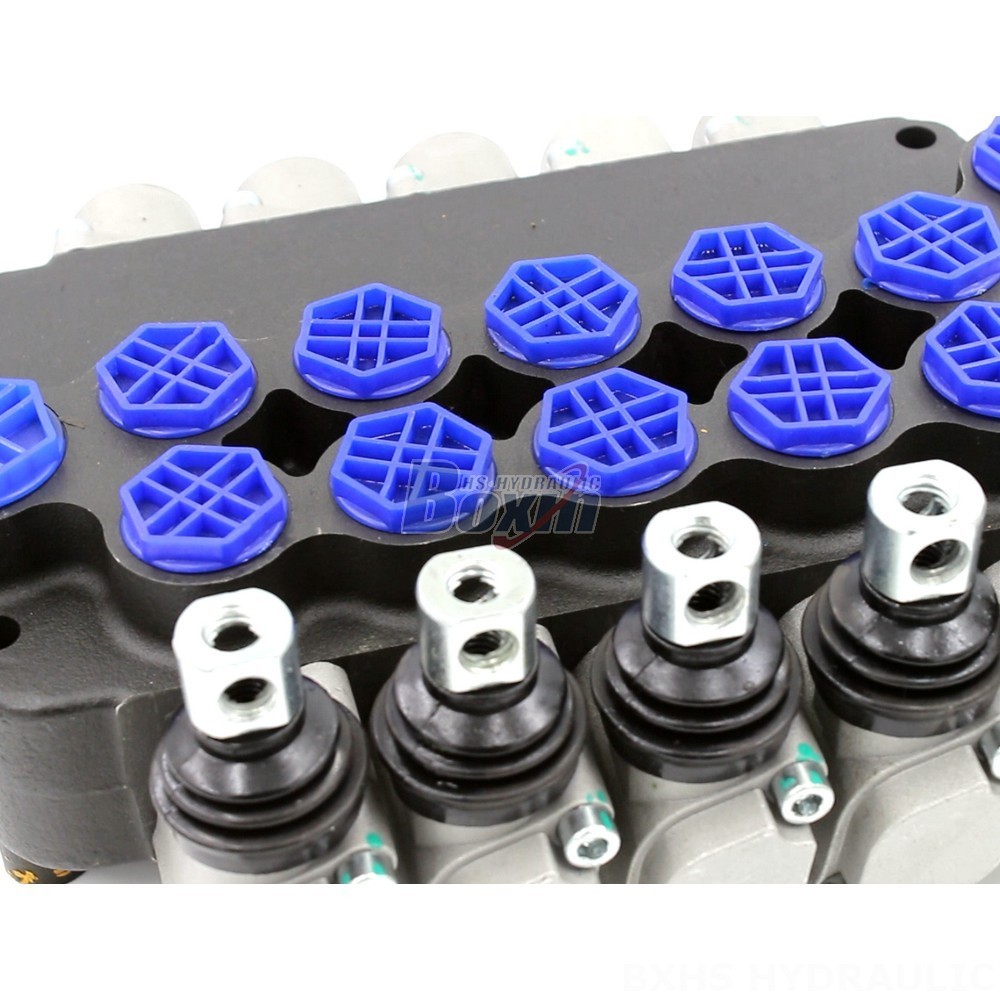

The P80F-G34-OT Series Electro Hydraulic Proportional Valve is a high-performance, 5-section, monoblock valve designed for heavy-duty applications in material handling, construction, and industrial vehicles. This valve features a rated flow of 80 L/min (21.2 US gpm), a maximum pressure of 250 bar (3600 psi), and a wide operating viscosity range. With its manual control and robust design, it provides reliable and precise control for a variety of applications.

P80F シリーズ モノブロック方向制御弁 パラメーター
スプール 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール
制御方法 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック
ポートサイズ G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
セクション 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション
周囲温度範囲 -40°C to +80°C (-40°F to +176°F)
作動粘度範囲 15 - 75 mm²/s (15 cSt to 75 cSt)
吐出口 G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT
最大圧力 315 bar (4600 psi)
定格流量 毎分80リットル (21.2 US gpm)
構造タイプ モノブロック弁
吸入口 G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

The P80F-G34-OT Series Electro Hydraulic Proportional Valve is a high-performance, 5-section, monoblock valve designed for heavy-duty applications in material handling, construction, and industrial vehicles. This valve features a rated flow of 80 L/min (21.2 US gpm), a maximum pressure of 250 bar (3600 psi), and a wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). Its manual control allows for precise operation, while its robust construction ensures durability and reliability in demanding environments. The P80F Series is suitable for a wide range of applications, including telehandlers, forklifts, all terrain cranes, stackers, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, backhoe loaders, harvesters, and bale wrappers. With its customizable features and high performance, this valve is an ideal choice for manufacturers and users seeking reliable and efficient hydraulic control solutions.
