Production & Delivery
15-30 Days Production Lead Time

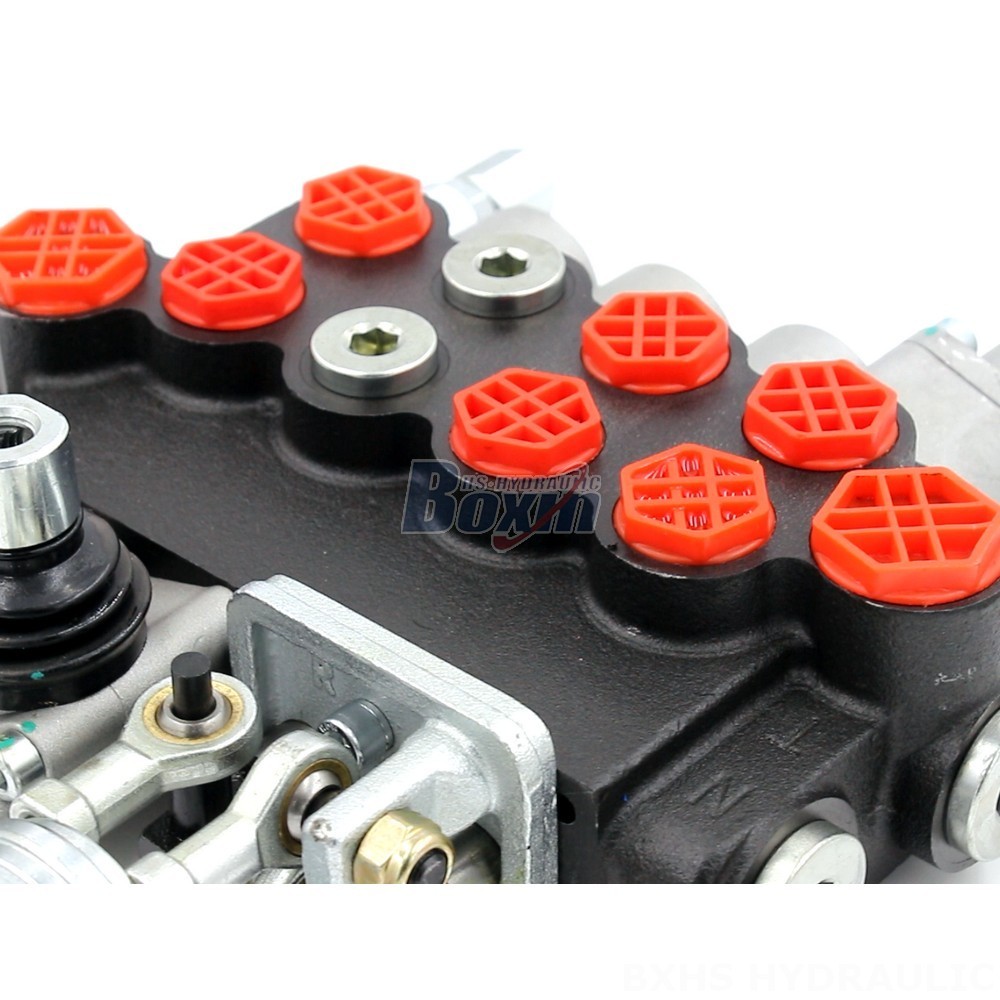

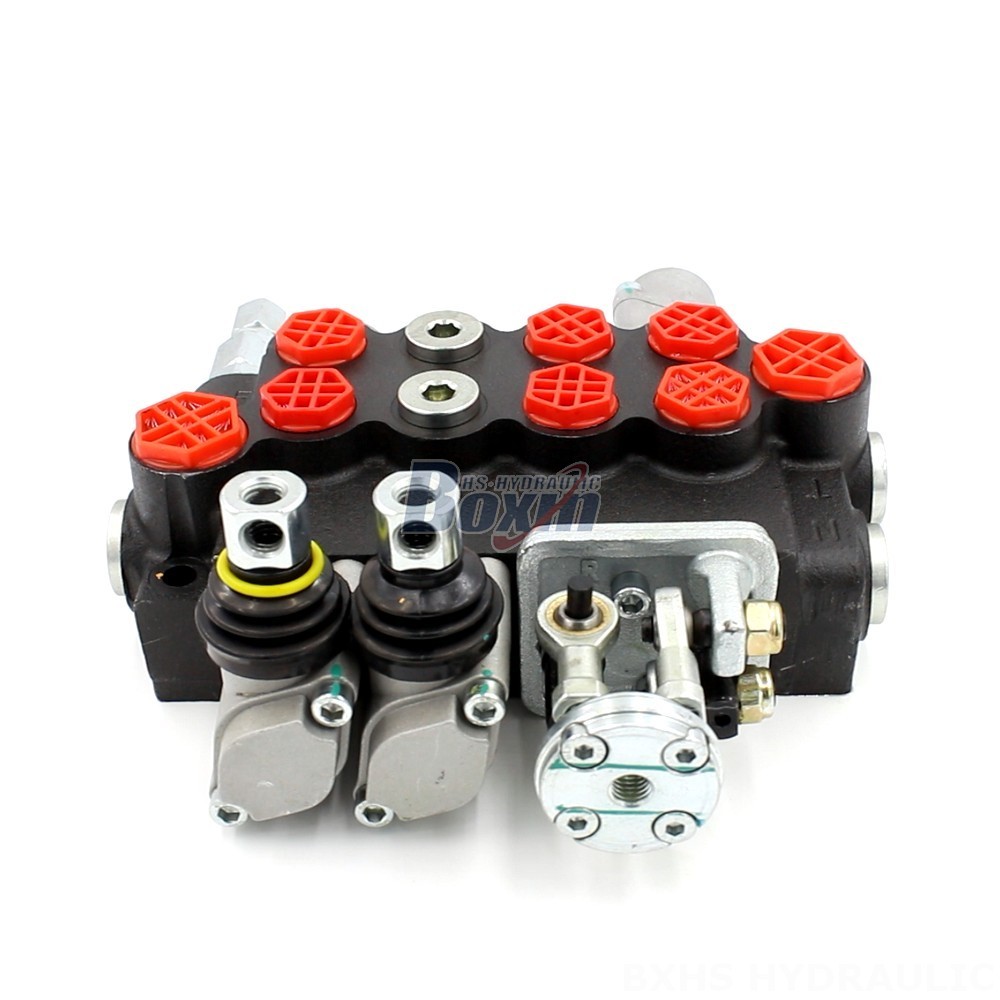

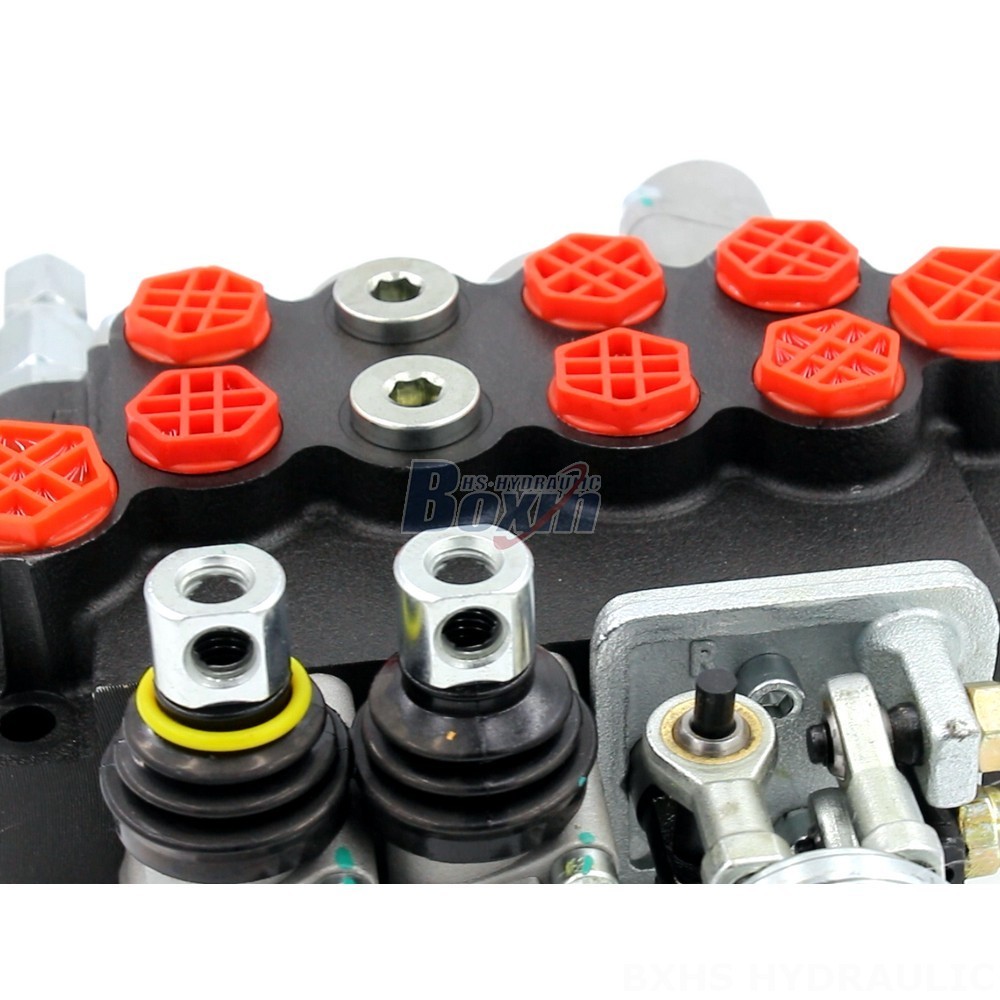

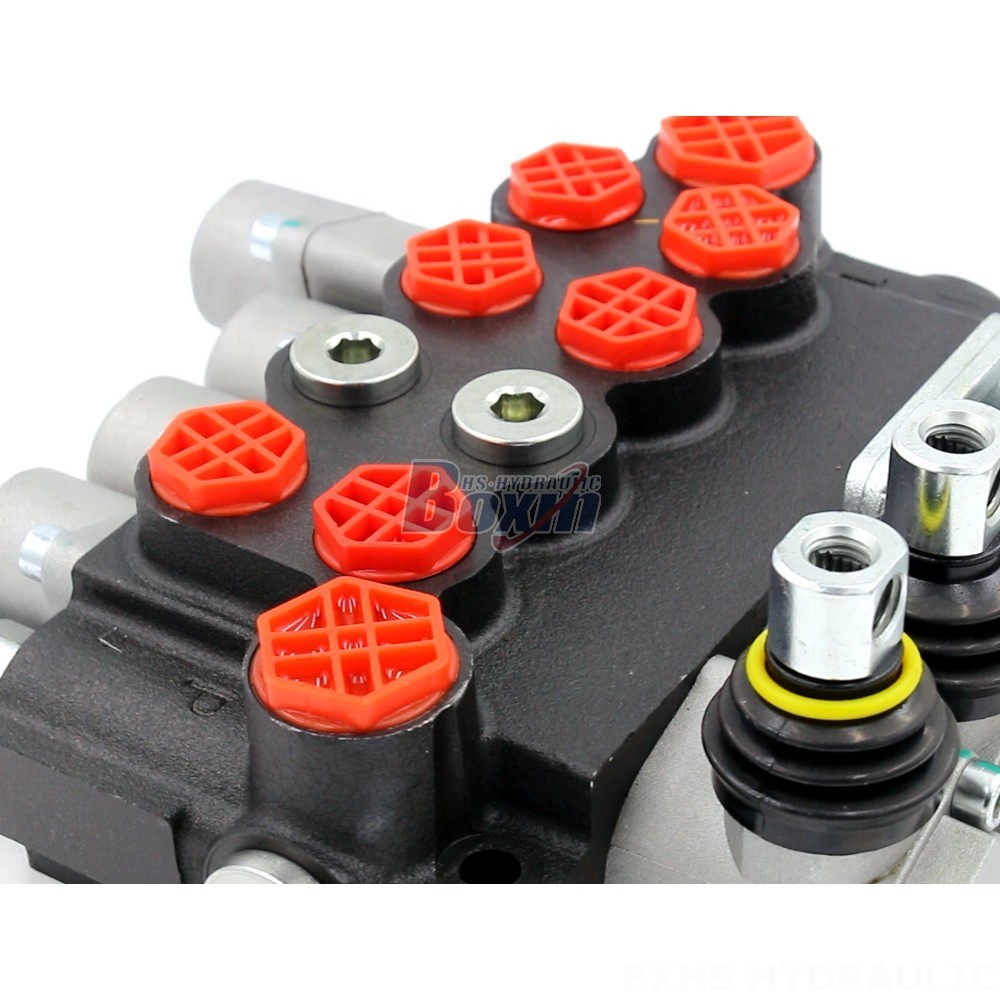

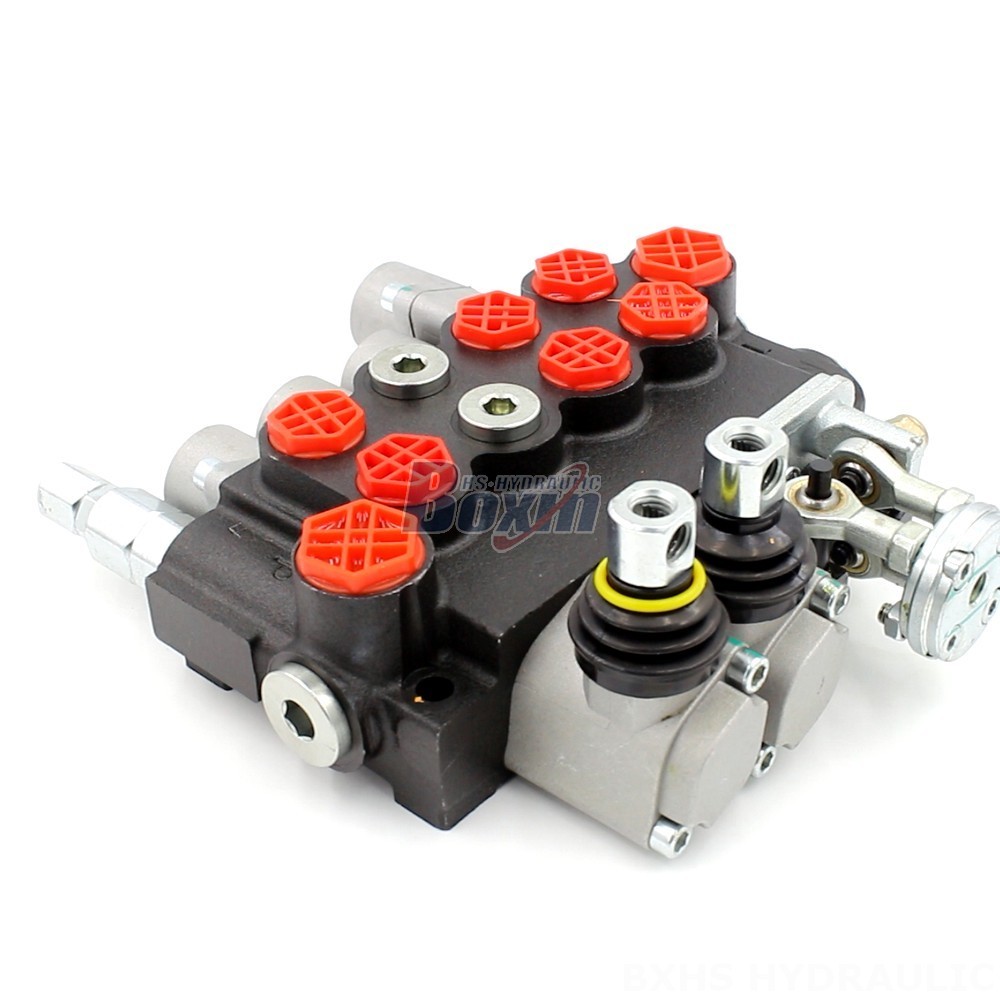

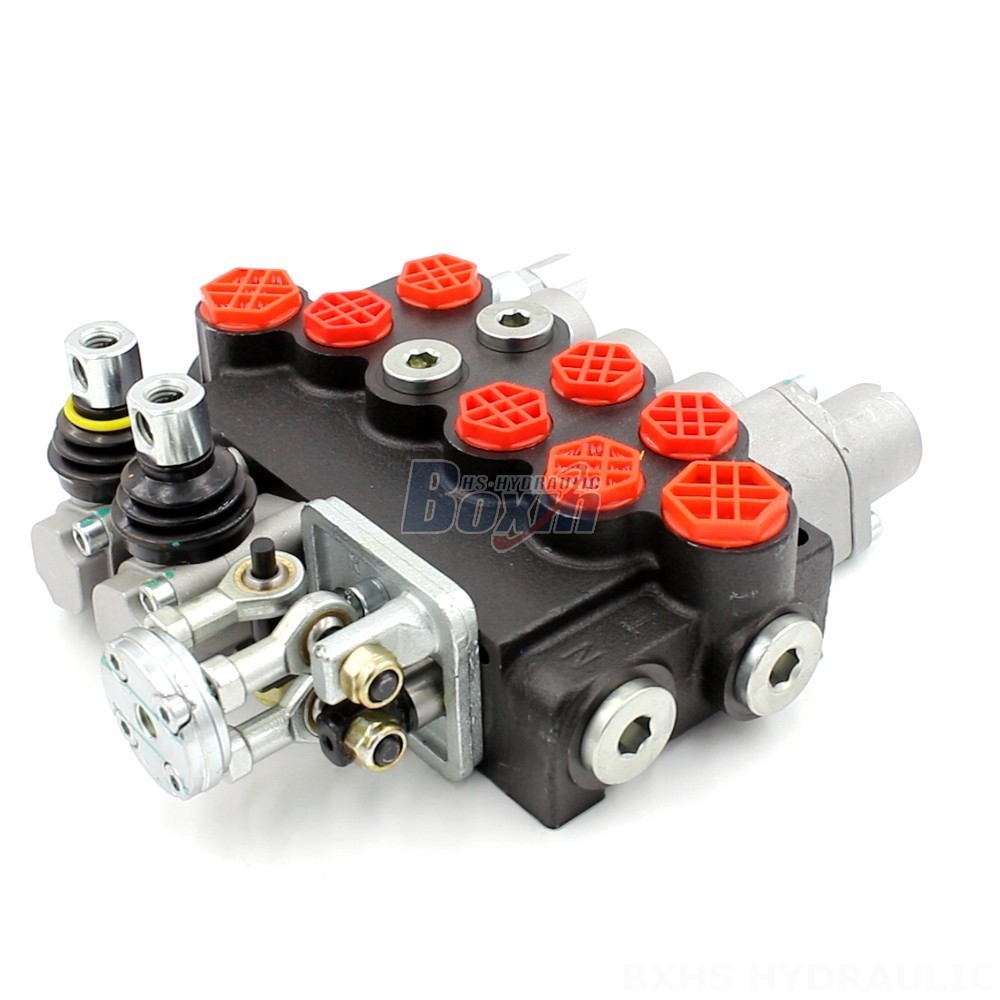

The P40 Series Hydropneumatic Distributor Hydraulic Control Valve is a reliable and durable solution for a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. This 4-section monoblock valve offers manual and joystick control, a rated flow of 40 L/min, and a maximum pressure of 250 bar. It is suitable for telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, and excavators.
| P40シリーズ モノブロック方向制御弁 パラメーター | |
|---|---|
| 制御方法 | 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, ソレノイド・ジョイスティック, 手動・ジョイスティック, ソレノイドおよびケーブル式 |
| スプール | 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール |
| 周囲温度範囲 | -40°C to +80°C (-40°F to +176°F) |
| 構造タイプ | モノブロック弁 |
| セクション | 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション |
| 作動粘度範囲 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 定格流量 | 毎分40リットル (10.5 US gpm) |
| 最大圧力 | 250 bar (3600 psi) |
| 吸入口 | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| 吐出口 | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| ポートサイズ | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40 Series Hydropneumatic Distributor Hydraulic Control Valve is a high-performance valve designed for demanding applications. It features a robust monoblock construction, 4 sections, and a rated flow of 40 L/min. The valve is available with both manual and joystick control options, providing users with flexibility and ease of operation. Its maximum pressure rating of 250 bar ensures reliable performance in heavy-duty environments. The P40 Series valve is suitable for a wide range of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, and excavators. It is designed to withstand temperatures ranging from -40°C to +80°C, making it suitable for various climates and operating conditions. The P40 Series Hydropneumatic Distributor Hydraulic Control Valve is a reliable and durable solution that meets the needs of global industries.
