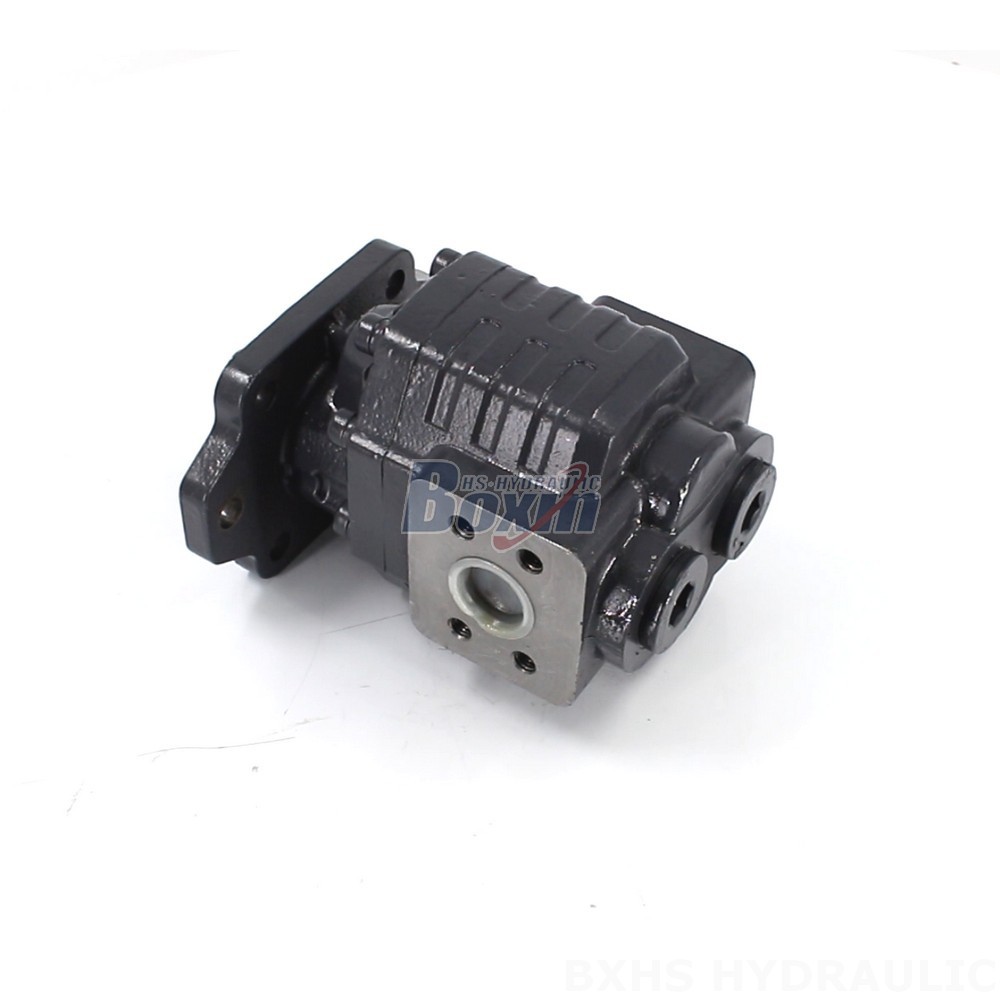

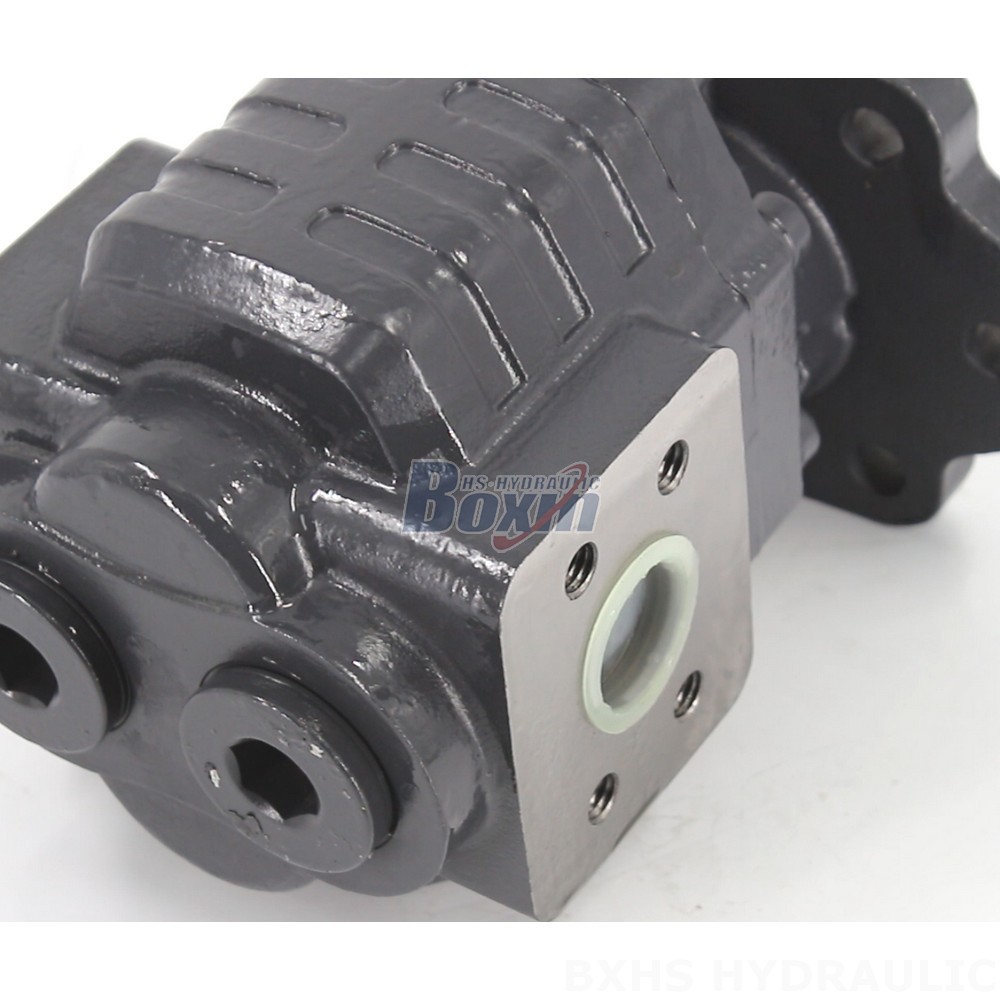

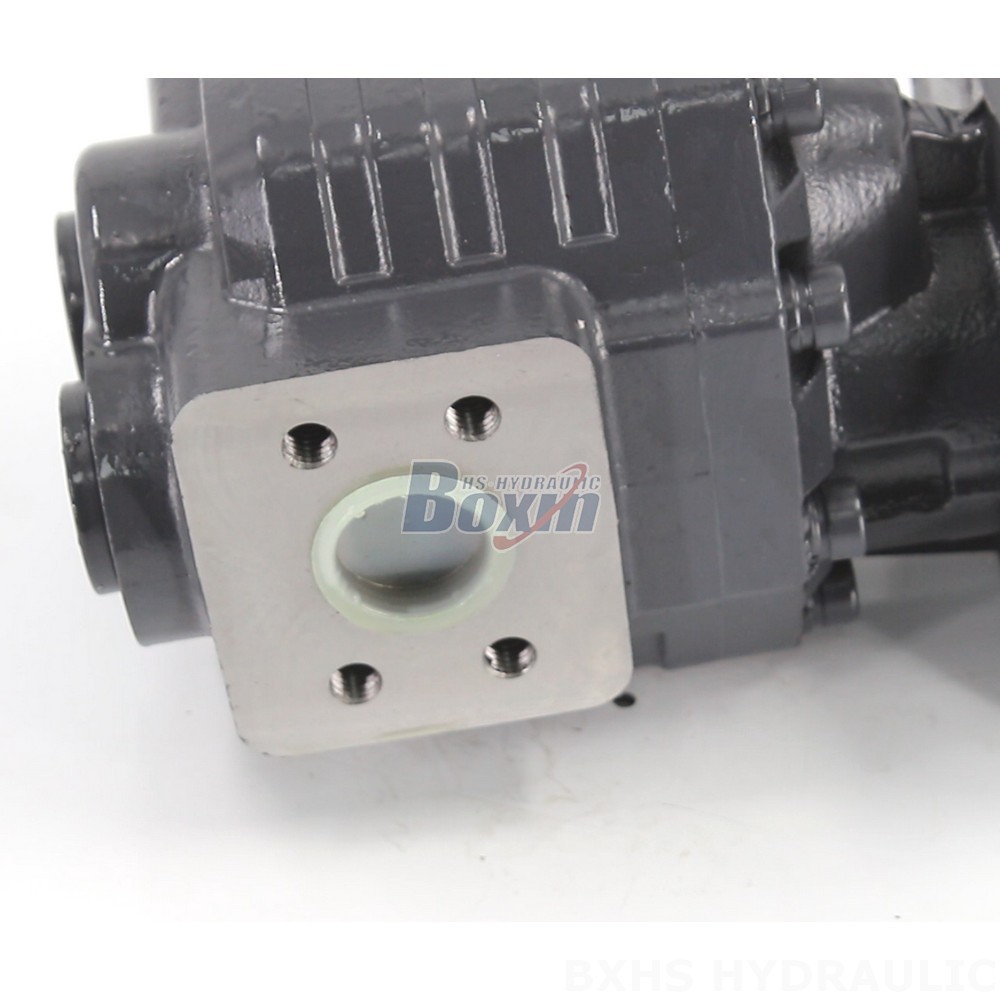

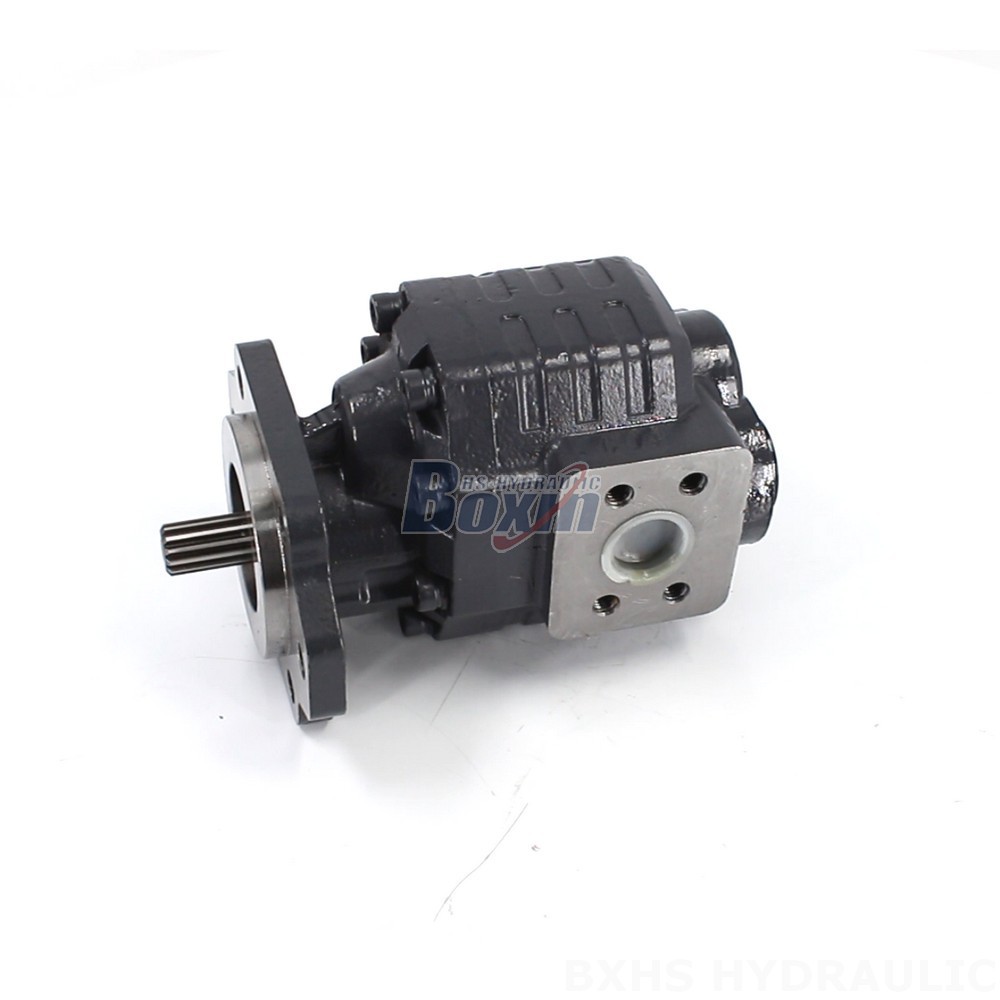

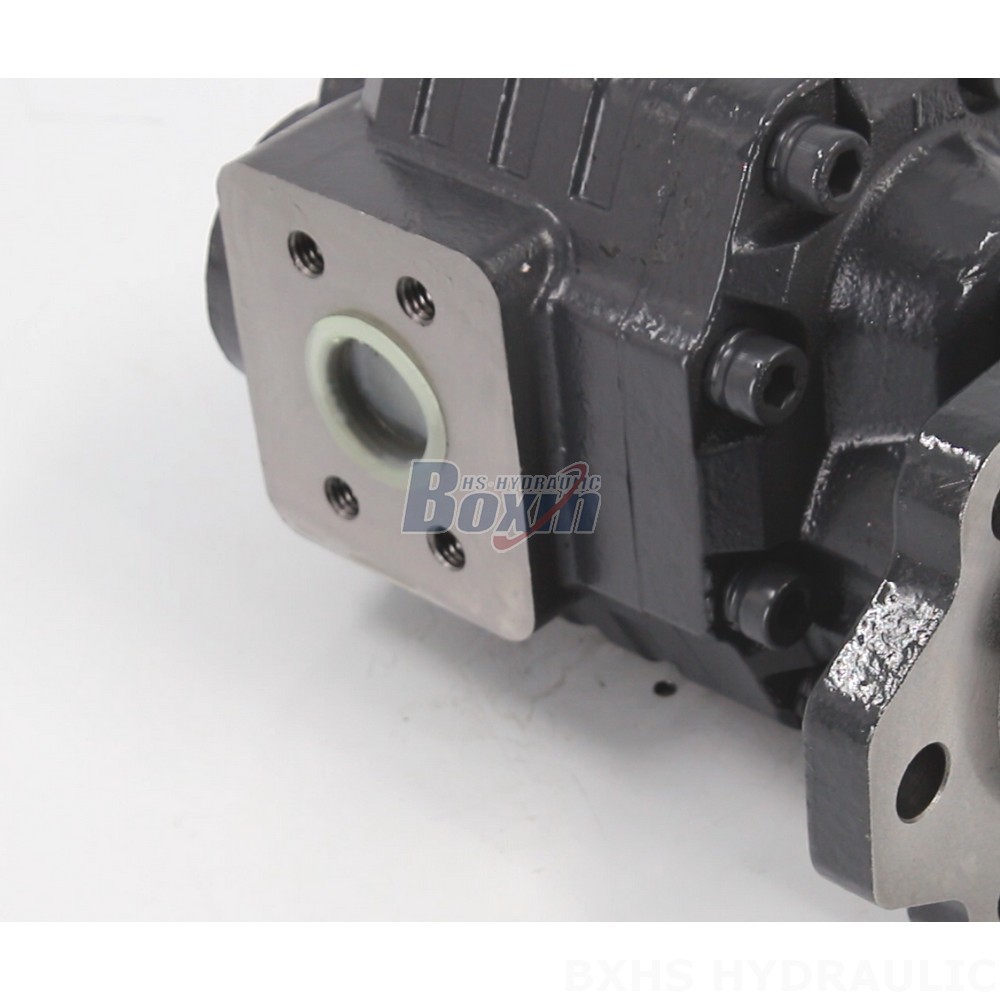

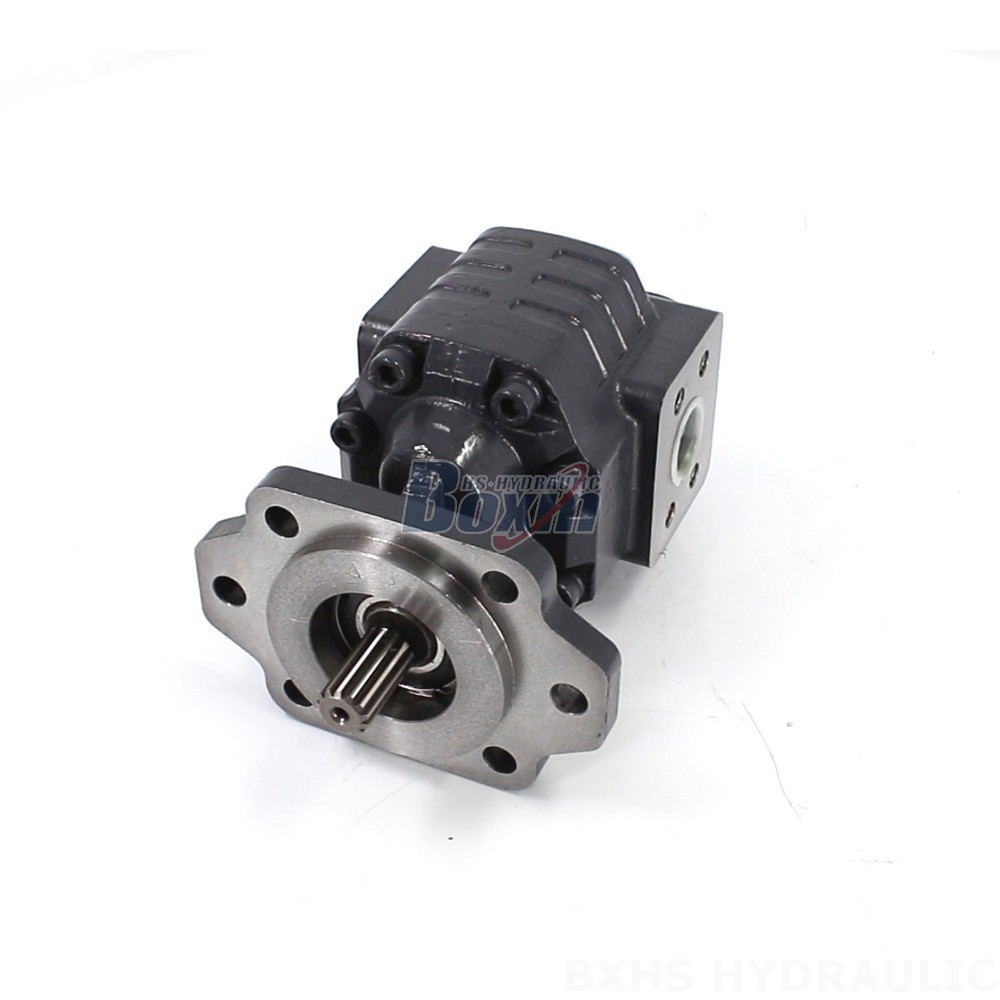

High-Pressure CBHC-2082 Hydraulic Gear Pump - 28 MPa (4061 psi) Performance

変位:80 cc/回転

定格圧力:20 MPa (2900 psi)

最大圧力:25 MPa (3625 psi)

最大回転速度:2500 r/min

回転方向:双方向

ベンダー:BXHS

製品タイプ:油圧ギア・ポンプ

製品シリーズ:CBHCシリーズ 油圧ギア・ポンプ

梱包サイズ:22*22*25

総重量:16.30 kg

在庫状況: 在庫あり

441 この製品を探している人もいます

High-Pressure CBHC-2082 Hydraulic Gear Pump - 28 MPa (4061 psi) Performance

High-Pressure CBHC-2082 Hydraulic Gear Pump - 28 MPa (4061 psi) Performance

High-Pressure CBHC-2082 Hydraulic Gear Pump - 28 MPa (4061 psi) Performance drawing image

Discover the CBHC-2082 high-pressure hydraulic gear pump, offering 82 cc/rev displacement and up to 30 MPa maximum pressure. Built with durable cast iron and an SAE flange, this versatile pump is suitable for heavy-duty applications in construction, agriculture, and material handling, available for global distribution.

CBHCシリーズ 油圧ギア・ポンプ パラメーター
変位 32 cc/回転, 40 cc/回転, 50 cc/回転, 63 cc/回転, 80 cc/回転, 100 cc/回転, 25 cc/回転, 110 cc/回転
定格圧力 16 MPa (2320 psi), 18 MPa (2610 psi), 28 MPa (4061 psi), 29 MPa (4206 psi)
最大圧力 30 MPa (4351 psi)
定格回転速度 2200 r/min
最大回転速度 2500 r/min
回転方向 左 (逆時針), 右 (順時針), 双方向
材質 鋳鉄
構造 外部齒輪泵
フランジモデル SAEフランジ
軸タイプ H:矩形花鍵

As a leading **hydraulic product manufacturer**, we proudly present the **High-Pressure CBHC-2082 Hydraulic Gear Pump**, engineered for demanding global applications. This robust **external gear pump** features an 82 cc/rev displacement and handles rated pressures up to 29 MPa (4206 psi), with a maximum pressure capacity of 30 MPa (4351 psi). Designed for reliability, our **CBHC-2082 pump** boasts a durable **cast iron** structure, **SAE flange** version, and a **rectangle spline shaft (Type H)**, ensuring stable and efficient operation.

This versatile **hydraulic pump** is available in bidirectional, right, and left rotation options, making it suitable for a wide range of **heavy-duty applications**. It performs effectively in **material handling**, **construction and earth moving**, **agriculture**, and **industrial vehicles**. Specific **applicable models** include telehandlers, forklifts, all terrain cranes, aerial platforms, midi-excavators, wheel loaders, backhoe loaders, tractors, front-end loaders, harvesters, and waste compactors.

We offer comprehensive services including **manufacturing**, **OEM (Original Equipment Manufacturing)**, **ODM (Original Design Manufacturing)**, **private label**, and **custom hydraulic pump solutions**. Our **factory direct supply** ensures quality control and competitive pricing for all your **hydraulic system components**. We are actively seeking strong partnerships with **distributors**, **wholesalers**, **agents**, and **trade partners** worldwide to expand our reach for this **high-performance hydraulic pump** and other **factory wholesale** products. Partner with us for reliable, **high-quality hydraulic gear pumps** directly from the source.
