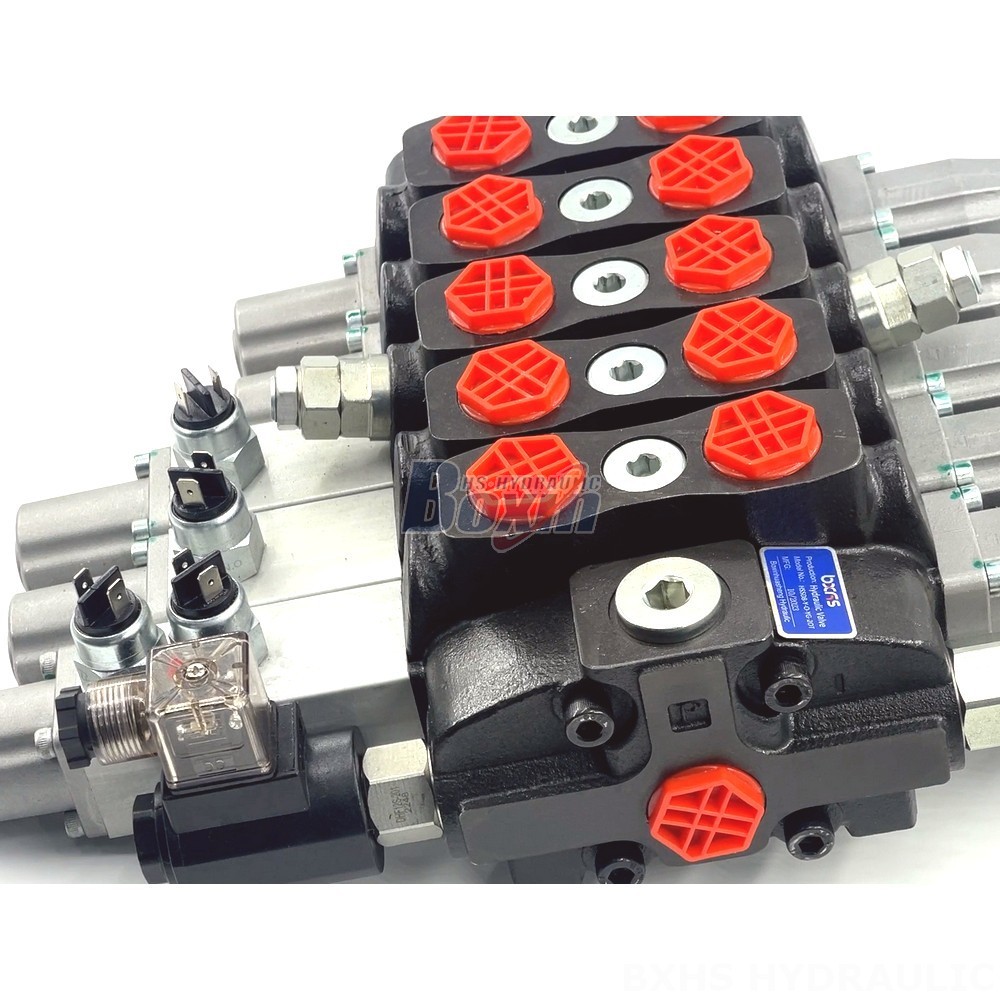

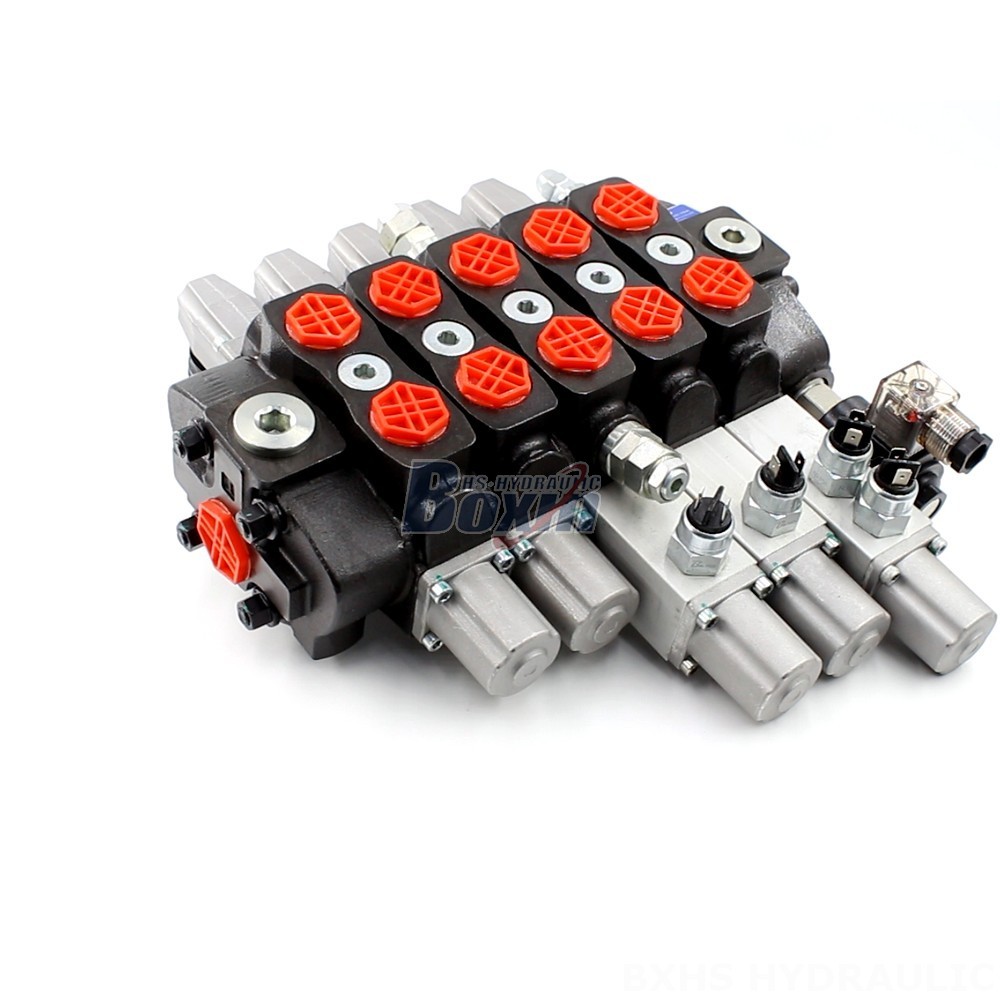

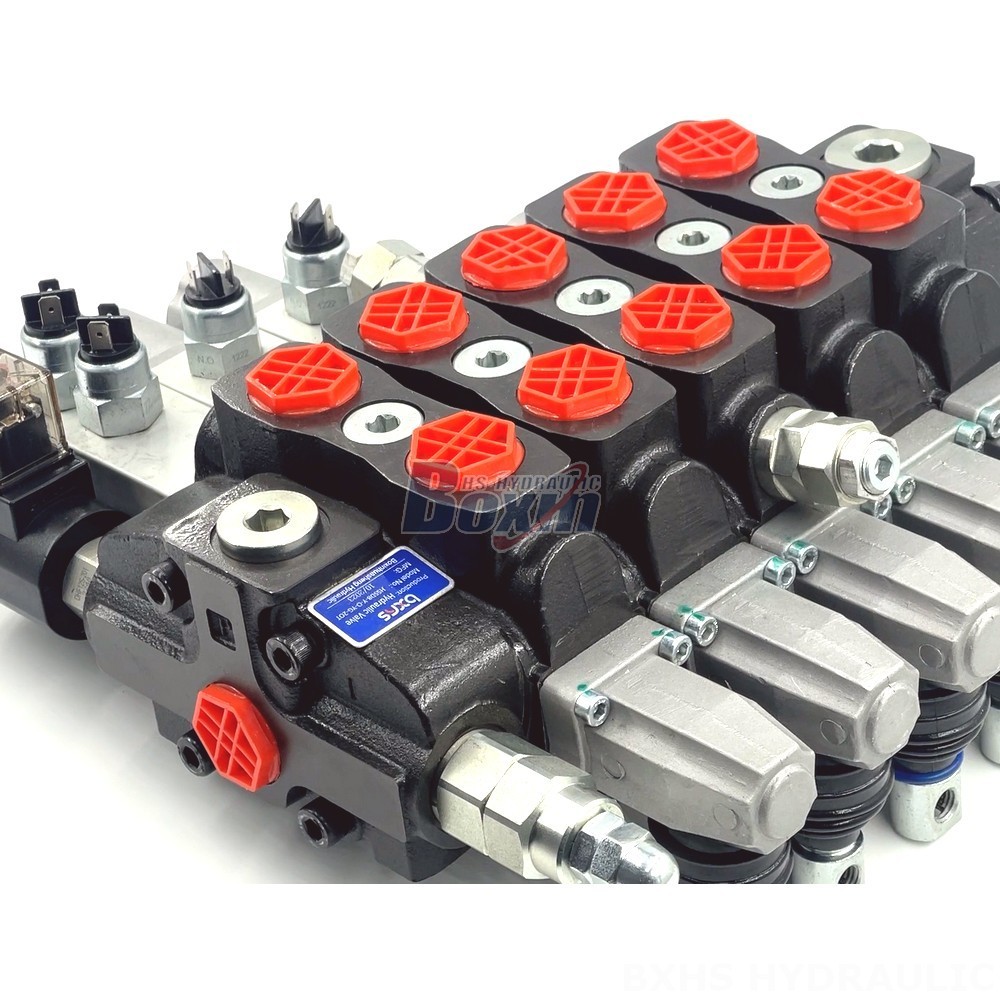

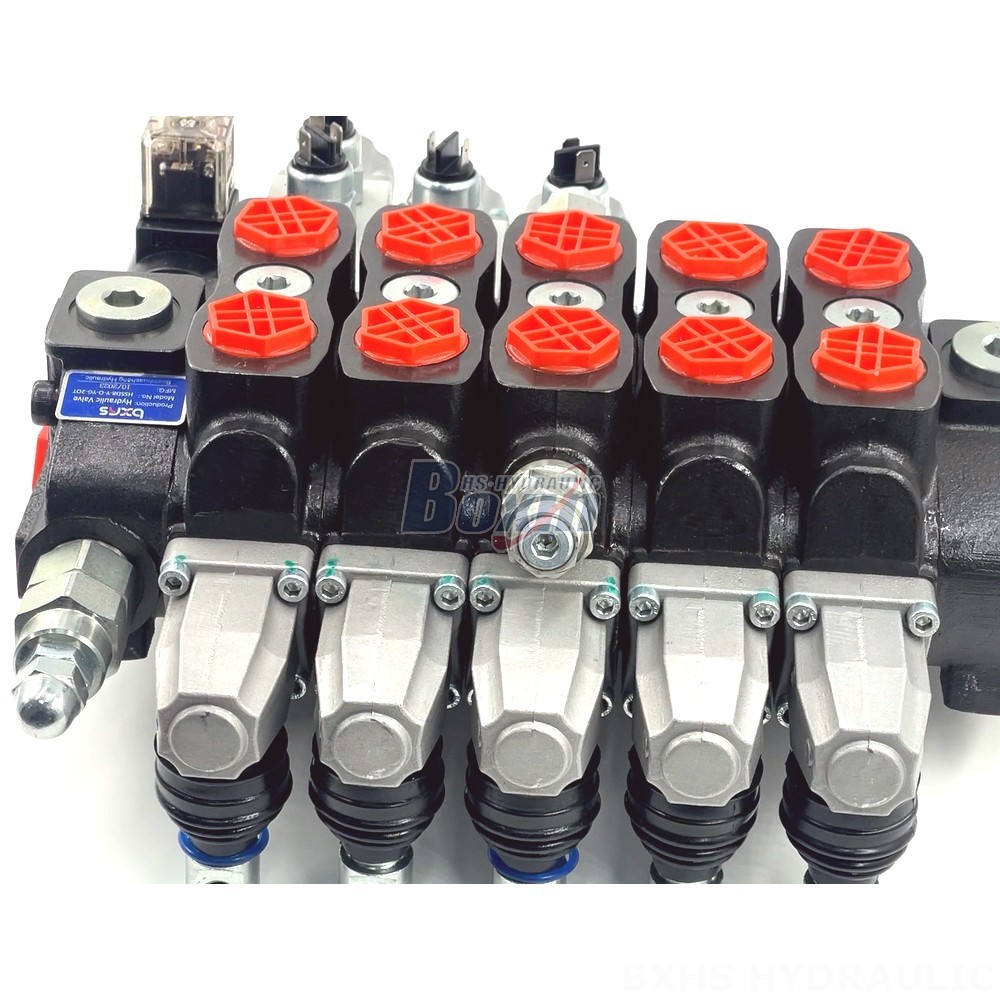

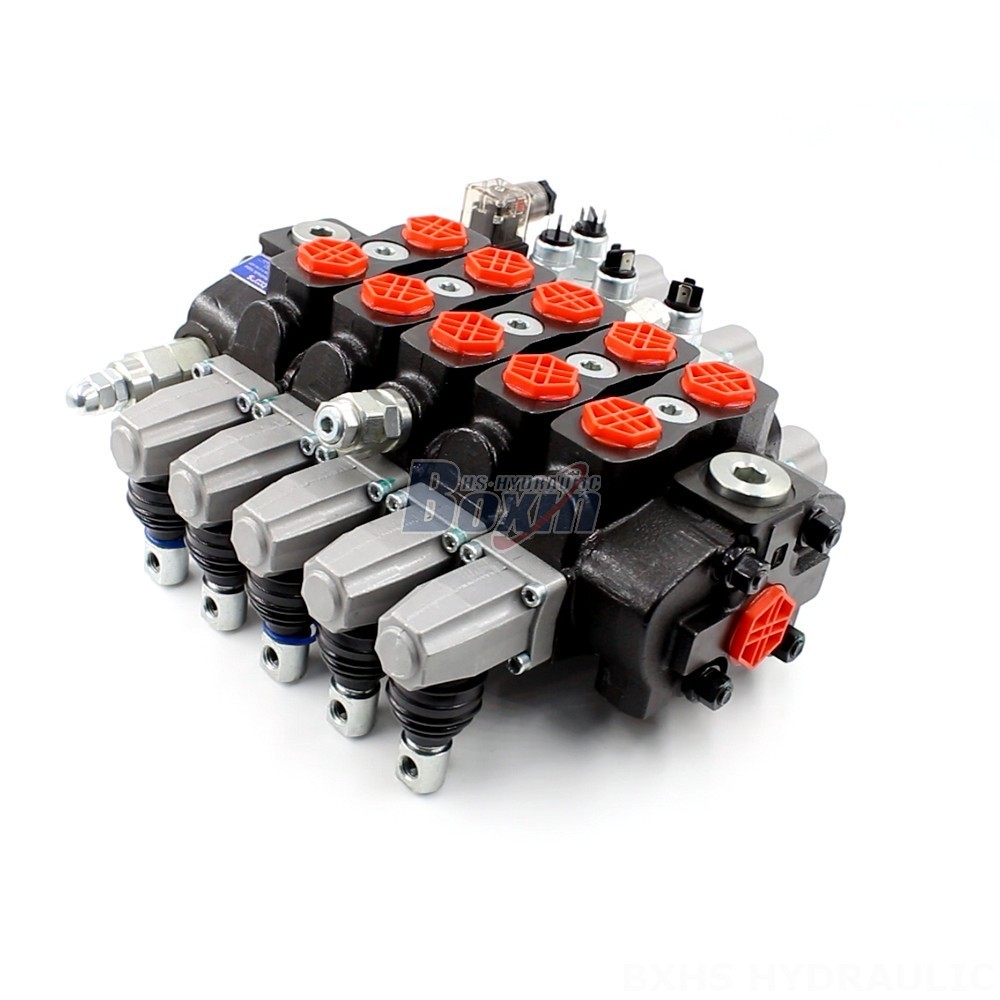

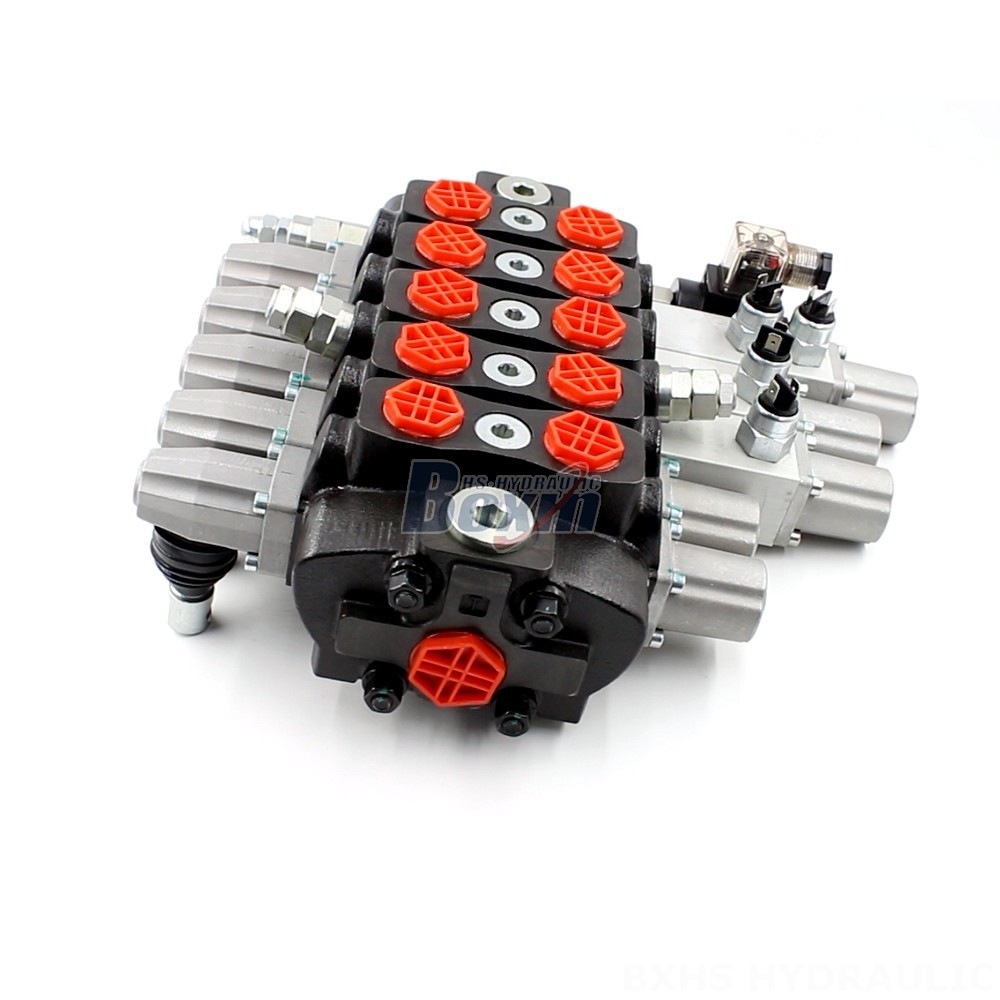

High-Performance Manual 5 Spool Sectional Directional Valve

制御方法:手動

スプール:5スプール

定格流量:毎分90リットル (23.8 US gpm)

最大圧力:315 bar (4600 psi)

吸入口:G1/2

吐出口:G3/4

ポートサイズ:G1/2

ベンダー:BXHS

製品タイプ:セクショナル方向弁

製品シリーズ:SD8シリーズ セクショナル方向弁

梱包サイズ:35*40*17

総重量:25.00 kg

在庫状況: 在庫あり

2081 この製品を探している人もいます

High-Performance Manual 5 Spool Sectional Directional Valve

High-Performance Manual 5 Spool Sectional Directional Valve

High-Performance Manual 5 Spool Sectional Directional Valve drawing image

This is a high-performance manual 5 spool sectional directional valve designed for excavators and other heavy equipment. It features a rated flow of 90 L/min and a maximum pressure of 350 bar, making it ideal for demanding applications.

SD8シリーズ セクショナル方向弁 パラメーター
制御方法 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, ソレノイド・ジョイスティック, 手動・ジョイスティック, 電動モーター
スプール 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール, 8スプール, 9スプール, 10スプール
周囲温度範囲 -40°C to +80°C (-40°F to +176°F)
構造タイプ ブロック弁
セクション 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション, 8セクション, 9セクション, 10セクション
作動粘度範囲 12 - 400 mm²/s (12 cSt to 400 cSt)
定格流量 毎分90リットル (23.8 US gpm)
最大圧力 315 bar (4600 psi)
吸入口 G1/2, G3/4, M22×1.5, SAE 10
吐出口 G1/2, G3/4, M27×2.0, SAE 10, 3/4 NPT
ポートサイズ G1/2, M22×1.5, SAE 10

Our Excavator Joystick Hydraulic Valve is a high-performance, manually controlled, 5 spool sectional directional valve. It is designed for demanding applications in the construction, material handling, agriculture, and industrial vehicle sectors. This valve offers a rated flow of 90 L/min and a maximum pressure of 350 bar. It is suitable for a wide range of applications, including excavators, forklifts, telehandlers, mini-excavators, midi-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, and harvesters. The valve features a robust construction and reliable performance, ensuring long-lasting operation. With its 5 spool design, it offers precise control and responsiveness. This valve is an excellent choice for any application requiring high performance and reliable hydraulic control.
