What is the primary application of the High-Performance Hydraulic Directional Valve | P40-G12 for Demanding Applications?

The High-Performance Hydraulic Directional Valve | P40-G12 for Demanding Applications is designed for mobile hydraulic systems, agricultural machinery (such as tractors and harvesters), construction equipment (such as loaders and excavators), and industrial machinery. It ensures precise flow and directional control.

Is Boxinhuasheng a factory-direct manufacturer?

Yes, Boxinhuasheng (Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd.) is a factory-direct manufacturer established in 2001. We operate a 68,000m虏 facility with 4 modern manufacturing plants and 260+ production machines, supplying certified products directly to global customers.

What quality certifications do Boxinhuasheng products have?

All Boxinhuasheng directional control valves, gear pumps, and hydraulic accessories are CE certified, IATF 16949 compliant, and verified on-site by SGS, meeting international engineering standards.

Can Boxinhuasheng provide OEM/ODM customization services?

Yes, Boxinhuasheng has a team of 35 senior hydraulic engineers providing custom OEM manufacturing, ODM development, private labeling, and customized hydraulic system solutions tailored to specific operating pressures and flows.

What is the warranty and shipping lead time?

We offer a 1-year warranty with free replacement for any quality defects. Standard express delivery is within 30 days, supported by our robust annual capacity of 1.5 million hydraulic units and export experience to 80+ countries.

High-Performance Hydraulic Directional Valve | P40-G12 for Demanding Applications

Name: High-Performance Hydraulic Directional Valve | P40-G12 for Demanding Applications
Brand: Boxinhuasheng
SKU: BXHS-52856
Availability: InStock

sales2@chinesehydraulic.com

イノベーションが開発を推進し、テクノロジーが未来を築きます

ホームモノブロック方向制御弁P40シリーズ製品詳細

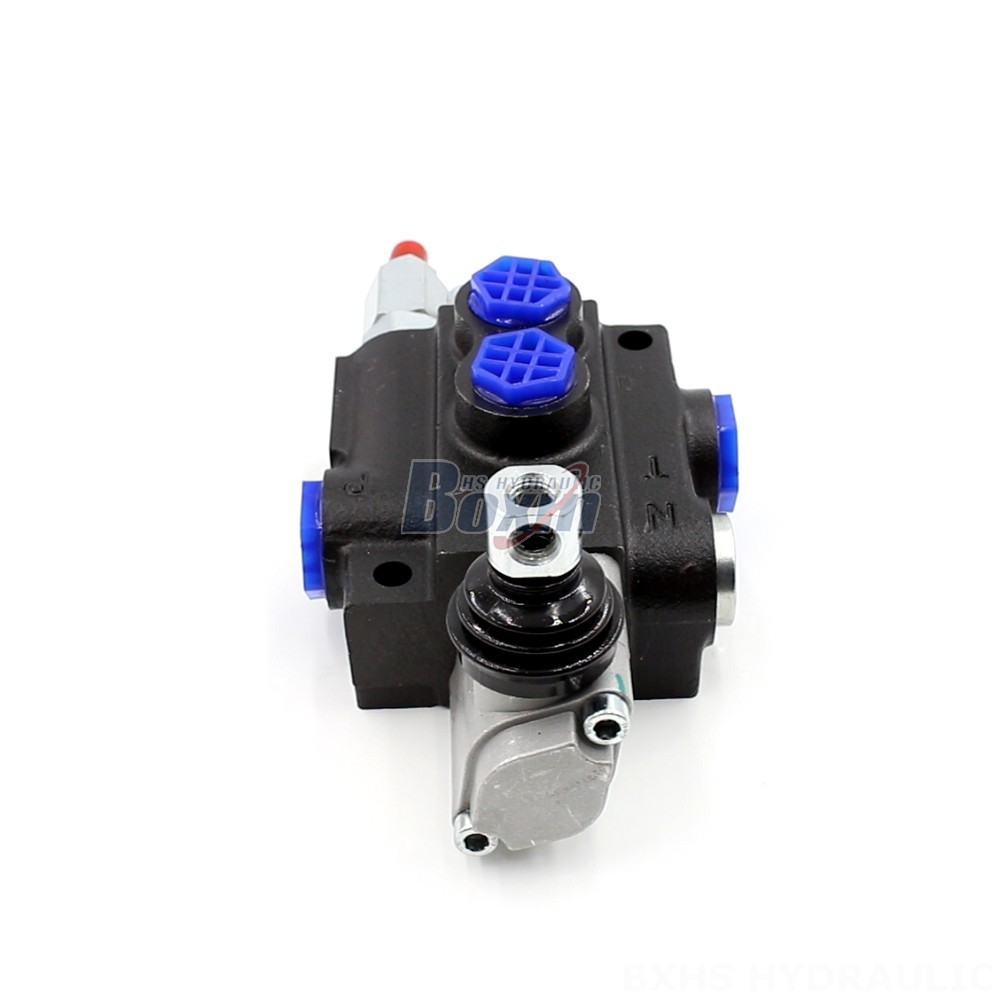

High-Performance Hydraulic Directional Valve | P40-G12 for Demanding Applications cover photo

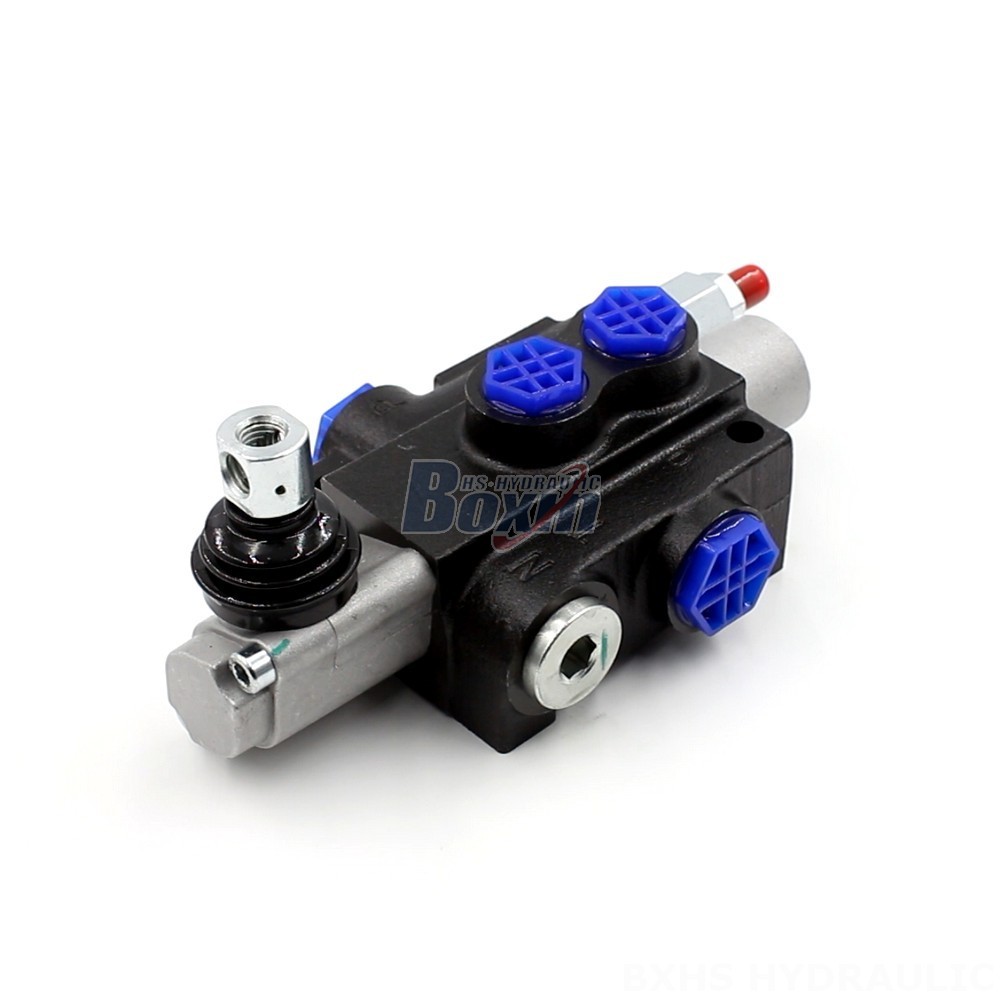

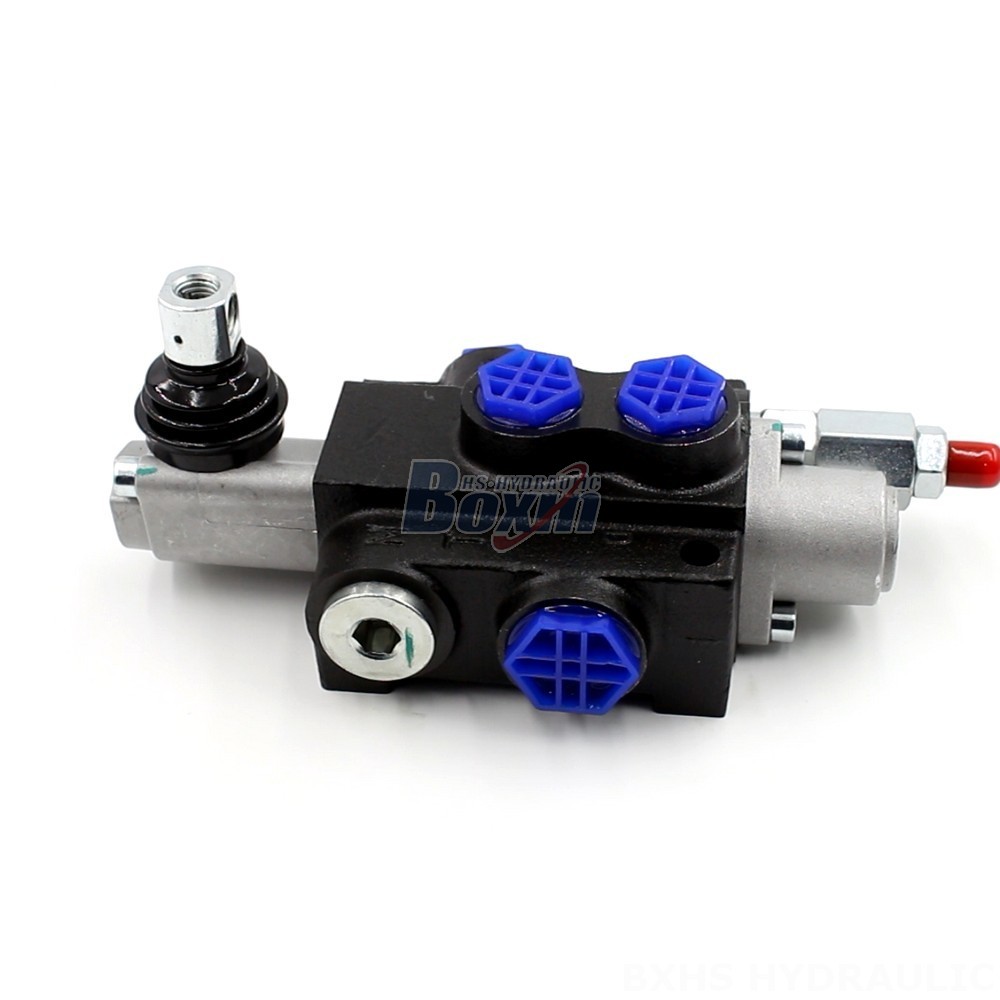

High-Performance Hydraulic Directional Valve | P40-G12 for Demanding Applications main image

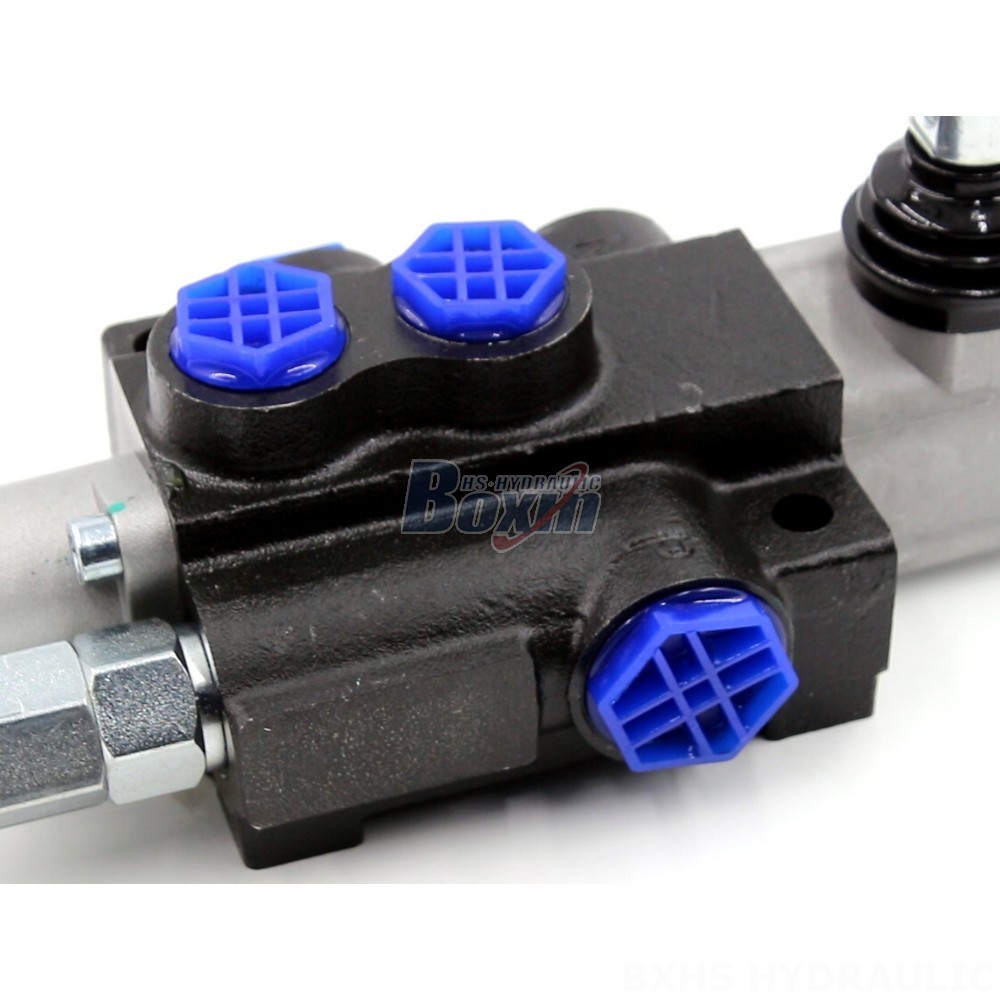

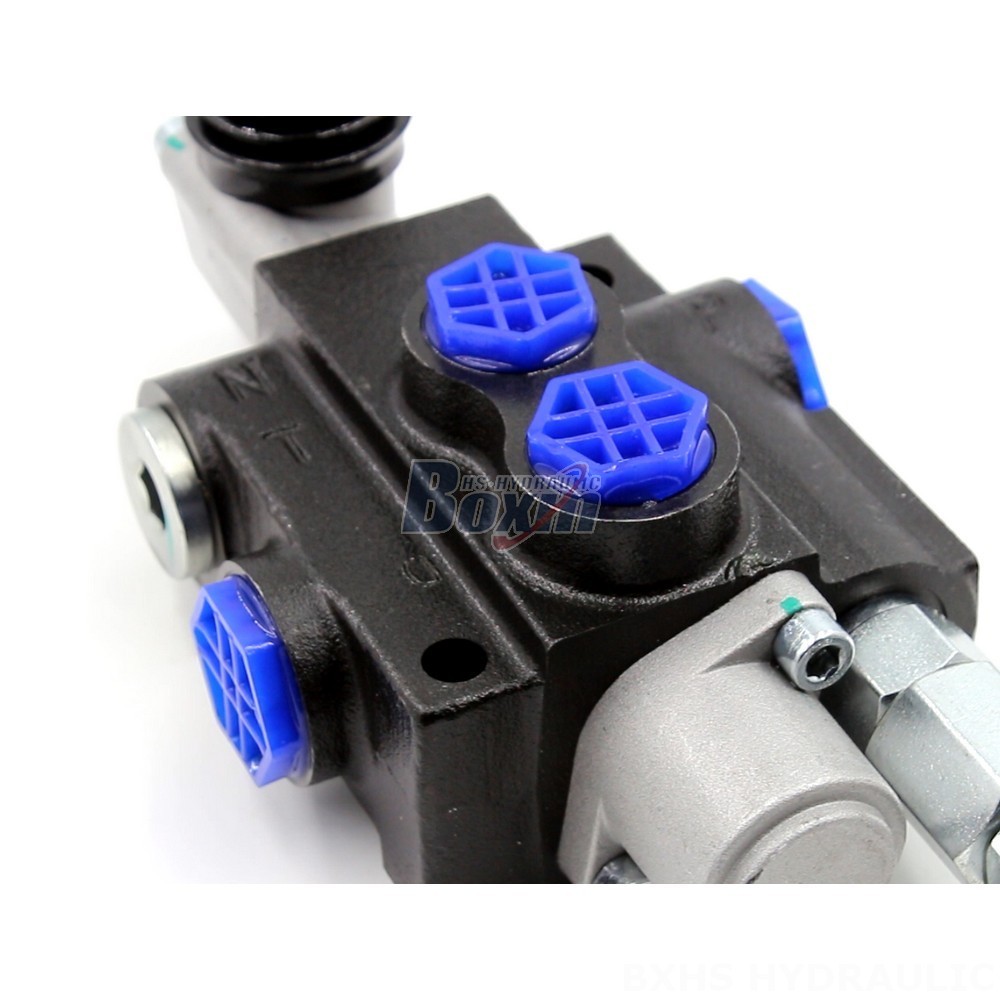

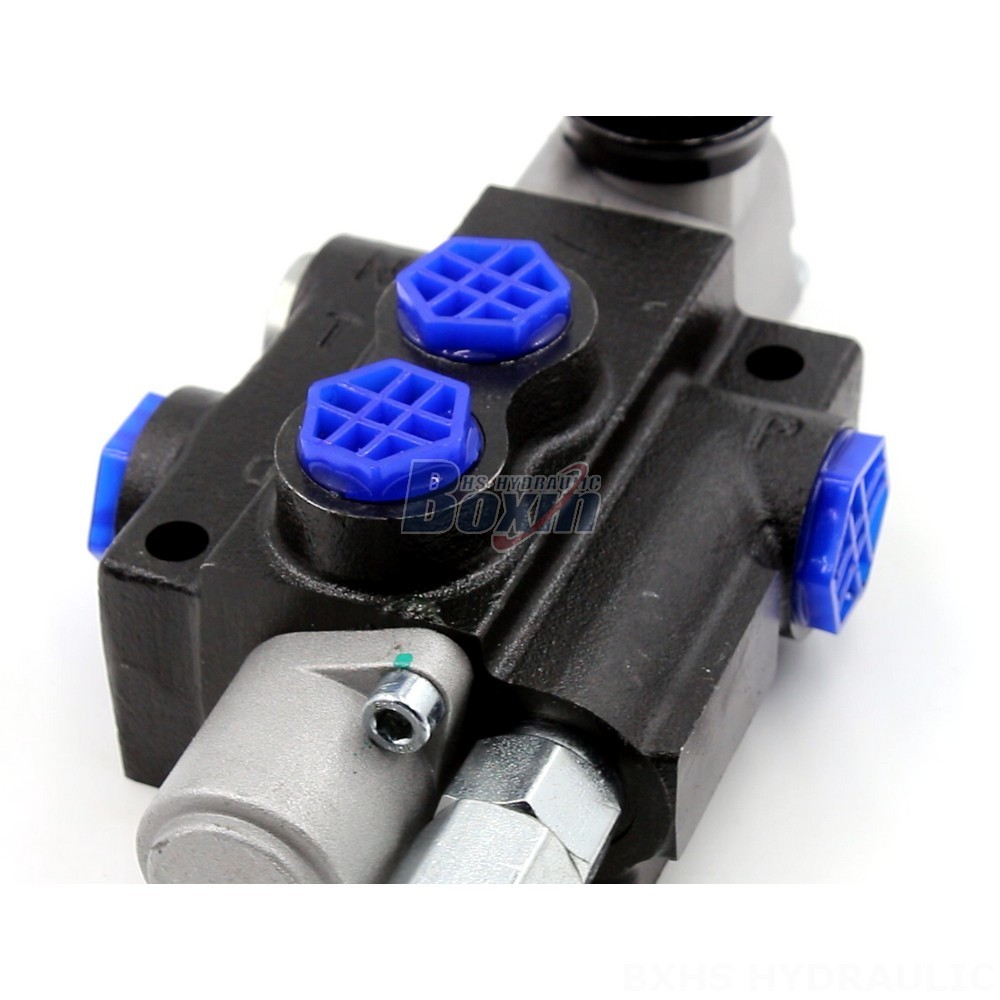

High-Performance Hydraulic Directional Valve | P40-G12 for Demanding Applications detail image

High-Performance Hydraulic Directional Valve | P40-G12 for Demanding Applications

制御方法:手動

スプール:1スプール

定格流量:毎分40リットル (10.5 US gpm)

最大圧力:250 bar (3600 psi)

吸入口:G1/2

吐出口:G1/2

ポートサイズ:G1/2

ベンダー:BXHS

製品タイプ:モノブロック方向制御弁

製品シリーズ:P40シリーズモノブロック方向制御弁

梱包サイズ:23*16*11

総重量:3.00 kg

在庫状況: 在庫あり

お問い合わせ

846 この製品を探している人もいます

High-Performance Hydraulic Directional Valve | P40-G12 for Demanding Applications

High-Performance Hydraulic Directional Valve | P40-G12 for Demanding Applications drawing image

The P40-G12 High-Performance Hydraulic Directional Valve is designed for demanding applications in various industries, including material handling, construction and earth moving, agriculture, and industrial vehicles. This valve features manual control, a monoblock construction, and a rated flow of 40 L/min. With a maximum pressure of 250 bar and an operating viscosity range of 15 - 75 mm²/s, it can withstand challenging operating conditions. The P40-G12 is suitable for use in applications such as telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, and excavators.

P40シリーズモノブロック方向制御弁パラメーター
制御方法	手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, ソレノイド・ジョイスティック, 手動・ジョイスティック, ソレノイドおよびケーブル式
スプール	1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール
周囲温度範囲	-40°C to +80°C (-40°F to +176°F)
構造タイプ	モノブロック弁
セクション	1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション
作動粘度範囲	15 - 75 mm²/s (15 cSt to 75 cSt)
定格流量	毎分40リットル (10.5 US gpm)
最大圧力	250 bar (3600 psi)
吸入口	G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
吐出口	G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
ポートサイズ	G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

**P40-G12 High-Performance Hydraulic Directional Valve**

**Key Features:**

- Manual control for precise operation
- Monoblock construction for durability and reliability
- Rated flow of 40 L/min for efficient performance
- Maximum pressure of 250 bar for demanding applications
- Operating viscosity range of 15 - 75 mm²/s for versatility
- Ambient temperature range of -40°C to +80°C for use in various environments
- 1 spool for simple and effective flow control

**Applications:**

- MATERIAL HANDLING: Telehandlers, forklifts, stackers
- CONSTRUCTION AND EARTH MOVING: All-terrain cranes, motor graders, excavators
- AGRICULTURE: Tractors, harvesters
- INDUSTRIAL VEHICLES: Aerial platforms, skid steer loaders, compact wheel loaders
