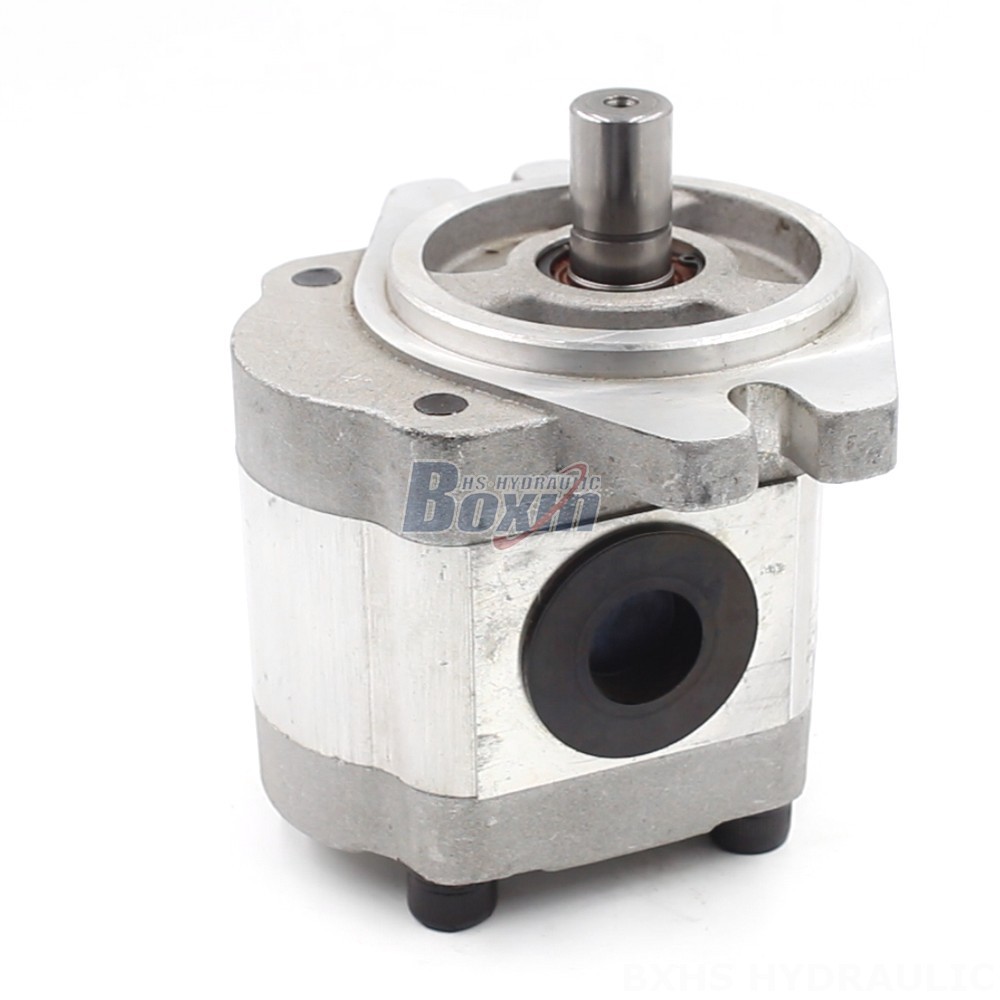

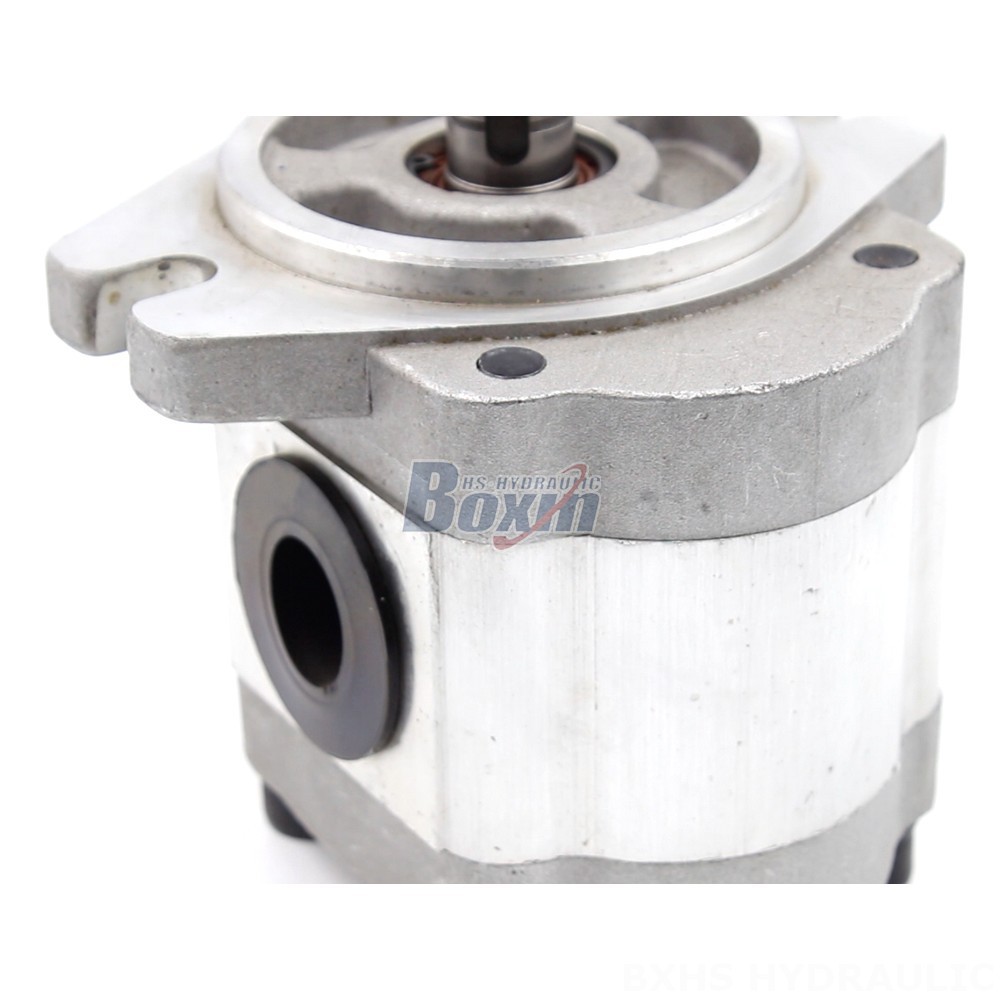

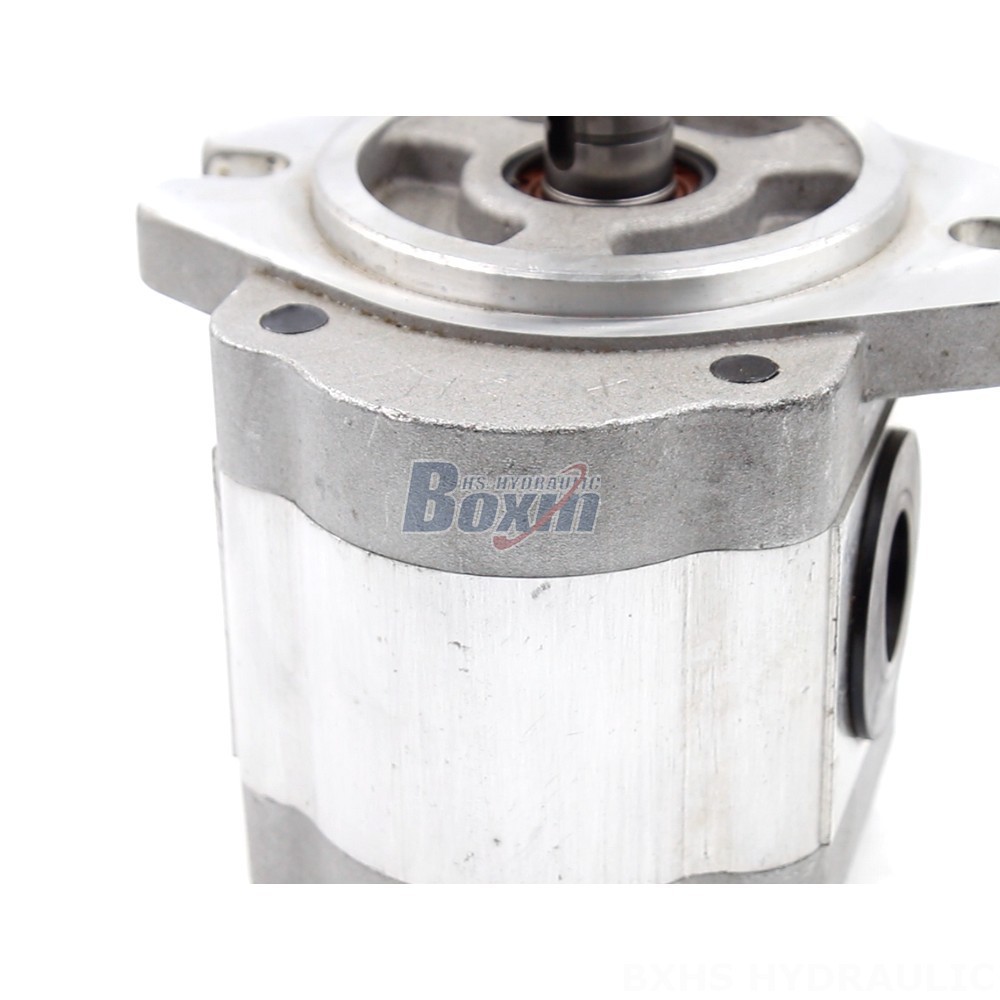

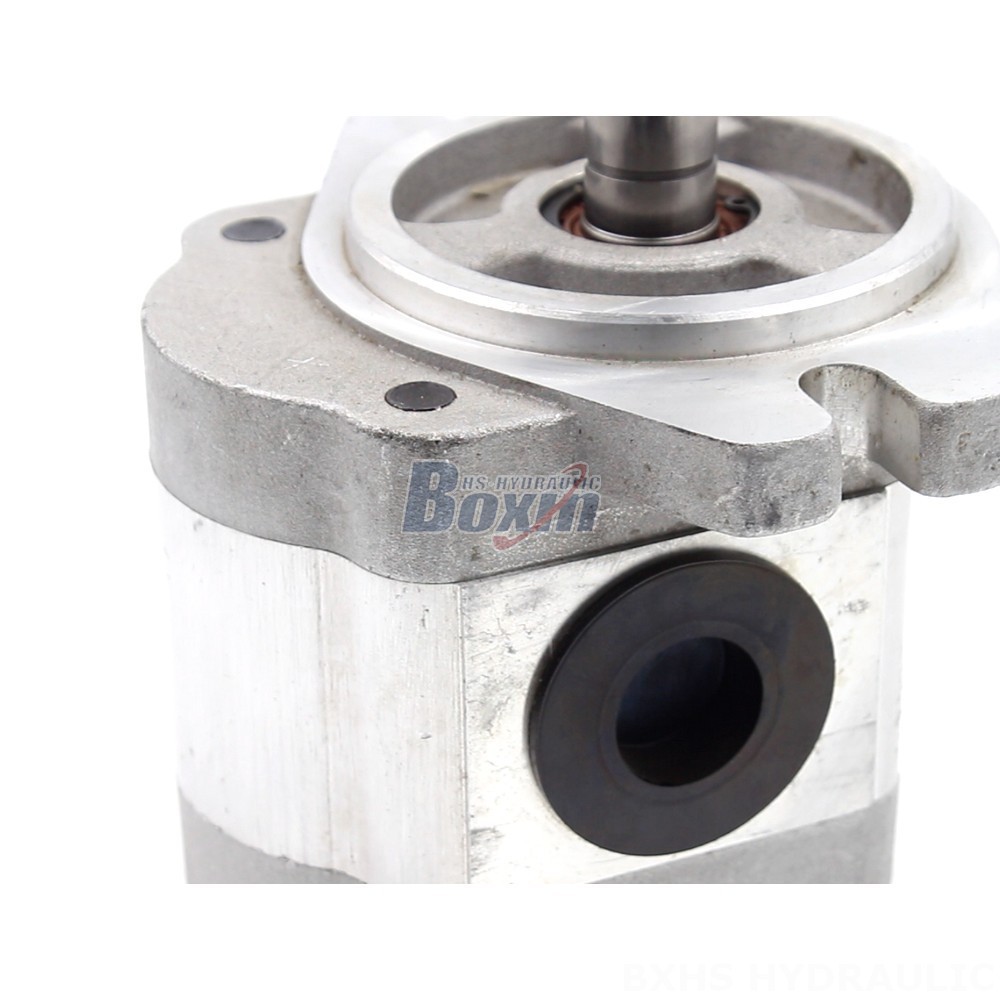

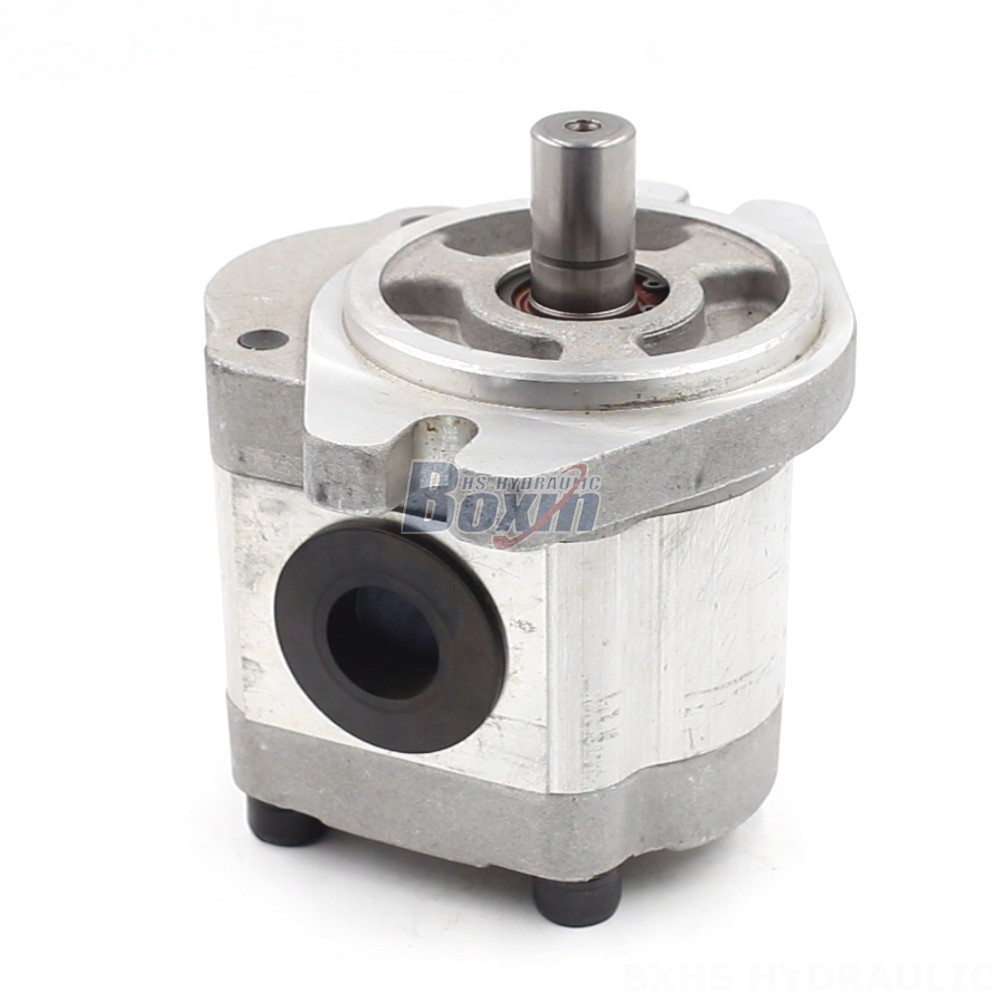

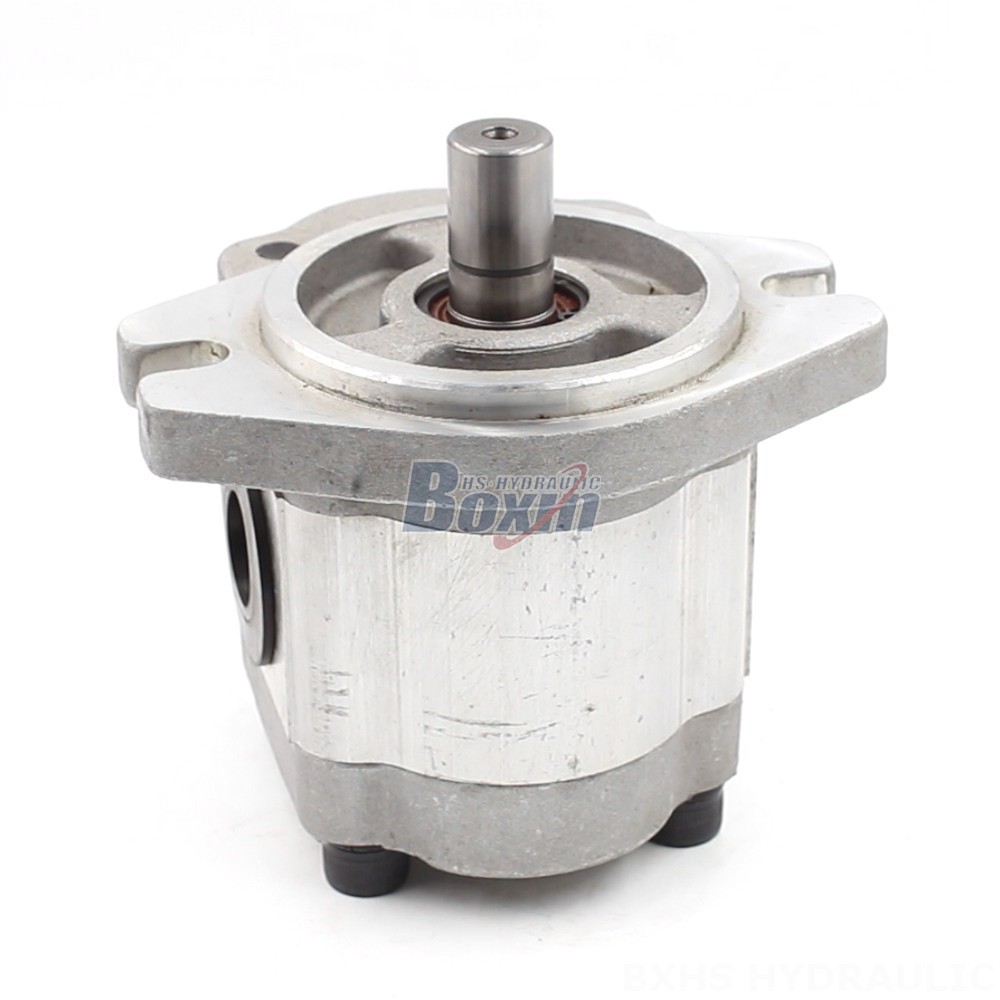

This heavy-duty 6 cc/rev hydraulic gear pump, manufactured in China, is designed for high-performance applications in construction, agriculture, and industrial vehicles. With a displacement of 10 cc/rev, 20 MPa rated pressure, and 2000 r/min rated speed, it delivers reliable power and efficiency.
| CBHS-FL3 シリーズ 油圧ギア・ポンプ パラメーター | |
|---|---|
| 変位 | 10 cc/回転, 4 cc/回転, 20 cc/回転, 16 cc/回転, 14 cc/回転, 6 cc/回転 |
| 定格圧力 | 20 MPa (2900 psi) |
| 最大圧力 | 25 MPa (3625 psi) |
| 定格回転速度 | 2000 r/min |
| 最大回転速度 | 3000 r/min |
| 回転方向 | 左 (逆時針), 右 (順時針) |
| 材質 | 鋁 |
| 構造 | 外部齒輪泵 |
| フランジモデル | A-橢圓形凸緣 |
| 軸タイプ | H：矩形花鍵, X：漸開線花鍵, P：プレーンキー |
The CBHS-FL3 Series hydraulic gear pump features a robust internal gear design and is constructed from durable aluminum. It offers a rated pressure of 20 MPa (2900 psi) and a rated speed of 2000 r/min, with a maximum speed of 3000 r/min. The pump is available with left or right rotation options and comes with an A-oval flange and plain key shaft. Its versatility makes it suitable for a wide range of applications, including telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, tractors, front-end loaders, harvesters, balers, and sprayers.
