What is the primary application of the Global Distribution: XQF23 Valves Shipped Worldwide from Our Factory?

The Global Distribution: XQF23 Valves Shipped Worldwide from Our Factory is designed for mobile hydraulic systems, agricultural machinery (such as tractors and harvesters), construction equipment (such as loaders and excavators), and industrial machinery. It ensures precise flow and directional control.

Is Boxinhuasheng a factory-direct manufacturer?

Yes, Boxinhuasheng (Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd.) is a factory-direct manufacturer established in 2001. We operate a 68,000m虏 facility with 4 modern manufacturing plants and 260+ production machines, supplying certified products directly to global customers.

What quality certifications do Boxinhuasheng products have?

All Boxinhuasheng directional control valves, gear pumps, and hydraulic accessories are CE certified, IATF 16949 compliant, and verified on-site by SGS, meeting international engineering standards.

Can Boxinhuasheng provide OEM/ODM customization services?

Yes, Boxinhuasheng has a team of 35 senior hydraulic engineers providing custom OEM manufacturing, ODM development, private labeling, and customized hydraulic system solutions tailored to specific operating pressures and flows.

What is the warranty and shipping lead time?

We offer a 1-year warranty with free replacement for any quality defects. Standard express delivery is within 30 days, supported by our robust annual capacity of 1.5 million hydraulic units and export experience to 80+ countries.

Global Distribution: XQF23 Valves Shipped Worldwide from Our Factory

Name: Global Distribution: XQF23 Valves Shipped Worldwide from Our Factory
Brand: Boxinhuasheng
SKU: BXHS-51853
Availability: InStock

イノベーションが開発を推進し、テクノロジーが未来を築きます

ホームモノブロック方向制御弁XQF シリーズ製品詳細

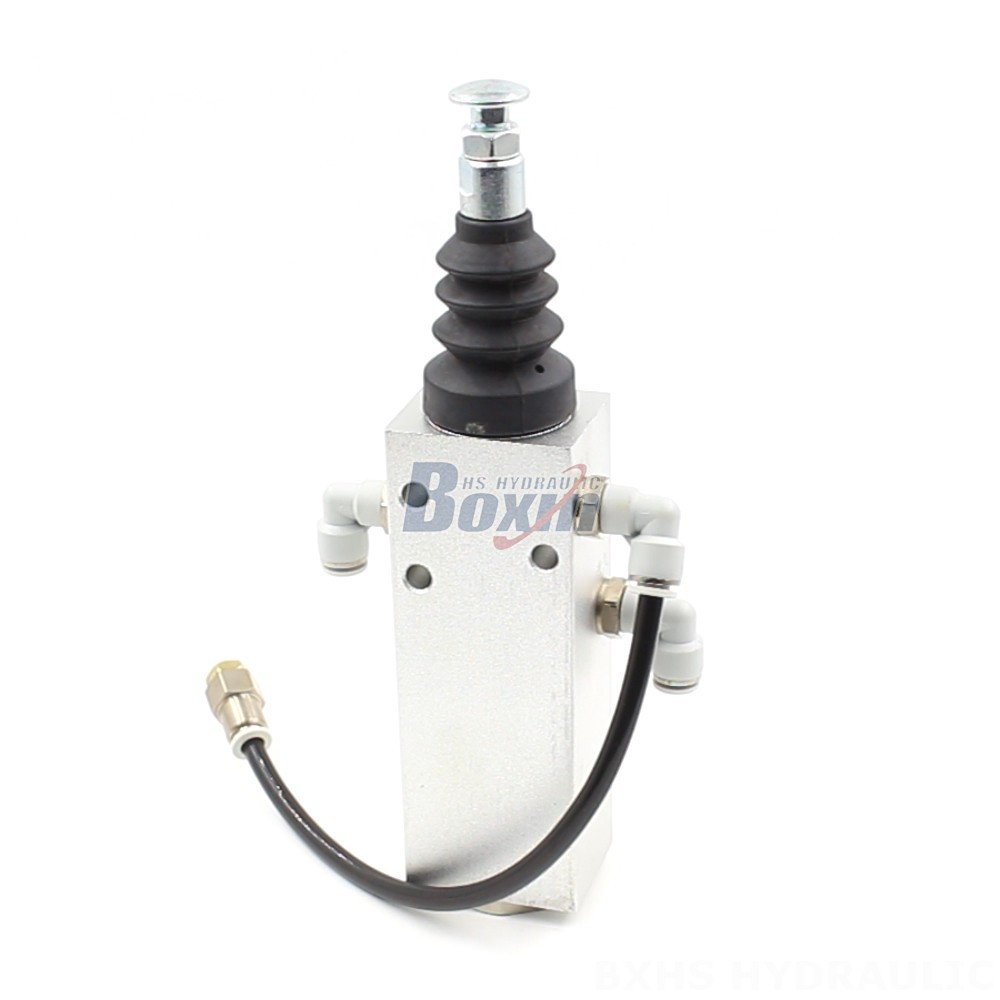

Global Distribution: XQF23 Valves Shipped Worldwide from Our Factory cover photo

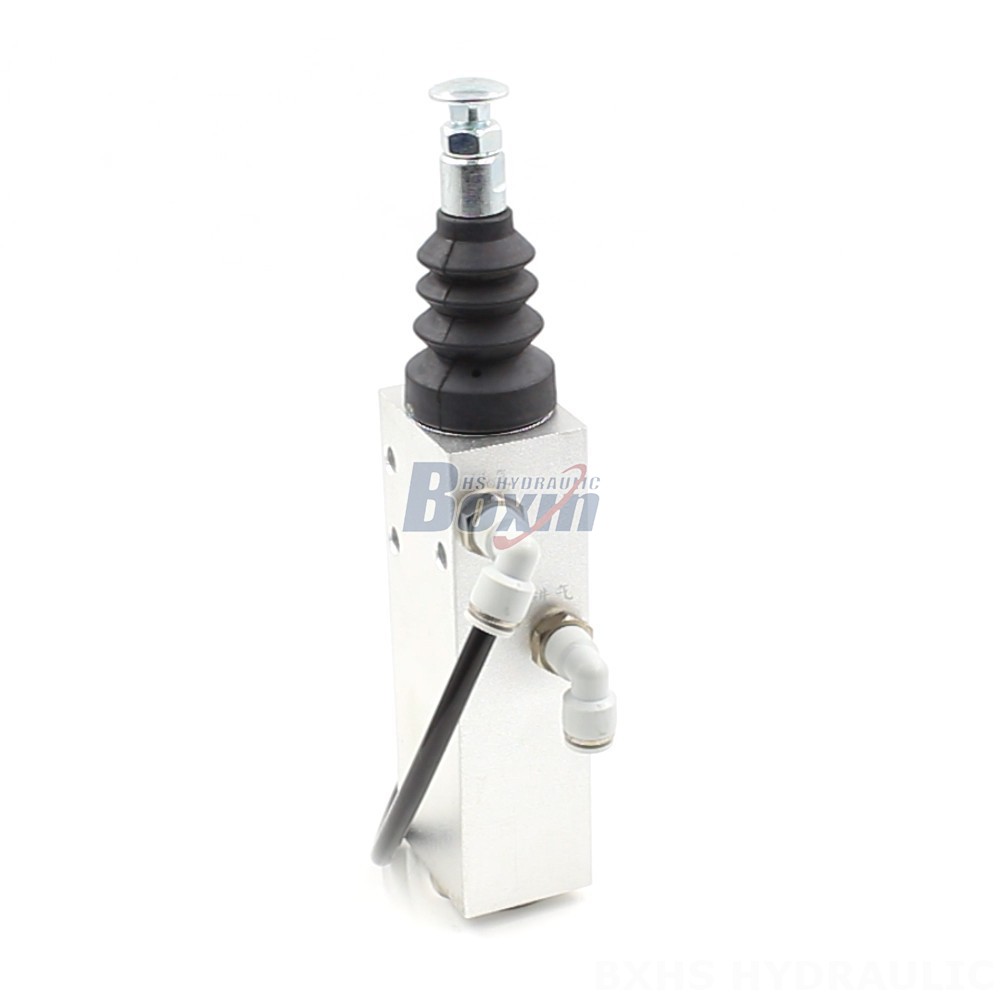

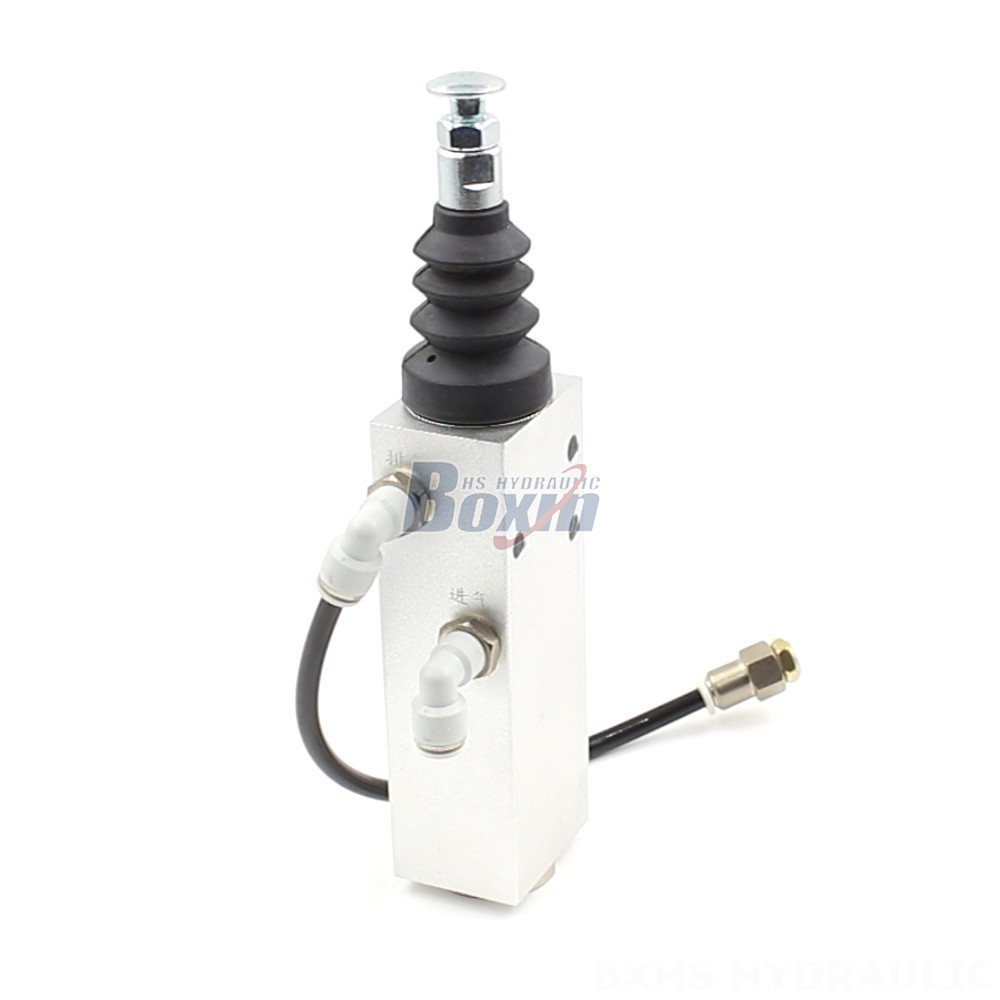

Global Distribution: XQF23 Valves Shipped Worldwide from Our Factory main image

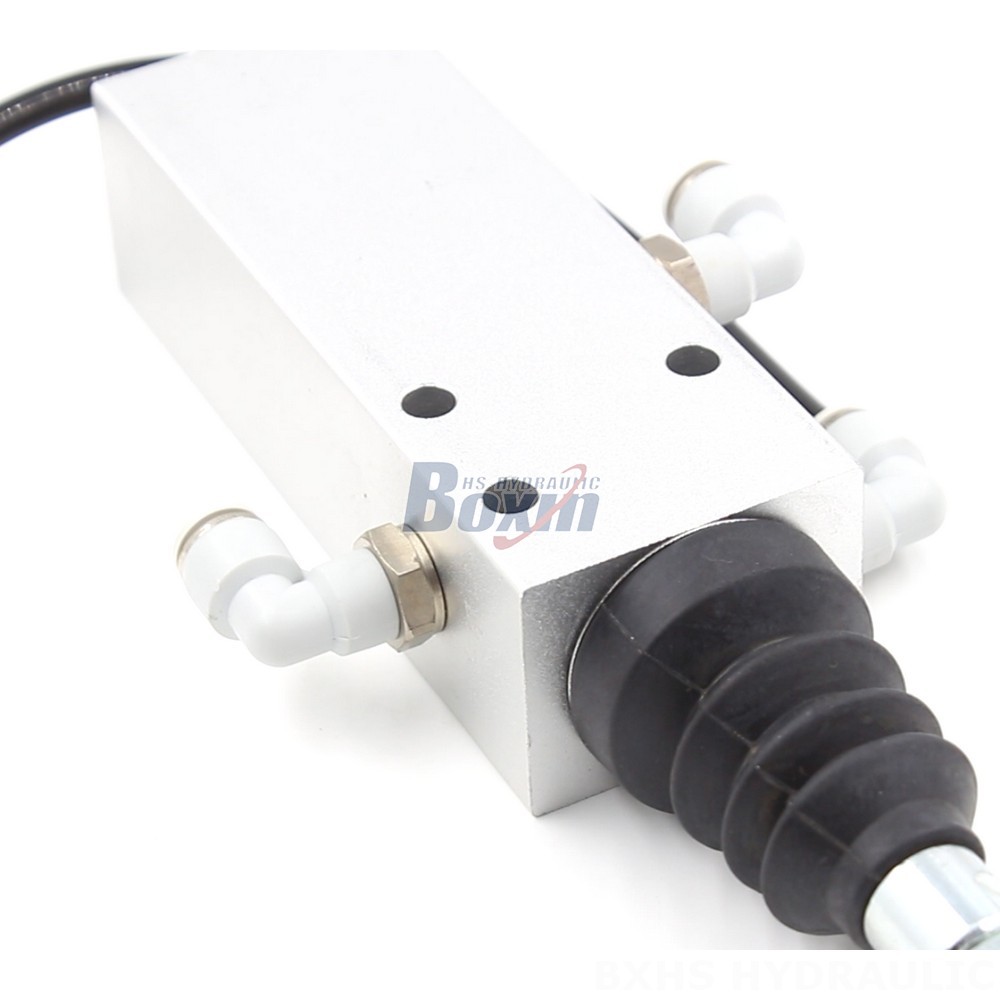

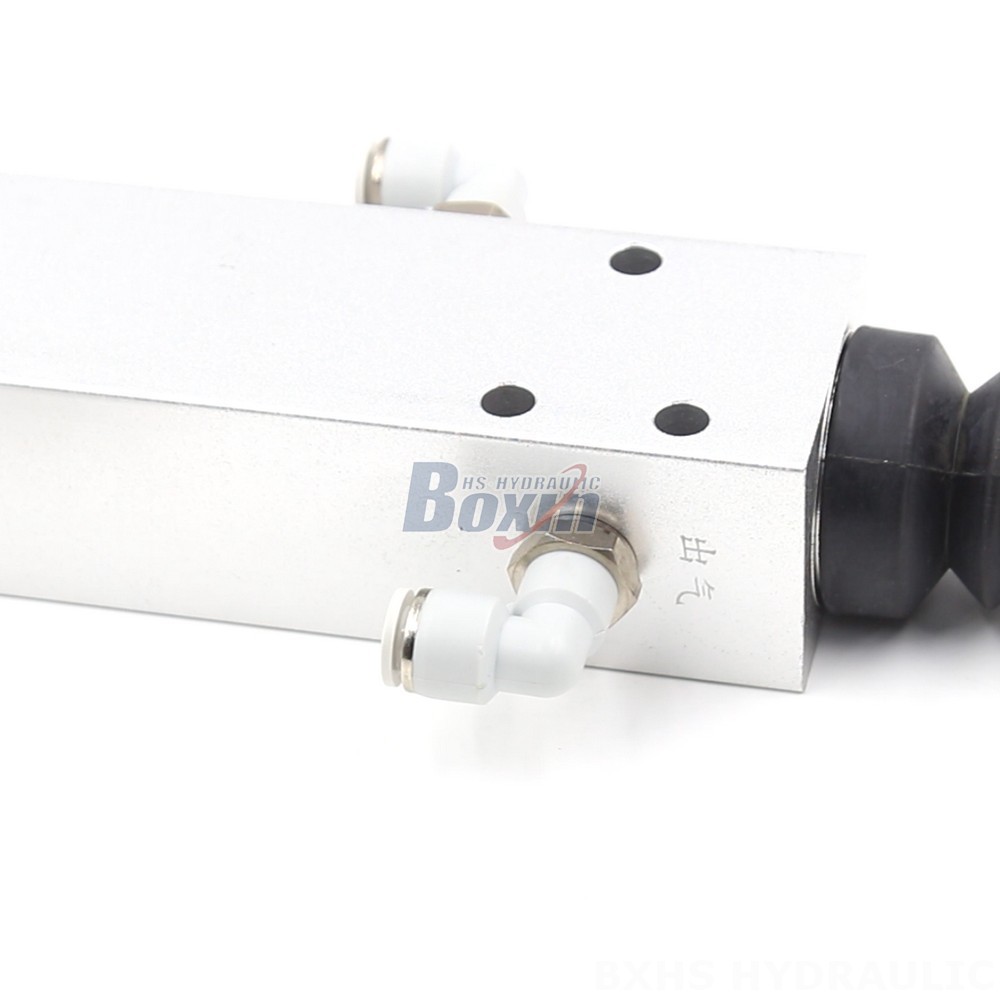

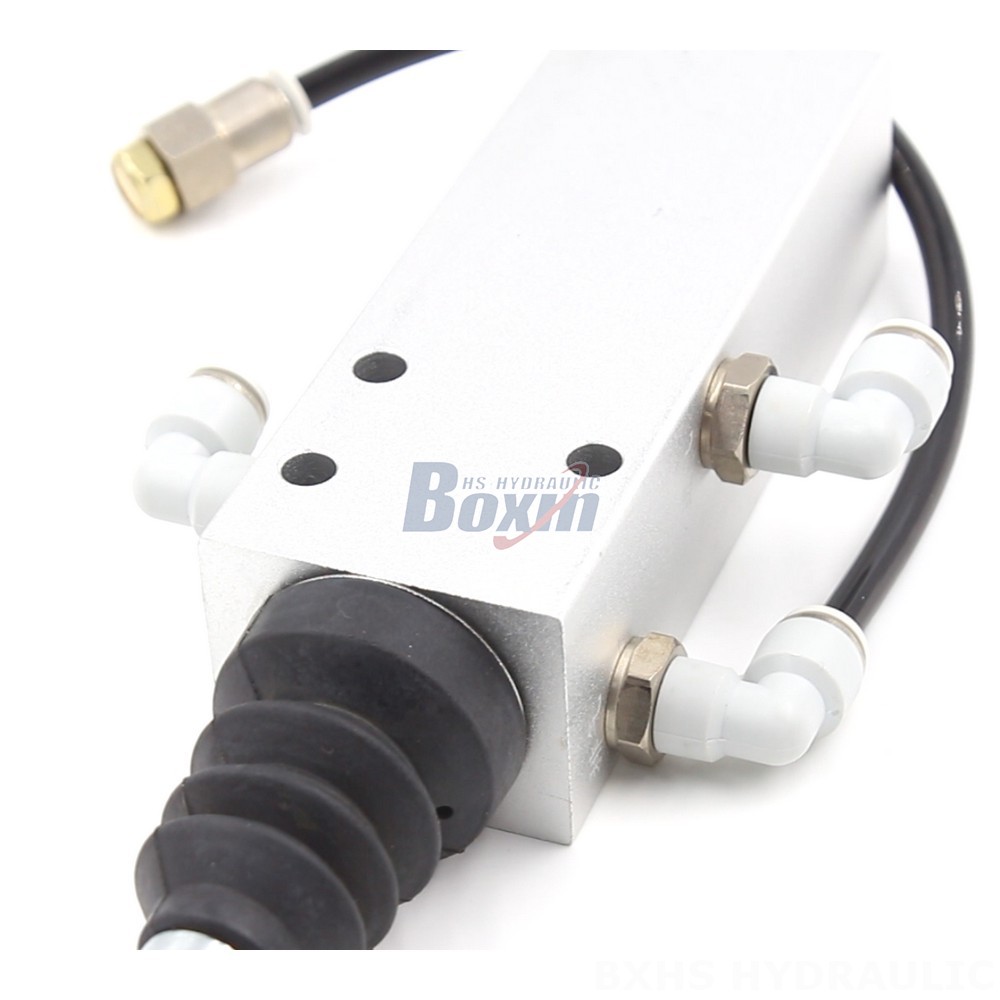

Global Distribution: XQF23 Valves Shipped Worldwide from Our Factory detail image

Global Distribution: XQF23 Valves Shipped Worldwide from Our Factory

制御方法:空圧

スプール:1スプール

定格流量:毎分20リットル (5.2 US gpm)

最大圧力:1 MPa (145 psi)

吸入口:G1/4

吐出口:G1/4

ポートサイズ:G1/4

ベンダー:BXHS

製品タイプ:モノブロック方向制御弁

製品シリーズ:XQF シリーズモノブロック方向制御弁

梱包サイズ:26*14*10

総重量:0.50 kg

在庫状況: 在庫あり

お問い合わせ

1029 この製品を探している人もいます

Global Distribution: XQF23 Valves Shipped Worldwide from Our Factory

Global Distribution: XQF23 Valves Shipped Worldwide from Our Factory drawing image

XQF23 Hydraulic Control System is a high-quality, versatile and durable solution for various applications in material handling, construction, agriculture, and industrial vehicles. Made in our factory and available for global distribution, we offer manufacturing, OEM, private label, customization, and wholesale options.

XQF シリーズモノブロック方向制御弁パラメーター
制御方法	空圧
スプール	1スプール
周囲温度範囲	-40°C to +60°C (-40°F to +140°F)
構造タイプ	モノブロック弁
セクション	1セクション
作動粘度範囲	12 - 400 mm²/s (12 cSt to 400 cSt)
定格流量	毎分50リットル (13.2 US gpm)
最大圧力	200 bar (2900 psi)
吸入口	G1/4
吐出口	G1/4
ポートサイズ	G1/4

The XQF23 Hydraulic Control System features pneumatic control and a monoblock valve design. It boasts a maximum pressure of 200 bar (2900 psi) and an operating viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt). The valve is designed for use in a wide range of temperatures, from -40°C to +60°C (-40°F to +140°F). The XQF23 is available with a single spool and is part of the XQF Series, making it compatible with various applications. We are a manufacturer and factory supplier, offering global distribution, OEM, private label, customization, and wholesale options for your needs.

Global Distribution: XQF23 Valves Shipped Worldwide from Our Factory
