Fluid Power

制御方法:ソレノイド

スプール:5スプール

定格流量:毎分80リットル (21.2 US gpm)

最大圧力:200 bar (2900 psi)

吸入口:G1/2

吐出口:G3/4

ポートサイズ:G1/2

ベンダー:BXHS

製品タイプ:モノブロック方向制御弁

製品シリーズ:P80シリーズ モノブロック方向制御弁

梱包サイズ:33*44*11

総重量:19.50 kg

在庫状況: 在庫あり

1150 この製品を探している人もいます

Fluid Power

Fluid Power

Fluid Power drawing image

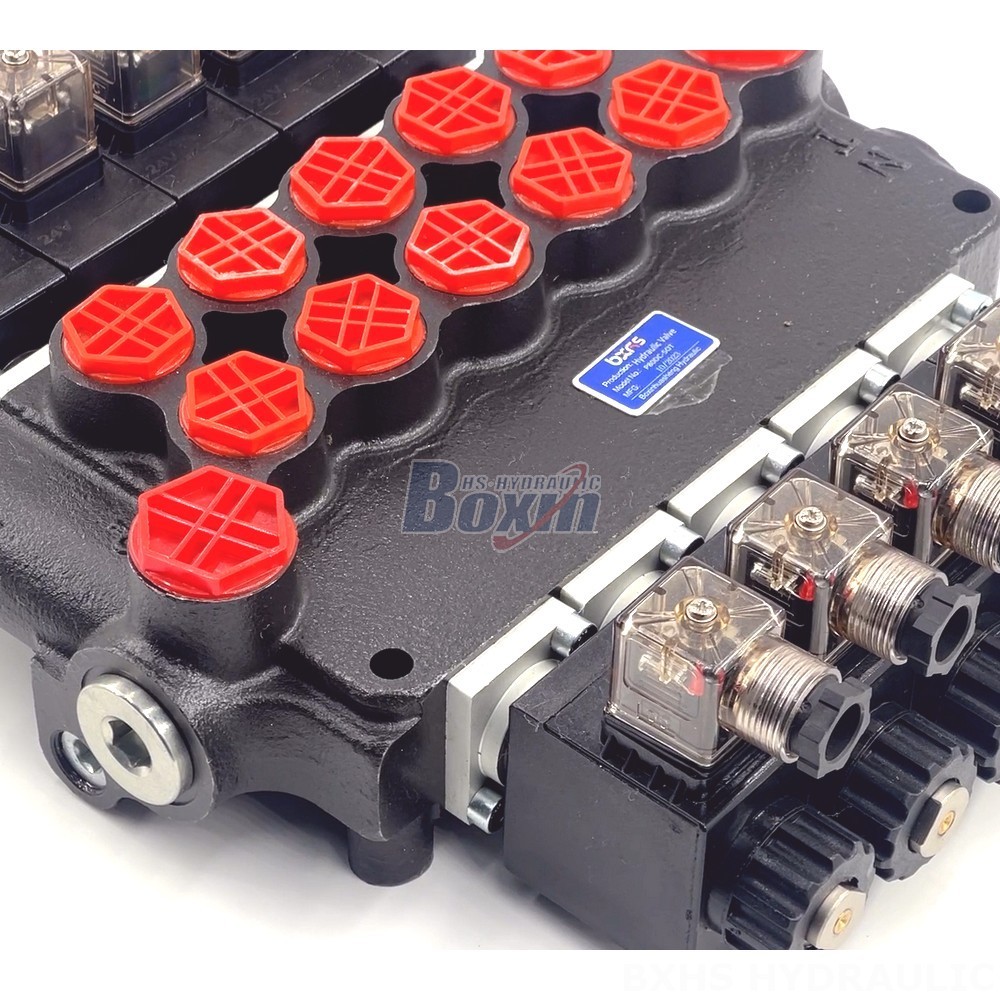

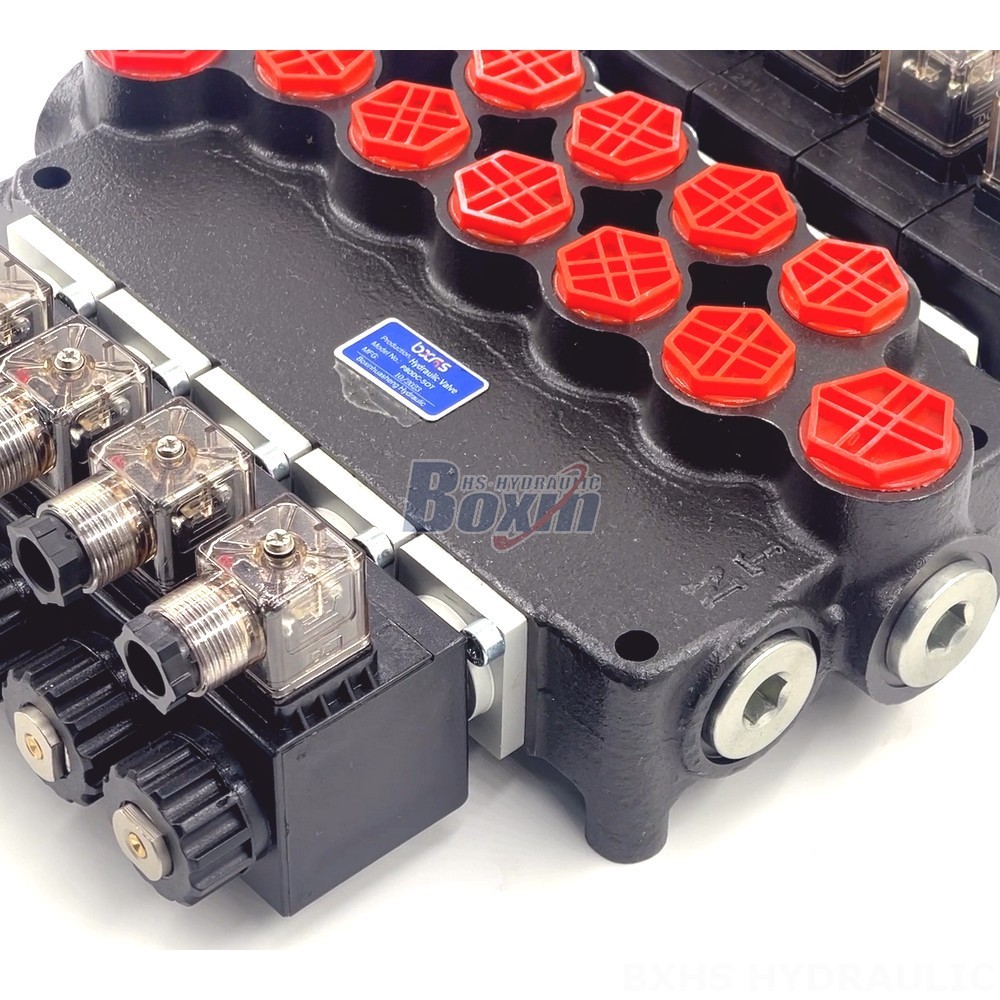

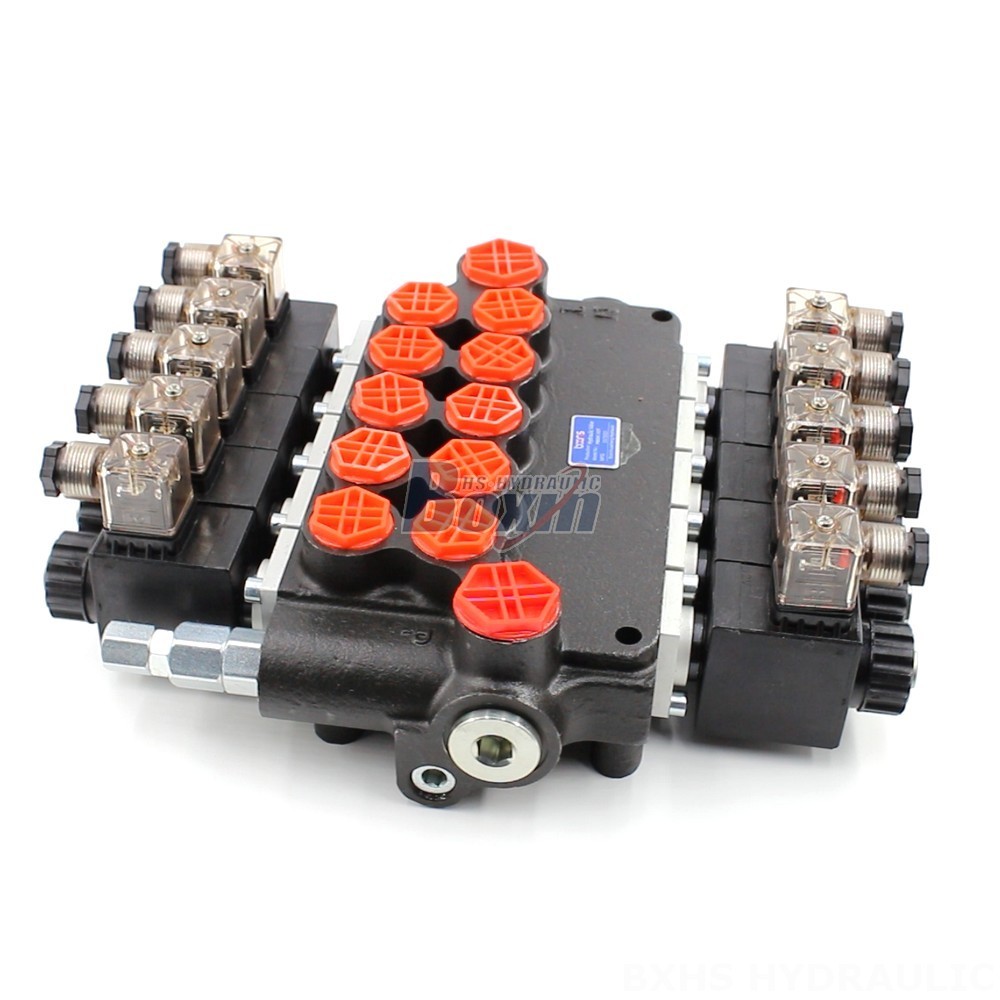

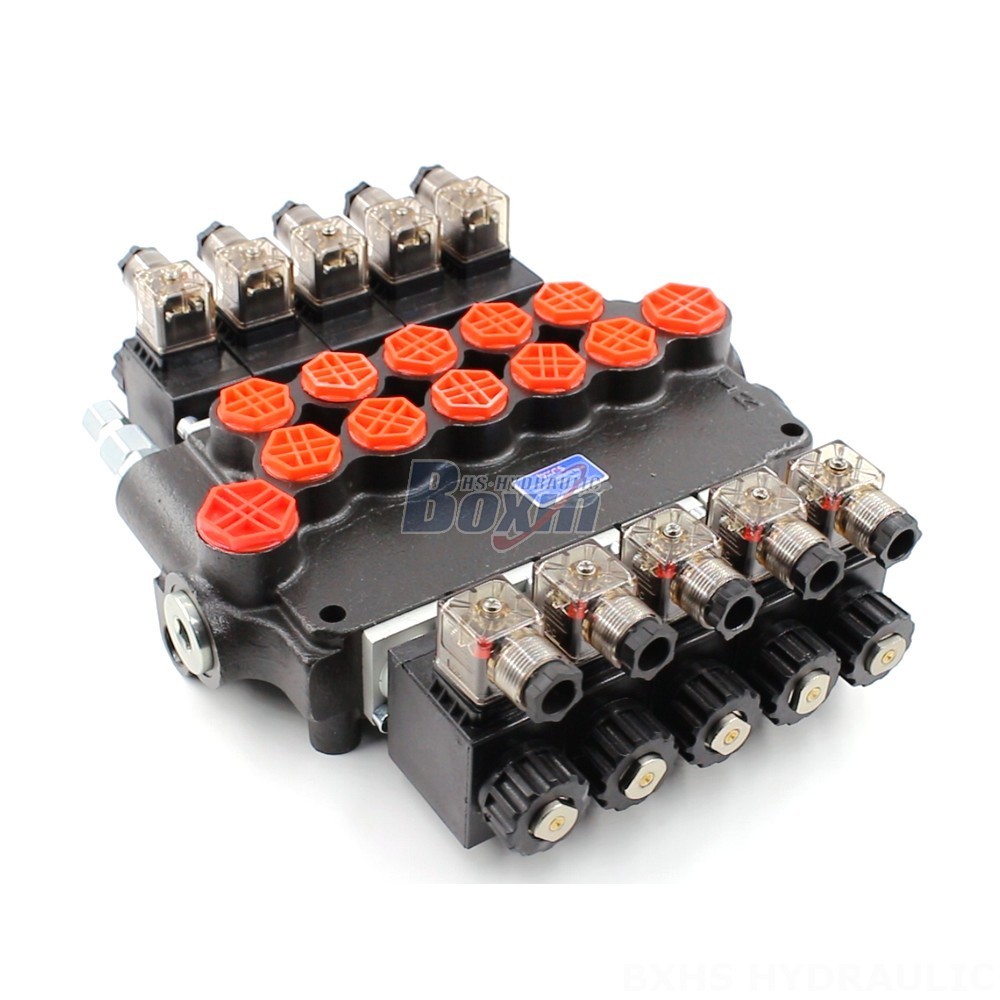

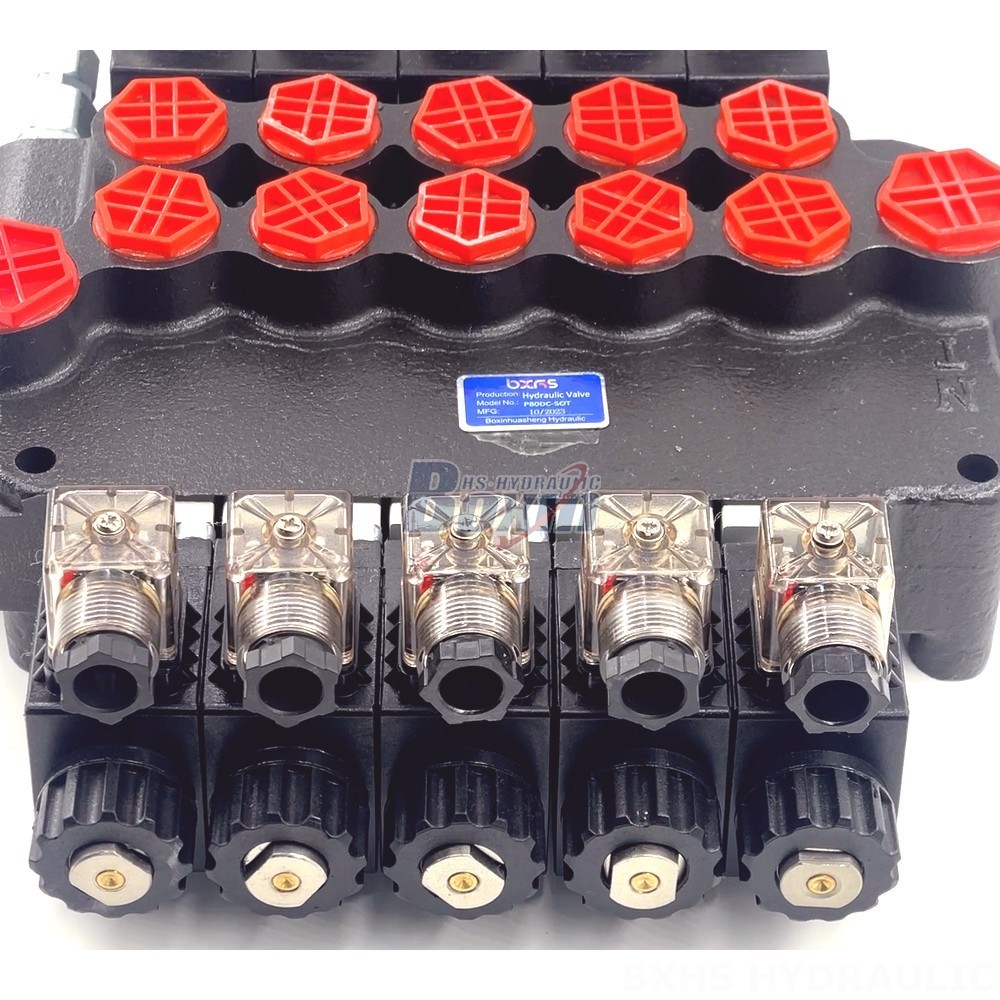

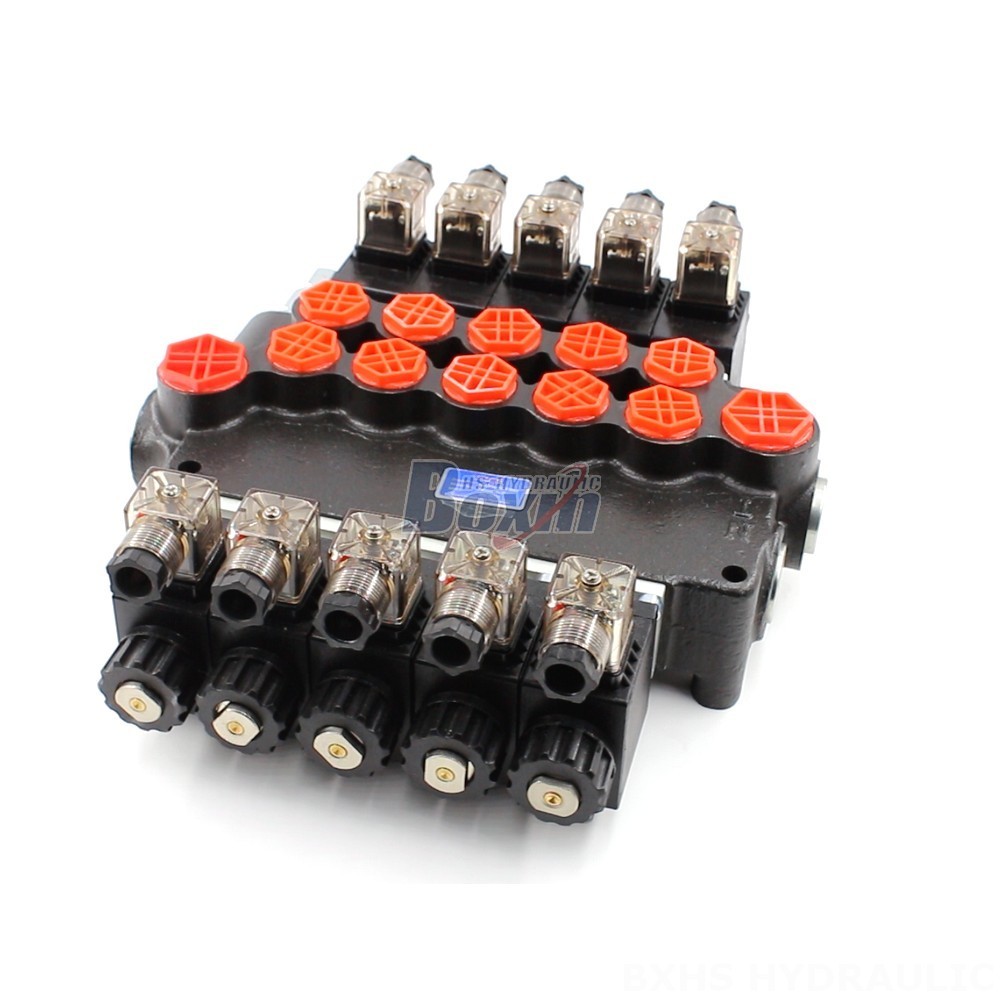

This hydraulic spool control valve is designed for electric remote control of fluid power systems in material handling, construction, agriculture, and industrial vehicles. Featuring a monoblock structure, 5 sections, and a rated flow of 80 L/min, it operates at pressures up to 250 bar.

P80シリーズ モノブロック方向制御弁 パラメーター
制御方法 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, 手動・ジョイスティック
スプール 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール
周囲温度範囲 -40°C to +80°C (-40°F to +176°F)
構造タイプ モノブロック弁
セクション 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション
作動粘度範囲 15 - 75 mm²/s (15 cSt to 75 cSt)
定格流量 毎分80リットル (21.2 US gpm)
最大圧力 315 bar (4600 psi)
吸入口 G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
吐出口 G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
ポートサイズ G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

This high-performance hydraulic spool valve is engineered for demanding applications in material handling, construction, and industrial vehicles. It features an electric remote control method with a solenoid for precise actuation. The monoblock structure provides durability and reliability, while the 5-section design allows for versatile control configurations. The valve boasts a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi). Its wide operating viscosity range (15 - 75 mm²/s) ensures consistent performance across various operating conditions. The valve is designed for ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F), making it suitable for diverse environments. This valve is ideal for a wide range of applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
