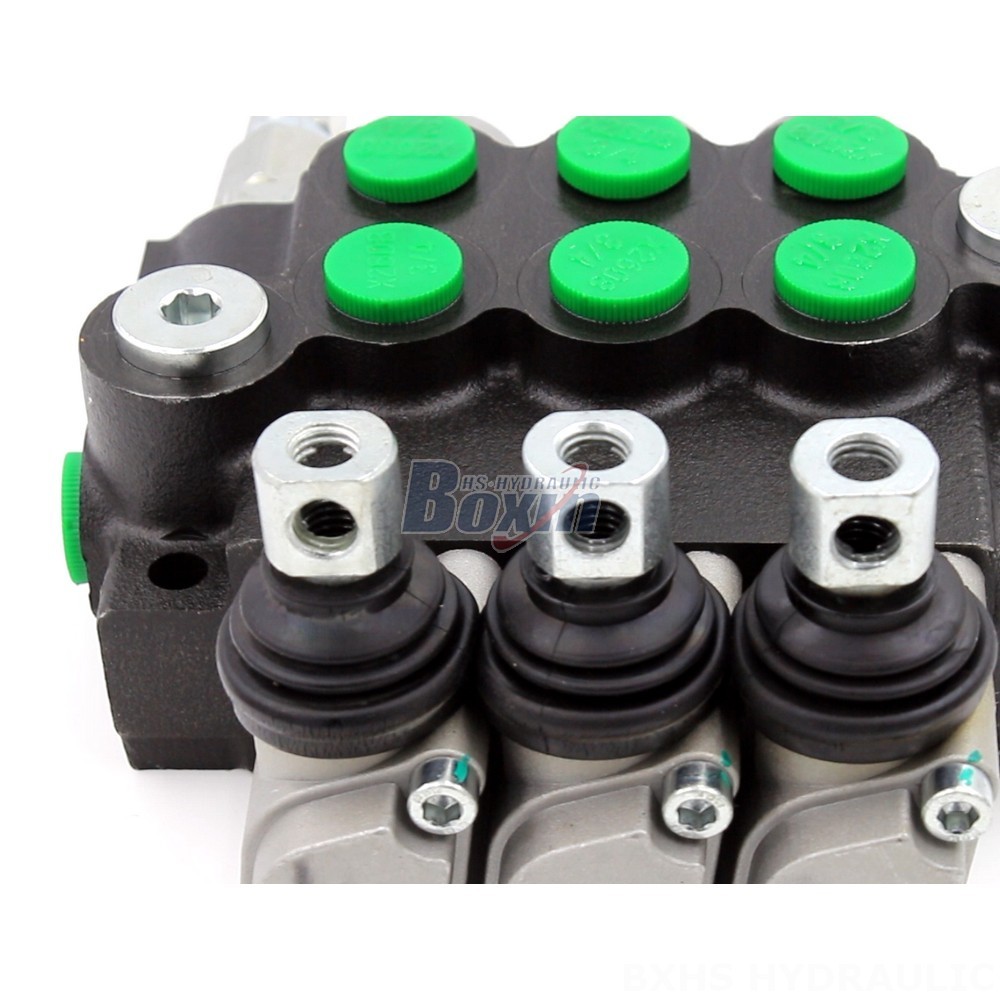

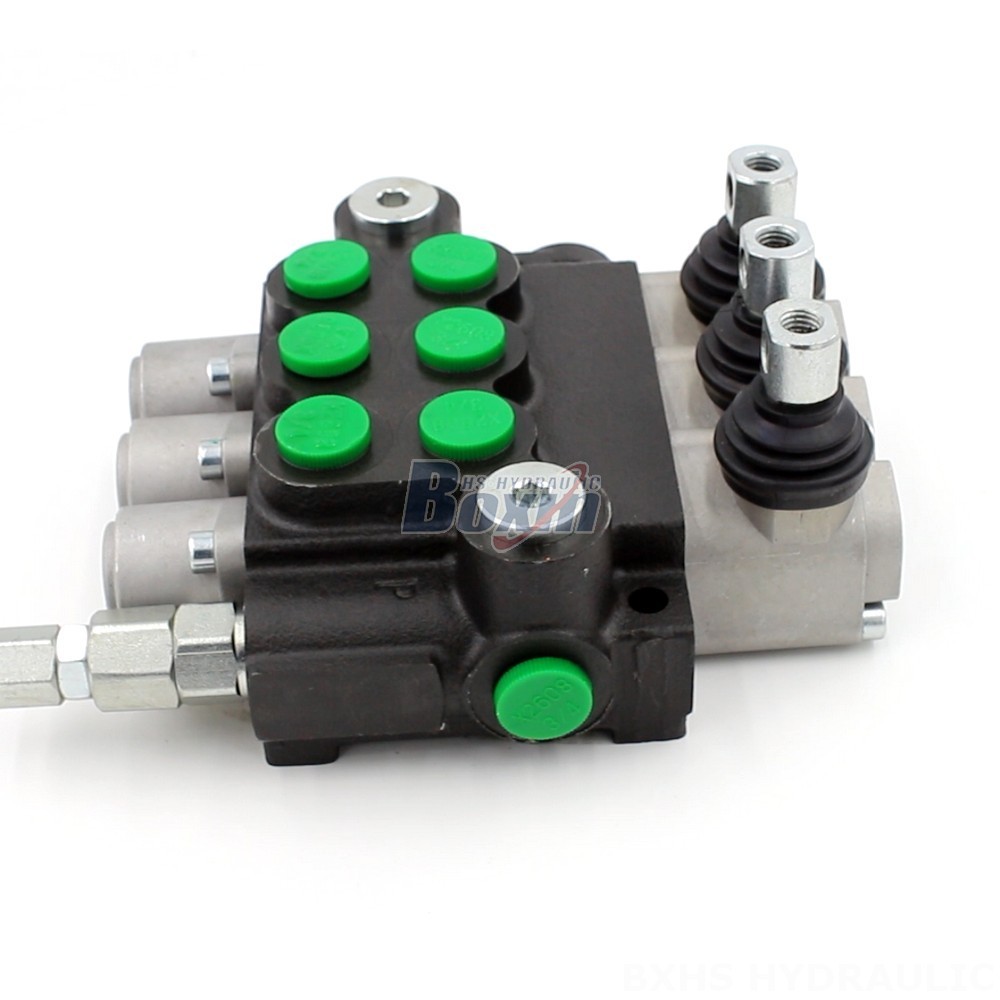

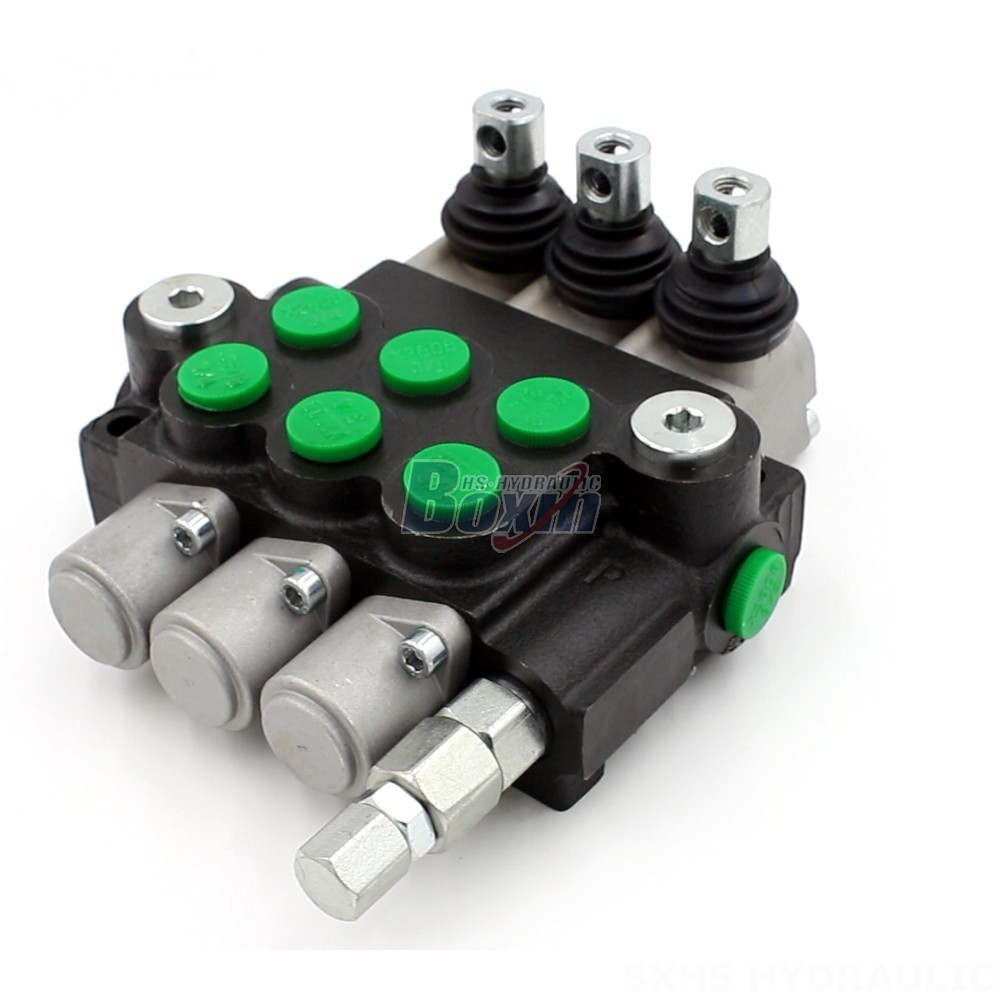

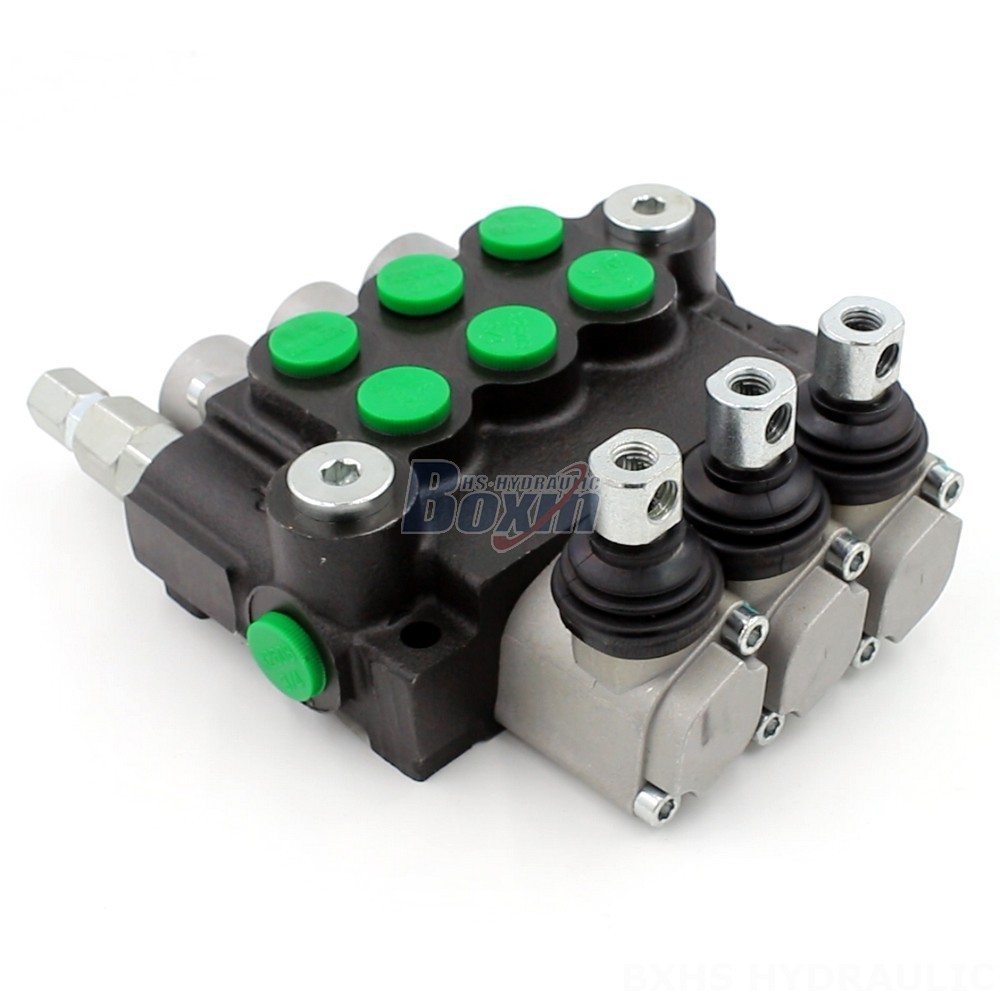

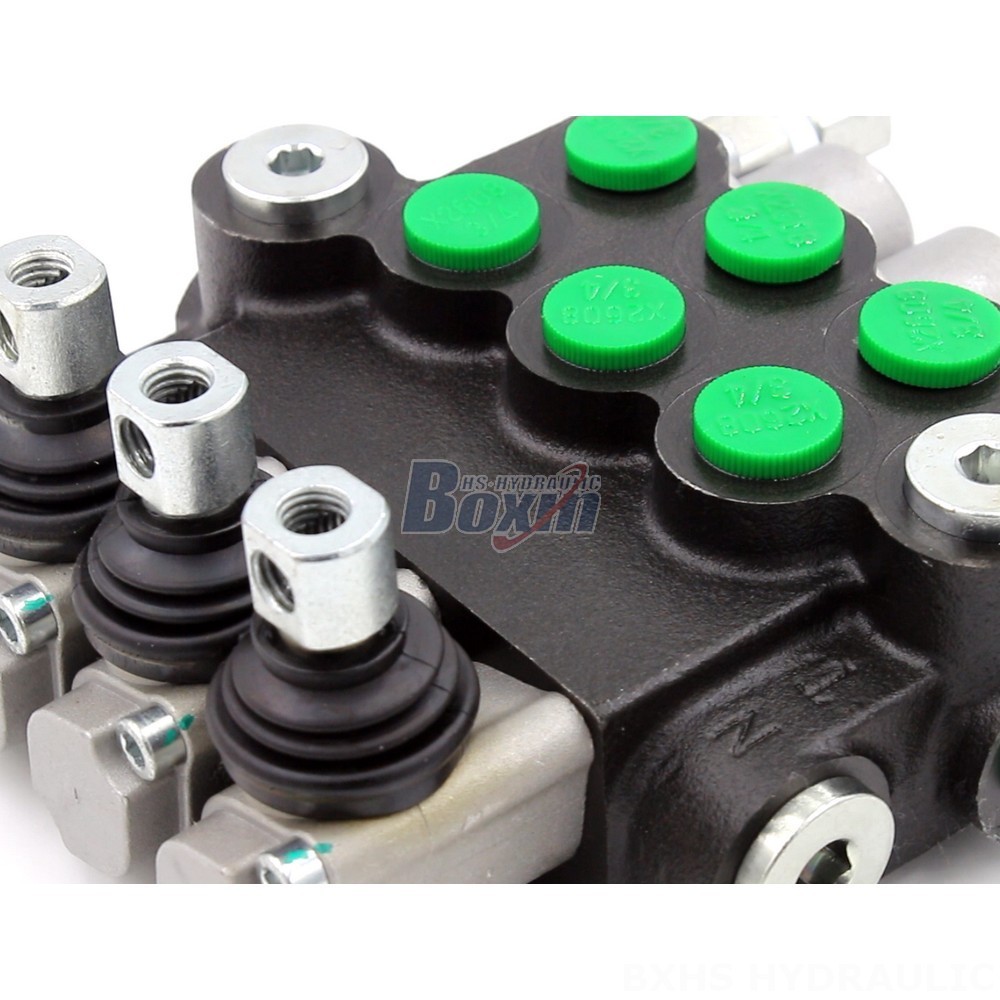

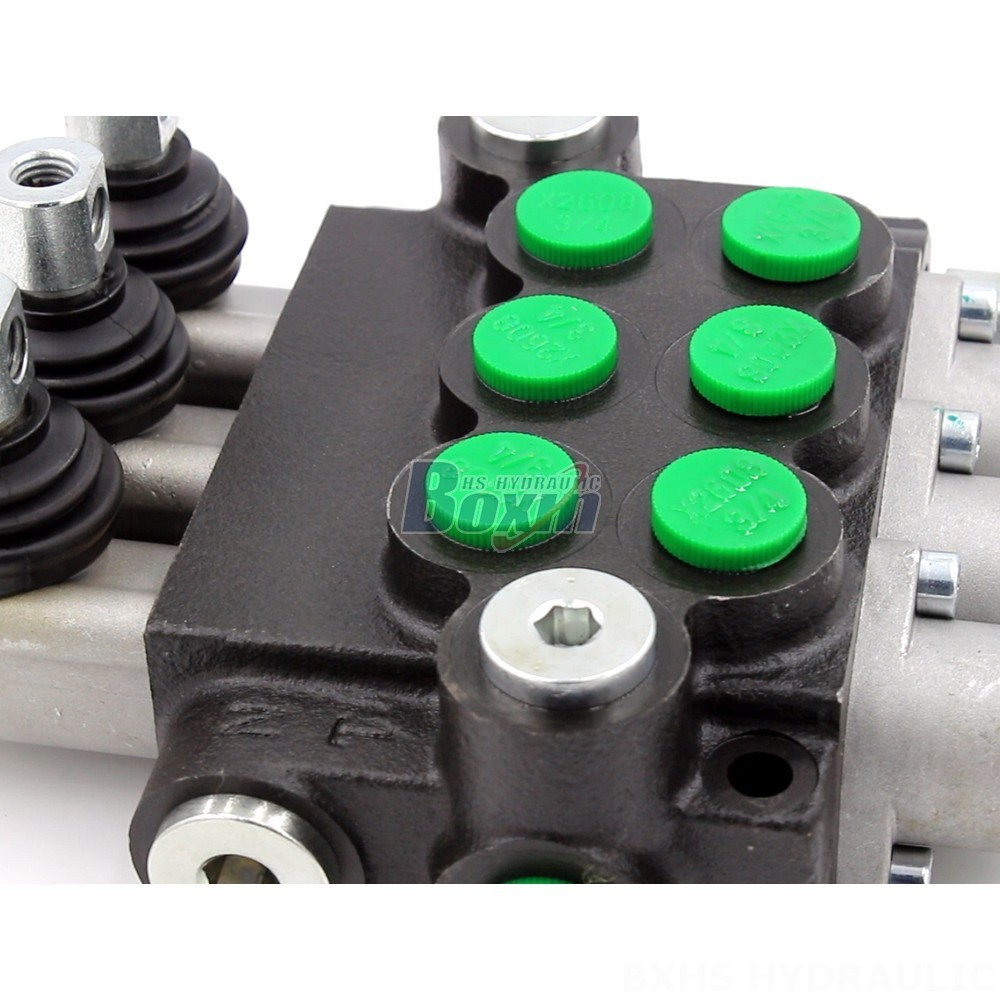

The P40-U34-OT hydraulic valve is a high-performance, manually controlled monoblock valve designed for use in a wide range of demanding applications. With a rated flow of 40 L/min, a maximum pressure of 250 bar, and an operating viscosity range of 15-75 mm²/s, this valve is capable of handling even the most challenging hydraulic systems. The valve's robust construction and durable components ensure long-lasting performance and reliability.
| P40シリーズ モノブロック方向制御弁 パラメーター | |
|---|---|
| 制御方法 | 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, ソレノイド・ジョイスティック, 手動・ジョイスティック, ソレノイドおよびケーブル式 |
| スプール | 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール |
| 周囲温度範囲 | -40°C to +80°C (-40°F to +176°F) |
| 構造タイプ | モノブロック弁 |
| セクション | 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション |
| 作動粘度範囲 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 定格流量 | 毎分40リットル (10.5 US gpm) |
| 最大圧力 | 250 bar (3600 psi) |
| 吸入口 | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| 吐出口 | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| ポートサイズ | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**Factory Wholesale Supply: P40-U34-OT Hydraulic Valves from the Manufacturer**
**Product Description:**
The P40-U34-OT hydraulic valve is a 3-spool, monoblock valve designed for use in a variety of applications, including material handling, construction, agriculture, and industrial vehicles. The valve is manufactured by a leading hydraulic component manufacturer and is available for factory wholesale supply.
**Key Features:**
* Manual control
* 3-section design
* Rated flow: 40 L/min (10.5 US gpm)
* Max pressure: 250 bar (3600 psi)
* Operating viscosity range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient temperature range: -40°C to +80°C (-40°F to +176°F)
* 3 spool
* P40 Series
**Applications:**
The P40-U34-OT hydraulic valve is suitable for use in a wide range of applications, including:
* Telehandlers
* Forklifts
* All terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Midi-excavators
* Mini-excavators
* Skid steer loaders
**Benefits:**
* High performance and reliability
* Durable construction
* Factory wholesale pricing
* Fast delivery
* Excellent customer service
If you are looking for a high-quality hydraulic valve for your application, the P40-U34-OT is an excellent choice. Contact us today to learn more about this product and to get a quote.
