What is the primary application of the Factory Direct Supply: P40-G12-G38-2OT-2QTW Hydraulic Directional Control Valve?

The Factory Direct Supply: P40-G12-G38-2OT-2QTW Hydraulic Directional Control Valve is designed for mobile hydraulic systems, agricultural machinery (such as tractors and harvesters), construction equipment (such as loaders and excavators), and industrial machinery. It ensures precise flow and directional control.

Is Boxinhuasheng a factory-direct manufacturer?

Yes, Boxinhuasheng (Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd.) is a factory-direct manufacturer established in 2001. We operate a 68,000m虏 facility with 4 modern manufacturing plants and 260+ production machines, supplying certified products directly to global customers.

What quality certifications do Boxinhuasheng products have?

All Boxinhuasheng directional control valves, gear pumps, and hydraulic accessories are CE certified, IATF 16949 compliant, and verified on-site by SGS, meeting international engineering standards.

Can Boxinhuasheng provide OEM/ODM customization services?

Yes, Boxinhuasheng has a team of 35 senior hydraulic engineers providing custom OEM manufacturing, ODM development, private labeling, and customized hydraulic system solutions tailored to specific operating pressures and flows.

What is the warranty and shipping lead time?

We offer a 1-year warranty with free replacement for any quality defects. Standard express delivery is within 30 days, supported by our robust annual capacity of 1.5 million hydraulic units and export experience to 80+ countries.

Factory Direct Supply: P40-G12-G38-2OT-2QTW Hydraulic Directional Control Valve

Name: Factory Direct Supply: P40-G12-G38-2OT-2QTW Hydraulic Directional Control Valve
Brand: Boxinhuasheng
SKU: BXHS-53222
Availability: InStock

sales2@chinesehydraulic.com

イノベーションが開発を推進し、テクノロジーが未来を築きます

ホームモノブロック方向制御弁P40シリーズ製品詳細

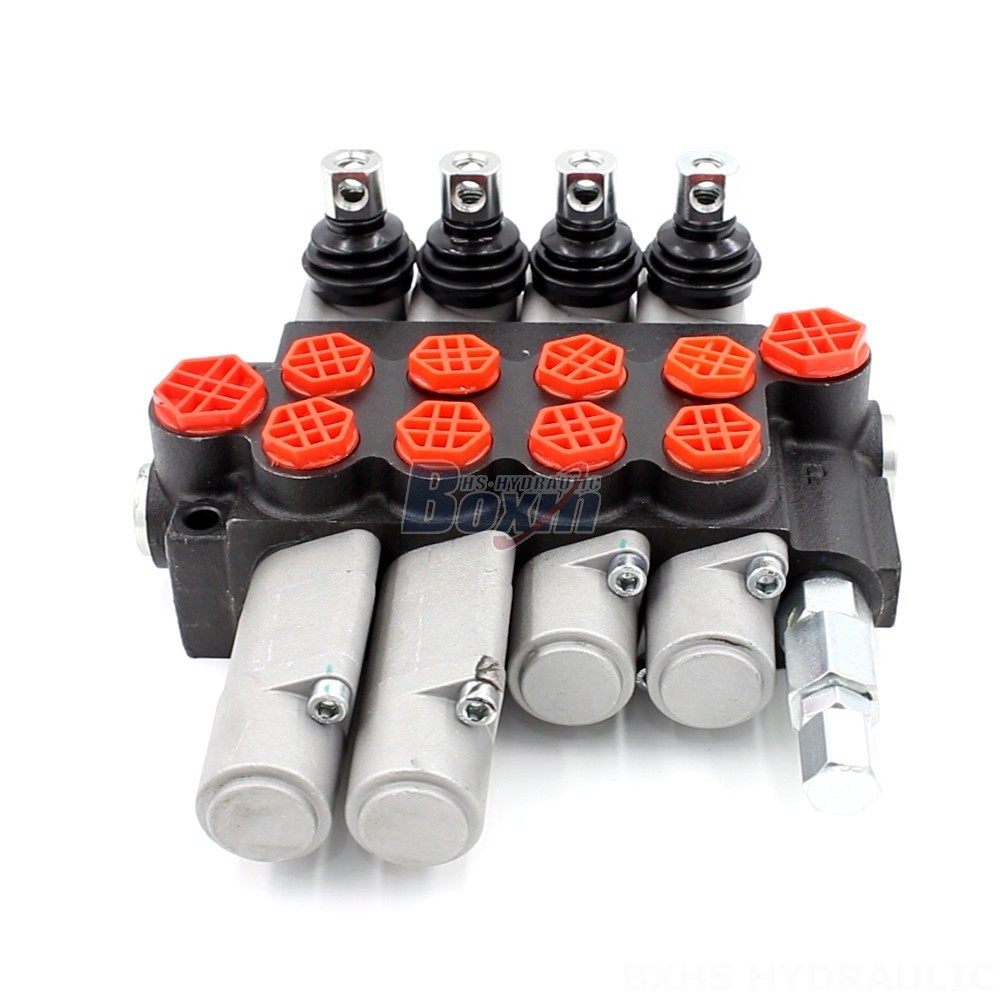

Factory Direct Supply: P40-G12-G38-2OT-2QTW Hydraulic Directional Control Valve cover photo

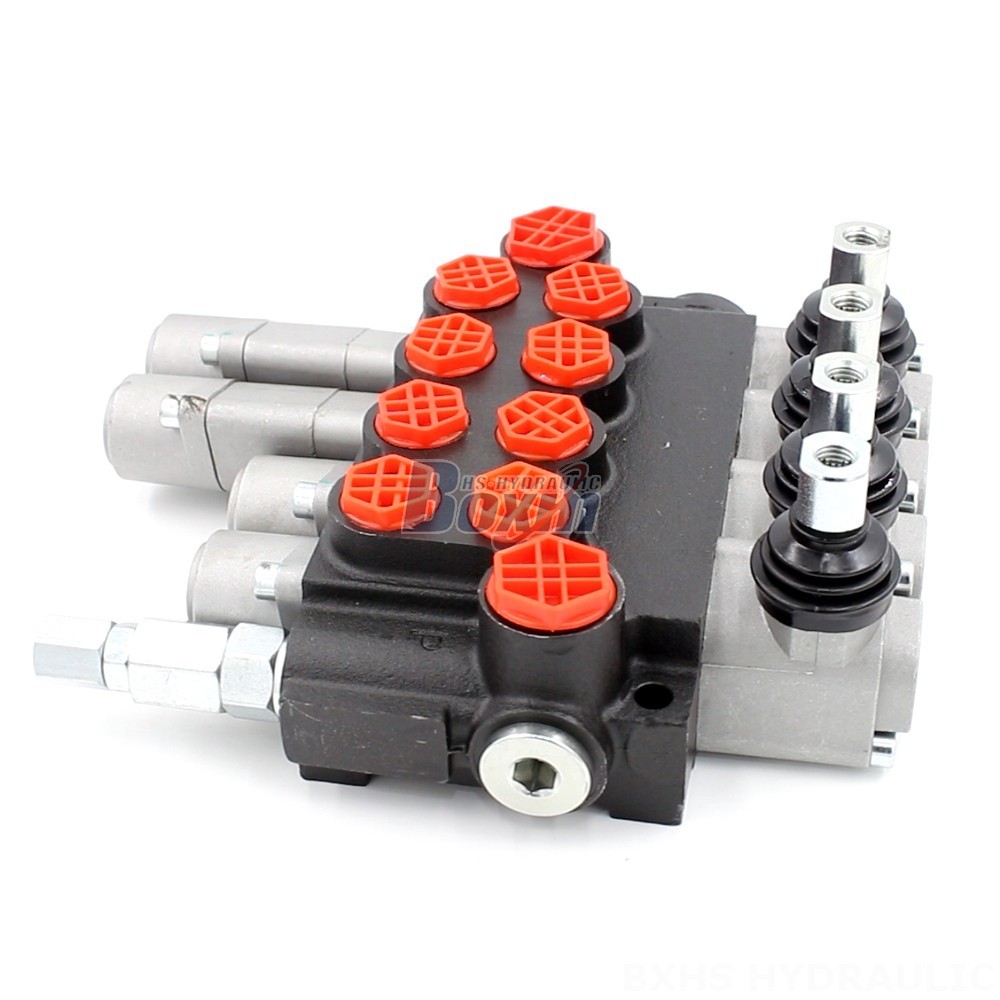

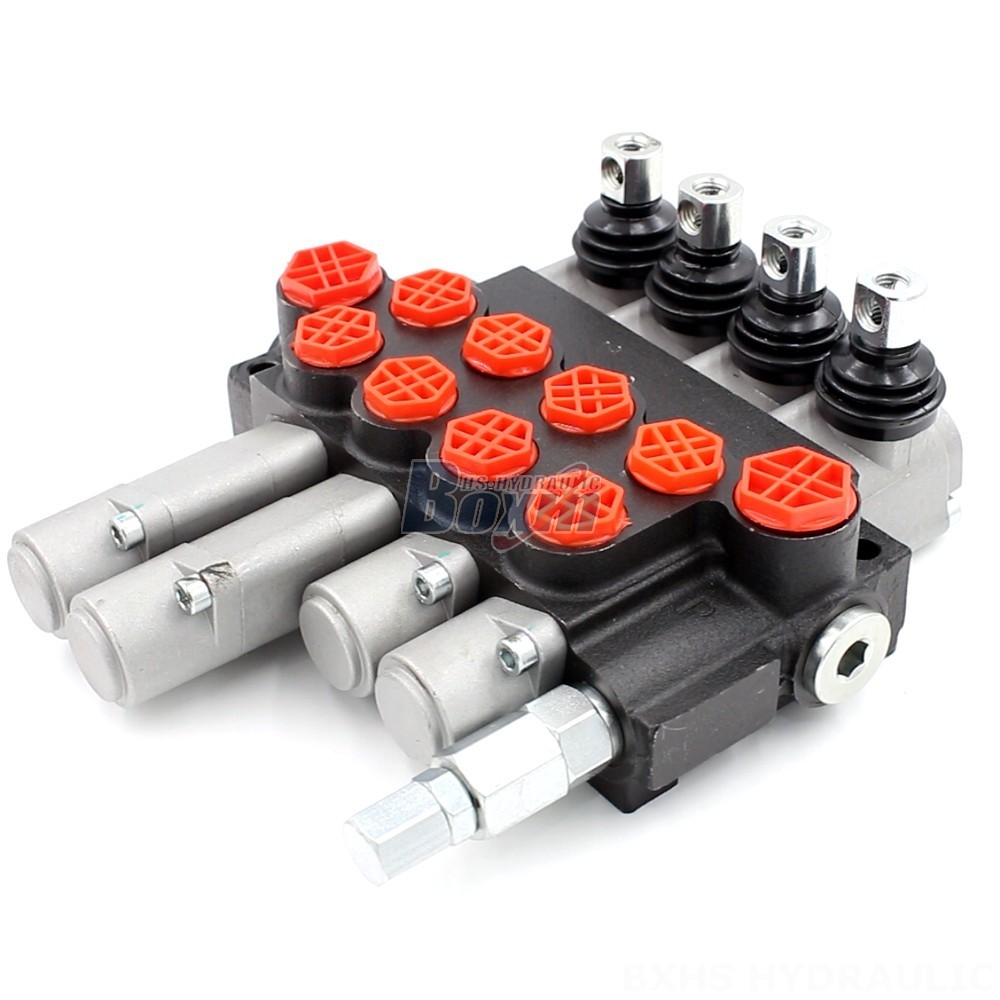

Factory Direct Supply: P40-G12-G38-2OT-2QTW Hydraulic Directional Control Valve main image

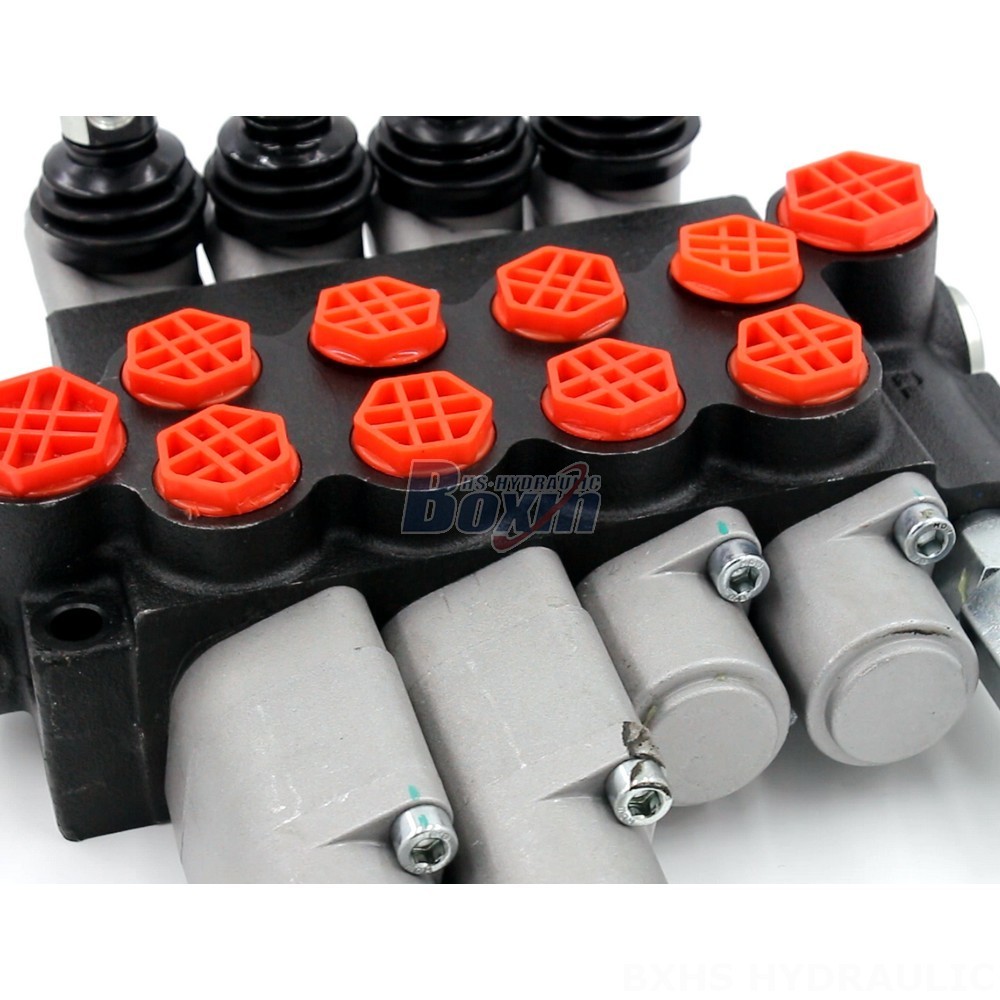

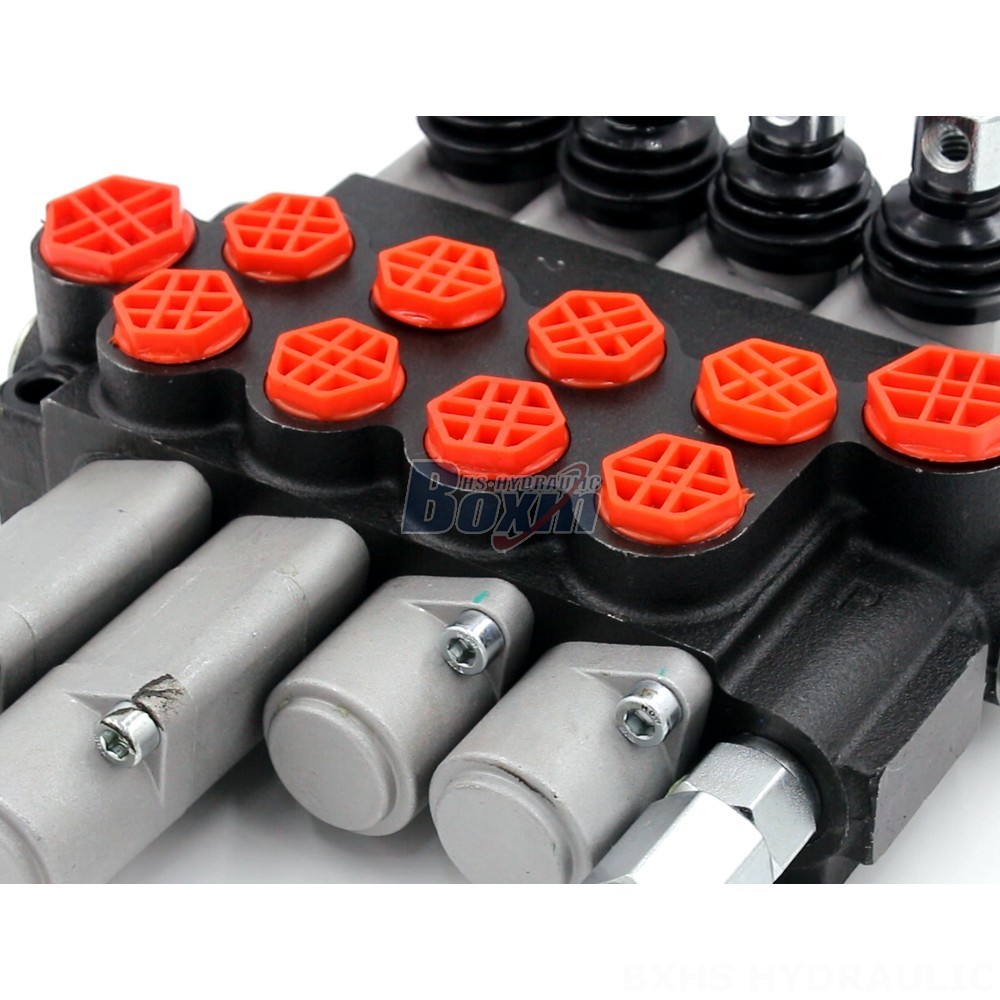

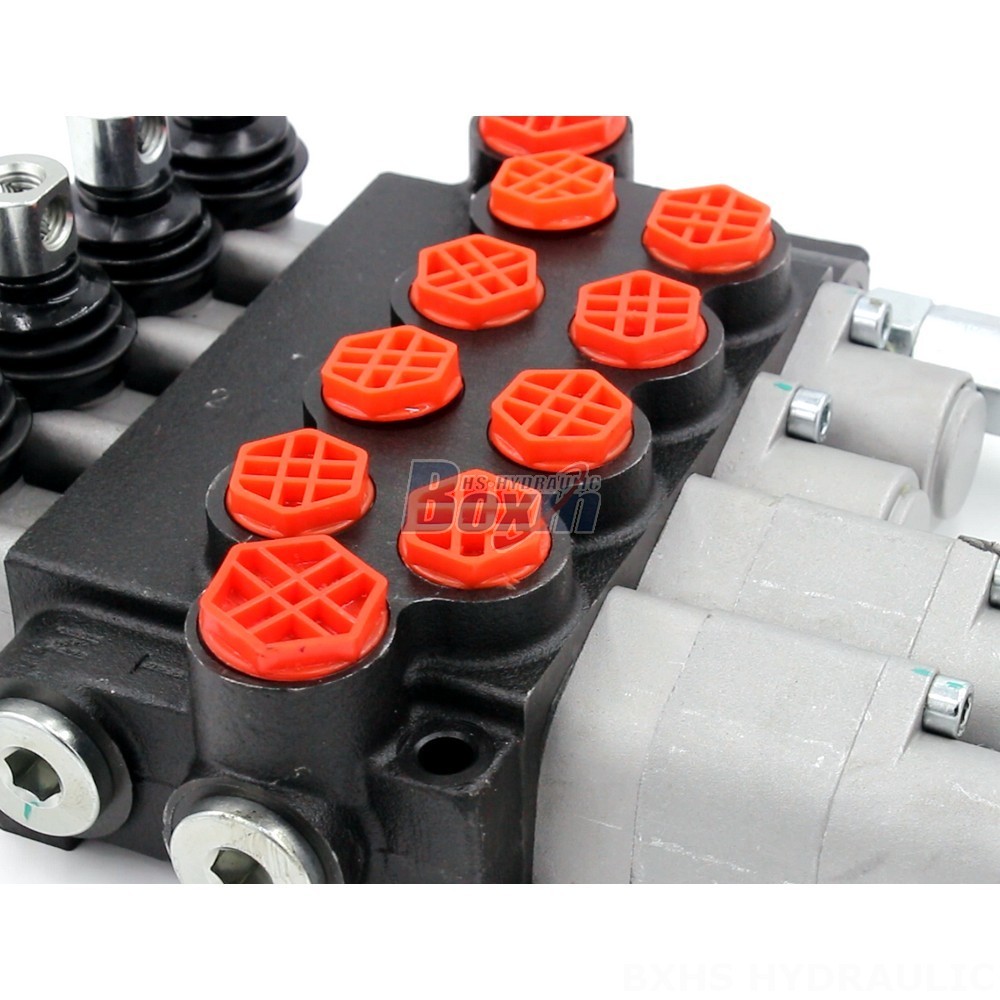

Factory Direct Supply: P40-G12-G38-2OT-2QTW Hydraulic Directional Control Valve detail image

Factory Direct Supply: P40-G12-G38-2OT-2QTW Hydraulic Directional Control Valve

制御方法:手動

スプール:4スプール

定格流量:毎分40リットル (10.5 US gpm)

最大圧力:250 bar (3600 psi)

吸入口:G1/2

吐出口:G1/2

ポートサイズ:G3/8

ベンダー:BXHS

製品タイプ:モノブロック方向制御弁

製品シリーズ:P40シリーズモノブロック方向制御弁

梱包サイズ:23*24*13

総重量:8.20 kg

在庫状況: 在庫あり

お問い合わせ

862 この製品を探している人もいます

Factory Direct Supply: P40-G12-G38-2OT-2QTW Hydraulic Directional Control Valve

Factory Direct Supply: P40-G12-G38-2OT-2QTW Hydraulic Directional Control Valve drawing image

This Factory Direct Supply: P40-G12-G38-2OT-2QTW Hydraulic Directional Control Valve is a high-quality, durable valve designed for use in a wide range of applications. With its 40 L/min rated flow and 250 bar max pressure, this valve is capable of handling a variety of demanding tasks. It is also temperature resistant, with an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C. This valve is also easy to install and maintain, making it a great choice for any application.

P40シリーズモノブロック方向制御弁パラメーター
制御方法	手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, ソレノイド・ジョイスティック, 手動・ジョイスティック, ソレノイドおよびケーブル式
スプール	1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール
周囲温度範囲	-40°C to +80°C (-40°F to +176°F)
構造タイプ	モノブロック弁
セクション	1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション
作動粘度範囲	15 - 75 mm²/s (15 cSt to 75 cSt)
定格流量	毎分40リットル (10.5 US gpm)
最大圧力	250 bar (3600 psi)
吸入口	G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
吐出口	G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
ポートサイズ	G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

**Factory Direct Supply: P40-G12-G38-2OT-2QTW Hydraulic Directional Control Valve**

**Product Specifications:**

* Control Method: Manual
* Section: 4 Section
* Structure Type: Monoblock valve
* Rated Flow: 40 L/min (10.5 US gpm)
* Max Pressure: 250 bar (3600 psi)
* Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
* Spool: 4 Spool
* Series: P40 Series
* Application Area: Material Handling, Construction and Earth Moving, Agriculture, Industrial Vehicles
* Applicable Model: Telehandler, Forklift, All Terrain Crane, Stacker, Aerial Platform, Motor Grader, Telehandler, Midi-Excavator, Mini-Excavator, Skid Steer Loader

This high-quality hydraulic directional control valve is manufactured by our factory and is available for direct supply. We offer OEM, ODM, and private label services to meet your specific needs. We also welcome distributors, wholesalers, agents, and traders to join our network. Contact us today to learn more about our products and services.
