生産と納品
15~30日の生産リードタイム

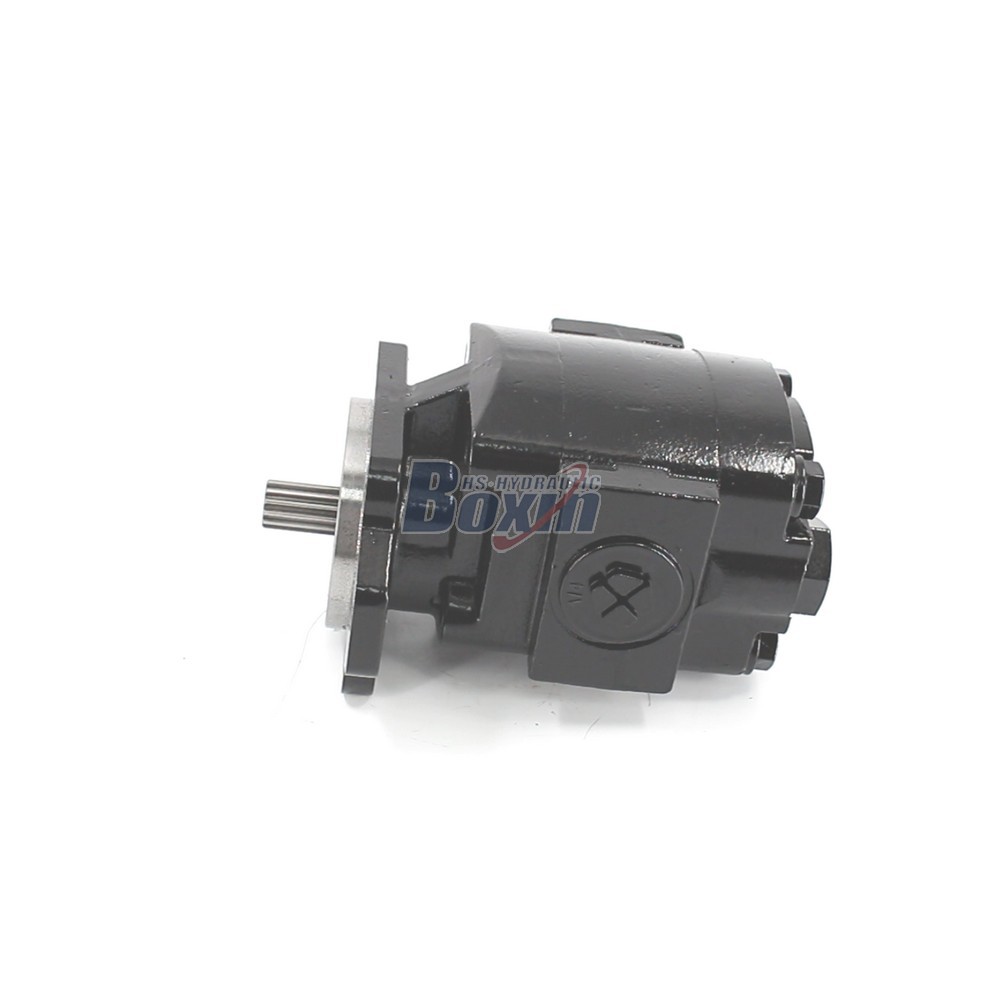

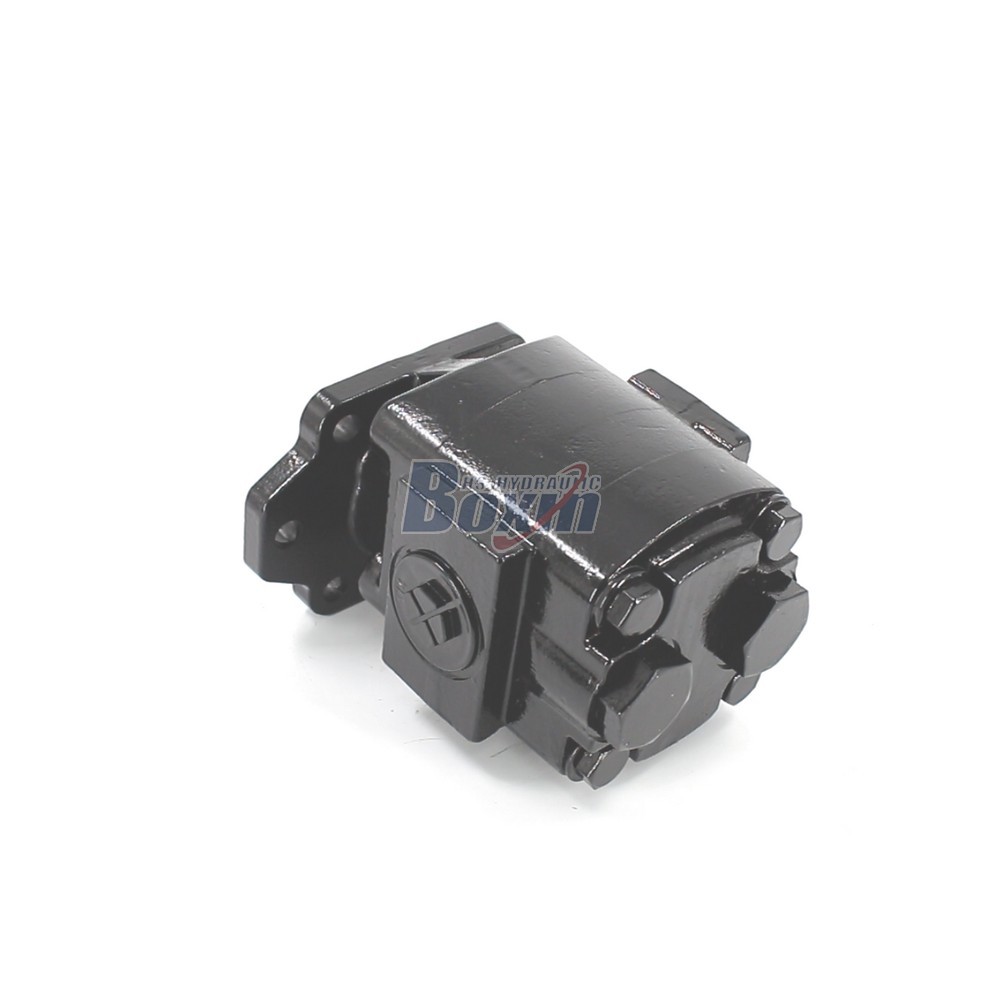

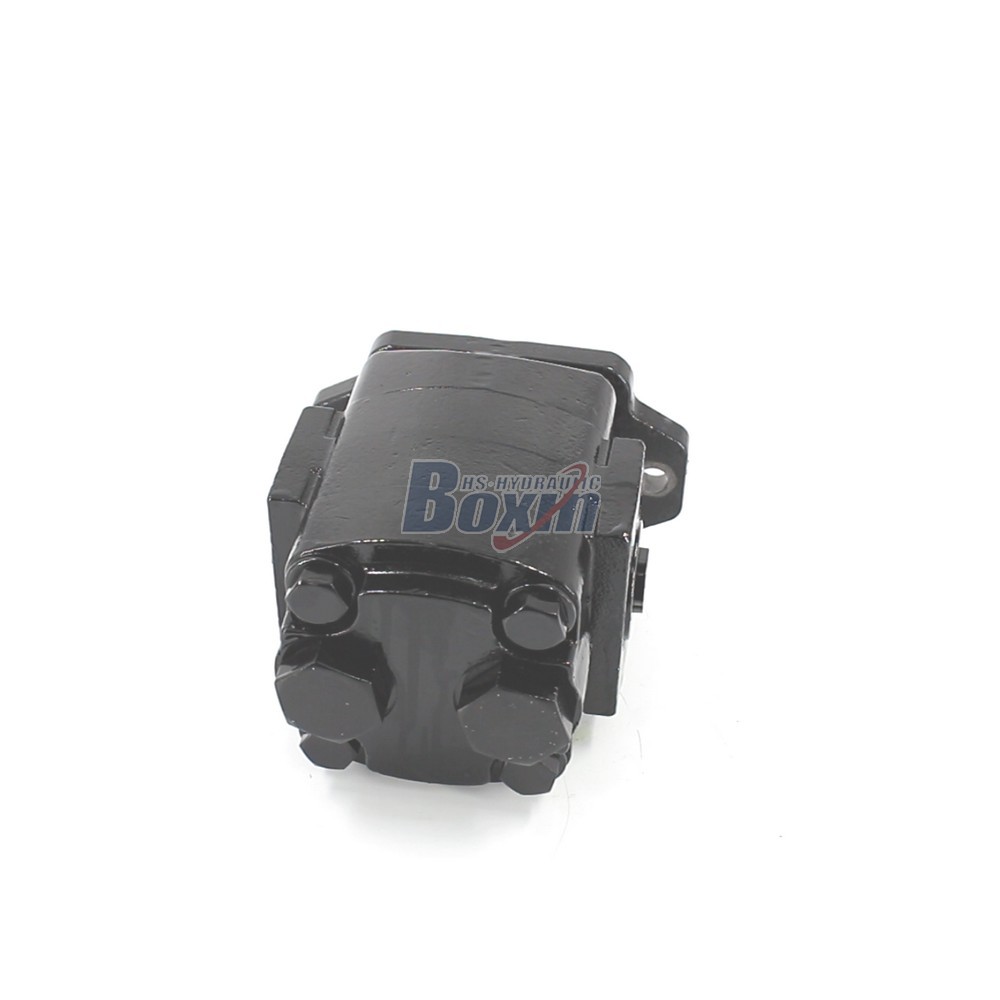

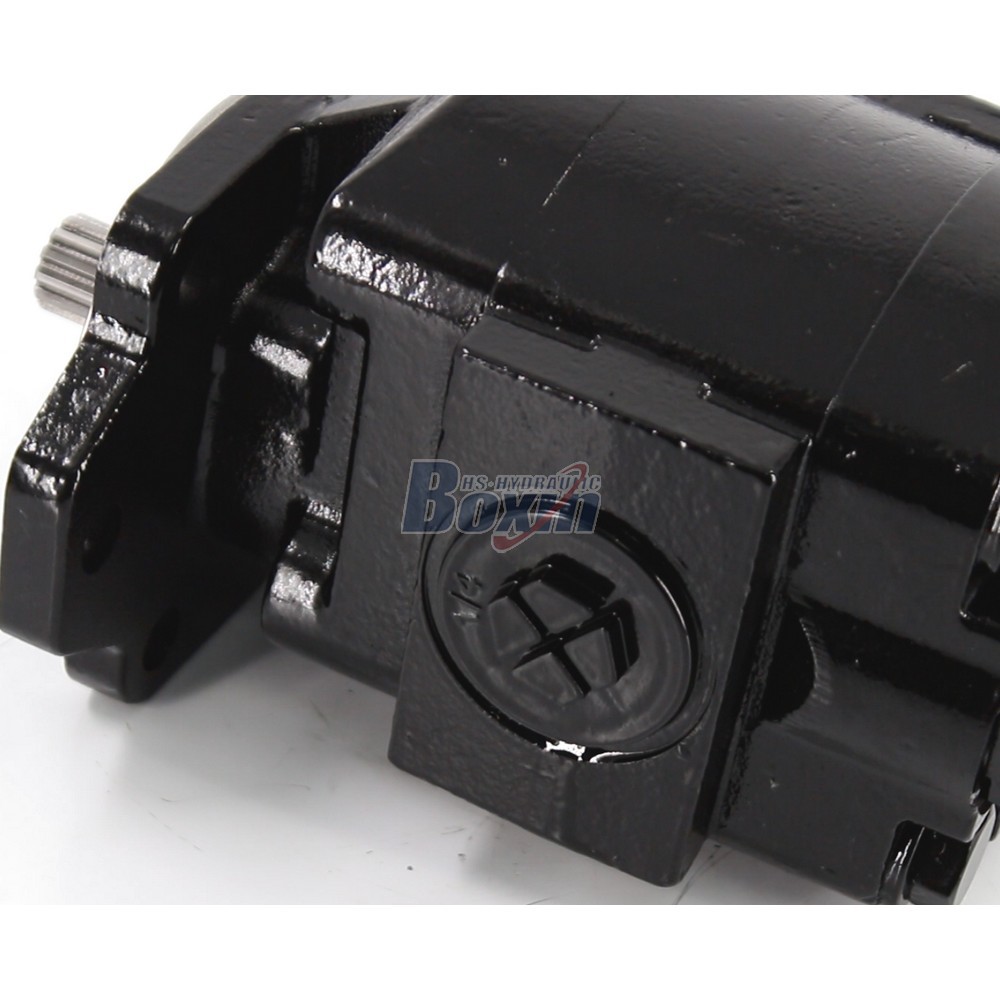

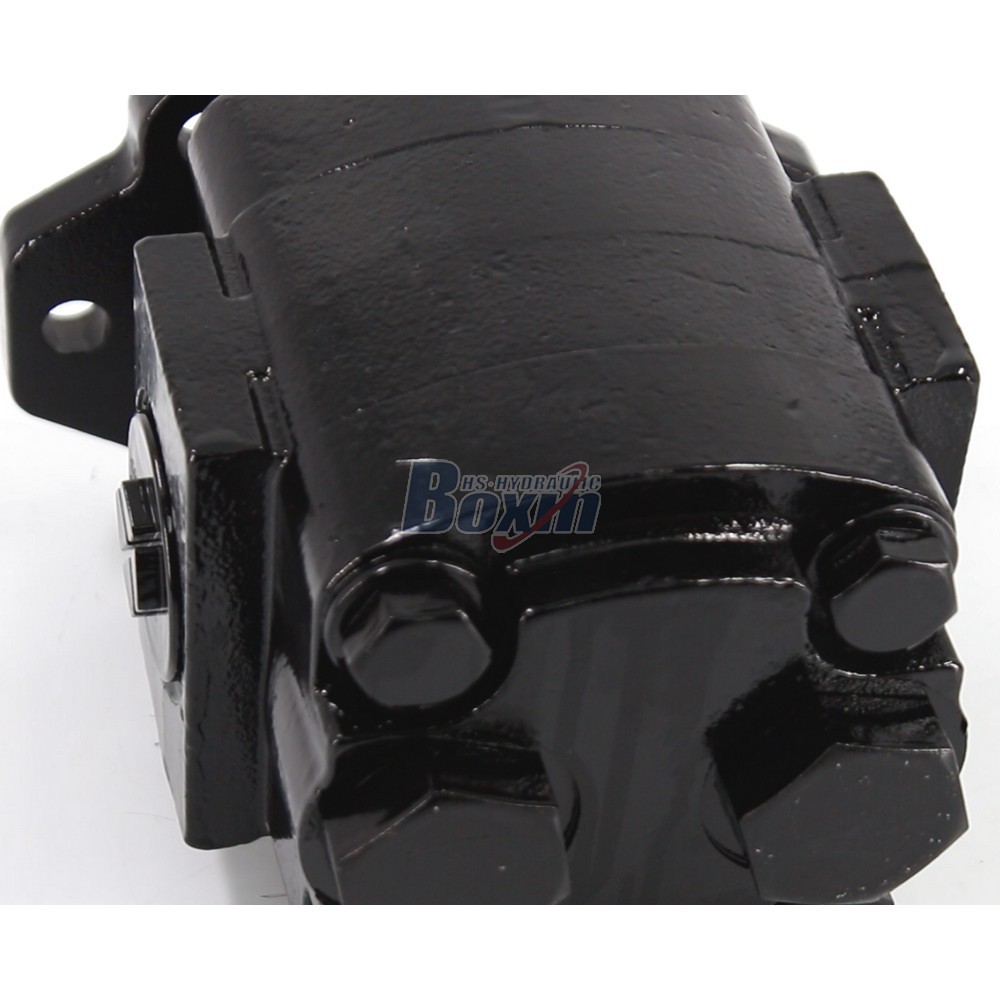

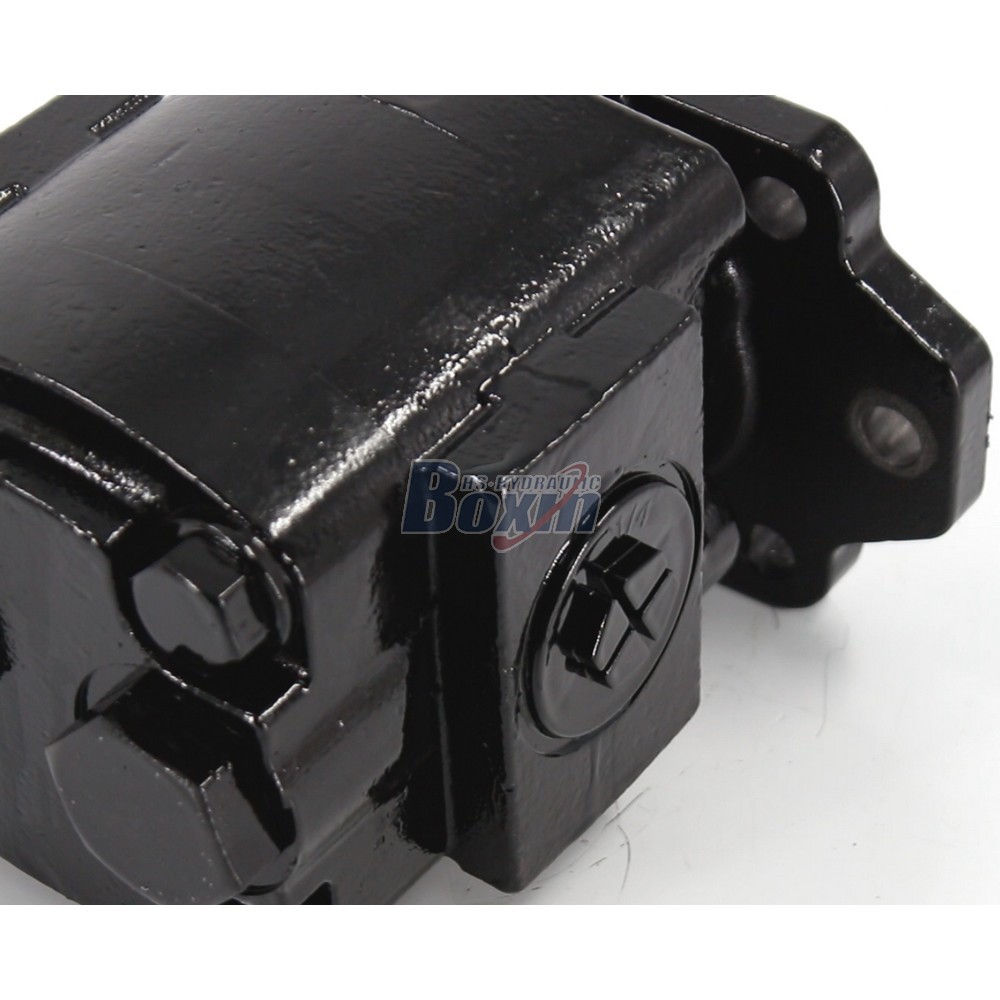

This Factory Direct Supply P21A646JEAL20-25 Hydraulic Gear Pump features a 64.6 cc/rev displacement, 16 MPa rated pressure, and bidirectional rotation for versatile application. Manufactured by a Professional Manufacturer with 25+ years of experience, it is ideal for wheel loaders, excavators, and agricultural machinery, ensuring reliable performance and OEM compatibility.
| P21シリーズ 油圧ギア・ポンプ パラメーター | |
|---|---|
| 変位 | 64.6 cc/rev |
| 定格圧力 | 16 MPa (2320 psi) |
| 最大圧力 | 17 MPa (2465 psi) |
| 定格回転速度 | 600 r/min |
| 最大回転速度 | 2400 r/min |
| 回転方向 | 双方向 |
| 材質 | 鋳鉄 |
| 構造 | 外部齒輪泵 |
| フランジモデル | A-橢圓形凸緣, B-方形凸緣, ISO-4 安裝孔, UNI-3 安裝孔, SAEフランジ |
| 軸タイプ | X:漸開線花鍵 |
**1. High-Efficiency Hydraulic Gear Pump Specifications**
- Delivers precise flow with 64.6 cc/rev displacement, operating at a rated speed of 2000 r/min and max speed of 2400 r/min.
- Handles demanding tasks with a rated pressure of 16 MPa (2320 psi) and max pressure of 17 MPa (2465 psi), ensuring stable power output.
**2. Versatile P21 Series Gear Pump Applications**
- Designed for broad compatibility with construction and earth-moving equipment, including wheel loaders, backhoe loaders, and skid steer loaders.
- Suitable for material handling and agricultural vehicles like forklifts, telehandlers, tractors, and dumpers, offering bidirectional rotation flexibility.
**3. Reliable 64.6cc Hydraulic Pump Quality Control**
- Produced in IATF 16949 certified facilities with 260+ machining centers; every unit undergoes 100% bench testing for pressure, flow, and sealing.
- Ensures cleanliness and durability through CMM inspection and SGS detection, backed by 25+ autonomous patents for consistent field performance.
**4. Customizable Construction Machinery Hydraulic Pump Solutions**
- Supported by 35+ senior engineers for full OEM/ODM services, including custom casting, appearance design, and laser logo branding.
- Offers Private Label options and direct replacement for major international brands, meeting specific technical requirements for global distributors.
**5. Factory Direct Sales & Global Logistics**
- Leverage Wholesale Direct Sales from a 68,000 sqm facility with an annual capacity of 1,500,000 units, ensuring short lead times.
- Products are secured with rust-proof treatment and heavy-duty wooden crate packaging, guaranteeing safe delivery for Exported Worldwide orders.
