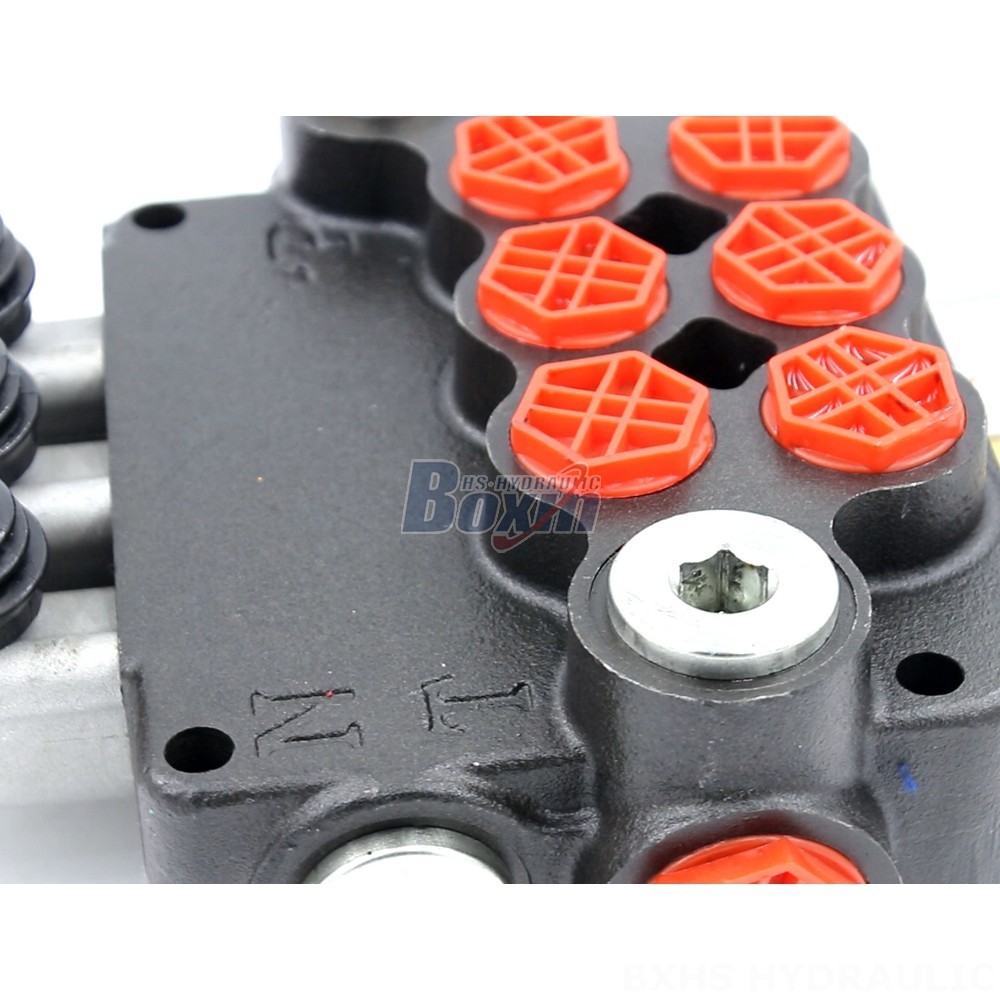

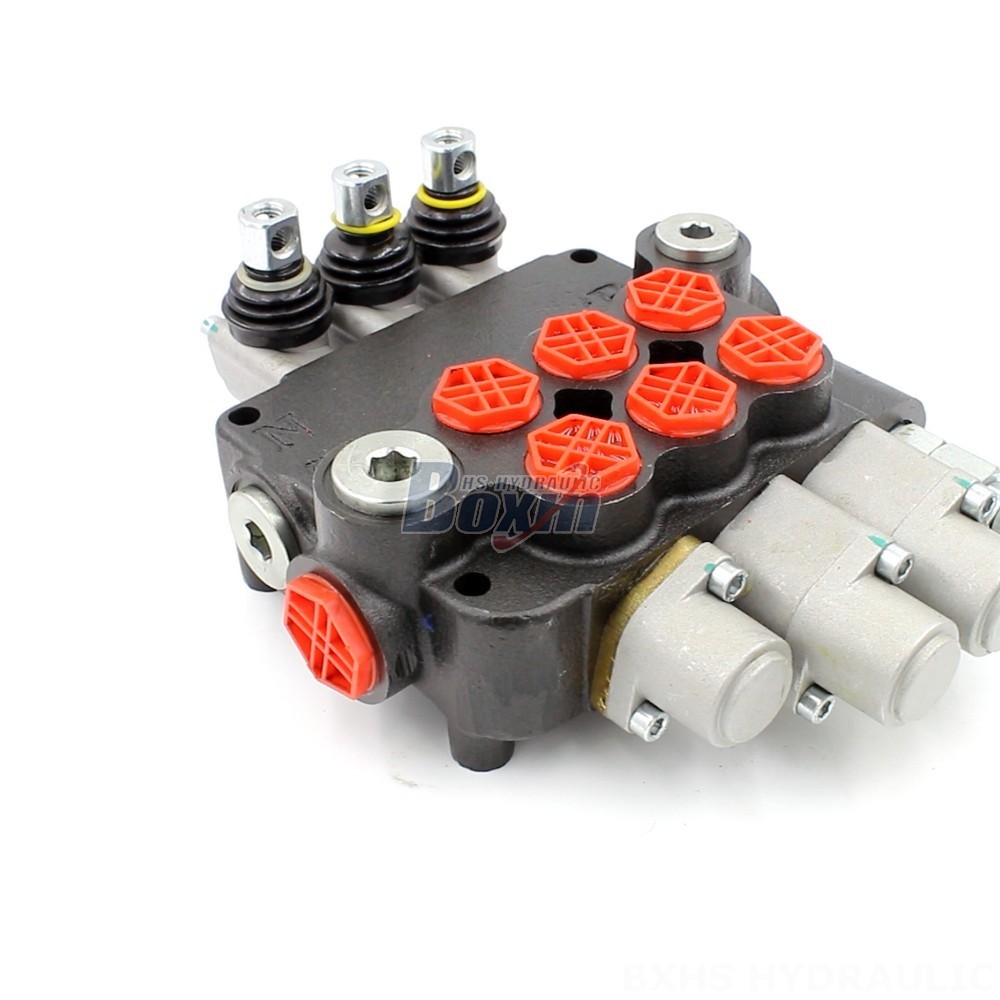

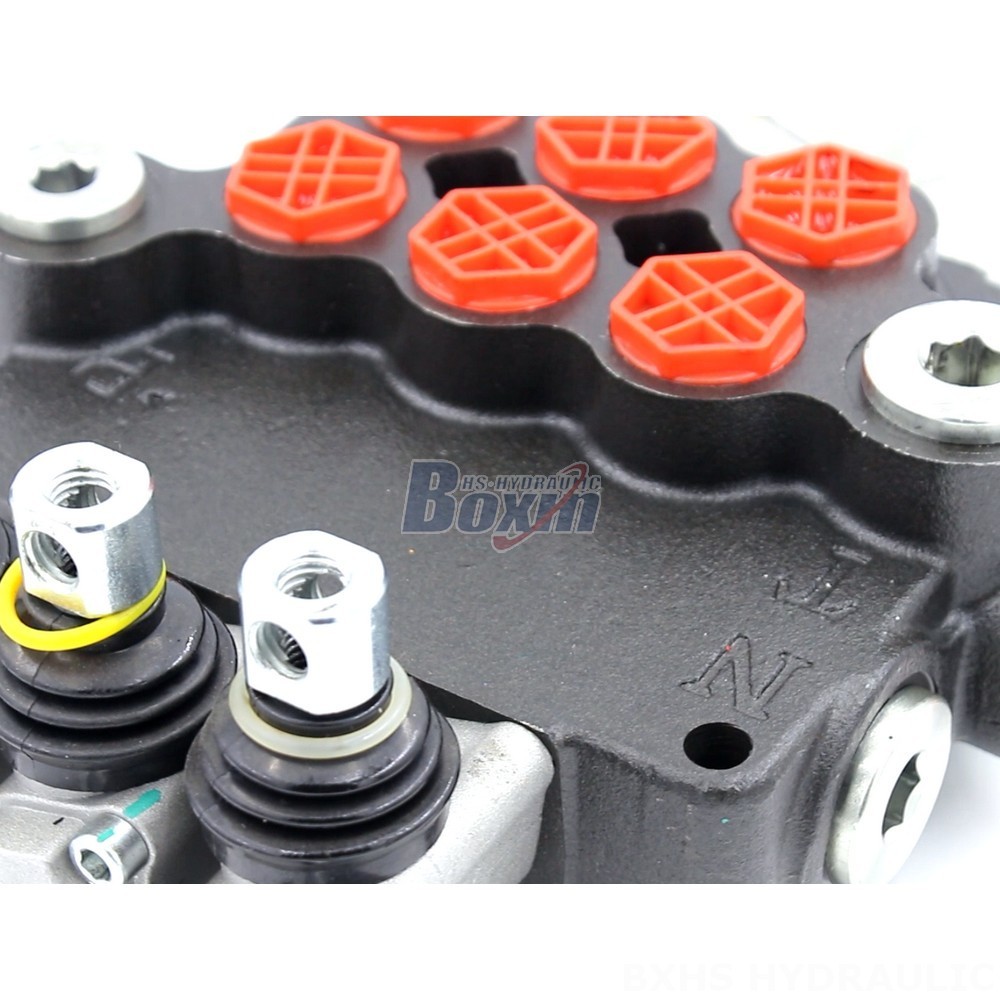

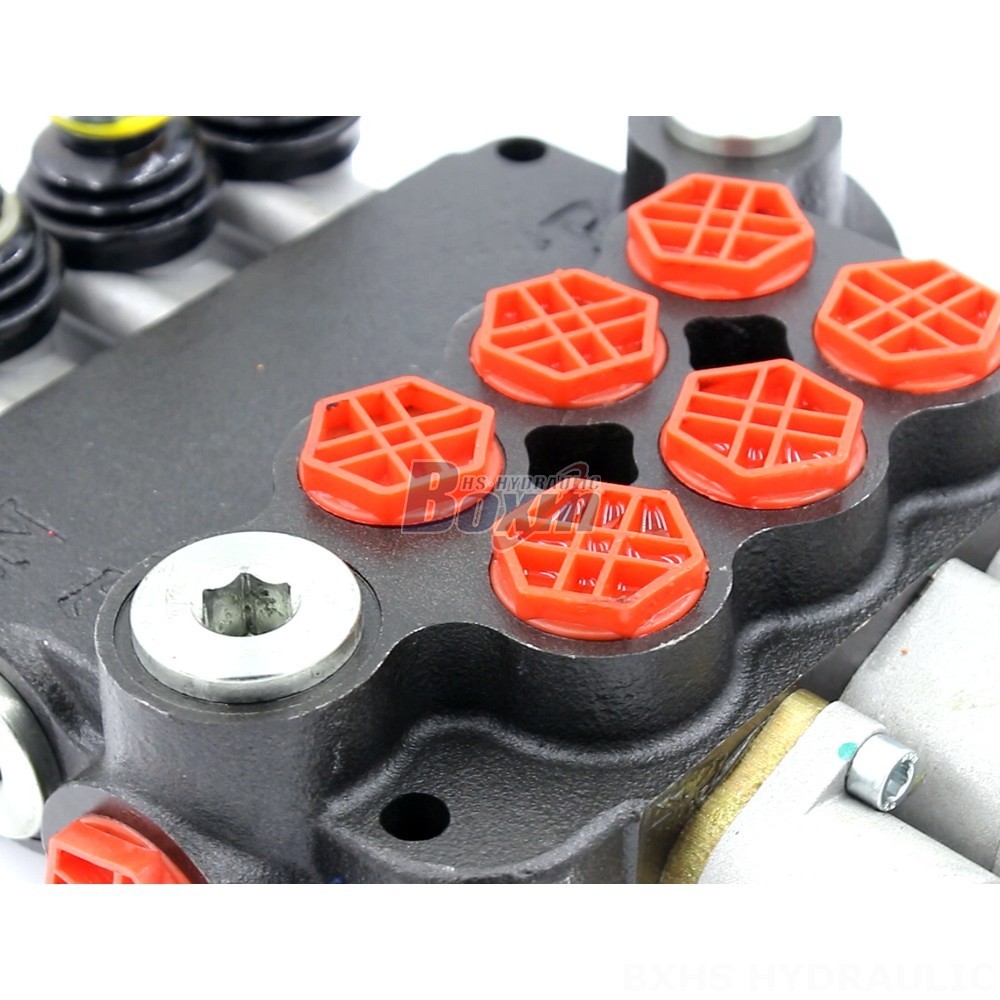

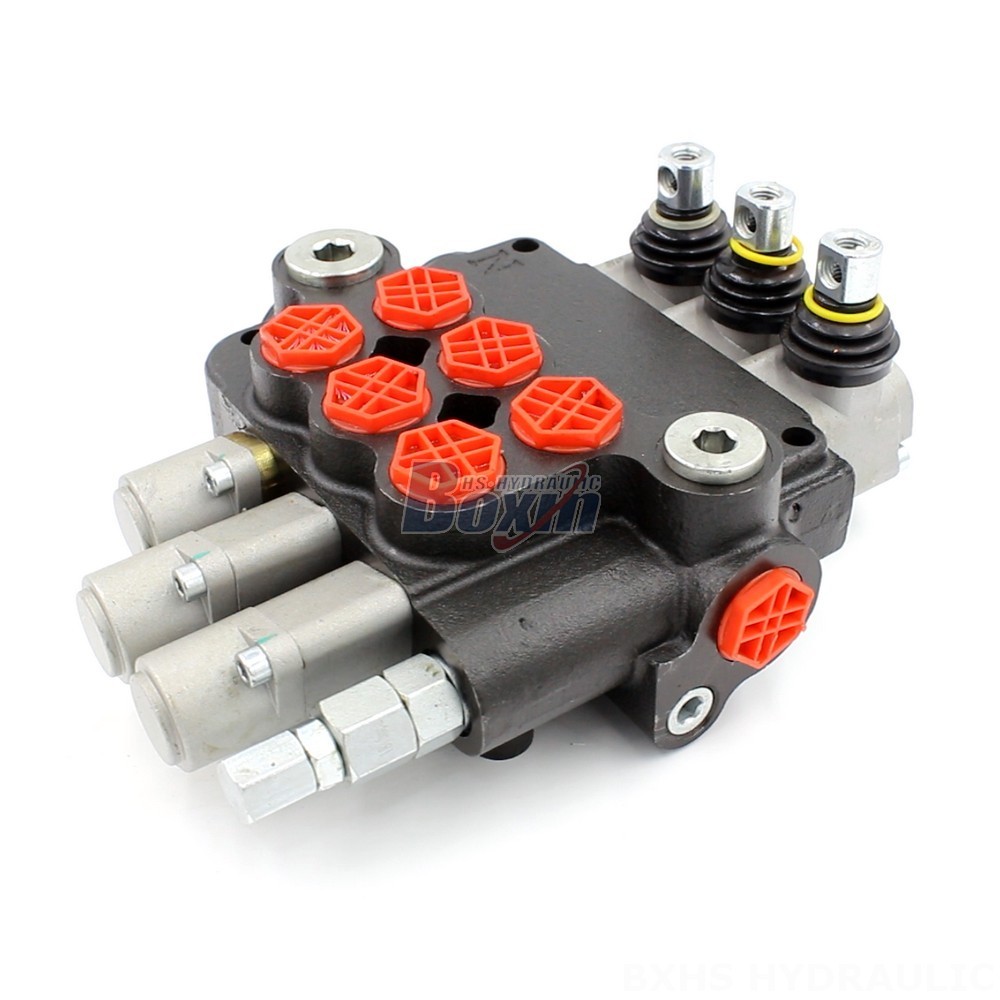

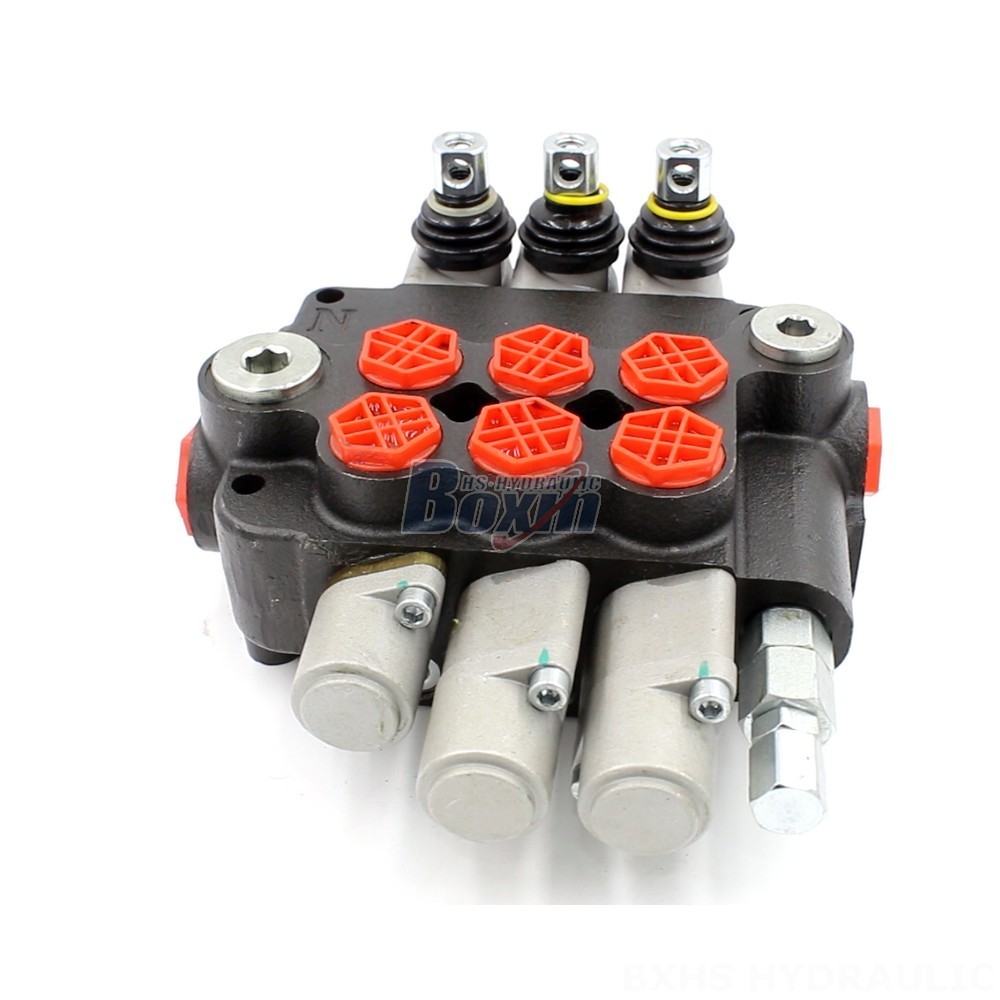

The Factory-Backed Distribution: P80-G34-G12 Hydraulic Valves are a superior quality product with excellent support. They are manually controlled, have a 3 section structure, and are a monoblock valve. With a rated flow of 80 L/min and a max pressure of 250 bar, they have an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C. They have 3 spools and are part of the P80 Series. These valves are ideal for use in material handling, construction, earth moving, agriculture, and industrial vehicles.
| P80シリーズ モノブロック方向制御弁 パラメーター | |
|---|---|
| 制御方法 | 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, 手動・ジョイスティック |
| スプール | 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール |
| 周囲温度範囲 | -40°C to +80°C (-40°F to +176°F) |
| 構造タイプ | モノブロック弁 |
| セクション | 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション |
| 作動粘度範囲 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 定格流量 | 毎分80リットル (21.2 US gpm) |
| 最大圧力 | 315 bar (4600 psi) |
| 吸入口 | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| 吐出口 | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| ポートサイズ | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The Factory-Backed Distribution: P80-G34-G12 Hydraulic Valves are manufactured by a leading manufacturer of hydraulic products. They are factory supplied and factory wholesale, ensuring that you get the best possible price and quality. These valves are designed to meet the highest standards of performance and durability. They are made from high-quality materials and are precision-engineered to provide years of trouble-free operation. The Factory-Backed Distribution: P80-G34-G12 Hydraulic Valves are the perfect choice for anyone looking for a high-quality, reliable hydraulic valve. They are backed by a comprehensive warranty and are supported by a team of experienced engineers who can provide you with the technical assistance you need.
