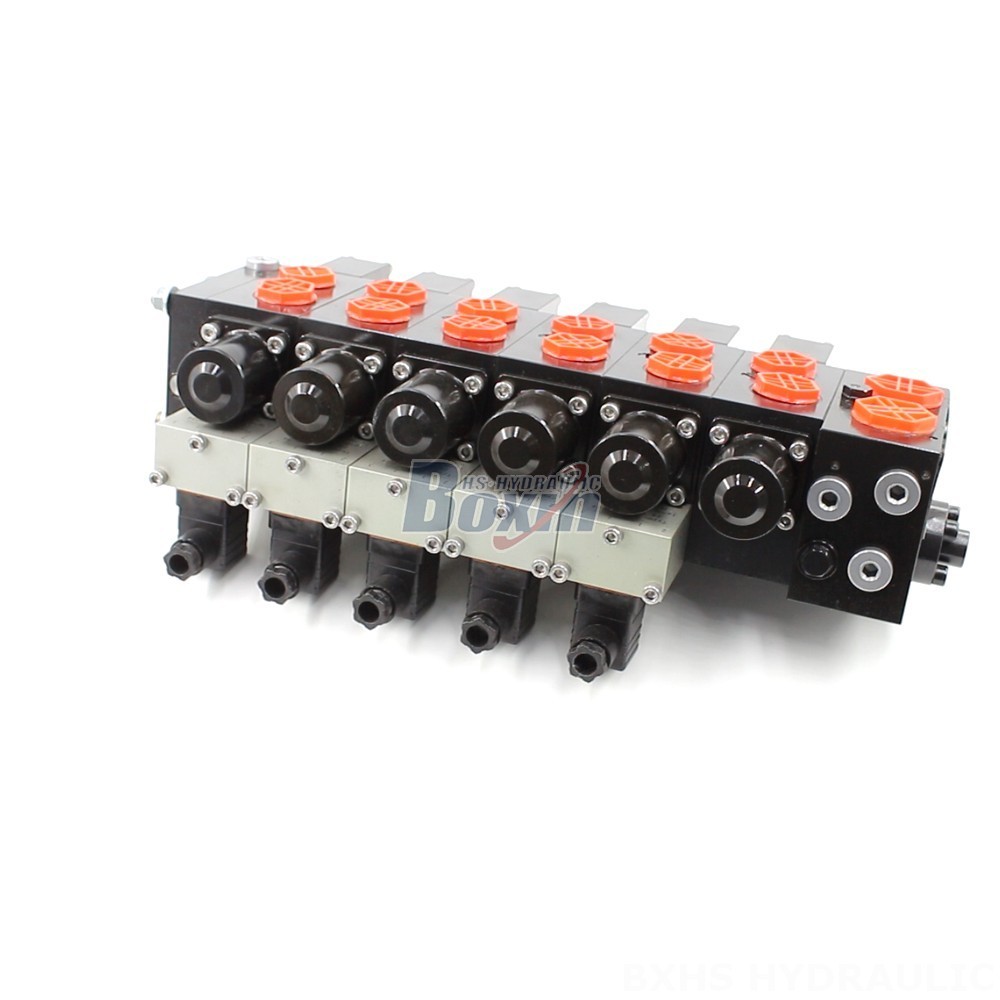

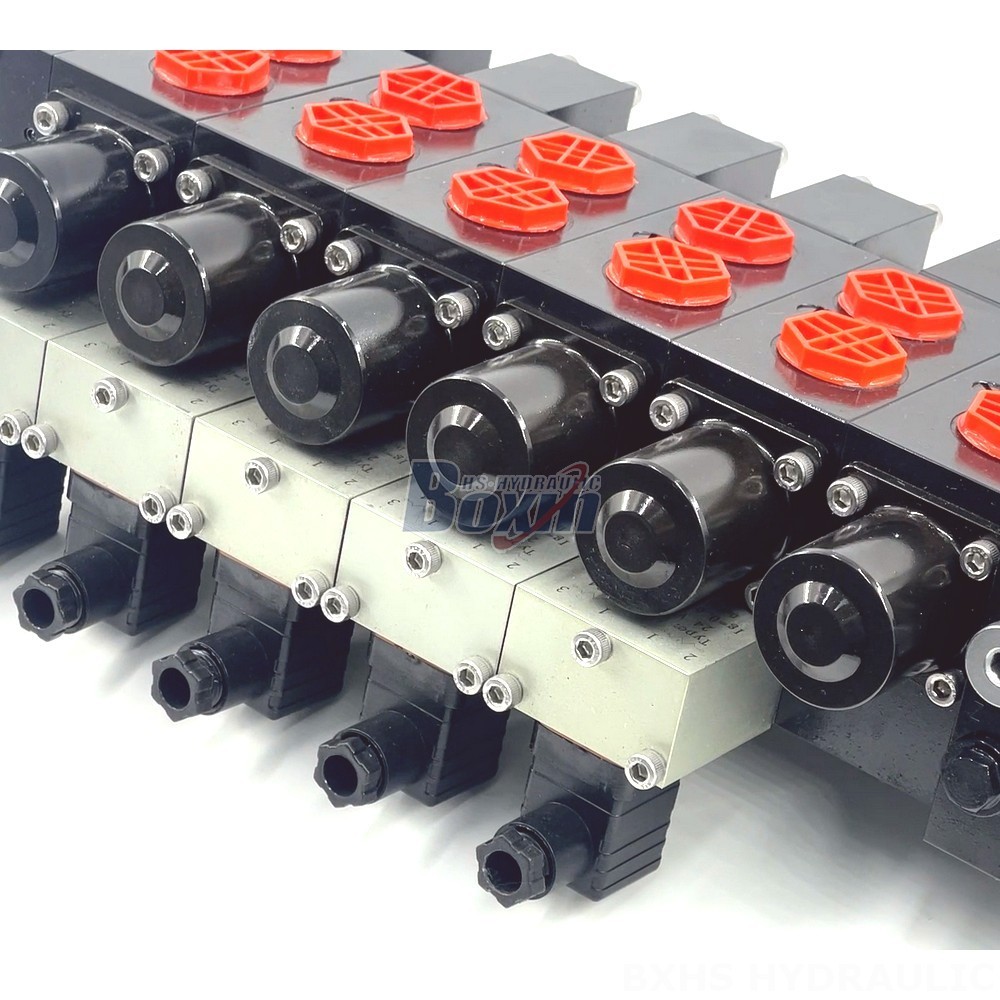

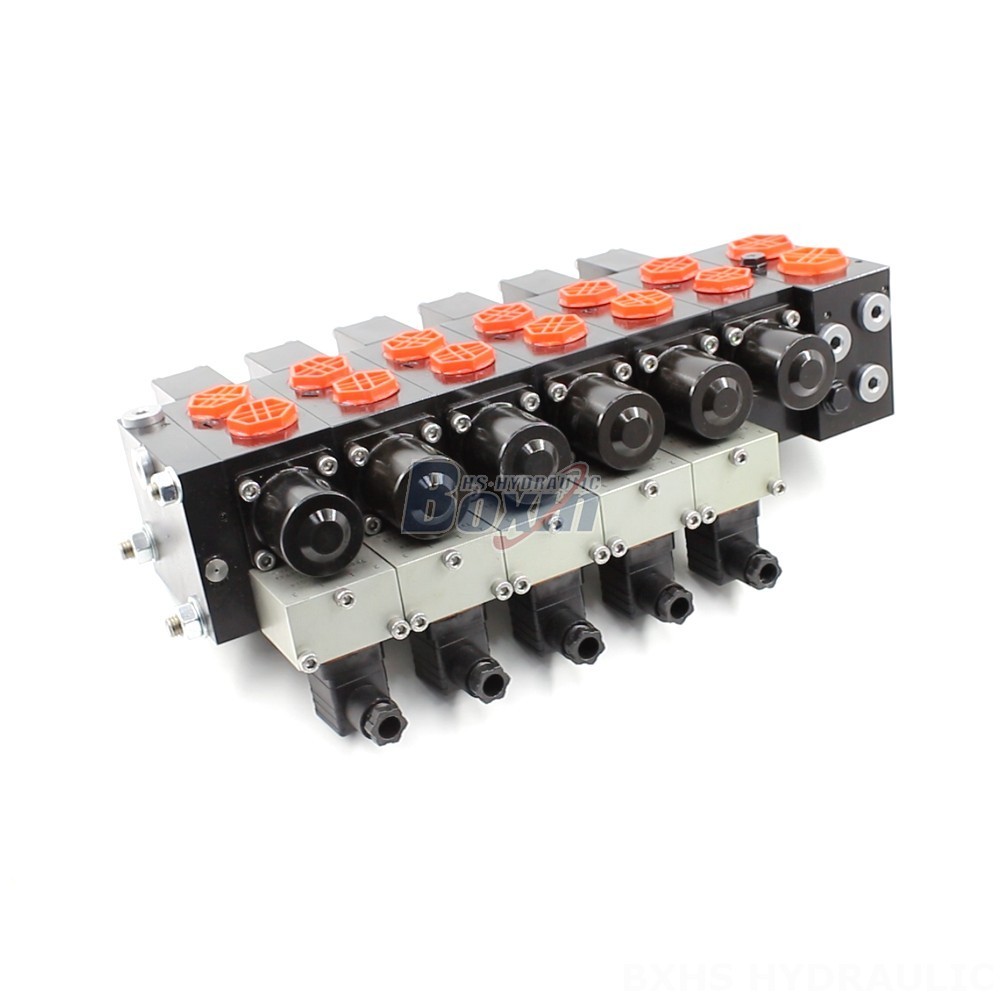

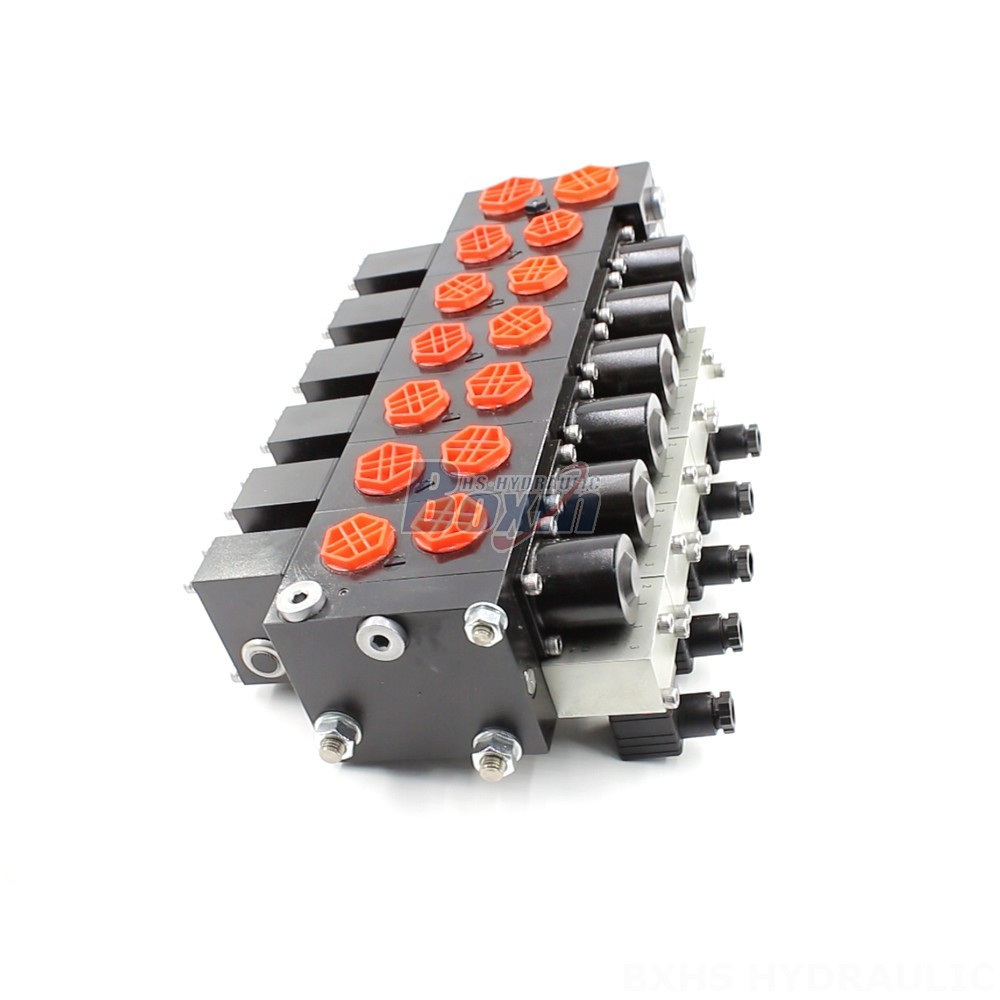

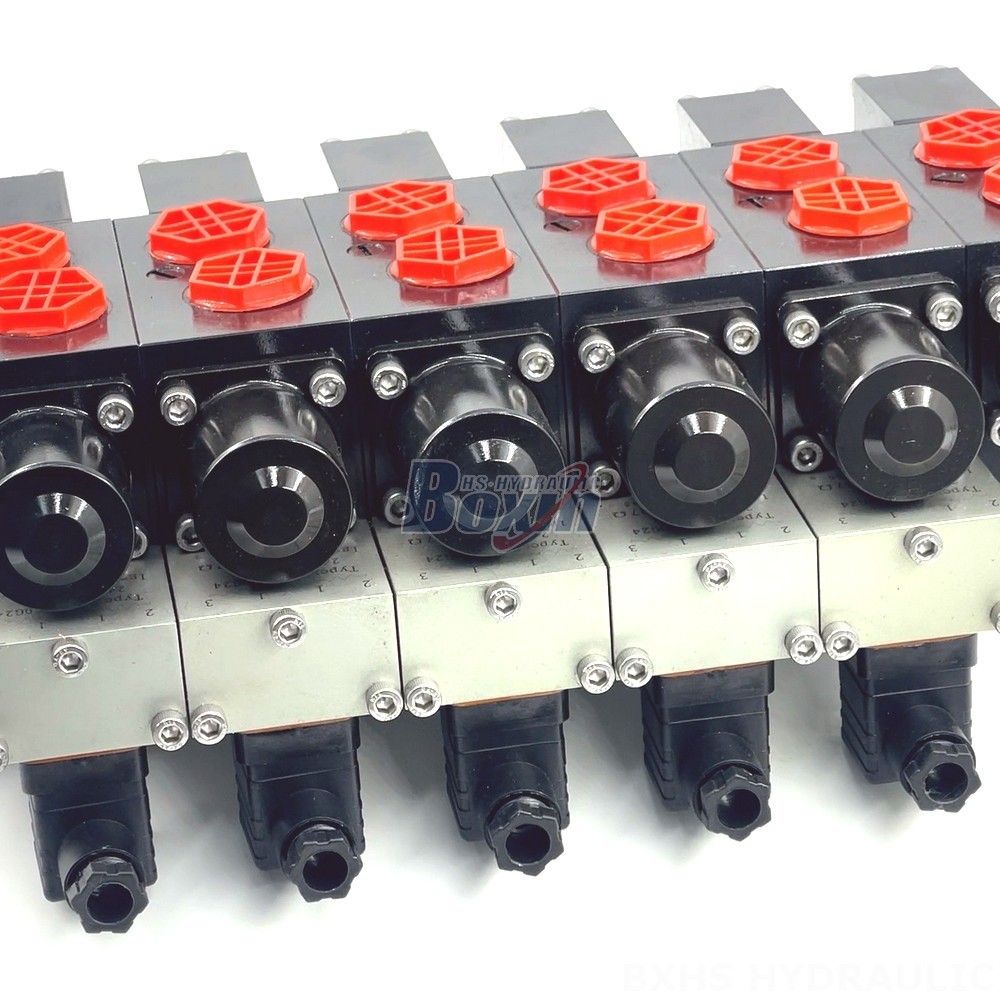

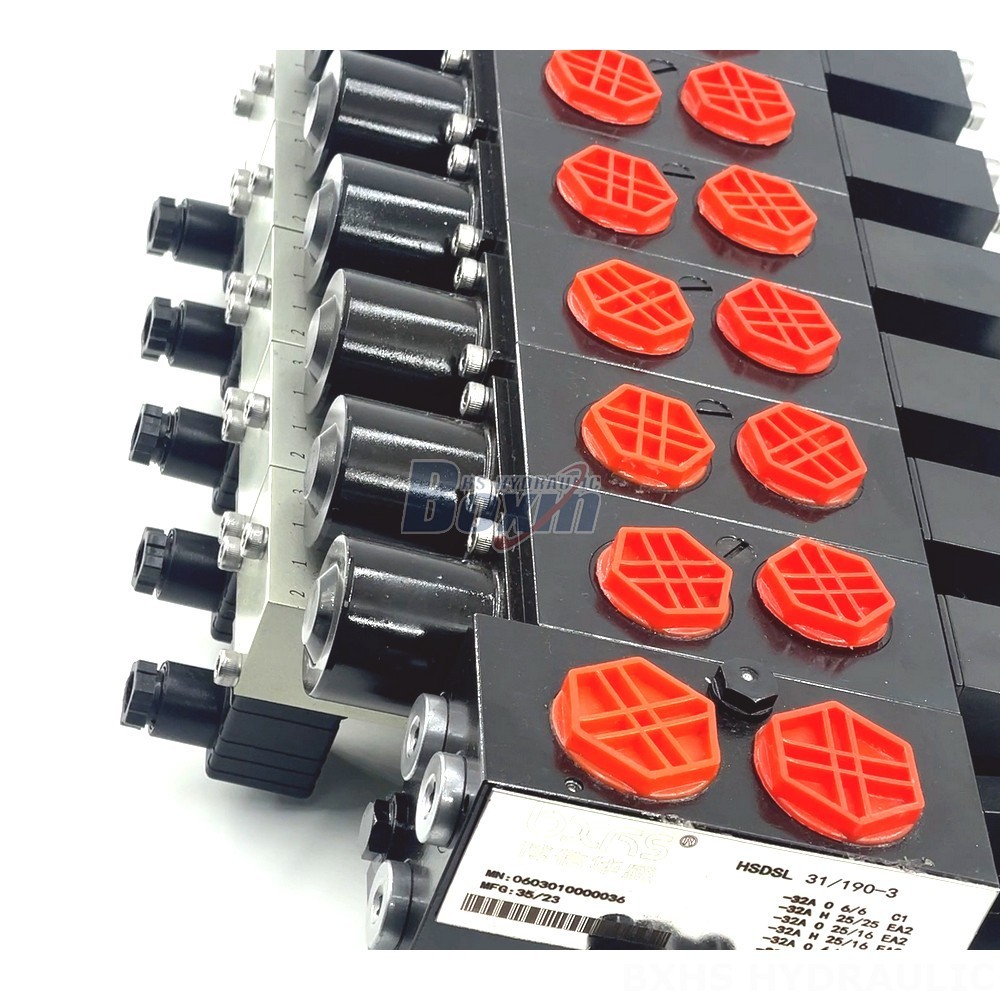

The HSDSL Series Hand Control Valve is a high-performance, reliable hydraulic valve designed for a wide range of construction and material handling applications. It features electric proportional and manual control methods, a 6-section design, and a rated flow of 140 L/min (37 US gpm). This valve is ideal for use in forklifts, excavators, telehandlers, loaders, and other heavy-duty equipment.
| HSDSLシリーズ 比例制御弁 パラメーター | |
|---|---|
| 制御方法 | 油圧, 油圧および手動, 電磁比例, 電磁比例・手動 |
| スプール | 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール, 8スプール, 9スプール, 10スプール, 11スプール, 12スプール |
| 定格流量 | 毎分140リットル (37 US gpm) |
| 最大圧力 | 250 bar (3600 psi) |
| 吸入口 | G3/4 |
| 吐出口 | G3/4 |
| ポートサイズ | G1/2 |
| セクション | 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション, 8セクション, 9セクション, 10セクション, 11セクション, 12セクション |
| 構造タイプ | ブロック弁 |
| 周囲温度範囲 | -40°C to +80°C (-40°F to +176°F) |
| 作動粘度範囲 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
The HSDSL Series Hand Control Valve is a high-performance, reliable hydraulic valve engineered for maximum output. It features a 6-section design and a rated flow of 140 L/min (37 US gpm). This valve is available with both electric proportional and manual control methods, offering flexibility for a wide range of applications. The HSDSL Series is suitable for use in various construction and material handling applications, including forklifts, excavators, telehandlers, loaders, and more. It is designed to withstand harsh operating conditions with an ambient temperature range of -40°C to +80°C (-40°F to +176°F). The HSDSL Series Hand Control Valve is a durable and reliable solution for demanding applications, providing precise control and optimal performance.
