What is the primary application of the Distributors Wanted: SD5-G38 Hydraulic Monoblock Directional Control Valves?

The Distributors Wanted: SD5-G38 Hydraulic Monoblock Directional Control Valves is designed for mobile hydraulic systems, agricultural machinery (such as tractors and harvesters), construction equipment (such as loaders and excavators), and industrial machinery. It ensures precise flow and directional control.

Is Boxinhuasheng a factory-direct manufacturer?

Yes, Boxinhuasheng (Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd.) is a factory-direct manufacturer established in 2001. We operate a 68,000m虏 facility with 4 modern manufacturing plants and 260+ production machines, supplying certified products directly to global customers.

What quality certifications do Boxinhuasheng products have?

All Boxinhuasheng directional control valves, gear pumps, and hydraulic accessories are CE certified, IATF 16949 compliant, and verified on-site by SGS, meeting international engineering standards.

Can Boxinhuasheng provide OEM/ODM customization services?

Yes, Boxinhuasheng has a team of 35 senior hydraulic engineers providing custom OEM manufacturing, ODM development, private labeling, and customized hydraulic system solutions tailored to specific operating pressures and flows.

What is the warranty and shipping lead time?

We offer a 1-year warranty with free replacement for any quality defects. Standard express delivery is within 30 days, supported by our robust annual capacity of 1.5 million hydraulic units and export experience to 80+ countries.

Distributors Wanted: SD5-G38 Hydraulic Monoblock Directional Control Valves

Name: Distributors Wanted: SD5-G38 Hydraulic Monoblock Directional Control Valves
Brand: Boxinhuasheng
SKU: BXHS-55951
Availability: InStock

sales2@chinesehydraulic.com

イノベーションが開発を推進し、テクノロジーが未来を築きます

ホームモノブロック方向制御弁SD5シリーズ製品詳細

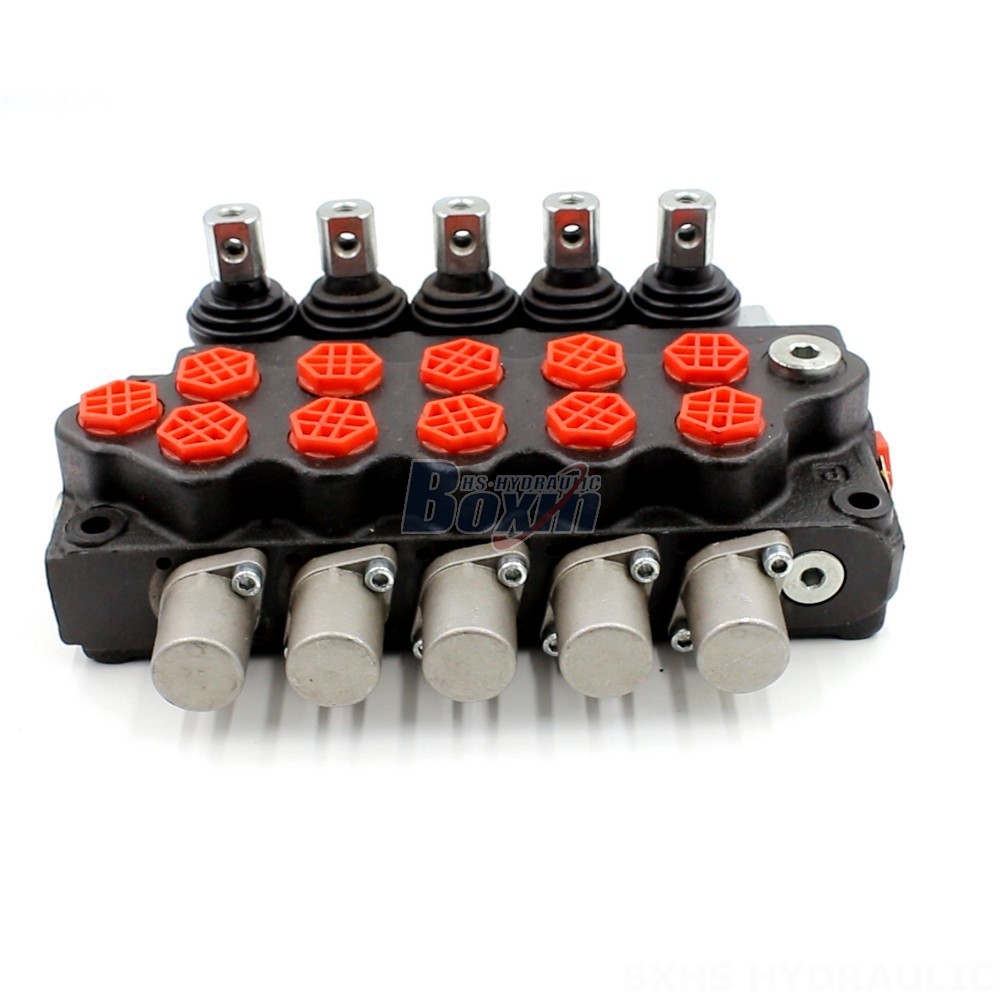

Distributors Wanted: SD5-G38 Hydraulic Monoblock Directional Control Valves cover photo

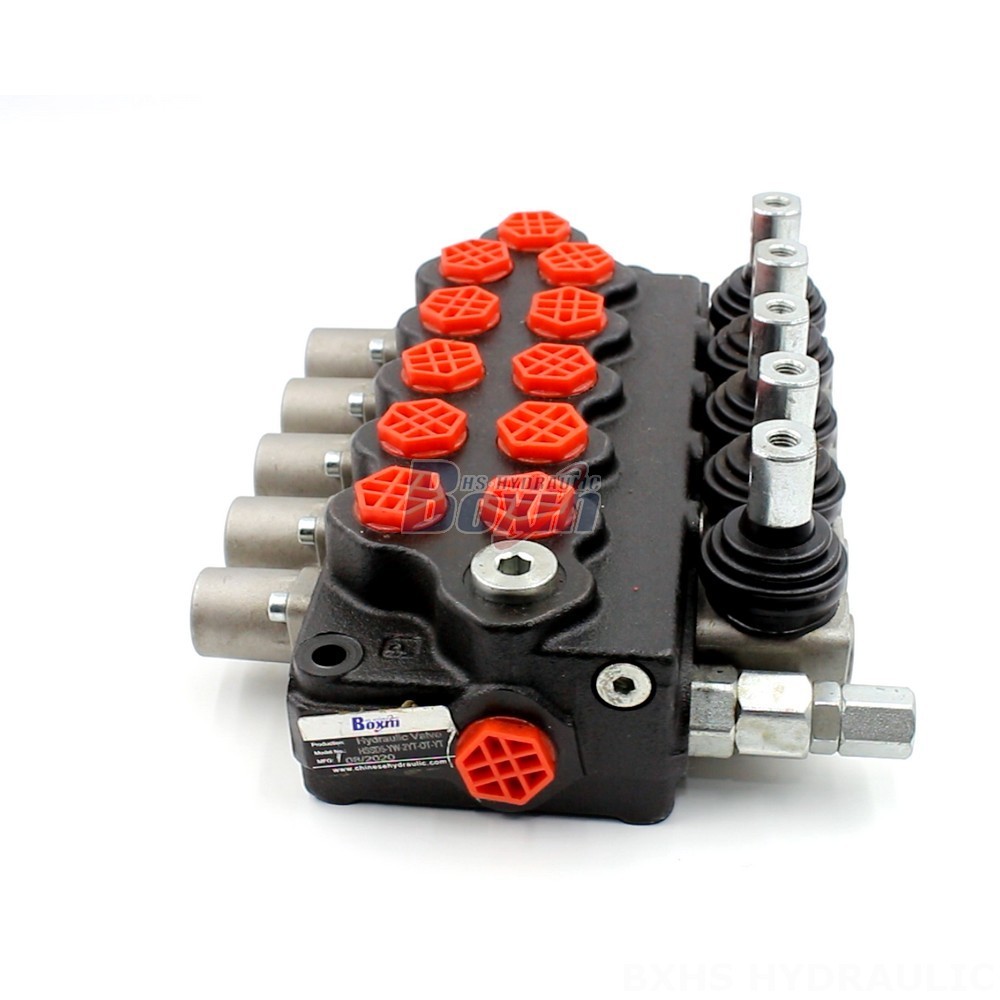

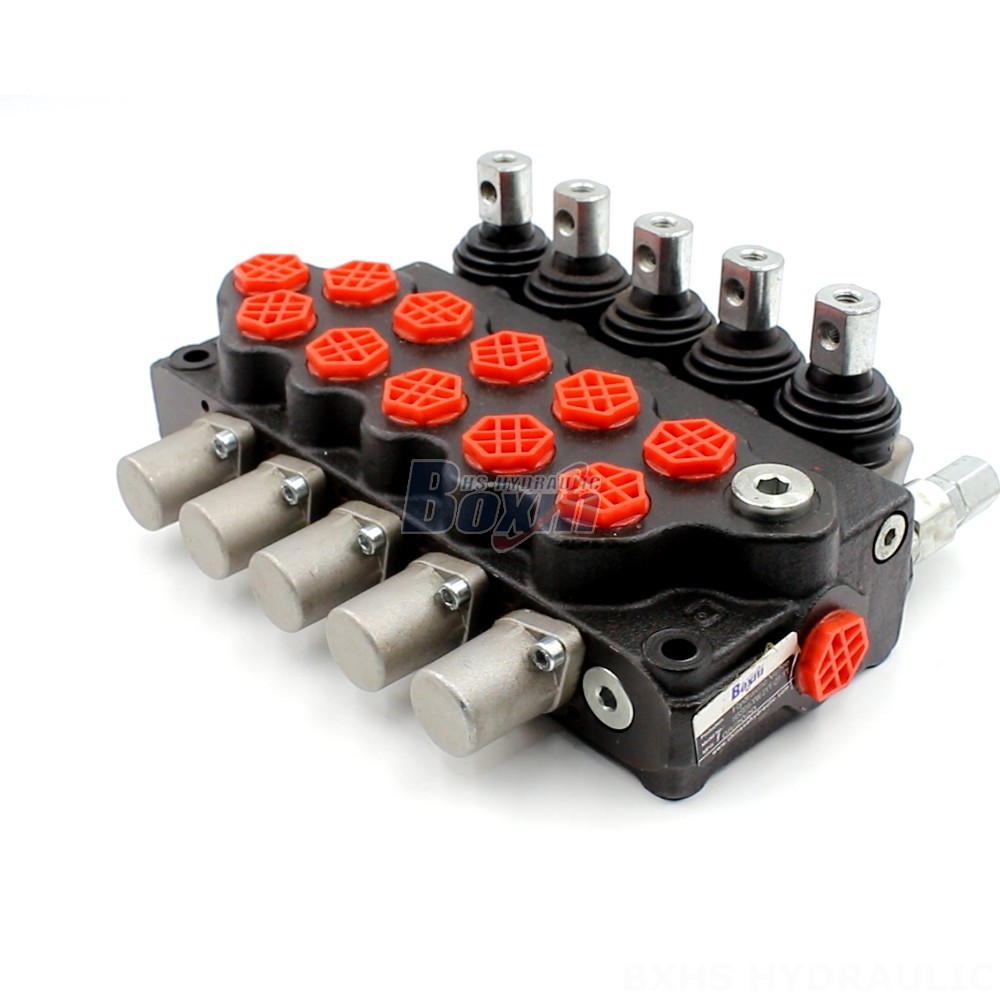

Distributors Wanted: SD5-G38 Hydraulic Monoblock Directional Control Valves main image

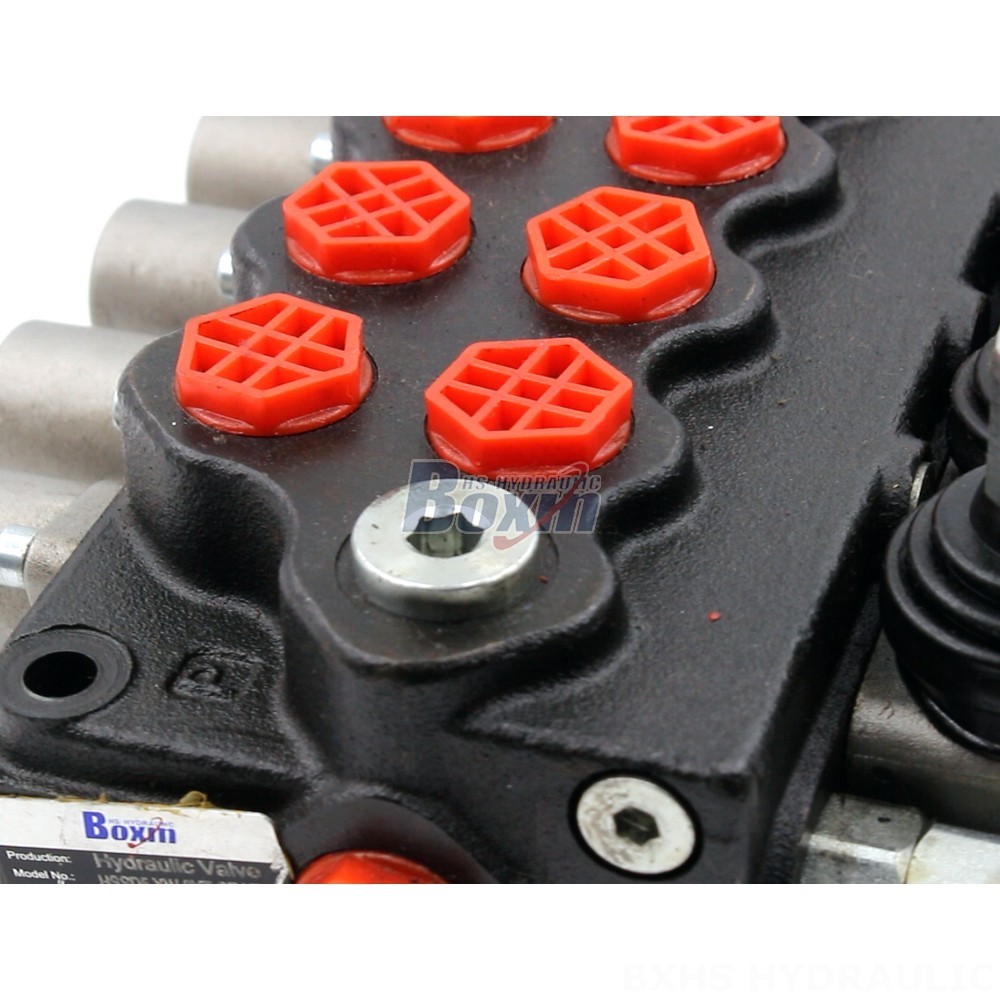

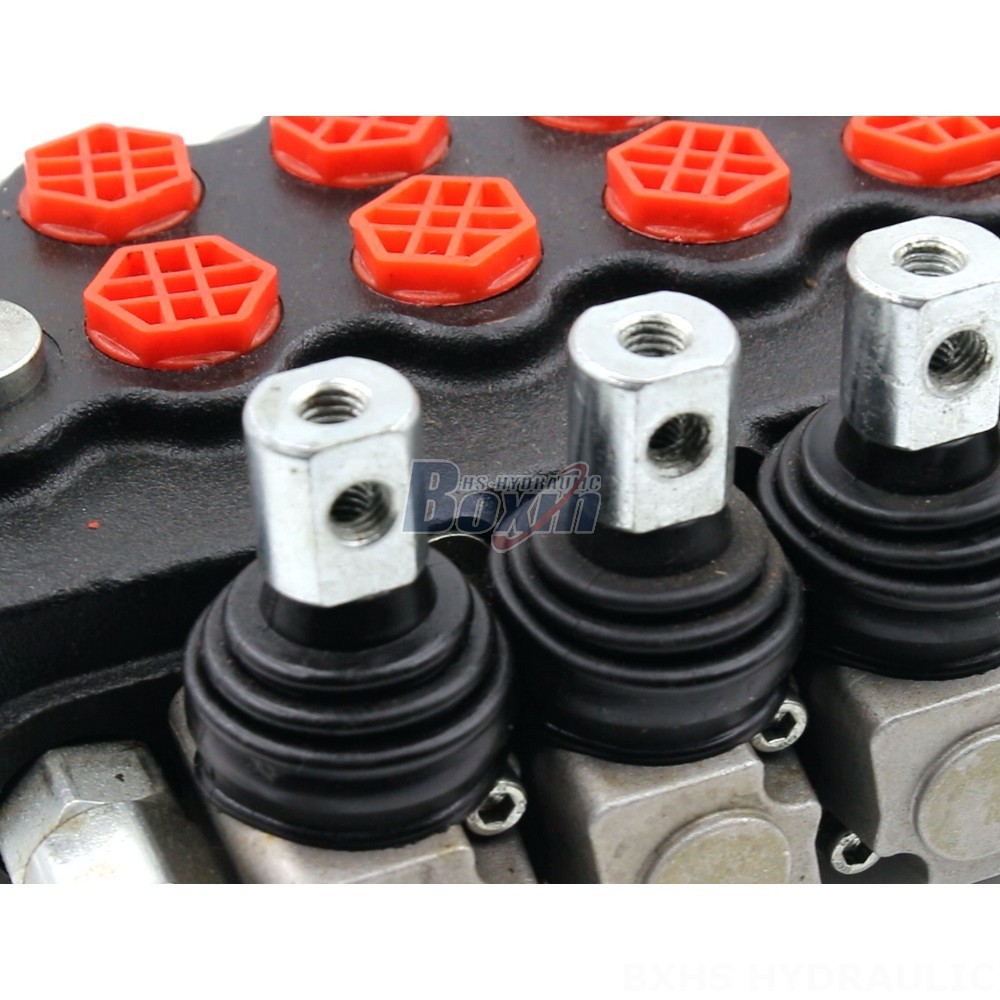

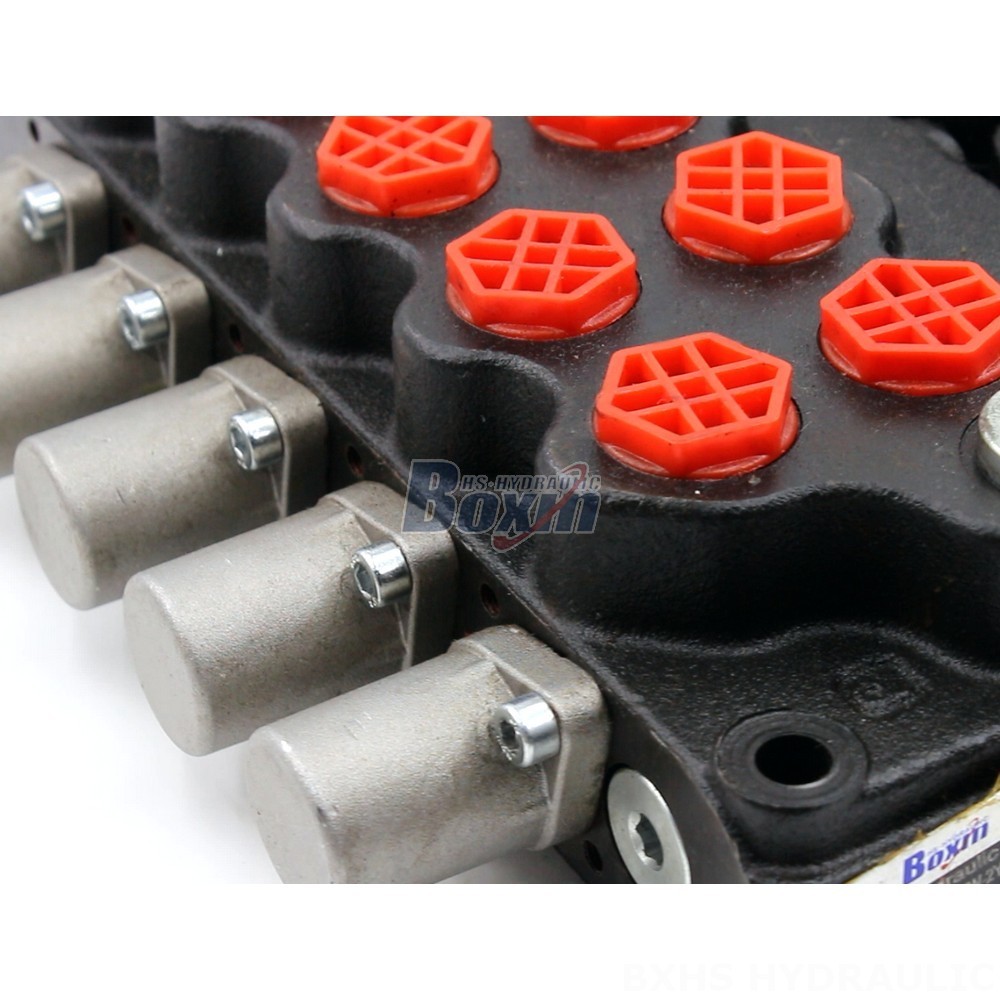

Distributors Wanted: SD5-G38 Hydraulic Monoblock Directional Control Valves detail image

Distributors Wanted: SD5-G38 Hydraulic Monoblock Directional Control Valves

制御方法:手動

スプール:5スプール

定格流量:毎分45リットル (11.8 US gpm)

最大圧力:315 bar (4600 psi)

吸入口:G3/8

吐出口:G3/8

ポートサイズ:G3/8

ベンダー:BXHS

製品タイプ:モノブロック方向制御弁

製品シリーズ:SD5シリーズモノブロック方向制御弁

梱包サイズ:35*31*21

総重量:12.50 kg

在庫状況: 在庫あり

お問い合わせ

1037 この製品を探している人もいます

Distributors Wanted: SD5-G38 Hydraulic Monoblock Directional Control Valves

Distributors Wanted: SD5-G38 Hydraulic Monoblock Directional Control Valves drawing image

Introducing the SD5-G38 Hydraulic Monoblock Directional Control Valves, the ultimate solution for your hydraulic system needs. Offering exceptional performance and reliability, these valves are engineered to meet the demands of various industries, including material handling, construction, agriculture, and industrial vehicles.

SD5シリーズモノブロック方向制御弁パラメーター
制御方法	手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック
スプール	1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール
周囲温度範囲	-40°C to +60°C (-40°F to +140°F)
構造タイプ	モノブロック弁
セクション	1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション
作動粘度範囲	15 - 75 mm²/s (15 cSt to 75 cSt)
定格流量	毎分40リットル (10.5 US gpm)
最大圧力	305 bar (4400 psi)
吸入口	G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2
吐出口	G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8
ポートサイズ	G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8

**SD5-G38 Hydraulic Monoblock Directional Control Valves**

**Key Features:**

* Manual control for precise operation
* 5-section design for versatility and efficiency
* Monoblock construction for durability and reduced leakage
* Rated flow of 40 L/min (10.5 US gpm) to handle high-flow applications
* Maximum pressure of 305 bar (4400 psi) ensures reliable performance under demanding conditions
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various hydraulic fluids
* Suitable for ambient temperatures ranging from -40°C to +60°C (-40°F to +140°F)
* Available with 5 spool options to meet specific application requirements

**Applications:**

* Telehandlers
* Forklifts
* Motor graders
* Midi-excavators
* Mini-excavators
* Skid steer loaders
* Compact wheel loaders
* Harvesters

**OEM, ODM, and Private Label Services:**

We offer flexible OEM, ODM, and private label services to cater to your unique requirements. Our experienced engineers can work closely with you to design and manufacture custom solutions that meet your exact specifications. Whether you need specific dimensions, configurations, or branding, we have the capabilities to deliver tailored products that meet your market needs.
