What is the primary application of the Distributors Wanted: P40-G12-OT Hydraulic Directional Control Valves?

The Distributors Wanted: P40-G12-OT Hydraulic Directional Control Valves is designed for mobile hydraulic systems, agricultural machinery (such as tractors and harvesters), construction equipment (such as loaders and excavators), and industrial machinery. It ensures precise flow and directional control.

Is Boxinhuasheng a factory-direct manufacturer?

Yes, Boxinhuasheng (Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd.) is a factory-direct manufacturer established in 2001. We operate a 68,000m虏 facility with 4 modern manufacturing plants and 260+ production machines, supplying certified products directly to global customers.

What quality certifications do Boxinhuasheng products have?

All Boxinhuasheng directional control valves, gear pumps, and hydraulic accessories are CE certified, IATF 16949 compliant, and verified on-site by SGS, meeting international engineering standards.

Can Boxinhuasheng provide OEM/ODM customization services?

Yes, Boxinhuasheng has a team of 35 senior hydraulic engineers providing custom OEM manufacturing, ODM development, private labeling, and customized hydraulic system solutions tailored to specific operating pressures and flows.

What is the warranty and shipping lead time?

We offer a 1-year warranty with free replacement for any quality defects. Standard express delivery is within 30 days, supported by our robust annual capacity of 1.5 million hydraulic units and export experience to 80+ countries.

Distributors Wanted: P40-G12-OT Hydraulic Directional Control Valves

Name: Distributors Wanted: P40-G12-OT Hydraulic Directional Control Valves
Brand: Boxinhuasheng
SKU: BXHS-53812
Availability: InStock

イノベーションが開発を推進し、テクノロジーが未来を築きます

ホームモノブロック方向制御弁P40シリーズ製品詳細

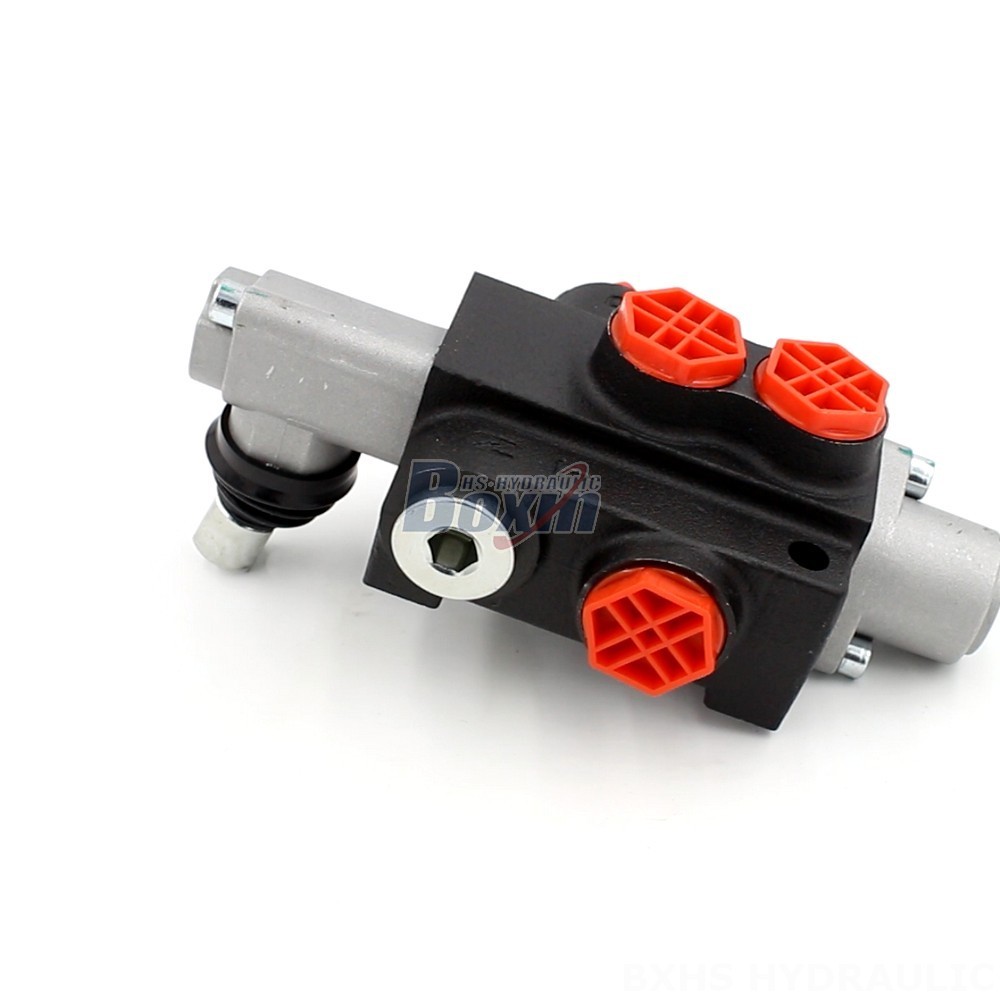

Distributors Wanted: P40-G12-OT Hydraulic Directional Control Valves cover photo

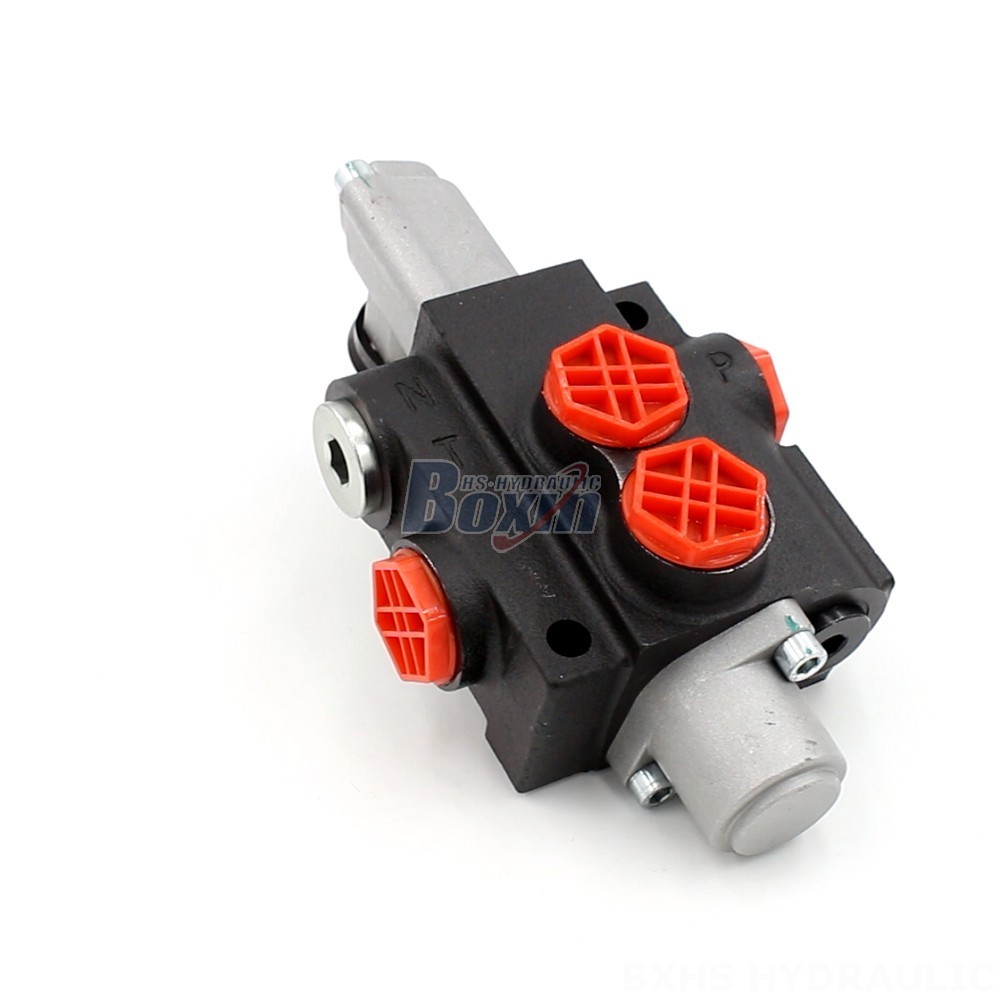

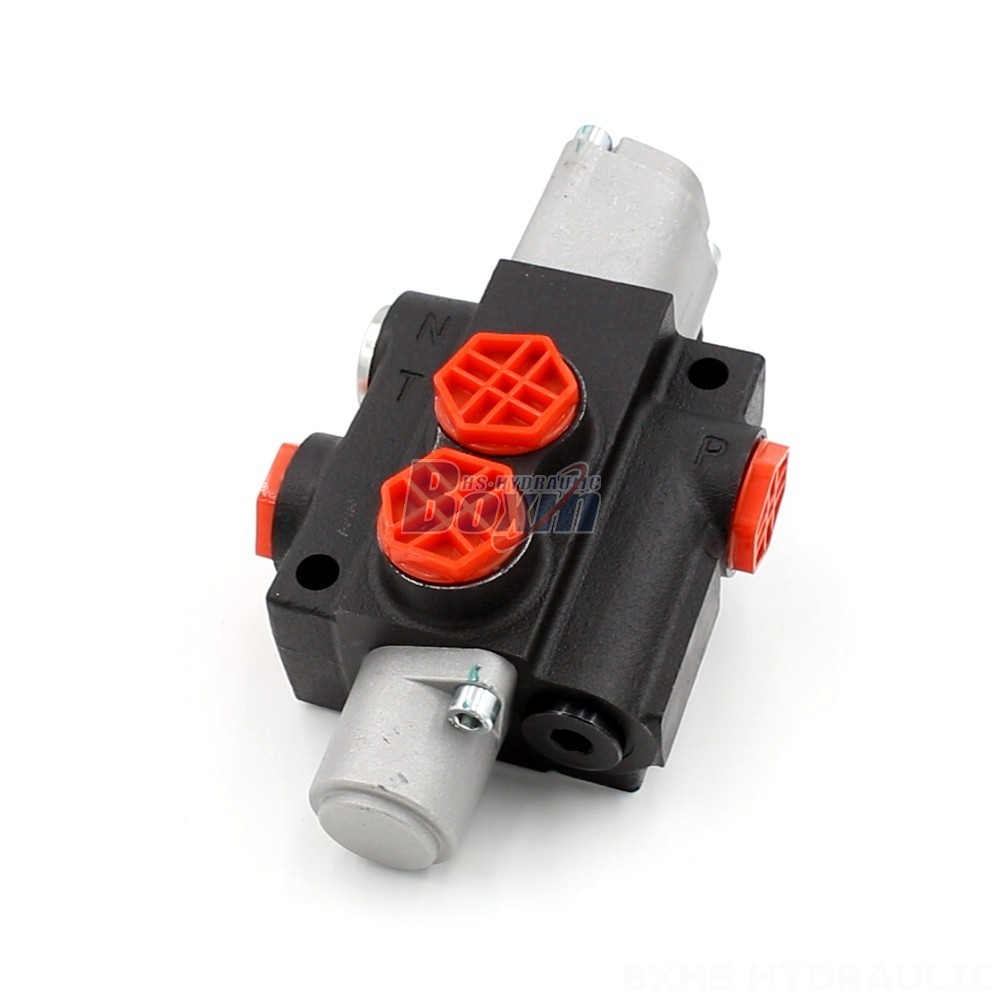

Distributors Wanted: P40-G12-OT Hydraulic Directional Control Valves main image

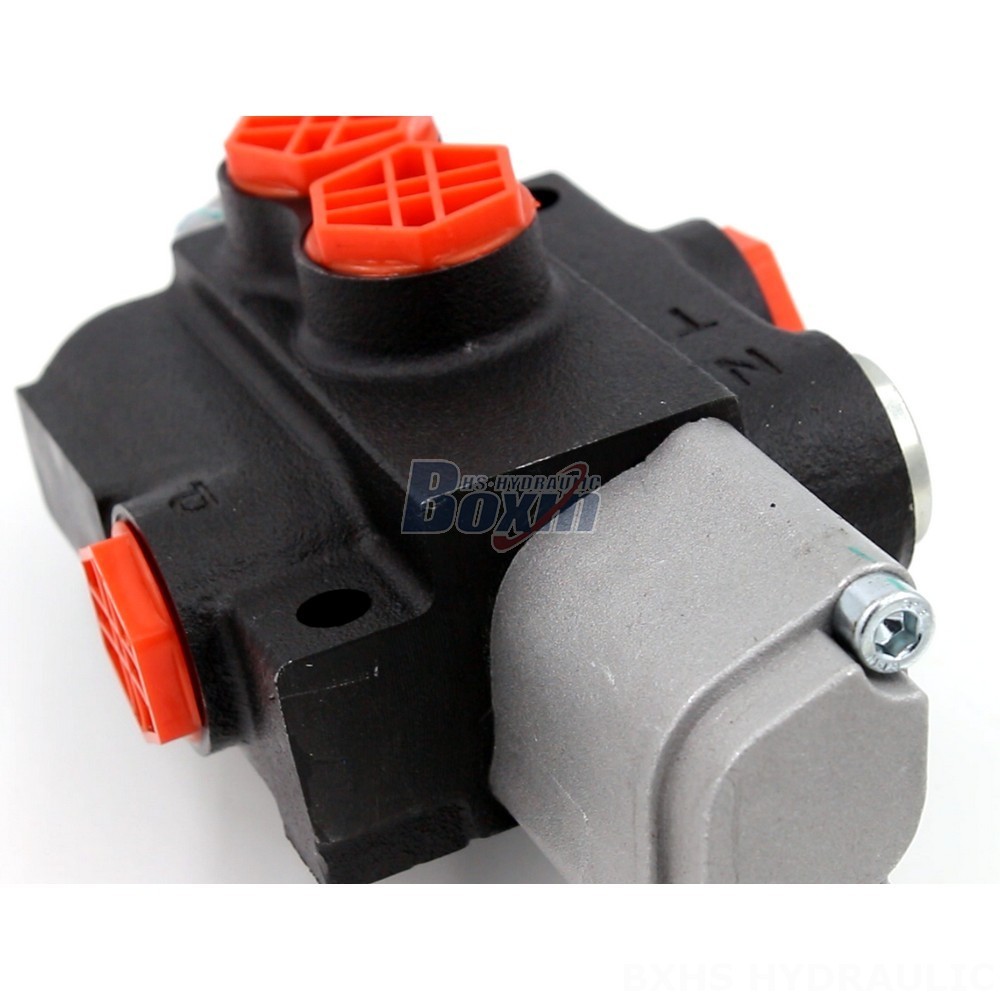

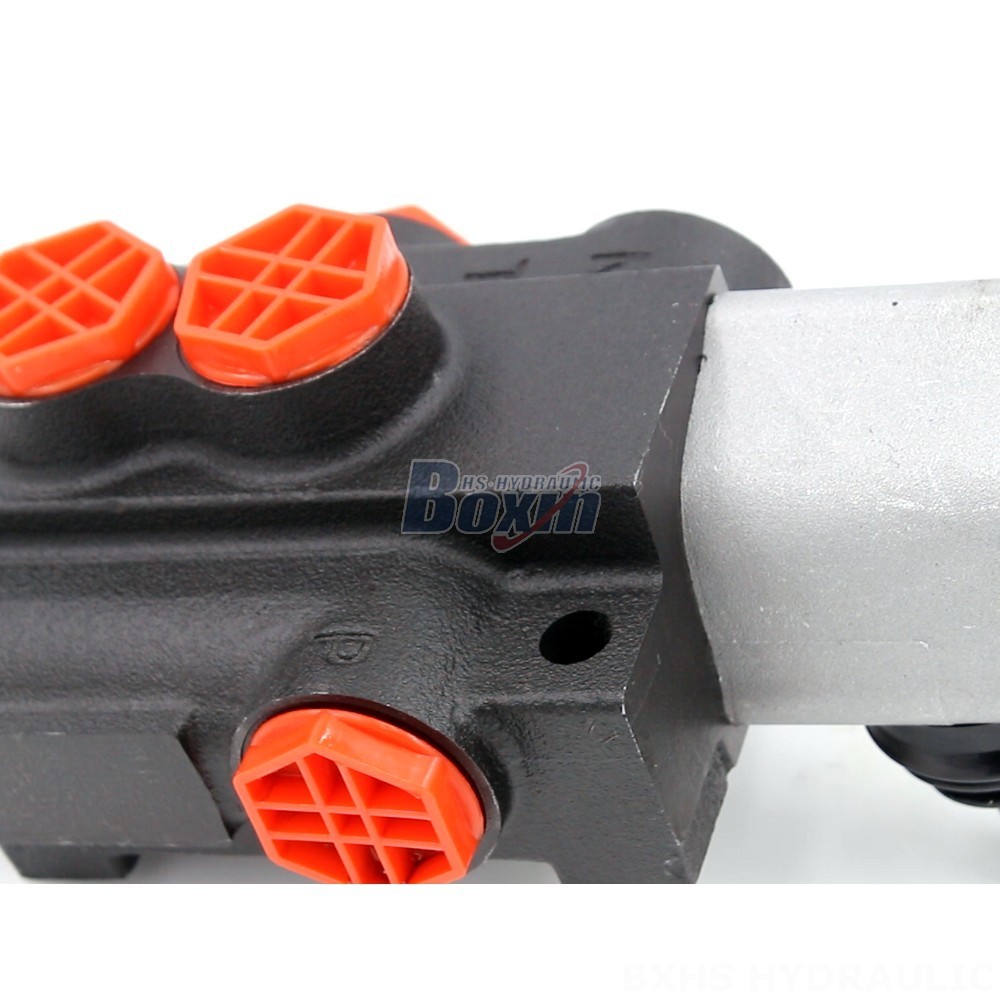

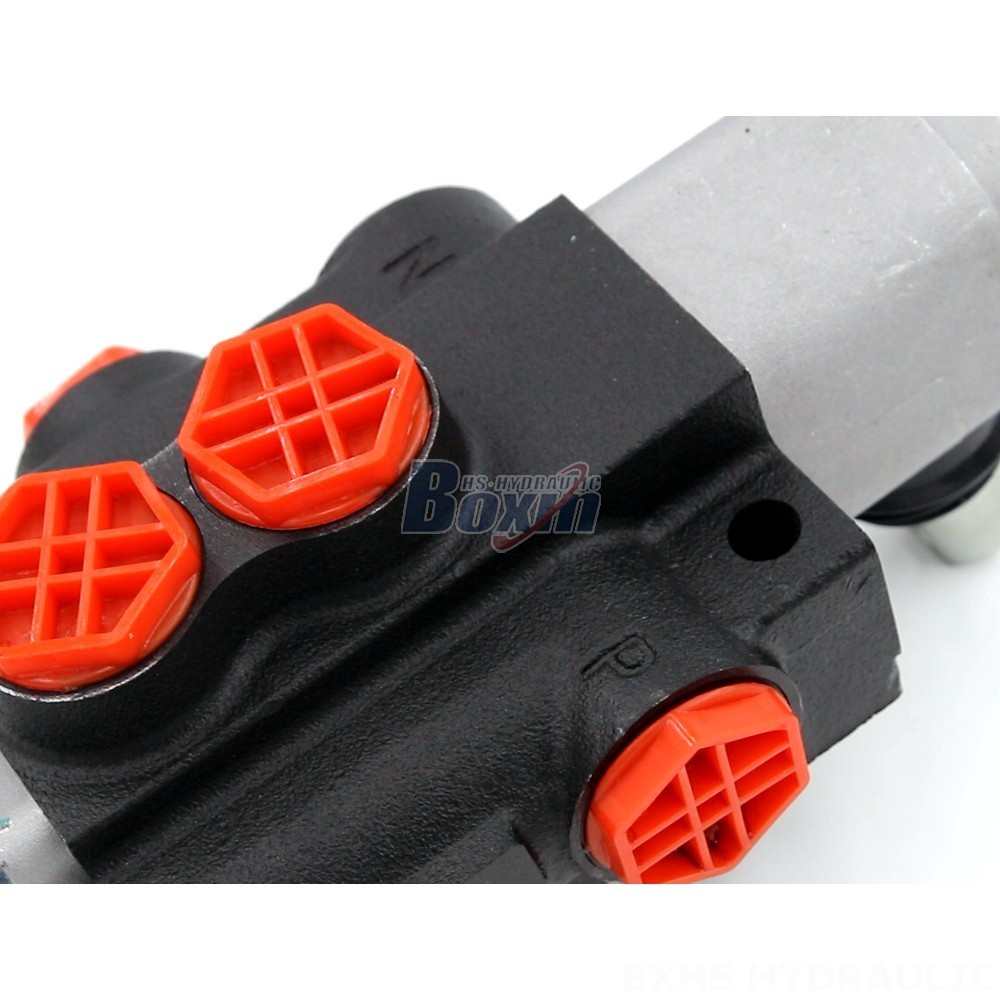

Distributors Wanted: P40-G12-OT Hydraulic Directional Control Valves detail image

Distributors Wanted: P40-G12-OT Hydraulic Directional Control Valves

制御方法:手動

スプール:1スプール

定格流量:毎分40リットル (10.5 US gpm)

最大圧力:250 bar (3600 psi)

吸入口:G1/2

吐出口:G1/2

ポートサイズ:G3/8

ベンダー:BXHS

製品タイプ:モノブロック方向制御弁

製品シリーズ:P40シリーズモノブロック方向制御弁

梱包サイズ:23*16*11

総重量:3.00 kg

在庫状況: 在庫あり

お問い合わせ

1083 この製品を探している人もいます

Distributors Wanted: P40-G12-OT Hydraulic Directional Control Valves

Distributors Wanted: P40-G12-OT Hydraulic Directional Control Valves drawing image

The P40-G12-OT hydraulic directional control valve is a high-performance, compact valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. This robust valve offers reliable operation and durability even in demanding environments.

P40シリーズモノブロック方向制御弁パラメーター
制御方法	手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, ソレノイド・ジョイスティック, 手動・ジョイスティック, ソレノイドおよびケーブル式
スプール	1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール
周囲温度範囲	-40°C to +80°C (-40°F to +176°F)
構造タイプ	モノブロック弁
セクション	1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション
作動粘度範囲	15 - 75 mm²/s (15 cSt to 75 cSt)
定格流量	毎分40リットル (10.5 US gpm)
最大圧力	250 bar (3600 psi)
吸入口	G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
吐出口	G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
ポートサイズ	G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This P40-G12-OT hydraulic directional control valve is a monoblock valve with a rated flow of 40 L/min and a maximum pressure of 250 bar. It features a manual control method and is suitable for applications requiring 1 section. This valve is designed to operate in a wide range of ambient temperatures, from -40°C to +80°C. We offer OEM, private labeling, and customization options to meet your specific needs. We are actively seeking distributors, wholesalers, agents, and traders to expand our global reach.
