What is the primary application of the Directional Control Valve: P80-AQF Series for Diverse Hydraulic Applications?

The Directional Control Valve: P80-AQF Series for Diverse Hydraulic Applications is designed for mobile hydraulic systems, agricultural machinery (such as tractors and harvesters), construction equipment (such as loaders and excavators), and industrial machinery. It ensures precise flow and directional control.

Is Boxinhuasheng a factory-direct manufacturer?

Yes, Boxinhuasheng (Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd.) is a factory-direct manufacturer established in 2001. We operate a 68,000m虏 facility with 4 modern manufacturing plants and 260+ production machines, supplying certified products directly to global customers.

What quality certifications do Boxinhuasheng products have?

All Boxinhuasheng directional control valves, gear pumps, and hydraulic accessories are CE certified, IATF 16949 compliant, and verified on-site by SGS, meeting international engineering standards.

Can Boxinhuasheng provide OEM/ODM customization services?

Yes, Boxinhuasheng has a team of 35 senior hydraulic engineers providing custom OEM manufacturing, ODM development, private labeling, and customized hydraulic system solutions tailored to specific operating pressures and flows.

What is the warranty and shipping lead time?

We offer a 1-year warranty with free replacement for any quality defects. Standard express delivery is within 30 days, supported by our robust annual capacity of 1.5 million hydraulic units and export experience to 80+ countries.

Directional Control Valve: P80-AQF Series for Diverse Hydraulic Applications

Name: Directional Control Valve: P80-AQF Series for Diverse Hydraulic Applications
Brand: Boxinhuasheng
SKU: BXHS-54536
Availability: InStock

sales2@chinesehydraulic.com

イノベーションが開発を推進し、テクノロジーが未来を築きます

ホームモノブロック方向制御弁P80シリーズ製品詳細

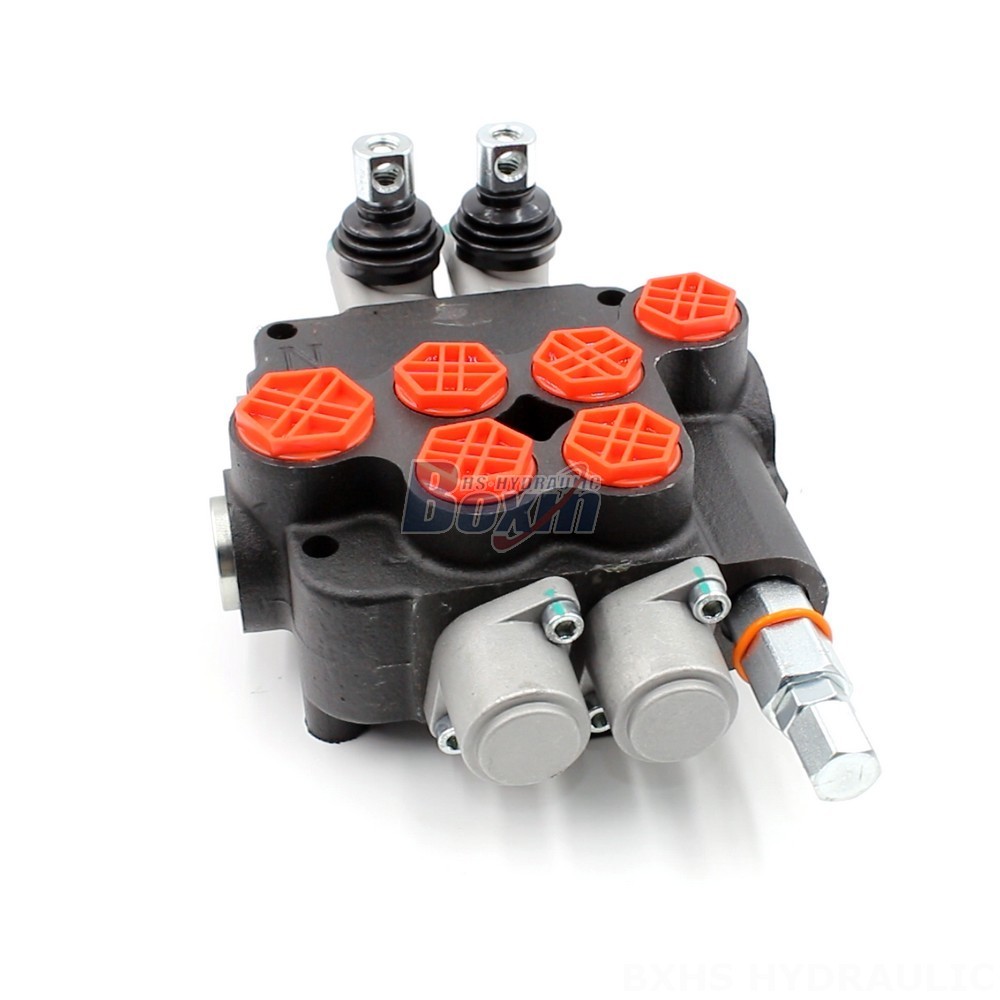

Directional Control Valve: P80-AQF Series for Diverse Hydraulic Applications cover photo

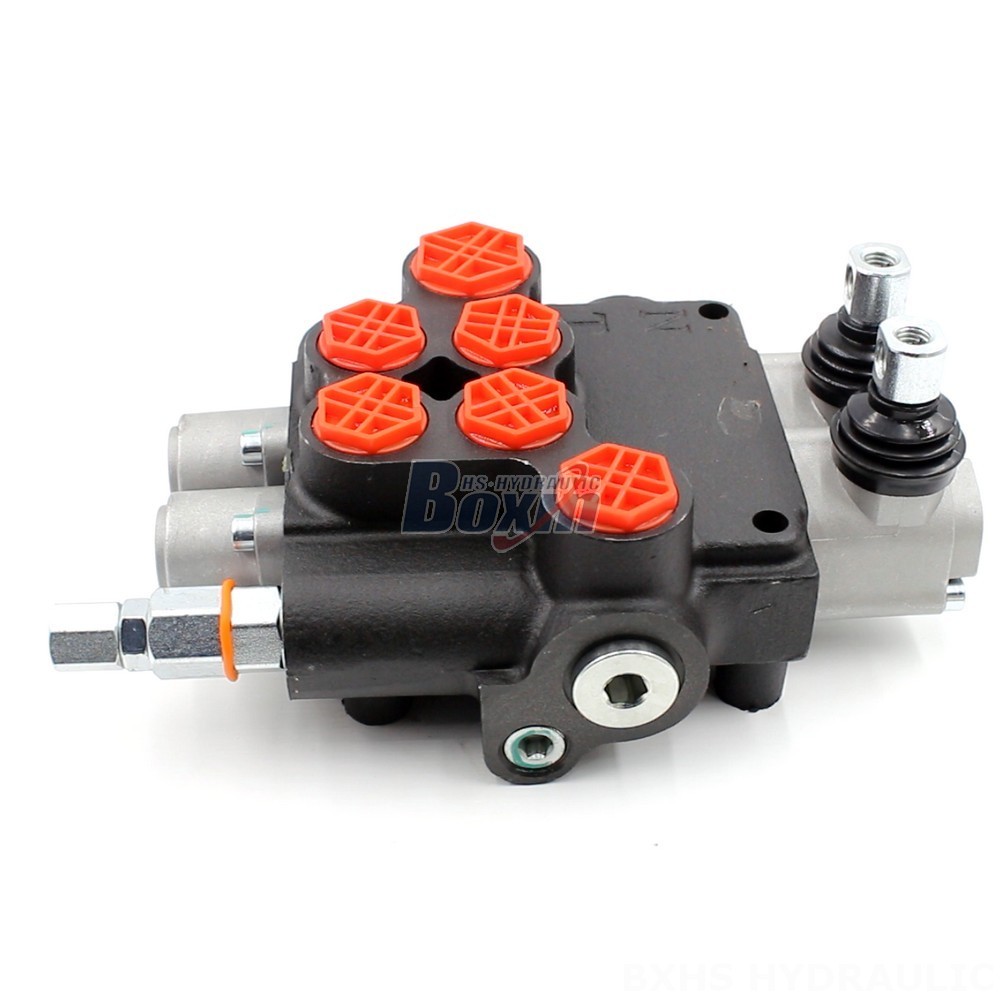

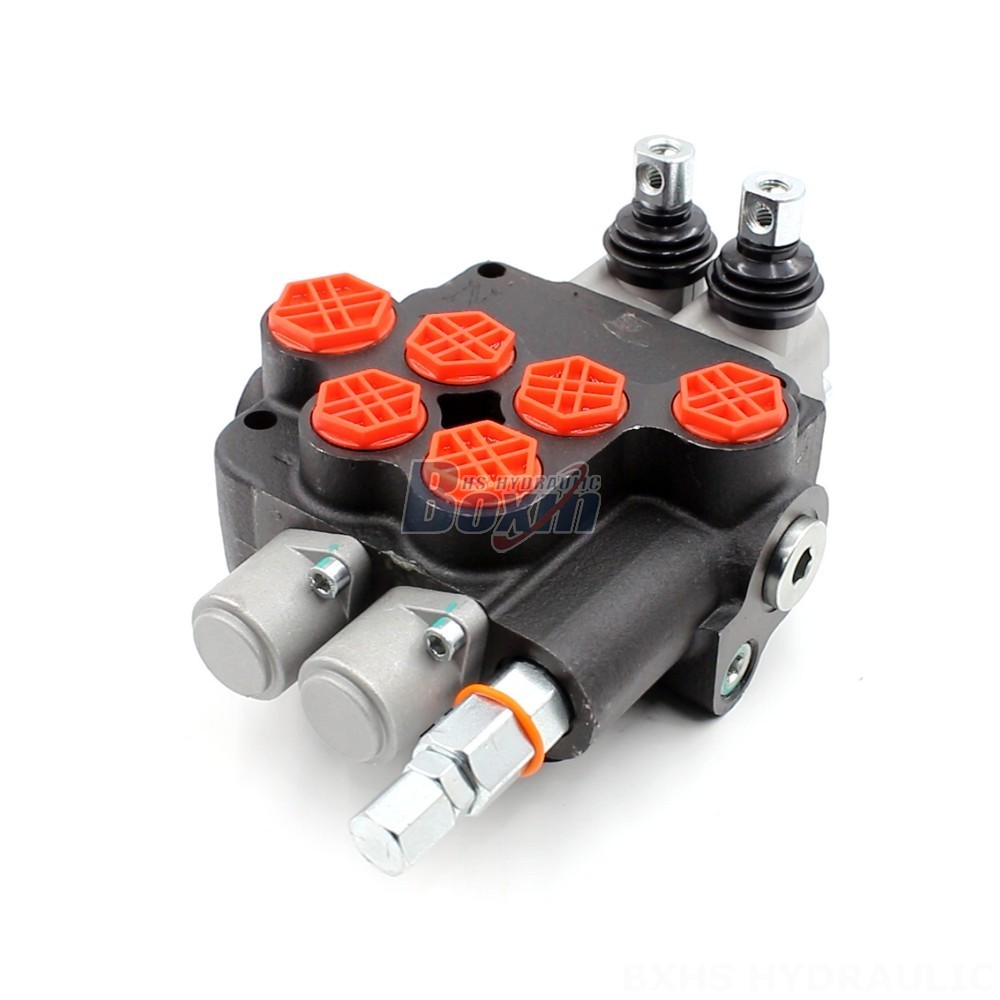

Directional Control Valve: P80-AQF Series for Diverse Hydraulic Applications main image

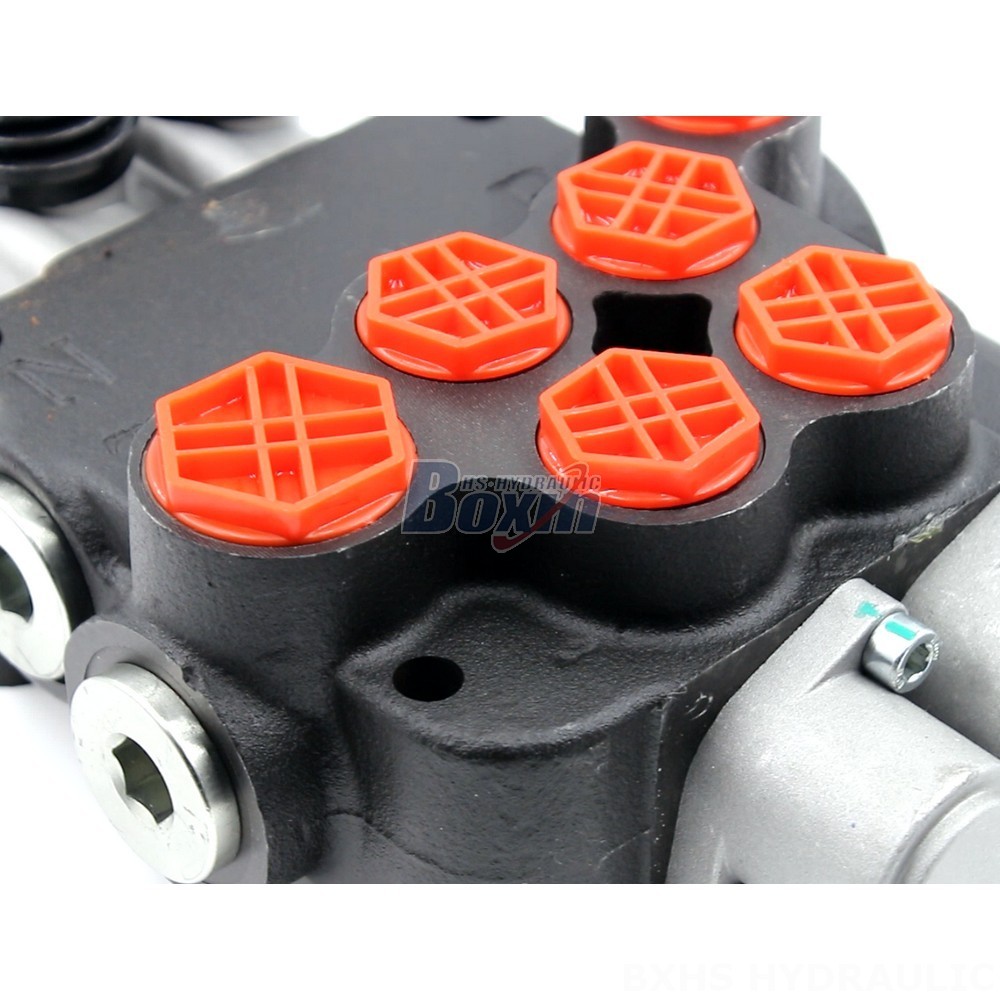

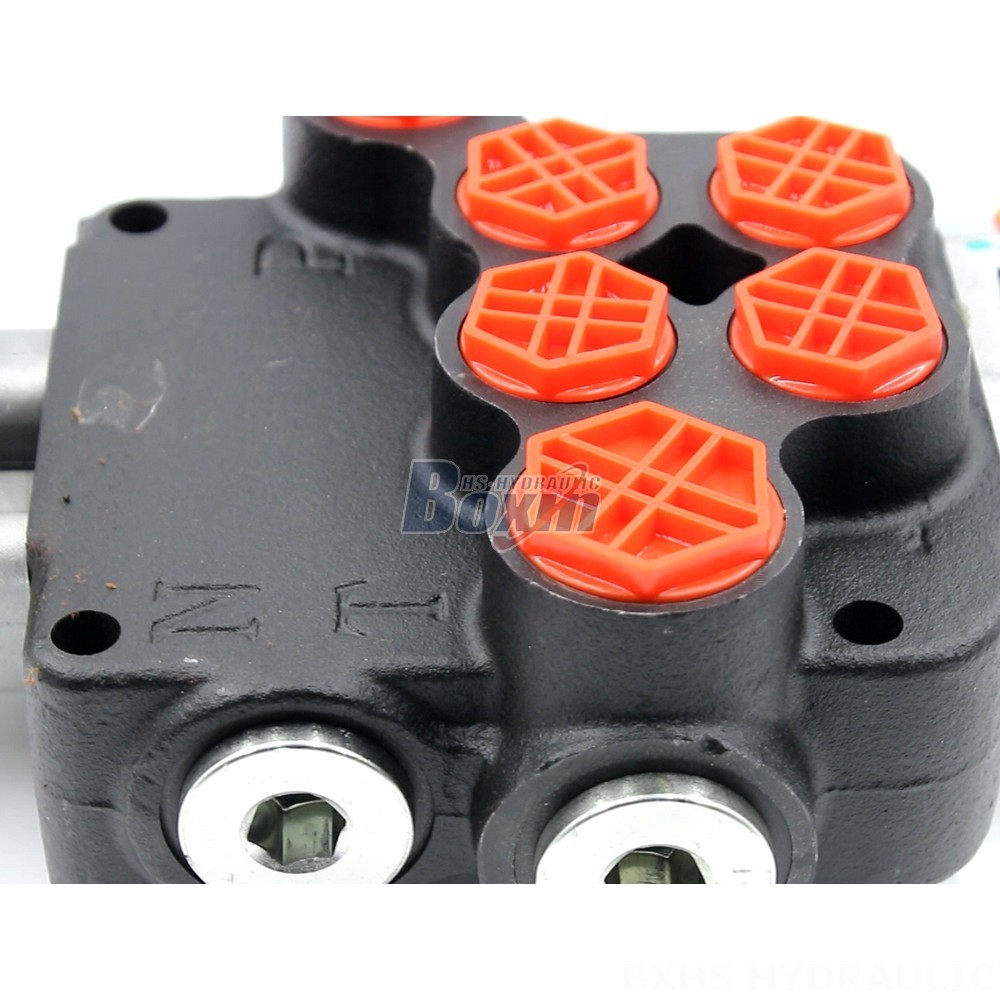

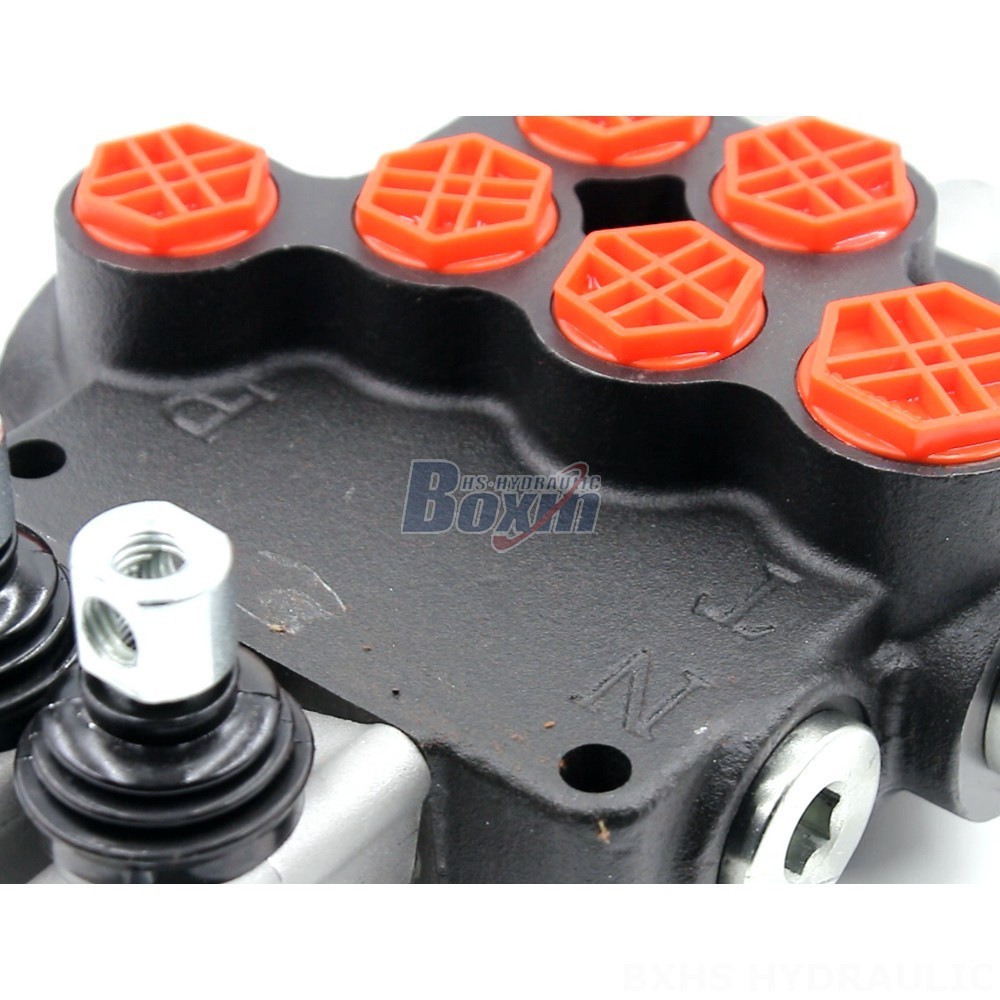

Directional Control Valve: P80-AQF Series for Diverse Hydraulic Applications detail image

Directional Control Valve: P80-AQF Series for Diverse Hydraulic Applications

制御方法:手動

スプール:2スプール

定格流量:毎分80リットル (21.2 US gpm)

最大圧力:250 bar (3600 psi)

吸入口:G1/2

吐出口:G3/4

ポートサイズ:G1/2

ベンダー:BXHS

製品タイプ:モノブロック方向制御弁

製品シリーズ:P80シリーズモノブロック方向制御弁

梱包サイズ:26*18*11

総重量:8.20 kg

在庫状況: 在庫あり

お問い合わせ

945 この製品を探している人もいます

Directional Control Valve: P80-AQF Series for Diverse Hydraulic Applications

Directional Control Valve: P80-AQF Series for Diverse Hydraulic Applications drawing image

The P80-AQF Series Directional Control Valve is a high-performance hydraulic valve designed for diverse applications in industries such as material handling, construction, agriculture, and industrial vehicles. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve offers reliable and precise control of hydraulic systems.

P80シリーズモノブロック方向制御弁パラメーター
制御方法	手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, 手動・ジョイスティック
スプール	1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール
周囲温度範囲	-40°C to +80°C (-40°F to +176°F)
構造タイプ	モノブロック弁
セクション	1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション
作動粘度範囲	15 - 75 mm²/s (15 cSt to 75 cSt)
定格流量	毎分80リットル (21.2 US gpm)
最大圧力	315 bar (4600 psi)
吸入口	G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
吐出口	G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
ポートサイズ	G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

**Product Overview:**

The P80-AQF Series Directional Control Valve is a manually operated, monoblock valve with two sections and two spools. It is designed to handle a wide range of hydraulic applications, including those in harsh environments.

**Key Features:**

* Rated flow: 80 L/min (21.2 US gpm)
* Maximum pressure: 250 bar (3600 psi)
* Operating viscosity range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient temperature range: -40°C to +80°C (-40°F to +176°F)
* Manual control
* Monoblock valve construction
* 2 spool design

**Applications:**

The P80-AQF Series Directional Control Valve is suitable for a variety of hydraulic applications, including those in the following industries:

* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles

**Specific applications include:**

* Telehandlers
* Forklifts
* All terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Mini-excavators
* Skid steer loaders
* Compact wheel loaders
* Tractors and front-end loaders
* Harvesters
* Bale wrappers
* Backhoes
* Seeding machines
* Sprayers
* Balers
