生産と納品
15~30日の生産リードタイム

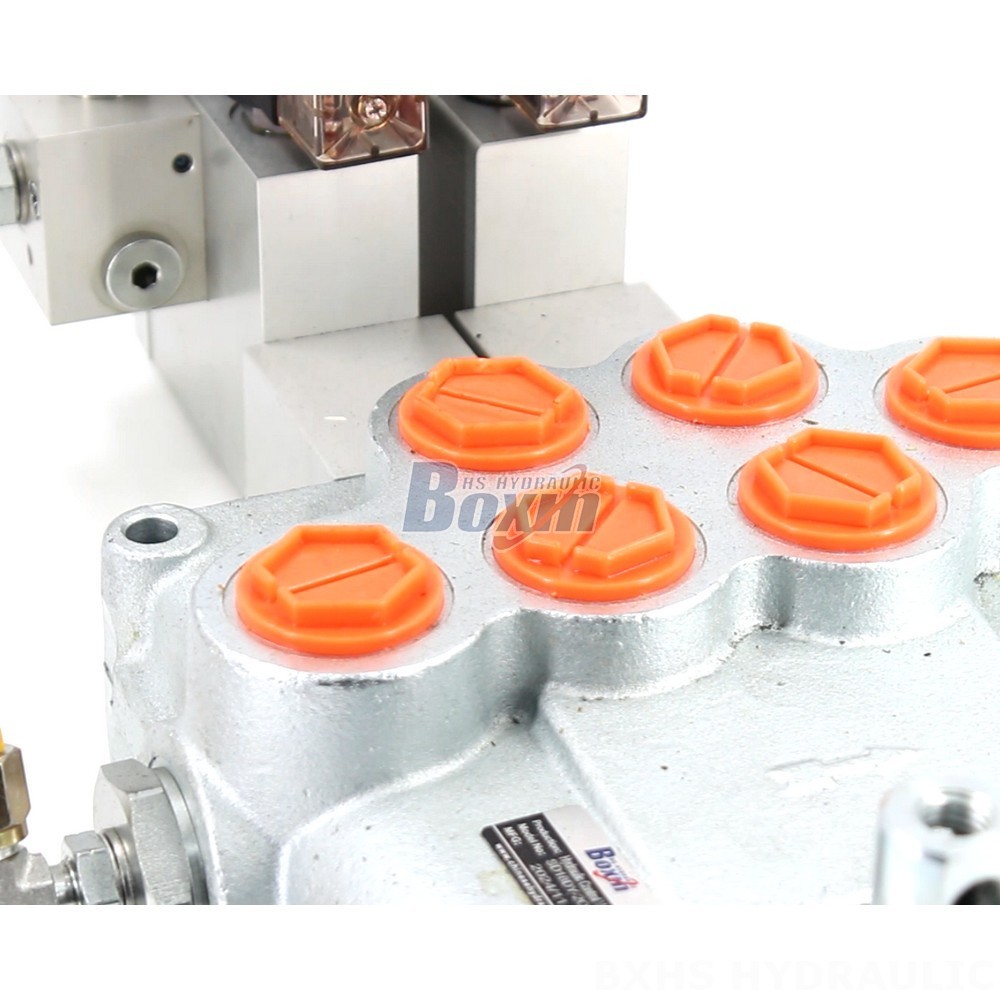

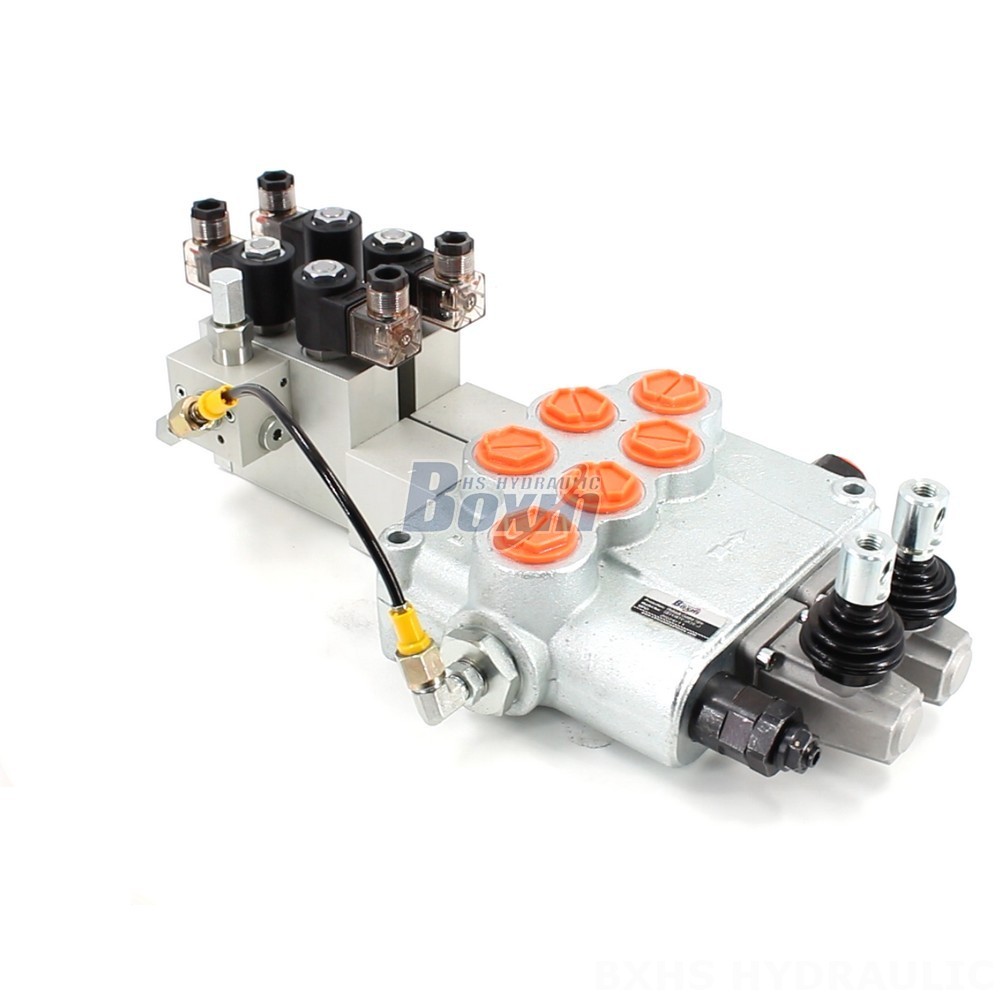

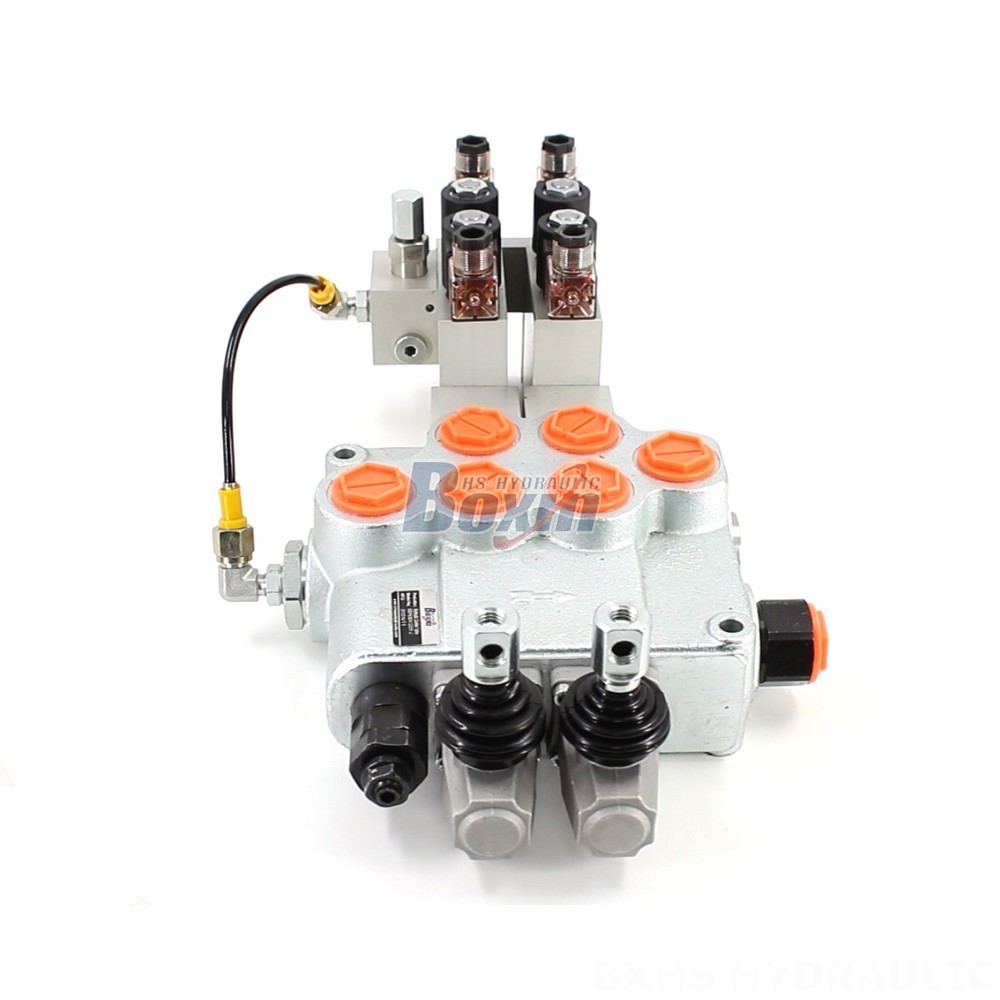

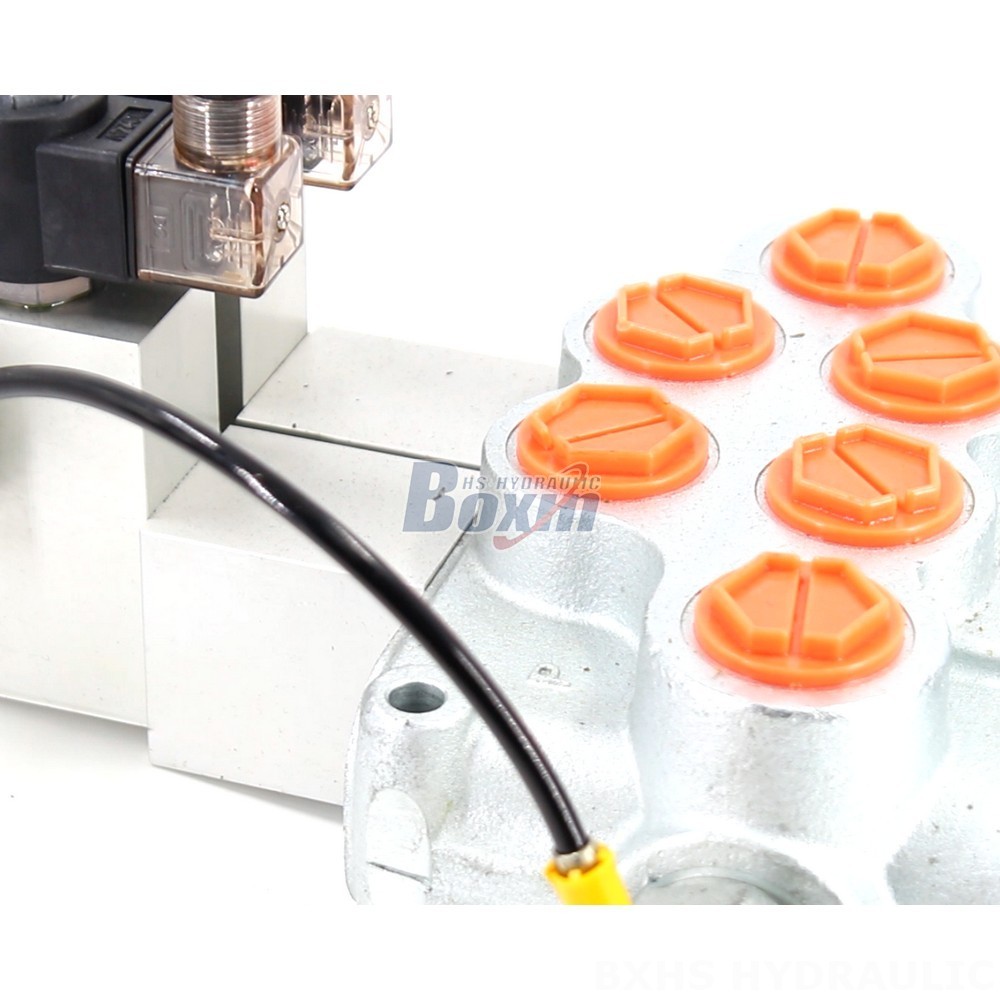

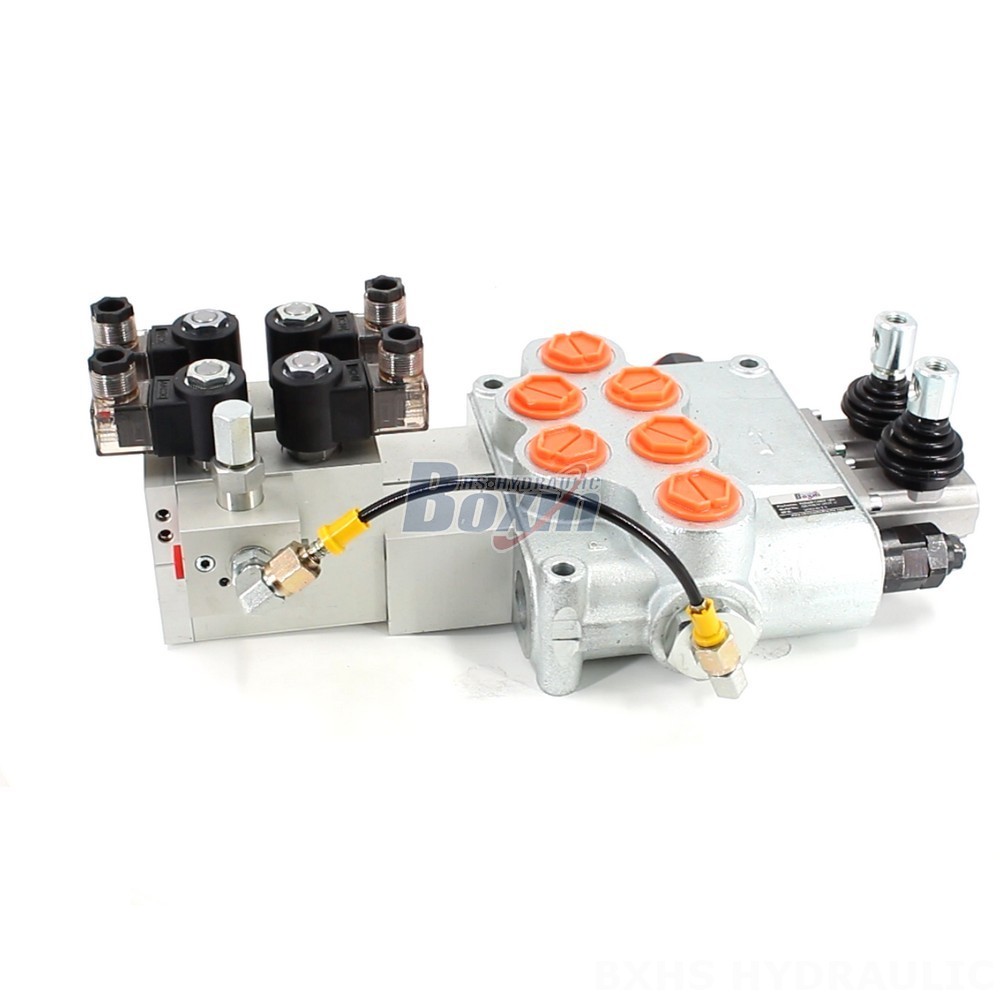

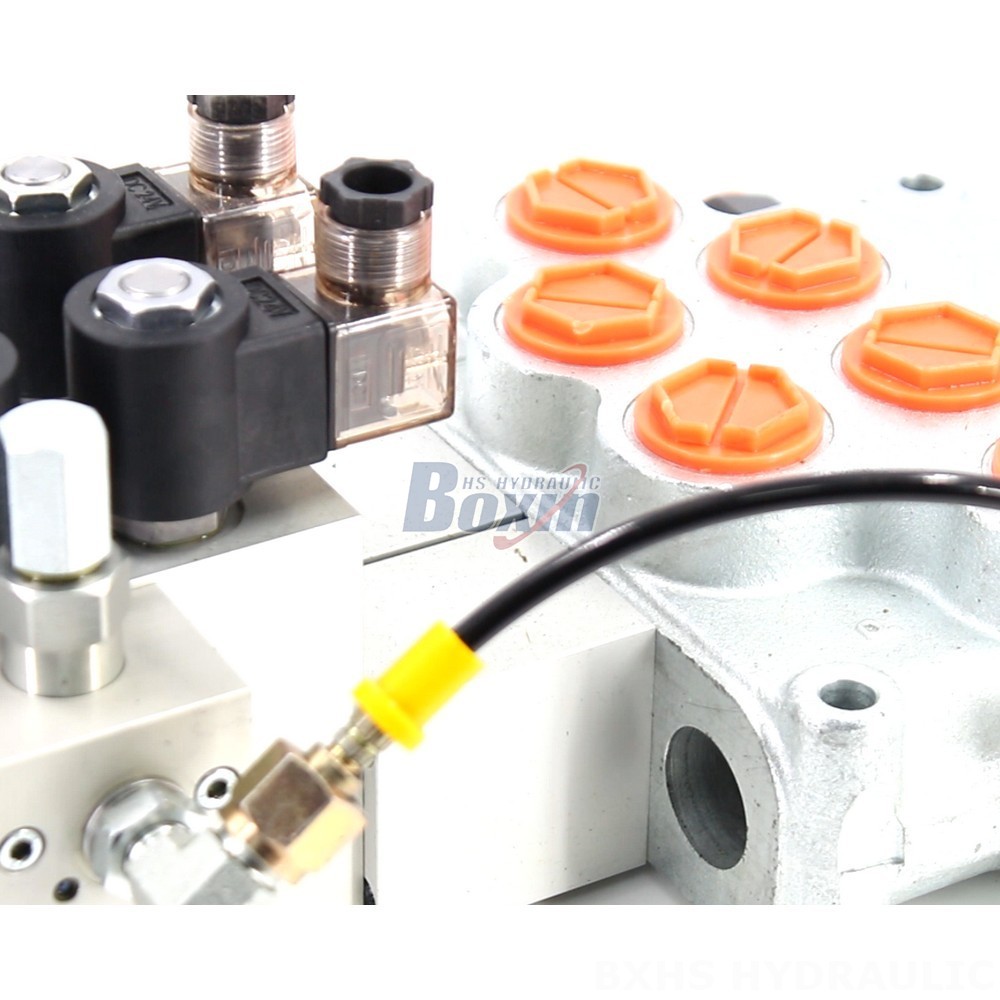

Direct from factory, the SD18 electric 2-spool monoblock directional valve offers high performance (160 L/min, 315 bar) and wide operating temperature range (-40°C to +80°C). Ideal for construction, industrial vehicles, and agriculture applications.
| SD18シリーズ モノブロック方向制御弁 パラメーター | |
|---|---|
| 制御方法 | 手動, 空圧, 電空, 電気油圧, 油圧, 油圧および手動, ケーブル, ジョイスティック |
| スプール | 1スプール, 2スプール, 3スプール, 4スプール |
| 定格流量 | 毎分160リットル (42.2 US gpm) |
| 最大圧力 | 305 bar (4400 psi) |
| 吸入口 | G1/2, G1, SAE 16 |
| 吐出口 | G1, SAE 16 |
| ポートサイズ | G1, SAE 16 |
| セクション | 1セクション, 2セクション, 3セクション, 4セクション |
| 構造タイプ | モノブロック弁 |
| 周囲温度範囲 | -40°C to +80°C (-40°F to +176°F) |
| 作動粘度範囲 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
We are a leading manufacturer of high-quality hydraulic products, supplying globally. Our SD18 Series Electric 2-Spool Monoblock Directional Valves are designed for demanding applications in construction and earthmoving, industrial vehicles, and agriculture. These robust valves boast a rated flow of 160 L/min (42.2 US gpm) and a maximum pressure of 315 bar (4600 psi), ensuring reliable performance even under extreme conditions.
**Key Features:**
* **Electric Control:** Precise and efficient operation.
* **Monoblock Structure:** Compact design and high durability.
* **High Flow Rate:** 160 L/min (42.2 US gpm).
* **High Pressure Capability:** 315 bar (4600 psi).
* **Wide Operating Temperature Range:** -40°C to +80°C (-40°F to +176°F).
* **Suitable for:** Mini-Excavators, Skid Steer Loaders, Compact Wheel Loaders, Wheel Loaders, Backhoe Loaders, Tractors, Front-End Loaders, Harvesters, and Telehandlers.
**Our Services:**
We offer comprehensive services including manufacturing, OEM (Original Equipment Manufacturing), private labeling, customization, and wholesale. We are actively seeking distributors, wholesalers, agents, and trading companies worldwide to partner with us and expand our global reach. As a **manufacturer**, we provide **factory direct** pricing and superior quality. Benefit from our **factory wholesale** options and competitive pricing. Contact us today to explore collaboration opportunities and discuss your specific needs. Experience the advantage of working directly with the **factory supplier**.
