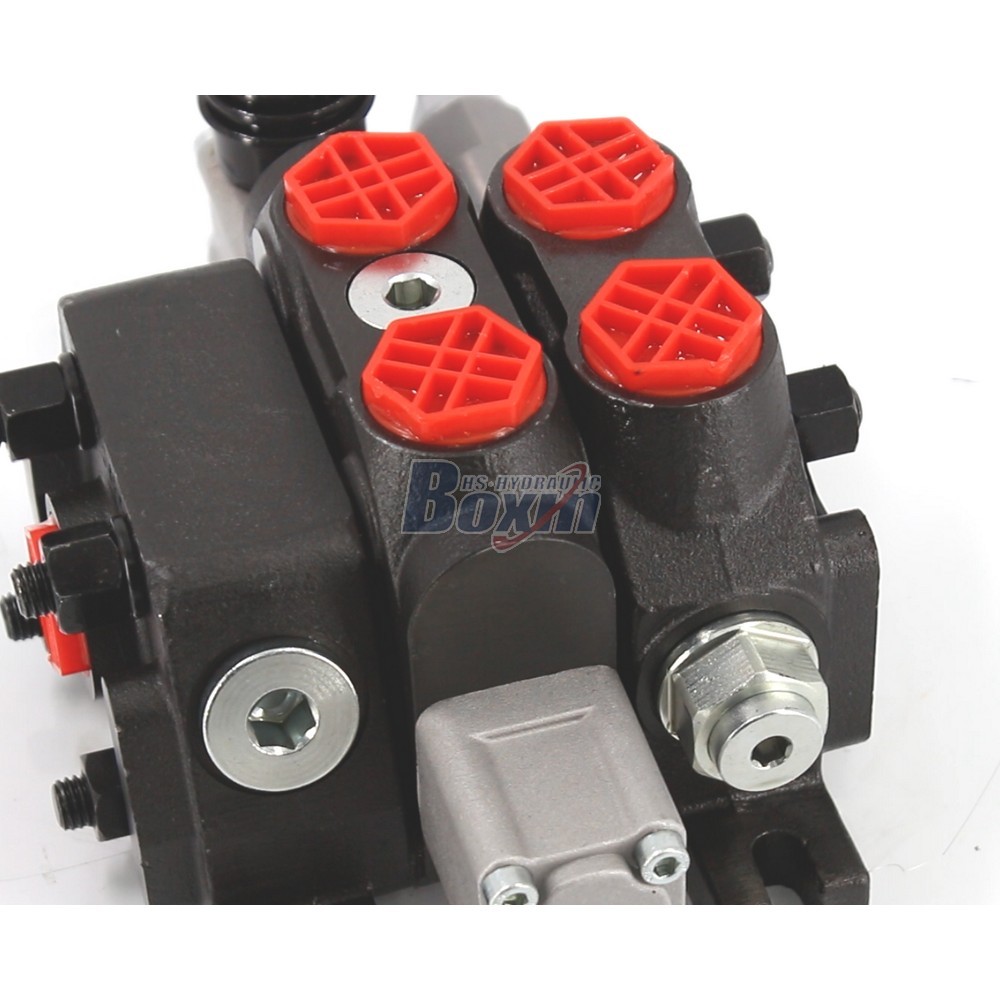

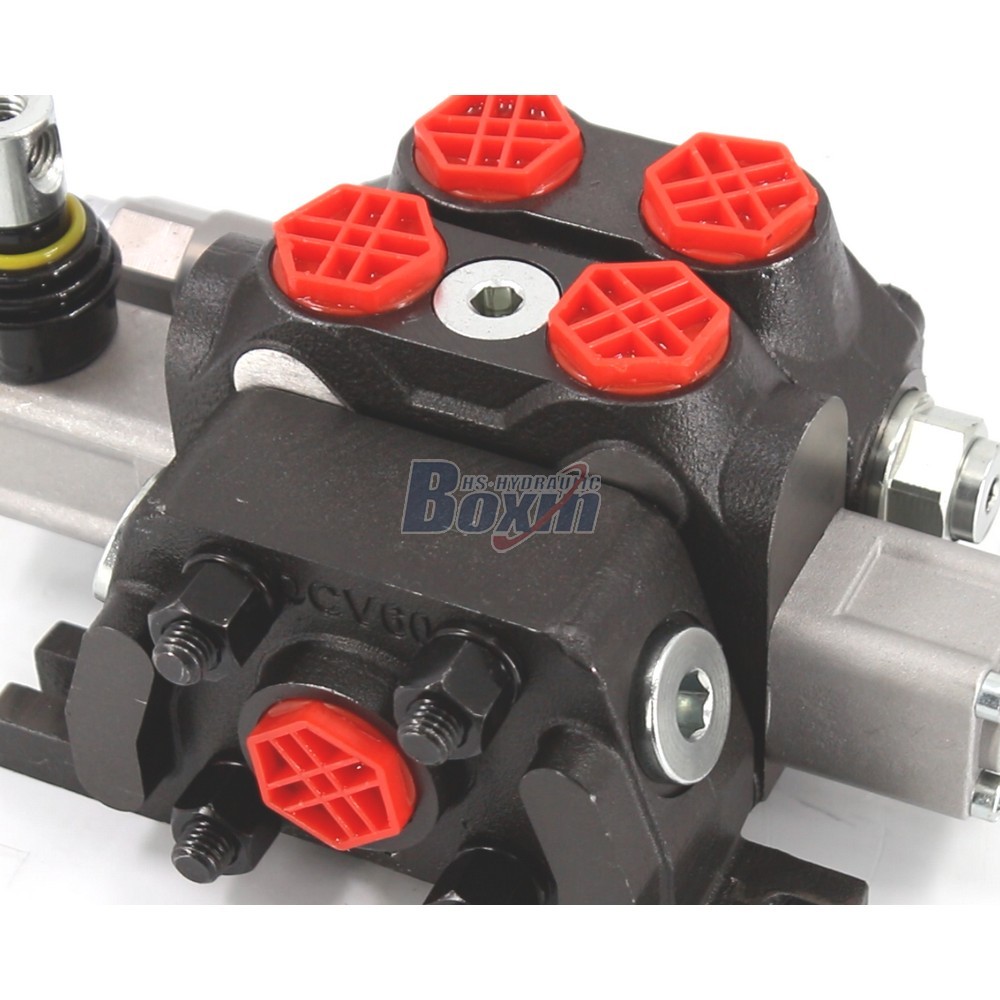

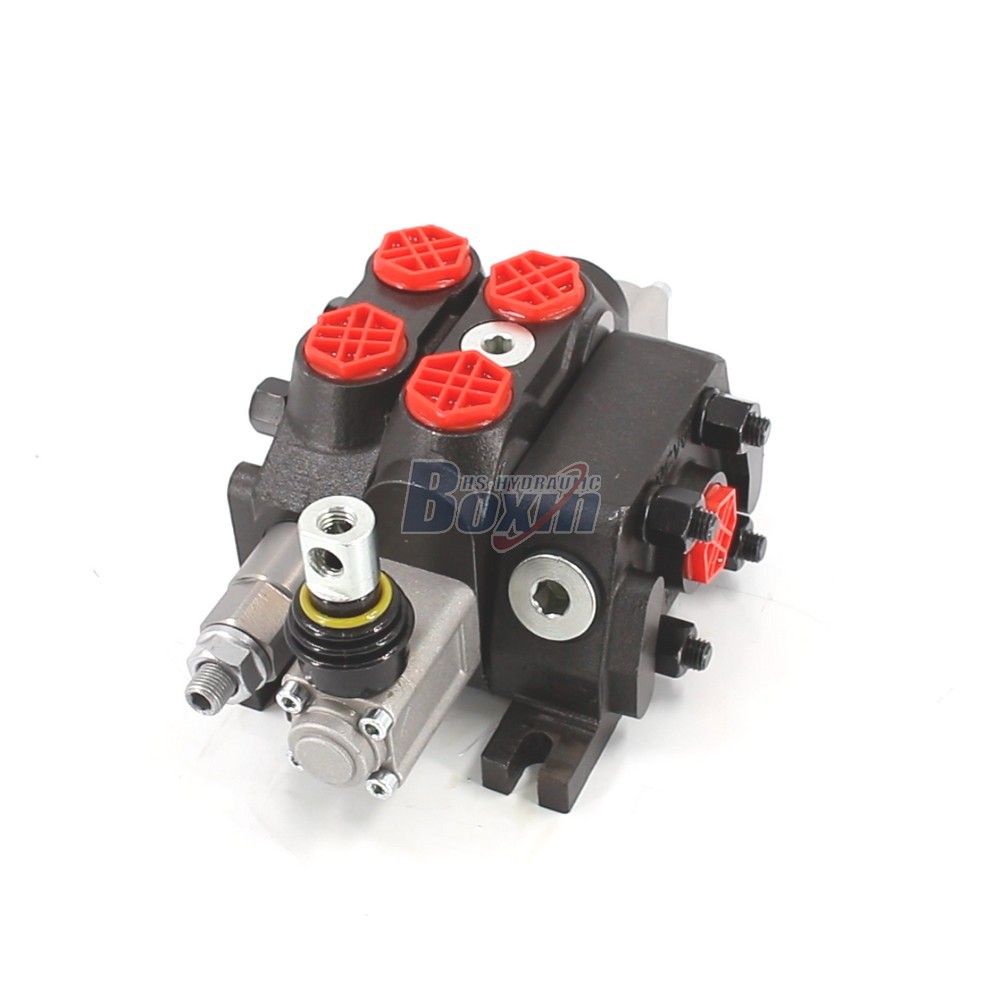

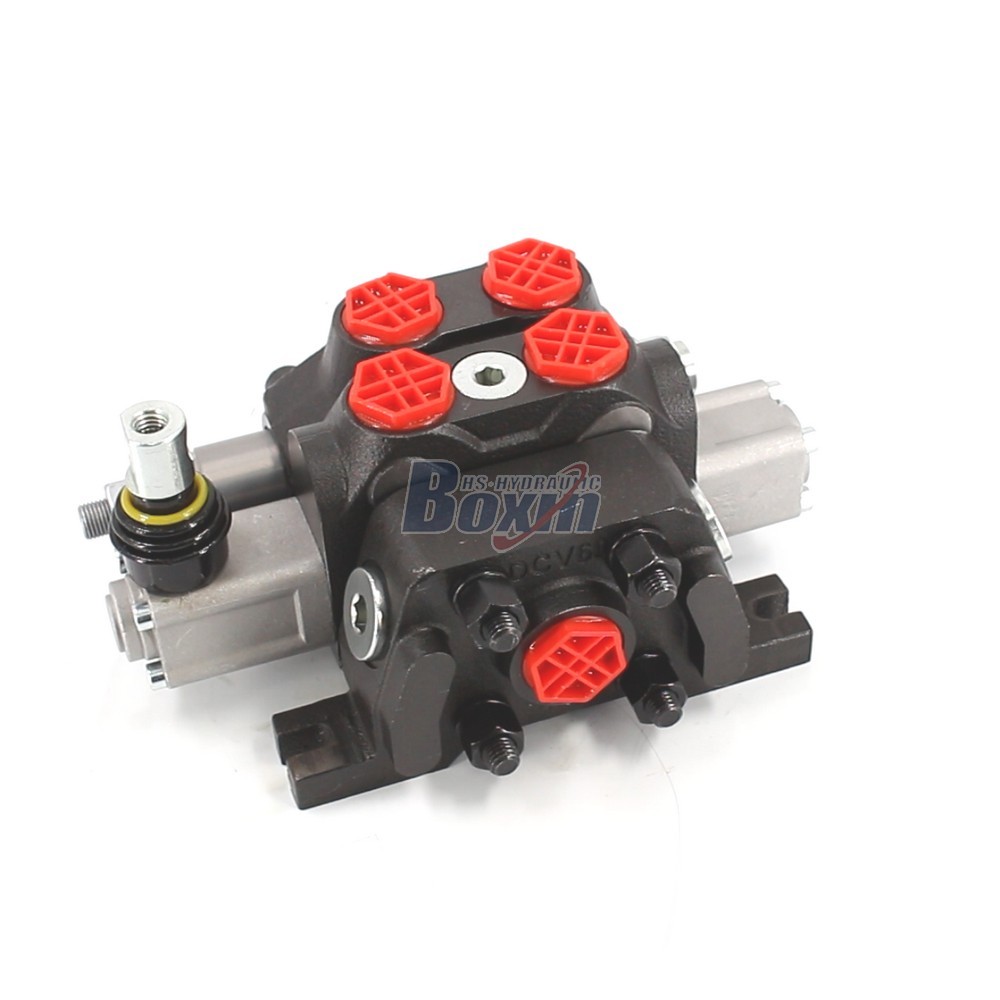

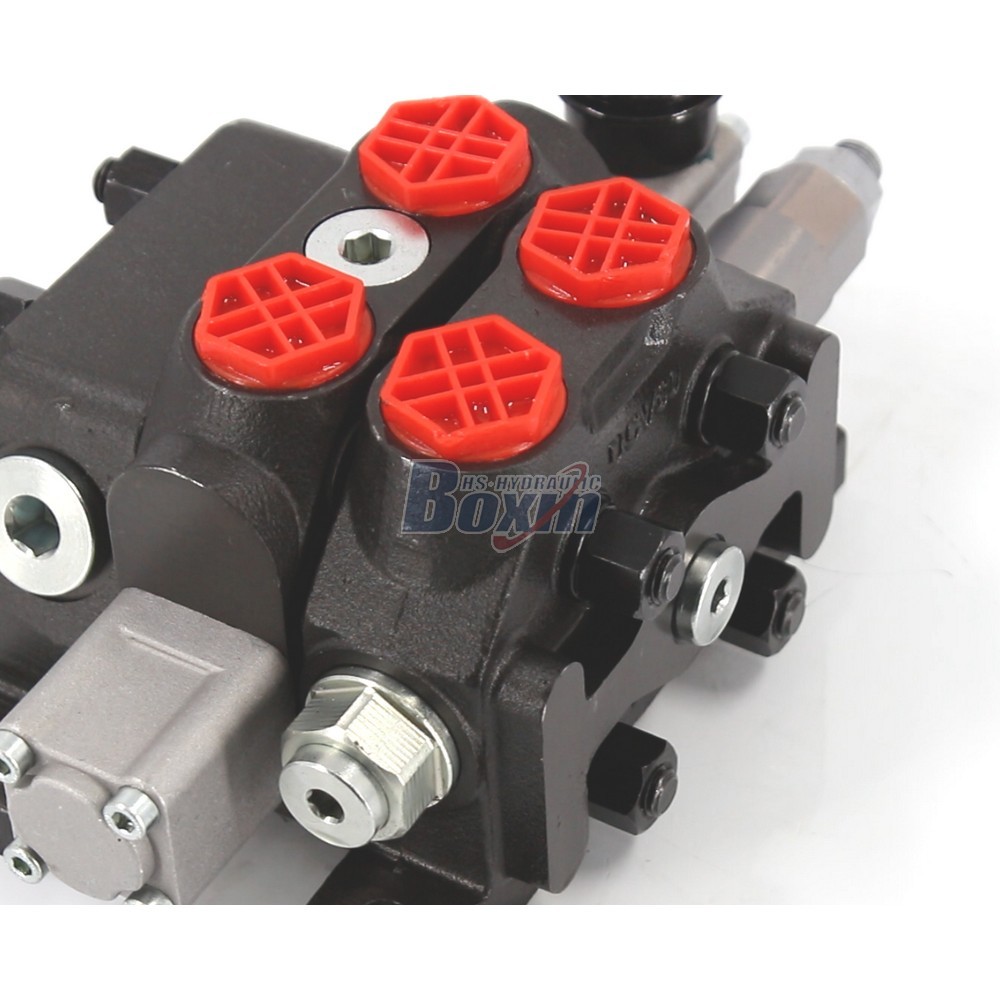

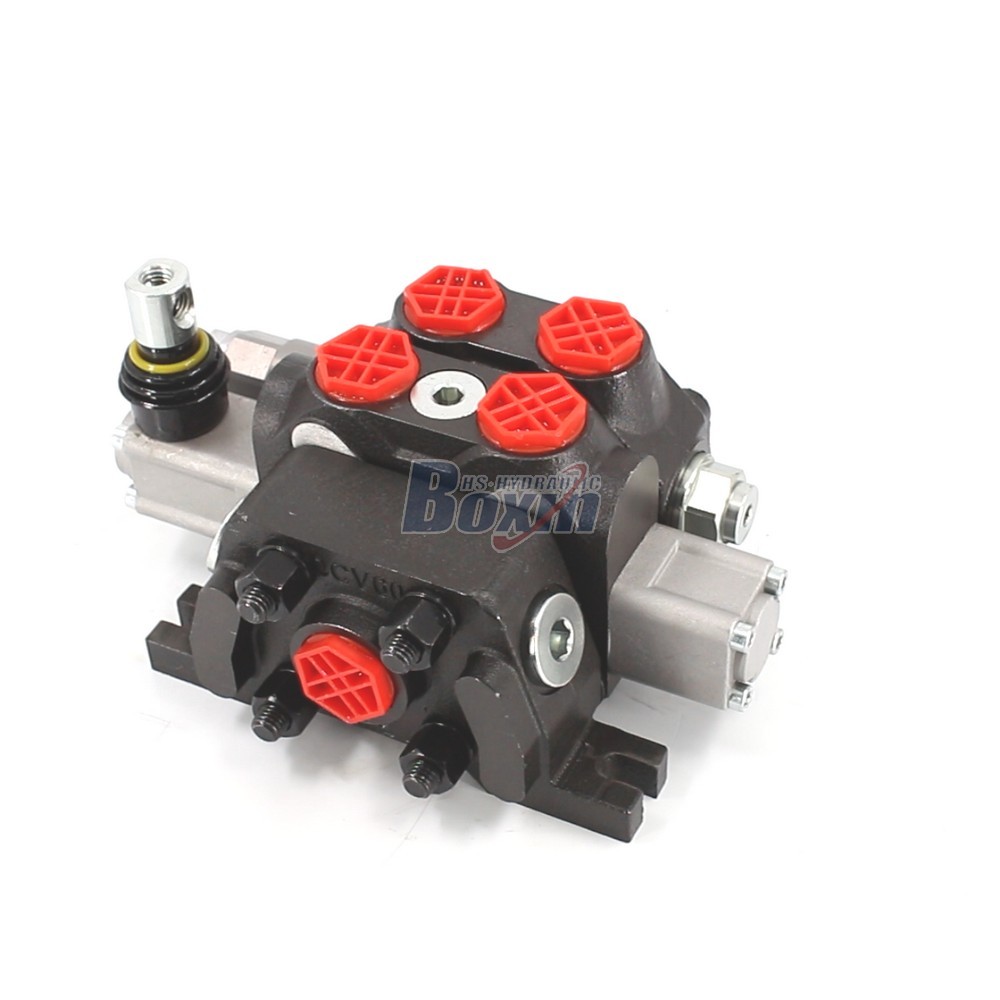

DCV60 Series Manual Directional Control Valve 1 Spool Sectional Type

制御方法:手動

スプール:1スプール

定格流量:毎分60リットル (15.8 US gpm)

最大圧力:315 bar (4600 psi)

吸入口:G1/2

吐出口:G1/2

ポートサイズ:G1/2

ベンダー:BXHS

製品タイプ:セクショナル方向弁

製品シリーズ:DCV60シリーズ セクショナル方向弁

梱包サイズ:18*14*26

総重量:7.50 kg

在庫状況: 在庫あり

95 この製品を探している人もいます

DCV60 Series Manual Directional Control Valve 1 Spool Sectional Type

DCV60 Series Manual Directional Control Valve 1 Spool Sectional Type

DCV60 Series Manual Directional Control Valve 1 Spool Sectional Type drawing image

The DCV60 Series is a high-performance 1-spool sectional manual directional control valve designed for versatile hydraulic systems, offering a rated flow of 60 L/min and operating pressures up to 350 bar. It is ideal for material handling, construction, and agricultural machinery, providing precise manual control and robust durability.

DCV60シリーズ セクショナル方向弁 パラメーター
制御方法 手動, 空圧, 電空, 電気油圧, 油圧, 油圧および手動, ケーブル, ジョイスティック, ソレノイドおよび手動, ソレノイド・ジョイスティック, 手動・ジョイスティック, 電動モーター
スプール 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール, 8スプール, 9スプール, 10スプール, 11スプール, 12スプール
周囲温度範囲 -40°C to +80°C (-40°F to +176°F)
構造タイプ ブロック弁
セクション 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション, 8セクション, 9セクション, 10セクション, 11セクション, 12セクション
作動粘度範囲 15 - 75 mm²/s (15 cSt to 75 cSt)
定格流量 毎分60リットル (15.8 US gpm)
最大圧力 315 bar (4600 psi), 350 bar (5100 psi)
吸入口 G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
吐出口 G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
ポートサイズ G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

As a leading manufacturer of hydraulic solutions, we present the DCV60 Series Manual Directional Control Valve. This 1-spool sectional type valve is engineered for high-pressure applications, reaching up to 350 bar (5100 psi) with a stable flow rate of 60 L/min (15.8 US gpm). Featuring G1/2 inlet and outlet ports, it is perfectly suited for equipment such as mini-excavators, skid steer loaders, tractors, and forklifts.

Our factory provides comprehensive services including OEM, private labeling (ODM), and tailored customization to meet specific technical requirements. We specialize in factory-direct wholesale and large-scale manufacturing, ensuring reliable supply chains and professional quality. We are actively seeking global partners, including distributors, wholesalers, regional agents, and international traders to expand our global market presence. Partner with us for competitive factory pricing and superior technical support in the hydraulic components sector.
