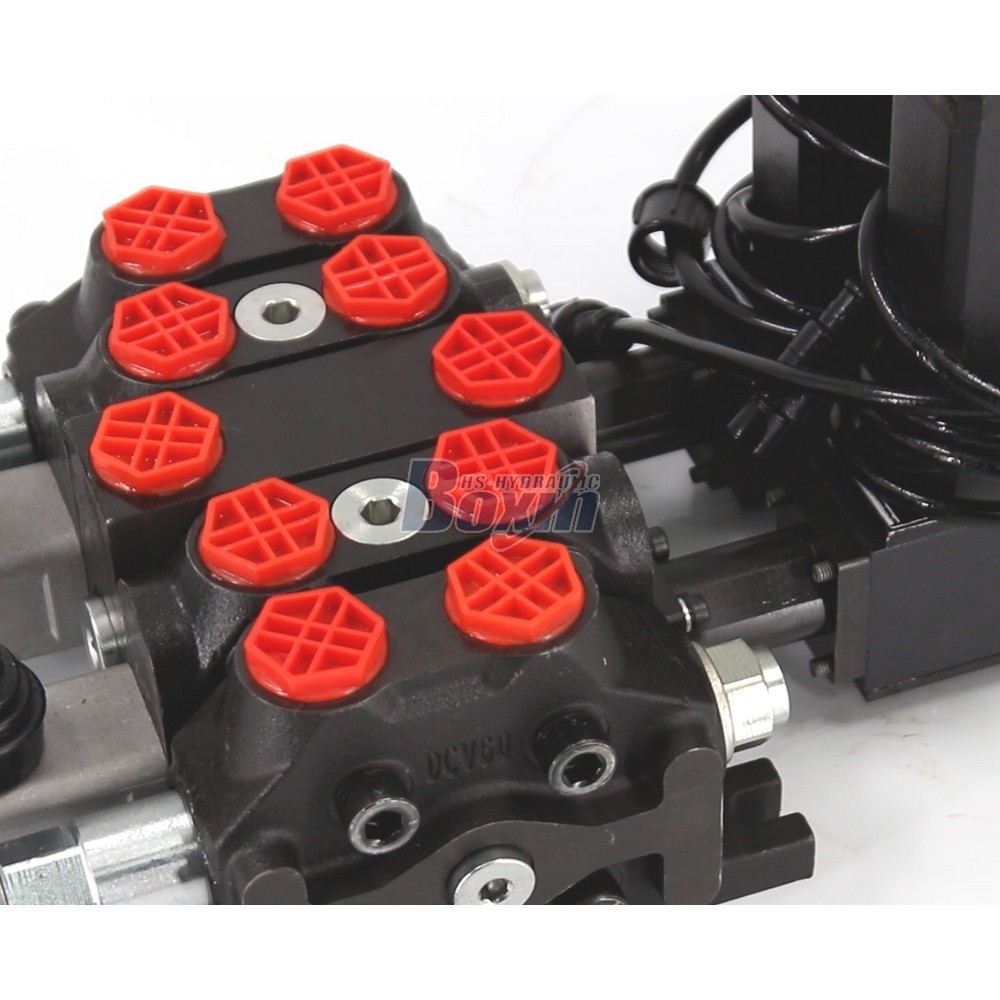

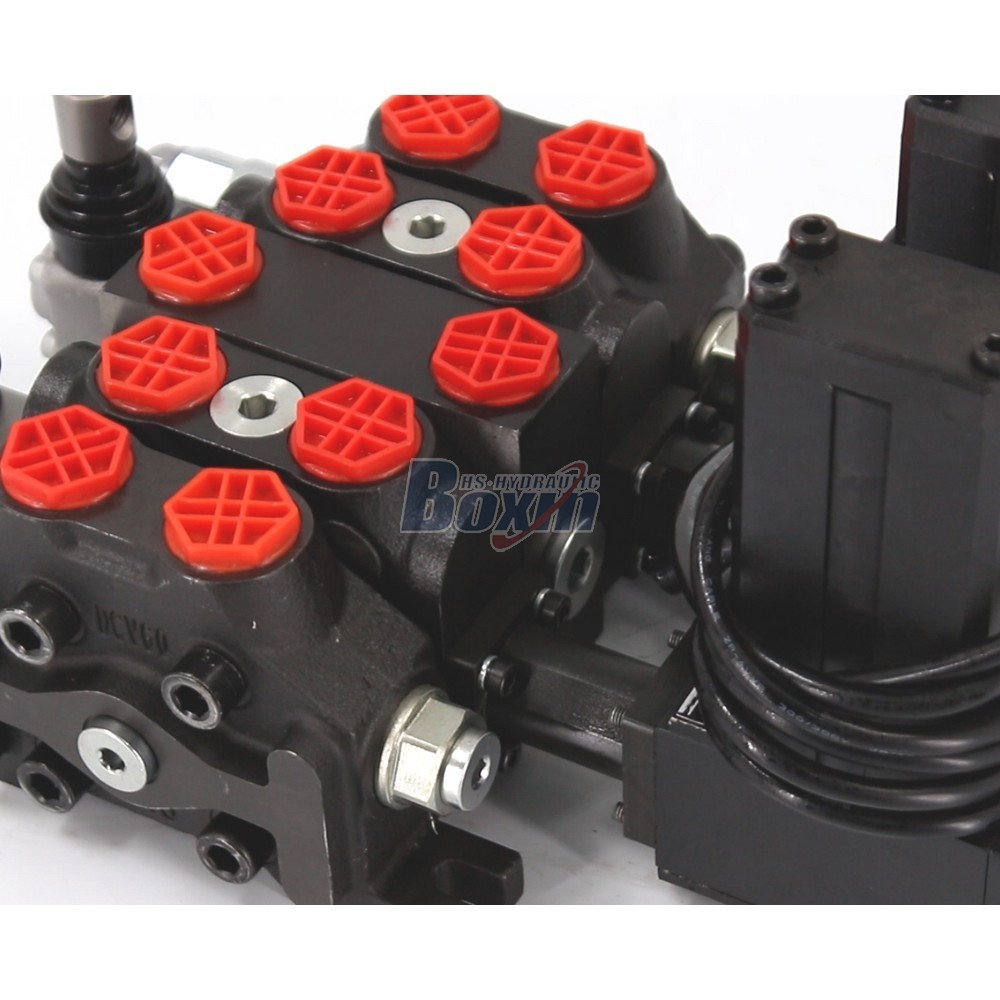

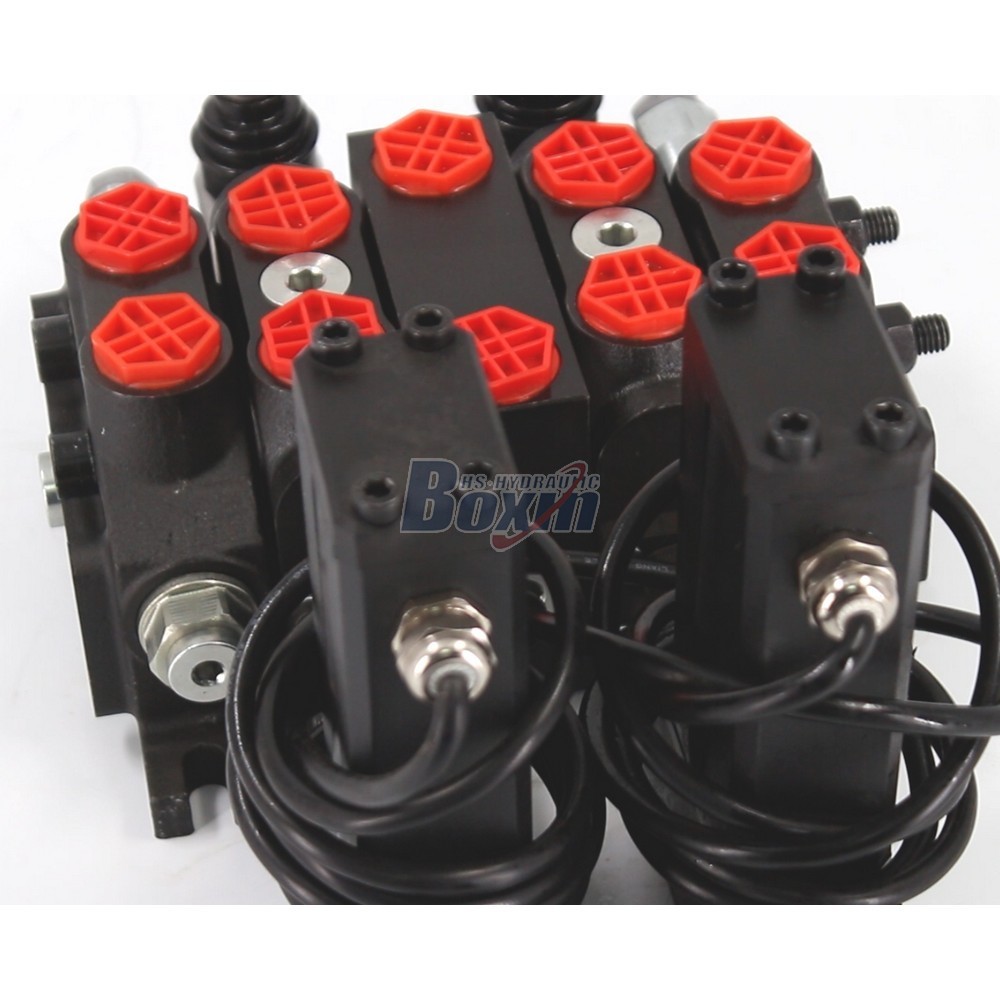

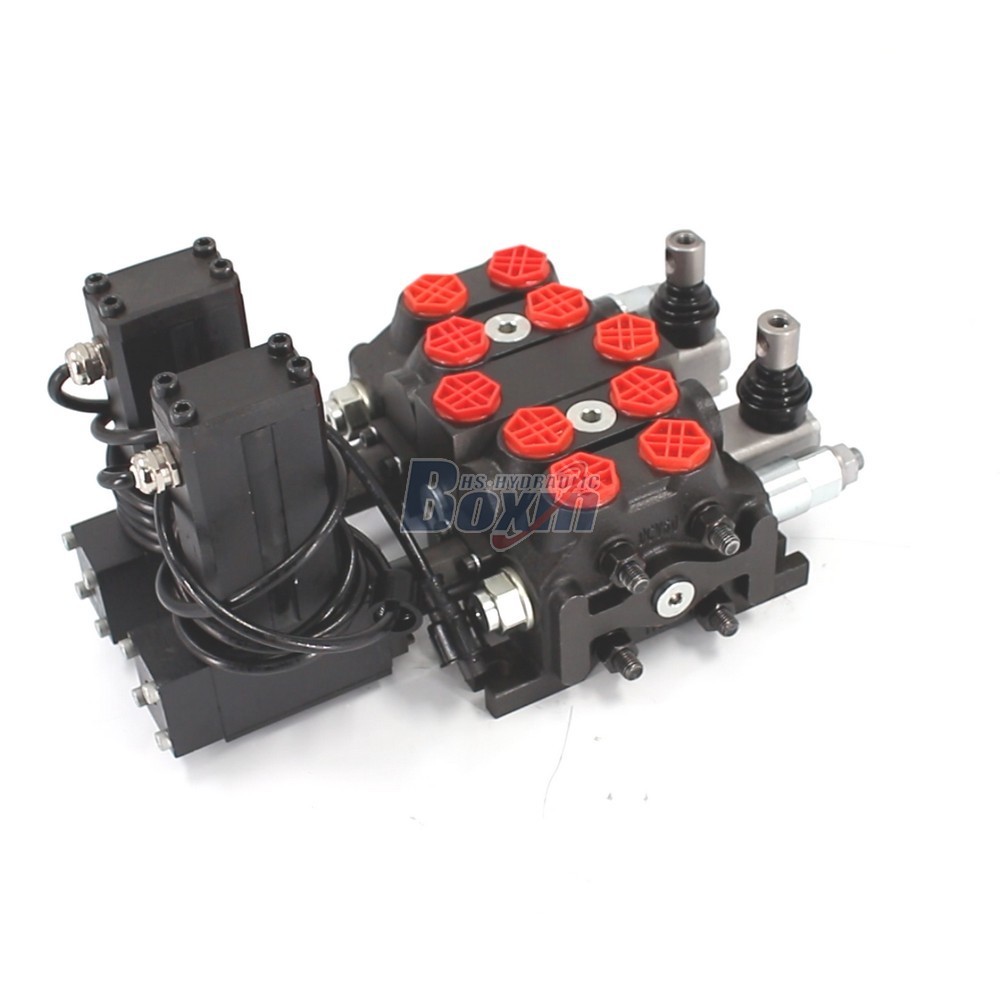

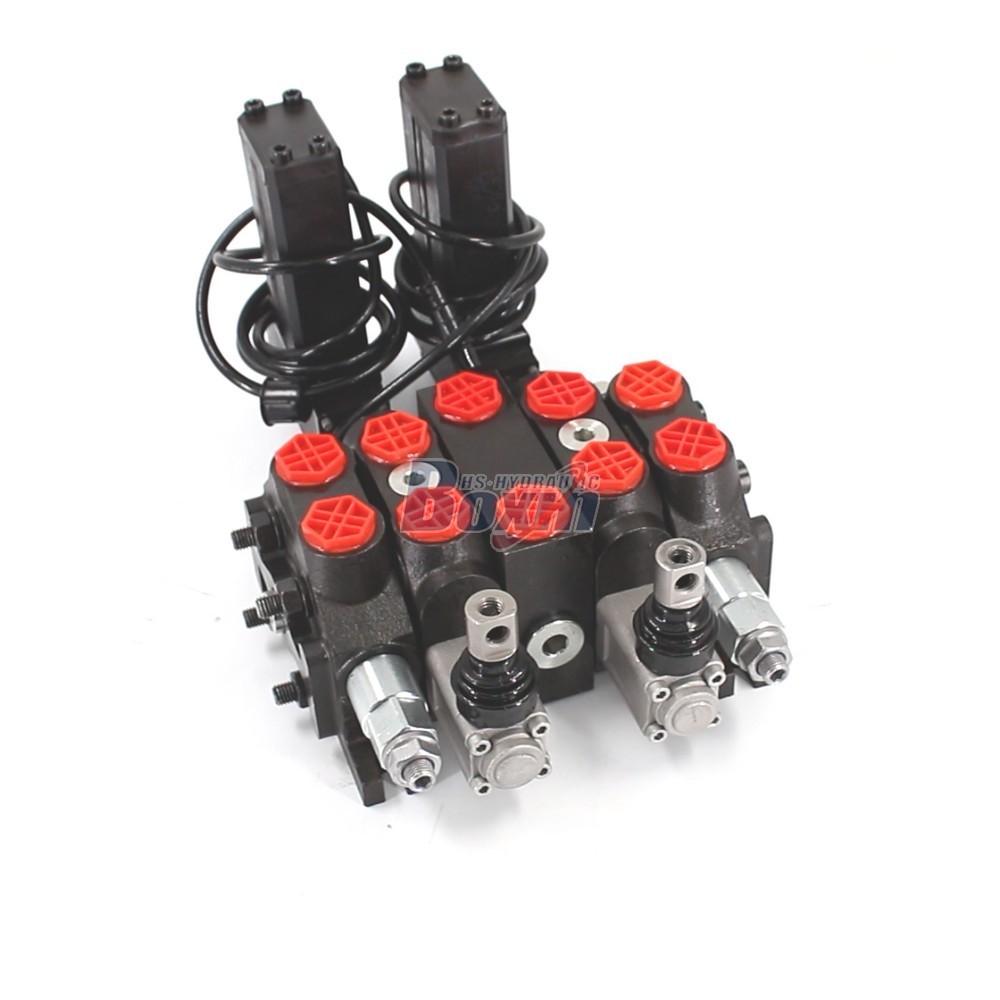

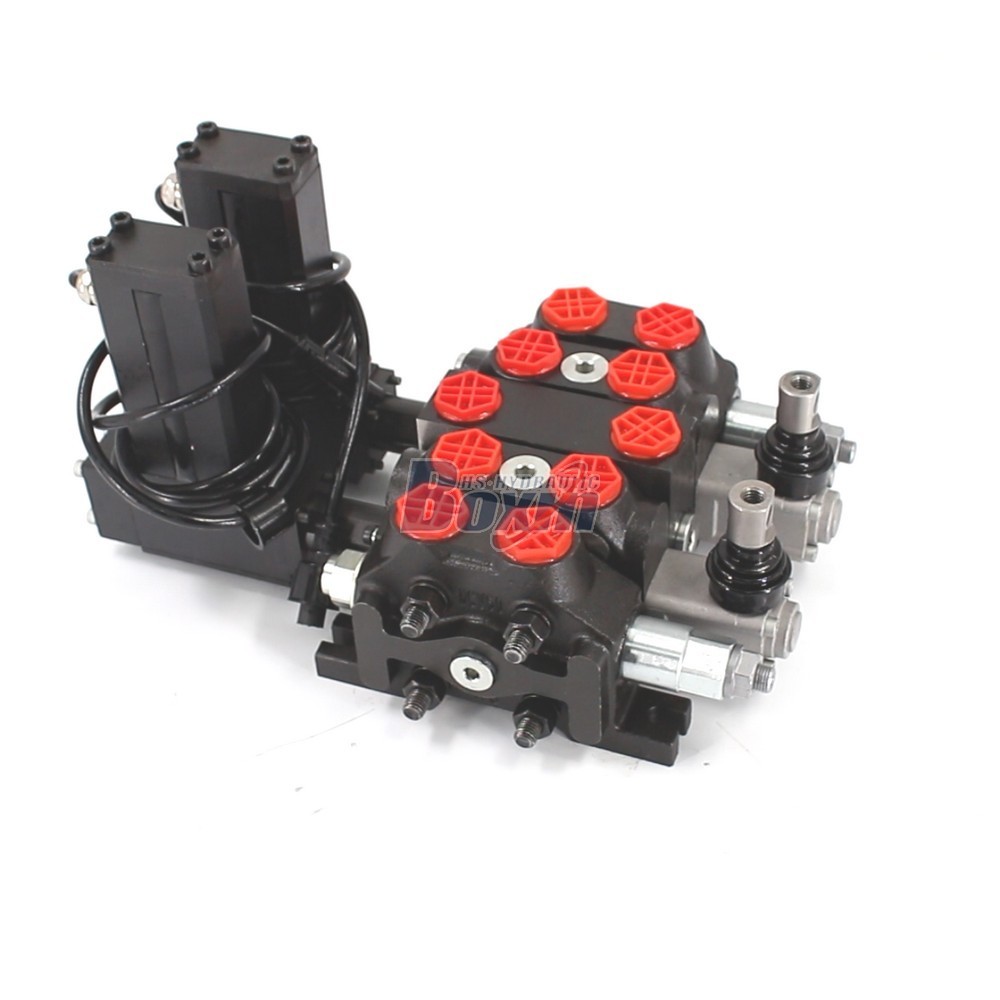

DCV60 Hydraulic 2 Spool Sectional Directional Valve with Electric Motor

制御方法:電動モーター

スプール:2スプール

定格流量:毎分60リットル (15.8 US gpm)

最大圧力:315 bar (4600 psi)

吸入口:G1/2

吐出口:G1/2

ポートサイズ:G1/2

ベンダー:BXHS

製品タイプ:セクショナル方向弁

製品シリーズ:DCV60シリーズ セクショナル方向弁

梱包サイズ:22.5*34.05*18.85

総重量:20.50 kg

在庫状況: 在庫あり

112 この製品を探している人もいます

DCV60 Hydraulic 2 Spool Sectional Directional Valve with Electric Motor

DCV60 Hydraulic 2 Spool Sectional Directional Valve with Electric Motor

DCV60 Hydraulic 2 Spool Sectional Directional Valve with Electric Motor drawing image

High-performance DCV60 series 2-spool sectional directional valve featuring electric motor control, designed for precise flow management up to 60 L/min and pressures up to 315 bar in demanding mobile and industrial applications.

DCV60シリーズ セクショナル方向弁 パラメーター
制御方法 手動, 空圧, 電空, 電気油圧, 油圧, 油圧および手動, ケーブル, ジョイスティック, ソレノイドおよび手動, ソレノイド・ジョイスティック, 手動・ジョイスティック, 電動モーター
スプール 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール, 8スプール, 9スプール, 10スプール, 11スプール, 12スプール
周囲温度範囲 -40°C to +80°C (-40°F to +176°F)
構造タイプ ブロック弁
セクション 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション, 8セクション, 9セクション, 10セクション, 11セクション, 12セクション
作動粘度範囲 15 - 75 mm²/s (15 cSt to 75 cSt)
定格流量 毎分60リットル (15.8 US gpm)
最大圧力 315 bar (4600 psi), 350 bar (5100 psi)
吸入口 G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
吐出口 G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
ポートサイズ G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

As a leading large-scale hydraulic manufacturer, we provide the DCV60 Series 2 Spool Sectional Directional Valve, specifically engineered for precision and durability. This electric motor-controlled valve supports a rated flow of 60 L/min (15.8 US gpm) and handles maximum pressures up to 315 bar (4600 psi), making it suitable for tractors, forklifts, skid steer loaders, and mini-excavators. We offer comprehensive manufacturing solutions including OEM, private labeling, and custom engineering to meet specific regional requirements. Our factory supply chain is optimized for bulk wholesale, ensuring competitive pricing for global markets. We are actively seeking long-term partnerships with distributors, wholesalers, agents, and traders worldwide. Whether you need specialized configurations for agricultural harvesters or heavy-duty construction earth-moving equipment, our factory-direct wholesale model provides the reliability and technical support your business requires.
