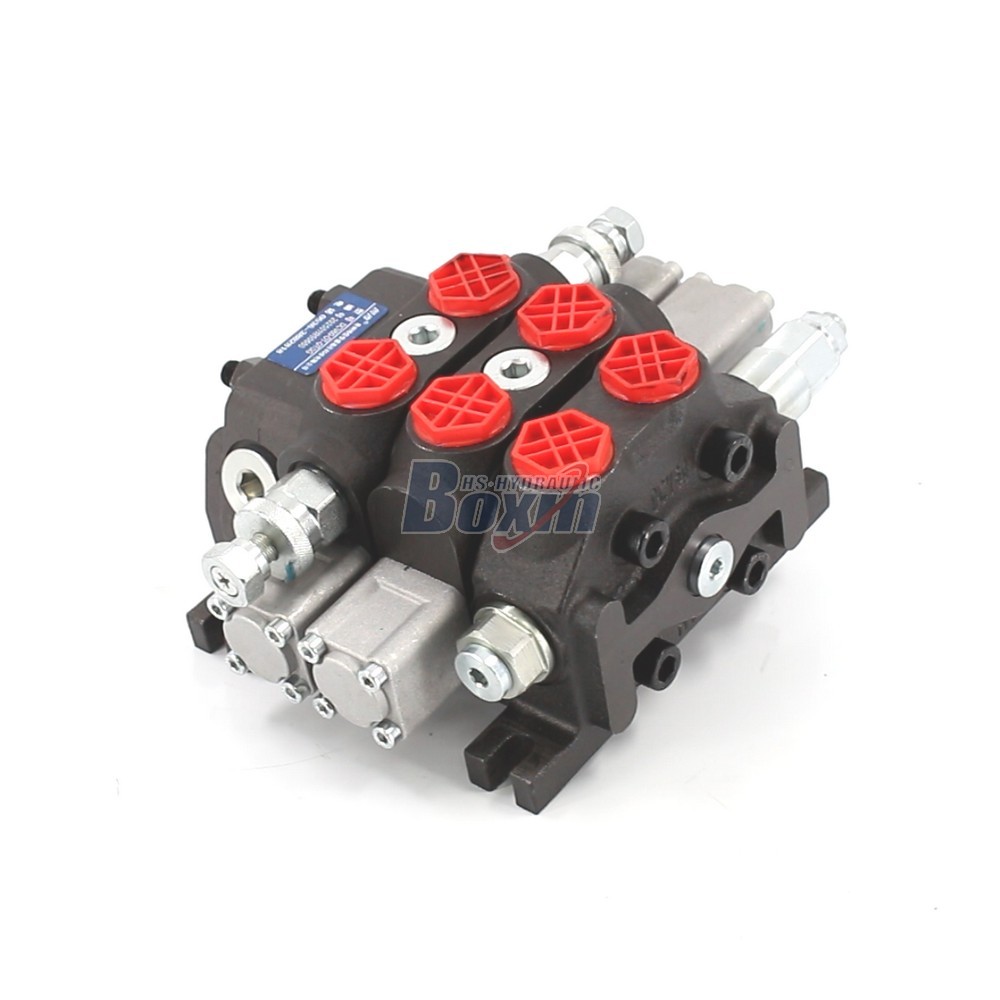

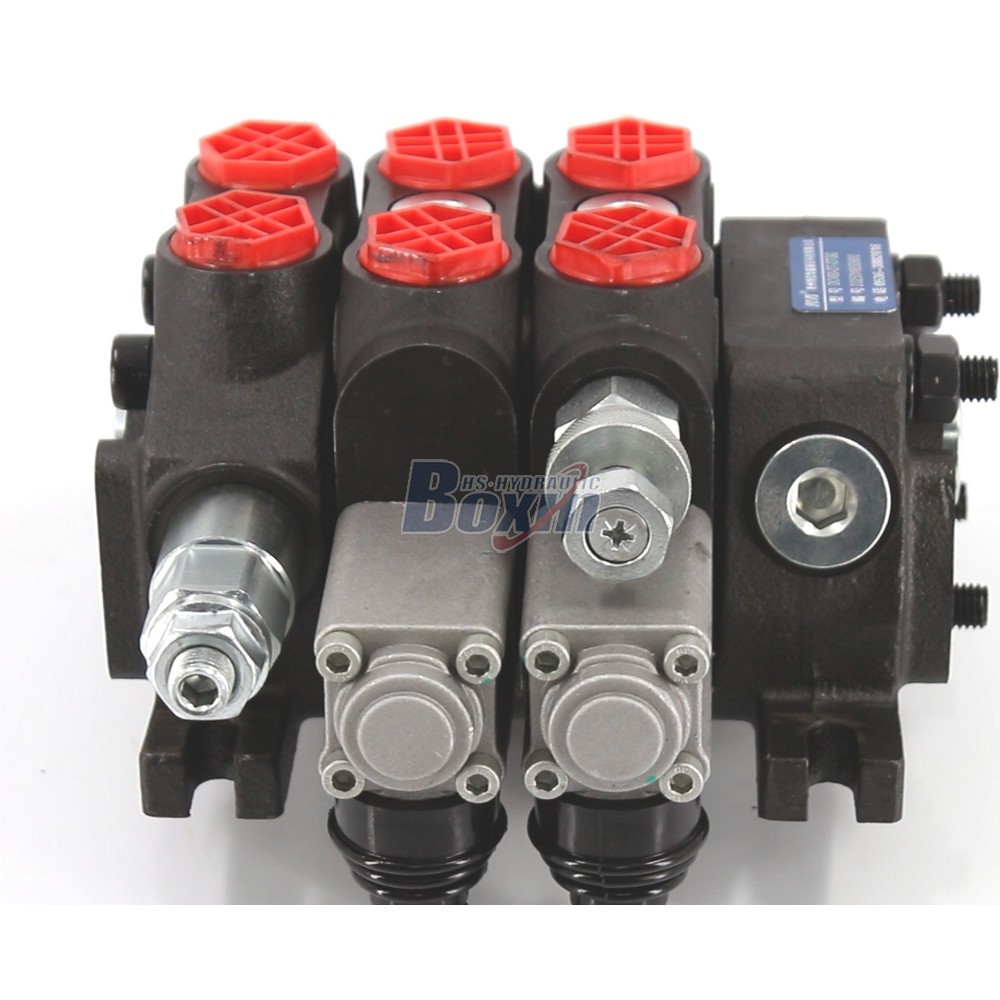

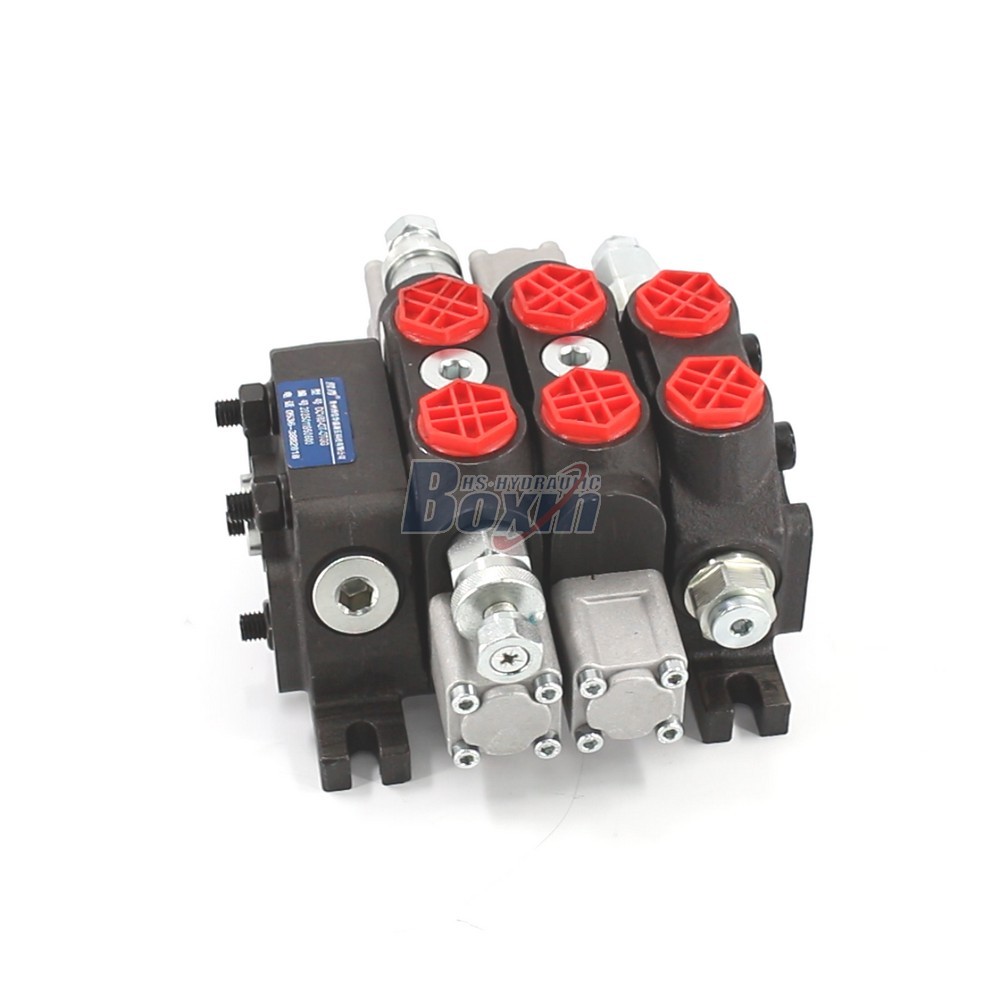

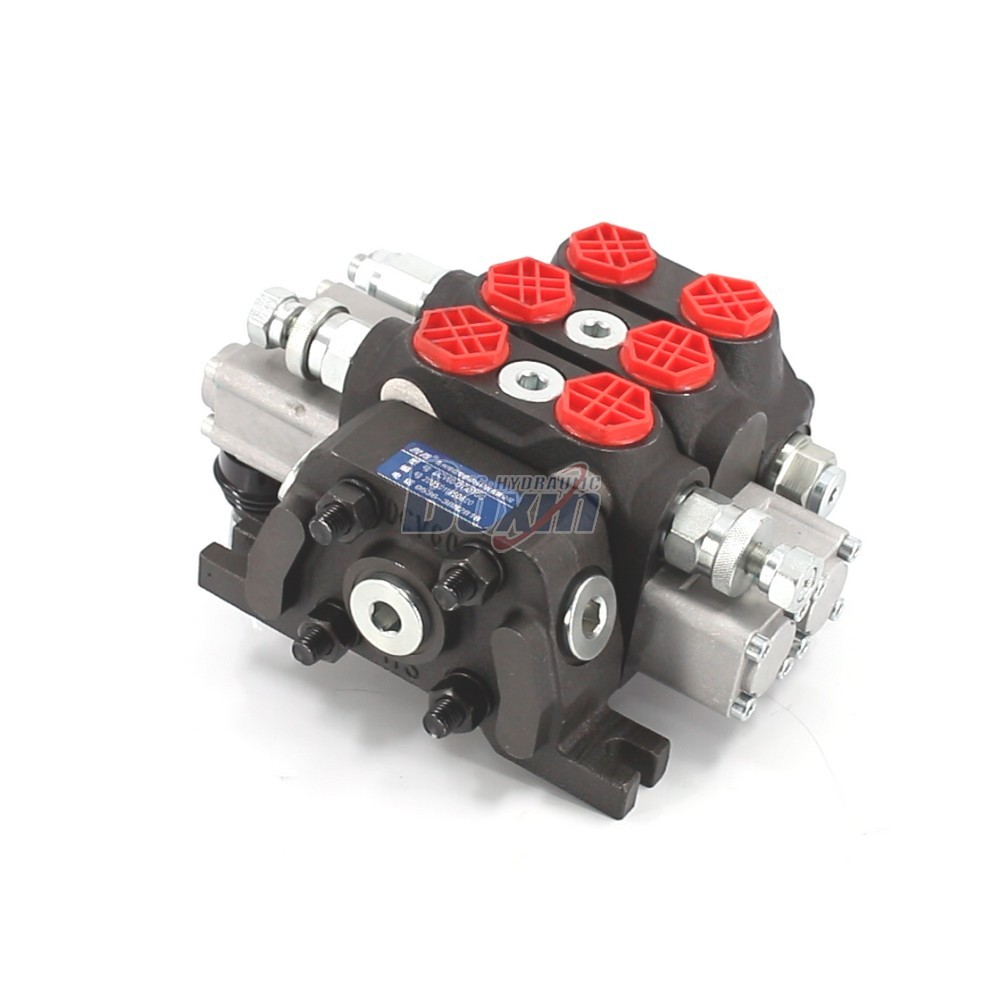

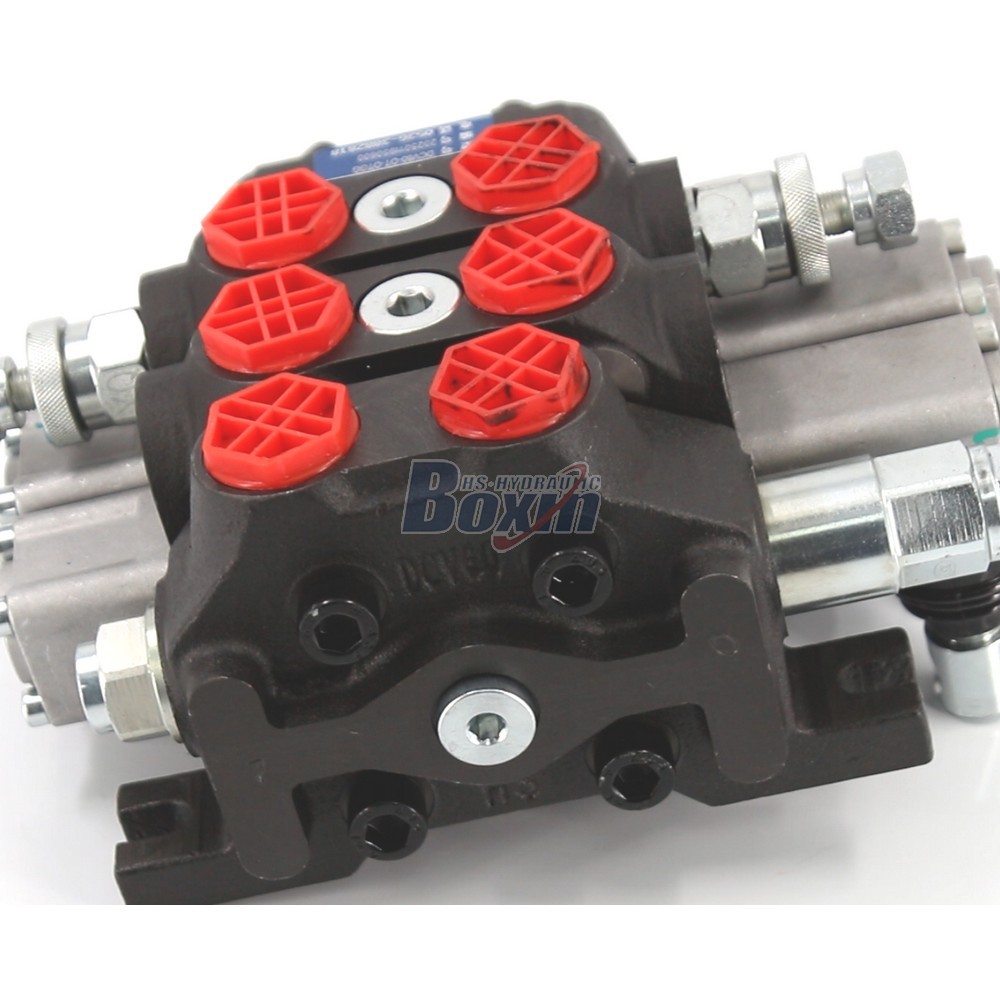

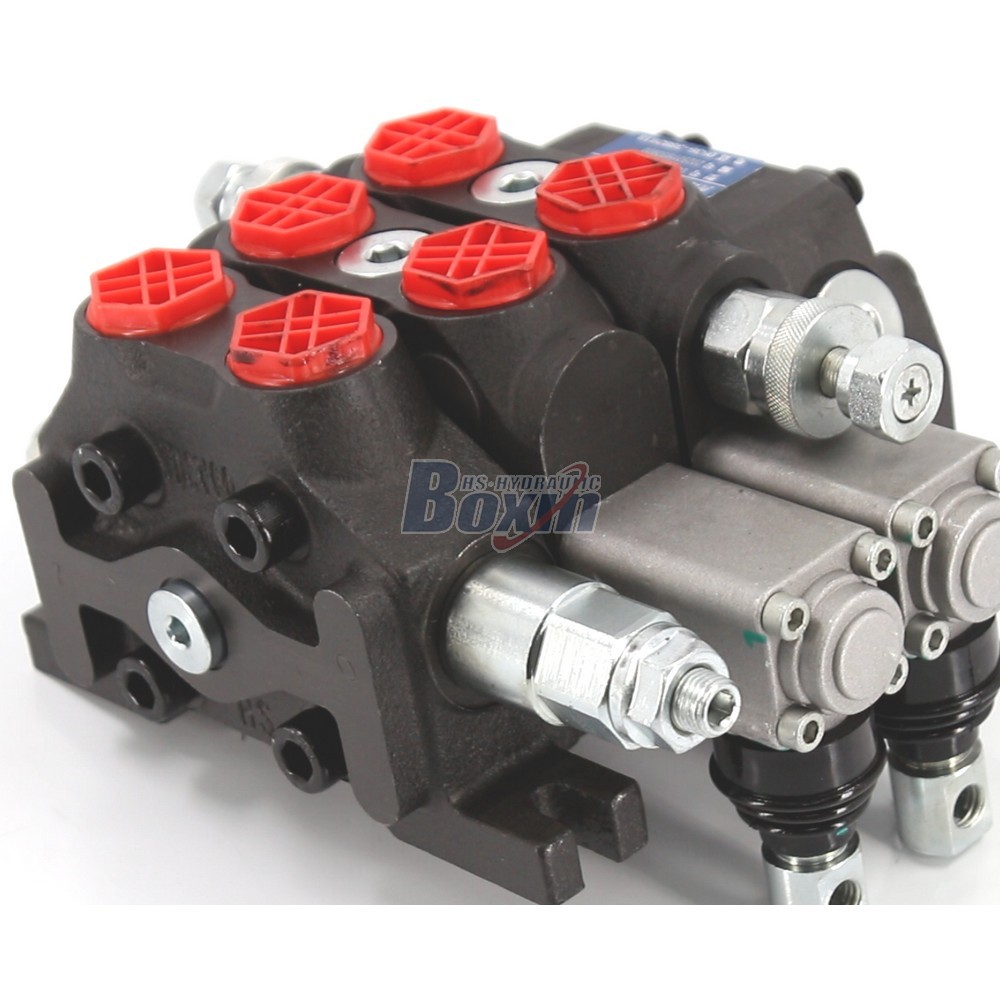

DCV60-FZJ Series Hydraulic Directional Control Valve 2 Spool Sectional Valve

制御方法:手動

スプール:2スプール

定格流量:毎分60リットル (15.8 US gpm)

最大圧力:315 bar (4600 psi)

吸入口:G3/4

吐出口:G3/4

ポートサイズ:G3/4

ベンダー:BXHS

製品タイプ:セクショナル方向弁

製品シリーズ:DCV60シリーズ セクショナル方向弁

梱包サイズ:30*25*18

総重量:11.00 kg

在庫状況: 在庫あり

113 この製品を探している人もいます

DCV60-FZJ Series Hydraulic Directional Control Valve 2 Spool Sectional Valve

DCV60-FZJ Series Hydraulic Directional Control Valve 2 Spool Sectional Valve

DCV60-FZJ Series Hydraulic Directional Control Valve 2 Spool Sectional Valve drawing image

The DCV60-FZJ Series is a high-performance 2-spool sectional hydraulic directional control valve designed for precise manual operation. It offers a rated flow of 60 L/min and can withstand pressures up to 350 bar, making it ideal for demanding construction, agricultural, and material handling applications.

DCV60シリーズ セクショナル方向弁 パラメーター
制御方法 手動, 空圧, 電空, 電気油圧, 油圧, 油圧および手動, ケーブル, ジョイスティック, ソレノイドおよび手動, ソレノイド・ジョイスティック, 手動・ジョイスティック, 電動モーター
スプール 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール, 8スプール, 9スプール, 10スプール, 11スプール, 12スプール
周囲温度範囲 -40°C to +80°C (-40°F to +176°F)
構造タイプ ブロック弁
セクション 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション, 8セクション, 9セクション, 10セクション, 11セクション, 12セクション
作動粘度範囲 15 - 75 mm²/s (15 cSt to 75 cSt)
定格流量 毎分60リットル (15.8 US gpm)
最大圧力 315 bar (4600 psi), 350 bar (5100 psi)
吸入口 G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
吐出口 G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
ポートサイズ G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

As a prominent hydraulic manufacturer, we provide the DCV60-FZJ Series 2 Spool Sectional Valve, engineered for professional-grade performance and reliability. Featuring a robust manual control system and G3/4 porting, this valve is optimized for compact machinery such as mini-excavators, skid steer loaders, and tractors. We offer comprehensive solutions including manufacturing, OEM, and private labeling services to meet your specific technical requirements. Our factory supply ensures competitive wholesale pricing and consistent quality for high-volume orders. We are actively seeking global partners, including distributors, wholesalers, agents, and traders, to expand our market reach. Whether you need customized configurations or bulk supply, our factory-direct support provides the technical expertise and inventory stability required for industrial vehicle and earth-moving equipment applications.
