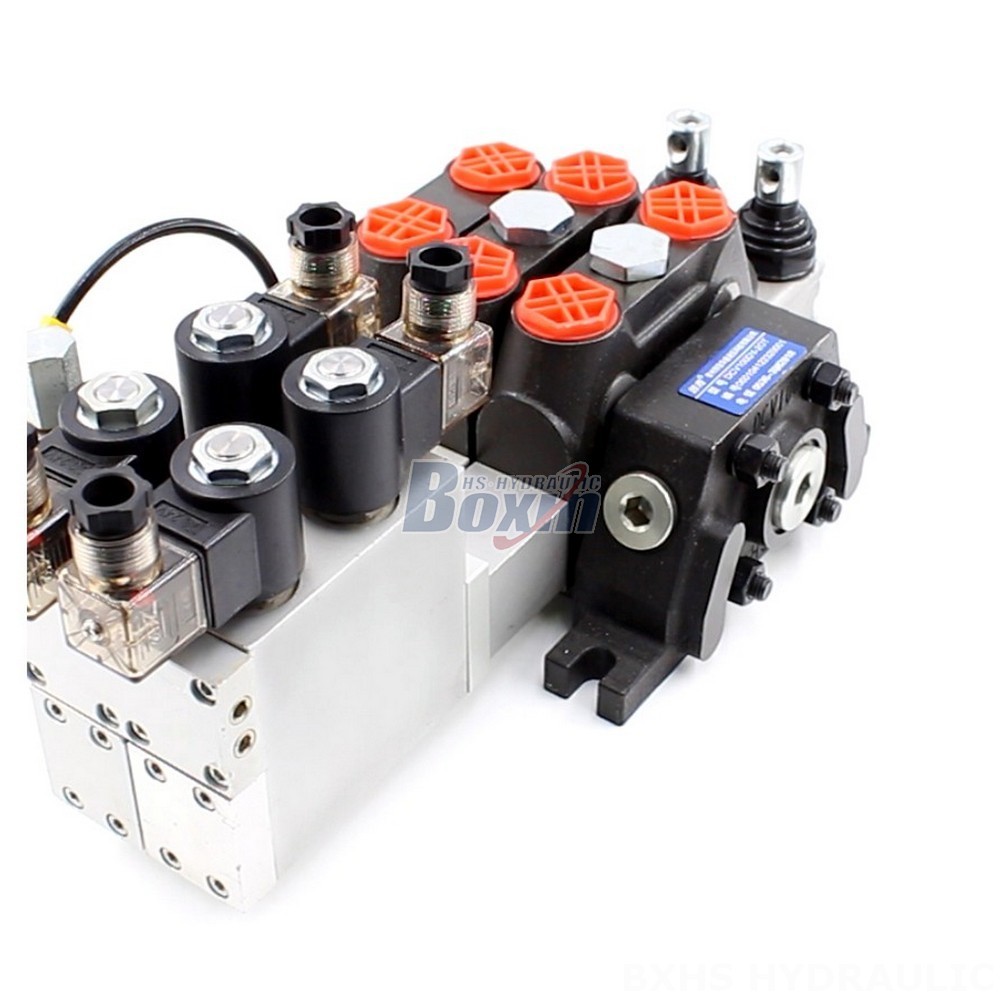

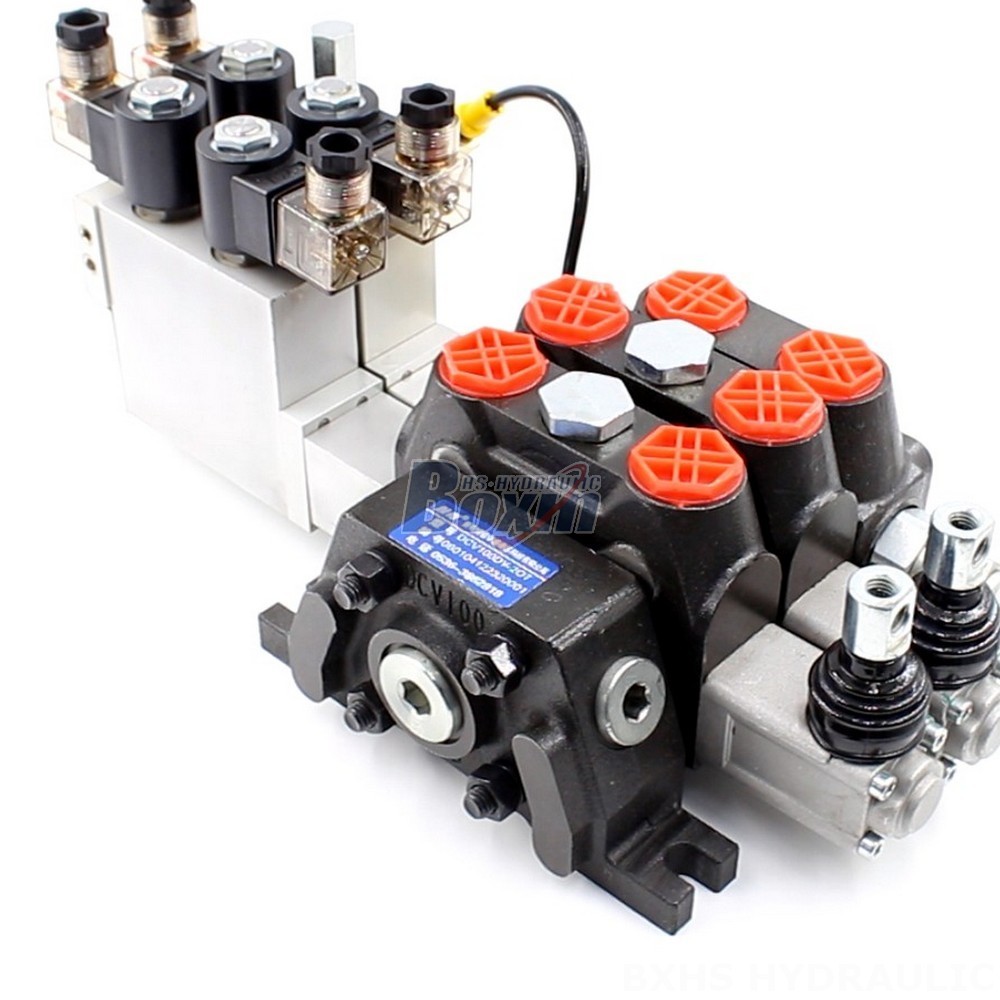

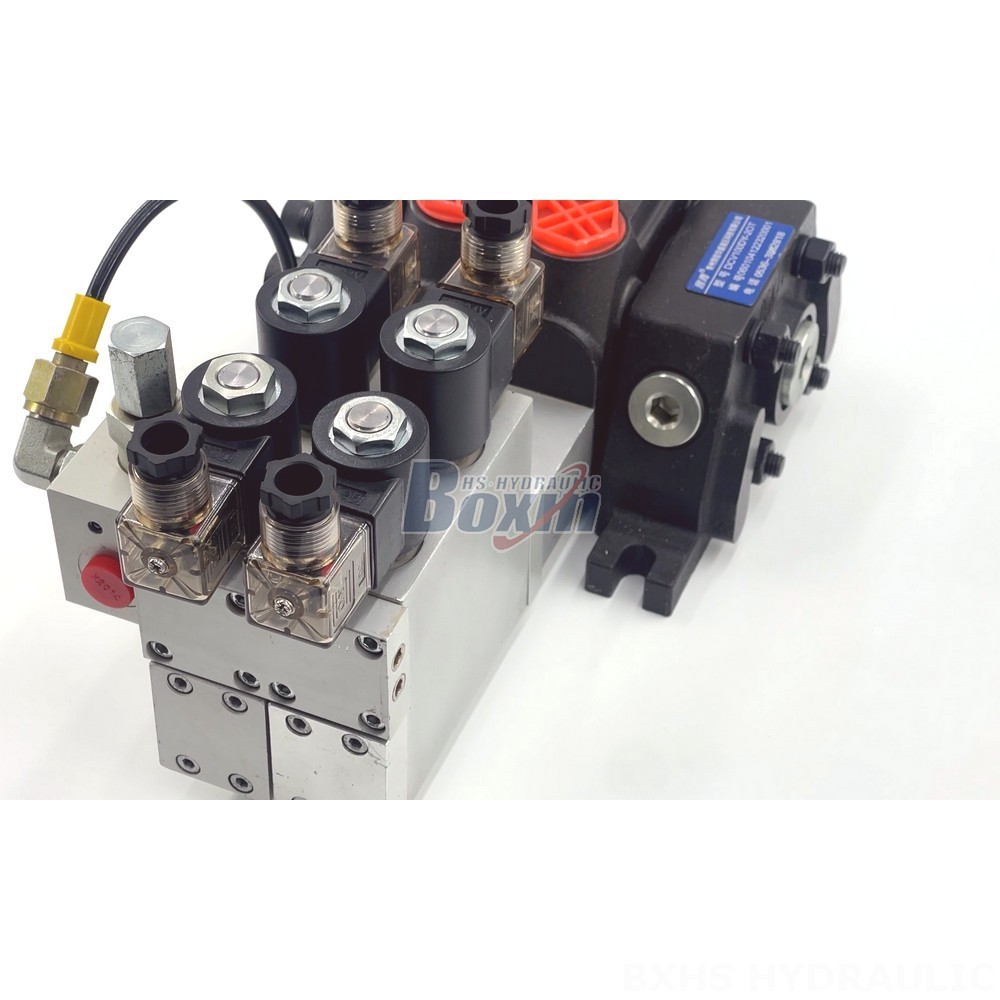

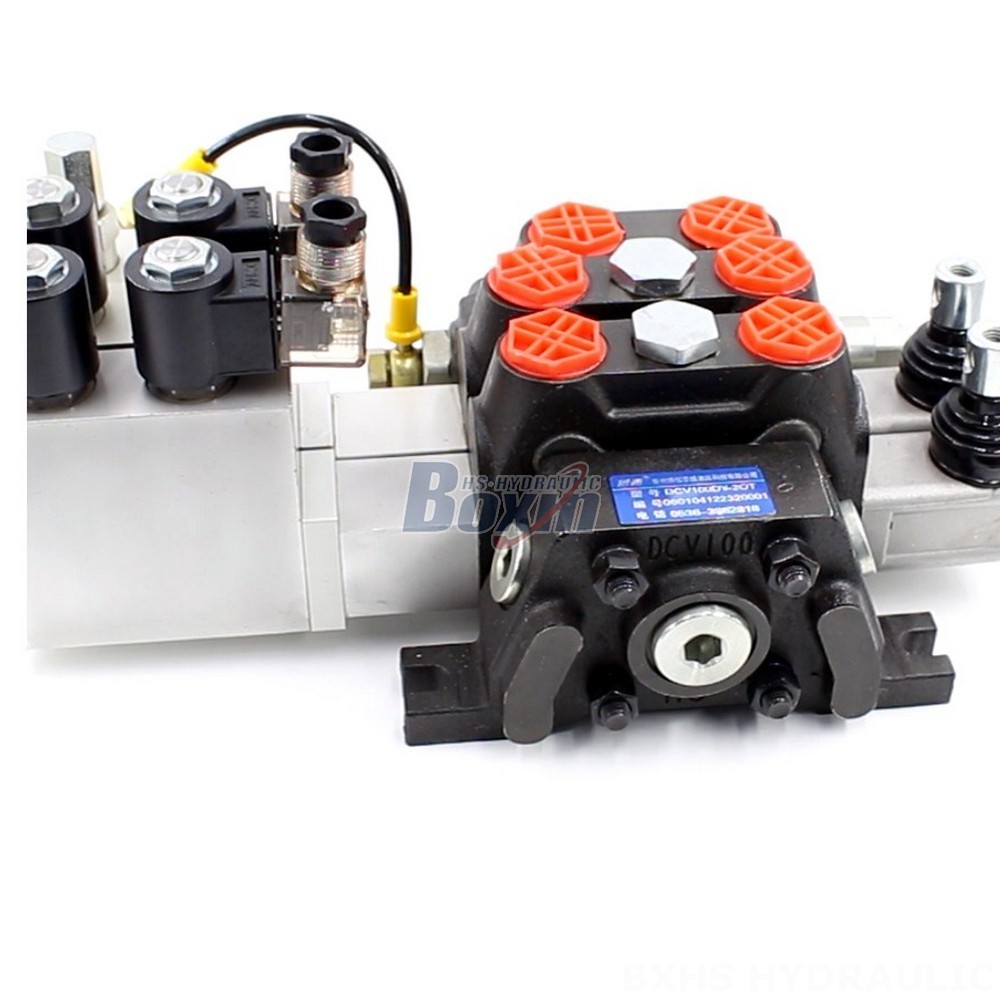

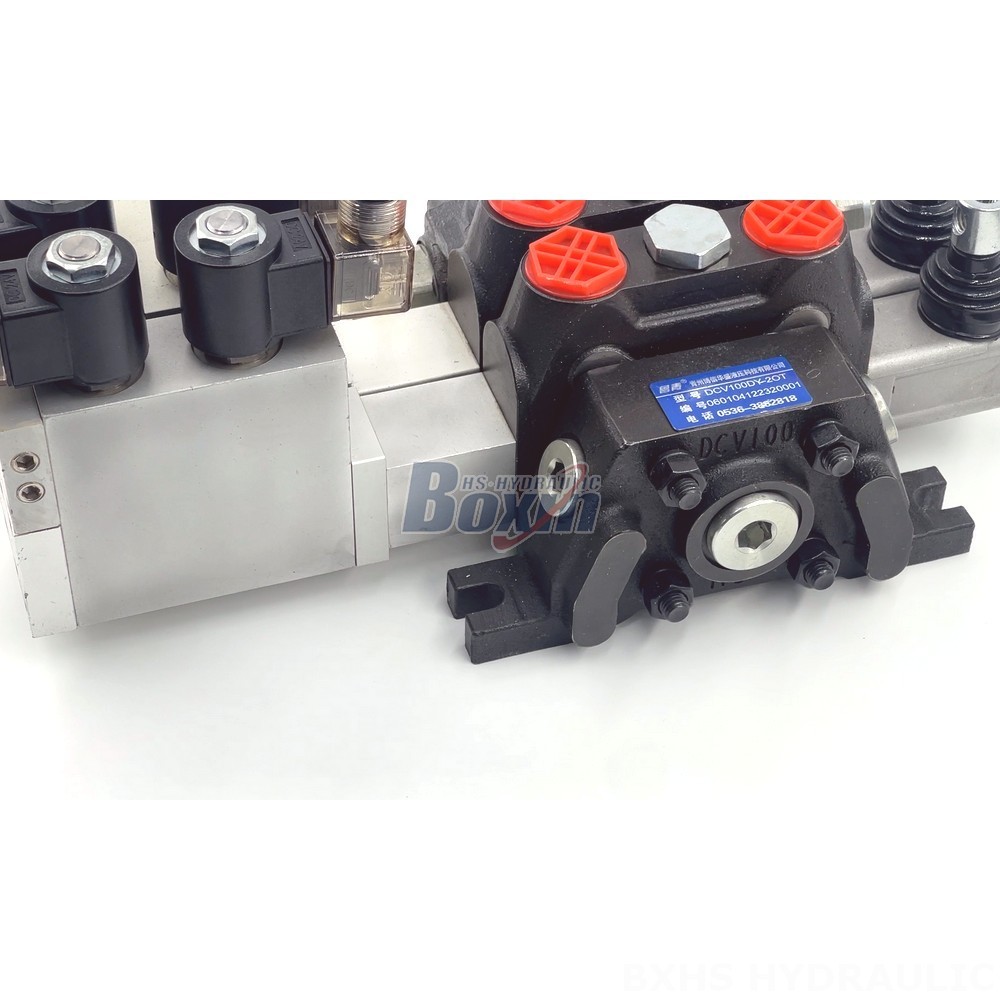

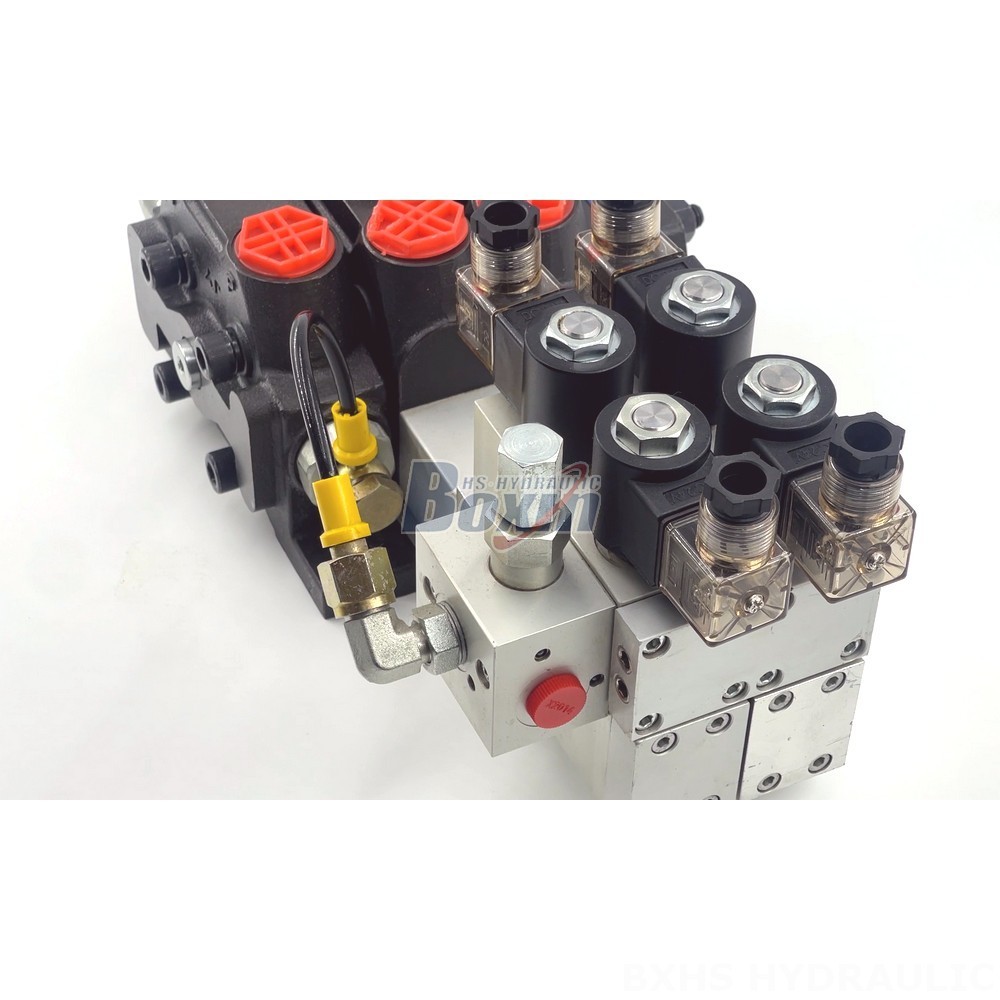

This is a high-performance, customizable electro-hydraulic 2-spool sectional directional valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. It features a rated flow of 100 L/min and a maximum pressure of 350 bar, making it suitable for a wide range of heavy-duty machinery.
| DCV100シリーズ セクショナル方向弁 パラメーター | |
|---|---|
| 制御方法 | 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, ケーブル, ジョイスティック, 手動・ジョイスティック, 手動および電磁油圧式, 電動モーター, 電磁油圧式およびソレノイド式 |
| スプール | 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール, 8スプール, 9スプール, 10スプール, 11スプール, 12スプール |
| 周囲温度範囲 | -40°C to +80°C (-40°F to +176°F) |
| 構造タイプ | ブロック弁 |
| セクション | 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション, 8セクション, 9セクション, 10セクション, 11セクション, 12セクション |
| 作動粘度範囲 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 定格流量 | 毎分100リットル (26.5 US gpm) |
| 最大圧力 | 315 bar (4600 psi) |
| 吸入口 | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| 吐出口 | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| ポートサイズ | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
This 2-section sectional valve features a robust design and reliable performance. Its electro-hydraulic control method ensures precise and responsive operation. The valve is rated for a maximum flow rate of 100 L/min (26.5 US gpm) and a maximum pressure of 350 bar (5100 psi), making it suitable for a variety of heavy-duty applications. Its operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) ensures reliable operation in a wide range of temperature conditions. The valve is designed for use in a variety of equipment, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, and skid steer loaders. Its compact size and modular design make it easy to install and integrate into existing systems.
