Customizable Solenoid Directional Valve | Made to Your Specifications

制御方法:ソレノイド

スプール:9スプール

定格流量:毎分60リットル (15.8 US gpm)

最大圧力:315 bar (4600 psi)

吸入口:G1/2

吐出口:G1/2

ポートサイズ:G1/2

ベンダー:BXHS

製品タイプ:セクショナル方向弁

製品シリーズ:DCV58 シリーズ セクショナル方向弁

梱包サイズ:55*28*17

総重量:33.00 kg

在庫状況: 在庫あり

1067 この製品を探している人もいます

Customizable Solenoid Directional Valve | Made to Your Specifications

Customizable Solenoid Directional Valve | Made to Your Specifications

Customizable Solenoid Directional Valve | Made to Your Specifications drawing image

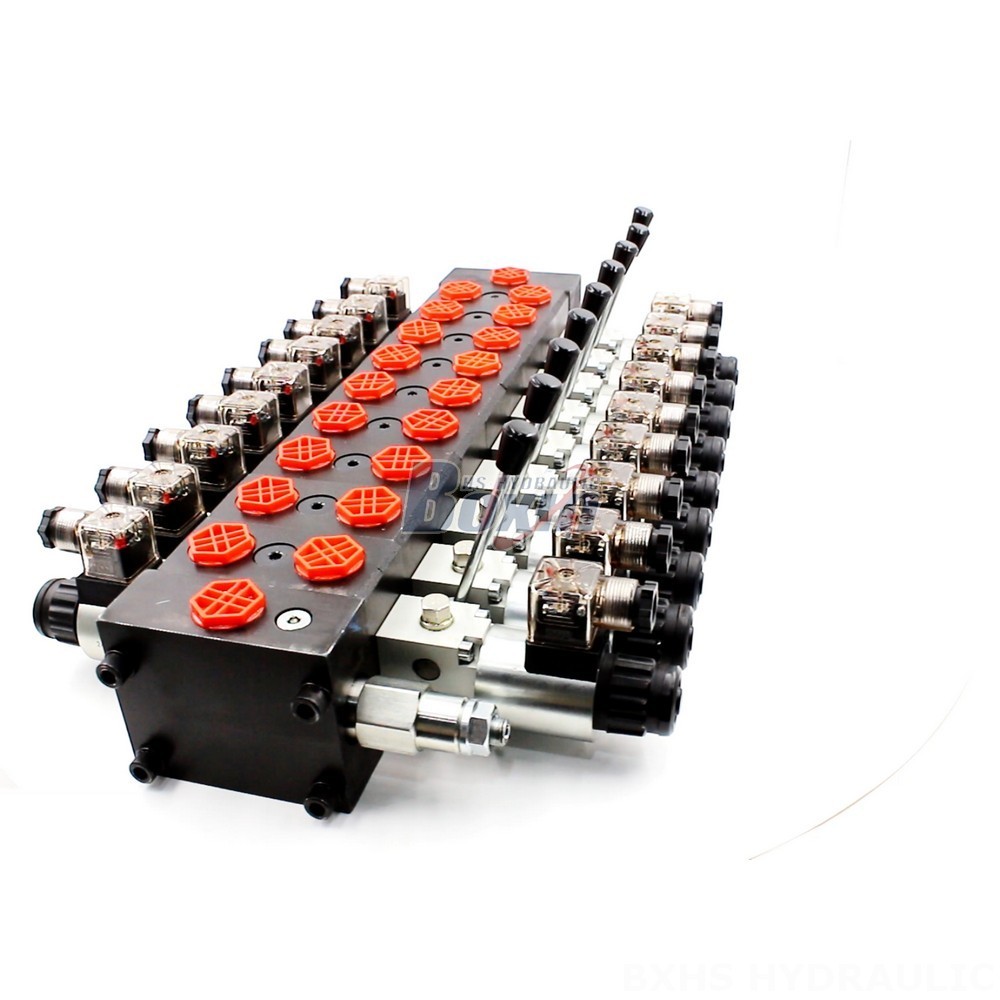

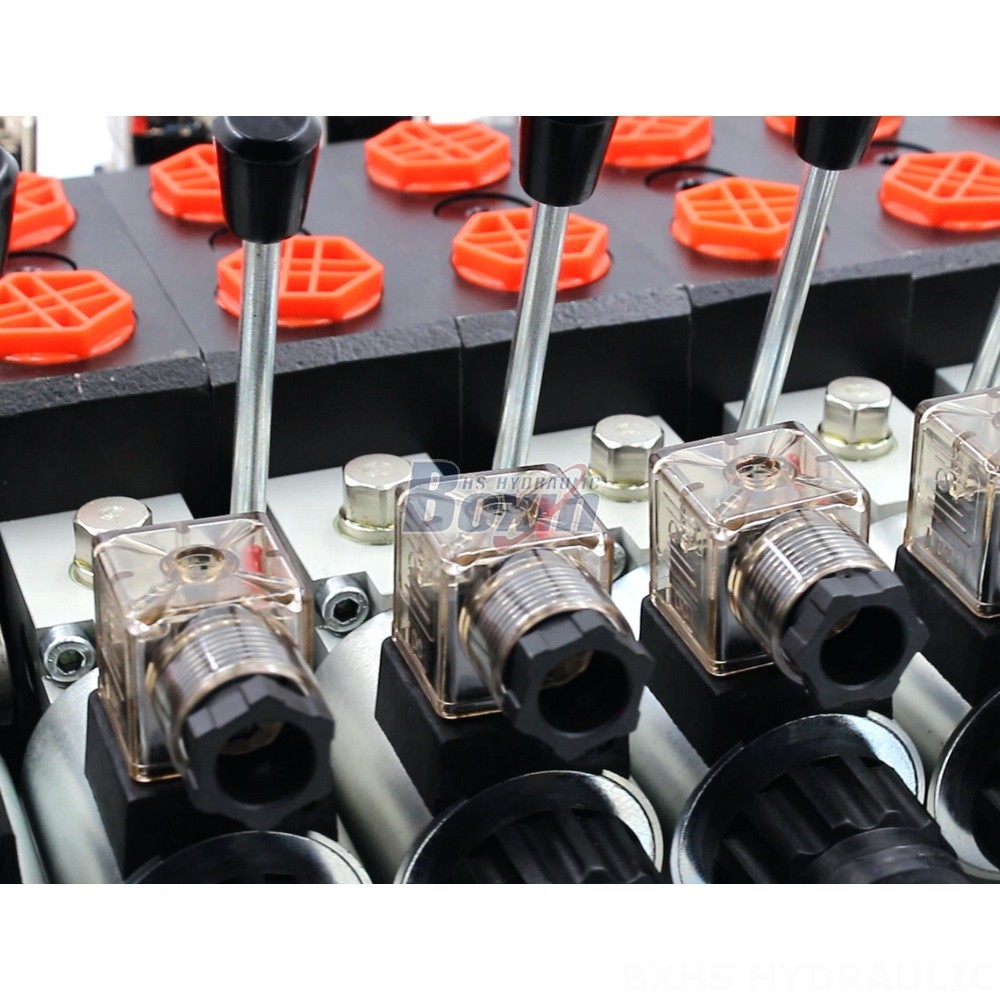

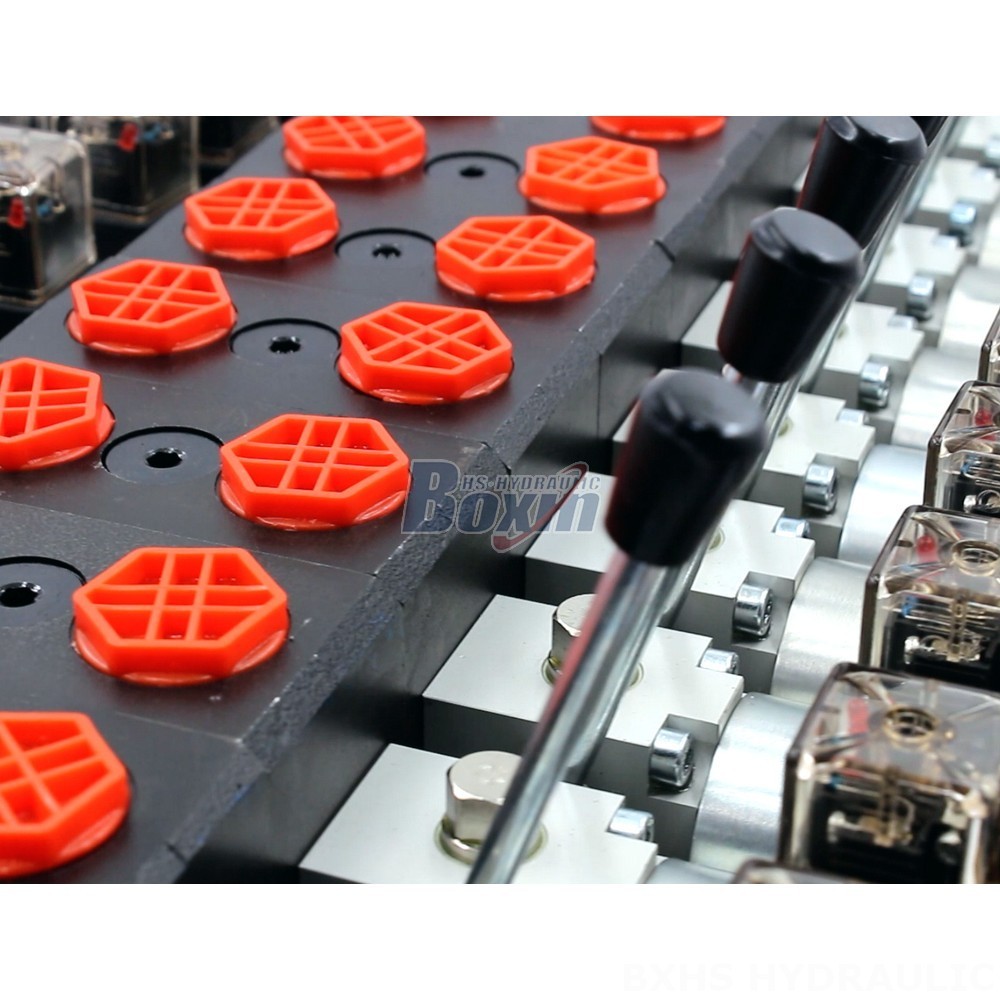

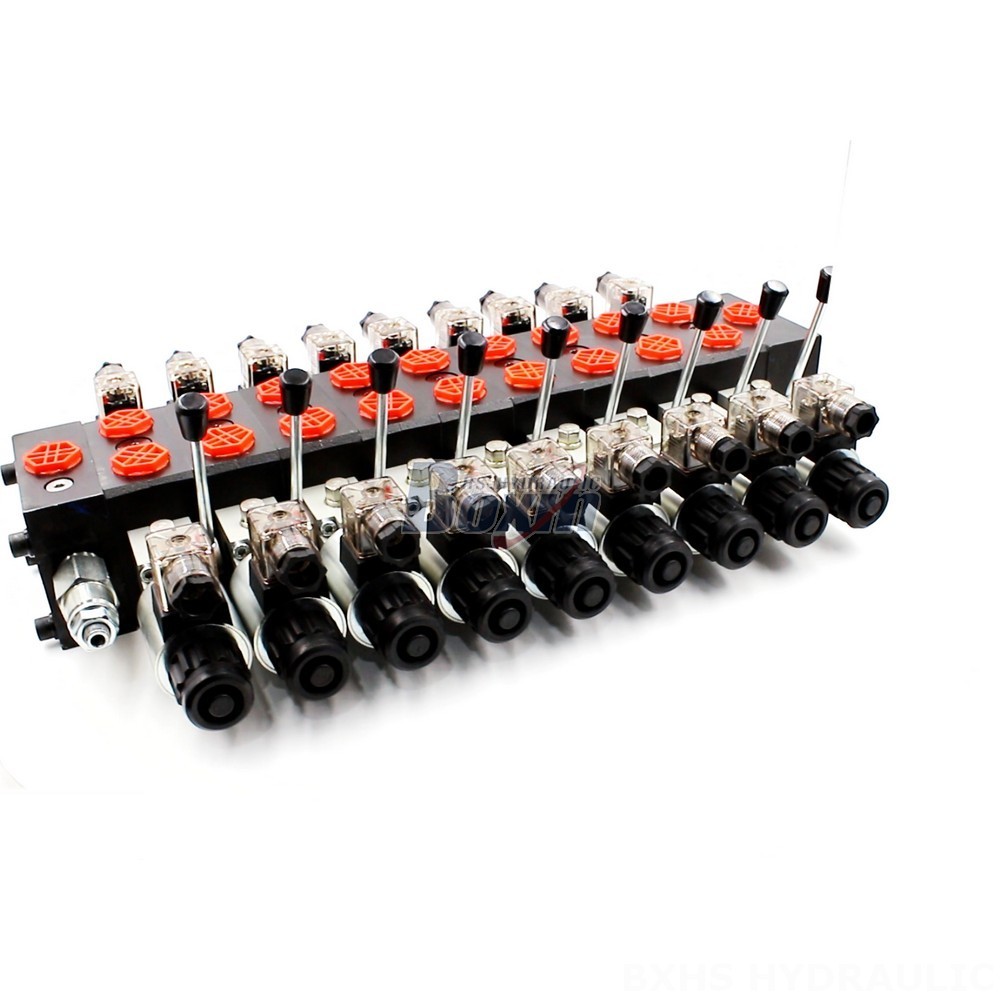

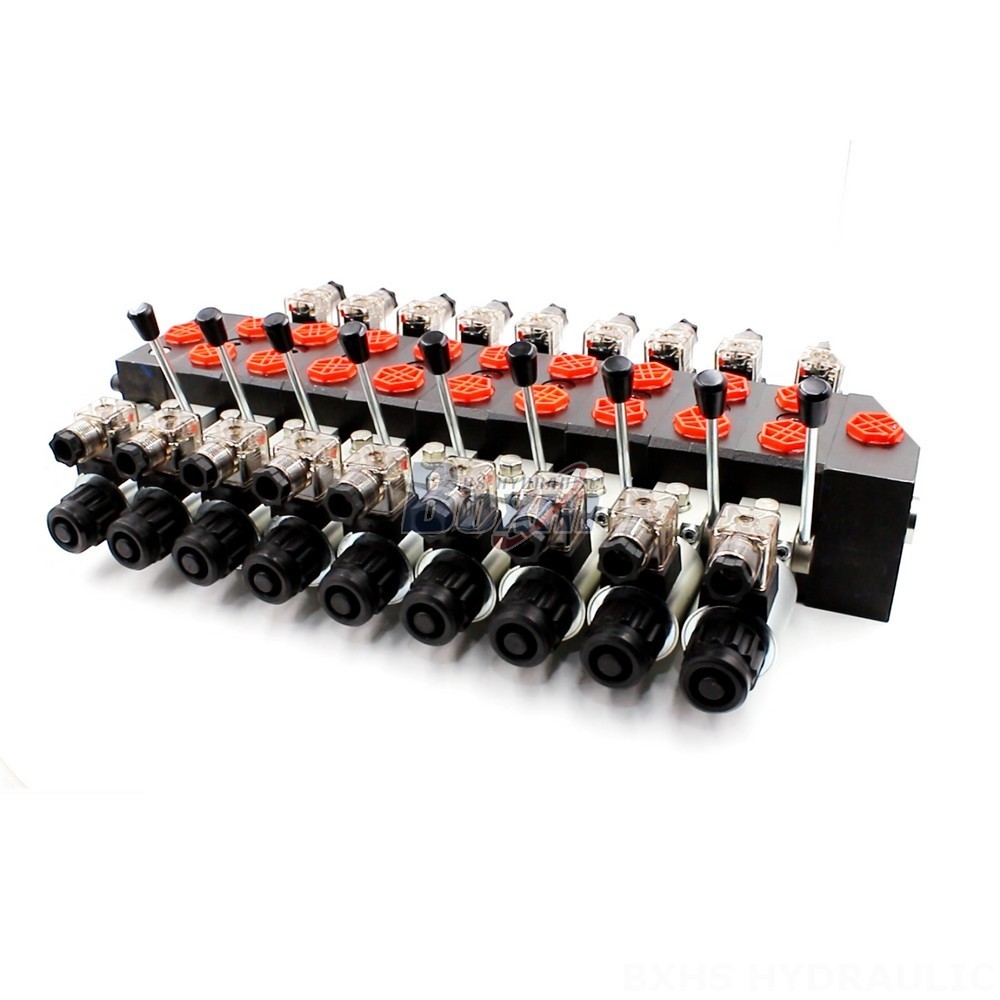

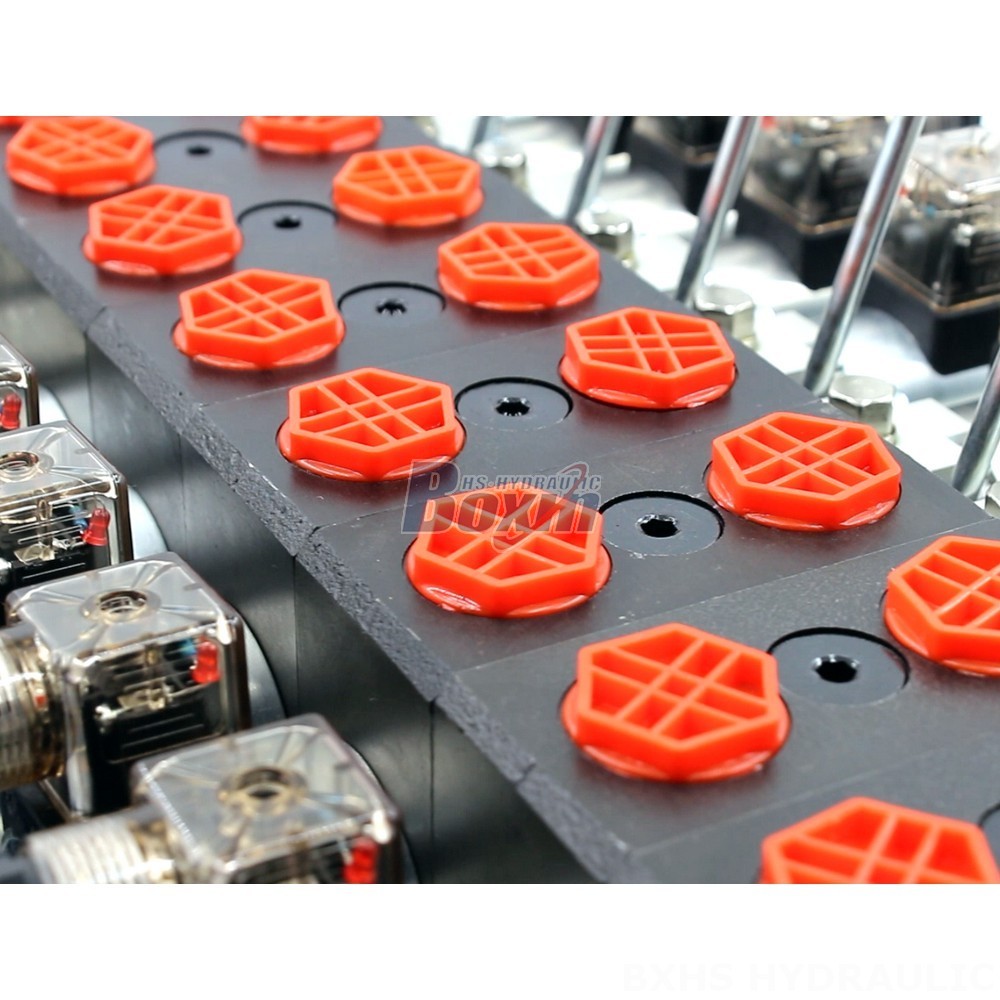

This is a high-performance, customizable hydraulic motor valve designed for demanding industrial applications. It features a 9-section, solenoid-controlled design, high flow rate (60 L/min), and high pressure rating (350 bar). Ideal for material handling, construction, agriculture, and industrial vehicles.

DCV58 シリーズ セクショナル方向弁 パラメーター
制御方法 ソレノイド, ソレノイドおよび手動
スプール 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール, 8スプール, 9スプール, 10スプール, 11スプール, 12スプール
周囲温度範囲 -40°C to +80°C (-40°F to +176°F)
構造タイプ ブロック弁
セクション 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション, 8セクション, 9セクション, 10セクション, 11セクション, 12セクション
作動粘度範囲 15 - 75 mm²/s (15 cSt to 75 cSt)
定格流量 毎分40リットル (10.5 US gpm)
最大圧力 350 bar (5100 psi)
吸入口 G1/2, M22×1.5, SAE 10, 1/2 NPT
吐出口 G1/2, M22×1.5, SAE 10, 1/2 NPT
ポートサイズ G1/2, M22×1.5, SAE 10, 1/2 NPT

This versatile **hydraulic motor valve** is a **customizable, high-performance** solution for your industrial needs. The **9-section, solenoid-controlled** design provides precise and reliable operation in a wide range of applications. With a **rated flow of 60 L/min** and a **maximum pressure of 350 bar**, this valve is capable of handling demanding workloads. The **sectional valve** construction allows for easy maintenance and repair. Designed for **heavy-duty operation**, it operates within a broad temperature range (-40°C to +80°C). Suitable for use in **material handling**, **construction and earth moving**, **agriculture**, and **industrial vehicles** such as **telehandlers**, **forklifts**, **all terrain cranes**, **stackers**, **aerial platforms**, **motor graders**, **midi-excavators**, **mini-excavators**, **skid steer loaders**, and **compact wheel loaders**. Part of the **DCV58 Series**, this valve is built to meet the highest industry standards.
