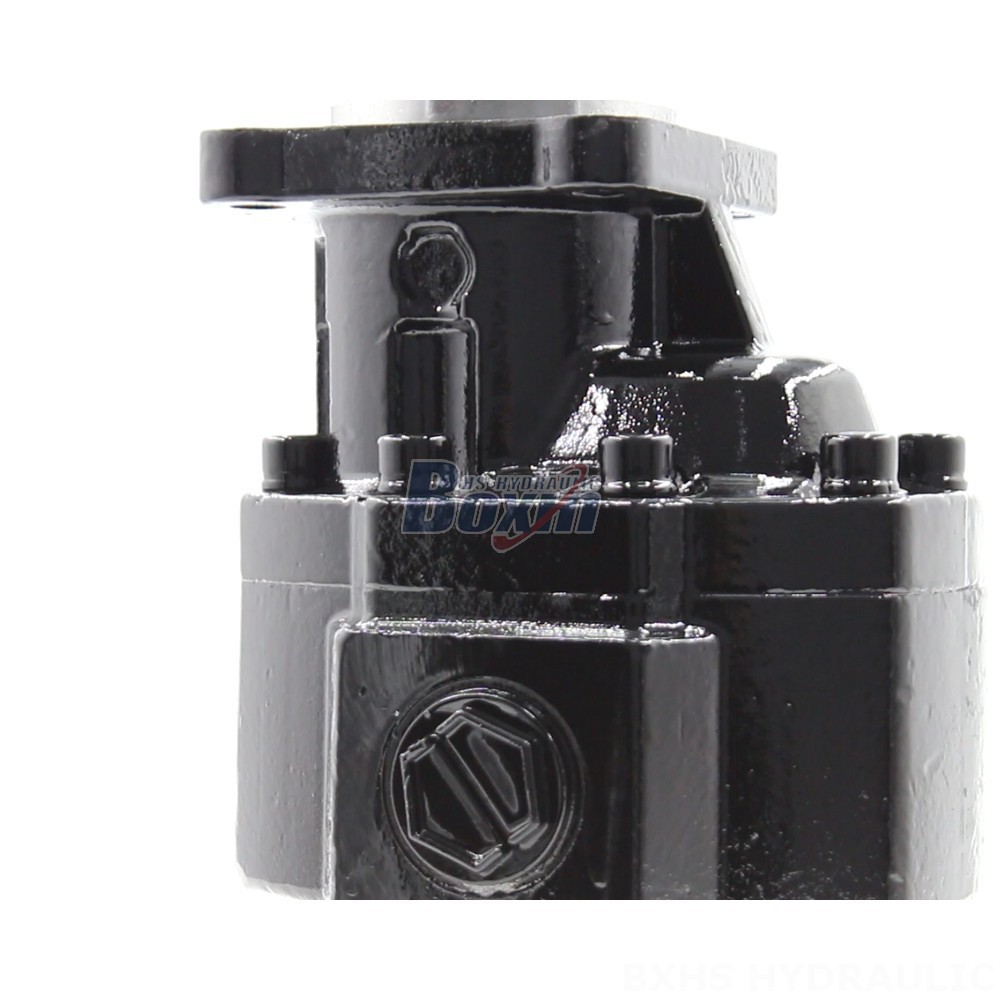

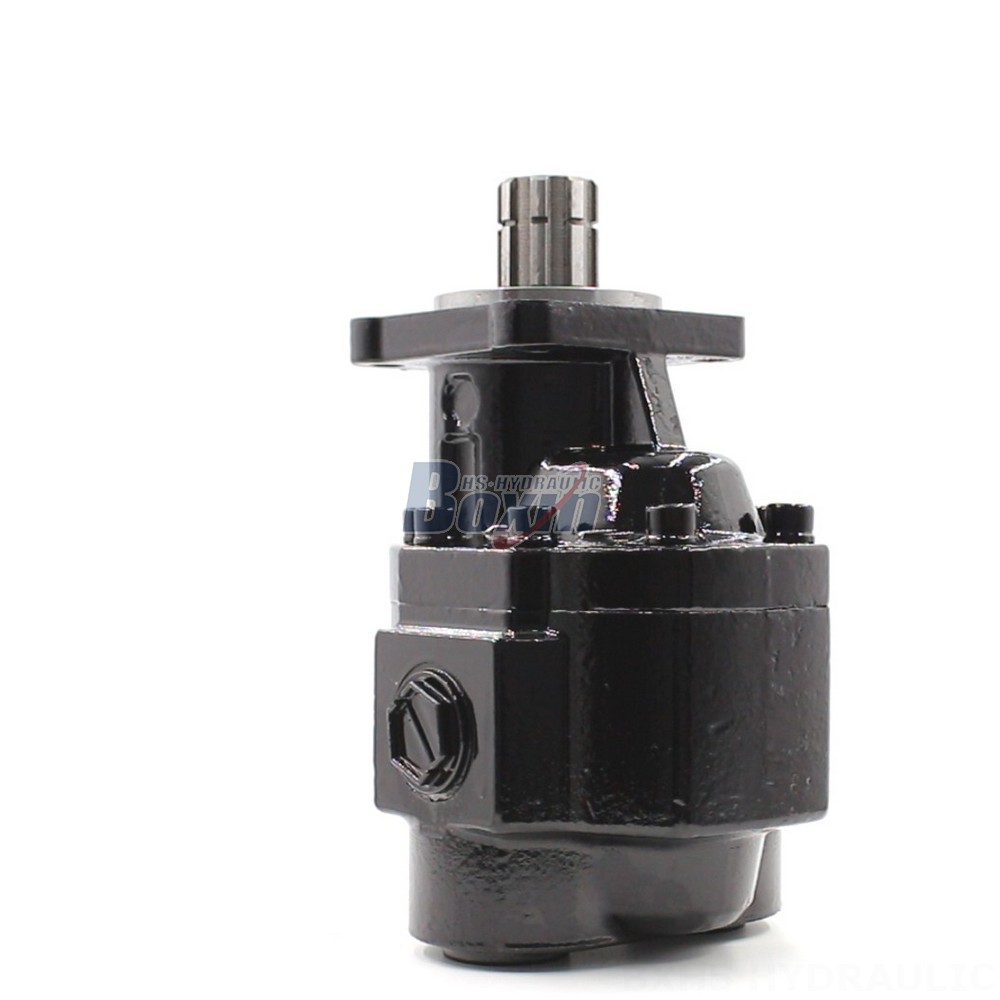

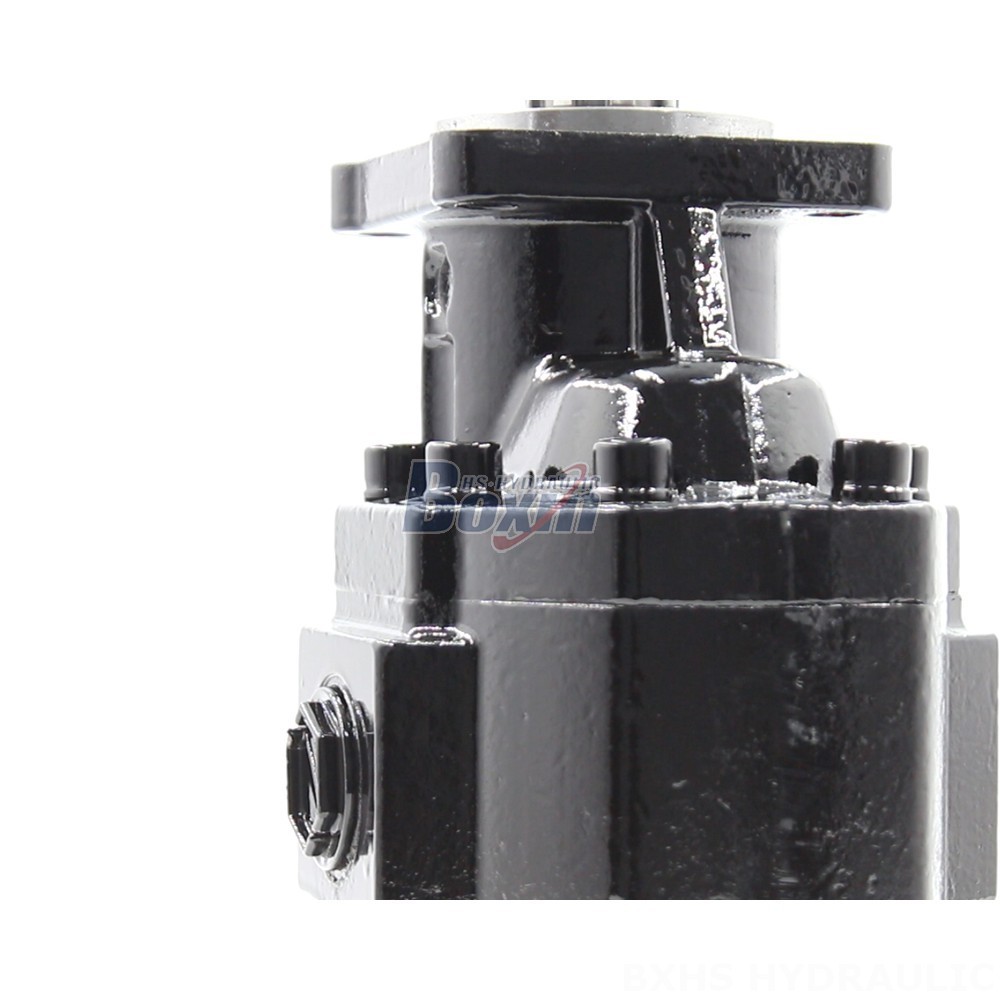

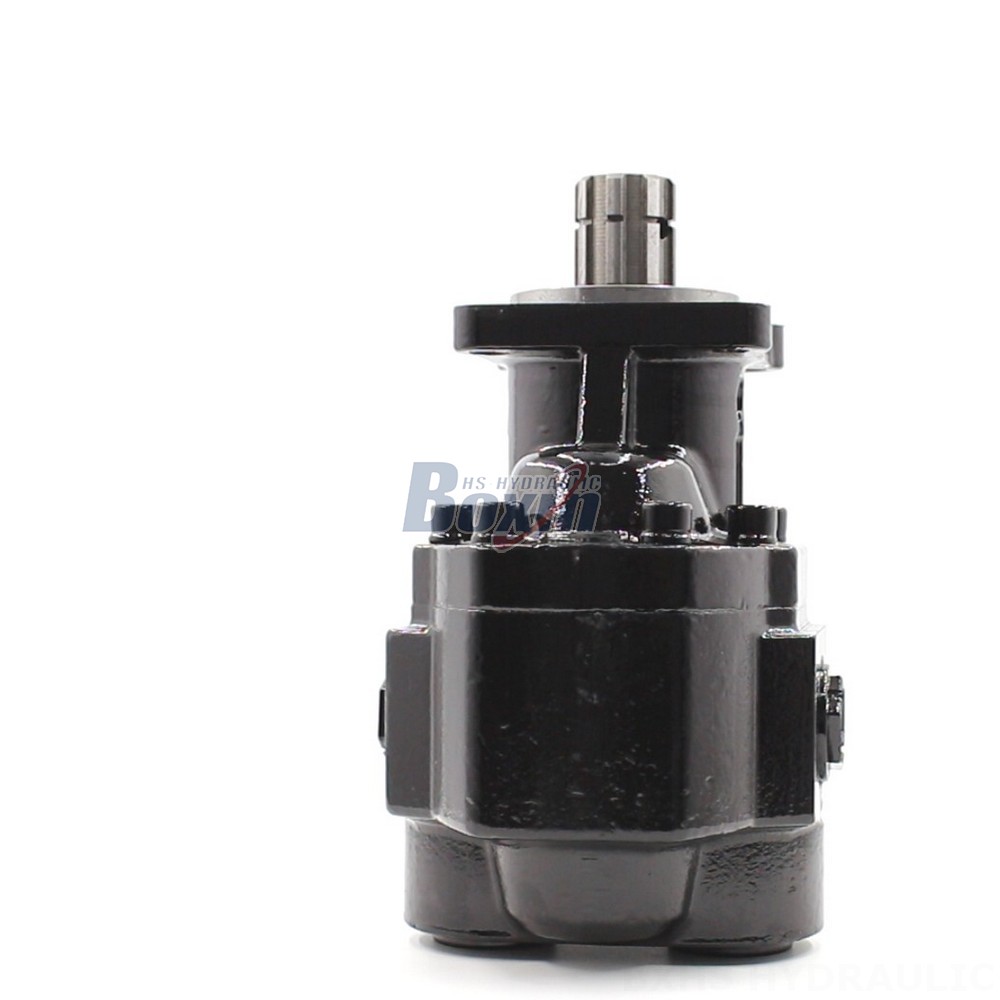

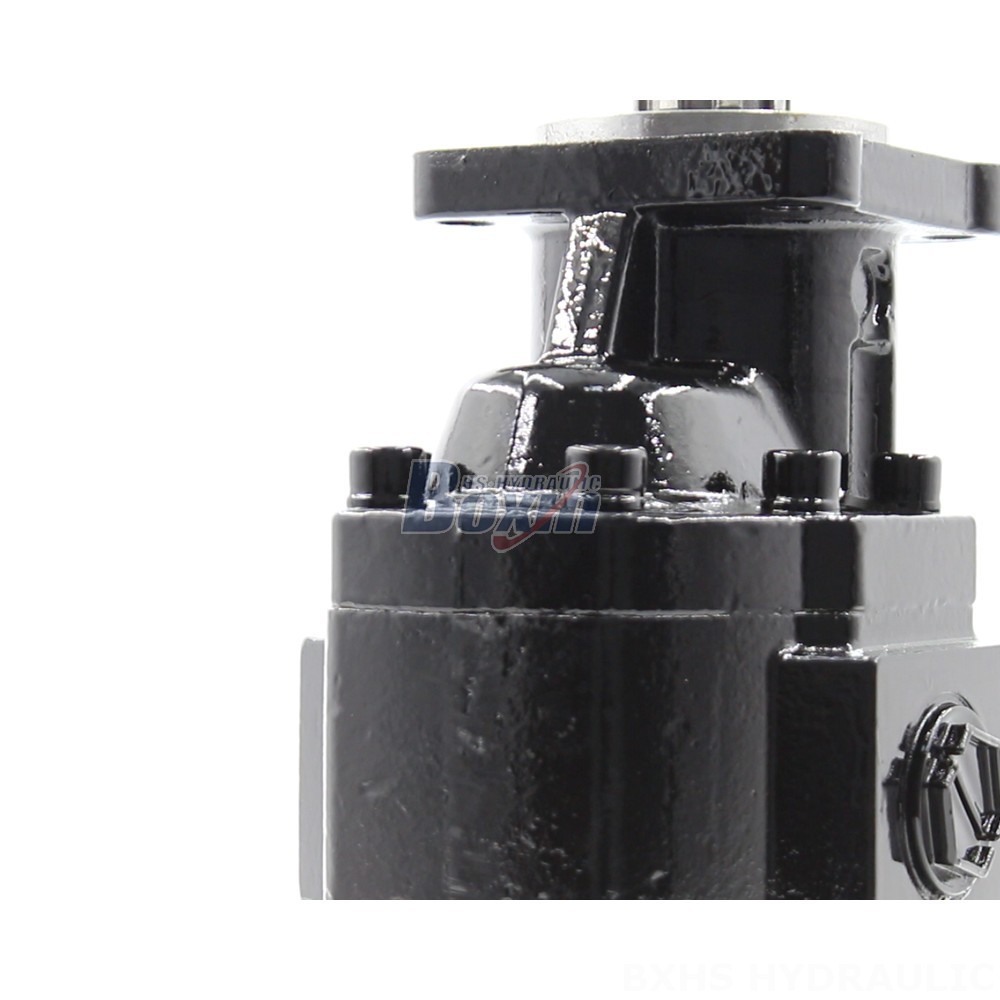

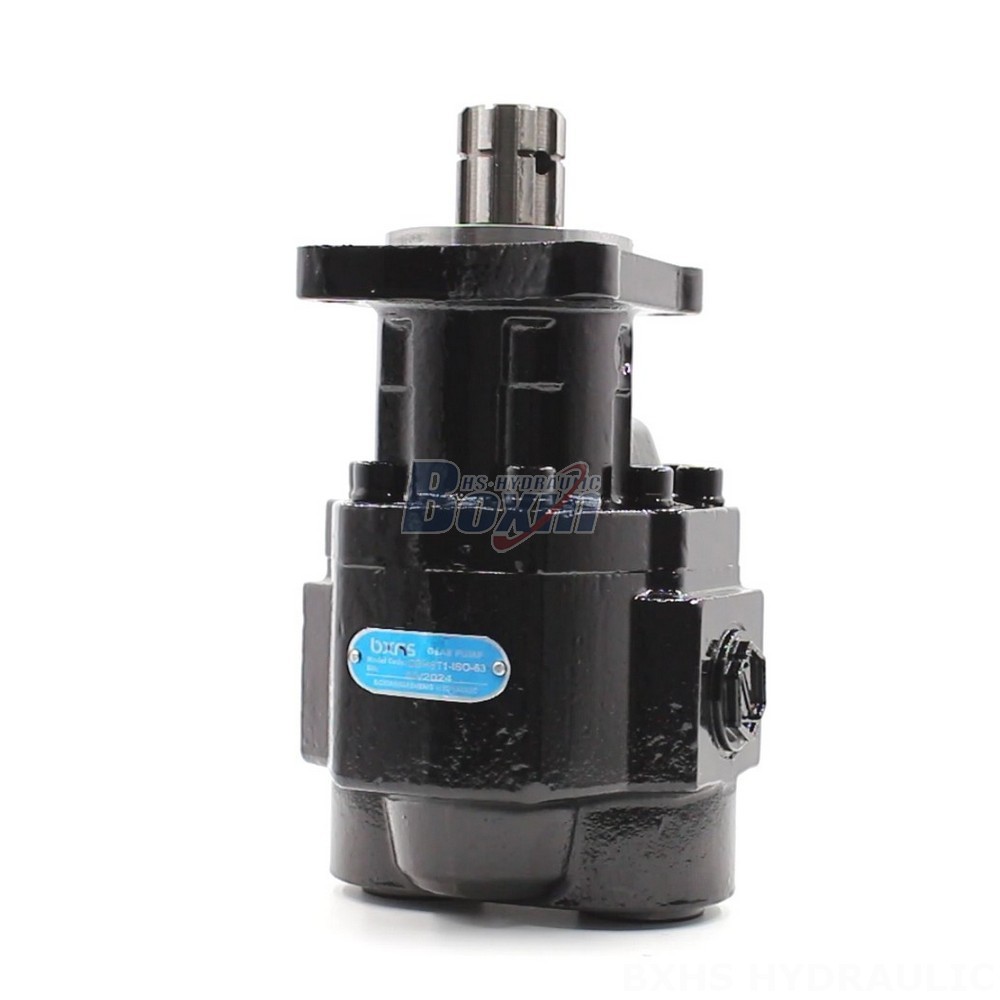

The CBHST1-ISO-63 Hydraulic Gear Pump is an advanced and globally renowned product designed for exceptional performance in various applications. With customizable displacement options ranging from 32 to 110 cc/rev, this pump delivers optimal flow rates for diverse hydraulic systems. Engineered with a robust cast iron construction, it withstands high pressures up to 23 MPa (3335 psi) and operates efficiently at speeds of up to 2500 r/min.
| CBHST1-ISO シリーズ 油圧ギア・ポンプ パラメーター | |
|---|---|
| 変位 | 50 cc/回転, 63 cc/回転, 80 cc/回転, 100 cc/回転, 110 cc/回転, 34 cc/回転, 43 cc/回転, 90 cc/回転, 120 cc/回転, 82 cc/回転 |
| 定格圧力 | 20 MPa (2900 psi), 23 MPa (3335 psi), 25 MPa (3625 psi) |
| 最大圧力 | 23 MPa (3335 psi), 25 MPa (3625 psi), 28 MPa (4061 psi) |
| 定格回転速度 | 2000 r/min |
| 最大回転速度 | 2500 r/min |
| 回転方向 | 双方向 |
| 材質 | 鋳鉄 |
| 構造 | 外部齒輪泵 |
| フランジモデル | ISO-4 安裝孔 |
| 軸タイプ | H：矩形花鍵 |
The CBHST1-ISO-63 Hydraulic Gear Pump boasts a bidirectional rotation, allowing for versatility in system design. Its swashplate structure ensures smooth and reliable operation, while the ISO-4 mounting flange and rectangle spline shaft type provide compatibility with a wide range of applications. This pump finds its applications in material handling, construction, agriculture, and industrial vehicles, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
