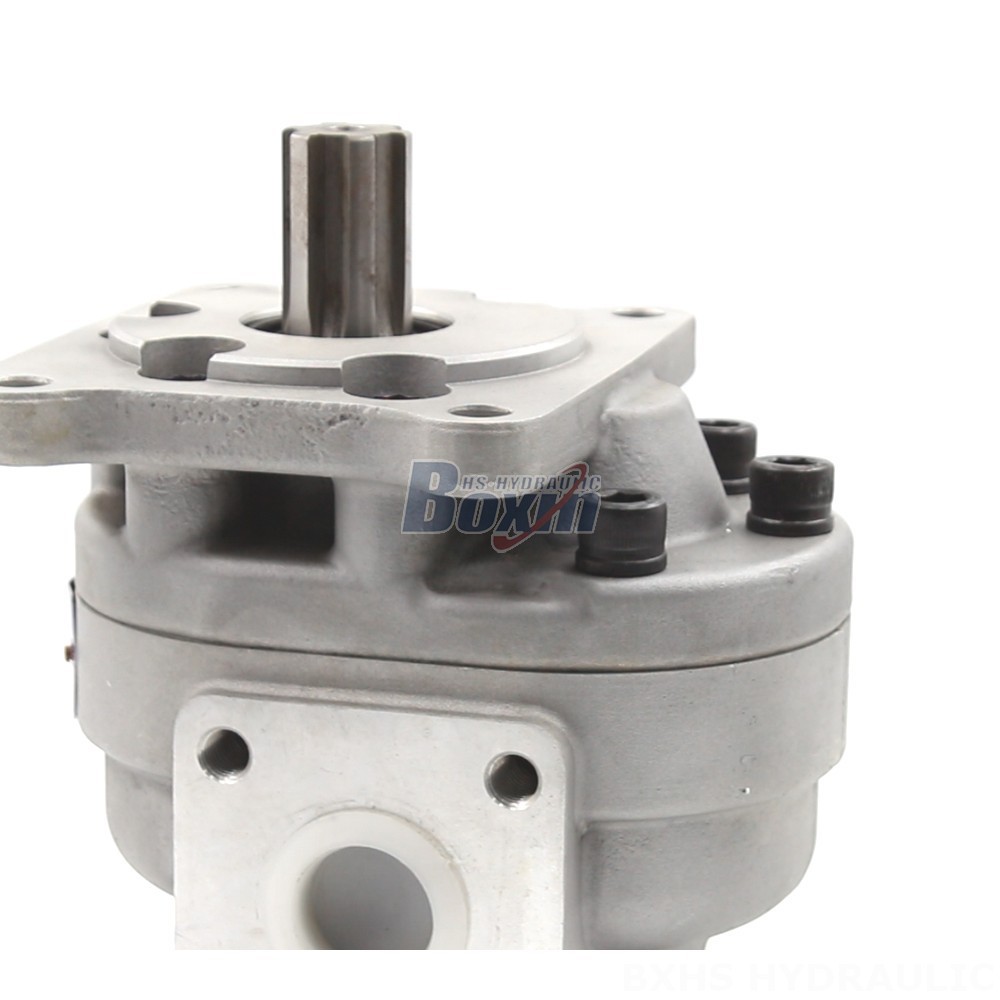

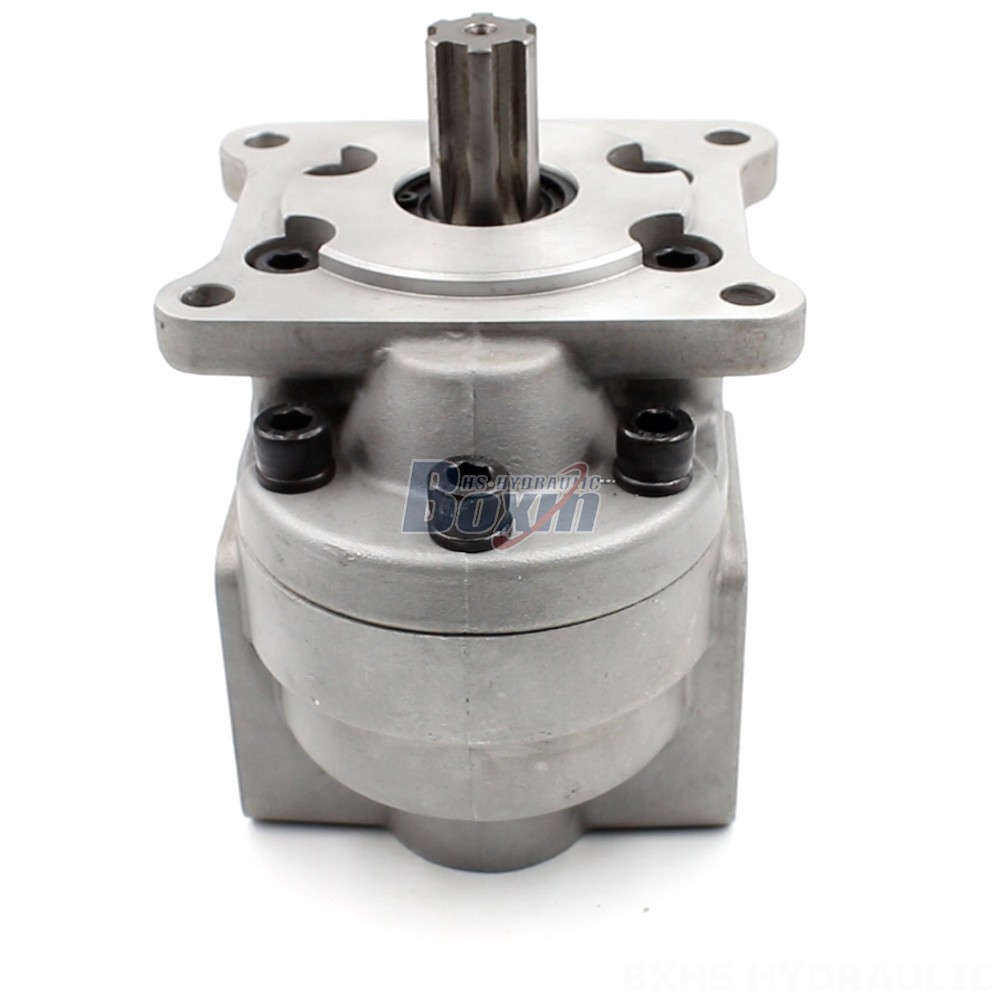

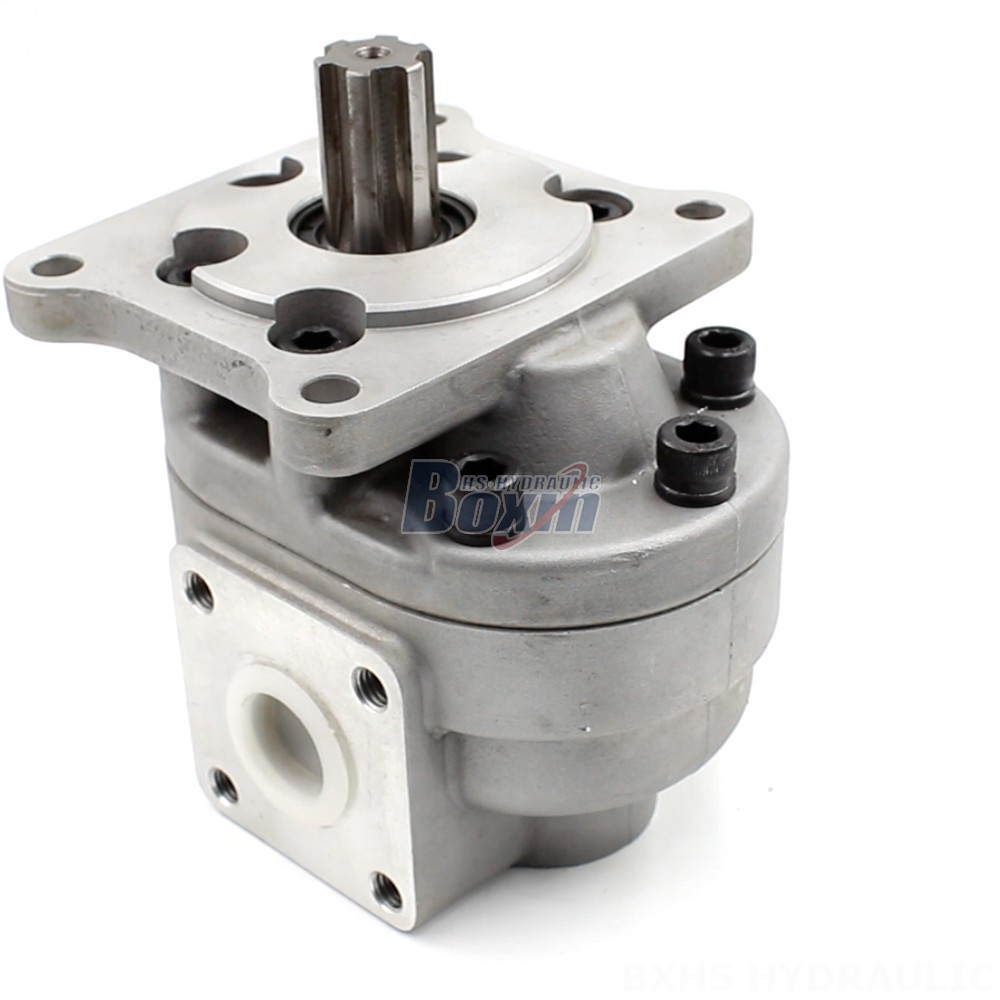

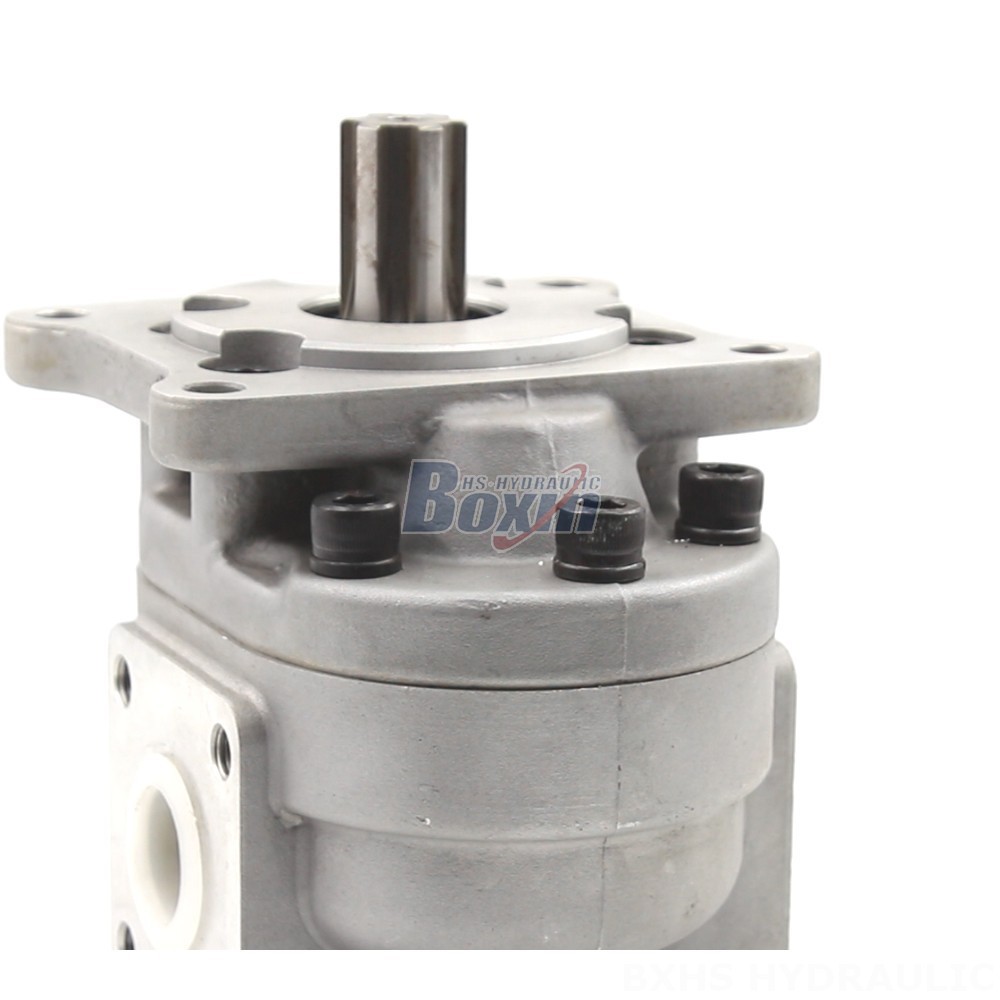

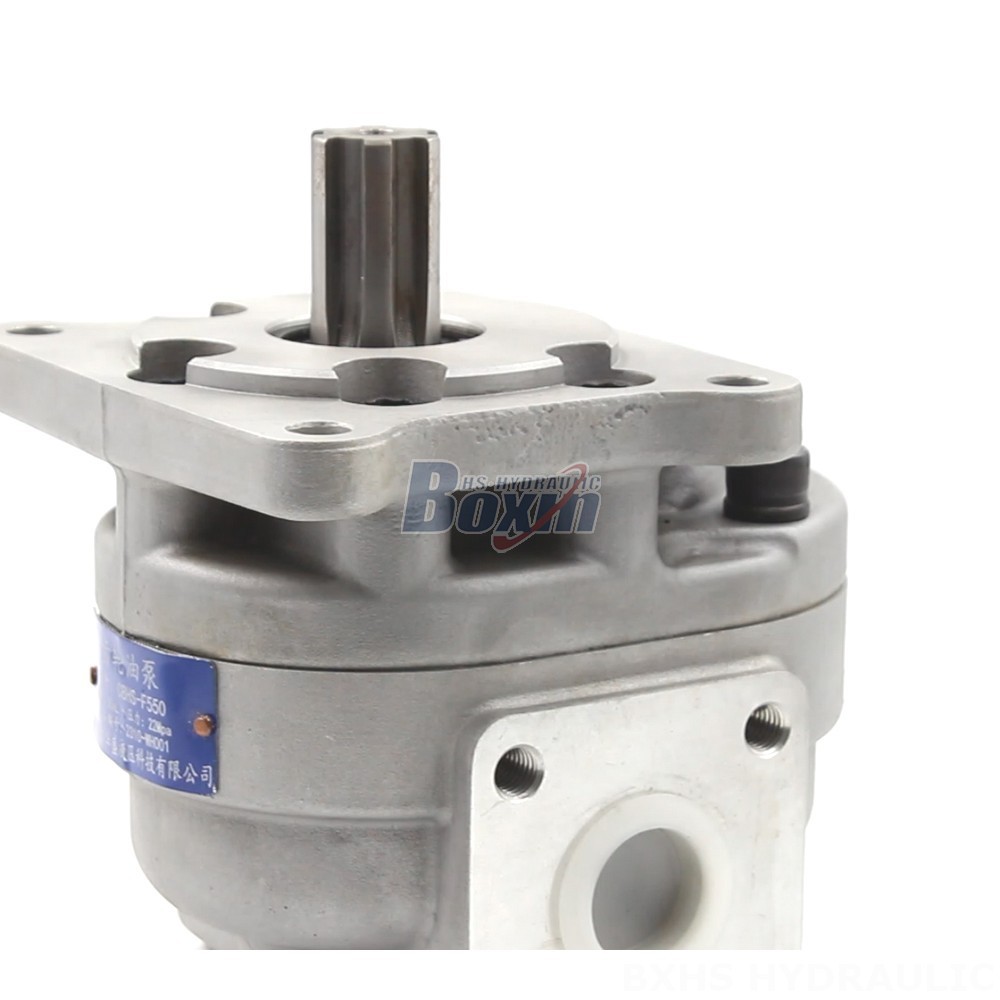

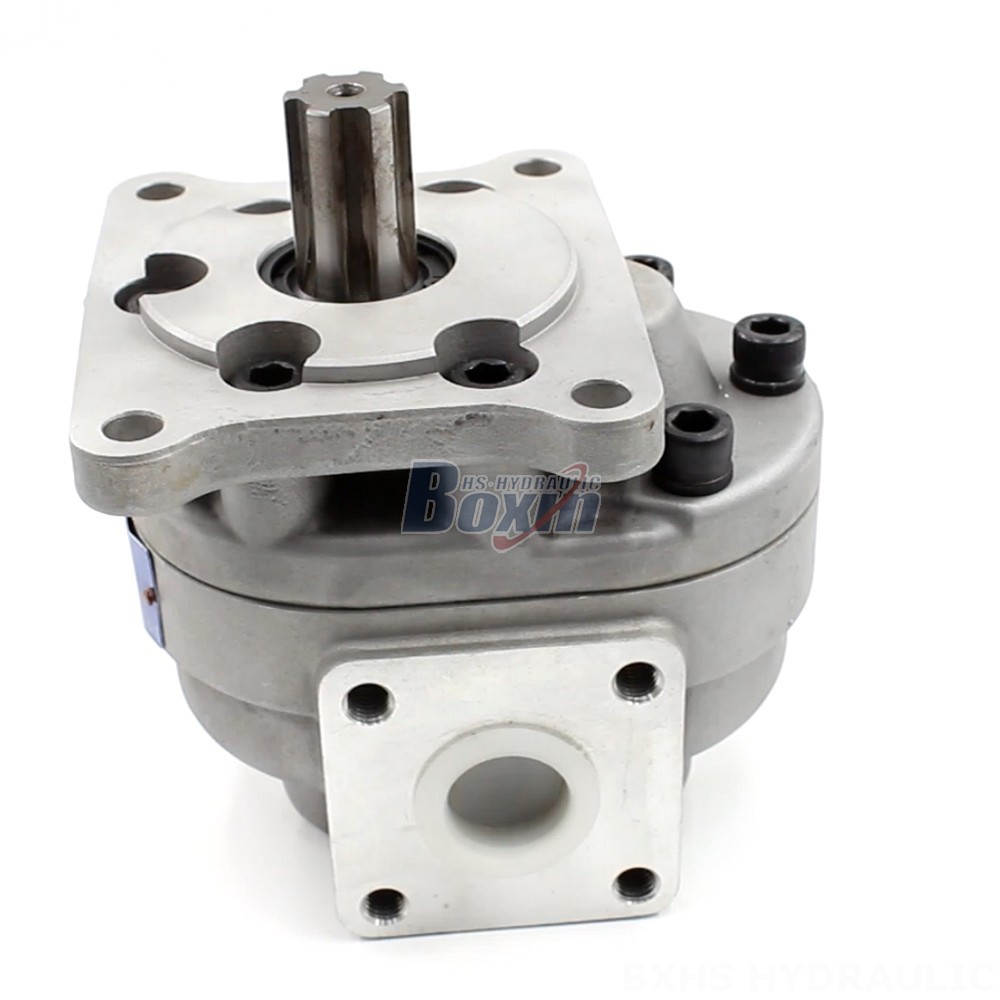

CBHS-F550 50 cc/rev Hydraulic Gear Pump is a high-performance hydraulic gear pump designed for various applications. With a rated pressure of 20 MPa and a rated speed of 2000 r/min, it delivers exceptional power and efficiency. This internal gear pump is constructed from robust cast iron and features a B-Square flange for secure mounting. It is available with plain key, rectangle spline, and involute spline shaft types to meet diverse needs.
| CBHS-F5シリーズ 油圧ギア・ポンプ パラメーター | |
|---|---|
| 変位 | 32 cc/回転, 50 cc/回転, 63 cc/回転, 20 cc/回転 |
| 定格圧力 | 20 MPa (2900 psi) |
| 最大圧力 | 25 MPa (3625 psi) |
| 定格回転速度 | 2000 r/min |
| 最大回転速度 | 2500 r/min |
| 回転方向 | 左 (逆時針), 右 (順時針) |
| 材質 | 鋳鉄 |
| 構造 | 外部齒輪泵 |
| フランジモデル | B-方形凸緣 |
| 軸タイプ | H：矩形花鍵, X：漸開線花鍵, P：プレーンキー |
**Key Features:**
- Displacement: 32 cc/rev, 50 cc/rev, 63 cc/rev
- Rated Pressure: 20 MPa (2900 psi)
- Rated Speed: 2000 r/min
- Max Speed: 2200 r/min
- Rotation: L (counter-clockwise), R (clockwise)
- Structure: Internal Gear Pump
- Material: Cast Iron
- Flange Version: B-Square Flange
- Shaft Type: P (Plain Key), H (Rectangle Spline), X (Involute Spline)
- Series: CBHS-F5 Series
**Applications:**
- MATERIAL HANDLING
- CONSTRUCTION AND EARTH MOVING
- AGRICULTURE
- INDUSTRIAL VEHICLES
- TELEHANDLER
- FORKLIFT
- ALL TERRAIN CRANE
- STACKER
- AERIAL PLATFORM
- MOTOR GRADER
- MIDI-EXCAVATOR
- MINI-EXCAVATOR
- SKID STEER LOADER
- COMPACT WHEEL LOADER
