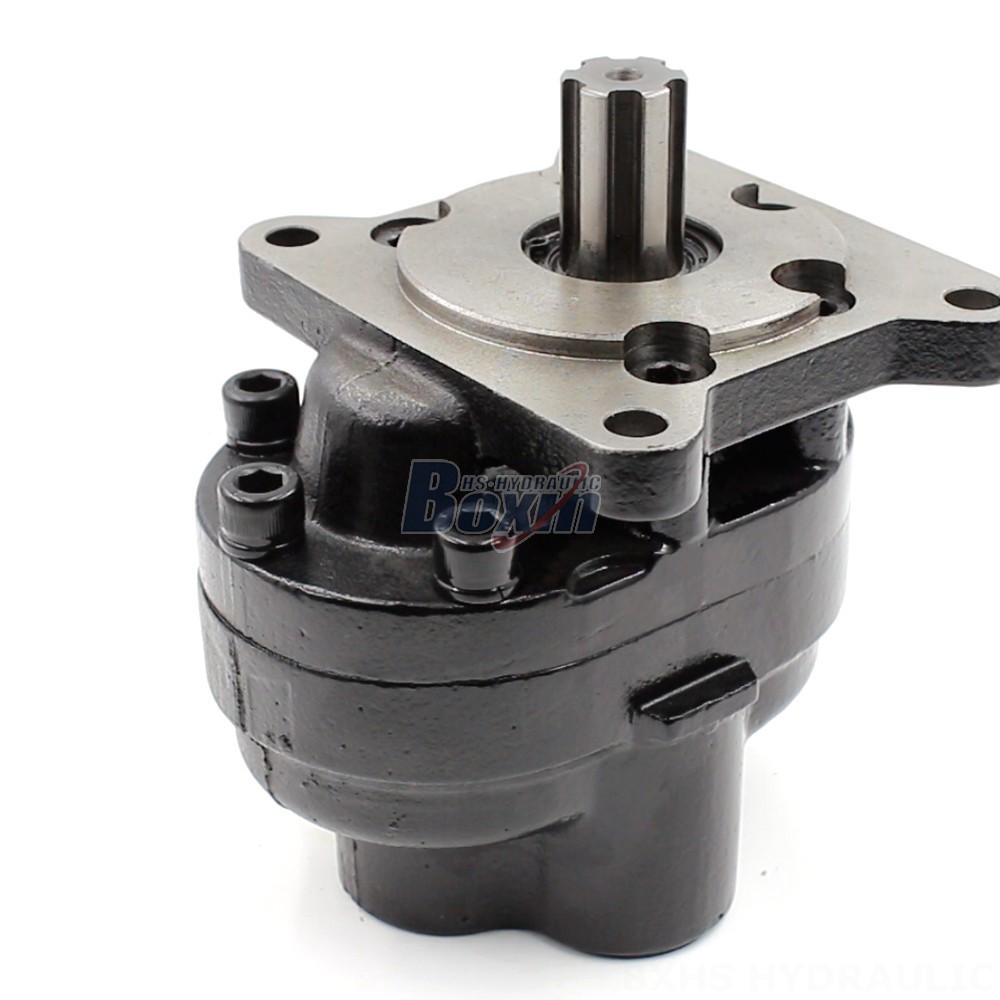

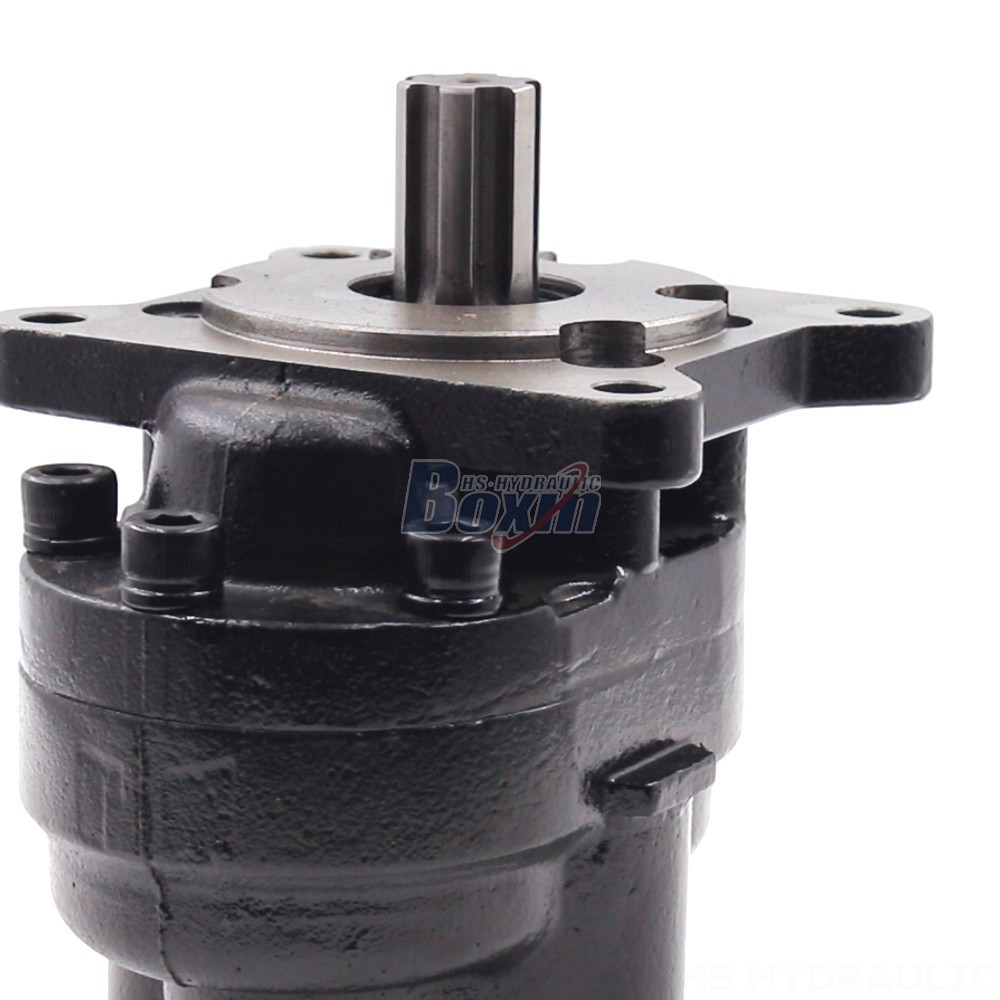

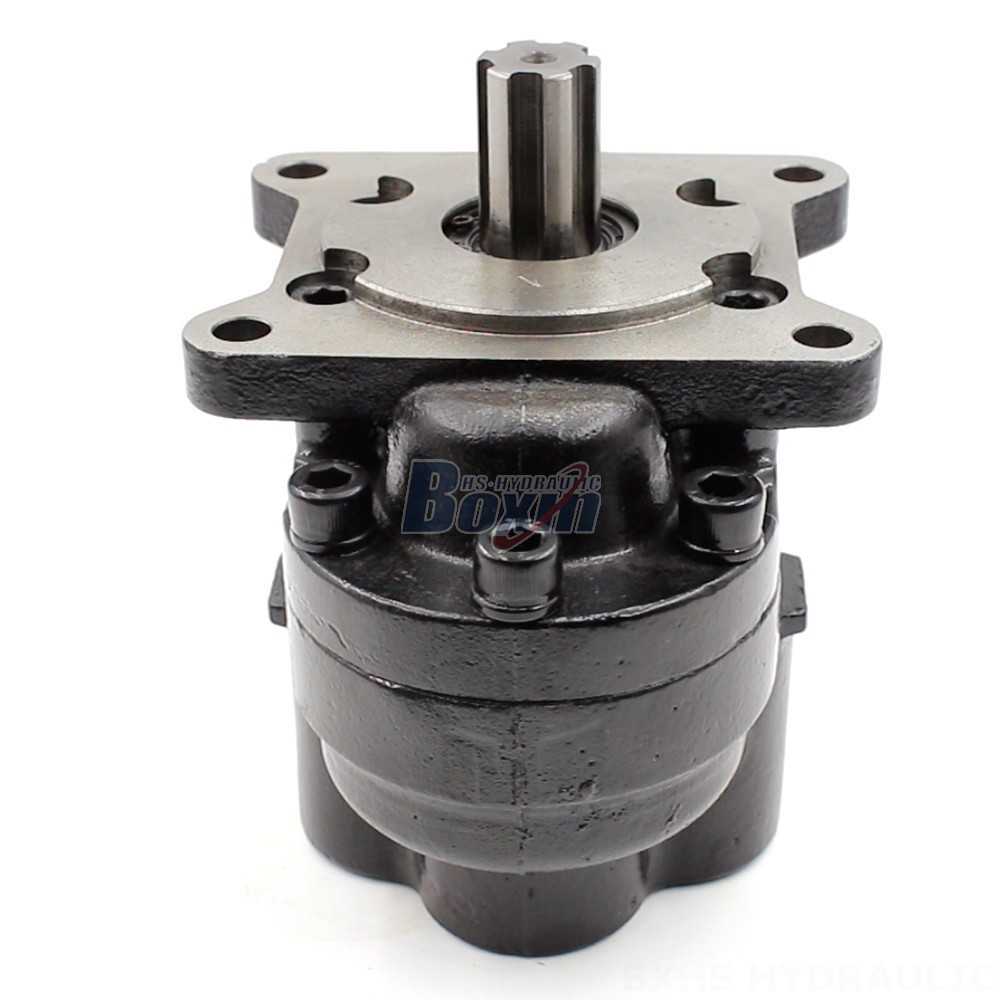

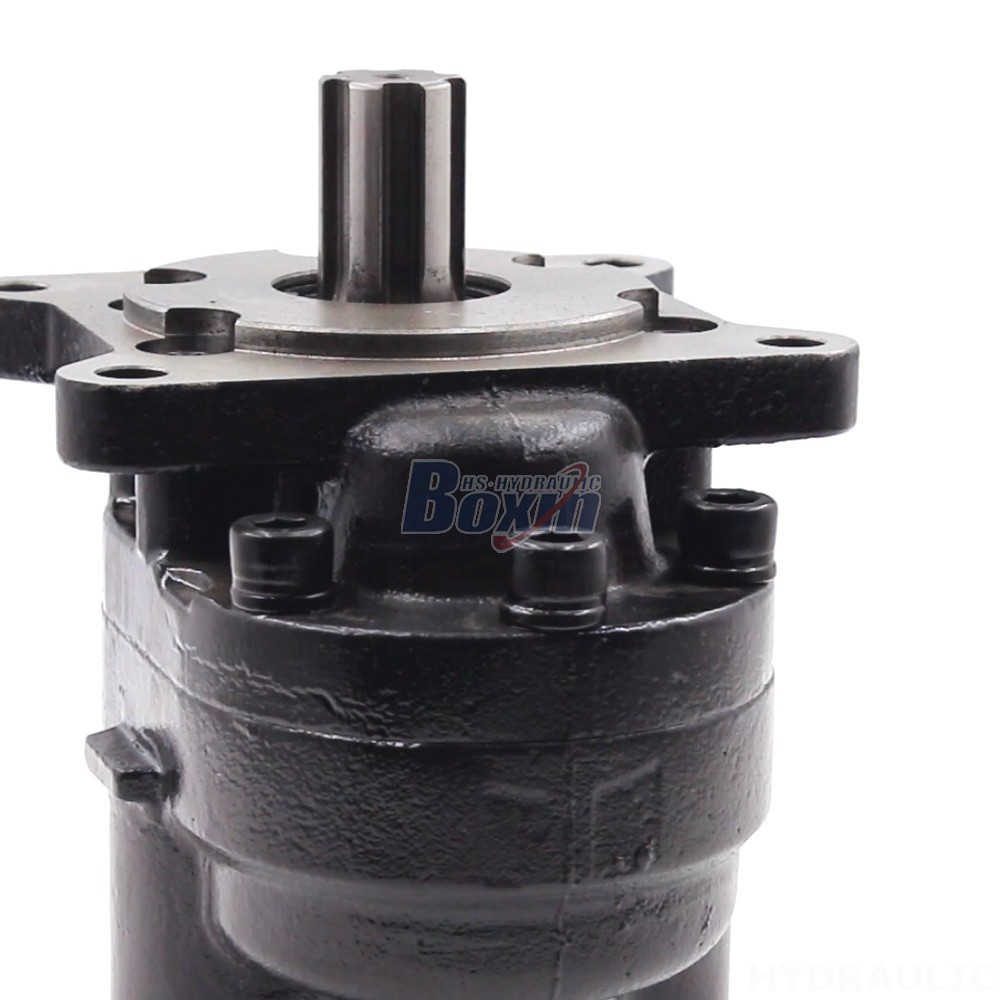

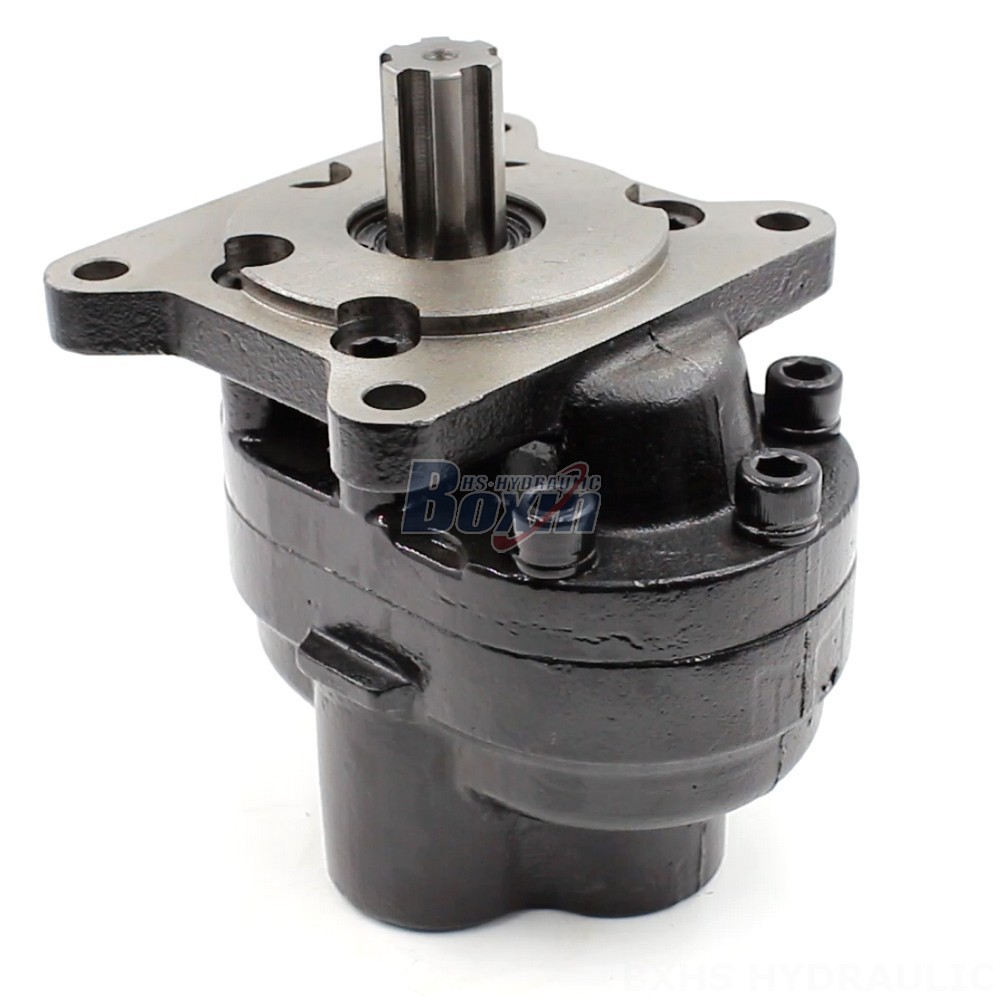

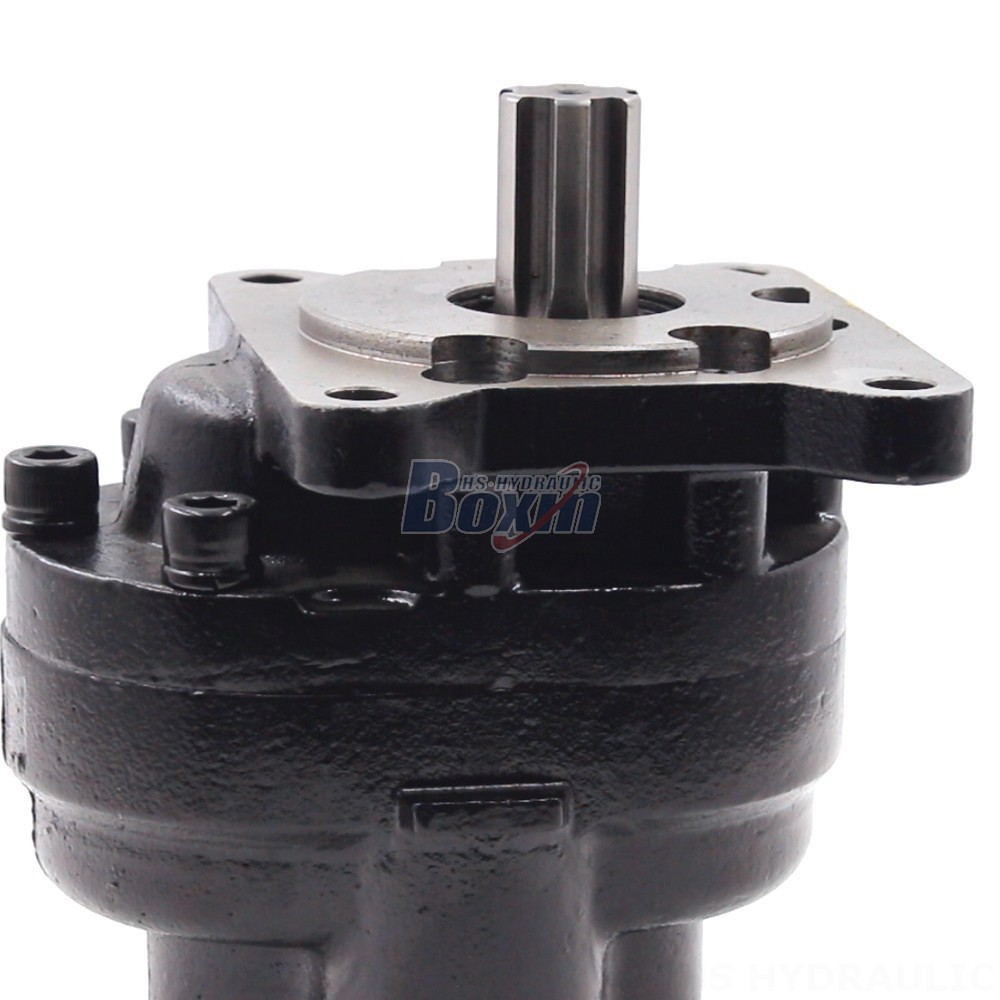

The CBHS-F532 Hydraulic Gear Pump is a high-performance pump designed for use in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. The pump features a displacement of 32 cc/rev, a rated pressure of 20 MPa, and a rated speed of 2000 r/min. The pump is constructed from cast iron and features a B-Square flange and a plain key shaft. The CBHS-F532 is part of the CBHS-F5 Series of hydraulic gear pumps.
| CBHS-F5シリーズ 油圧ギア・ポンプ パラメーター | |
|---|---|
| 変位 | 32 cc/回転, 50 cc/回転, 63 cc/回転, 20 cc/回転 |
| 定格圧力 | 20 MPa (2900 psi) |
| 最大圧力 | 25 MPa (3625 psi) |
| 定格回転速度 | 2000 r/min |
| 最大回転速度 | 2500 r/min |
| 回転方向 | 左 (逆時針), 右 (順時針) |
| 材質 | 鋳鉄 |
| 構造 | 外部齒輪泵 |
| フランジモデル | B-方形凸緣 |
| 軸タイプ | H：矩形花鍵, X：漸開線花鍵, P：プレーンキー |
The CBHS-F532 Hydraulic Gear Pump is a high-performance pump designed for use in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles.
**Key Features**
* Displacement: 32 cc/rev
* Rated Pressure: 20 MPa (2900 psi)
* Rated Speed: 2000 r/min
* Max Speed: 2200 r/min
* Rotation: L: Left (counter-clockwise), R: Right (clockwise)
* Structure: Internal Gear Pump
* Material: Cast Iron
* Flange Version: B-Square Flange
* Shaft Type: P: Plain Key, H: Rectangle Spline, X: Involute Spline
* Series: CBHS-F5 Series
**Applications**
* Material Handling
* Construction and Earth Moving
* Agriculture
* Industrial Vehicles
**Applicable Models**
* Telehandler
* Forklift
* All Terrain Crane
* Stacker
* Aerial Platform
* Motor Grader
* Midi-Excavator
* Mini-Excavator
* Skid Steer Loader
* Compact Wheel Loader
