生産と納品
15~30日の生産リードタイム

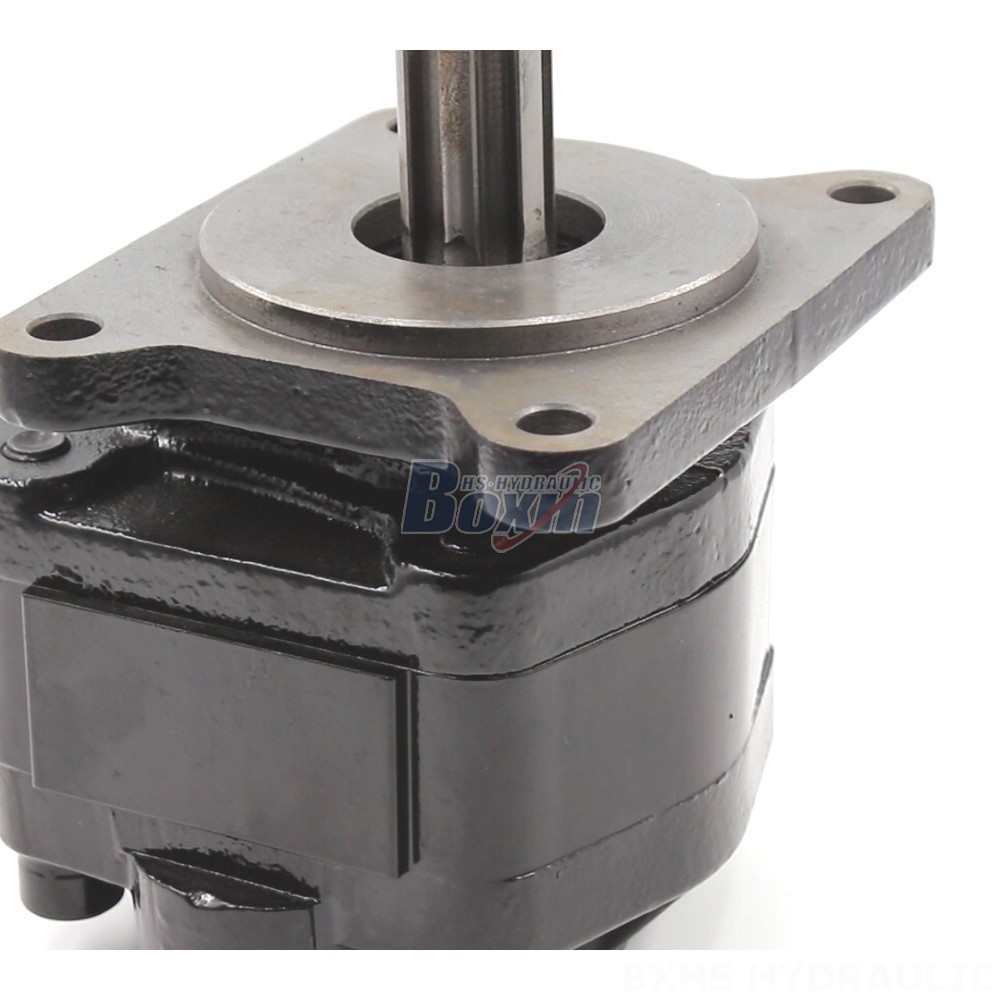

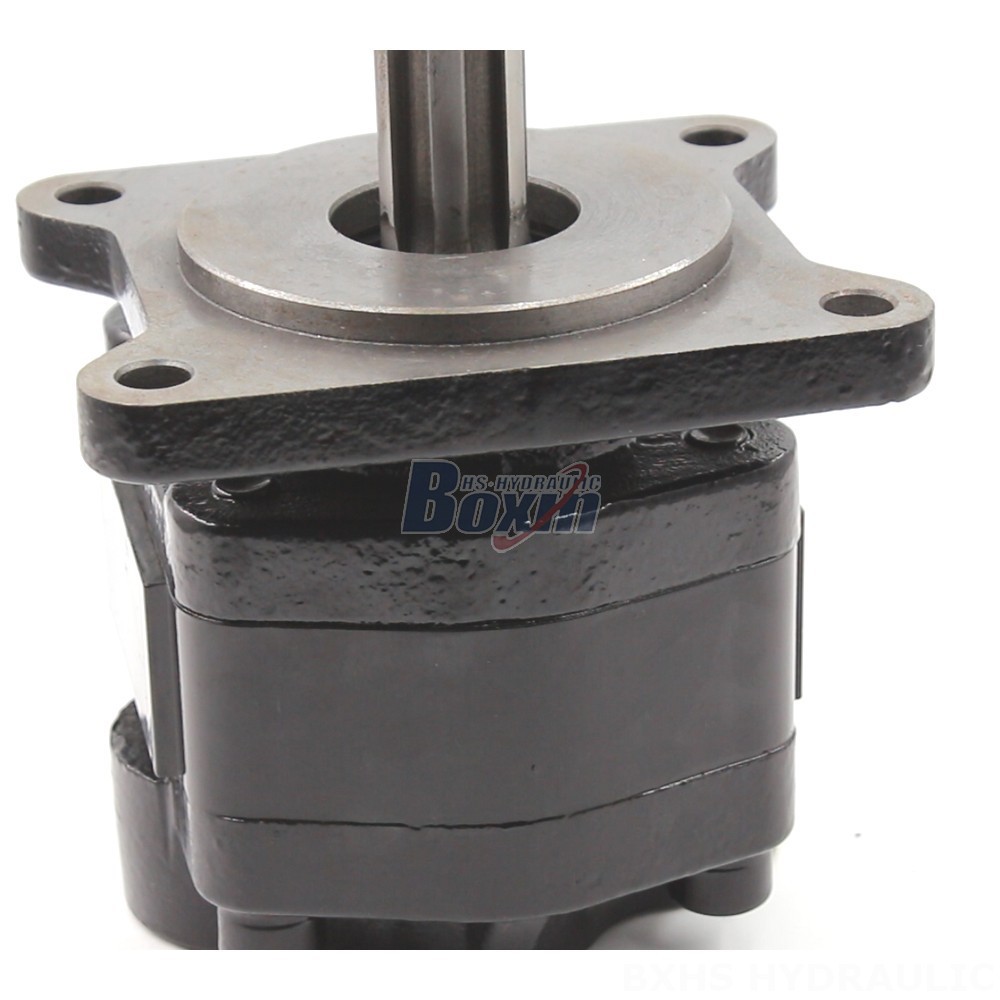

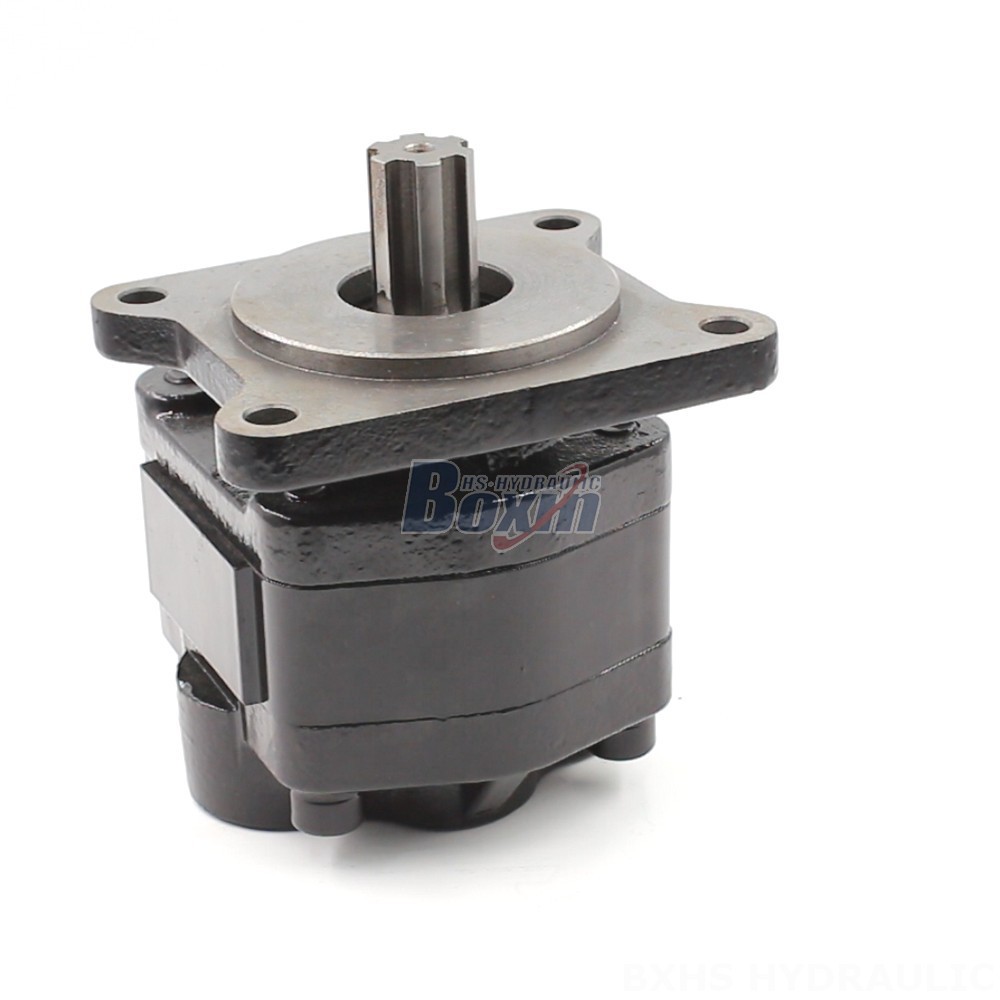

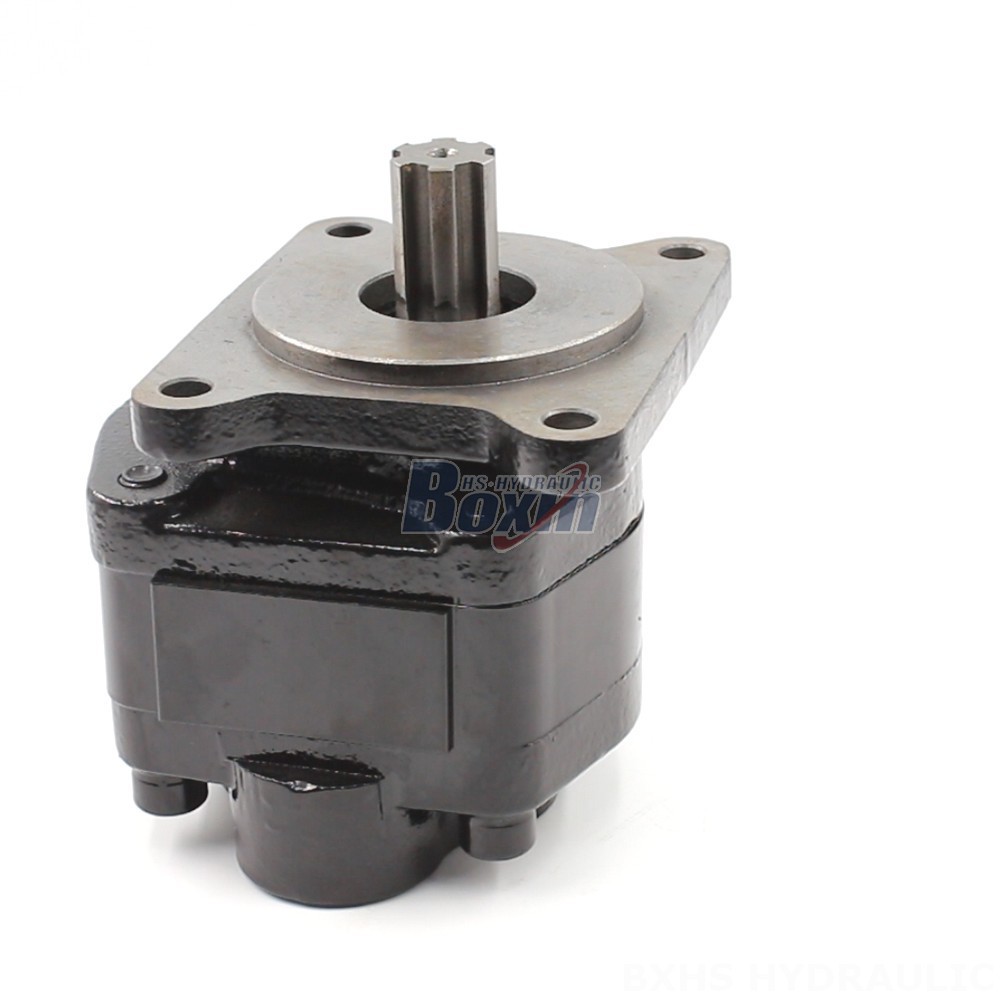

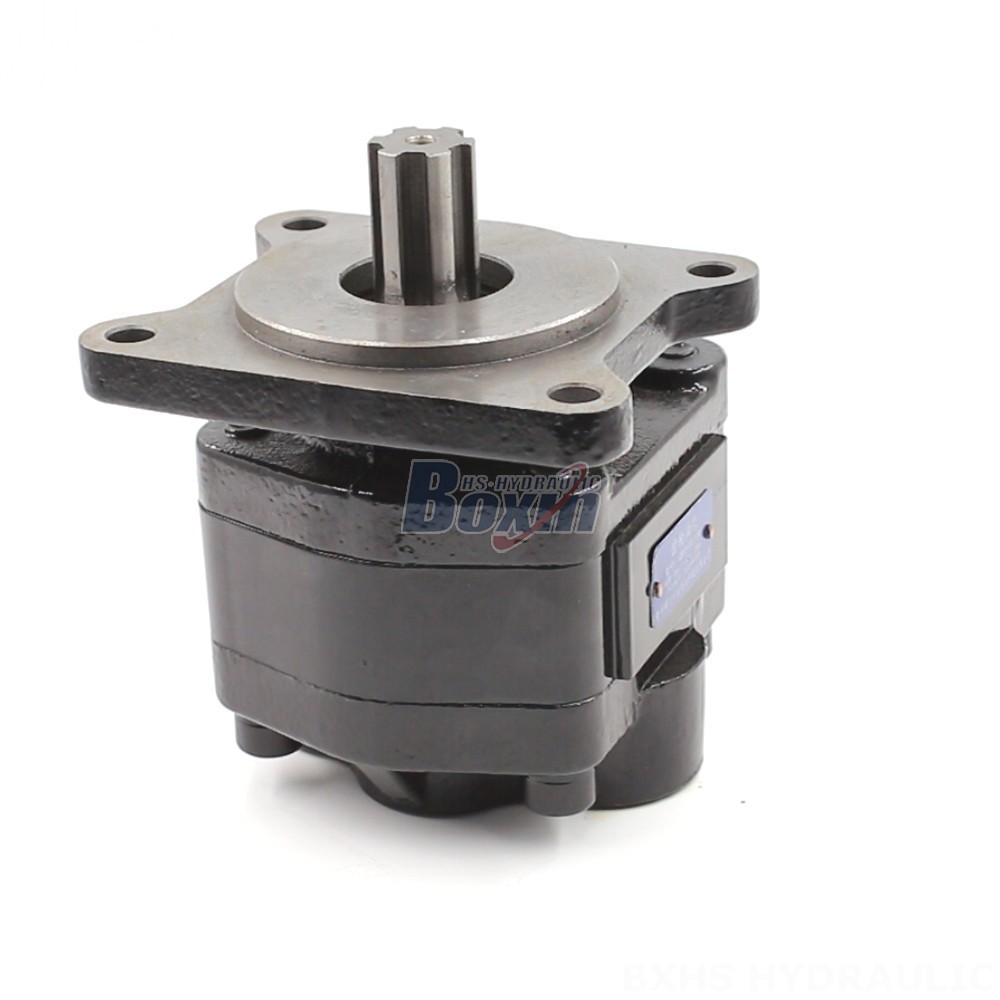

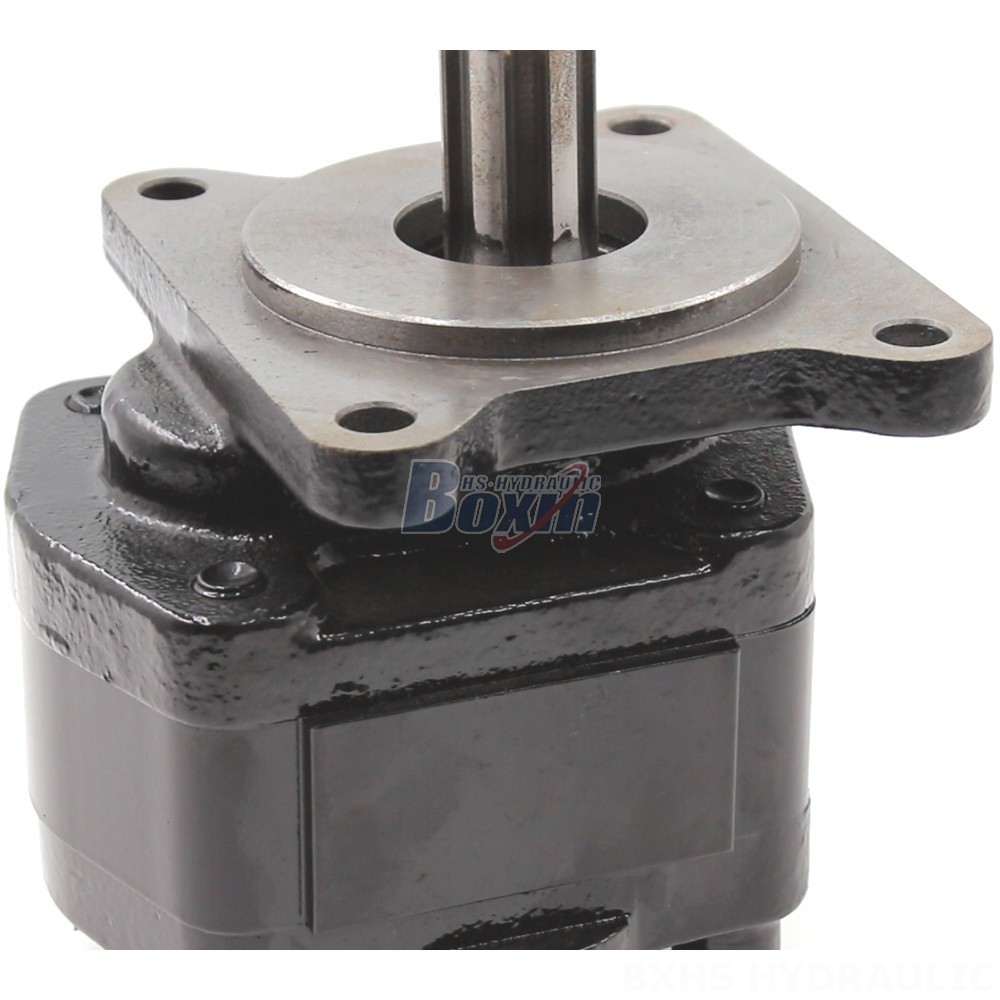

This product is a 20 cc/rev hydraulic gear pump, available in various displacements (32 cc/rev, 50 cc/rev, 63 cc/rev) and shaft types (Plain Key, Rectangle Spline, Involute Spline). It's designed for heavy-duty applications in various industries like material handling, construction, agriculture, and industrial vehicles.
| CBHS-F5シリーズ 油圧ギア・ポンプ パラメーター | |
|---|---|
| 変位 | 32 cc/回転, 50 cc/回転, 63 cc/回転, 20 cc/回転 |
| 定格圧力 | 20 MPa (2900 psi) |
| 最大圧力 | 25 MPa (3625 psi) |
| 定格回転速度 | 2000 r/min |
| 最大回転速度 | 2500 r/min |
| 回転方向 | 左 (逆時針), 右 (順時針) |
| 材質 | 鋳鉄 |
| 構造 | 外部齒輪泵 |
| フランジモデル | B-方形凸緣 |
| 軸タイプ | H:矩形花鍵, X:漸開線花鍵, P:プレーンキー |
The CBHS-F5 Series 20 cc/rev hydraulic gear pump is a robust and reliable power source for various machinery. Featuring a cast iron construction, B-Square flange, and a rated pressure of 20 MPa (2900 psi), this pump delivers high performance and durability. It is available in three displacement options (32 cc/rev, 50 cc/rev, 63 cc/rev) to suit diverse application requirements. Choose from different shaft types (Plain Key, Rectangle Spline, Involute Spline) for compatibility with your existing system. This pump is ideal for use in material handling equipment like forklifts and telehandlers, construction and earth moving machines such as mini-excavators, midi-excavators, skid steer loaders, and compact wheel loaders, as well as agricultural machinery like tractors and harvesters.
