生産と納品
15~30日の生産リードタイム

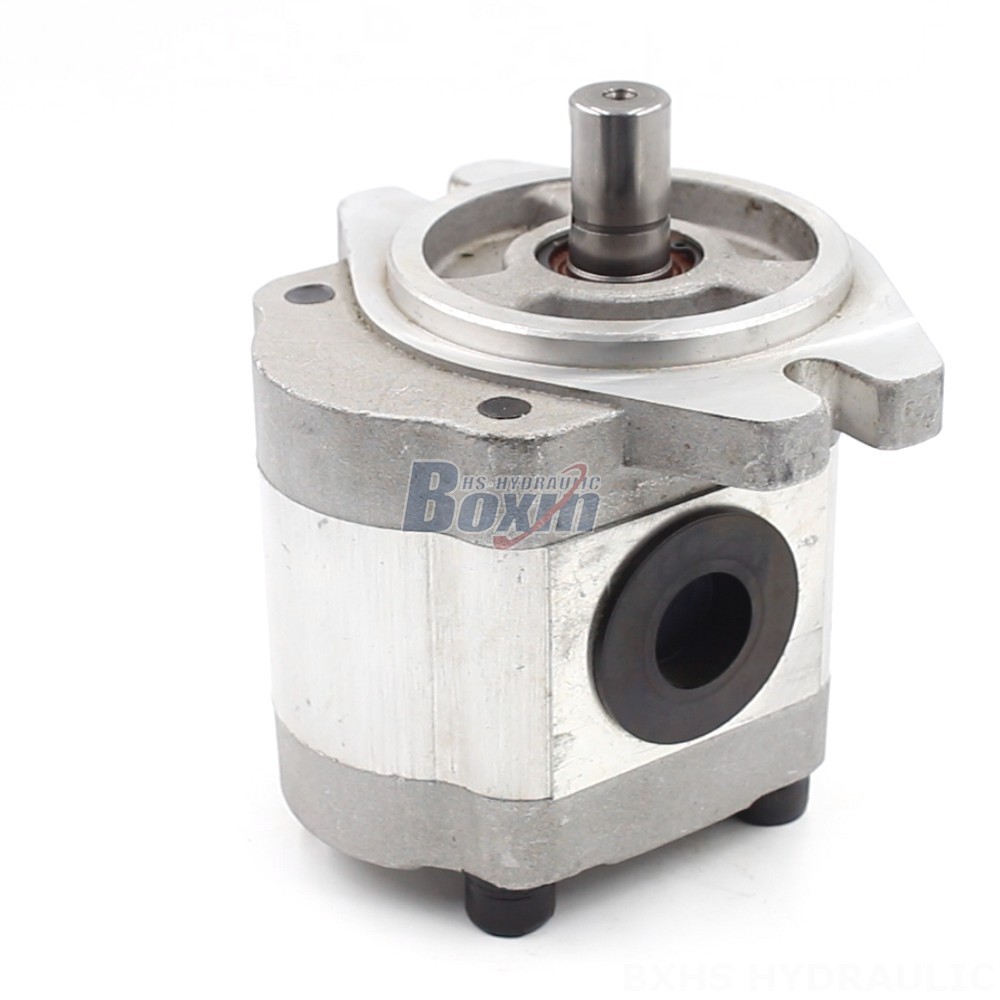

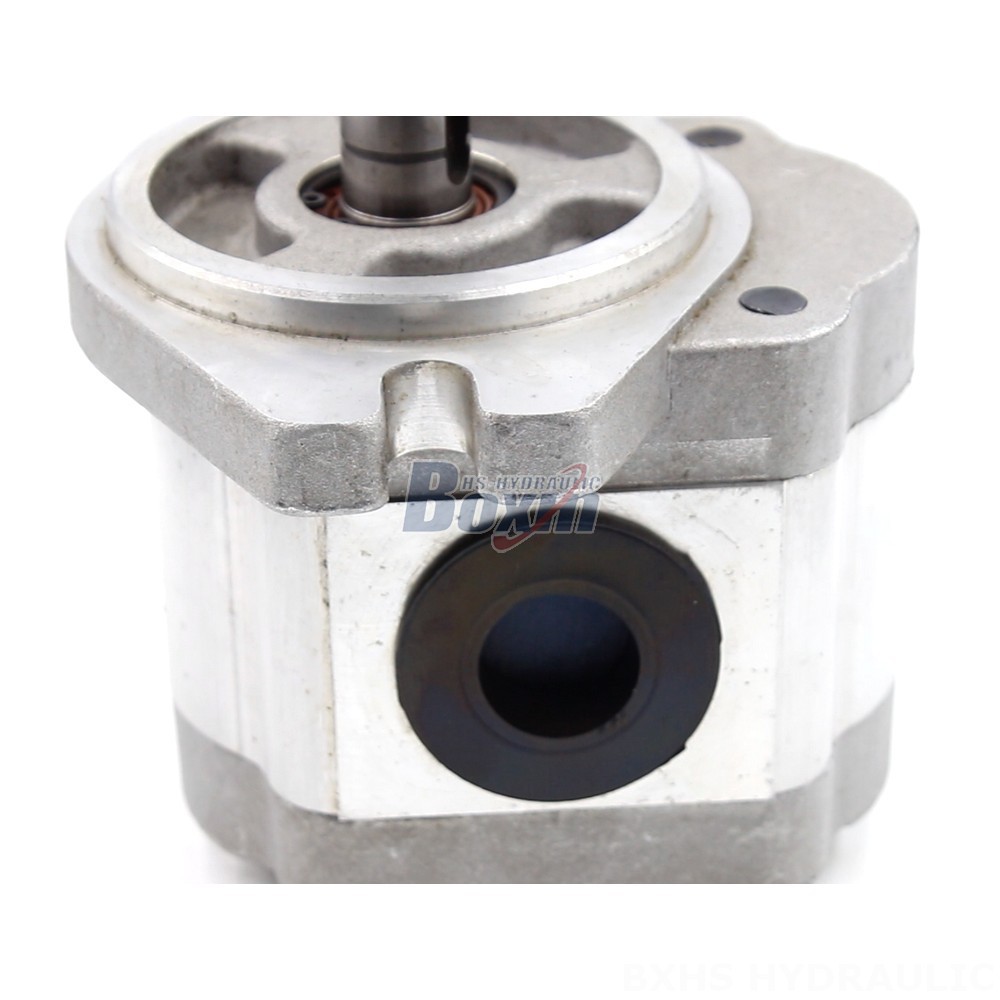

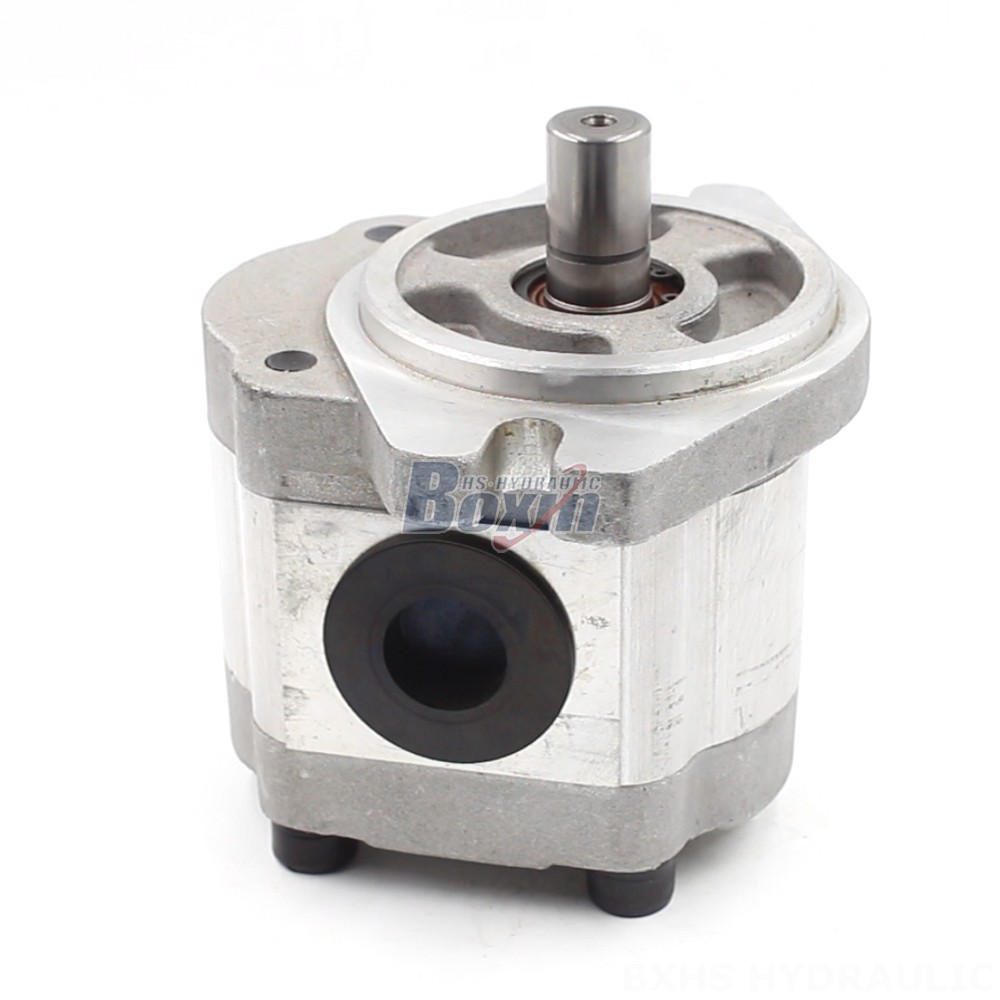

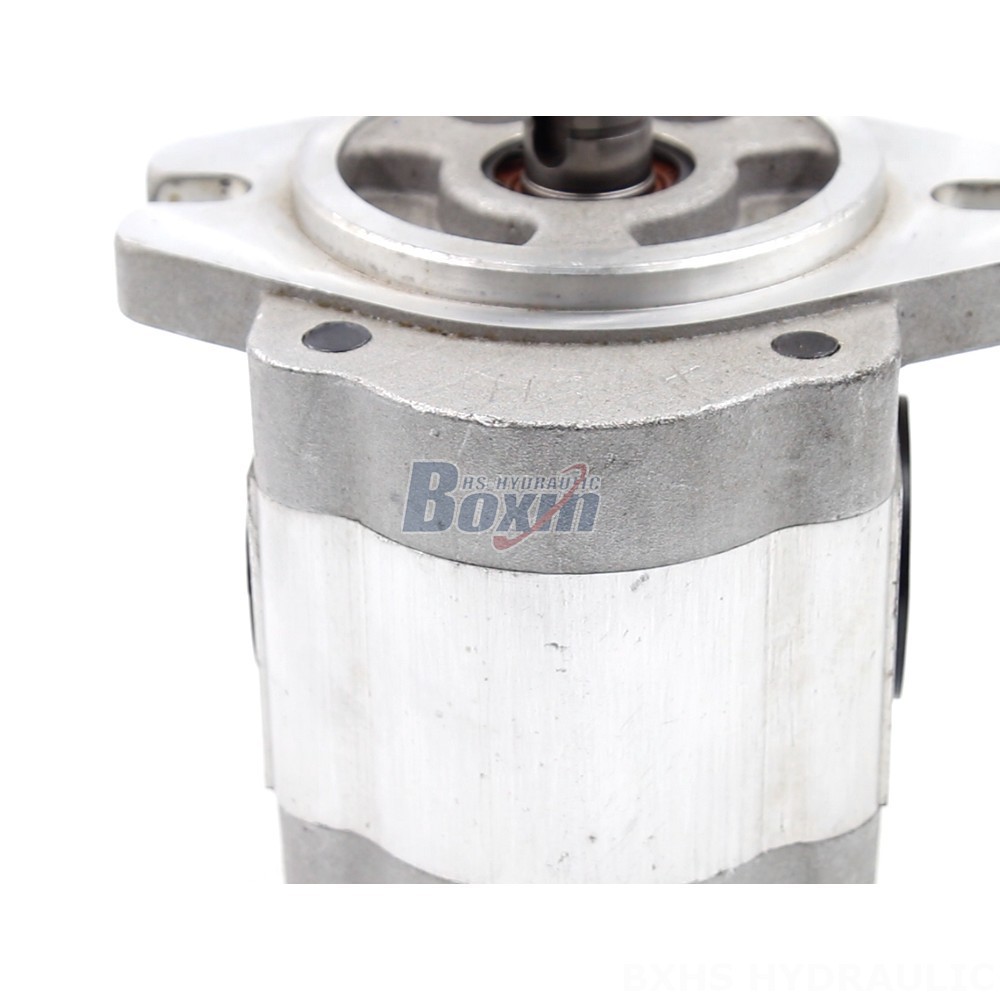

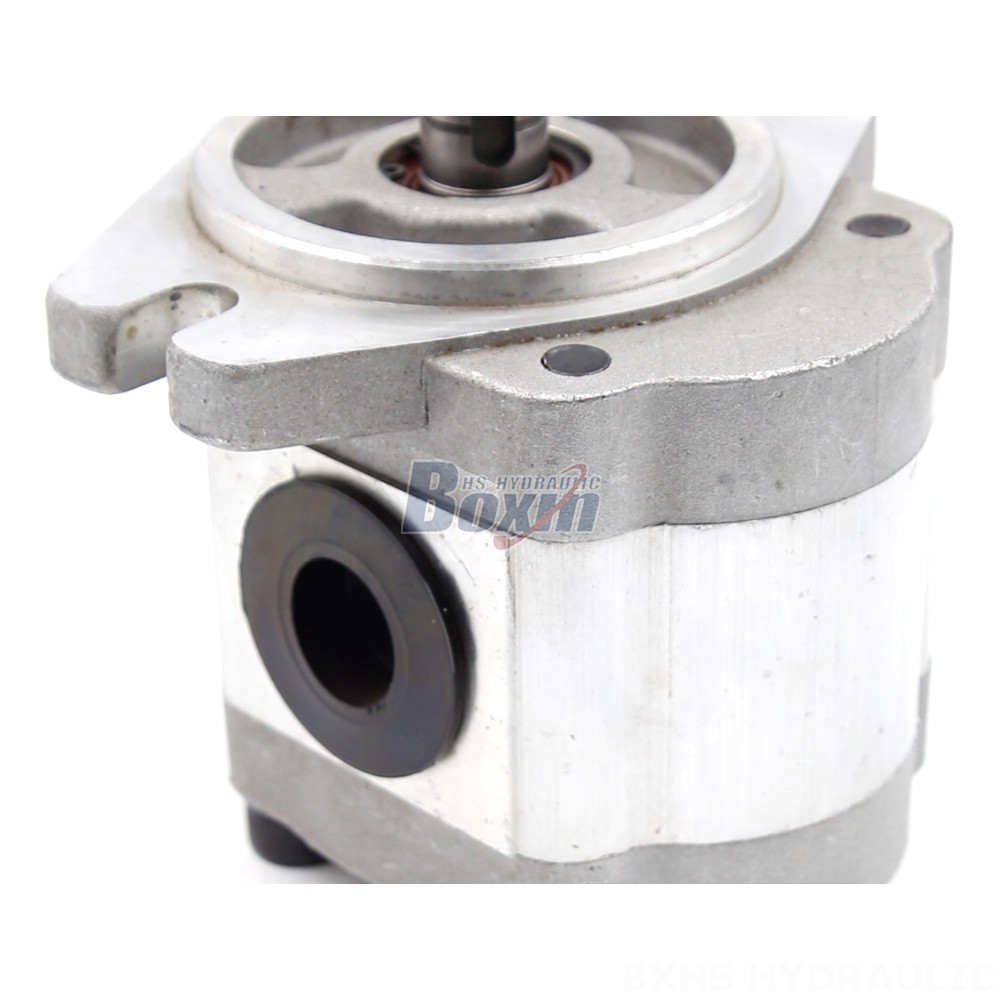

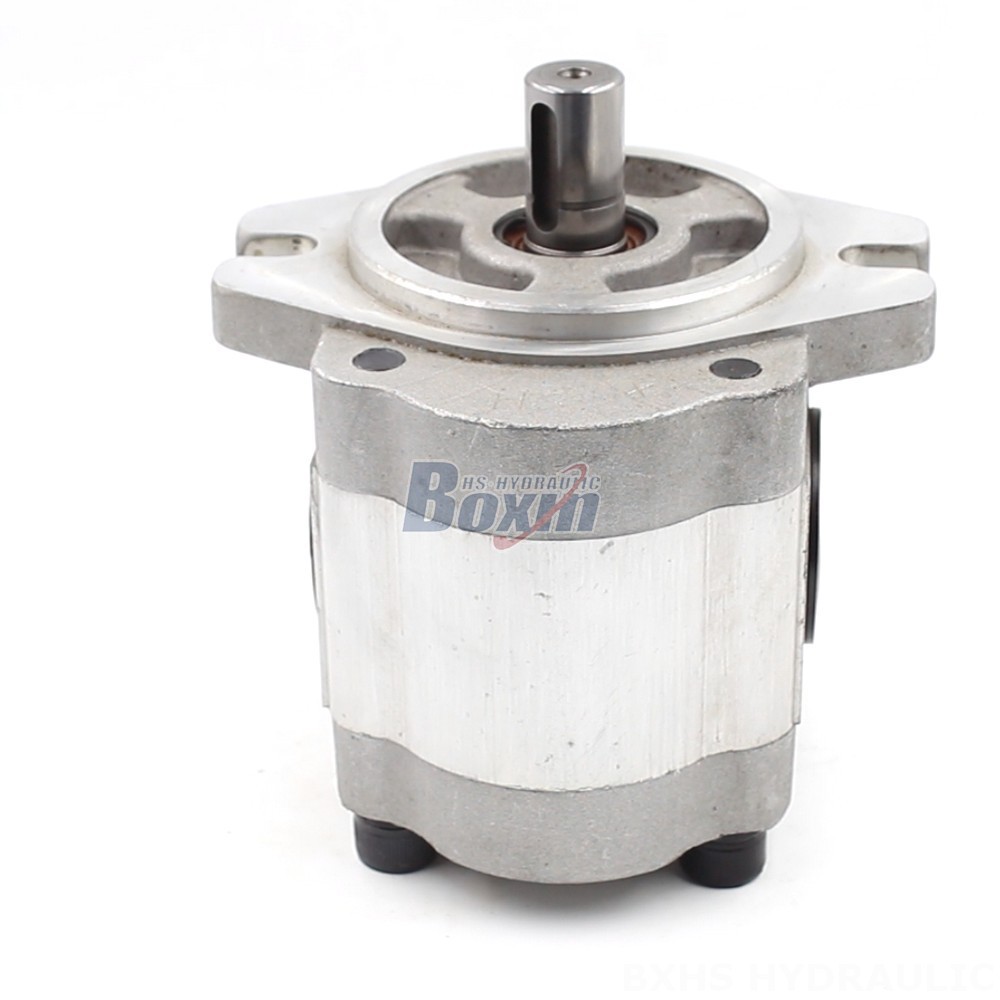

This high-quality hydraulic gear pump offers a displacement of 10 cc/rev, rated pressure of 20 MPa (2900 psi), and rated speed of 2000 r/min. It is available in various configurations and is ideal for use in a wide range of applications including construction, agriculture, and industrial vehicles.
| CBHS-FL3 シリーズ 油圧ギア・ポンプ パラメーター | |
|---|---|
| 変位 | 10 cc/回転, 4 cc/回転, 20 cc/回転, 16 cc/回転, 14 cc/回転, 6 cc/回転 |
| 定格圧力 | 20 MPa (2900 psi) |
| 最大圧力 | 25 MPa (3625 psi) |
| 定格回転速度 | 2000 r/min |
| 最大回転速度 | 3000 r/min |
| 回転方向 | 左 (逆時針), 右 (順時針) |
| 材質 | 鋁 |
| 構造 | 外部齒輪泵 |
| フランジモデル | A-橢圓形凸緣 |
| 軸タイプ | H:矩形花鍵, X:漸開線花鍵, P:プレーンキー |
This 6 cc/rev Hydraulic Gear Pump is manufactured with high-quality materials and is designed for durability and reliability. It features an A-Oval flange and a Plain Key shaft, making it compatible with a variety of applications. The pump offers a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min. It is also customizable to meet specific requirements. This pump is ideal for use in construction equipment, agricultural machinery, and industrial vehicles. It is particularly well-suited for telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, tractors and front-end loaders, harvesters, balers, and sprayers. As a manufacturer, we offer factory direct pricing, OEM, ODM, and private label services. We are also actively seeking distributors, wholesalers, agents, and traders to expand our global reach.
