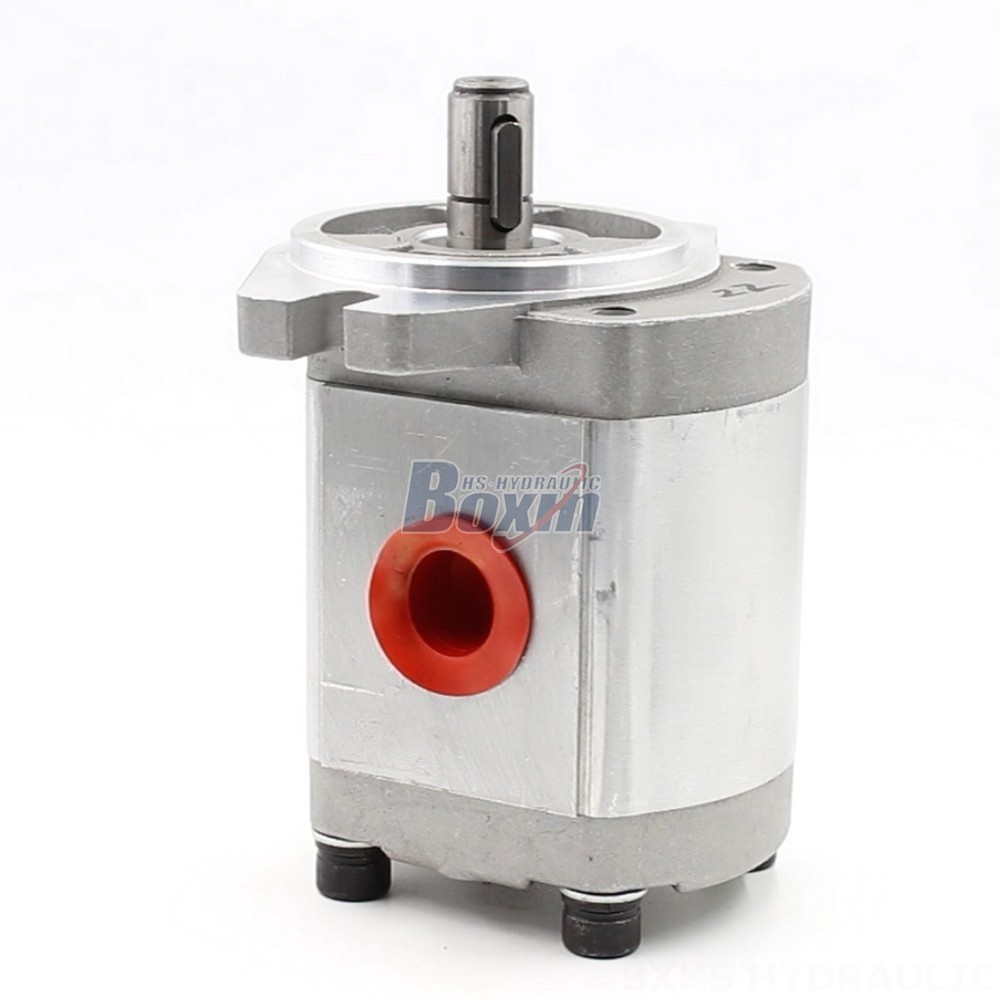

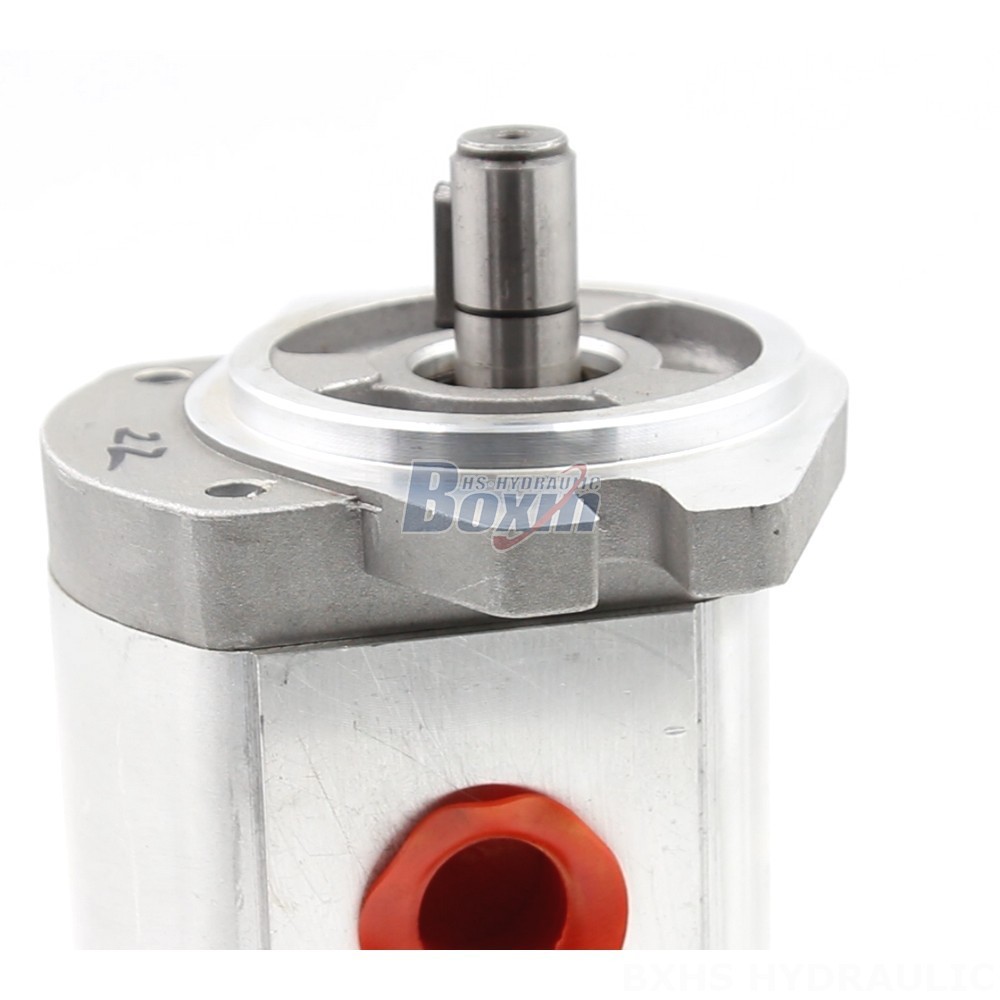

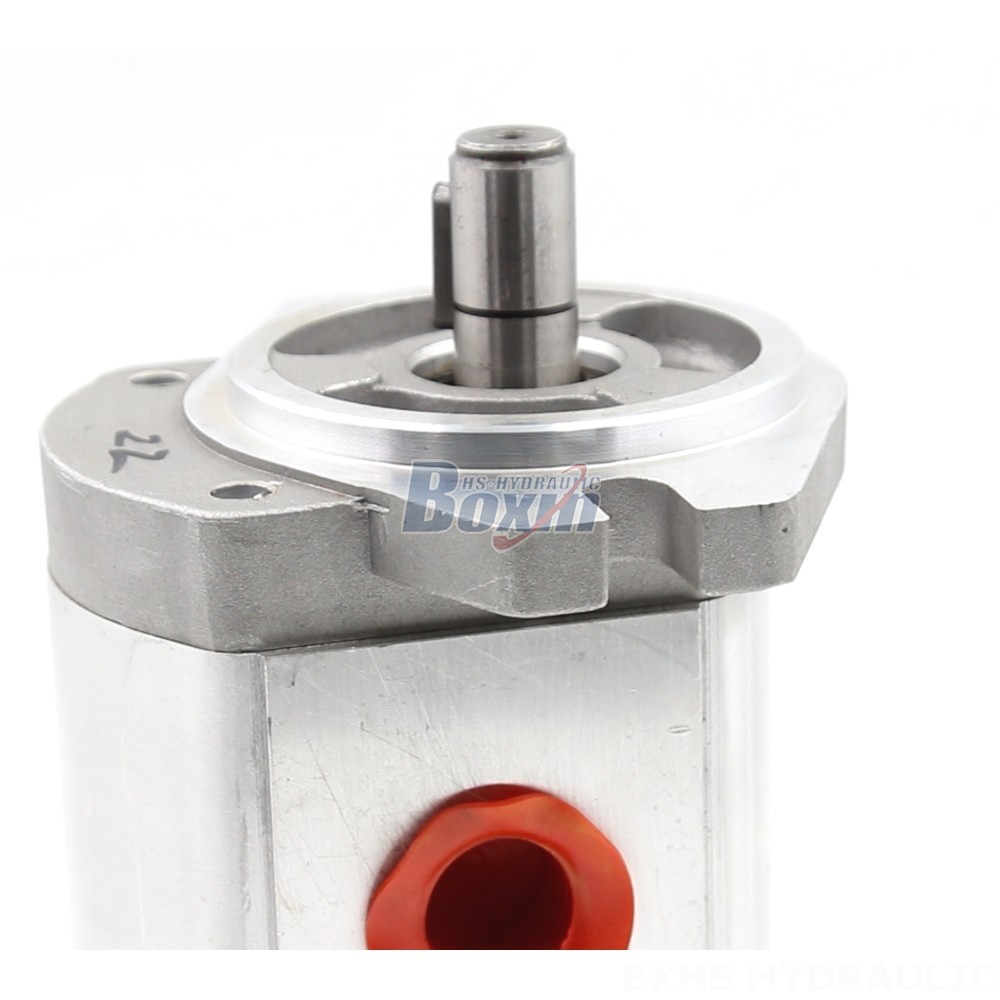

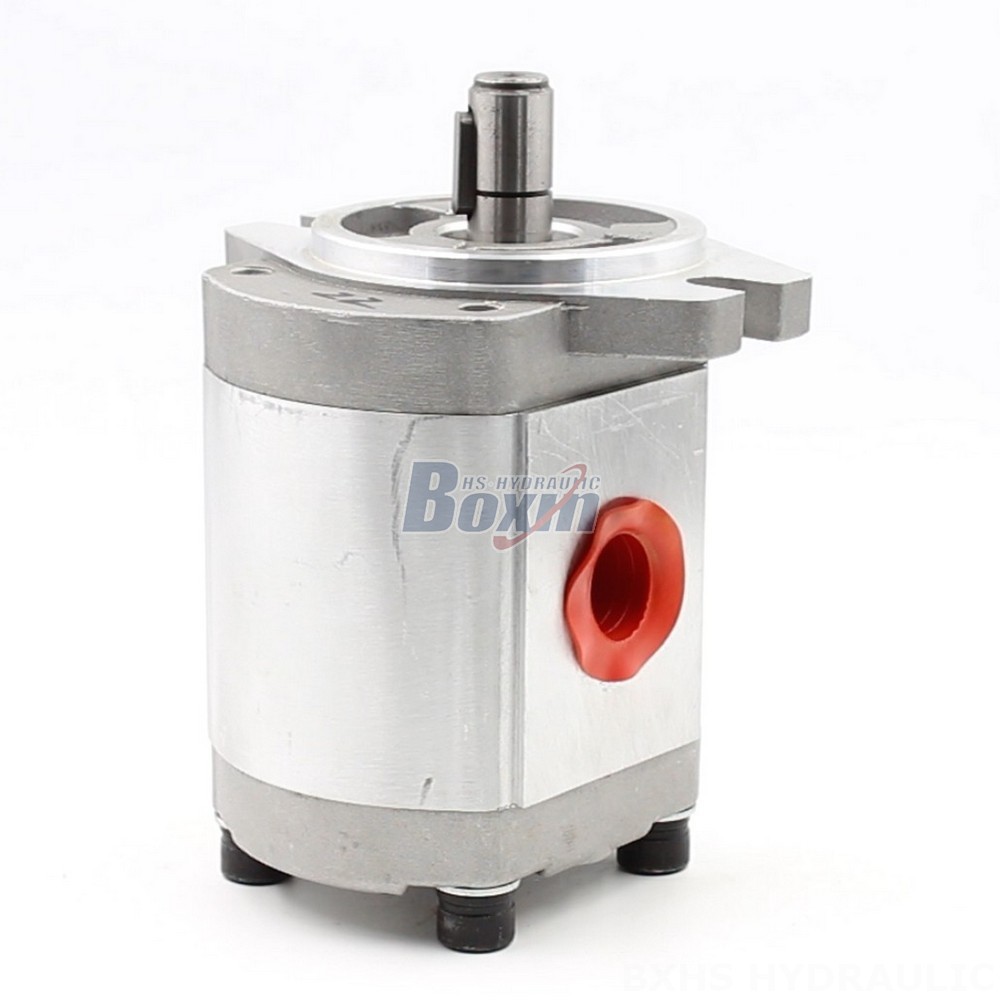

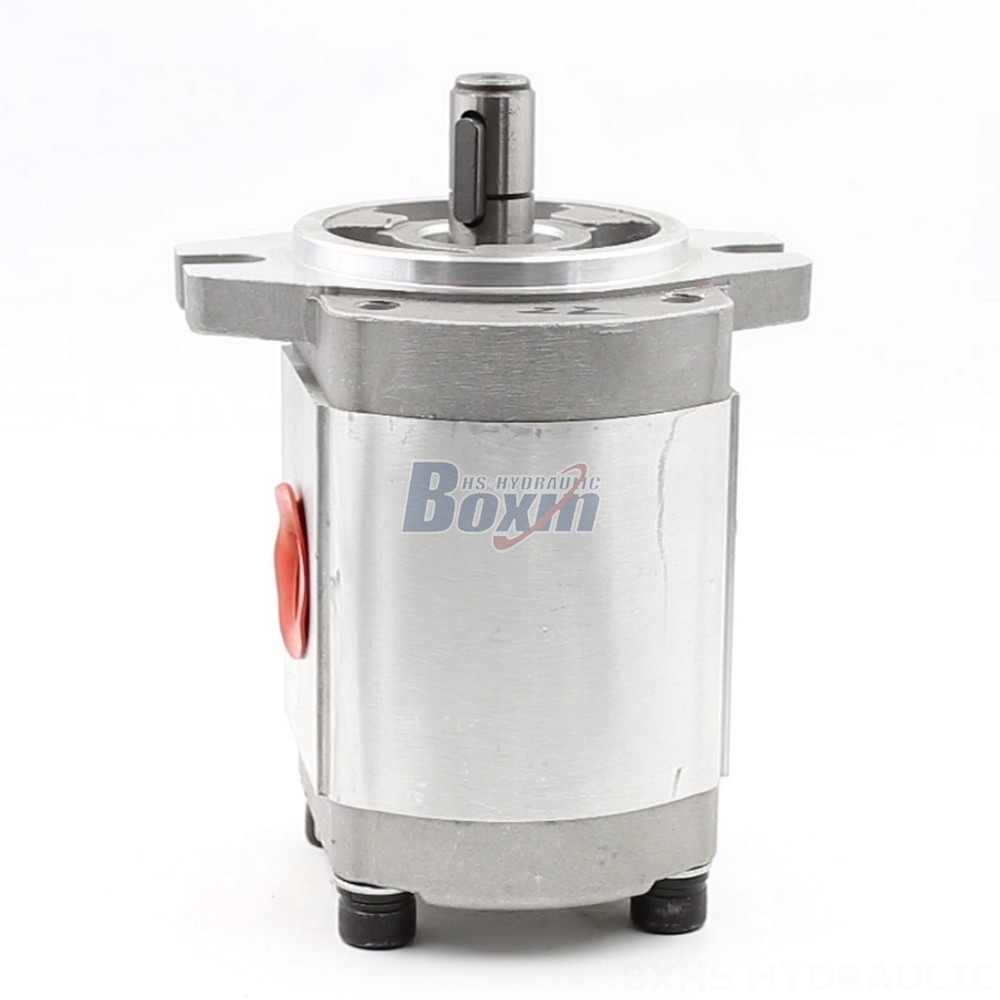

4 cc/rev Hydraulic Gear Pump - CBHS-FL304 | Factory Direct & Customizable

変位:4 cc/回転

定格圧力:20 MPa (2900 psi)

最大圧力:25 MPa (3625 psi)

最大回転速度:3000 r/min

回転方向:右 (順時針)

ベンダー:BXHS

製品タイプ:油圧ギア・ポンプ

製品シリーズ:CBHS-FL3 シリーズ 油圧ギア・ポンプ

梱包サイズ:20*30*20

総重量:9.00 kg

在庫状況: 在庫あり

1726 この製品を探している人もいます

4 cc/rev Hydraulic Gear Pump - CBHS-FL304 | Factory Direct & Customizable

4 cc/rev Hydraulic Gear Pump - CBHS-FL304 | Factory Direct & Customizable

4 cc/rev Hydraulic Gear Pump - CBHS-FL304 | Factory Direct & Customizable drawing image

The CBHS-FL304 4 cc/rev Hydraulic Gear Pump is a high-performance, durable pump designed for use in a wide range of applications, including construction, agriculture, industrial vehicles, and material handling. It is available in various configurations and is customizable to meet specific requirements.

CBHS-FL3 シリーズ 油圧ギア・ポンプ パラメーター
変位 10 cc/回転, 4 cc/回転, 20 cc/回転, 16 cc/回転, 14 cc/回転, 6 cc/回転
定格圧力 20 MPa (2900 psi)
最大圧力 25 MPa (3625 psi)
定格回転速度 2000 r/min
最大回転速度 3000 r/min
回転方向 左 (逆時針), 右 (順時針)
材質
構造 外部齒輪泵
フランジモデル A-橢圓形凸緣
軸タイプ H:矩形花鍵, X:漸開線花鍵, P:プレーンキー

This CBHS-FL304 4 cc/rev Hydraulic Gear Pump is a robust and reliable component for various machinery. It is a factory direct product, meaning you are getting it straight from the manufacturer, ensuring competitive pricing and direct communication. Furthermore, the pump is customizable, allowing you to tailor it to your specific needs and application. The pump boasts a displacement of 10 cc/rev and a rated pressure of 20 MPa (2900 psi), making it suitable for demanding applications. Its rated speed is 2000 r/min with a maximum speed of 3000 r/min. The pump is available in both left and right rotation options. Constructed with an internal gear pump design using high-quality aluminium, it is durable and built to withstand demanding environments. The pump comes with an A-Oval Flange and Plain Key shaft for easy integration and compatibility with various machinery. The CBHS-FL304 pump is designed to be utilized in a wide array of machinery, including telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors and front-end loaders, harvesters, and balers. This versatile pump ensures its suitability across different applications within the construction, agriculture, industrial vehicles, and material handling sectors.
