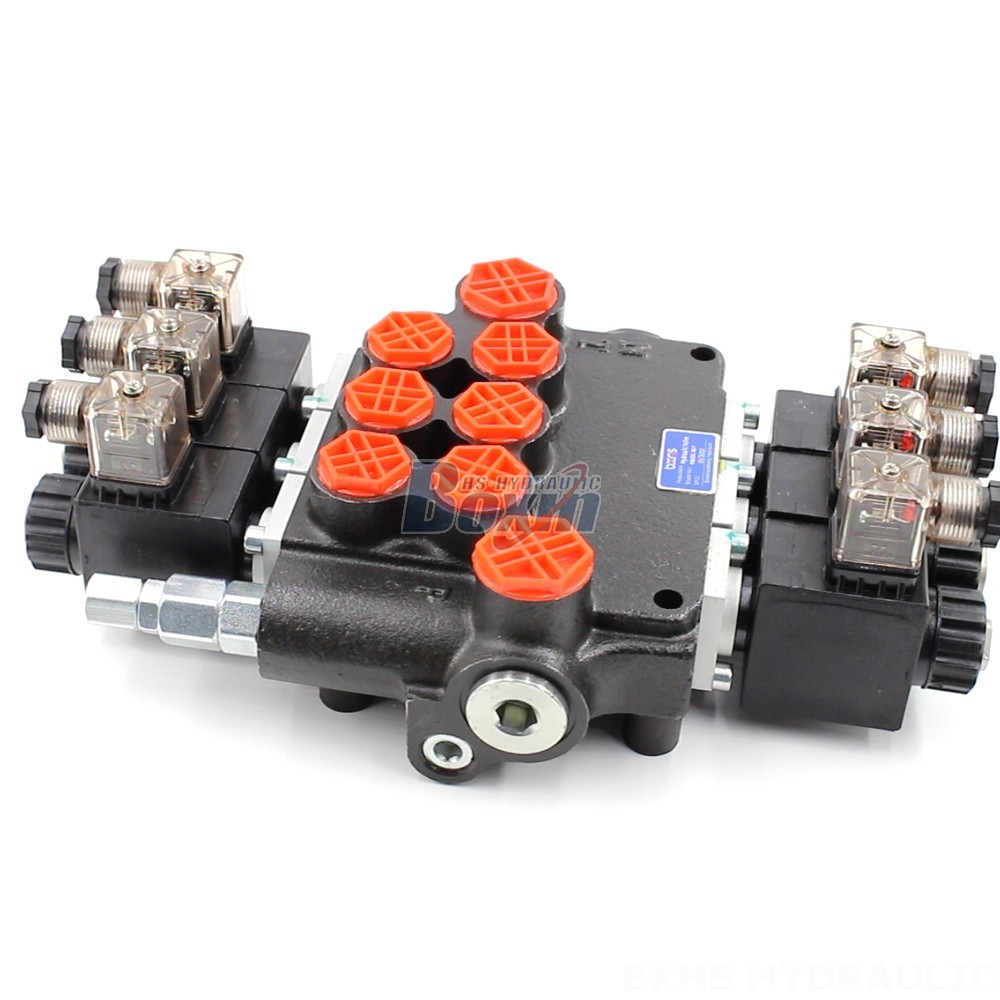

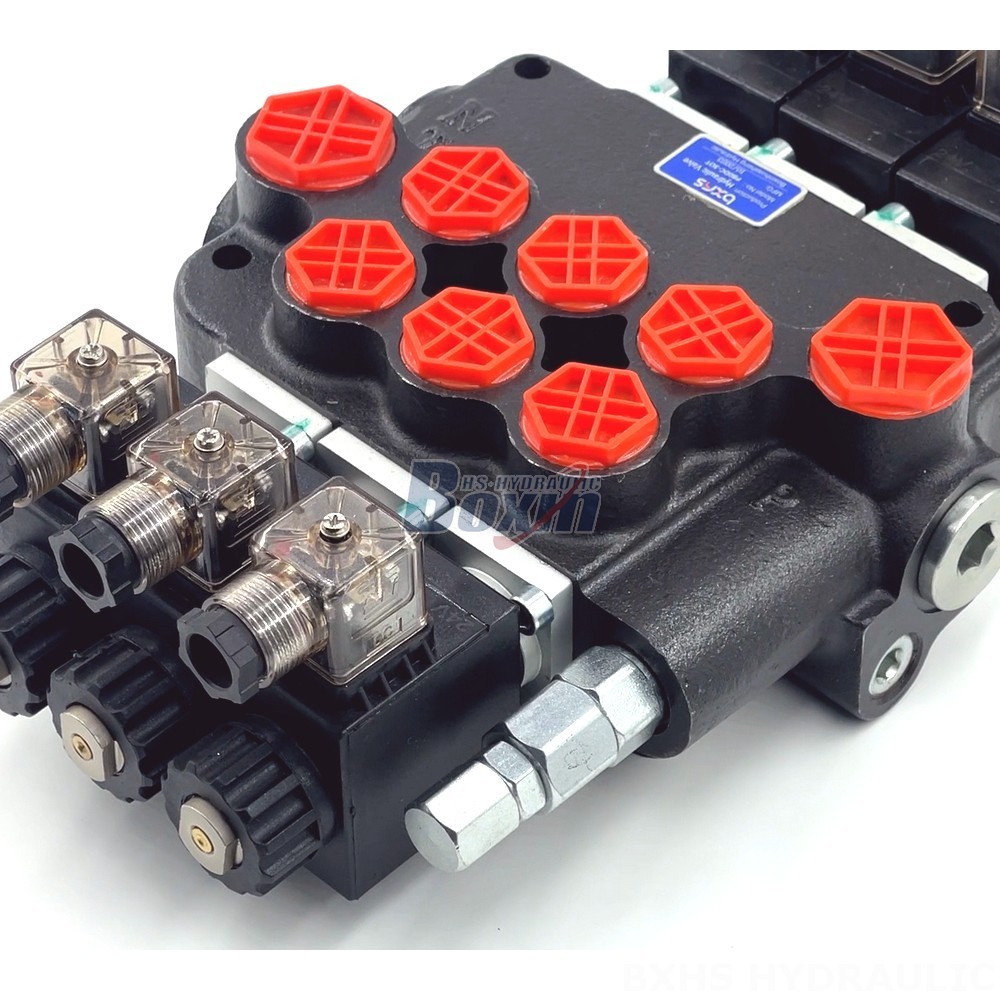

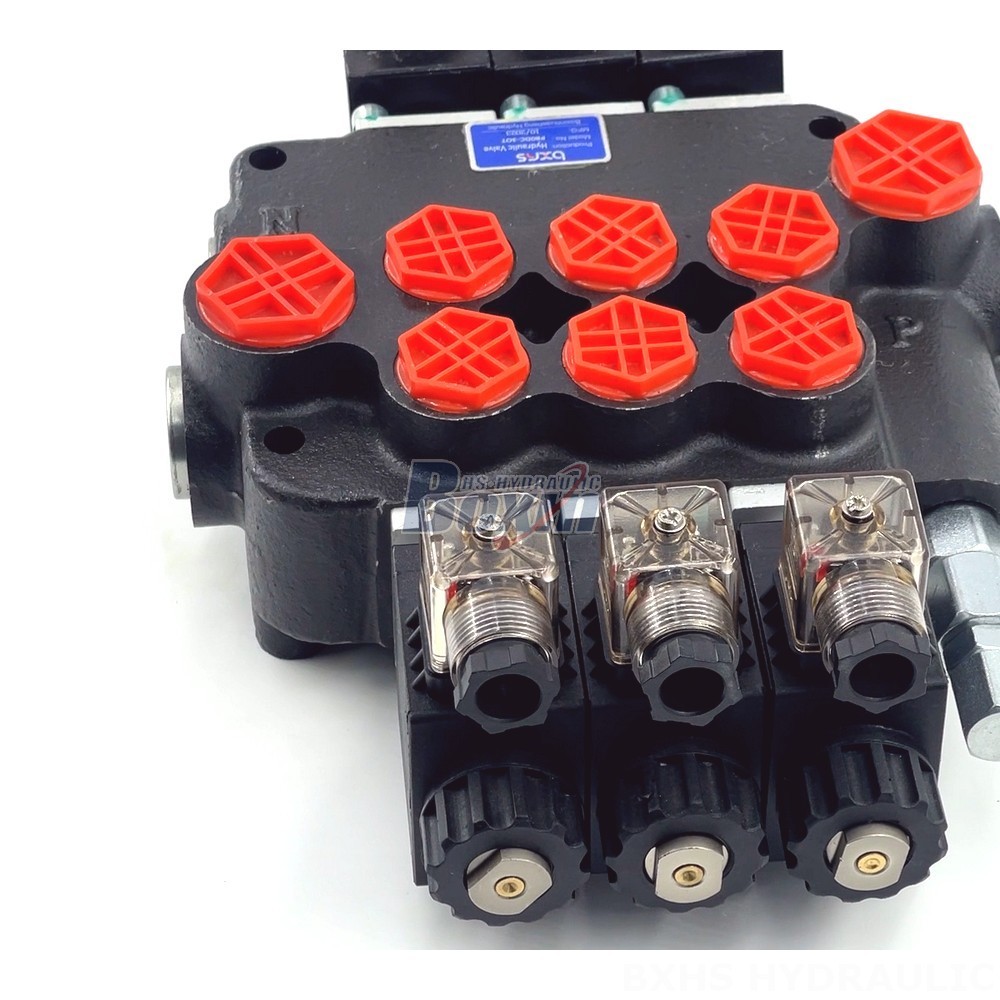

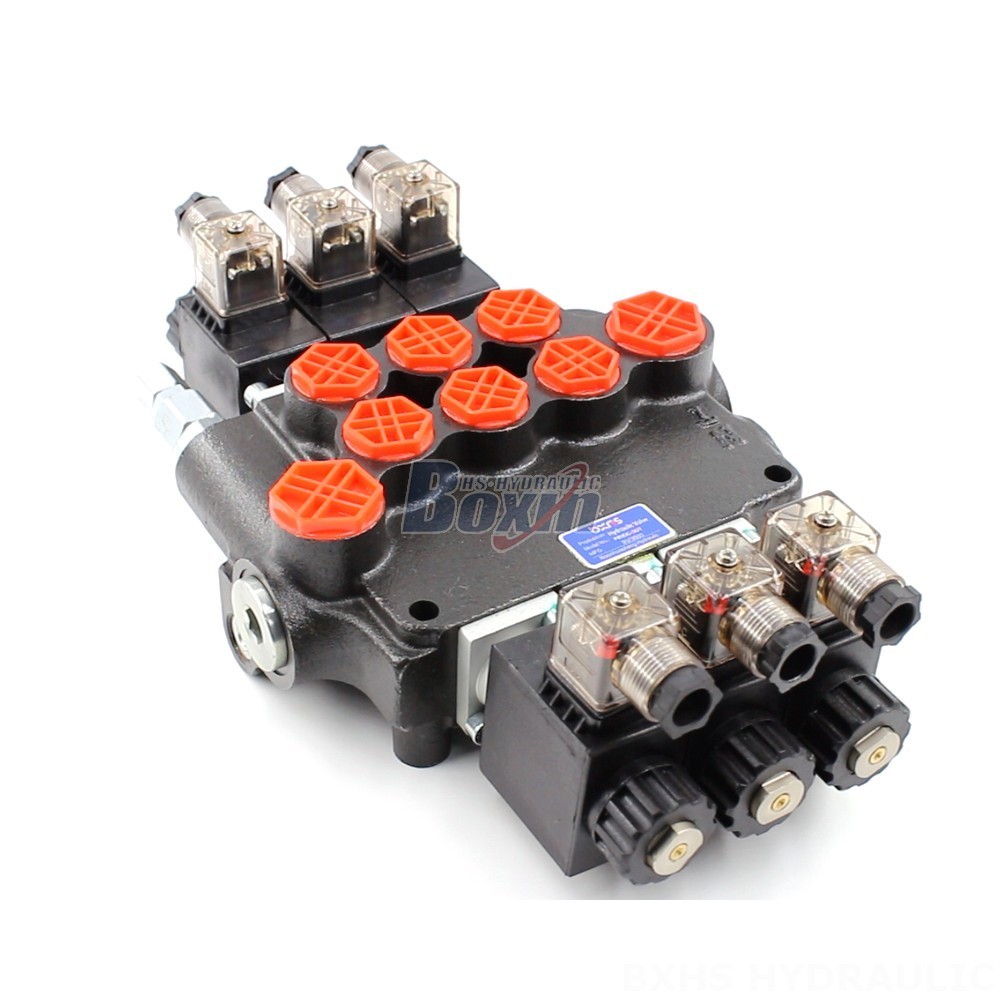

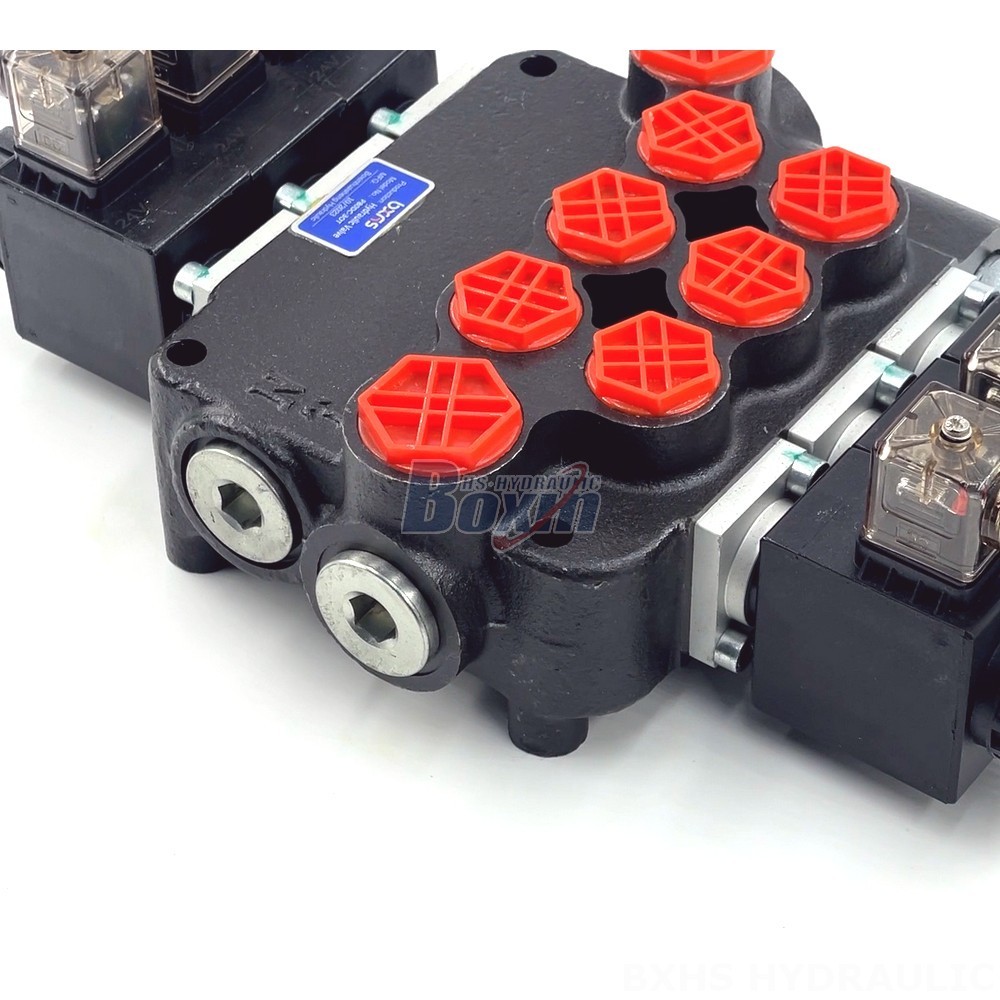

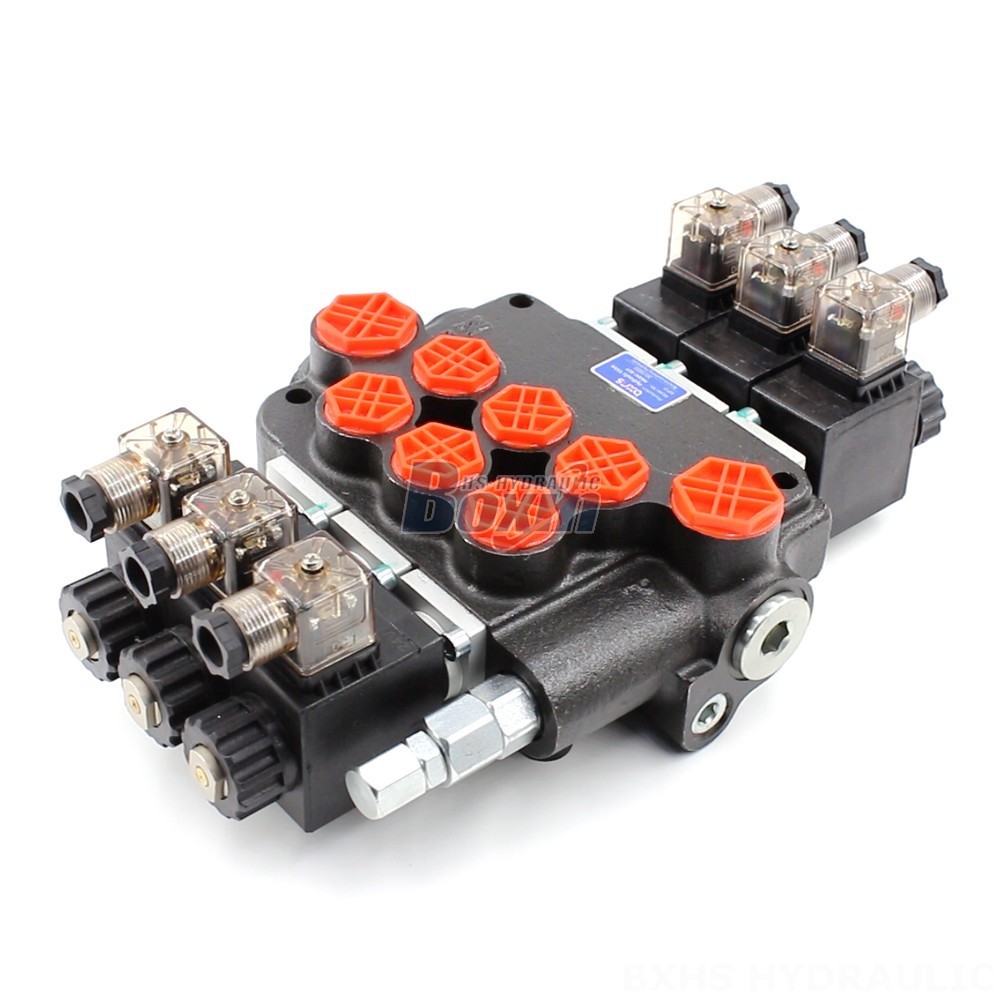

3-Spool Monoblock Valve | P80 Series | Factory Direct

制御方法:ソレノイド

スプール:3スプール

定格流量:毎分80リットル (21.2 US gpm)

最大圧力:200 bar (2900 psi)

吸入口:G3/4

吐出口:G3/4

ポートサイズ:G1/2

ベンダー:BXHS

製品タイプ:モノブロック方向制御弁

製品シリーズ:P80シリーズ モノブロック方向制御弁

梱包サイズ:33*28*13

総重量:13.00 kg

在庫状況: 在庫あり

1300 この製品を探している人もいます

3-Spool Monoblock Valve | P80 Series | Factory Direct

3-Spool Monoblock Valve | P80 Series | Factory Direct

3-Spool Monoblock Valve | P80 Series | Factory Direct drawing image

The P80 Series 3-Spool Monoblock Directional Control Valve is a high-performance hydraulic valve designed for use in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. This valve features a compact design, high flow rate, and durable construction, making it ideal for demanding applications.

P80シリーズ モノブロック方向制御弁 パラメーター
制御方法 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, 手動・ジョイスティック
スプール 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール
周囲温度範囲 -40°C to +80°C (-40°F to +176°F)
構造タイプ モノブロック弁
セクション 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション
作動粘度範囲 15 - 75 mm²/s (15 cSt to 75 cSt)
定格流量 毎分80リットル (21.2 US gpm)
最大圧力 315 bar (4600 psi)
吸入口 G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
吐出口 G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
ポートサイズ G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

The P80 Series 3-Spool Monoblock Directional Control Valve is a powerful and versatile hydraulic component designed for demanding applications. It offers a high flow rate of 80 L/min (21.2 US gpm) and a maximum pressure rating of 250 bar (3600 psi), making it suitable for a wide range of heavy-duty machinery. The valve's compact monoblock design ensures robust performance and durability, while its solenoid control system provides precise and responsive operation. This valve is specifically designed for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. It is manufactured to meet the highest quality standards and is backed by a comprehensive warranty.
