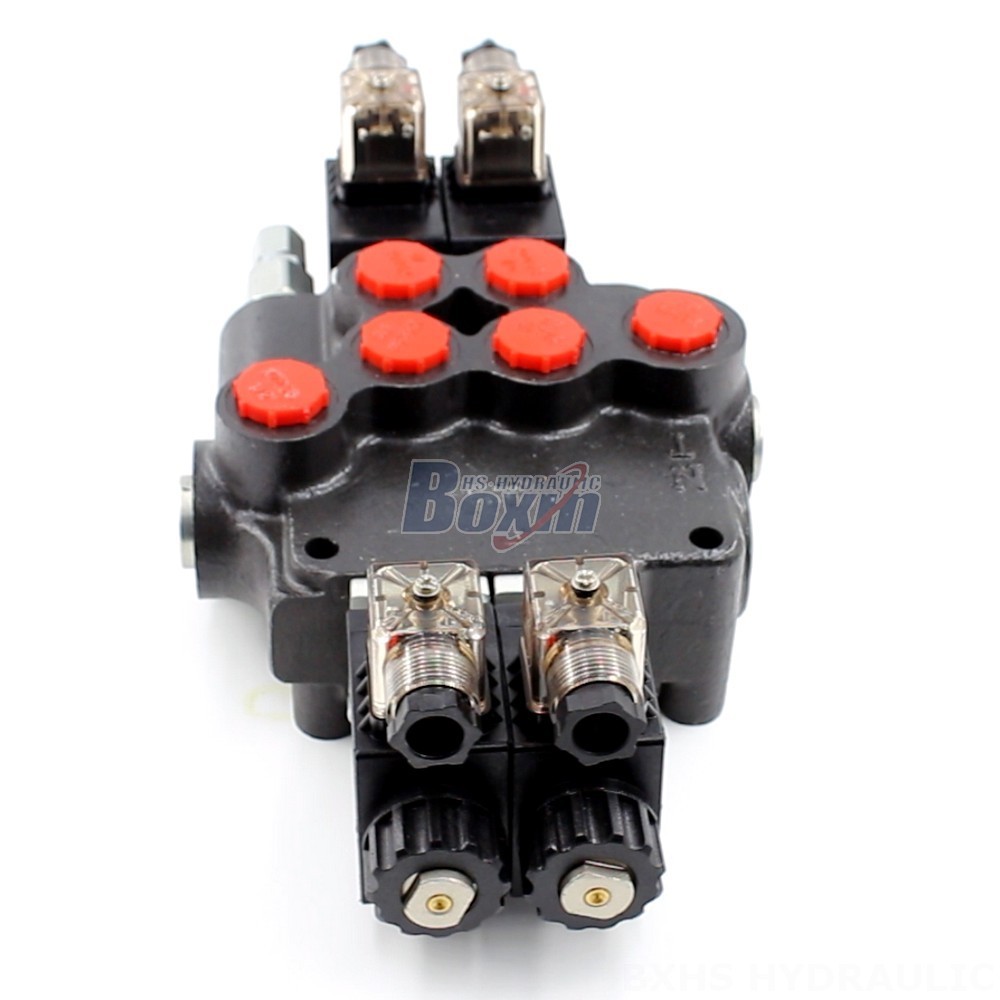

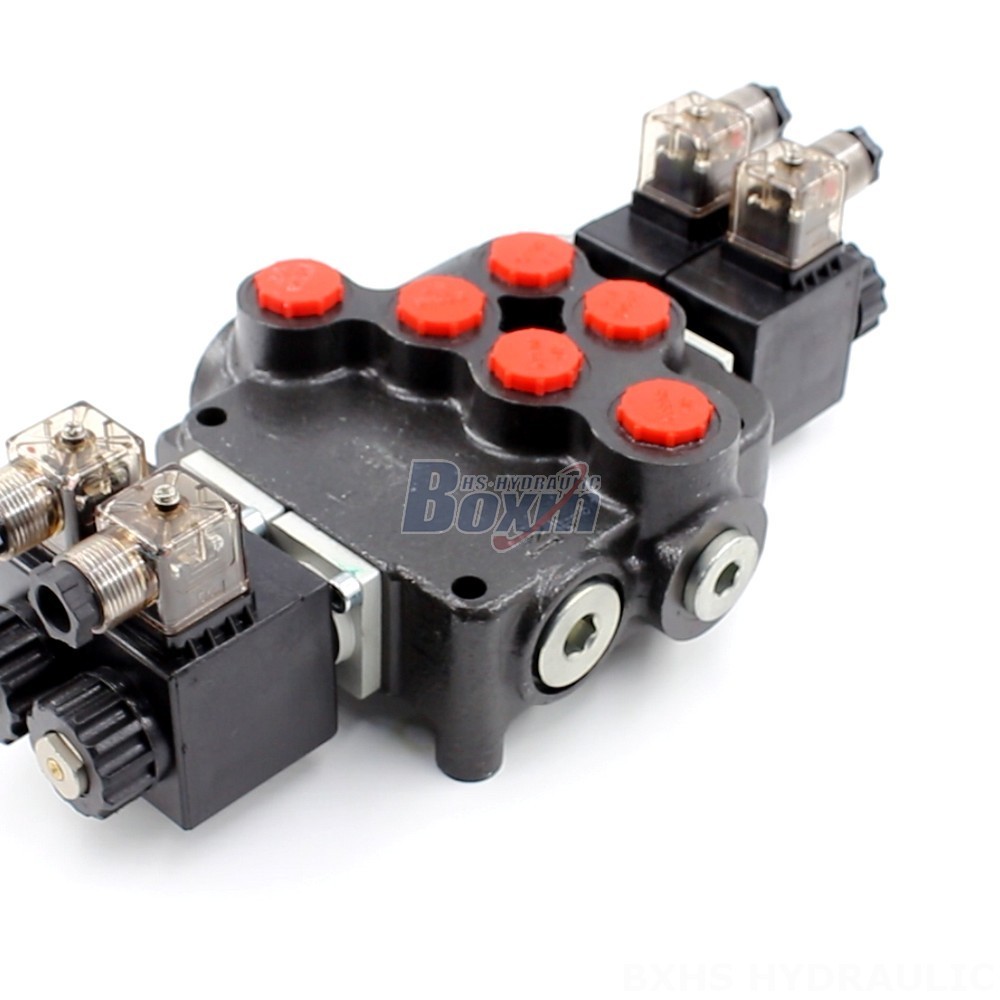

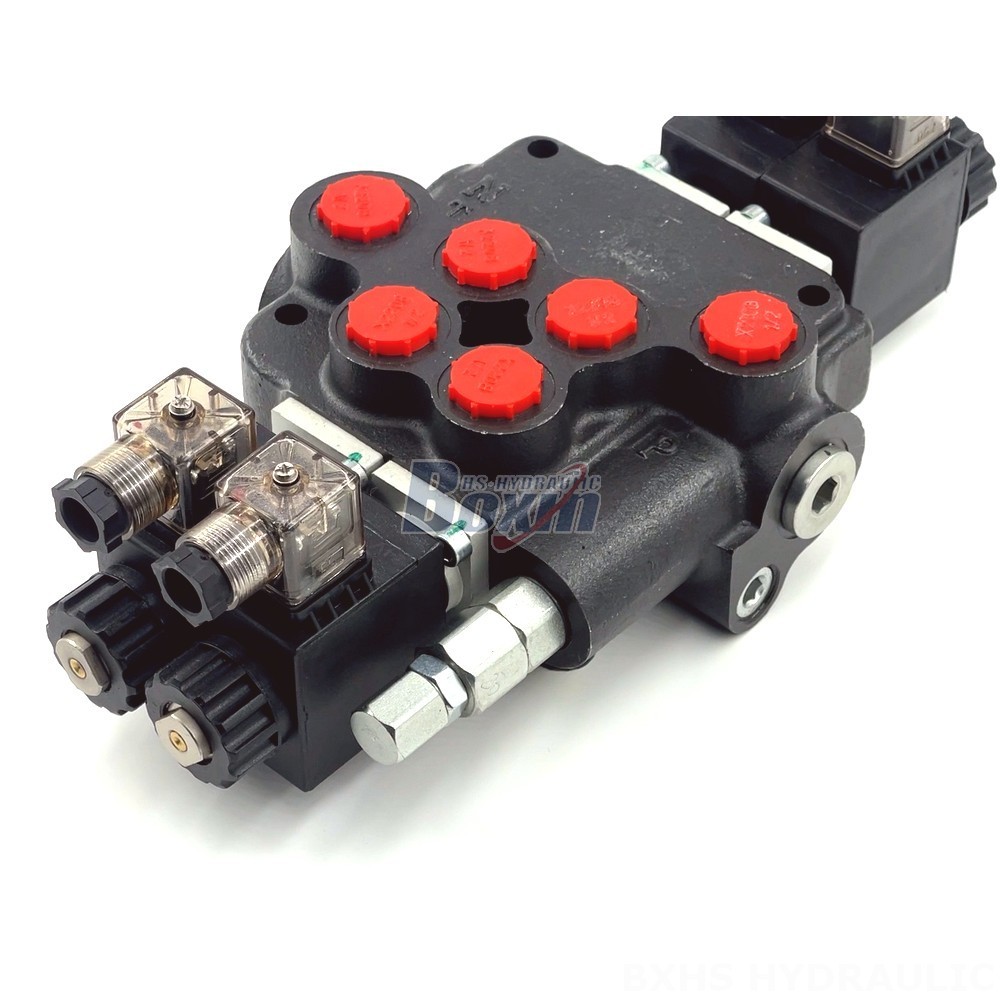

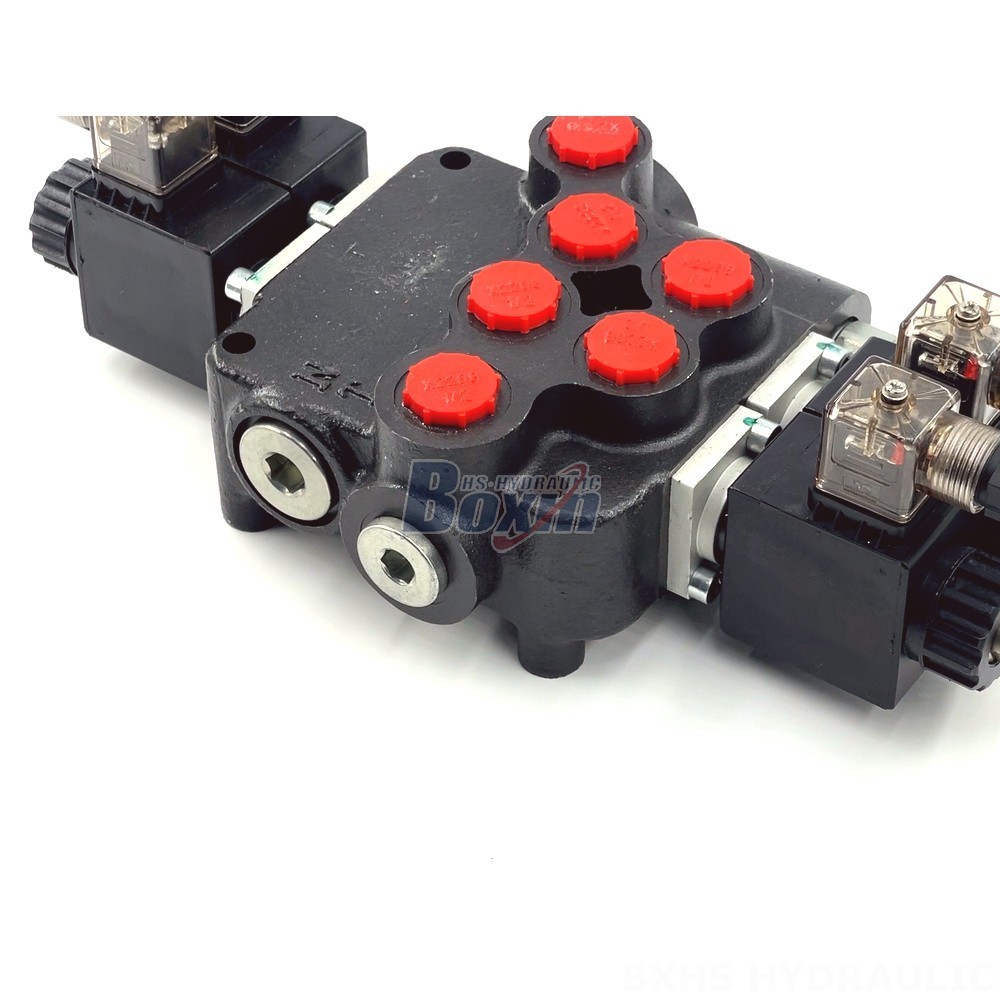

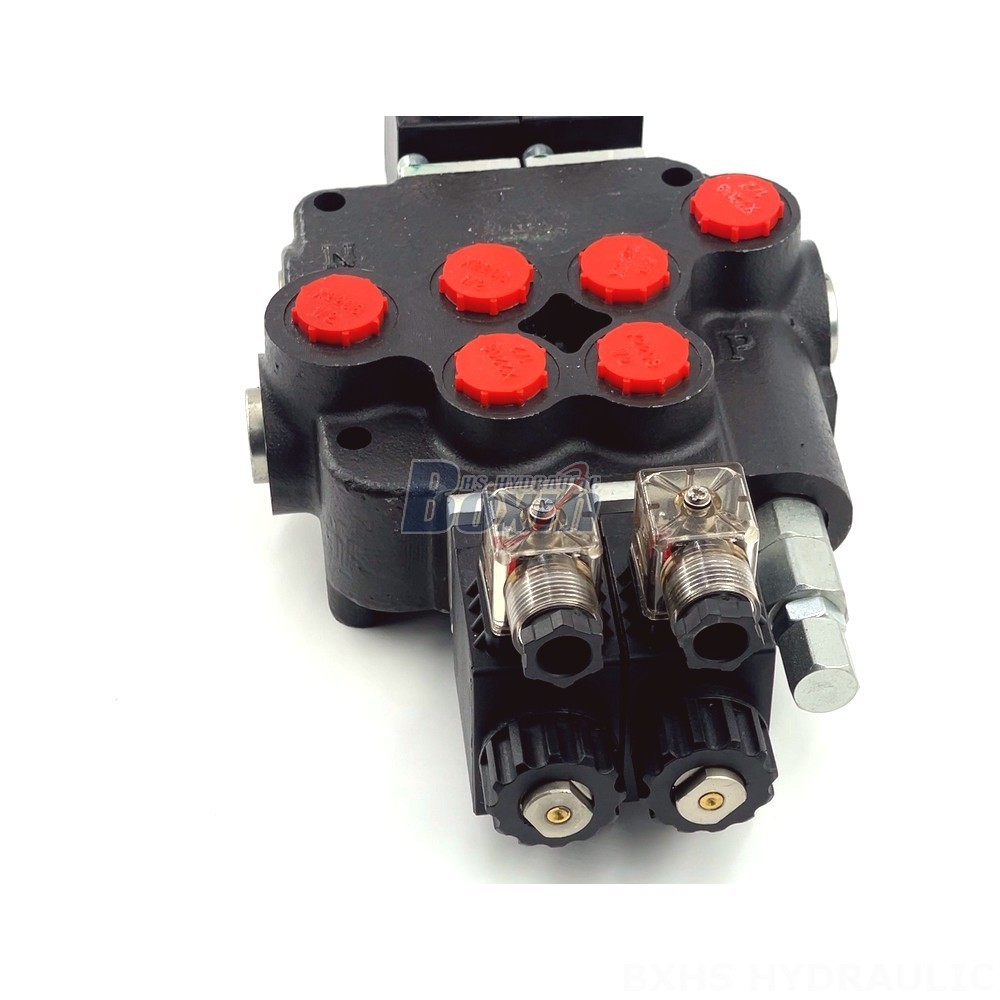

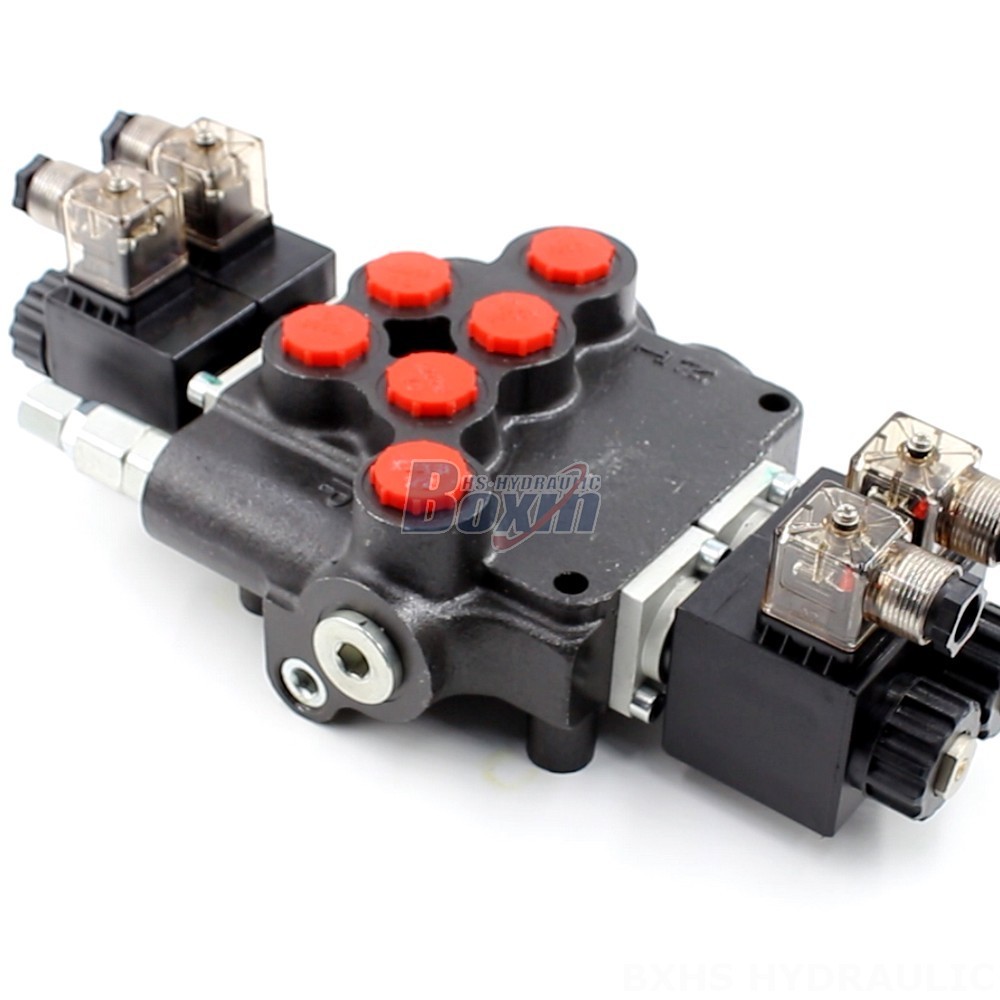

2-Spool Hydraulic Valve | P80 Model | Factory Direct & Customizable

制御方法:ソレノイド

スプール:2スプール

定格流量:毎分80リットル (21.2 US gpm)

最大圧力:200 bar (2900 psi)

吸入口:G3/4

吐出口:G3/4

ポートサイズ:G1/2

ベンダー:BXHS

製品タイプ:モノブロック方向制御弁

製品シリーズ:P80シリーズ モノブロック方向制御弁

梱包サイズ:37*18*11

総重量:9.50 kg

在庫状況: 在庫あり

1150 この製品を探している人もいます

2-Spool Hydraulic Valve | P80 Model | Factory Direct & Customizable

2-Spool Hydraulic Valve | P80 Model | Factory Direct & Customizable

2-Spool Hydraulic Valve | P80 Model | Factory Direct & Customizable drawing image

Our P80 model Two Output Hydraulic Levers is a 2-spool, monoblock hydraulic valve designed for heavy-duty applications in construction, material handling, agriculture, and industrial vehicles. It features a high flow rate and pressure capacity, making it suitable for demanding operations. The valve is available in a variety of configurations and can be customized to meet your specific requirements.

P80シリーズ モノブロック方向制御弁 パラメーター
制御方法 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, 手動・ジョイスティック
スプール 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール
周囲温度範囲 -40°C to +80°C (-40°F to +176°F)
構造タイプ モノブロック弁
セクション 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション
作動粘度範囲 15 - 75 mm²/s (15 cSt to 75 cSt)
定格流量 毎分80リットル (21.2 US gpm)
最大圧力 315 bar (4600 psi)
吸入口 G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
吐出口 G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
ポートサイズ G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

The P80 model Two Output Hydraulic Levers is a powerful and versatile hydraulic valve, featuring a 2-spool design and a robust monoblock construction. This valve delivers a high flow rate of 80 L/min (21.2 US gpm) and can withstand pressures up to 250 bar (3600 psi), making it suitable for heavy-duty applications. It's designed for use in a range of vehicles and equipment, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. The valve's solenoid control system offers precise and reliable operation. It's also built to withstand extreme temperatures, operating reliably in environments from -40°C to +80°C (-40°F to +176°F). Our P80 model is available directly from the factory and can be customized to meet your specific needs. Contact us today for more information about this powerful and reliable hydraulic valve.
