What is the primary application of the 2-Spool Hydraulic Valve | P120 Model | Factory Direct & Customizable?

The 2-Spool Hydraulic Valve | P120 Model | Factory Direct & Customizable is designed for mobile hydraulic systems, agricultural machinery (such as tractors and harvesters), construction equipment (such as loaders and excavators), and industrial machinery. It ensures precise flow and directional control.

Is Boxinhuasheng a factory-direct manufacturer?

Yes, Boxinhuasheng (Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd.) is a factory-direct manufacturer established in 2001. We operate a 68,000m虏 facility with 4 modern manufacturing plants and 260+ production machines, supplying certified products directly to global customers.

What quality certifications do Boxinhuasheng products have?

All Boxinhuasheng directional control valves, gear pumps, and hydraulic accessories are CE certified, IATF 16949 compliant, and verified on-site by SGS, meeting international engineering standards.

Can Boxinhuasheng provide OEM/ODM customization services?

Yes, Boxinhuasheng has a team of 35 senior hydraulic engineers providing custom OEM manufacturing, ODM development, private labeling, and customized hydraulic system solutions tailored to specific operating pressures and flows.

What is the warranty and shipping lead time?

We offer a 1-year warranty with free replacement for any quality defects. Standard express delivery is within 30 days, supported by our robust annual capacity of 1.5 million hydraulic units and export experience to 80+ countries.

2-Spool Hydraulic Valve | P120 Model | Factory Direct & Customizable

Name: 2-Spool Hydraulic Valve | P120 Model | Factory Direct & Customizable
Brand: Boxinhuasheng
SKU: BXHS-50410
Availability: InStock

イノベーションが開発を推進し、テクノロジーが未来を築きます

ホームモノブロック方向制御弁P120シリーズ製品詳細

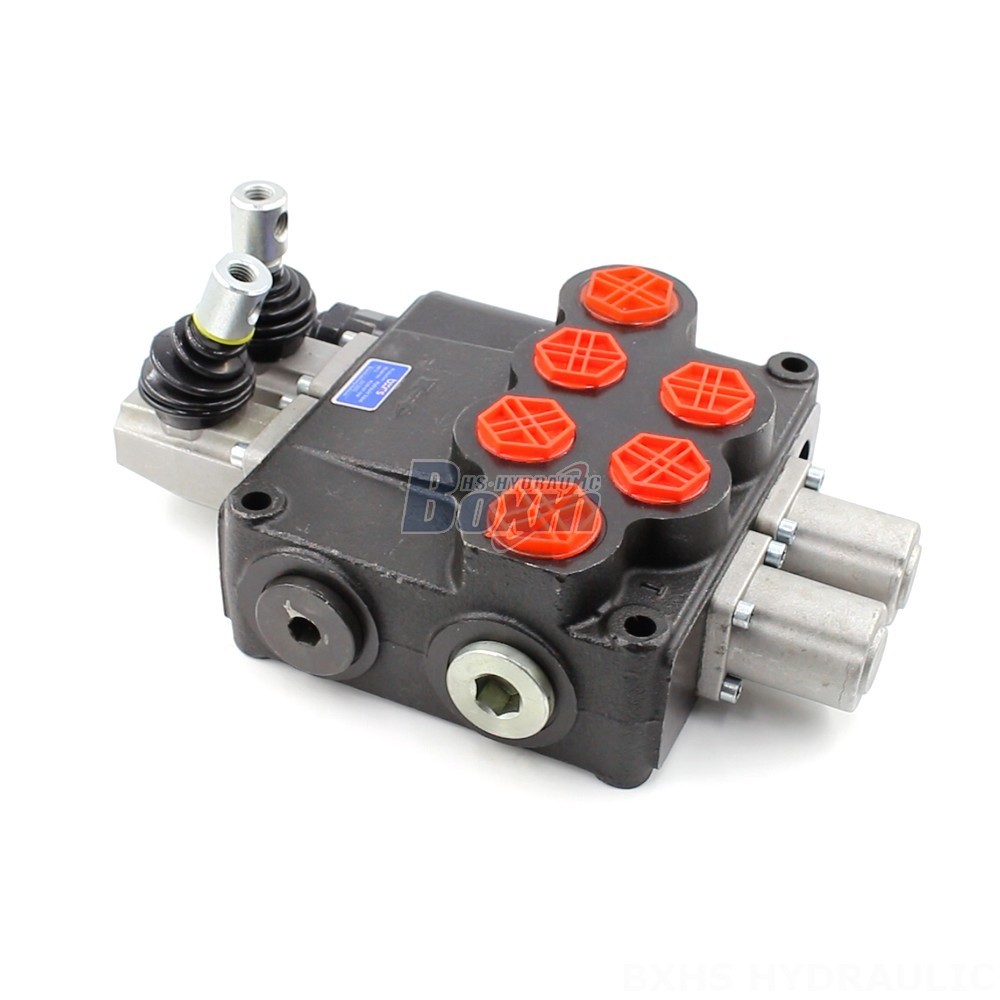

2-Spool Hydraulic Valve | P120 Model | Factory Direct & Customizable cover photo

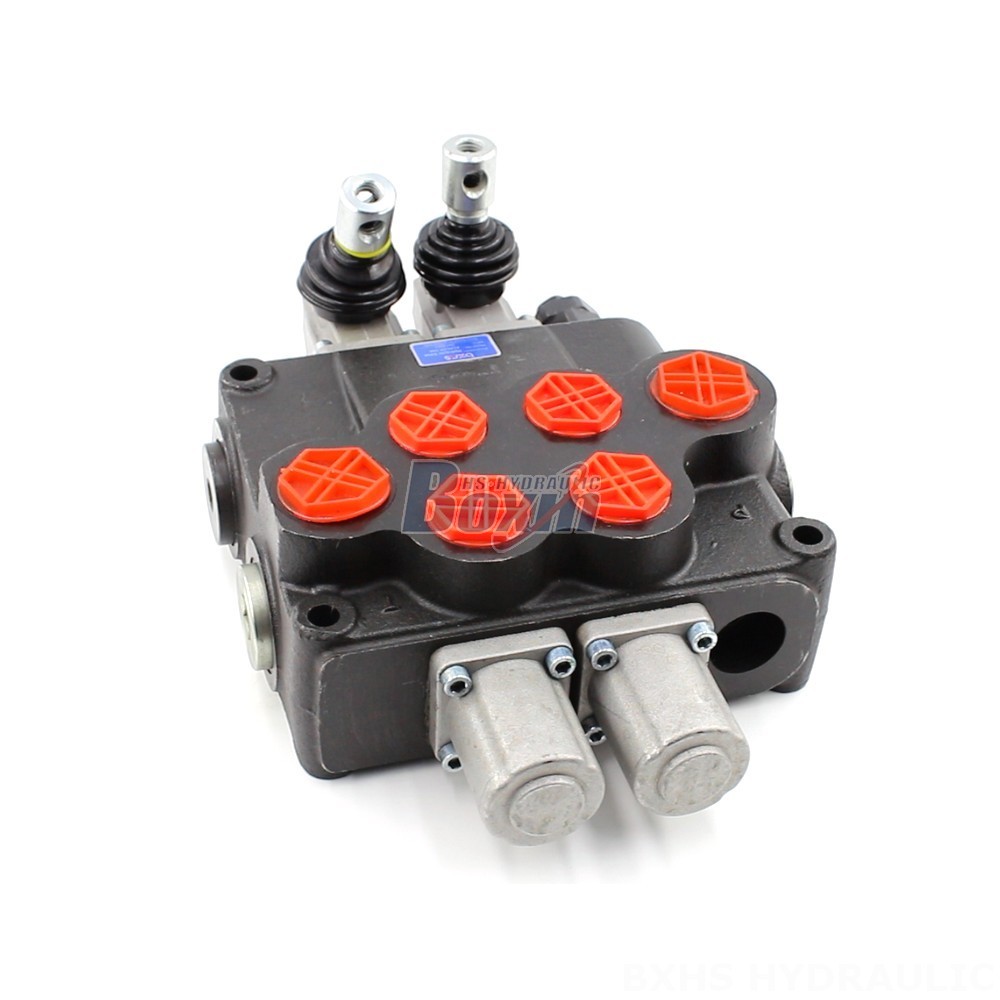

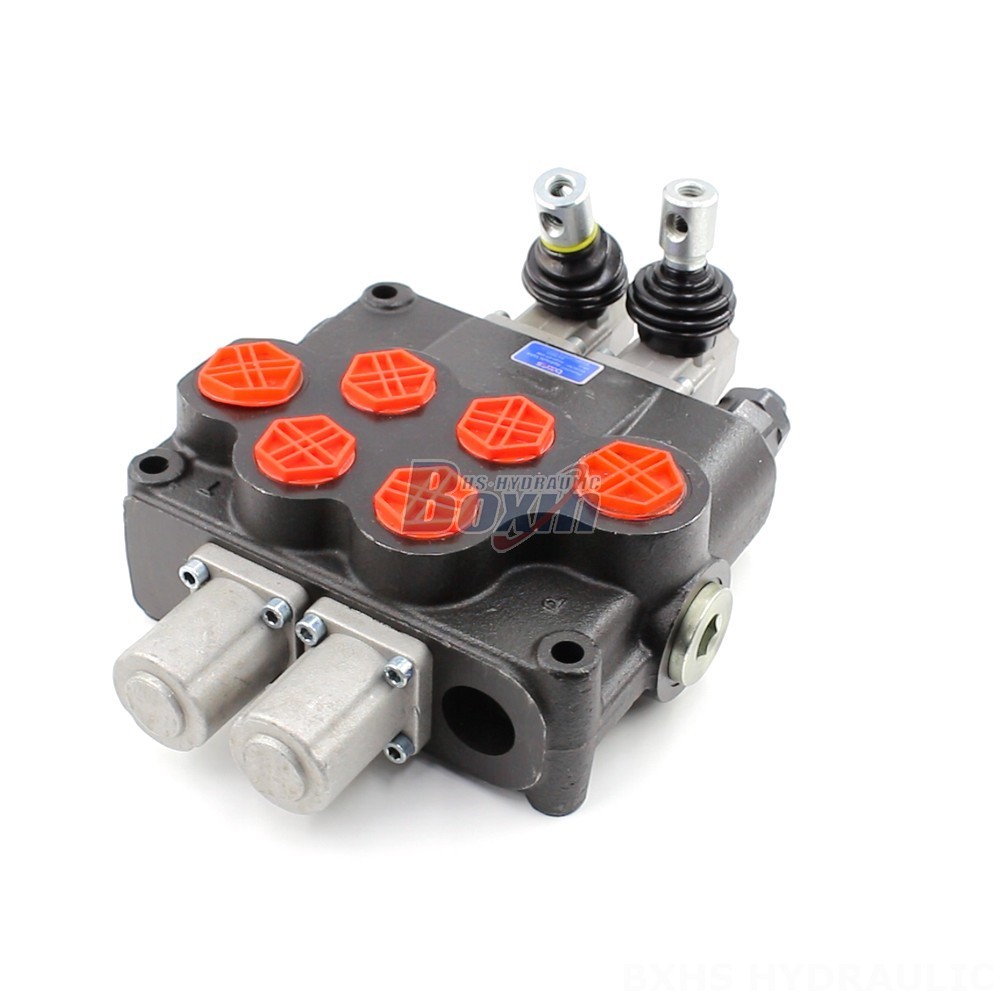

2-Spool Hydraulic Valve | P120 Model | Factory Direct & Customizable main image

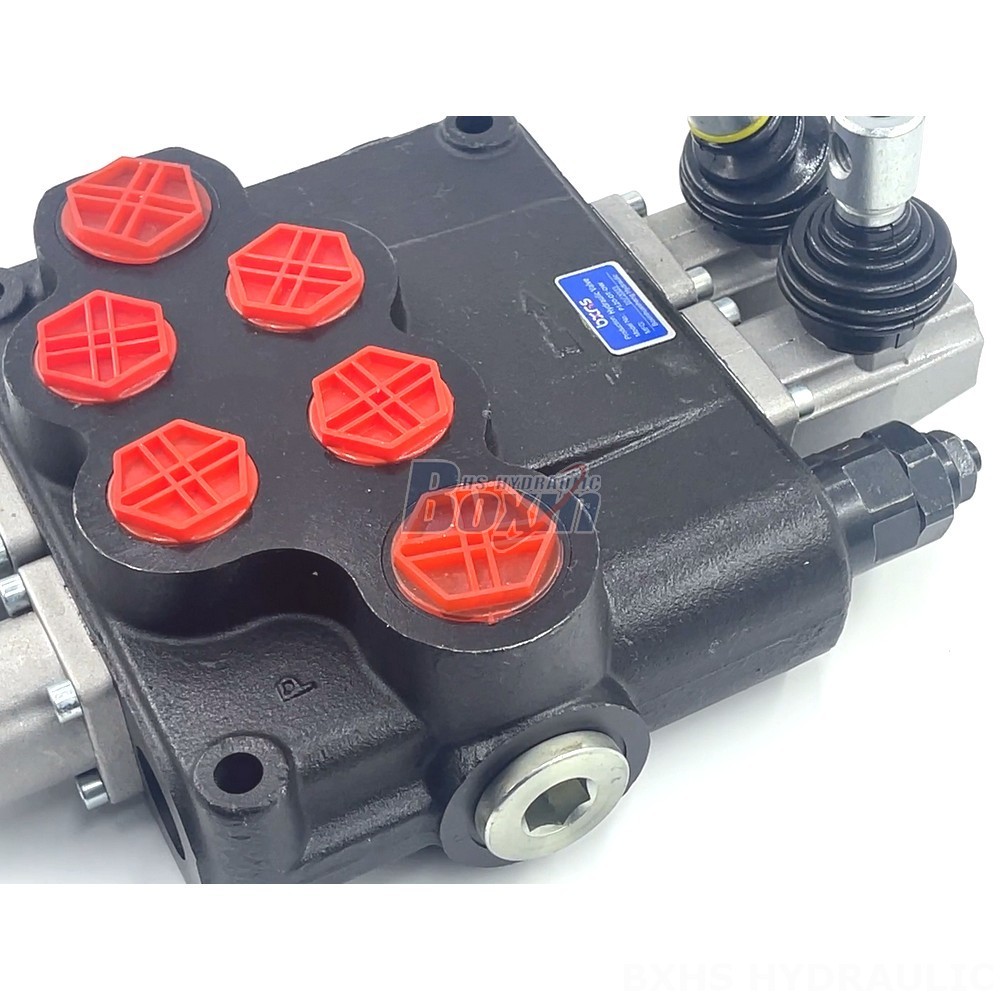

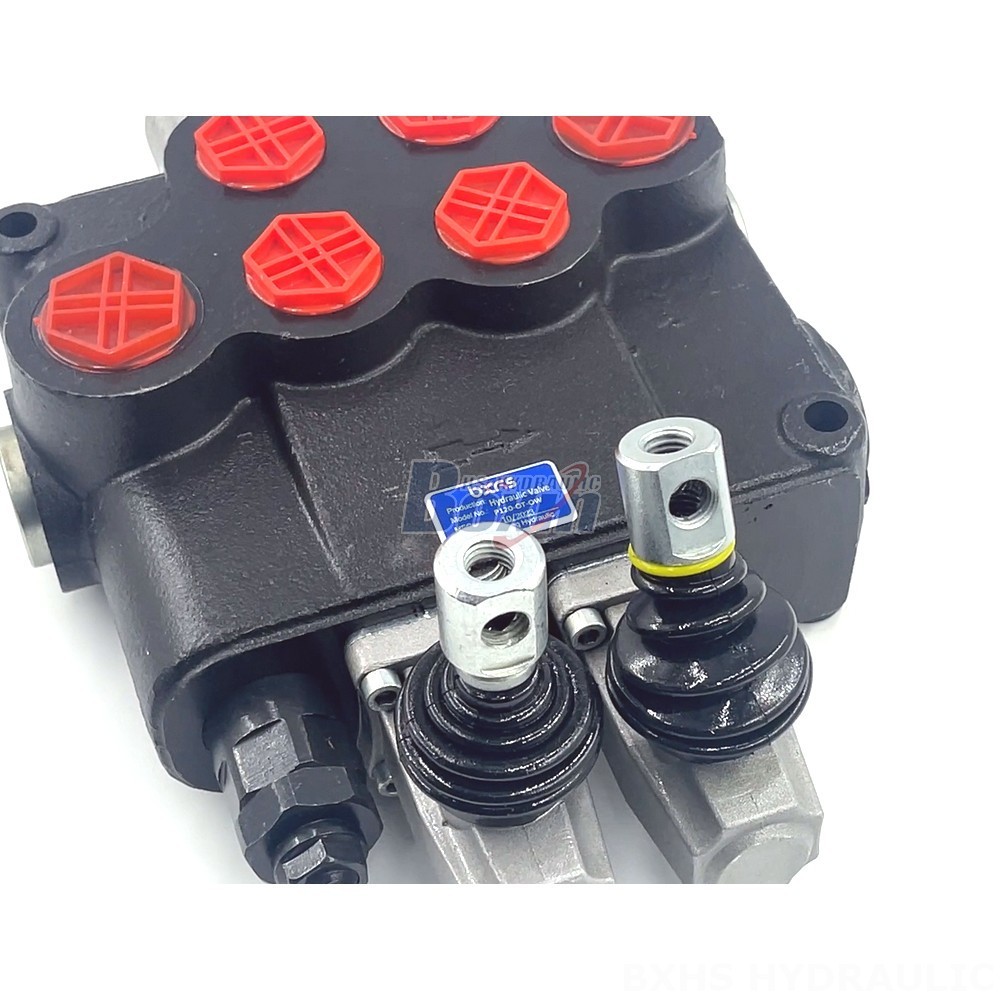

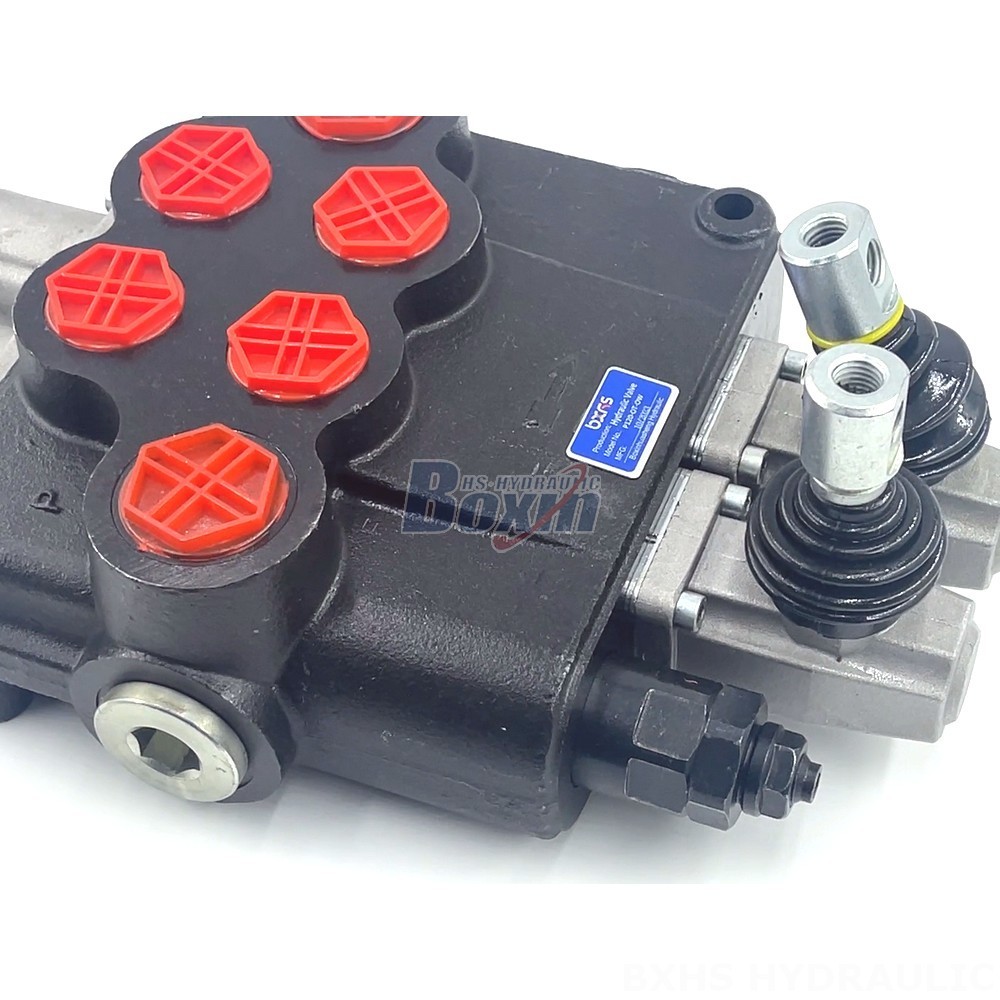

2-Spool Hydraulic Valve | P120 Model | Factory Direct & Customizable detail image

2-Spool Hydraulic Valve | P120 Model | Factory Direct & Customizable

制御方法:手動

スプール:2スプール

定格流量:120 L/分 (31.7 US gpm)

最大圧力:250 bar (3600 psi)

吸入口:G1

吐出口:G1

ポートサイズ:G1

ベンダー:BXHS

製品タイプ:モノブロック方向制御弁

製品シリーズ:P120シリーズモノブロック方向制御弁

梱包サイズ:30*39*17

総重量:19.00 kg

在庫状況: 在庫あり

お問い合わせ

2699 この製品を探している人もいます

2-Spool Hydraulic Valve | P120 Model | Factory Direct & Customizable

2-Spool Hydraulic Valve | P120 Model | Factory Direct & Customizable drawing image

The P120 Series Hydraulic Multi-way Valve is a 2-spool, monoblock valve designed for construction, material handling, and industrial applications. With a rated flow of 120 L/min (31.7 US gpm) and a maximum pressure of 250 bar (3600 psi), it's ideal for demanding tasks.

P120シリーズモノブロック方向制御弁パラメーター
制御方法	手動, ケーブル, ジョイスティック, 手動・ジョイスティック
スプール	1スプール, 2スプール, 3スプール, 4スプール
定格流量	120 L/分 (31.7 US gpm)
最大圧力	250 bar (3600 psi)
吸入口	G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2
吐出口	G1, SAE 16, 1 NPT, M36×2
ポートサイズ	G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2
セクション	1セクション, 2セクション, 3セクション, 4セクション
構造タイプ	モノブロック弁
周囲温度範囲	-40°C to +80°C (-40°F to +176°F)
作動粘度範囲	15 - 75 mm²/s (15 cSt to 75 cSt)

This robust Hydraulic Multi-way Valve offers manual control, a 2-section design, and a reliable monoblock structure. Featuring a rated flow of 120 L/min (31.7 US gpm) and a maximum pressure of 250 bar (3600 psi), it is suitable for various applications like telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. The valve operates in a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and withstands ambient temperatures from -40°C to +80°C (-40°F to +176°F).

2-Spool Hydraulic Valve | P120 Model | Factory Direct & Customizable
