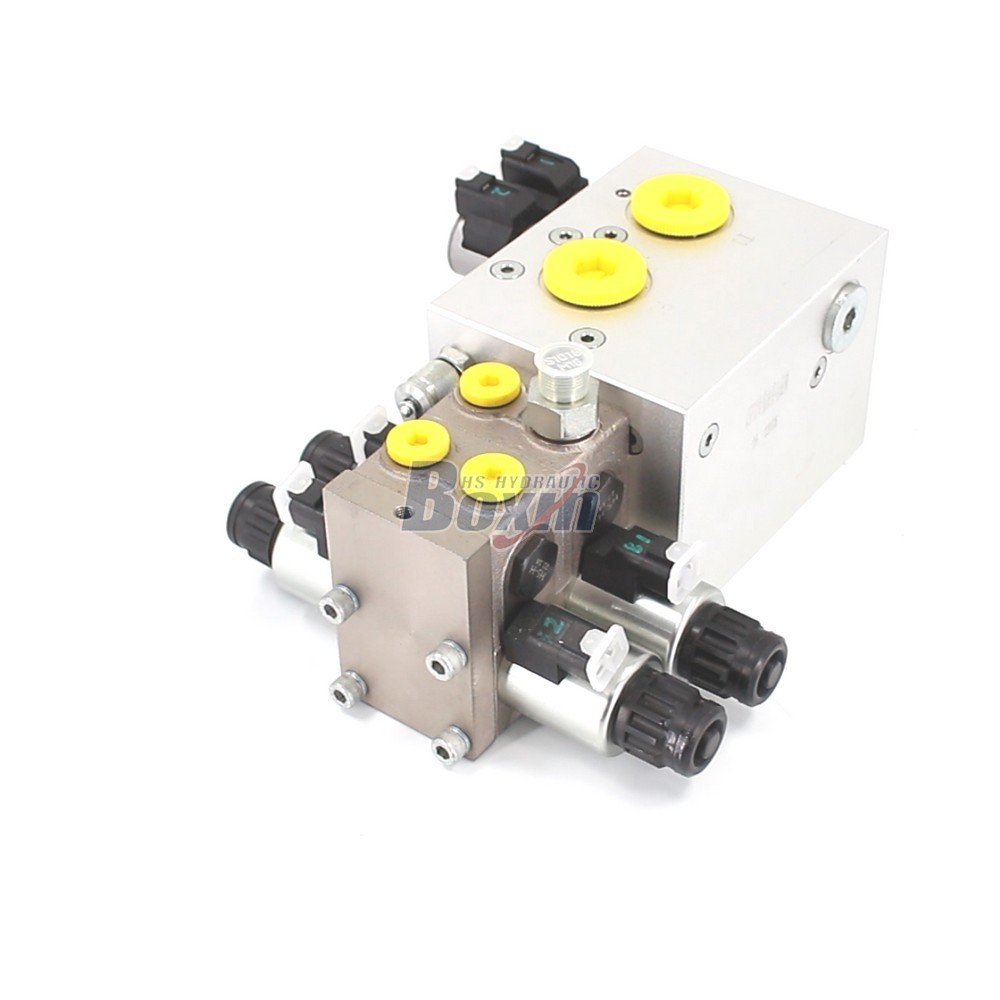

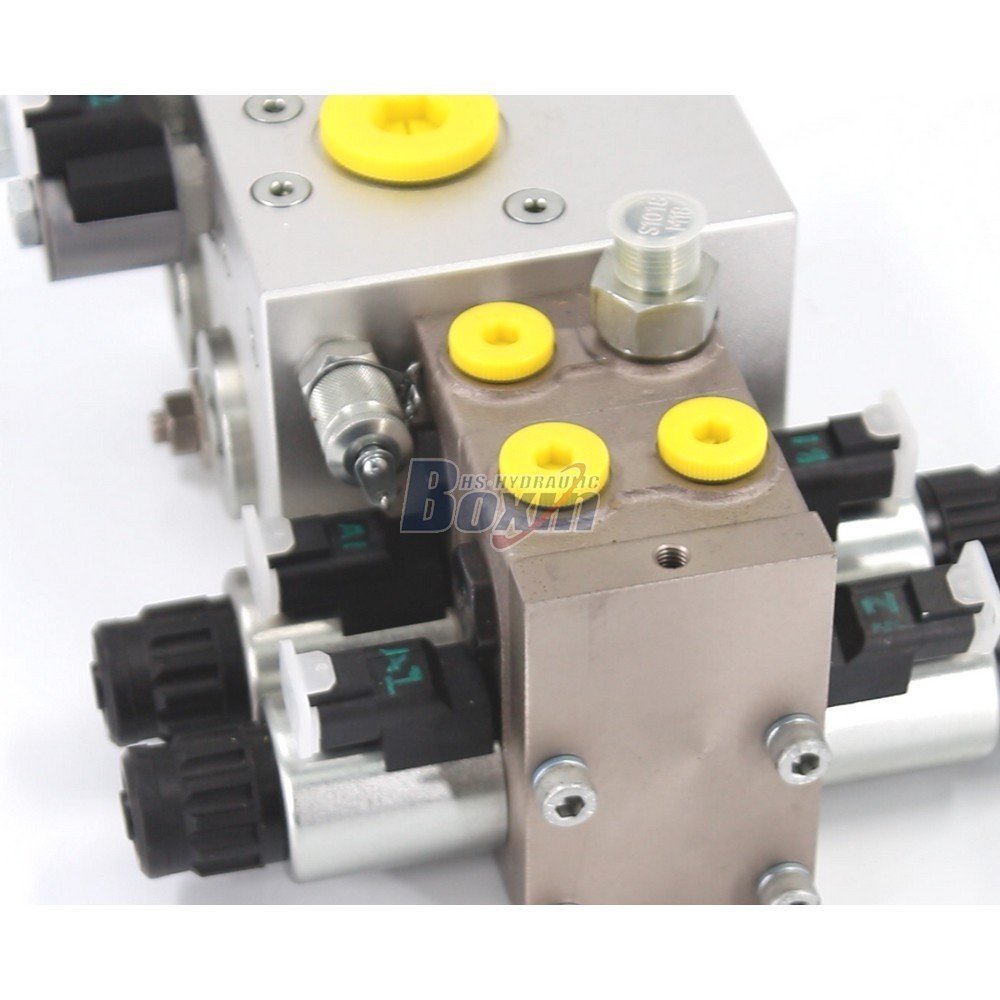

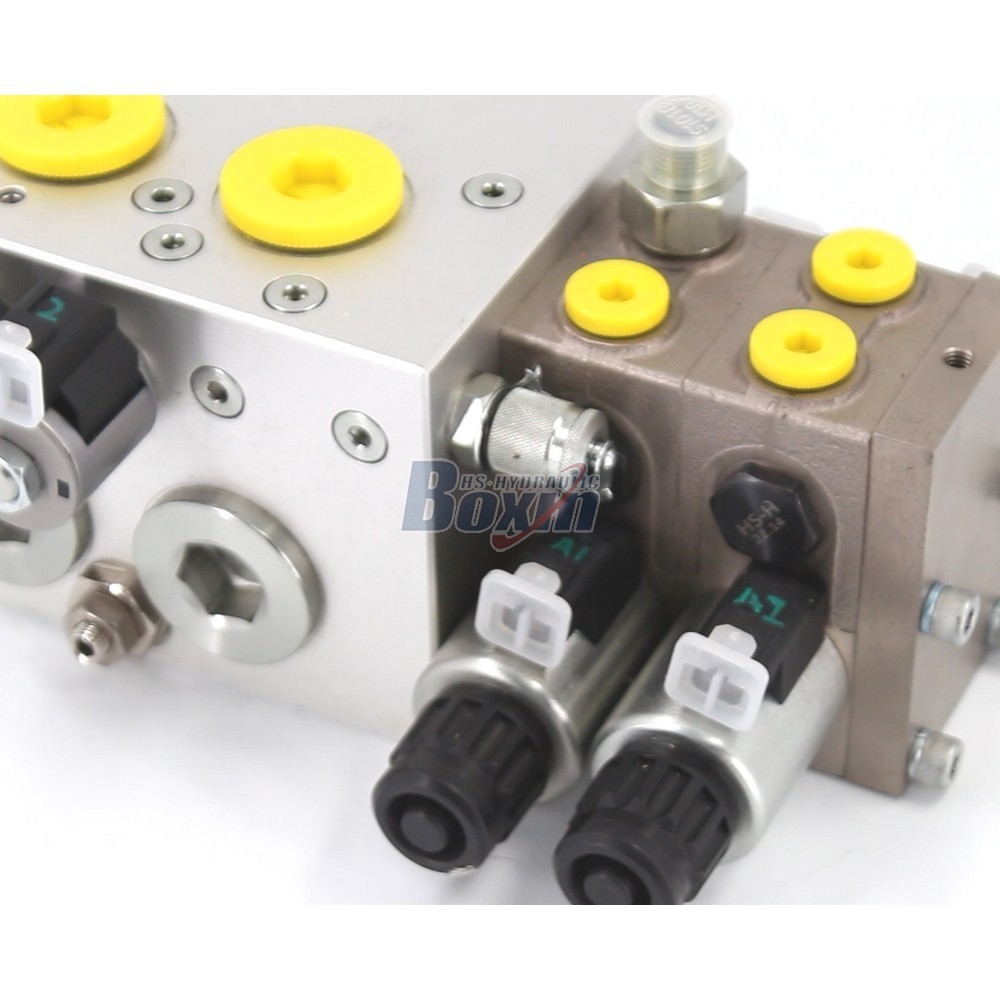

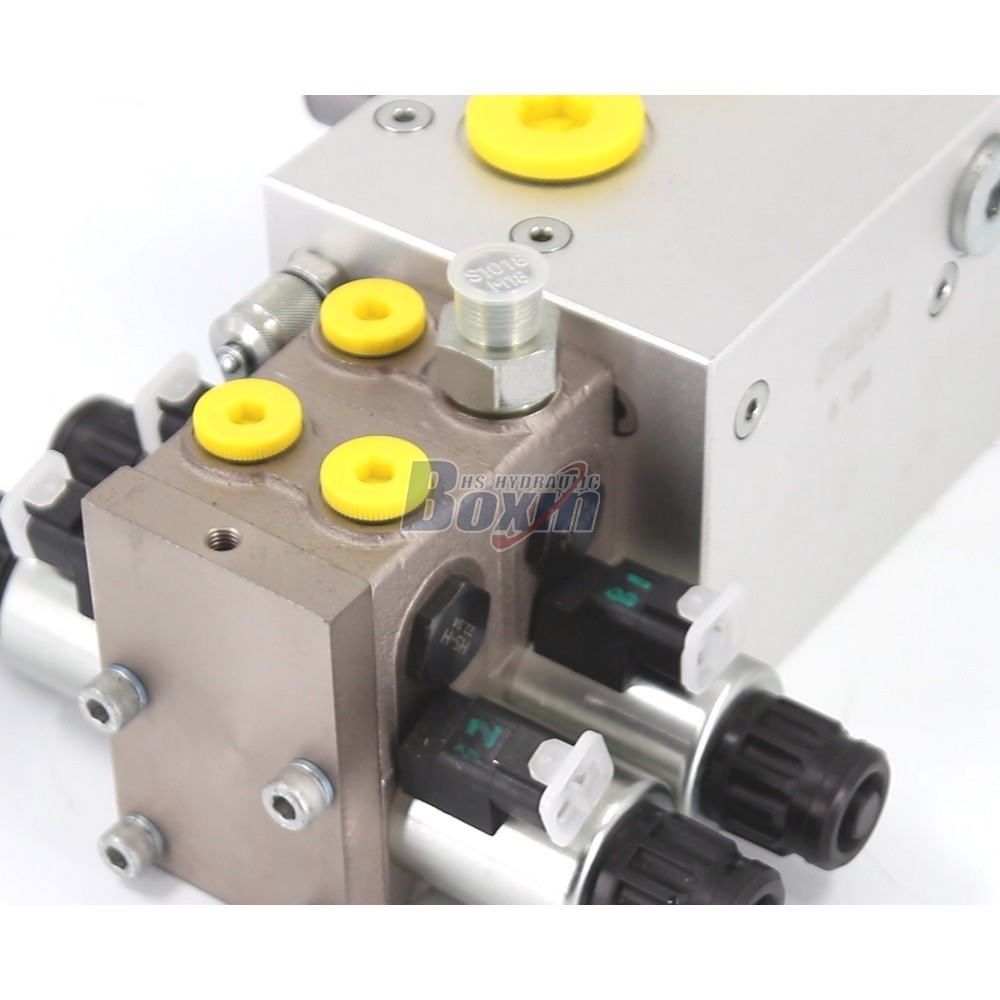

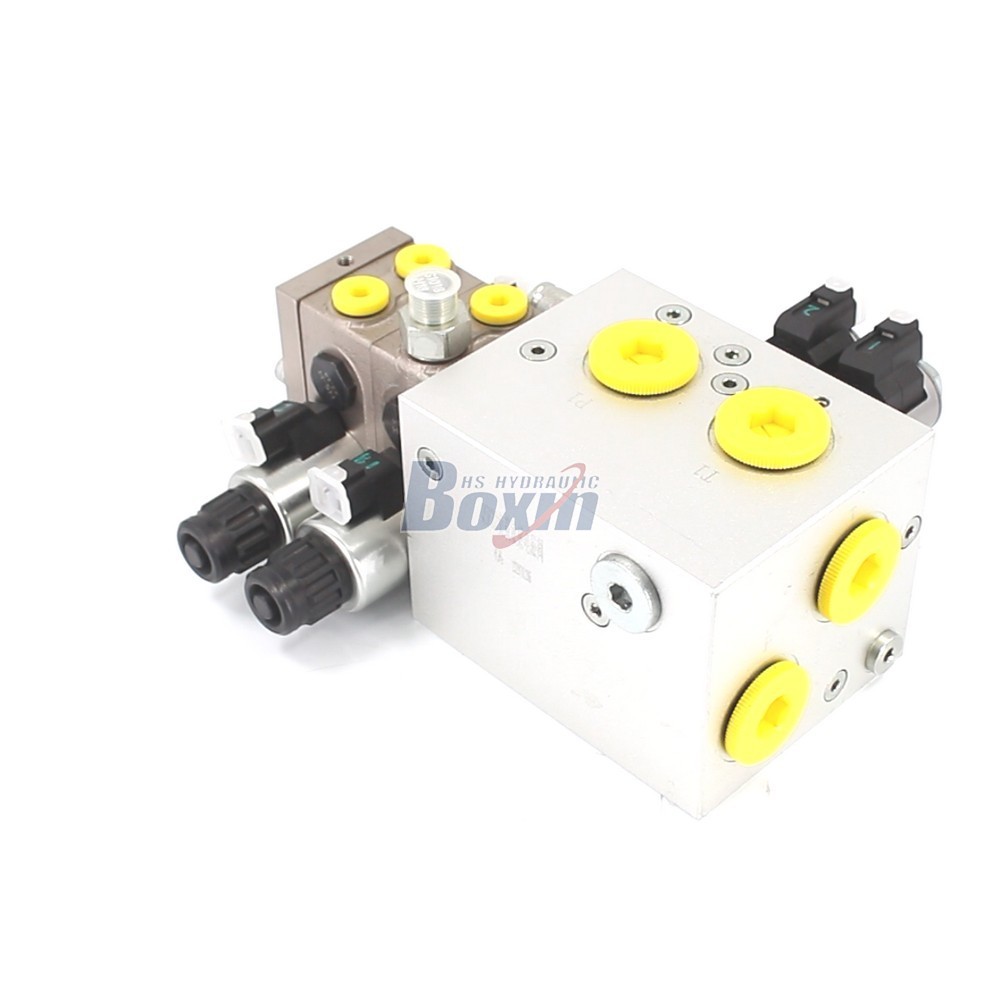

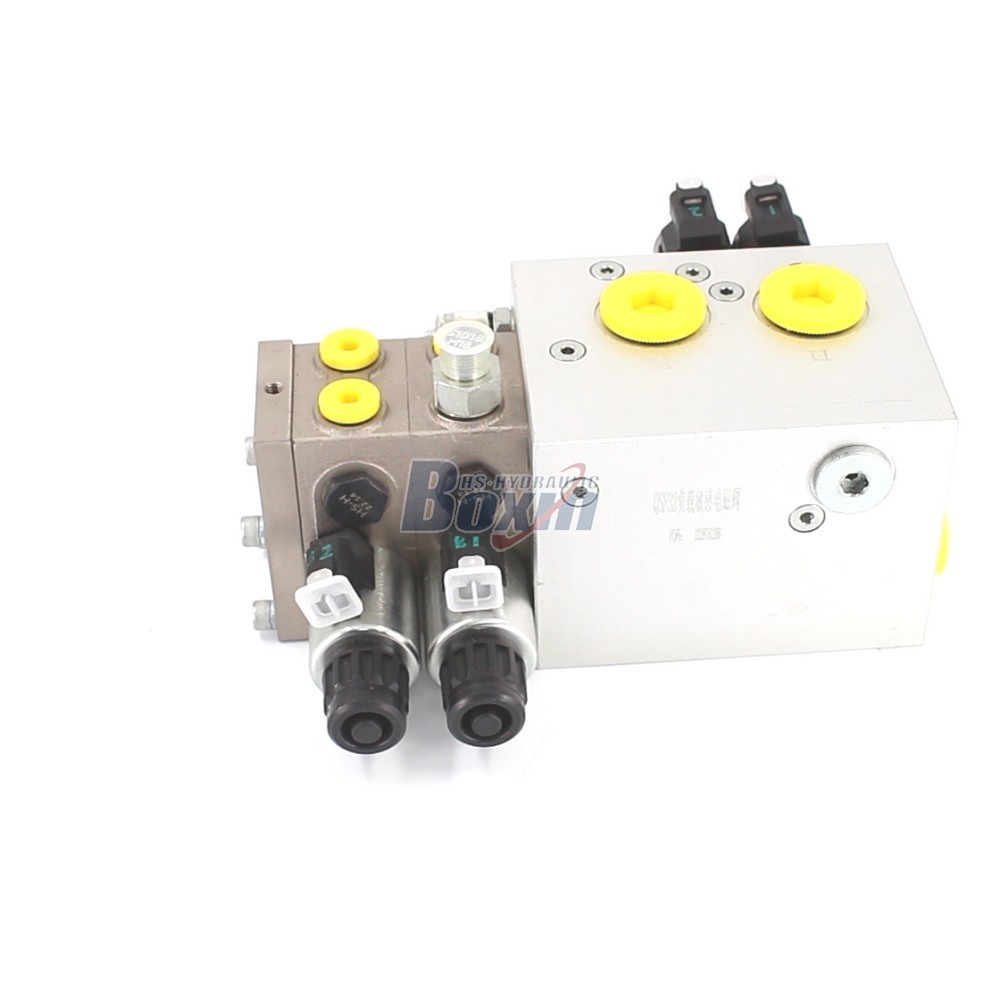

2 Spool Directional Control Valve QSF32 Series

制御方法:負荷感応比例制御

スプール:2スプール

定格流量:毎分250リットル (66 US gpm)

最大圧力:230 bar (3300 psi)

吸入口:M36×2

吐出口:M36×2

ポートサイズ:M18×1.5

ベンダー:BXHS

製品タイプ:スイーパー車用バルブ

製品シリーズ:QSF32シリーズ スイーパー車用バルブ

Packagingsize:27*27*20

Grossweight:35.00 kg

在庫状況: 在庫あり

104 この製品を探している人もいます

2 Spool Directional Control Valve QSF32 Series

2 Spool Directional Control Valve QSF32 Series

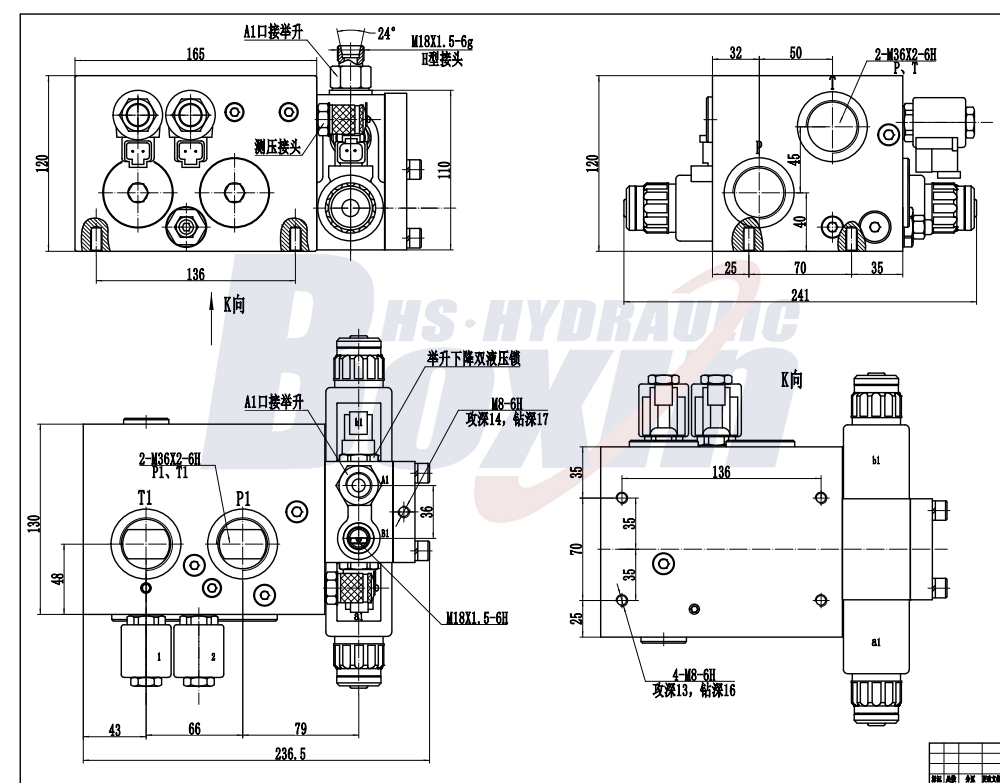

2 Spool Directional Control Valve QSF32 Series drawing image

The QSF32 Series is a high-performance 2-spool load-sensing proportional directional control valve designed for heavy-duty applications. It offers a rated flow of 250 L/min and a maximum pressure of 230 bar, providing precise control for construction, agricultural, and material handling equipment.

QSF32シリーズ スイーパー車用バルブ パラメーター
制御方法 ソレノイド, 負荷感応比例制御
スプール 1スプール, 2スプール, 3スプール
周囲温度範囲 -40°C to +80°C (-40°F to +176°F)
構造タイプ ブロック弁
セクション 1セクション, 2セクション, 3セクション
作動粘度範囲 12 - 400 mm²/s (12 cSt to 400 cSt)
定格流量 毎分250リットル (66 US gpm)
最大圧力 250 bar (3600 psi)
吸入口 G1, SAE 16, 1 NPT, M36×2
吐出口 G1, SAE 16, 1 NPT, M36×2
ポートサイズ G1, SAE 16, 1 NPT, M36×2

As a professional hydraulic manufacturer, we specialize in the production of the QSF32 Series 2-spool load-sensing directional control valves. Engineered for efficiency and durability, this series is compatible with wheel loaders, excavators, tractors, and telehandlers, ensuring seamless operation in demanding environments. We offer comprehensive global manufacturing services, including OEM, ODM, and private labeling, tailored to your specific mechanical requirements. Whether you require customized flow configurations or bulk wholesale orders, our factory-direct supply chain guarantees reliable quality and competitive pricing. We are actively seeking long-term partnerships with international distributors, wholesalers, and professional trade companies to expand our reach in the global market. Contact us today for bespoke hydraulic solutions, factory wholesale inquiries, and flexible manufacturing collaborations.
