生産と納品
15~30日の生産リードタイム

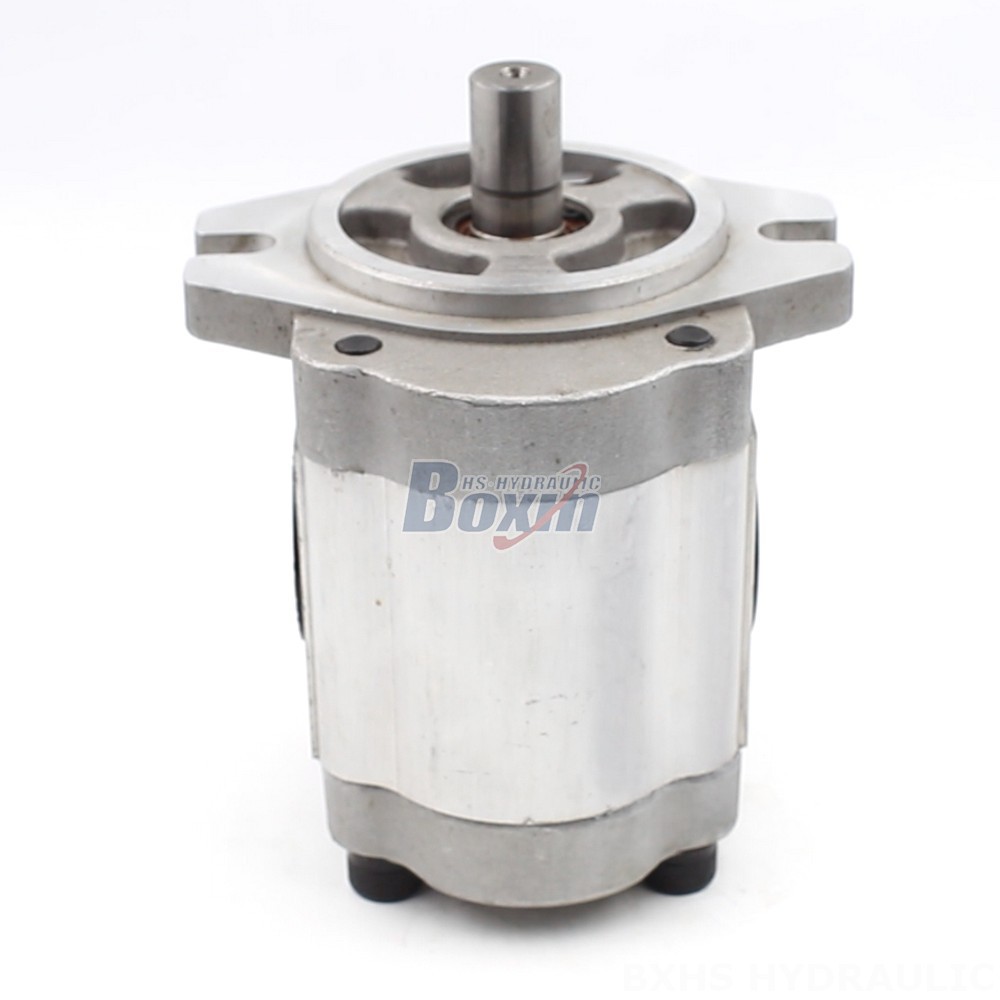

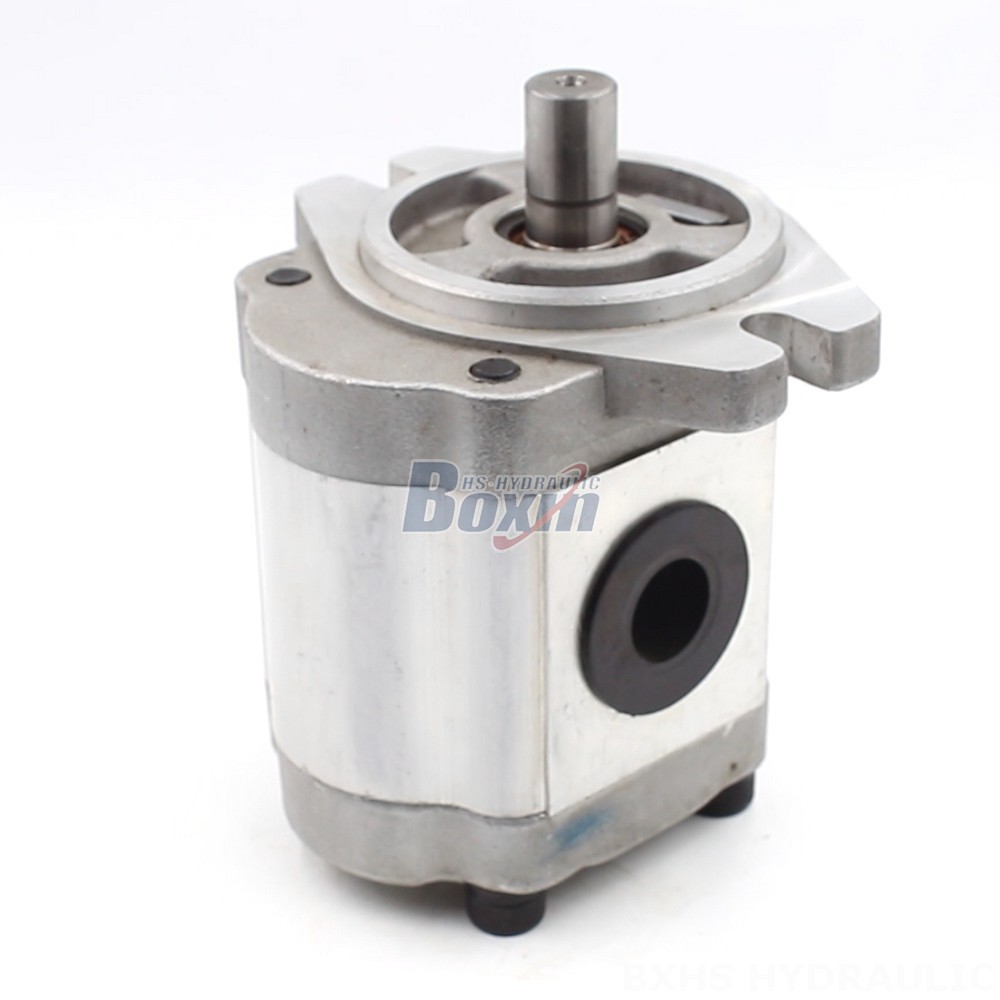

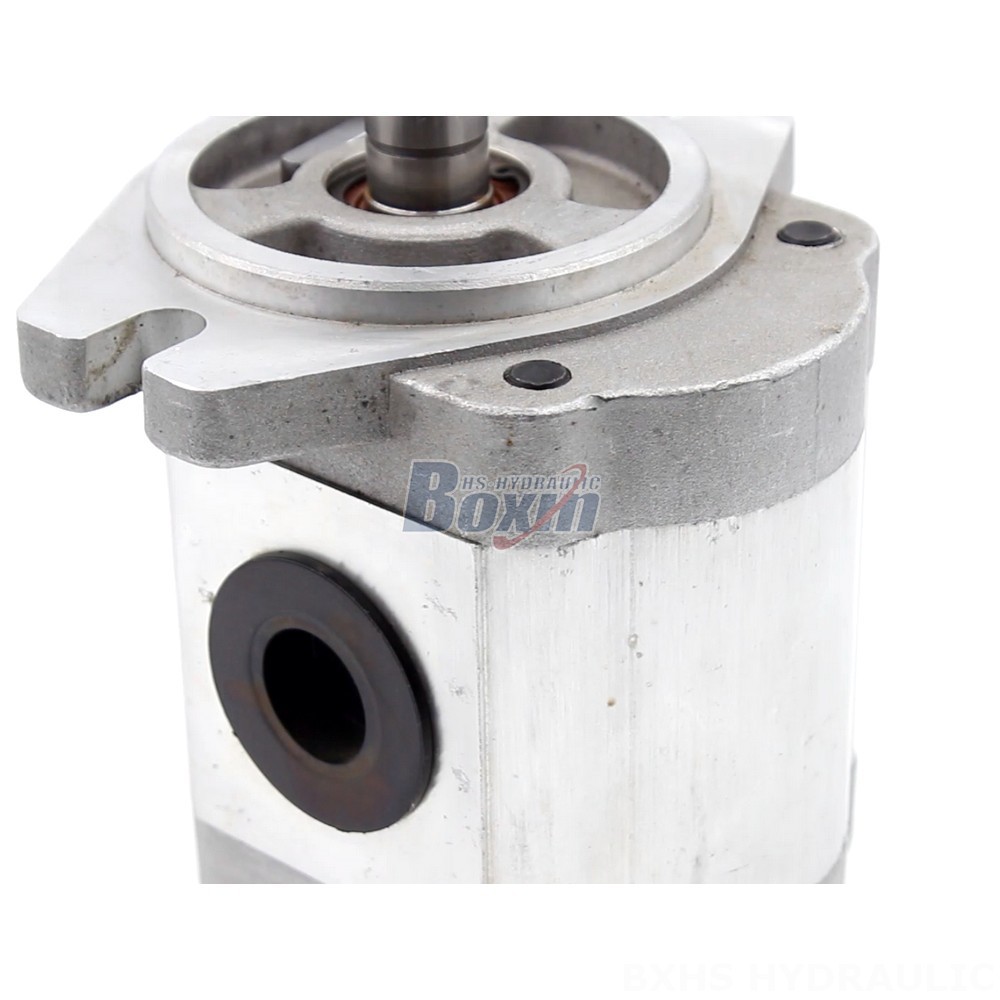

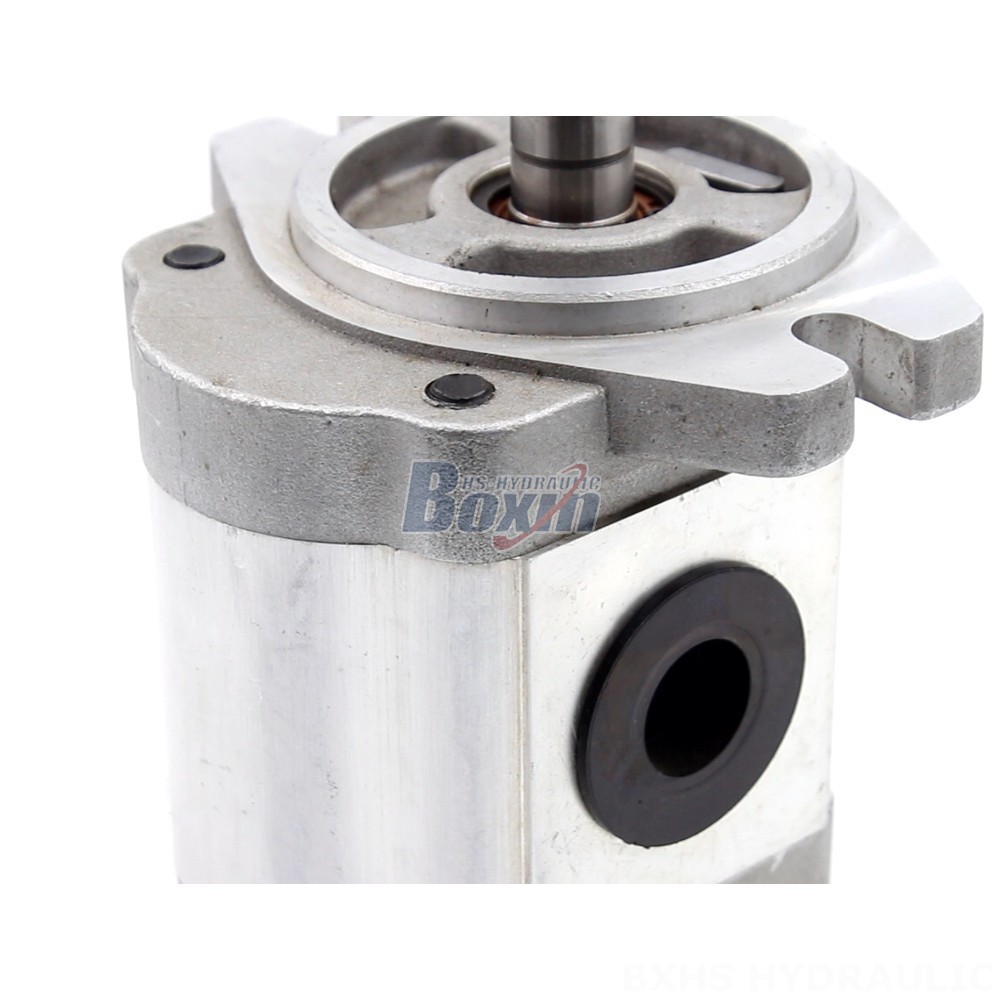

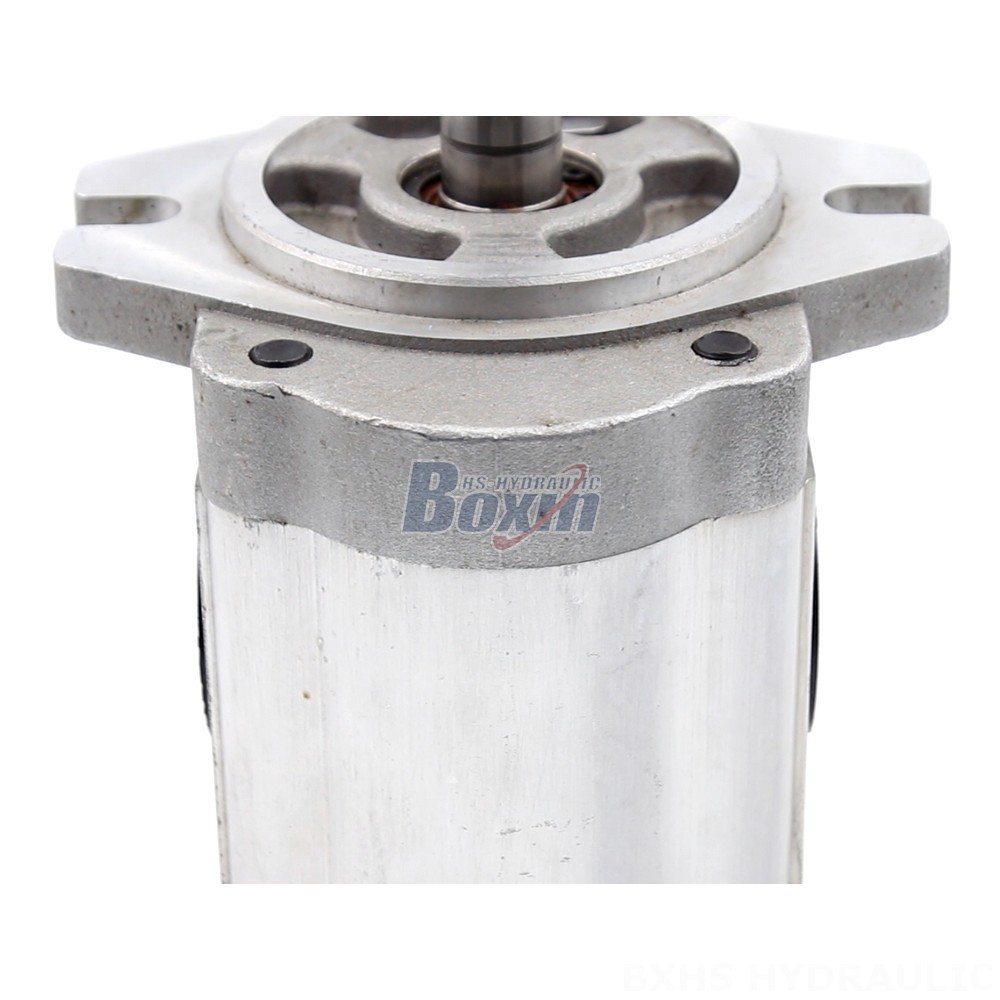

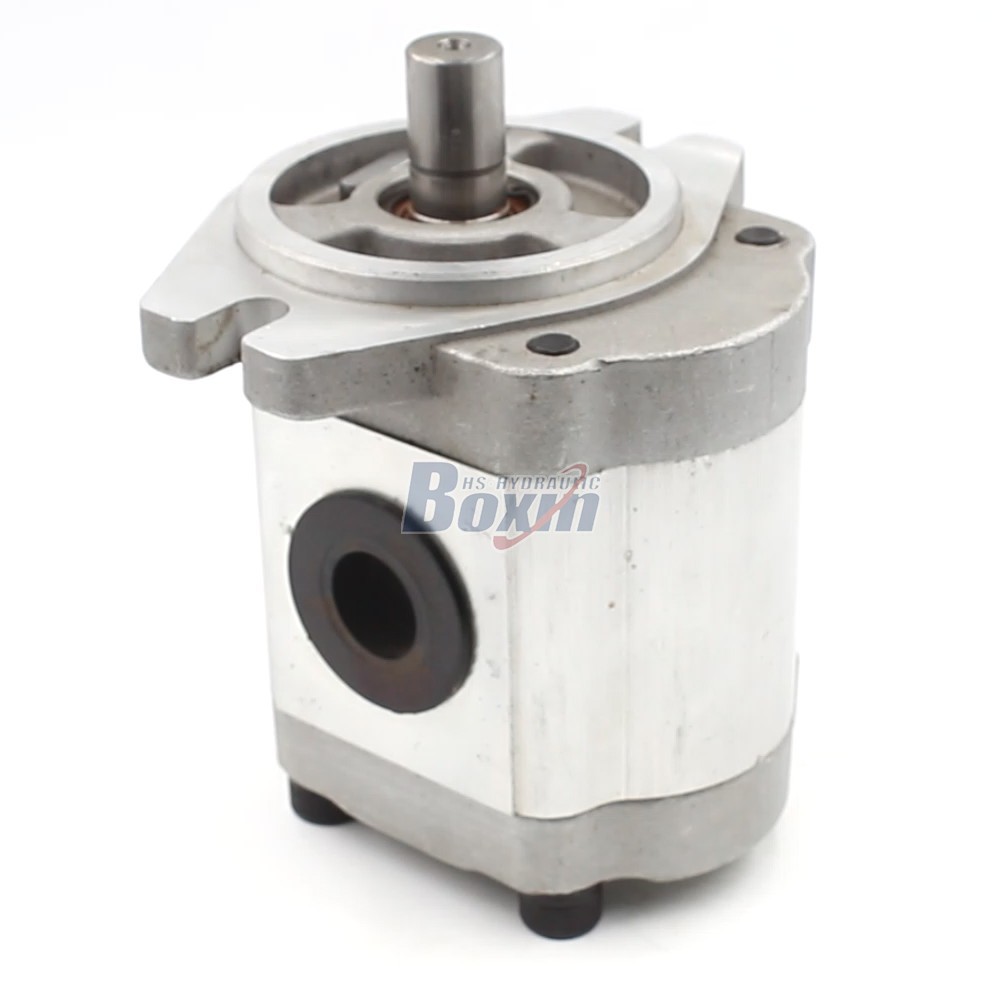

This is a 16 cc/rev hydraulic gear pump with a displacement of 10 cc/rev, rated pressure of 20 MPa (2900 psi), and rated speed of 2000 r/min. It is available in left and right rotation configurations, features an internal gear pump design, and is constructed from aluminium. This pump is suitable for a wide range of applications, including material handling, construction, earth moving, agriculture, and industrial vehicles.
| CBHS-FL3 シリーズ 油圧ギア・ポンプ パラメーター | |
|---|---|
| 変位 | 10 cc/回転, 4 cc/回転, 20 cc/回転, 16 cc/回転, 14 cc/回転, 6 cc/回転 |
| 定格圧力 | 20 MPa (2900 psi) |
| 最大圧力 | 25 MPa (3625 psi) |
| 定格回転速度 | 2000 r/min |
| 最大回転速度 | 3000 r/min |
| 回転方向 | 左 (逆時針), 右 (順時針) |
| 材質 | 鋁 |
| 構造 | 外部齒輪泵 |
| フランジモデル | A-橢圓形凸緣 |
| 軸タイプ | H:矩形花鍵, X:漸開線花鍵, P:プレーンキー |
This high-performance 16 cc/rev hydraulic gear pump is designed for demanding applications in material handling, construction, earth moving, agriculture, and industrial vehicles. It boasts a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min, with a maximum speed of 3000 r/min. The pump is available in both left (counter-clockwise) and right (clockwise) rotation configurations, and features an internal gear pump design for reliability and efficiency. Constructed from robust aluminium, the pump is equipped with an A-Oval flange and a plain key shaft type. It belongs to the CBHS-FL3 series, known for its durability and performance. This pump is ideal for use in forklifts, telehandlers, skid steer loaders, compact wheel loaders, mini-excavators, midi-excavators, tractors and front-end loaders, harvesters, balers, and sprayers. As a global supplier, we offer manufacturing, OEM, ODM, private labeling, and customization services to meet specific customer requirements.
