A high-quality 10 cc/rev hydraulic gear pump, designed for use in a wide range of industrial applications. With a rated pressure of 18 MPa and a rated speed of 2000 r/min, this pump is capable of delivering reliable performance in even the most demanding conditions. It is constructed from durable aluminium and features a B-Square flange and an involute spline shaft. It is part of the NSH series and is commonly used in material handling, construction, earth moving, agriculture, and industrial vehicle applications.
| NSHシリーズ 油圧ギア・ポンプ パラメーター | |
|---|---|
| 変位 | 10 cc/回転, 32 cc/回転, 40 cc/回転, 50 cc/回転, 100 cc/回転 |
| 定格圧力 | 18 MPa (2610 psi) |
| 最大圧力 | 20 MPa (2900 psi) |
| 定格回転速度 | 2000 r/min |
| 最大回転速度 | 4200 r/min |
| 回転方向 | 左 (逆時針) |
| 材質 | 鋁 |
| 構造 | 外部齒輪泵 |
| フランジモデル | B-方形凸緣 |
| 軸タイプ | X：漸開線花鍵 |

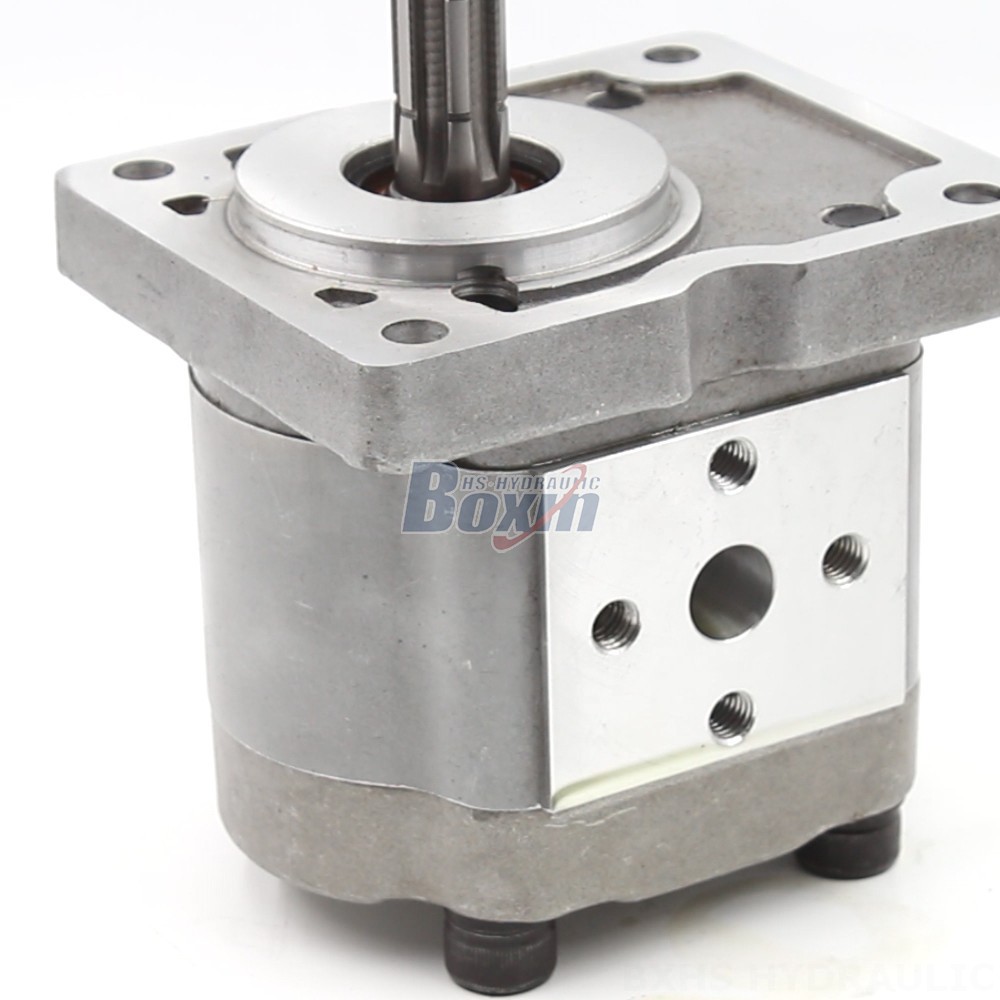

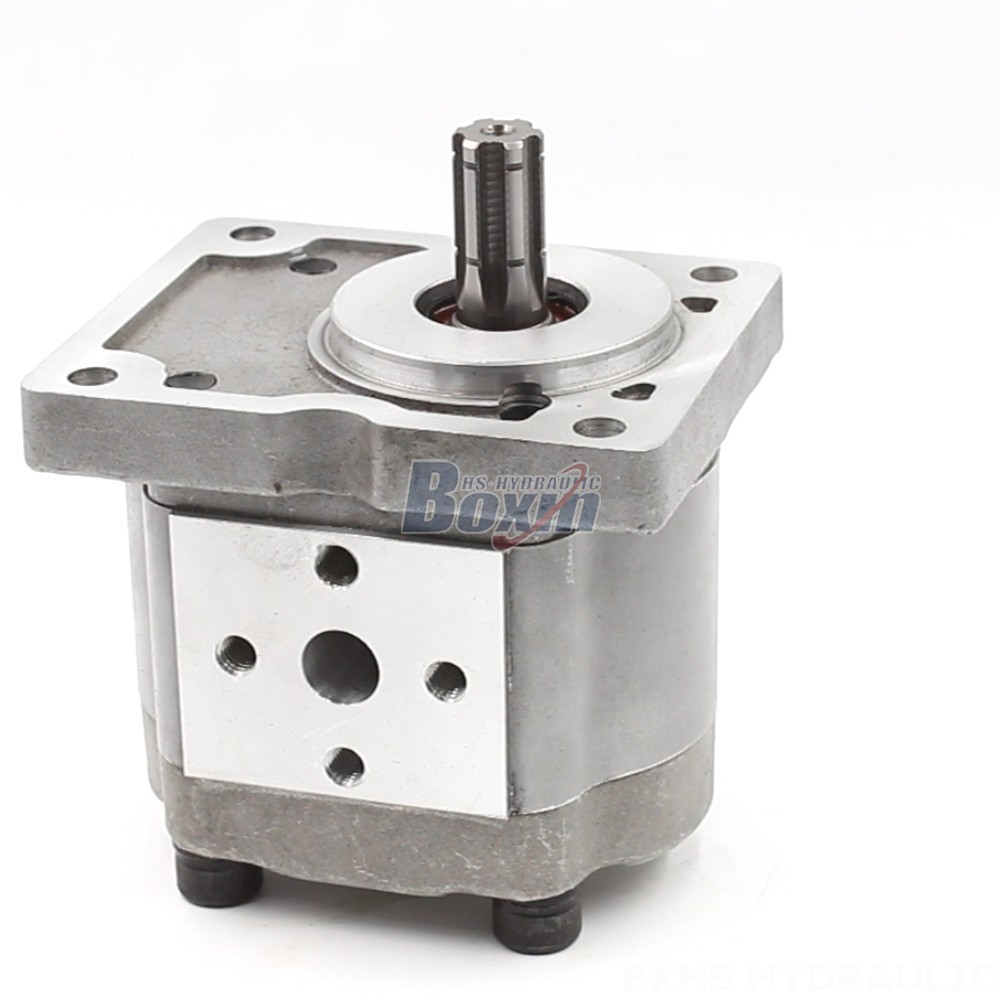

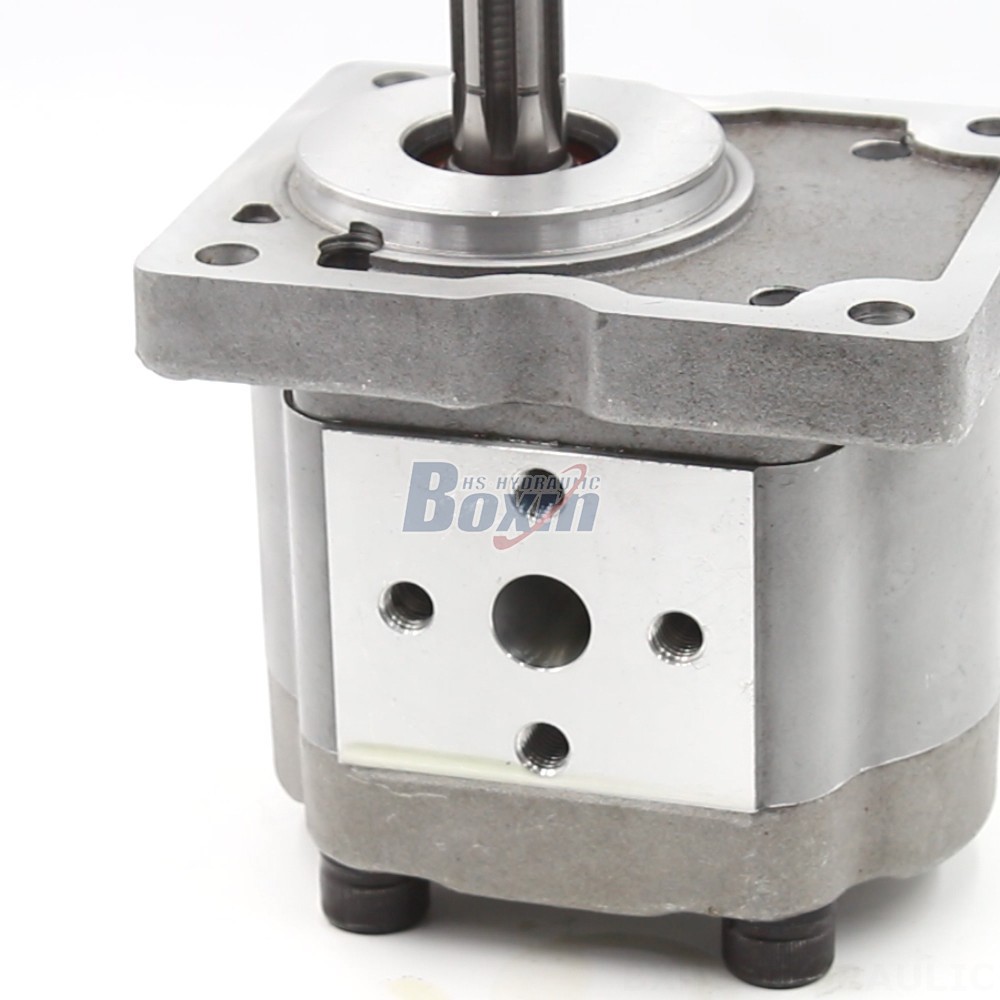

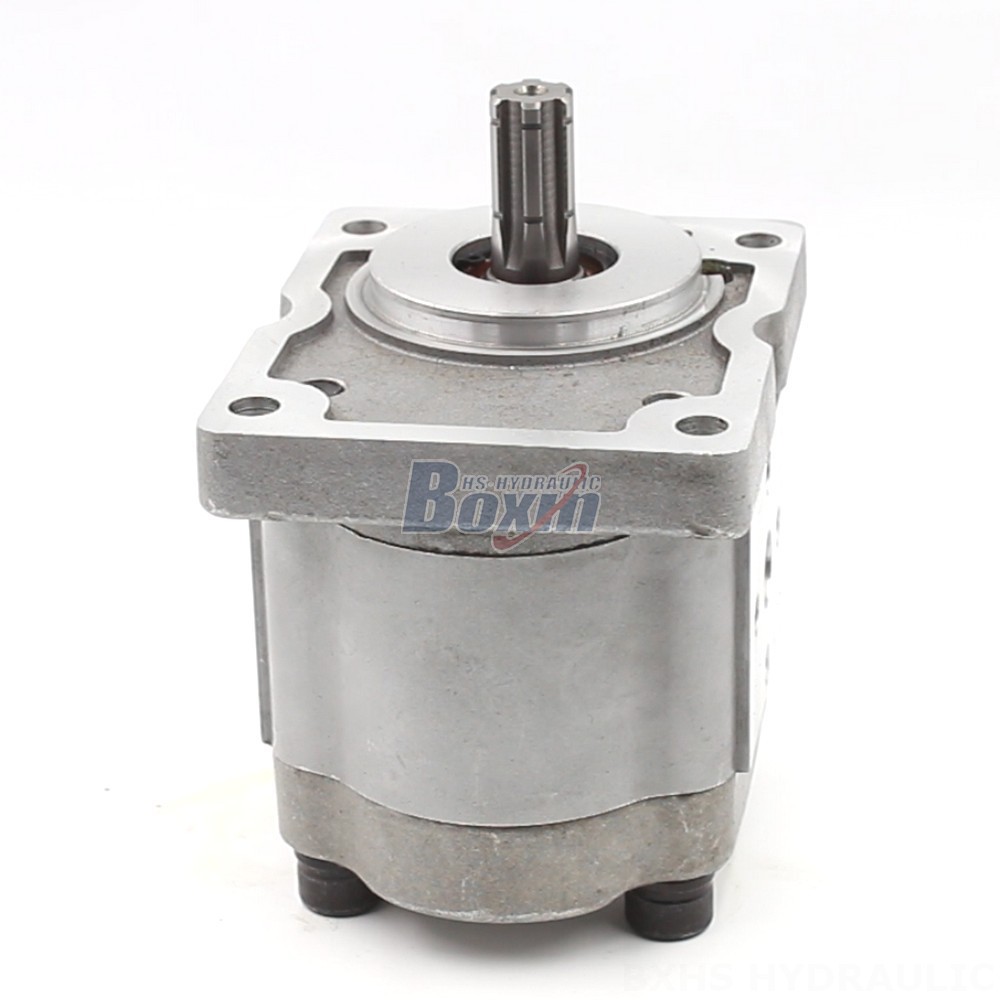

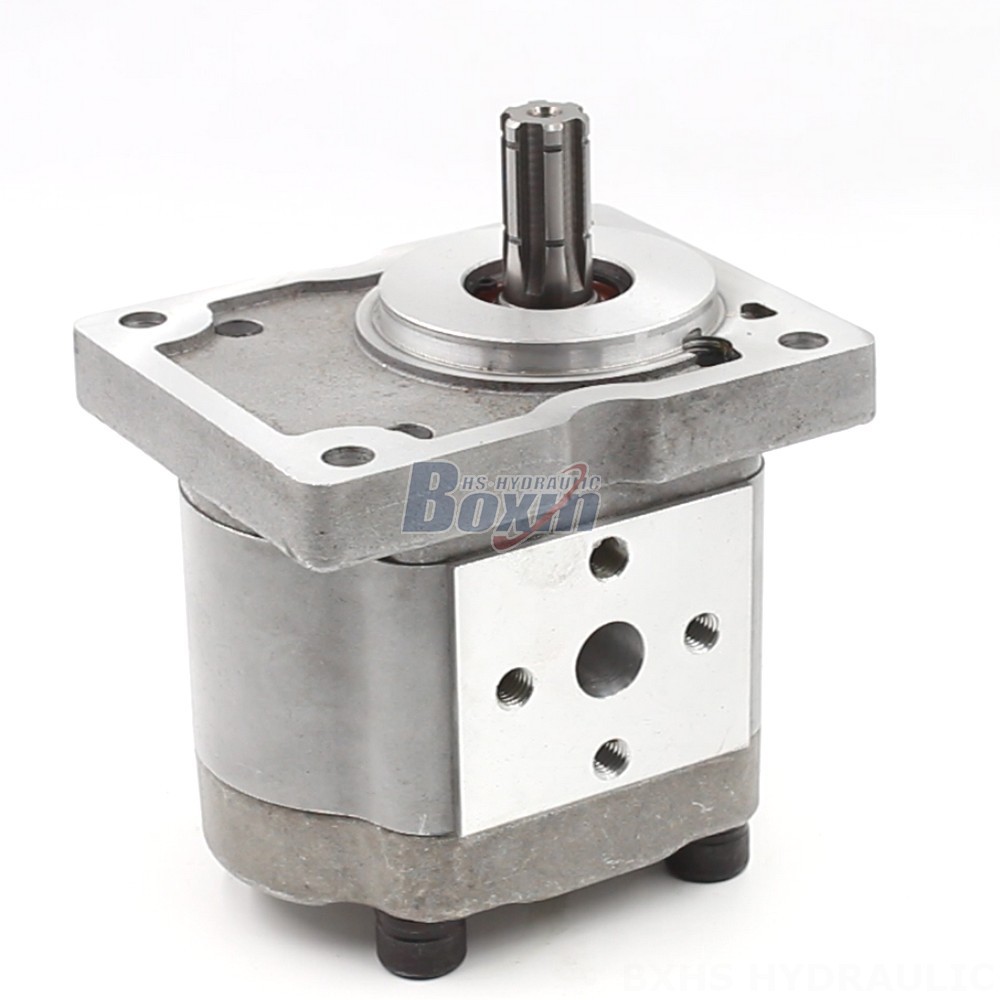

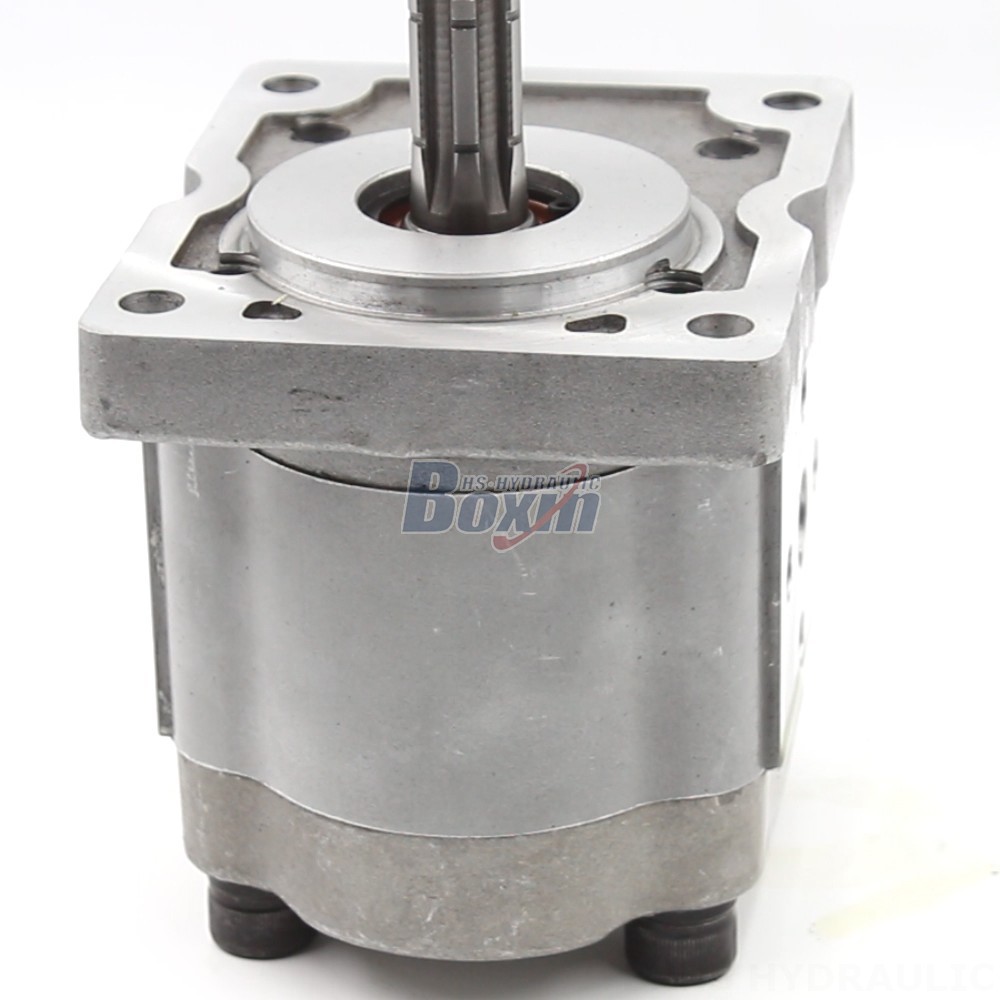

**10 cc/rev Hydraulic Gear Pump**
**Product Specifications:**
* Displacement: 10 cc/rev
* Rated Pressure: 18 MPa (2610 psi)
* Rated Speed: 2000 r/min
* Max Speed: 4200 r/min
* Rotation: Left (counter-clockwise)
* Structure: External Gear Pump
* Material: Aluminium
* Flange Version: B-Square Flange
* Shaft Type: Involute Spline
* Series: NSH Series
**Applications:**
* Material Handling
* Construction and Earth Moving
* Agriculture
* Industrial Vehicles
**Applicable Models:**
* Telehandler
* Forklift
* All Terrain Crane
* Stacker
* Aerial Platform
* Motor Grader
* Telehandler
* Midi-Excavator
* Mini-Excavator
* Skid Steer Loader
