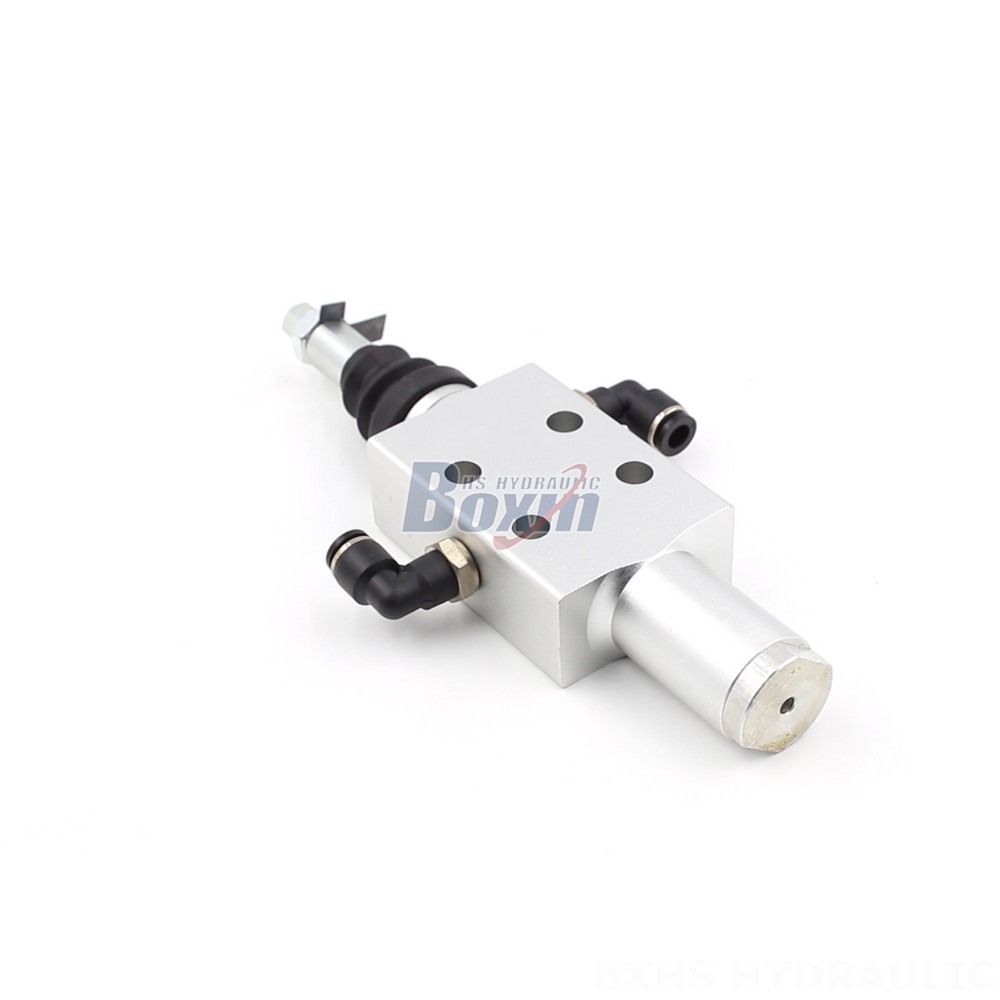

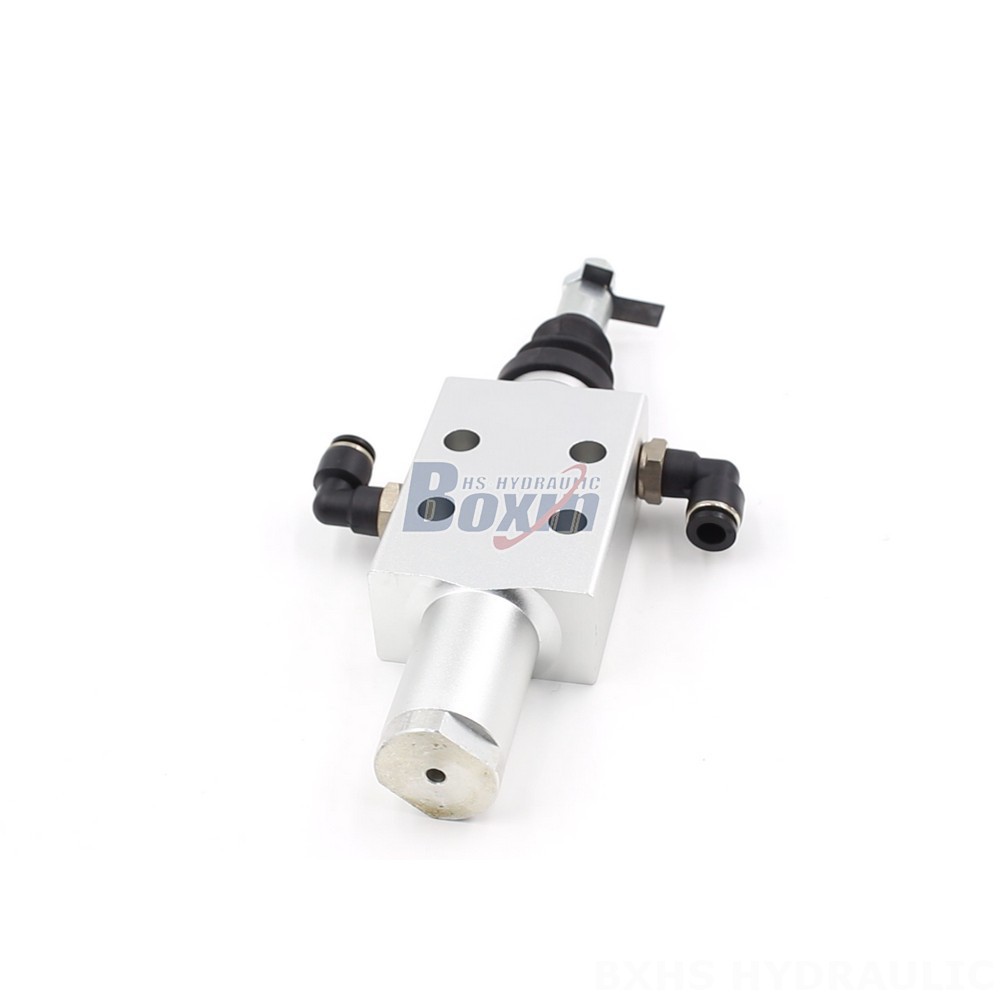

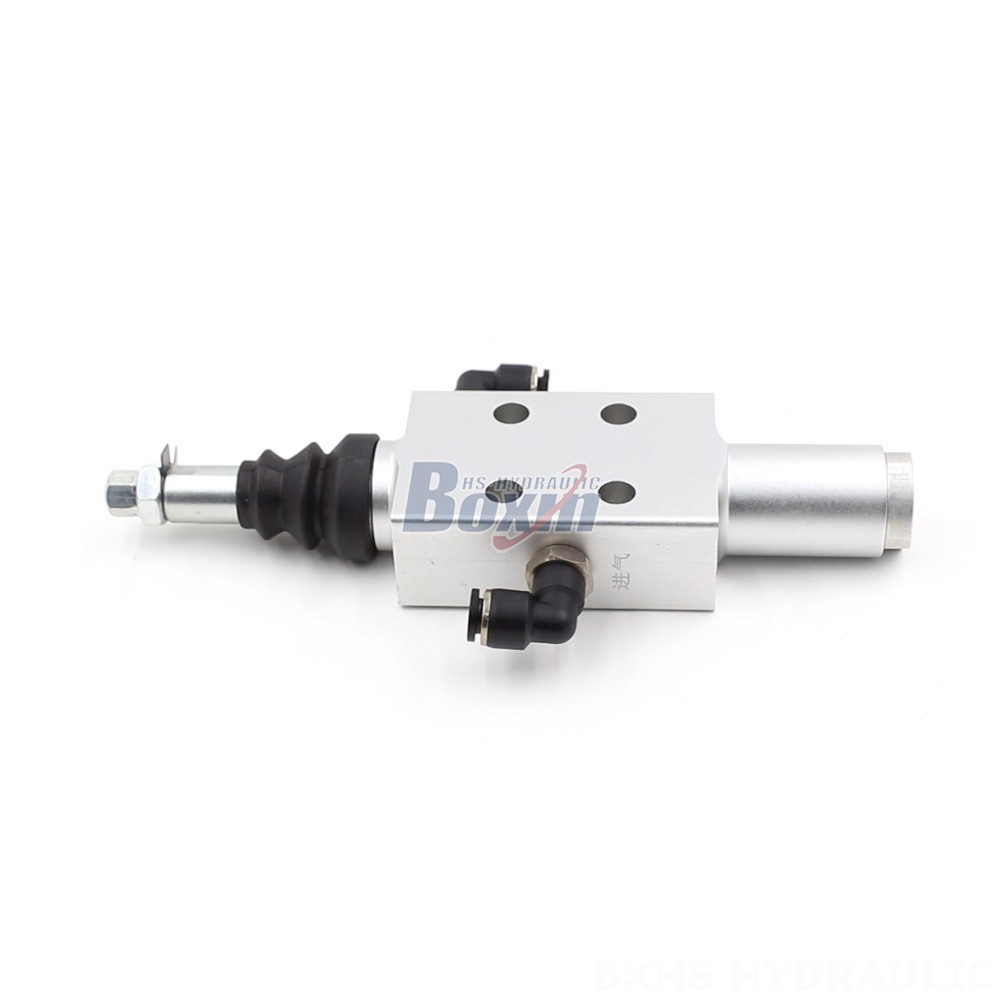

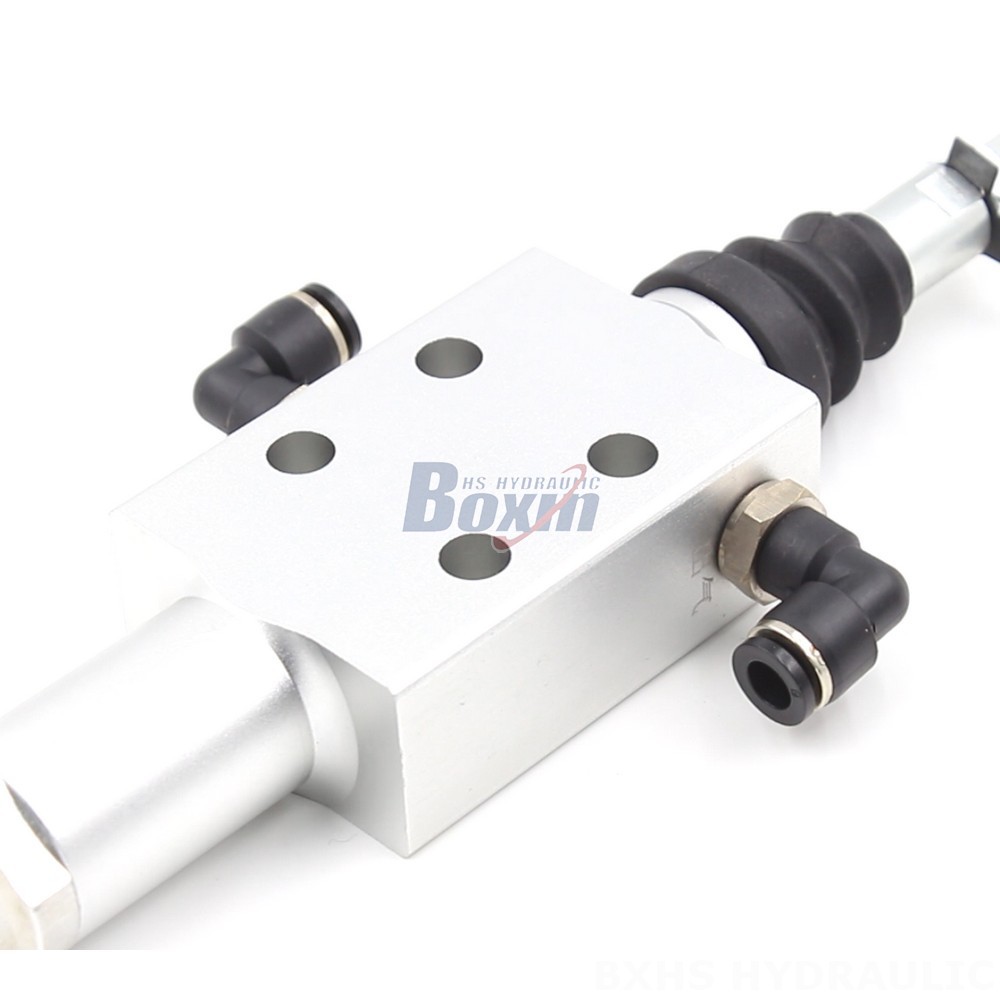

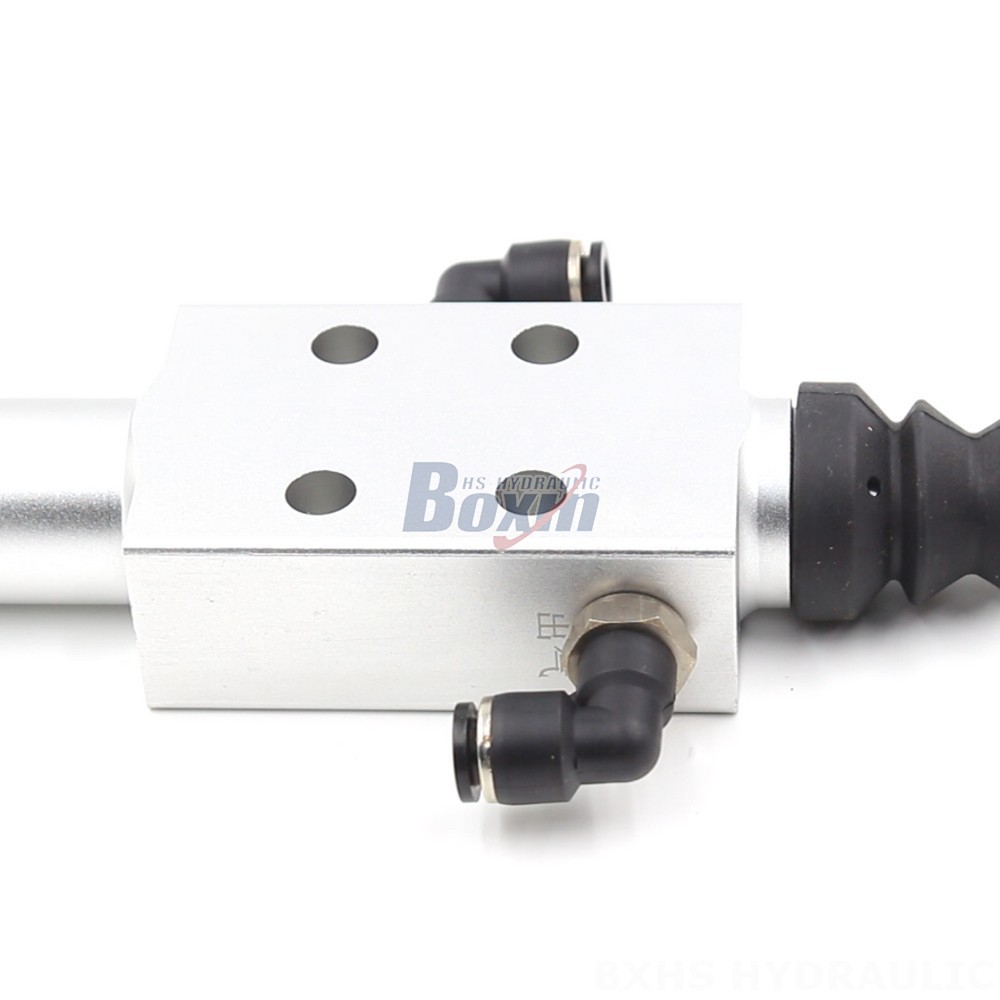

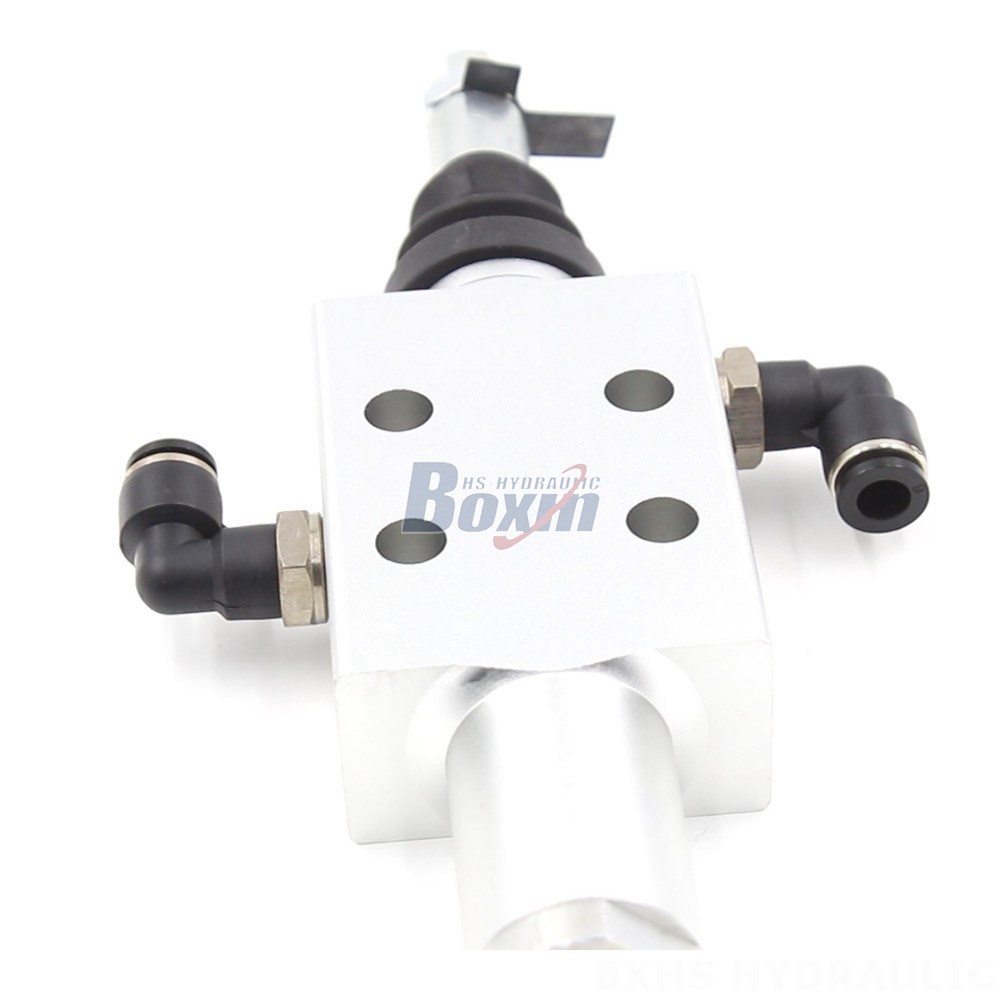

1 Spool Pneumatic Directional Valve | Reliable & Efficient Operation

制御方法:空圧

スプール:1スプール

定格流量:毎分40リットル (10.5 US gpm)

最大圧力:1 MPa (145 psi)

吸入口:G1/4

吐出口:G1/4

ポートサイズ:G1/4

ベンダー:BXHS

製品タイプ:モノブロック方向制御弁

製品シリーズ:XQF シリーズ モノブロック方向制御弁

梱包サイズ:22*15*12

総重量:0.50 kg

在庫状況: 在庫あり

1086 この製品を探している人もいます

1 Spool Pneumatic Directional Valve | Reliable & Efficient Operation

1 Spool Pneumatic Directional Valve | Reliable & Efficient Operation

1 Spool Pneumatic Directional Valve | Reliable & Efficient Operation drawing image

The XQF Series Hydraulic Valve Tractor 1 Spool Pneumatic Directional Valve is a reliable and efficient solution for various applications, including construction, material handling, and agriculture. It features a monoblock design, 1 spool, and a maximum pressure of 200 bar (2900 psi).

XQF シリーズ モノブロック方向制御弁 パラメーター
制御方法 空圧
スプール 1スプール
周囲温度範囲 -40°C to +60°C (-40°F to +140°F)
構造タイプ モノブロック弁
セクション 1セクション
作動粘度範囲 12 - 400 mm²/s (12 cSt to 400 cSt)
定格流量 毎分50リットル (13.2 US gpm)
最大圧力 200 bar (2900 psi)
吸入口 G1/4
吐出口 G1/4
ポートサイズ G1/4

This high-performance XQF Series Hydraulic Valve Tractor 1 Spool Pneumatic Directional Valve is designed for demanding applications in construction, material handling, and agriculture. Featuring a robust monoblock structure, it offers exceptional reliability and efficiency. Its pneumatic control provides precise and responsive operation. With a single spool configuration and a maximum pressure rating of 200 bar (2900 psi), this valve is capable of handling various hydraulic functions. Its wide operating viscosity range (12-400 mm²/s) ensures optimal performance across diverse environments. The valve is also built to withstand extreme temperatures, operating flawlessly between -40°C to +60°C (-40°F to +140°F). The XQF Series is designed for compatibility with various equipment, including forklifts, telehandlers, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, harvesters, and sprayers.
