1-Spool Hydraulic Valve | SD14 Model | Factory Direct & Customizable

制御方法:手動

スプール:1スプール

定格流量:120 L/分 (31.7 US gpm)

最大圧力:305 bar (4400 psi)

吸入口:G3/4

吐出口:G3/4

ポートサイズ:G3/4

ベンダー:BXHS

製品タイプ:モノブロック方向制御弁

製品シリーズ:SD14 シリーズ モノブロック方向制御弁

梱包サイズ:15*26*15

総重量:6.80 kg

在庫状況: 在庫あり

1088 この製品を探している人もいます

1-Spool Hydraulic Valve | SD14 Model | Factory Direct & Customizable

1-Spool Hydraulic Valve | SD14 Model | Factory Direct & Customizable

1-Spool Hydraulic Valve | SD14 Model | Factory Direct & Customizable drawing image

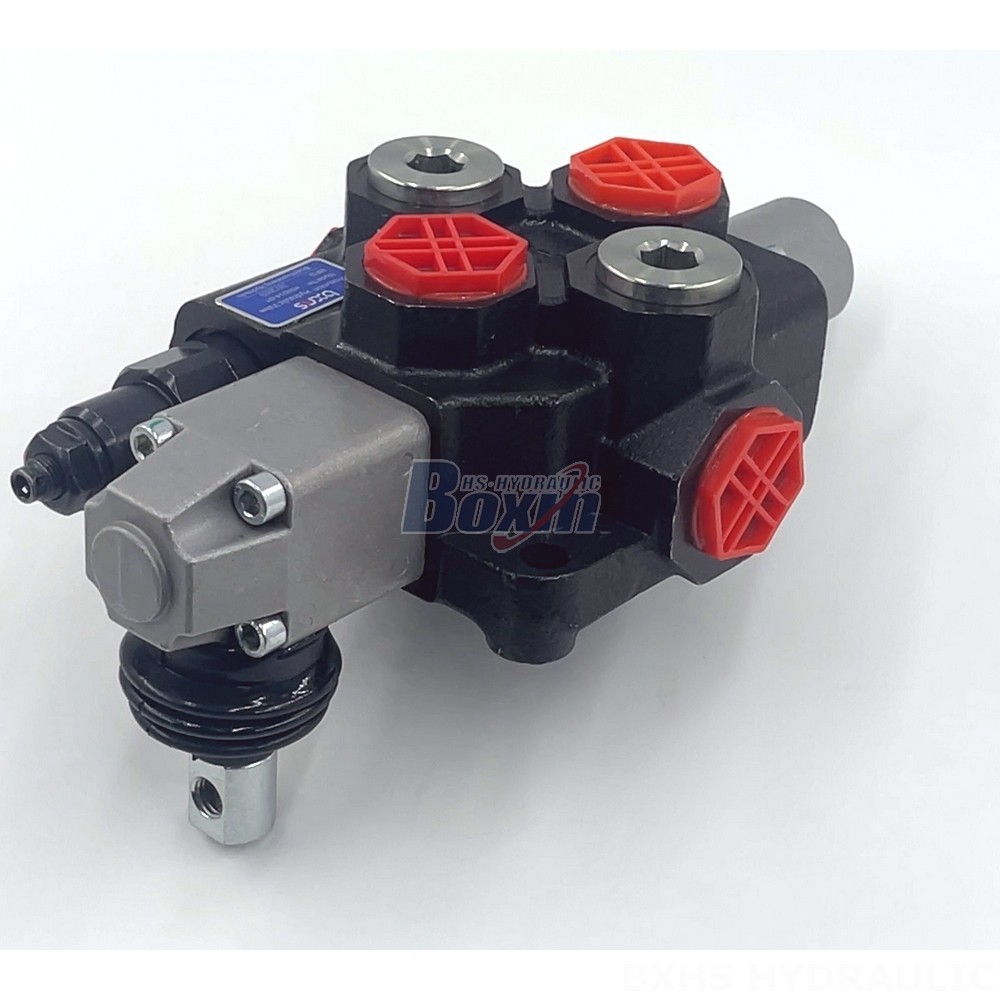

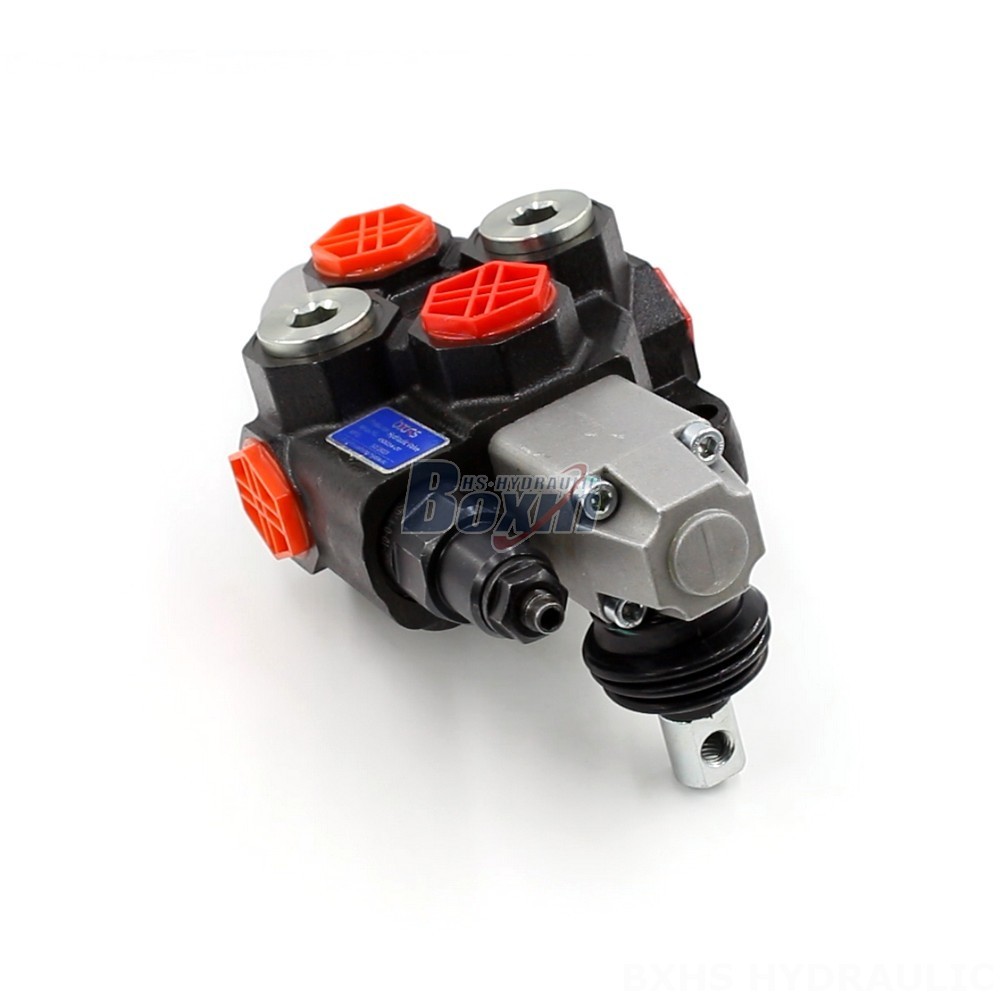

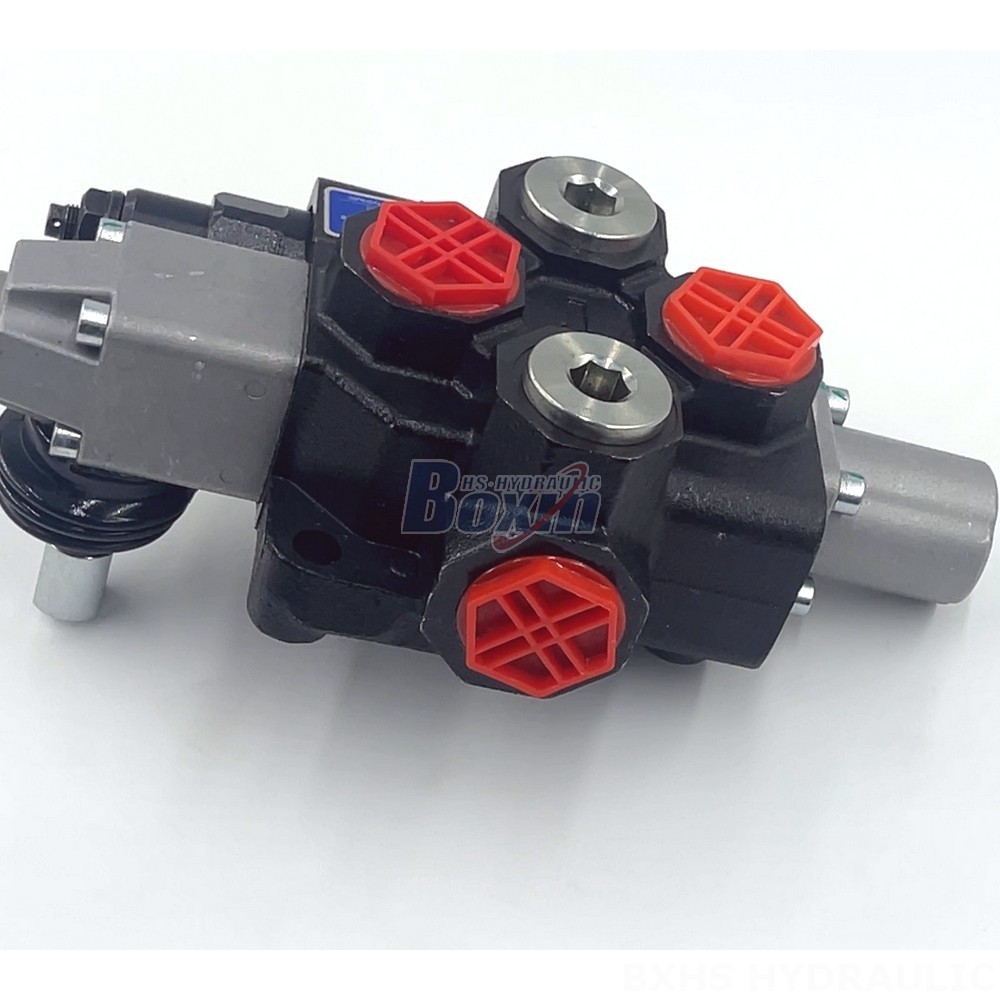

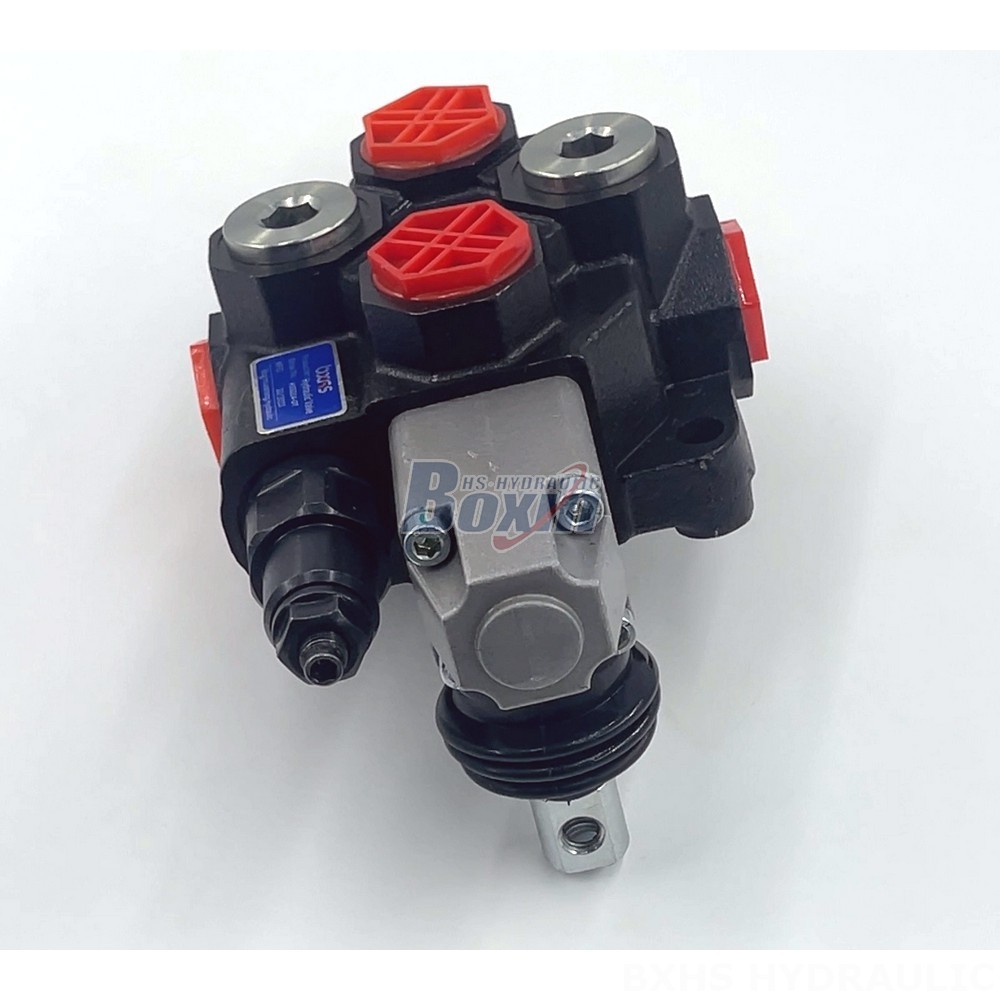

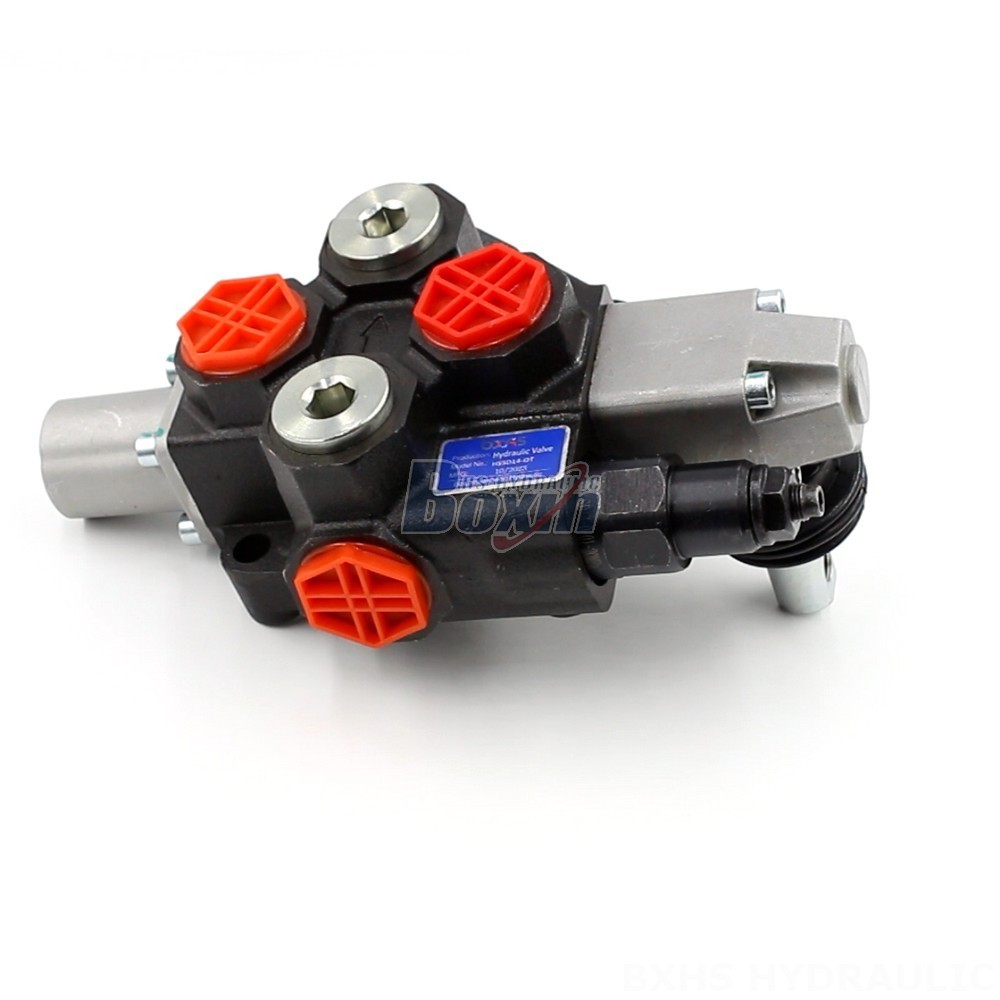

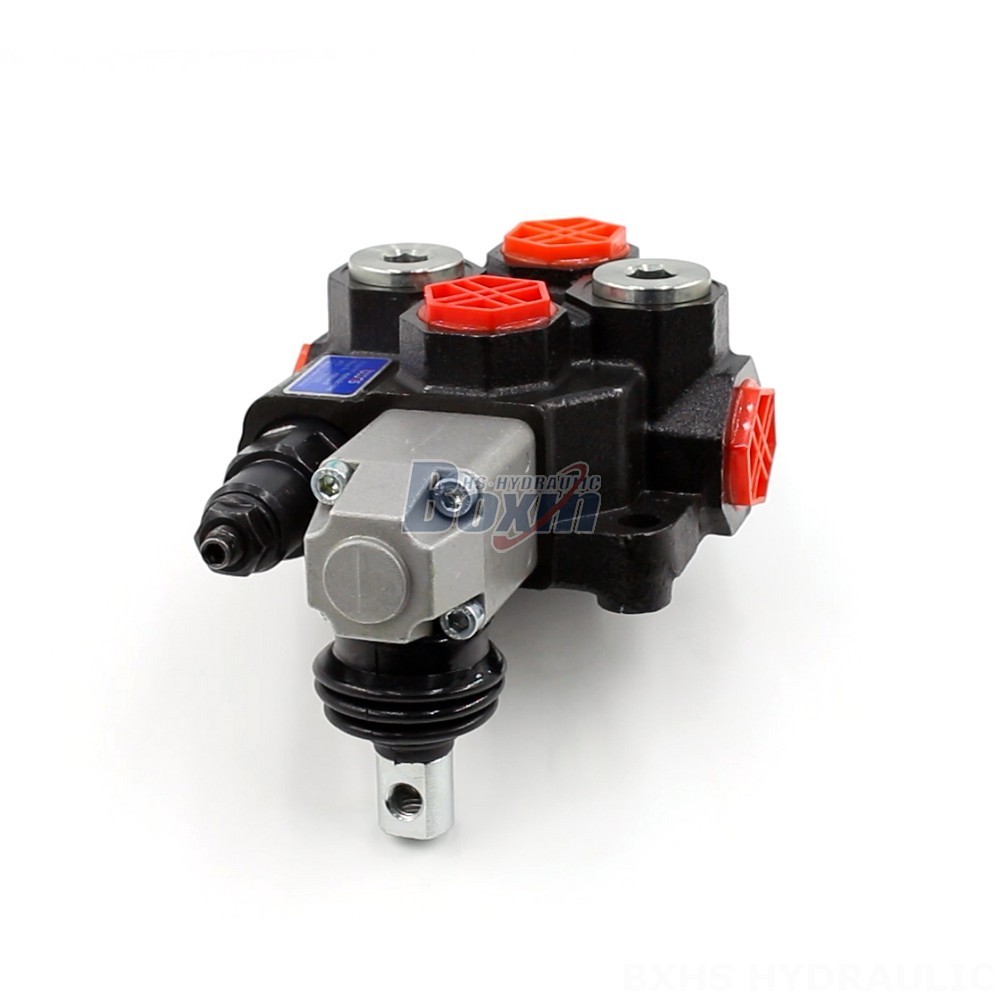

The SD14 Series Hydraulic Sectional Valve is a high-performance, 1-spool monoblock valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. Featuring manual control and a rated flow of 120 L/min (31.7 US gpm), this valve is ideal for telehandlers, forklifts, excavators, loaders, and other mobile equipment.

SD14 シリーズ モノブロック方向制御弁 パラメーター
制御方法 手動, 空圧, 油圧
スプール 1スプール
周囲温度範囲 -40°C to +60°C (-40°F to +140°F)
構造タイプ モノブロック弁
セクション 1セクション
作動粘度範囲 15 - 75 mm²/s (15 cSt to 75 cSt)
定格流量 120 L/分 (31.7 US gpm)
最大圧力 315 bar (4600 psi)
吸入口 G3/4
吐出口 G3/4
ポートサイズ G3/4

This SD14 Series Hydraulic Sectional Valve is a robust, reliable, and customizable solution for your hydraulic system needs. It features a monoblock construction for increased strength and durability. With a rated flow of 120 L/min (31.7 US gpm) and a maximum pressure of 315 bar (4600 psi), this valve delivers the power and performance you need for demanding applications. This valve is designed for a wide range of operating temperatures (-40°C to +60°C) and viscosities (15 - 75 mm²/s), ensuring reliable operation in various environments. Available directly from our factory, you can customize this valve to meet your specific requirements. Our SD14 Series Hydraulic Sectional Valve is suitable for a wide range of applications, including: Telehandlers, Forklifts, All Terrain Cranes, Stackers, Aerial Platforms, Motor Graders, Midi-Excavators, Mini-Excavators, Skid Steer Loaders, and Compact Wheel Loaders. Contact us today to discuss your specific needs and get a customized solution.
