What is the primary application of the 1 Spool Hydraulic Control Valve - Wholesale & OEM - Factory Direct?

The 1 Spool Hydraulic Control Valve - Wholesale & OEM - Factory Direct is designed for mobile hydraulic systems, agricultural machinery (such as tractors and harvesters), construction equipment (such as loaders and excavators), and industrial machinery. It ensures precise flow and directional control.

Is Boxinhuasheng a factory-direct manufacturer?

Yes, Boxinhuasheng (Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd.) is a factory-direct manufacturer established in 2001. We operate a 68,000m虏 facility with 4 modern manufacturing plants and 260+ production machines, supplying certified products directly to global customers.

What quality certifications do Boxinhuasheng products have?

All Boxinhuasheng directional control valves, gear pumps, and hydraulic accessories are CE certified, IATF 16949 compliant, and verified on-site by SGS, meeting international engineering standards.

Can Boxinhuasheng provide OEM/ODM customization services?

Yes, Boxinhuasheng has a team of 35 senior hydraulic engineers providing custom OEM manufacturing, ODM development, private labeling, and customized hydraulic system solutions tailored to specific operating pressures and flows.

What is the warranty and shipping lead time?

We offer a 1-year warranty with free replacement for any quality defects. Standard express delivery is within 30 days, supported by our robust annual capacity of 1.5 million hydraulic units and export experience to 80+ countries.

1 Spool Hydraulic Control Valve - Wholesale & OEM - Factory Direct

Name: 1 Spool Hydraulic Control Valve - Wholesale & OEM - Factory Direct
Brand: Boxinhuasheng
SKU: BXHS-56565
Availability: InStock

イノベーションが開発を推進し、テクノロジーが未来を築きます

ホームティッピングバルブQFCK-F20L シリーズ製品詳細

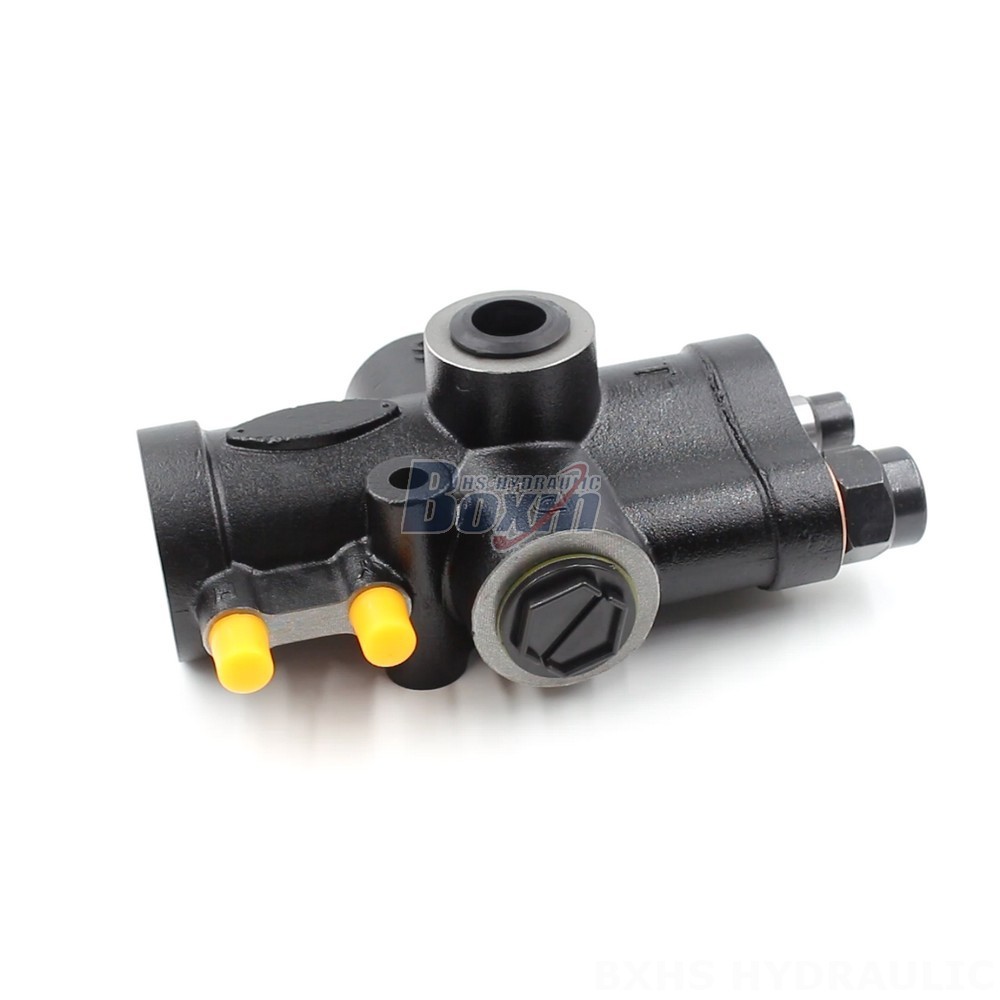

1 Spool Hydraulic Control Valve - Wholesale & OEM - Factory Direct cover photo

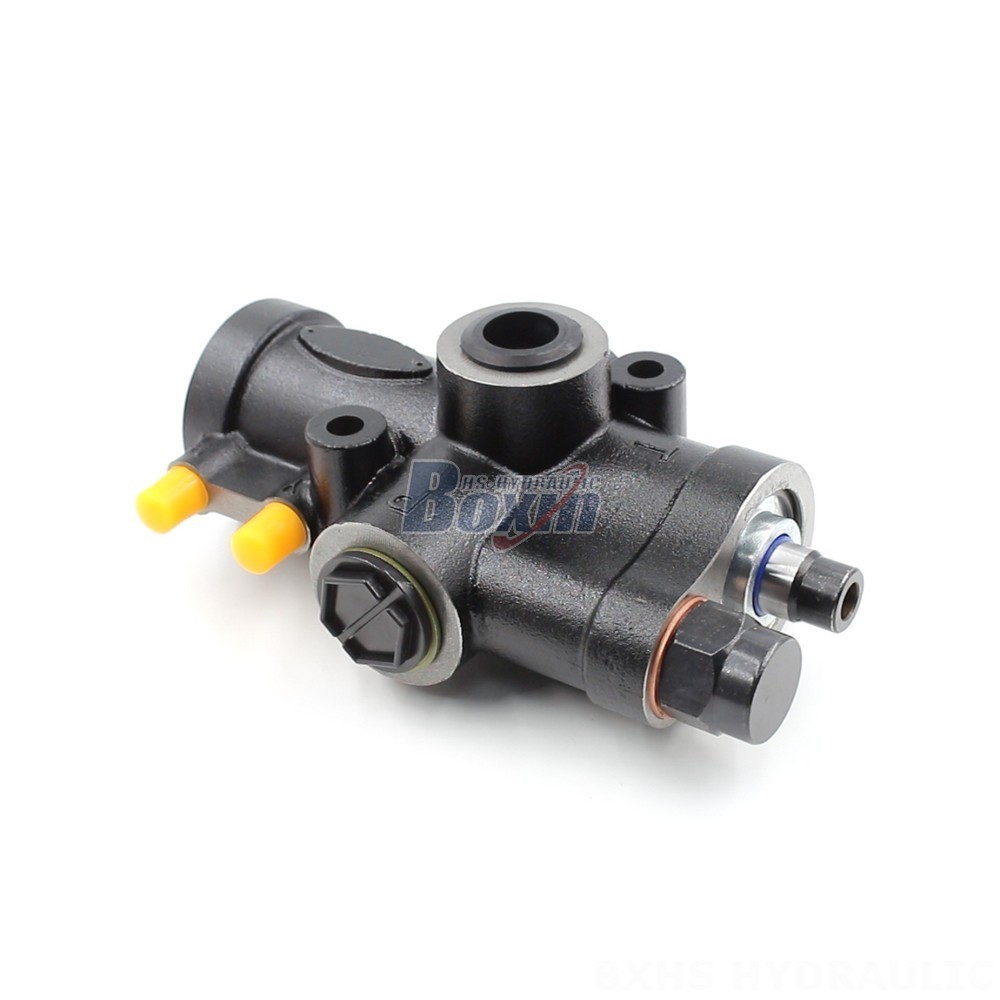

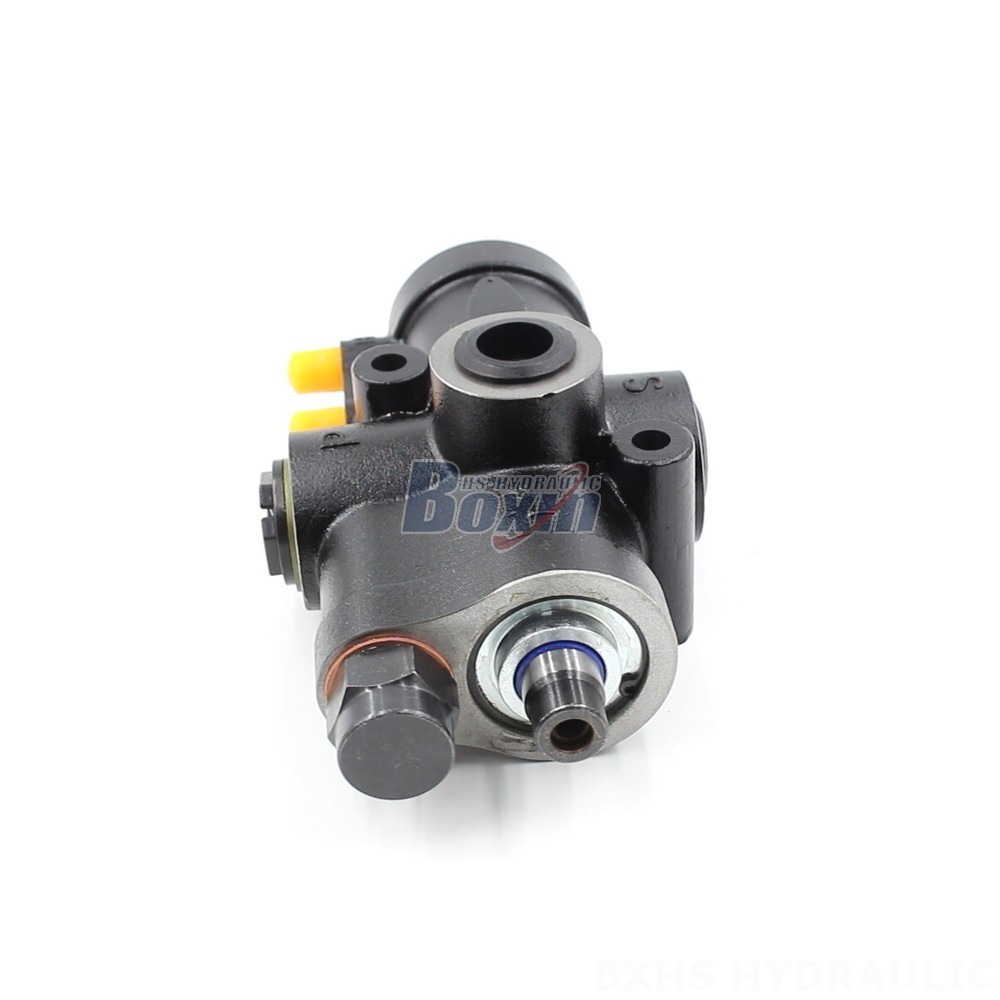

1 Spool Hydraulic Control Valve - Wholesale & OEM - Factory Direct main image

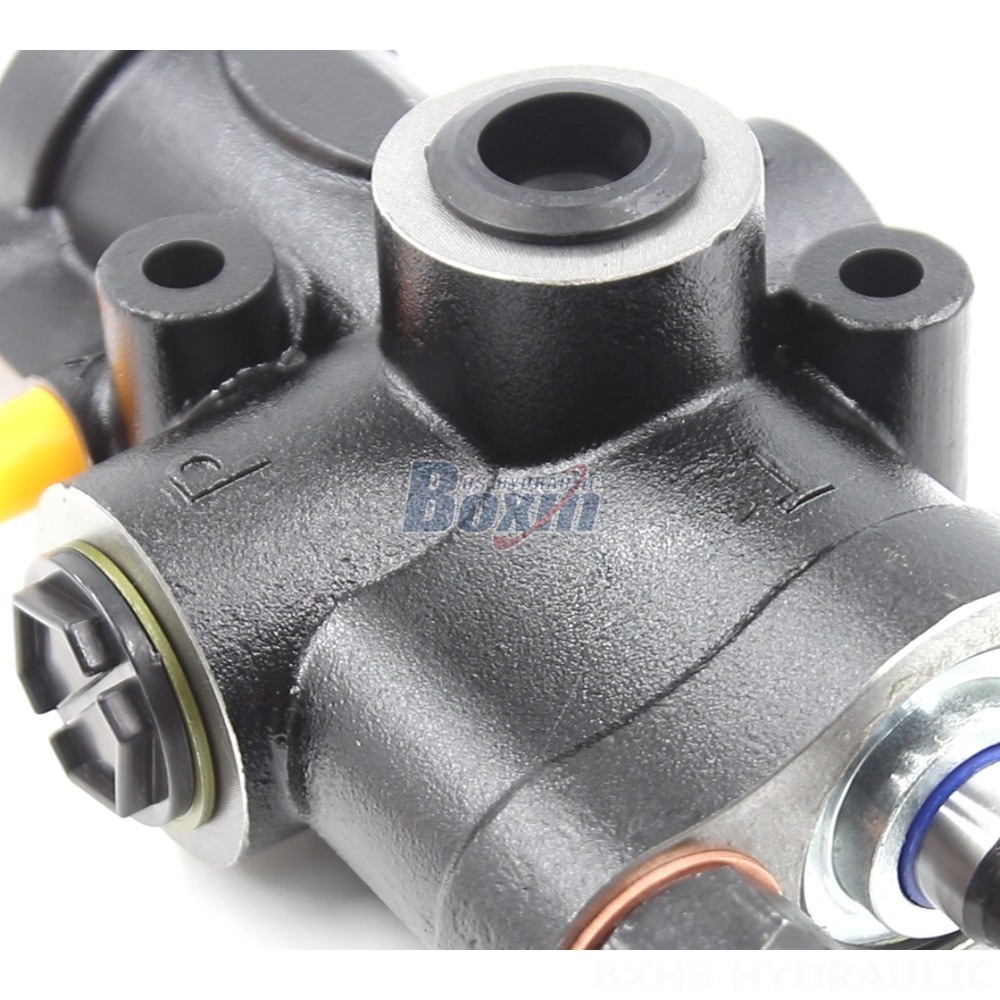

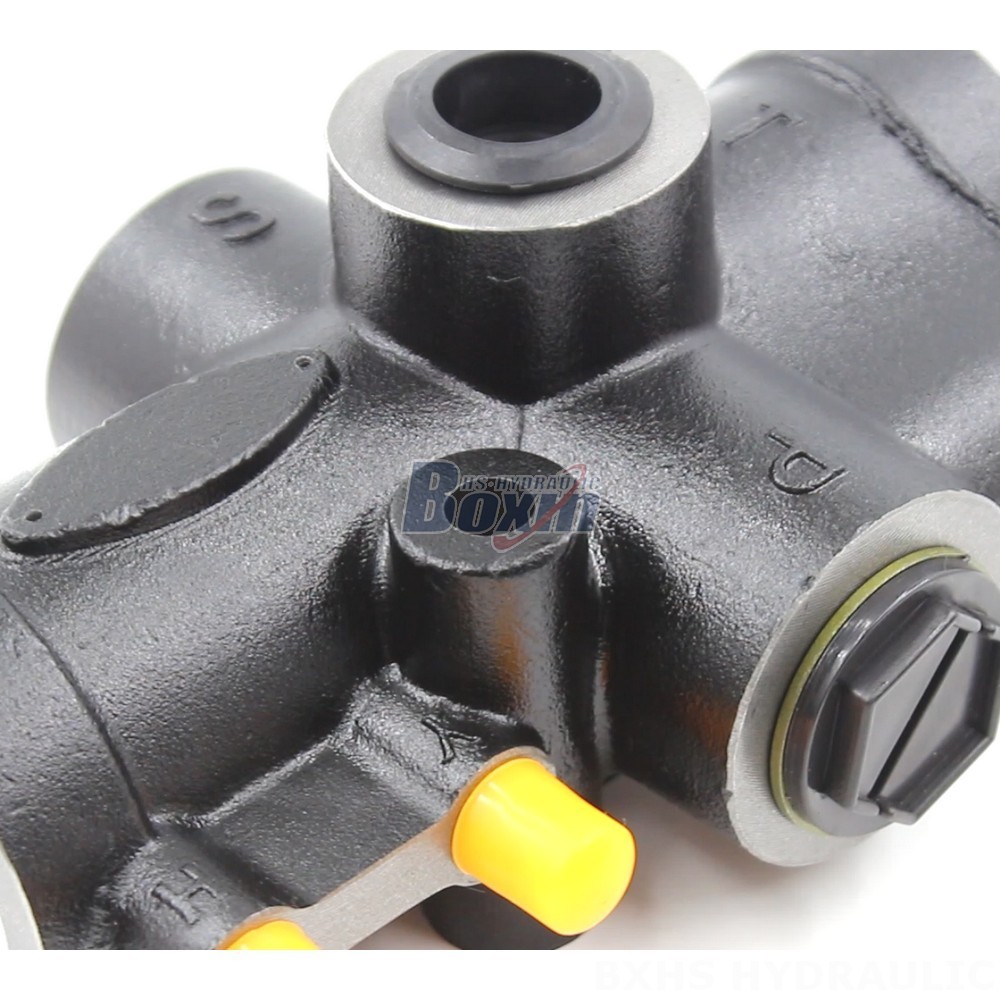

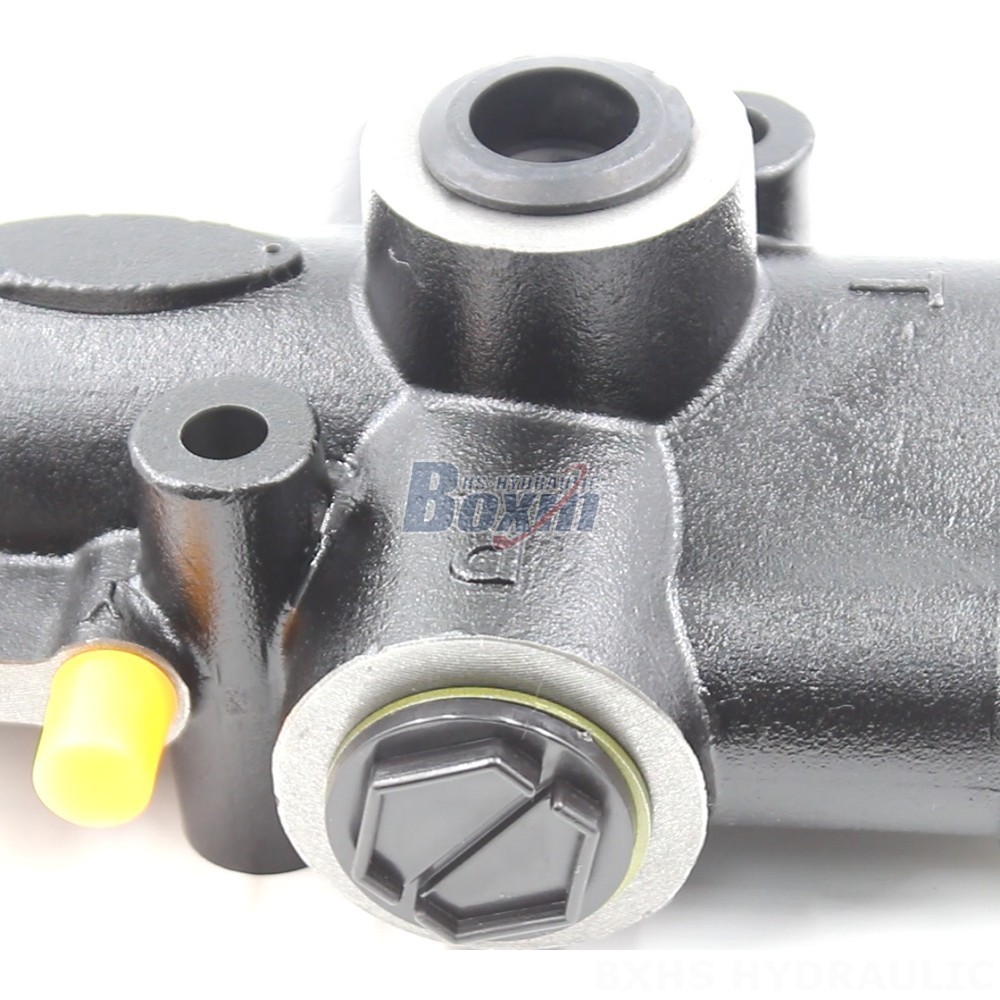

1 Spool Hydraulic Control Valve - Wholesale & OEM - Factory Direct detail image

1 Spool Hydraulic Control Valve - Wholesale & OEM - Factory Direct

制御方法:空圧

スプール:1スプール

定格流量:毎分150リットル (39.6 US gpm)

最大圧力:230 bar (3300 psi)

吸入口:G3/4

吐出口:G3/4

ポートサイズ:G1/4

ベンダー:BXHS

製品タイプ:ティッピングバルブ

製品シリーズ:QFCK-F20L シリーズティッピングバルブ

梱包サイズ:25*20*14

総重量:6.50 kg

在庫状況: 在庫あり

お問い合わせ

945 この製品を探している人もいます

1 Spool Hydraulic Control Valve - Wholesale & OEM - Factory Direct

1 Spool Hydraulic Control Valve - Wholesale & OEM - Factory Direct drawing image

This multi-way directional valve with a single spool is a robust and reliable hydraulic control solution for a wide range of construction and industrial applications. It is designed for high-flow operations and features pneumatic control for precise operation.

QFCK-F20L シリーズティッピングバルブパラメーター
制御方法	空圧
スプール	1スプール
周囲温度範囲	-40°C to +80°C (-40°F to +176°F)
構造タイプ	モノブロック弁
セクション	1セクション
作動粘度範囲	15 - 75 mm²/s (15 cSt to 75 cSt)
定格流量	毎分150リットル (39.6 US gpm)
最大圧力	210 bar (3045 psi)
吸入口	G3/4
吐出口	G1
ポートサイズ	G3/4, G1, G1/4

This QFCK-F20L series multi-way directional valve is a single-spool, monoblock valve designed for heavy-duty applications in the construction, agriculture, and industrial vehicle sectors. With a rated flow of 140 L/min and a maximum pressure of 210 bar, this valve is ideal for powering telehandlers, forklifts, excavators, skid steer loaders, wheel loaders, backhoe loaders, dumpers, tractors, and harvesters. It offers pneumatic control for precise actuation and operates effectively in a wide range of ambient temperatures, making it a versatile choice for demanding environments.
